INSTRUMENTS and CONTROLS

OPERATION WARNING LIGHTS

A permanently lit warning light or

one that l ashes with the engine

running, indicates an operating fault

in the relevant unit. Some warning

lights may be linked to buzzers and

a message on the multi-function

display. Do not ignore this warning:

contact a PEUGEOT dealer as soon

as possible.

If the Central STOP warning light

comes on when you are driving,

stop immediately where it is safe

to do so.

  Central STOP
warning light
This  light  comes  on
for  a  few  seconds
each  time  the  igni-
tion is switched on.

It  is  linked  to  the  "engine  oil  pres-
sure" * ,  "low  brake  fluid  level"  and
"electronic  brake  force  distribution
fault"  warning  lights  and  the  coolant
temperature gauge.

Stop immediately if it l ashes with

the engine running.
Contact a PEUGEOT dealer.
It  also  comes  on  in  the  event  of  a
puncture,accompanied by an audible
signal  and  a  message  on  the  multi-
function  display  locating  the  wheel
concerned.

  Service warning light
This  light  comes  on  for  a
few  seconds  each  time
the  ignition  is  switched  on.
If  it  remains  on  or  comes

on  when  the  engine  is  running,  ac-
companied by an audible signal and
a  message  on  the  multifunction  dis-
play, it indicates one of the following:
   -

a battery charge fault * ,

an automatic gearbox operation
fault,

an engine immobiliser system
fault,

an engine management system
fault,

a speed control system fault
(cruise control/speed limiter),

a rear parking assistance system
fault,

an automatic switching on of the
lights system fault,

an automatic headlamp height
adjustment system fault,

- a tyre under-inl ation detection

system fault,

- a del ated wheel,

- a l at remote control battery,
-

one or more door(s) open at
a vehicle speed above 6 mph
(10 km/h),

a low diesel additive reservoir
level (Diesel),

a lack of engine oil,

the start of saturation of the par-

ticle emission i lter (Diesel) due

to exceptionally prolonged urban
driving conditions: low speed,

long trafi c jams, ...

In order to regenerate the i l-

ter, you are advised to drive at
a speed of 40 mph (60 km/h) or

above for at least i ve minutes

(until the warning light is switched
off) as soon as possible, when

trafi c conditions permit. If the

warning light remains on, contact
a PEUGEOT dealer.

During regeneration of the par-

ticle emission i lter, relay noise

may be heard from underneath
the fascia.

the presence of water in the diesel

i lter (Diesel) * .

Risk of damage to the injection

system.

Contact a PEUGEOT dealer as
soon as possible.

a low coolant level ** .

  Stop immediately.
  Warning:  wait for the engine to cool
before topping up the level. The cool-
ing system is pressurised.
In order to avoid any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop. When the pres-
sure  has  dropped,  remove  the  cap
and top up the level.
Contact a PEUGEOT dealer.

** According to engine.

* According to country.

INSTRUMENTS and CONTROLS

Electronic stability

programme (ESP/ASR)
warning light
This comes on for a few
seconds each time the igni-
tion is switched on.

If  the  light  remains  on  or  comes  on
when  the  engine  is  running  and  the
vehicle is moving, it is accompanied
by an audible signal and a message
on  the  multifunction  display;  contact
a PEUGEOT dealer.
When the engine is running and the

vehicle is moving, it l ashes if the

system is activated.
It is lit continuously when the system
is disarmed.

Emission control system

warning light
This comes on each time
the ignition is switched on.

It should switch off a few seconds af-
ter the engine is started.
If  the  light  comes  on  when  the  en-
gine  is  running,accompanied  by  an
audible signal and a message on the
multifunction  display,this  indicates  a
malfunction  of  the  emission  control
system.
Contact a PEUGEOT dealer as soon
as possible.

Handbrake, low

brake l uid level and

electronic brake force

distribution fault

warning light

Linked to the central STOP warning
light.
This comes on for a few seconds each
time the ignition is switched on.
Illumination of this light is accompanied
by an audible signal and a message on
the multifunction display indicating:
-

that the handbrake is applied or
has not been released correctly,

an excessive drop in the brake

l uid level (if the light remains

on even with the handbrake re-
leased),

a  malfunction  of  the  electronic
brake  force  distribution,  if  linked
to the ABS warning light.

Stop immediately in the last two
cases.
Contact a PEUGEOT dealer.

Anti-lock braking

system (ABS) warning

light
This light comes on for a
few seconds each time the
ignition is switched on.

If  it  remains  on  or  comes  on  above
8 mph (12 km/h),this indicates a mal-
function of the ABS.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination  of  this  light  is  accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Contact a PEUGEOT dealer.

Seat belt unfastened/not

fastened warning

light
When the ignition is switched
on, the light comes on if the

driver has not fastened his seat belt.
With  the  engine  running  and  the
doors  closed,  the  light  switches  off
automatically after 30 seconds.
If the seat belt is unfastened:
   -

below 12 mph (20 km/h), the light
comes on continuously,

above 12 mph (20 km/h) and for

two minutes, the light l ashes

accompanied  by  an  audible  sig-
nal  of  increasing  volume.  Once
these  two  minutes  have  elapsed,
the light remains on until the driver
fastens his seat belt.

INSTRUMENTS and CONTROLS

Engine oil pressure

warning light *
Linked to the central STOP
warning light.

If  it  comes  on  with  the  engine  run-
ning, it is accompanied by an audible
signal  and  a  message  on  the  multi-
function display.
  Stop immediately.
If there is a lack of oil in the lubrica-
tion circuit, top up the level.
Contact a PEUGEOT dealer without
delay.

  Battery charge warning
light *
This  comes  on  for  a  few
seconds each time the igni-
tion is switched on.

If  it  comes  on  with  the  engine  run-
ning, it is accompanied by an audible
signal  and  a  message  on  the  multi-
function display.
According  to  country,  this  warning
light may be replaced by the service
warning light.
It can indicate:
   -

faulty operation of the charging
circuit,

loose battery or starter terminals,

a cut or slack alternator belt,

an alternator fault.

Contact a PEUGEOT dealer.

Low fuel level

warning light
This  comes  on  for  a
few  seconds  each
time  the  ignition  is
switched on.

When this light comes on with the en-
gine running, it is accompanied by an
audible signal and a message on the
multifunction display.
When the warning light comes on, you
have enough fuel left to drive approxi-
mately

30 miles (50 km) . The tank

capacity is approximately 60 litres.

Passenger air bag

disarmed indicator light *
This comes on for a few
seconds each time the igni-
tion is switched on.

If the passenger air bag is disarmed,
the indicator light remains on.
In all cases, if the indicator light l ashes,

contact a PEUGEOT dealer.

Diesel pre-heat

light
This comes on for a few
seconds each time the igni-
tion is switched on.

Wait until it goes out before trying the
starter.

Engine oil pressure warning *
Linked  to  the  central   STOP   warning
light.
When the engine is running, the en-
gine oil pressure warning message is
accompanied by an audible signal.
  Stop immediately.
If there is a lack of oil in the lubrica-
tion circuit, top up the level.
Contact a PEUGEOT dealer as soon
as possible.

Air bag warning light
This comes on for a few
seconds each time the igni-
tion is switched on.

Illumination  of  this  warning  light,  with
the engine running, is accompanied by
an  audible  signal  and  a  message  on
the multifunction display indicating:
   -

a fault in the front air bags,

or
-

a fault in the side air bags or cur-
tain air bags.

Contact a PEUGEOT dealer.

* According to country.

INSTRUMENTS and CONTROLS

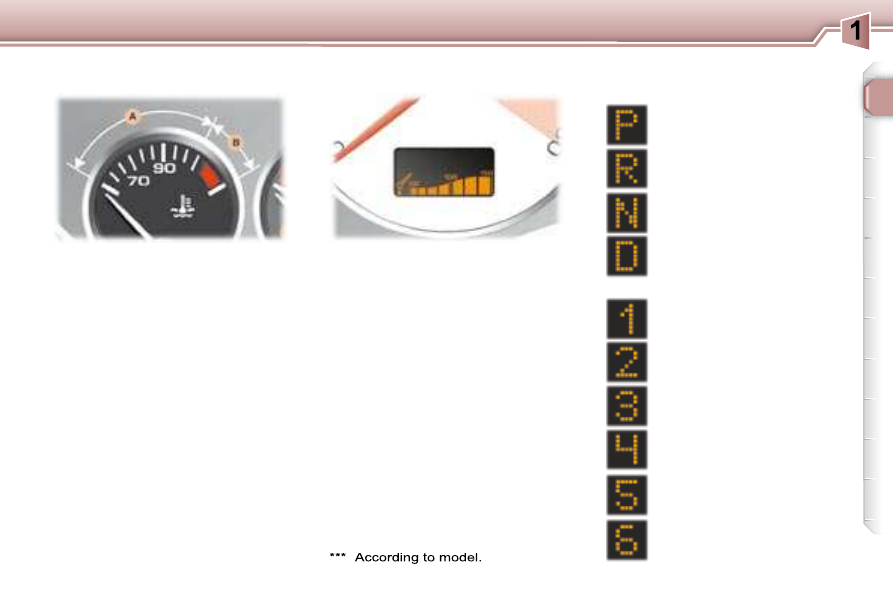

Coolant temperature
indicator

Engine oil temperature
gauge

  When  the  needle  is  in  zone   A,   the
temperature is correct.
When  the  needle  is  in  zone   B ,  the
temperature  is  too  high.  The  central
STOP

warning light l ashes, accom-

panied by an audible signal and a
message on the multifunction display.

You must stop immediately.
  Warning:  wait for the engine to cool
before topping up the level.
The cooling system is pressurised.
In order to avoid any risk of scalding,
unscrew  the  cap  two  turns  to  allow
the pressure to drop.
When  the  pressure  has  dropped,
remove the cap and top up the level.
Contact a PEUGEOT dealer.

When the engine is running, this indi-
cates the oil temperature.
The temperature is too high if the
maximum graduation is reached.

You must stop immediately.
Contact a PEUGEOT dealer.

Park

Automatic gearbox lever

positions indicator

Reverse

Neutral

Drive

Manual mode:

1 st gear engaged

2 nd gear engaged

3 rd gear engaged

4 th gear engaged

5 th gear *** engaged

6 th gear*** engaged

INSTRUMENTS and CONTROLS

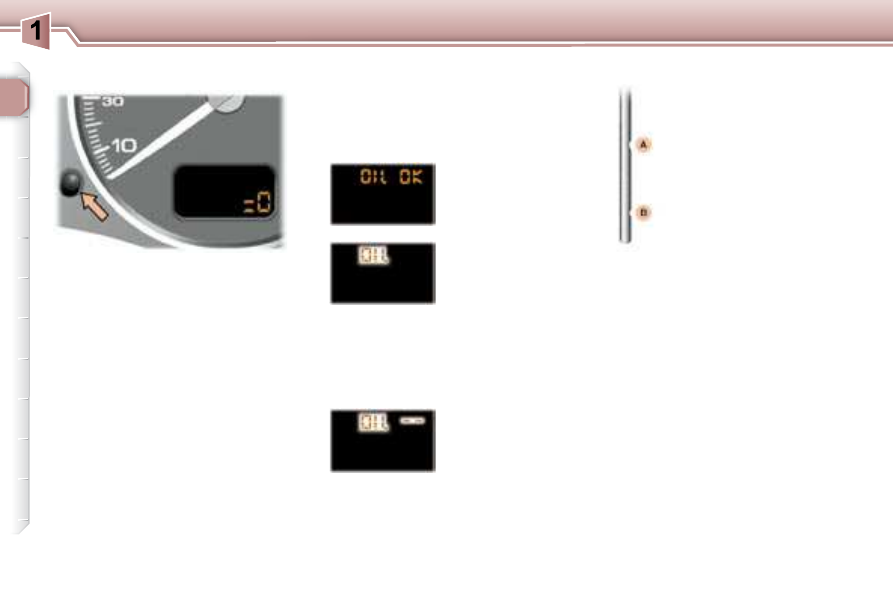

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator,

total distance recorder (total and
trip distances).

  Note : the total and trip distances are
displayed  for  30  seconds  when  the
ignition  is  switched  off,  on  opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.
It also displays the information relat-
ing to the cruise control or speed lim-
iter, when either of these is activated
(see corresponding section).

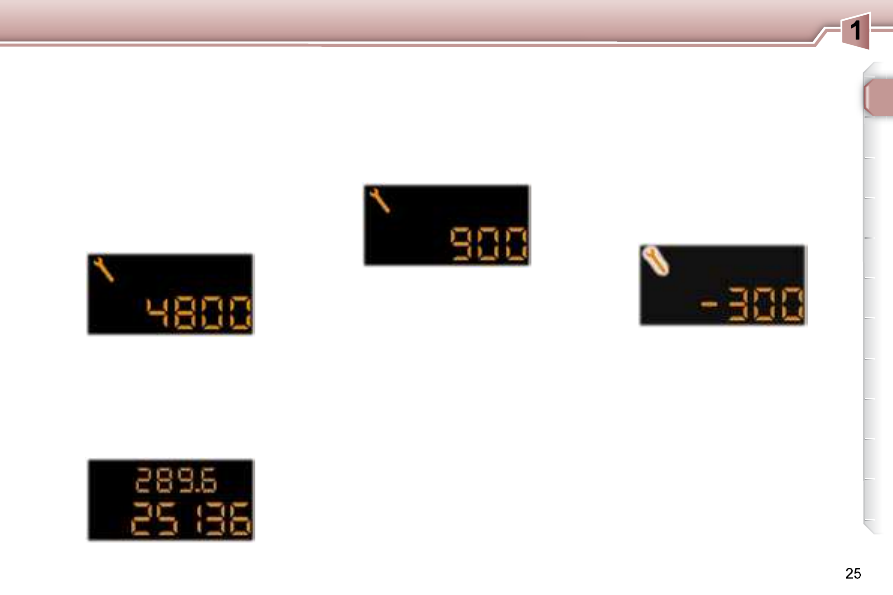

Service indicator

This indicates when the next service
is due in accordance with the manu-
facturer's servicing schedule.
The  point  at  which  the  next  service
is due is calculated from the last indi-
cator  zero  reset  (see  corresponding
section). It is determined by two pa-
rameters:
   -

the distance travelled,

the time which has elapsed since
the last service.

Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er's driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear
engaged is displayed

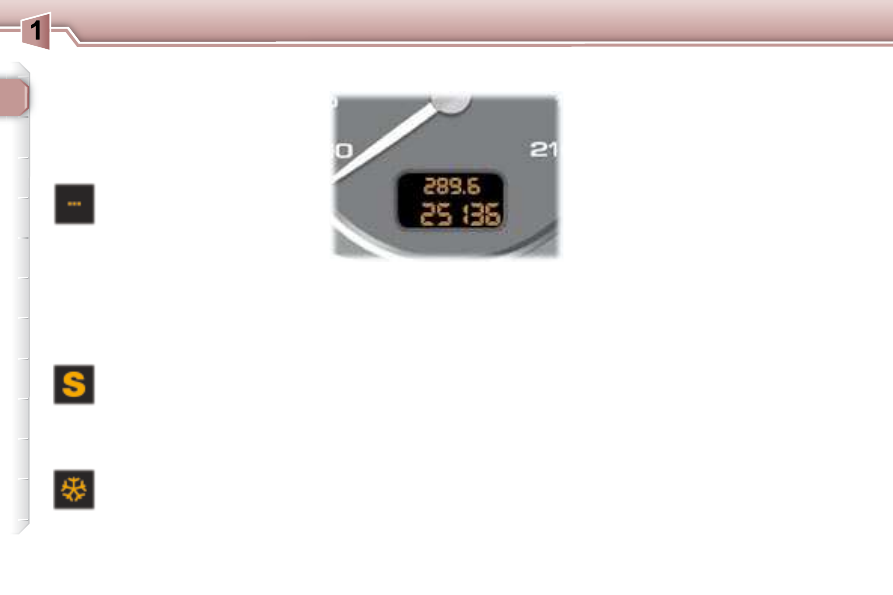

This  comes  on  when  the
"SPORT"  programme  on
the  automatic  gearbox  is
selected.

This  comes  on  when  the
"SNOW"  programme  on  the
automatic gearbox is selected.

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is
not engaged correctly (selec-
tor between two positions).

"SPORT" indicator light

Invalid value during manual
operation

INSTRUMENTS and CONTROLS

   Operation
For  5  seconds  after  the  ignition  is
switched  on,  the  spanner  symbolis-
ing  the  servicing  operations  comes
on; the distance recorder display indi-
cates the number of miles [kilometres]
(rounded off) remaining until the next
service.

Example: 4,800 miles/km remain be-

fore the next service. For i ve seconds

after the ignition is switched on, the
display indicates:

5 seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and
the display indicates the total and trip
distance.

The service is overdue.

The spanner l ashes for 5 seconds

after the ignition is switched on.

Example: the service is overdue by

300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:

5 seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes its normal operation and the
spanner remains lit. The display indi-
cates the total and trip distance.
  Note:  the spanner may also come on
if more than two years have elapsed
since the last service.

The distance remaining to the

next service is less than 500 miles

(1,000 km).

Example: 400 miles (900 km) remain

before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:

5  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and

the spanner remains lit .
It  indicates  that  a  service  must  be
carried  out  soon.  The  display  indi-
cates the total and trip distance.

INSTRUMENTS and CONTROLS

Your  PEUGEOT  dealer  carries  out
this operation after each service.
However, if you carry out the service
yourself,  the  re-set  procedure  is  as
follows:
   

Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.
When  the  display  shows   "=0" ,  re-
lease the button; the spanner disap-
pears.
  Important:  after this operation, if you
wish  to  disconnect  the  battery,  lock

the vehicle and wait for at least i ve

minutes, otherwise the zero re-set
will not be registered.

Engine oil level
indicator

When  the  ignition  is  switched  on,  the
engine  oil  level  is  indicated  for  a  few
seconds, after the service information.

Oil level correct

Oil level gauge fault

Flashing of

"OIL--"

indicates a malfunc-
tion of the engine
oil level gauge.

Contact a PEUGEOT dealer.

The level read will only be correct

if the vehicle is on level ground

and the engine has been off for

more than 15 minutes.

Flashing  of   "OIL" ,
linked  with  the  ser-
vice  warning  light,
accompanied by an
audible  signal  and
a  message  on  the

multifunction display, indicates a lack
of oil which could damage the engine.
If the lack of oil is coni rmed by a

check using the dipstick, it is essen-
tial that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the
dipstick:
- never exceed level A,
- in position B, top up

the  level  via  the  oil
filler  cap,  using  the
type of oil suited to your
engine.

A = max.
B = min.

Service indicator zero re-set

INSTRUMENTS and CONTROLS

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator,

total distance recorder (total and
trip distances).

Service indicator

the distance travelled,

the time which has elapsed since
the last service.

Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er's driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear
engaged is displayed

This  comes  on  when  the
"SPORT"  programme  on
the  automatic  gearbox  is
selected.

This  comes  on  when  the
"SNOW"  programme  on  the
automatic gearbox is selected.

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is
not engaged correctly (selec-
tor between two positions).

"SPORT" indicator light

Invalid value during manual
operation

INSTRUMENTS and CONTROLS

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator,

total distance recorder (total and
trip distances).

Service indicator

the distance travelled,

the time which has elapsed since
the last service.

Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er's driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear
engaged is displayed

This  comes  on  when  the
"SPORT"  programme  on
the  automatic  gearbox  is
selected.

This  comes  on  when  the
"SNOW"  programme  on  the
automatic gearbox is selected.

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is
not engaged correctly (selec-
tor between two positions).

"SPORT" indicator light

Invalid value during manual
operation

INSTRUMENTS and CONTROLS

Example: 4,800 miles/km remain be-

fore the next service. For i ve seconds

after the ignition is switched on, the
display indicates:

5 seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and
the display indicates the total and trip
distance.

The service is overdue.

The spanner l ashes for 5 seconds

after the ignition is switched on.

Example: the service is overdue by

300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:

The distance remaining to the

next service is less than 500 miles

(1,000 km).

Example: 400 miles (900 km) remain

before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:

5  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and

the spanner remains lit .
It  indicates  that  a  service  must  be
carried  out  soon.  The  display  indi-
cates the total and trip distance.

INSTRUMENTS and CONTROLS

Your  PEUGEOT  dealer  carries  out
this operation after each service.
However, if you carry out the service
yourself,  the  re-set  procedure  is  as
follows:
   

Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

the vehicle and wait for at least i ve

minutes, otherwise the zero re-set
will not be registered.

Engine oil level
indicator

When  the  ignition  is  switched  on,  the
engine  oil  level  is  indicated  for  a  few
seconds, after the service information.

Oil level correct

Oil level gauge fault

Flashing of

"OIL--"

indicates a malfunc-
tion of the engine
oil level gauge.

Contact a PEUGEOT dealer.

The level read will only be correct

if the vehicle is on level ground

and the engine has been off for

more than 15 minutes.

Flashing  of   "OIL" ,
linked  with  the  ser-
vice  warning  light,
accompanied by an
audible  signal  and
a  message  on  the

multifunction display, indicates a lack
of oil which could damage the engine.
If the lack of oil is coni rmed by a

check using the dipstick, it is essen-
tial that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the
dipstick:
- never exceed level A,
- in position B, top up

the  level  via  the  oil
filler  cap,  using  the
type of oil suited to your
engine.

A = max.
B = min.

Service indicator zero re-set

INSTRUMENTS and CONTROLS

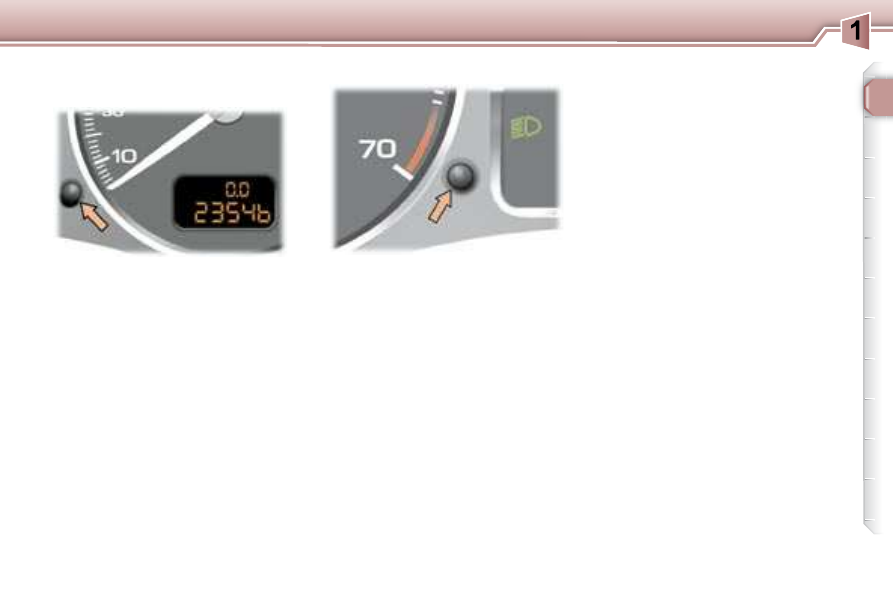

With  the  lights  on,  press  the  button
to vary the intensity of the lighting of
the  instruments  and  controls.  When
the lighting reaches the minimum (or
maximum) setting, release the button
then press it again to increase (or re-
duce) the brightness.
As  soon  as  the  lighting  is  of  the  re-
quired brightness, release the button.

Trip recorder zero reset

button

With the ignition on, press the button
until the zeros appear.
Pressing  the  button  enables  you  to
alternate  between  the  distance  re-
corder  and  cruise  control  or  speed
limiter displays, when either of these
is activated.

Lighting rheostat

INSTRUMENTS and CONTROLS

TRIP COMPUTER



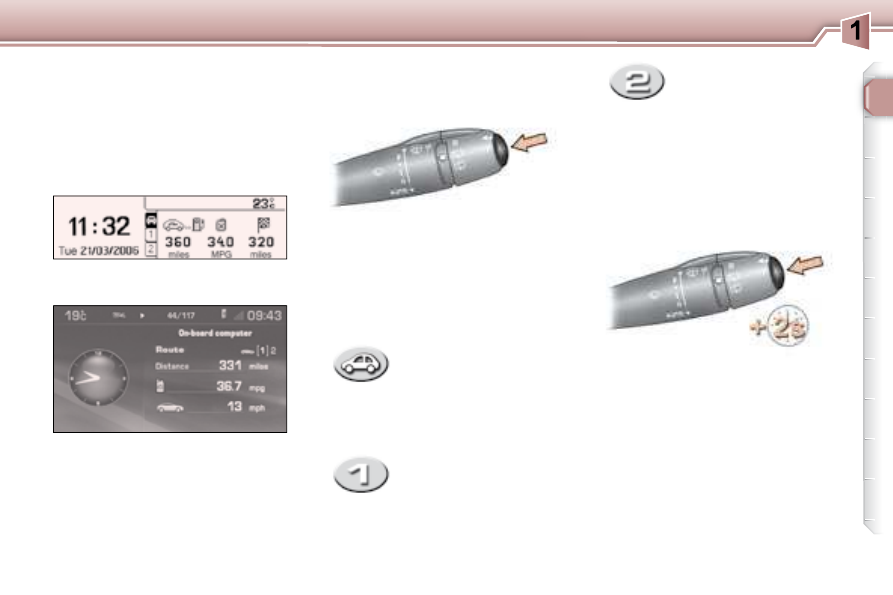

Press the button, located at the

end of the

wipers stalk , to display

the various items of trip computer
data in succession.

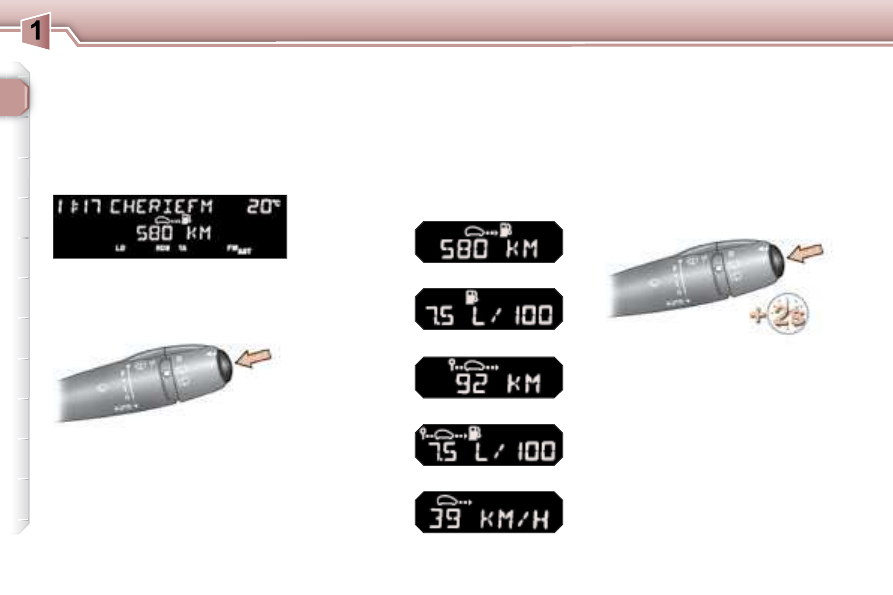

The trip computer data is the following:

System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).



Press the control for more than

two seconds to reset the distance
travelled,  the  average  consump-
tion  and  the  average  speed  to
zero.

Monochrome display A

Zero reset

Data displays

the range,

the current consumption,

the distance travelled,

the average consumption,

the average speed.



The next press then returns you

to the normal display.

INSTRUMENTS and CONTROLS

- the current information

tab with:
- the range,
- the current

consumption,

- the distance remaining

to be travelled,

Colour display

Route zero reset

Monochrome display C



Press the button, located at the

end of the

wipers stalk , to display

the various trip computer tabs in
succession:

Data displays



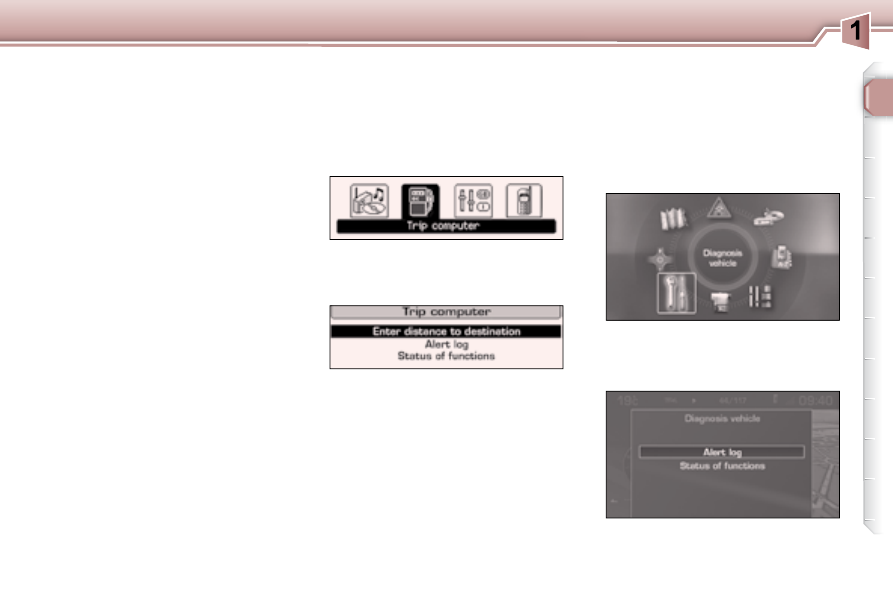

When the route required is dis-

played, press the control for more
than two seconds.

- the route "1" tab with:

- the distance

travelled,

- the average

consumption,

- the average speed,

for the i rst route.

- the route "2" tab with:

- the distance

travelled,

- the average

consumption,

- the average speed,

for the second route.

Routes  "1"  and  "2"  are independent
but their use is identical.
Route  "1"  permits, for example, daily
calculations,  and  route   "2"   monthly
calculations.

TRIP COMPUTER

System which provides current infor-
mation concerning the route travelled
(range, consumption, …).

INSTRUMENTS and CONTROLS

Distance remaining to be

travelled
(km or miles)
This is the distance remain-

ing to be travelled to the i nal destina-

tion. It is either calculated instantly by
the navigation system if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

Average speed
(km/h or mph)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Range
(km or miles)
This indicates the number
of miles (or kilometres)

which can still be travelled with the
fuel remaining in the tank in relation
to the average consumption over the
last few miles (kilometres) travelled.

Current consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed over the
last few seconds.

Average consumption
(l/100 km or km/l or mpg)
This is the average quan-
tity of fuel consumed since

the last trip computer zero reset.

Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset.

A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After

i lling with at least 5 litres of fuel, the

range is recalculated and is displayed
when it exceeds 60 miles (100 km).

If dashes are displayed con-
tinuously while driving in
place of the digits, contact a
PEUGEOT dealer.

This function is only displayed
from 20 mph (30 km/h).

This i gure may increase fol-

lowing a change of driving
style or relief, resulting in a

signii cant change in the cur-

rent consumption.

INSTRUMENTS and CONTROLS

Display C



Press the "MENU" button to gain

access to the general menu.



Press the arrows, then the "OK"

button to select the

"Trip compu-

ter" menu.



On the "Trip computer" menu,

select one of the following appli-
cations:

Warnings log
This  summarises  the  active  warning
messages,  displaying  them  in  suc-
cession on the multifunction display.

Status of the functions
This summarises the active or inac-
tive status of the functions present on
the vehicle.

Enter the distance to the

destination
This enables you to enter an approxi-

mate value for the distance to the i -

nal destination.

"TRIP COMPUTER"
MENU

System  which  provides  general  infor-
mation concerning the status of certain
equipment  with  which  your  vehicle  is
equipped,  such  as  the  warnings  log,
the status of the functions...

"DIAGNOSTICS" MENU



On the

"Diagnostics" menu, select

one of the following applications:

Colour display



Press the "MENU" button to gain

access to the general menu.



Turn the dial and press it to select

the

"Diagnostics" menu.

Content .. 1 2 3 ..
