Peugeot 301 (2017 year). Manual - part 1





PEUGEOT 301

HANDBOOK

On-line user guide

Visiting the user guide online also gives you access to the latest
information available, easily identified by the bookmark, associated with
this symbol:

If the "MyPEUGEOT" section is not available on the PEUGEOT
website for your country, you can find your user guide at the
following address:
http://public.servicebox.peugeot.com/ddb/

Find your user guide on the PEUGEOT website, under "MyPEUGEOT".

Scan this QR code to access your user guide directly.

Select one of the following means of access to view your user guide
online...

This personal space offers advice and other useful information for the care
and maintenance of your vehicle.

Select:
-  the language,
-  the vehicle, its body style,
-  the publication period of your user guide corresponding to the date

your vehicle went into circulation.

1

.

Welcome

Your vehicle will only be fitted with some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.

The descriptions and illustrations are given as indications only.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the guide.

This document is an integral part of your vehicle. It should be passed on
to the new user in the event of sale or transfer.

Thank you for choosing a 301.

This user guide has been designed to help you make the most of your
vehicle in all circumstances.

Key

Security warning

supplementary information

contributes to the protection of the
environment

This guide describes all of the equipment available in the whole range.

4

Overview

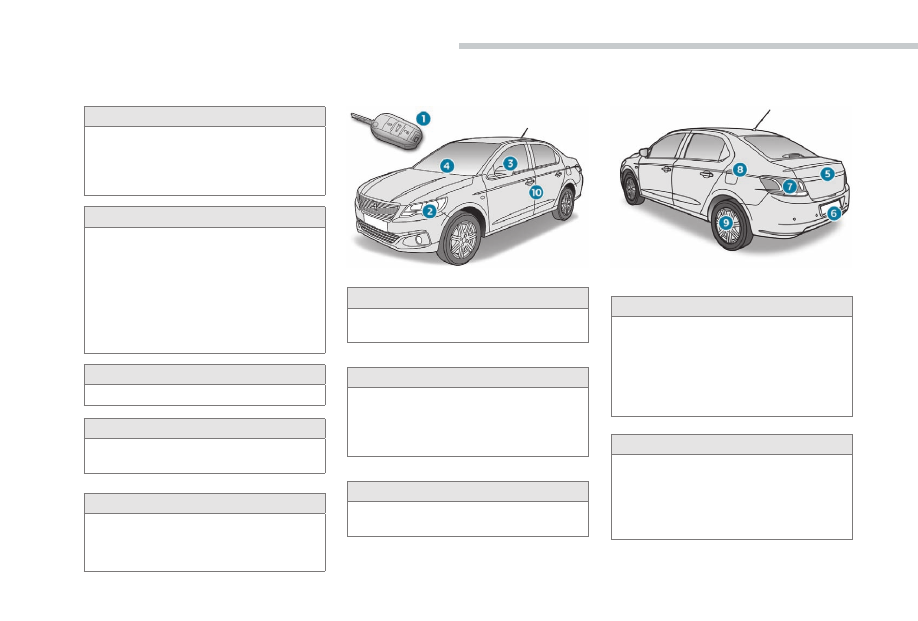

Exterior

1
Key with remote control

36-38

-  opening / closing

-  Anti-theft protection

- starting

- battery

5
Boot

43-44

-  opening / closing

-  emergency control

Tyre repair kit

149-153

6
Rear parking sensors

125-126

Coupling

139

7
Changing bulbs

165-166

-  rear lights

- 3

rd

 brake light

-  licence plate lights

-  fog light

8
Tank, misfuel prevention

129, 130

Running out of fuel (diesel)

148

9
DSC / ASR

77-79

Tyre pressure

183

Spare wheel

154-160

- tools

- removing/refitting

Snow chains

136

Under-inflation detection

74-76

10
Doors

41-42, 44

-  opening / closing

-  Central locking

-  emergency control

Alarm

39-40

Window controls

45

2
Lighting control stalk

64-66

Daytime running lamps

66

Headlamp adjustment

67

Changing bulbs

161-164

-  front lights

-  front fog lights

-  side repeaters

Towing

177-178

Very cold climate screen(s)

139

3
Door mirrors

50-51

4
Windscreen wiper

68

Changing a wiper blade

138

5

.

Overview

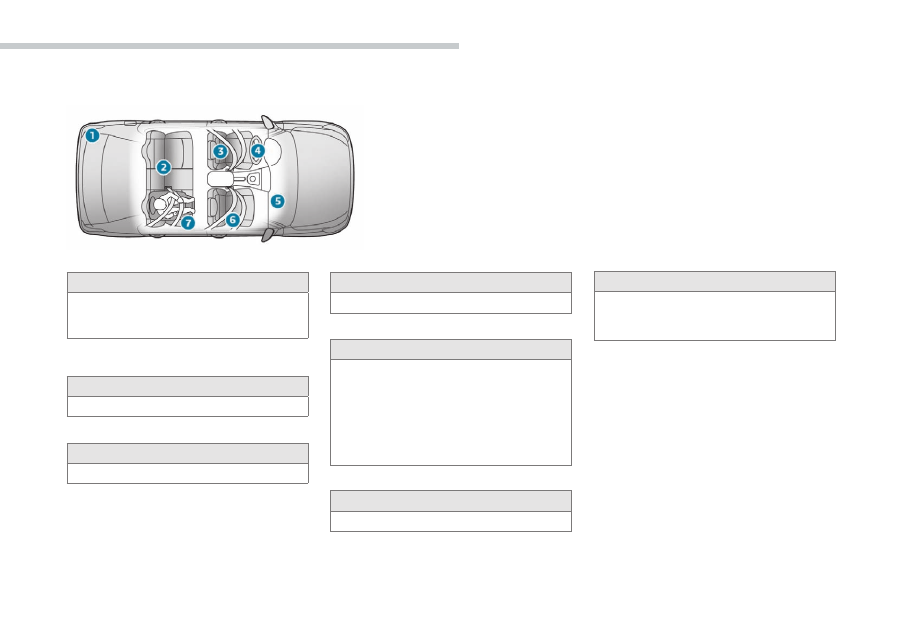

Interior

1
Boot fittings

63

-  storage box

Tank AdBlue

®

 132-135

2
Rear seat

48-49

3
Front seats

46-48

4
Airbags

83-85

5
Interior fittings

60-62

-  sun visor

-  glove box

-  front armrest

-  USB port

-  12 V accessory socket / Cigarette lighter

- ashtray

Deactivating the passenger's front airbag   90

6
Safety belts

80-82

7
Child seats

87-96

ISOFIX child seats

97-100

Mechanical child lock

100

6

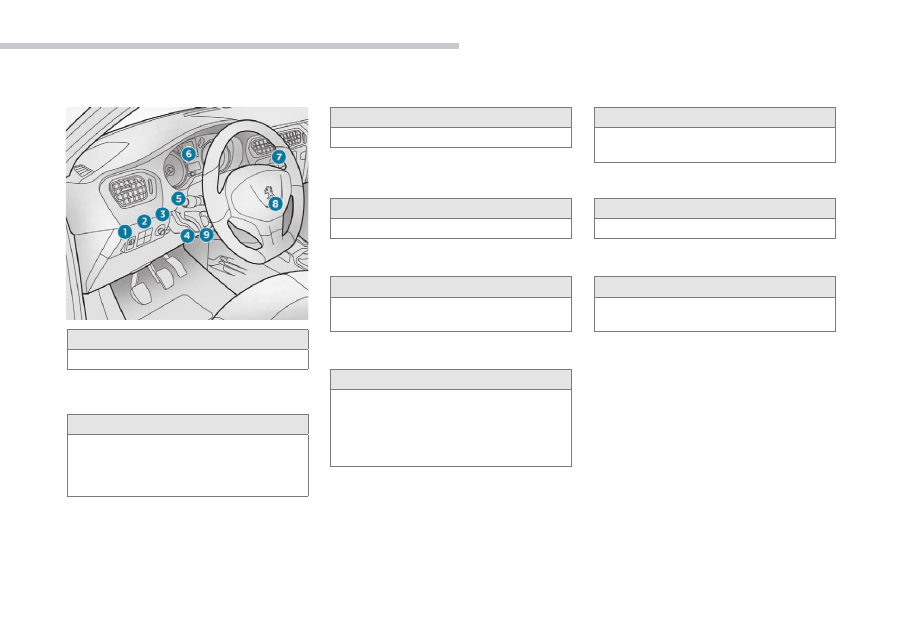

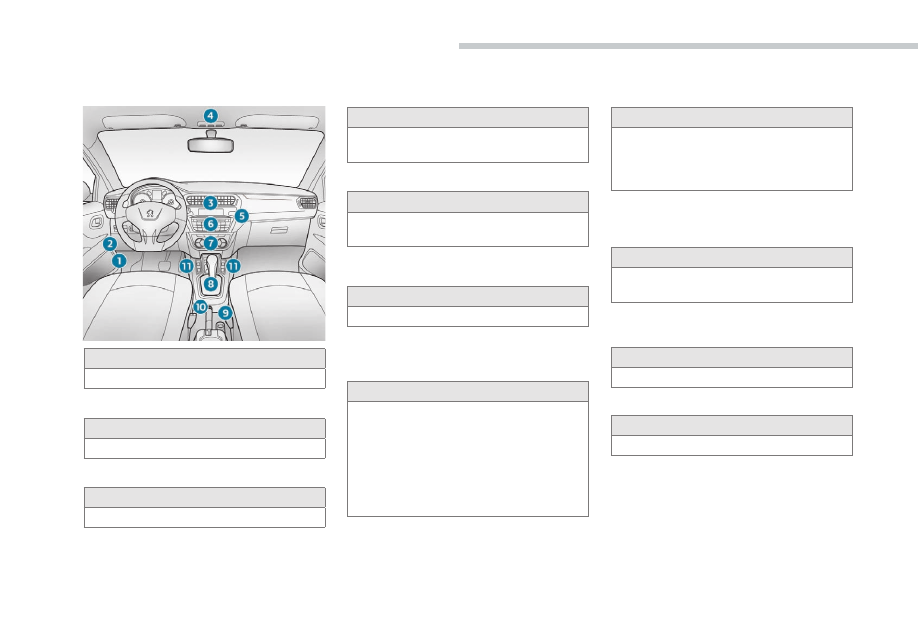

Overview

Driver's seat

1
Opening bonnet

141

2
Dashboard fuses

167-170

3
Audio and telematics systems

184, 208

4
Courtesy lamps

69

Rear view mirror

51

5
Distress signal

71

Locking / unlocking from the inside

44

6
Setting date/time

31-32

7
Heating, ventilation

52-53

Manual air conditioning

(without display screen)

52-53

Electronic air conditioning

(with display screen)

54-56

Front screen demisting - defrosting   57-58

Rear screen demisting/defrosting

58

Heated lower windscreen

58

8
Manual gearbox

105

Electronic gearbox

106-109

Automatic gearbox (EAT6)

110-114

Gear shift indicator

115

9
USB port

62

12 V accessory socket / Cigarette lighter   62

10
Parking brake

105

11
Window controls, deactivation

45

7

.

Overview

Driver's seat (continued)

1
Headlight beam height adjustment

67

2
Deactivation of the DSC/ASR system

78

Stop & Start

116-118

Opening the boot lid

43

Alarm

39-40

3
Adjustment of the door mirrors

50-51

4
Steering wheel adjustment

50

5
Lighting control

64-66

Direction indicators

71

6
Instrument panel

11

Warning and indicator lights

12-24

Service indicator

25-26

Gear shift indicator

115

Distance recorders

30

7
Wiper control stalk

68

Trip computer

33-35

8
Horn

71

9
Speed limiter

119-121

Cruise control

122-124

8

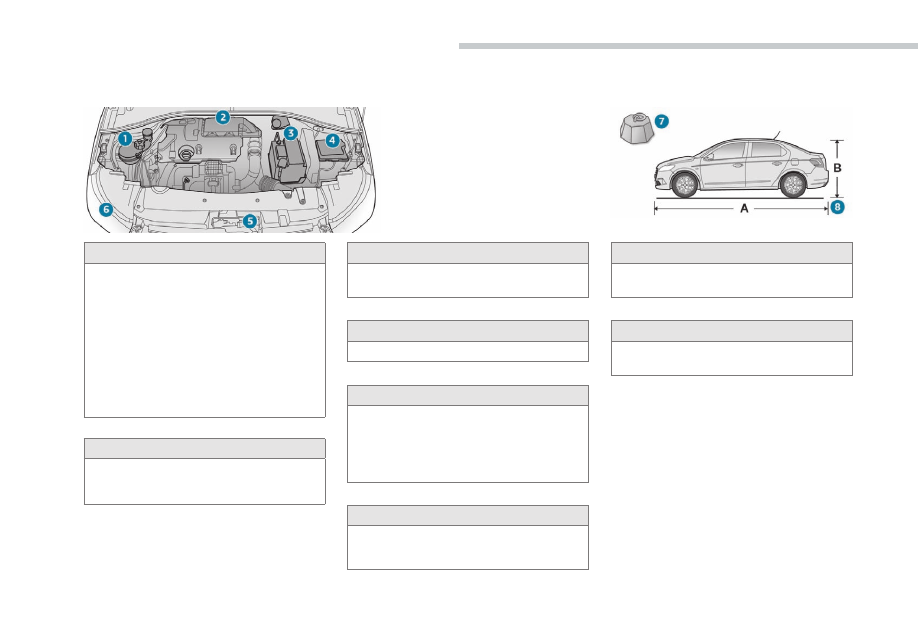

Overview

Maintenance - Technical data

7
Petrol weight

180

Diesel weight

181

8
Identification elements

183

Dimensions

182

1
Checking the levels

143-145

- oil

-  brake fluid

- coolant

-  screenwash fluid

-  additive (diesel with particle filter)

Checking the elements

146-147

- battery

-  air/passenger compartment filter

-  oil filter

-  particle filter (diesel)

-  brake pads/discs

2
Running out of Diesel fuel

148

AdBlue

®

 and SCR (Diesel

BlueHDi) system

132-135

3
Battery

172-176

Load reduction, economy mode

137

4
Engine compartment fuses

167-171

5
Opening bonnet

141

Under bonnet layouts, petrol

142

Under bonnet layout, Diesel

142

Petrol engines

180

Diesel engine

181

6
Changing front bulbs

161-166

- front

- rear

.

9

Eco-driving

As a passenger, if you avoid connecting your
multimedia devices (film, music, video game
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

2

 emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon.

With an automatic or electronic gearbox, stay
in Drive

D or Auto A, according to the type

of gearbox, without pressing the accelerator
pedal heavily or suddenly.

The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an electronic or
automatic gearbox, this indicator appears only
in manual mode.

Drive smoothly

Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO

2

 emissions and also help to reduce the

background traffic noise.

If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.

Control the use of your electrical

equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and open the air vents.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (window blinds, etc.).

Switch off the headlamps and fog lamp when
the level of light does not require their use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.

Switch off the air conditioning as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

10

Eco-driving

Limit the causes of excess

consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Preferably use a roof
box.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter, etc.) and observe the
schedule of operations recommended by the
manufacturer.

When filling the tank, do not continue after the
3

rd

 cut-off of the nozzle to avoid overflow.

At the wheel of your new vehicle, it is only
after the first 1,800 miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

11

1

Instruments

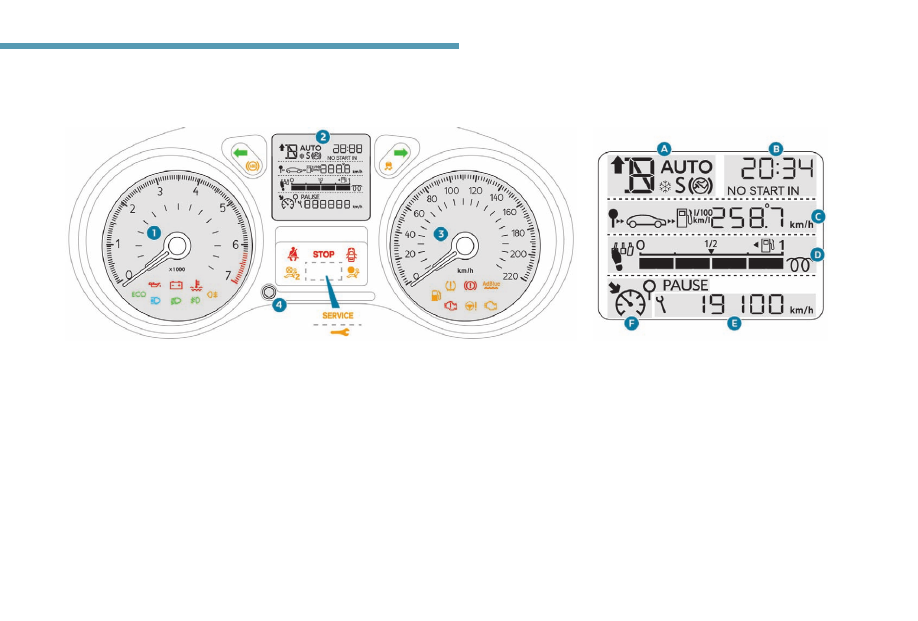

Instrument panel for petrol - Diesel

Dials

1

Rev counter (x 1,000 rpm).

2

Display screen.

3

Speedometer (mph or km/h).

4

Momentary information reminder:
on servicing,
remaining driving range with the
emissions fluid (AdBlue

®

).

Reset the selected function to zero (trip
distance recorder or service indicator).
Setting the time.

Display screen

A Electronic or automatic gearbox

information.

Gear change indicator.

B Time.
C Range related to the fuel or theAdBlue

®



and the SCR system (km).

or

Trip distance recorder.

D Fuel gauge / Diesel preheater.
E Service indicator (miles or km)

then,

Odometer.

These two functions are displayed

successively when switching on the

ignition.

F Cruise control or speed limiter setting.

12

Instruments

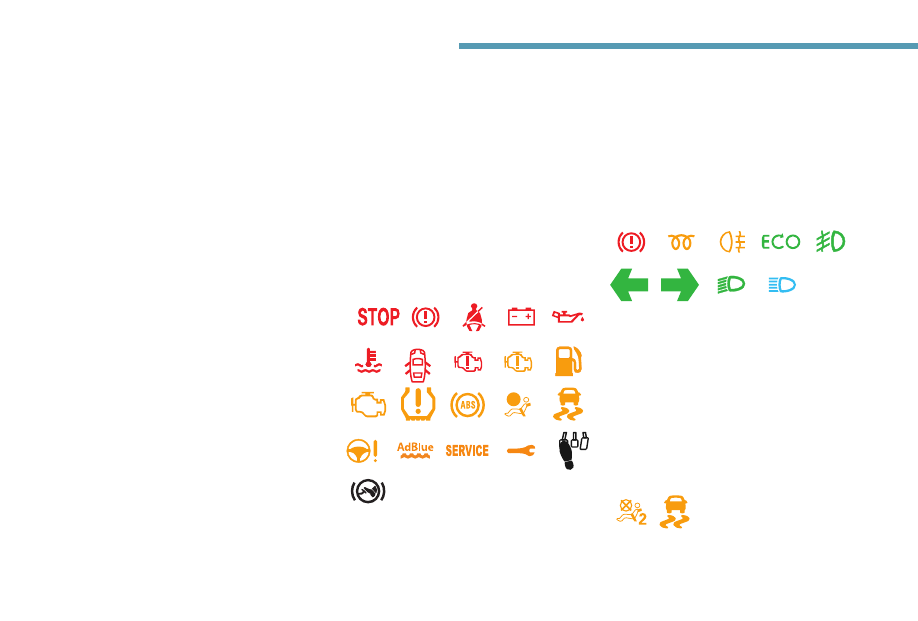

Warning lights

When the ignition is switched on

Certain warning lights come on for a few
seconds when the vehicle's ignition is switched
on.
When the engine is started, these same
warning lights should go off.
If they remain on, before moving off refer to the
information on the warning light concerned.

Associated warnings

Certain warning lights may come on in one of
two modes: fixed (continuous) or flashing.
Only by relating the type of lighting to the
operating status of the vehicle can it be
ascertained whether the situation is normal or
whether a fault has occurred.
In the event of a fault, the illumination of the
warning light may be accompanied by an
audible signal and/or a message.

Warning lights

When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lights indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact a

PEUGEOT dealer or a qualified workshop.

If one of the following indicator lights comes on
in the instrument panel and/or instrument panel
screen, this confirms that the corresponding
system has come into operation.

Operation indicator lights

Deactivation indicator lights

If one of the following indicator lights comes
on, this confirms that the corresponding system
has been switched off intentionally.
This may be accompanied by an audible signal
and a message being displayed.

13

1

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

STOP

Fixed, associated
with another warning
light.

It is associated with the engine
oil pressure or the engine
coolant temperature.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.

Parking brake

Continuous.

The parking brake is applied or
not properly released.

Release the parking brake to switch off the warning
light, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the

Parking brake, refer to

the corresponding section.

Brakes

Fixed.

The brake fluid level has
dropped significantly.

You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a

PEUGEOT dealer or a qualified workshop.

Fixed, associated
with the ABS warning
light.

The electronic brake force
distribution (EBFD) system has
a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

14

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Driver's seat belt

not fastened or

unfastened /

Front

passenger's seat

belt unfastened

Continuous or
flashing accompanied
by an increasing
audible signal.

The driver has not fastened or
has unfastened his/her seat belt.
The front passenger has
unfastened his/her seat belt.

Pull the strap then insert the tongue in the buckle.

Battery charge

Continuous.

The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, ...).

The warning light should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Engine oil

pressure

Continuous.

There is a fault with the engine
lubrication system.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.



















Content   ..  1  2  3   ..
