Peugeot 207 (2011 year). Manual - part 4

COMFORT

HEATING/VENTILATION

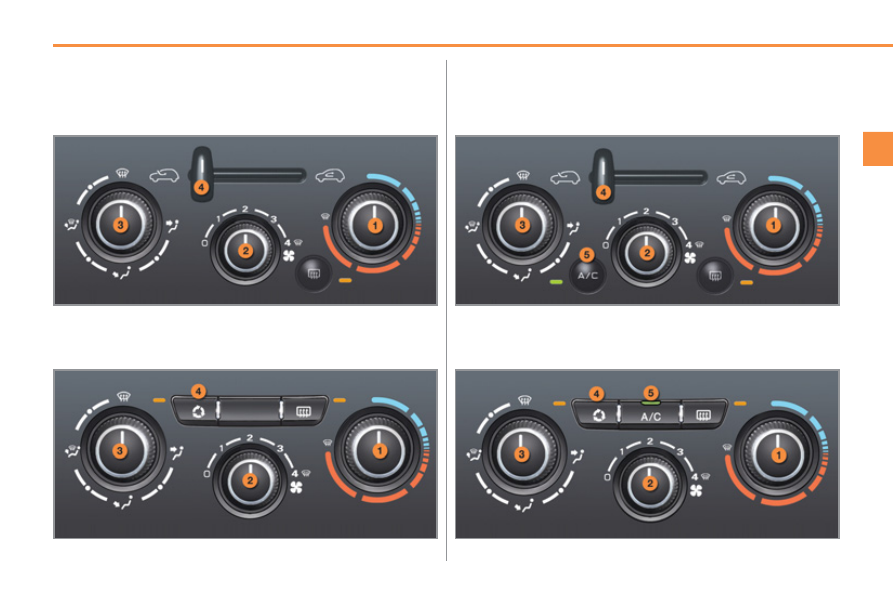

Manual control panel

Electric control panel

MANUAL AIR CONDITIONING

Manual control panel

Electric control panel

COMFORT

2. Air fl ow adjustment

) Turn the dial from position 1

to position

4 to obtain an

air fl ow suffi cient to ensure

your comfort.

Windscreen, side windows

and footwells.

Footwells.

(vents closed)

Central and side vents.

)

Turn the dial from blue

(cold) to red (hot) to adjust

the temperature to suit your

requirements.

Windscreen and side windows.

1. Temperature adjustment

The air distribution can be

adapted by placing the dial

in an intermediate position,

marked by a dot "●".

HEATING/VENTILATION AND
MANUAL AIR CONDITIONING

The heating/ventilation or air condition-

ing systems can only operate when the

engine is running.

Manual control panel

4. Air intake/Air recirculation
The intake of exterior air prevents the

formation of mist on the windscreen and

side windows.
The recirculation of interior air prevents

exterior odours and smoke from enter-

ing the passenger compartment.
Return to exterior air intake mode as

soon as possible to avoid deterioration

of the air quality and prevent misting.

Electric control panel

Demisting/defrosting

To quickly demist or defrost the wind-

screen and side windows:
) place the air intake control 4 in the

"Exterior air intake" position,

) place the air distribution dial 3 in the

"Windscreen" position,

) place the temperature dial 1 and the air

fl ow dial 2 in the maximum position,

) close the central vents,
) switch on the air conditioning by

pressing the "A/C" button.

) If you place the air fl ow control

in position 0 (deactivation of the

system), the temperature is no

longer maintained at a comfort-

able level. However, a slight

fl ow of air, due to the movement

of the vehicle, can still be felt.

3. Air distribution adjustment

) Move the manual control to the right to

the "Interior air recirculation" position.

) Move the manual control to the left

to return to the "Exterior air intake"

position.

) Press the button to recircu-

late the interior air. This is

displayed by lighting of the

indicator lamp.

) Press the button again to permit the

intake of exterior air. This is confi rmed

by the indicator lamp going off.

5. Air conditioning On/Off

The air conditioning is de-

signed to operate effectively in

all seasons, with the windows

closed.

The control button is located on

the heating or air conditioning

system control panel.

REAR SCREEN DEMIST -
DEFROST

) Switch off the demisting/de-

frosting of the rear screen

and door mirrors as soon as

appropriate as lower current

consumption results in re-

duced fuel consumption.

If the engine is switched off before the

demisting/defrosting is switched off auto-

matically, demisting/defrosting will resume

next time the engine is switched on.

Switching on

The rear screen demisting/defrosting

can only operate when the engine is

running.
) Press this button to demist/defrost

the rear screen and (depending on

version) the door mirrors. The indica-

tor lamp associated with the button

comes on.

Switching off

The demisting/defrosting switches off

automatically to prevent an excessive

consumption of current.
) It is possible to stop the demisting/de-

frosting operation before it is switched

off automatically by pressing the but-

ton again. The indicator lamp associ-

ated with the button switches off.

It enables you to:
-

lower the temperature, in summer,

- increase the effectiveness of the

demisting, in winter above 0 °C.

Switching on
) Press the "A/C" button, the associ-

ated indicator lamp comes on.

The air conditioning does not op-

erate when the air fl ow adjustment

dial 2 is in position "0".

Switching off
) Press the "A/C" button again, the as-

sociated indicator lamp switches off.

COMFORT

When the engine is cold, to pre-

vent too great a distribution of cold

air, the air fl ow will only reach its

optimum level gradually.
In cold weather, it favours the dis-

tribution of warm air to the wind-

screen, the side windows and the

footwells only.

On entering the vehicle, if the in-

terior temperature is much colder

or warmer than the comfort value,

there is no need to alter the val-

ue displayed in order to obtain

the required level of comfort. The

system corrects the temperature

difference automatically and as

quickly as possible.

The air conditioning can only operate

with the engine running.

The driver and his front pas-

senger can each set the

temperature to suit their re-

quirements.

) Turn dial

2 or 3 to the left to reduce

the value or to the right to increase it.

A setting around 21 enables you to ob-

tain an optimum level of comfort. De-

pending on your requirements, a setting

between 18 and 24 is usual.
In addition, it is recommended that you

avoid a left/right setting difference of

more than 3.

4. Automatic visibility programme

The automatic comfort pro-

gramme may not be suffi cient

to quickly demist or defrost

the windscreen and side win-

dows (humidity, several pas-

sengers, ice...).

) In this case, select the automatic

visibility programme.

The system automatically controls the

air conditioning, the air fl ow and the air

intake and provides optimum distribu-

tion of the ventilation to the windscreen

and side windows.

Automatic operation

) Press the "AUTO" button.

The "AUTO" symbol is dis-

played.

2. Driver's side adjustment

DUAL-ZONE DIGITAL AIR CONDITIONING

We recommend that you use this mode:

it provides optimised automatic con-

trol of all of the functions, passenger

compartment temperature, air fl ow, air

distribution and air recirculation, in ac-

cordance with the comfort value that

you have selected.
This system is designed to operate ef-

fectively in all seasons, with the win-

dows closed.

The value indicated on the display cor-

responds to a level of comfort and not

to a temperature in degrees Celsius or

Fahrenheit.

1. Automatic comfort programme

3. Passenger's side adjustment

COMFORT

) To exit this programme, press the

"visibility" button again or the "AUTO"

button, the indicator lamp on the button

switches off and "AUTO" is displayed.

) Press this button to switch

the air conditioning off.

6. Air distribution adjustment

)

Press this button several

times in succession to direct

the air fl ow in turn towards:

7. Air fl ow adjustment

) Press the "small fan" but-

ton to reduce the air fl ow.

8. Air intake/Air recirculation

Deactivation of the system

) Press the "small fan" button until

the fan symbol disappears.

This action deactivates all of the func-

tions of the air conditioning system.
The temperature is no longer main-

tained at a comfortable level. However,

a slight fl ow of air, due to the movement

of the vehicle, can still be felt.
) Press the "large fan" button again

or the "AUTO" button to reactivate

the system with the values which

were set before it was deactivated.

) Press this button to recircu-

late the interior air. The air

recirculation symbol is dis-

played.

5. Air conditioning On/Off

Avoid driving for too long with the

air conditioning deactivated.

Avoid prolonged operation in inte-

rior air recirculation mode (risk of

condensation and of deterioration

of the air quality).

- the windscreen, the side windows

and the footwells,

- the windscreen and side windows

(demisting or defrosting),

the central and side vents,

the central vents, the side vents and

the footwells,

- the

footwells.

) Press the "large fan" but-

ton to increase the air fl ow.

The air fl ow symbol, the fan, is fi lled in

progressively in relation to the value re-

quired.

Air recirculation prevents exterior odours

and smoke from entering the passenger

compartment.
) As soon as possible, press this but-

ton again to permit the intake of

exterior air and prevent misting.

For maximum cooling or heating of

the passenger compartment, you

can exceed the minimum value of

14 or the maximum value of 28.
) Turn dial 2 or 3 to the left un-

til "LO" is displayed or to the

right until "HI" is displayed.

Resuming manual control

Depending on your requirements, you

can make a different selection from that

offered by the system by changing a

setting. The other functions will still be

controlled automatically.
) Press the "AUTO" button to return

to fully automatic operation.

Switching the system off may result in

discomfort (humidity, condensation).
) Press the button again to return to

automatic operation of the air con-

ditioning. The symbol " A/C " is dis-

played.

FRONT SEATS

Seat consisting of a seat cushion, seat

back and head restraint which can all

be adjusted to adapt your position for

maximum ease of driving and comfort.

1. Forwards-backwards adjustment
) Lift the control and slide the seat for-

wards or backwards.

2. Driver's or passenger's seat

height adjustment
) Pull the handle upwards or push it

downwards as many times as neces-

sary to obtain the required position.

3. Seat back angle adjustment
) Push the handle towards the rear.

No person or object must prevent

the seat slide from returning to its

initial position; return to this posi-

tion is necessary for the seat to

lock in place.
Take care not to trap the seat belt

to avoid hindering the passage of

the rear passengers.

4. Access to rear seats (3 door)
) Pull the handle to fold the seat back

and move the seat forwards. On re-

positioning, the seat returns to its

initial position.

5. Head restraint height adjustment

) To raise the head restraint, pull it up-

wards.

) To remove the head restraint, press

the lug A and pull the head restraint

upwards.

) To put the head restraint back in po-

sition, locate the stems of the head

restraint in the holes, taking care to

keep them in line with the seat back.

) To lower the head restraint, press

the lug A and the head restraint at

the same time.

The head restraint has a frame with

a notch which prevents the head

restraint from lowering; this is a

safety device which provides pro-

tection in the event of an impact.
The adjustment is correct when

the upper edge of the head re-

straint is level with the top of

the head.
Never drive with the head re-

straints removed; they must be in

place and correctly adjusted.

COMFORT

REAR SEATS

Bench seat the left-hand part (2/3) or

right-hand part (1/3) of which can be

folded to adapt the load space in the

boot.

Never drive with the head re-

straints removed; they must be in

place and correctly adjusted.
As the head restraints are not in-

terchangeable, take care to put

them back in their original position

when refi tting.

Rear head restraints

These have a high position (comfort)

and a low position (rear visibility).

The command for activation of

heating of the seat(s) remains

memorised for two minutes after

the ignition has been switched off.

7. Heated seats switch
With the engine running, the front seats

can be heated separately.
) Use the adjustment dial, placed on

the side of each front seat, to switch

on and select the level of heating re-

quired:

0 : Off.

1 : Low.

2 : Medium.

3 : High.

They can also be removed; to remove them:
) pull the head restraint upwards to

the stop,

) then, press the lug.

6. Armrests (except 3 door)

These can be folded down and are re-

movable.
) To remove an armrest, press the but-

ton located between the armrest and

the side of the seat and pull it off.

COMFORT

Folding the seat (Saloon)

To avoid damaging a seat when folding

it, always start with the seat cushion,

never the seat back :
) move the corresponding front seat

forward if necessary,

) raise the front of the seat cushion 1 ,
) tilt the seat cushion

1 against the

front seat,

) check that the seat belt is positioned

correctly on the side of the seat

back,

Repositioning the seat (Saloon)

When repositioning the rear seat:
) straighten the seat back 3 and se-

cure it,

) fold back the seat cushion 1 .

) pull control 2 upwards to release the

seat back 3 ,

) place the head restraints in the low po-

sition or remove them if necessary,

) tilt the seat back 3 .

When repositioning the rear seat,

take care not to trap the seat

belts.

The seat cushion 1 can be removed

to increase the loading volume.
Squeeze the seat cushion fi xings

to detach them from their attach-

ments.

COMFORT

Folding the seat (SW)

This operation can be carried out at the

rear seats or through the opening rear

screen.
To avoid damaging a seat when folding it:
) move the corresponding front seat

forward if necessary,

) place the head restraints in the low

position,

Check that no object could hinder

the movement of the bench seat,

either above or below.

Repositioning the seat (SW)

The seat cushion lowers in order

to be covered by the seat back;

this quickly gives you a fl at boot

fl oor.

) pull the control 1 forward to release

the seat back 2 which folds easily

onto the seat cushion 3 .

) When repositioning the rear seat,

straighten the seat back 2 and lock it.

) Check that the red indicator, located

at control 1 , is no longer visible.

COMFORT

MIRRORS

Door mirrors

Adjustable mirror providing the lateral

rearward vision necessary for overtak-

ing or parking.

Folding
) from outside: lock the vehicle using

the remote control or the key.

) from inside: with the ignition on, pull

switch A rearwards.

Manual model

Adjustment
) Move the lever in all four directions

to adjust the mirror.

The folding and unfolding of the

door mirrors can be deactivated

by a PEUGEOT dealer or a quali-

fi ed workshop.

Folding
) When parked, fold the mirror manu-

ally to protect it.

Unfolding
) Before starting, unfold the mirror.

Electric model

Adjustment
) Slide switch A to the right or to the left

to select the corresponding mirror.

) Move knob B in all four directions to

adjust.

) Return switch A to the centre position.

Unfolding
) from outside: unlock the vehicle us-

ing the remote control or the key.

) from inside: with the ignition on, pull

switch A rearwards.

The objects observed are, in reality,

closer than they appear.
Take this into account to correctly

judge the distance of vehicles ap-

proaching from behind.

COMFORT

Rear view mirror

Adjustable mirror providing a central

rearward view.
Equipped with an anti-dazzle system,

which darkens the mirror glass: this re-

duces the nuisance to the driver caused

by the headlamps from following vehi-

cles, low sun...

Adjustment
) Adjust the mirror so that the glass is di-

rected correctly in the "day" position.

Automatic day/night model

By means of a sensor, which measures

the light from the rear of the vehicle, this

system automatically and progressively

changes between the day and night

uses.

Manual day/night model

Day/night position
) Pull the lever to change to the "night"

anti-dazzle position.

) Push the lever to change to the nor-

mal "day" position.

In order to ensure optimum vis-

ibility during your manoeuvres, the

mirror lightens automatically when

reverse gear is engaged.

As a safety measure, the mirrors

should be adjusted to reduce the

"blind spot".

COMFORT

STEERING WHEEL ADJUSTMENT

) When stationary , pull the con-

trol lever to release the adjustment

mechanism.

) Adjust the height and reach to suit

your driving position.

) Push the control lever to lock the ad-

justment mechanism.

As a safety precaution, these op-

erations should only be carried out

while the vehicle is stationary.

Component which protects against sunlight

from the front or the side, also equipped

with an illuminated courtesy mirror.

) With the ignition on, raise the con-

cealing fl ap; the mirror is lit automati-

cally.

This sun visor is also equipped with a

ticket holder.

TOLL CARD/CAR PARK TICKET
WINDOWS

Facility for affi xing toll cards and/or car

park tickets.

These windows are located on each

side of the base of the rear view mirror.
They are two non-refl ective areas of the

athermic windscreen.

The athermic windscreen limits

heating of the passenger compart-

ment by reducing the effects of the

sun's rays (ultra-violet). It consists

of a refl ective layer, which also

blocks certain radio-electric signals

(toll card payments, ...).

COMFORT

MATS

Removable carpet protection.

Refitting

To refi t the mat on the driver's side:
   )   position the mat correctly,
  )  refi t the fi xings by pressing,
  )   check that the mat is secured cor-

rectly.

Fitting

When fi tting the mat for the fi rst time,

on the driver's side use only the fi xings

provided in the wallet attached.
The other mats are simply placed on

the carpet.

Removal

To remove the mat on the driver's side:
   )   move the seat as far back as possible,
  )  unclip the fi xings,
  )   remove the mat.

PEUGEOT CONNECT USB

The "AUX" connection box, located in

the centre console, comprises an auxil-

iary JACK socket and/or a USB port.
It permits the connection of a portable

device, such as a digital audio player of

the iPod

or USB memory stick type.

It reads certain audio fi le formats allow-

ing them to be heard via the vehicle's

speakers.
You can manage these fi les using the

steering mounted controls or the audio

system control panel and display them

in the multifunction screen.

Connected to the USB port, the porta-

ble device charges automatically while

in use.

For more information on the use of

this equipment, refer to the "Audio

and Telematics" section.

To avoid any risk of jamming of the

pedals:
-

only use mats which are suited

to the fi xings already present

in the vehicle; these fi xings

must be used,

- never

fi t one mat on top of

another.

The use of mats not approved

by PEUGEOT may interfere with

access to the pedals and hinder

the operation of the cruise control/

speed limiter.

COMFORT

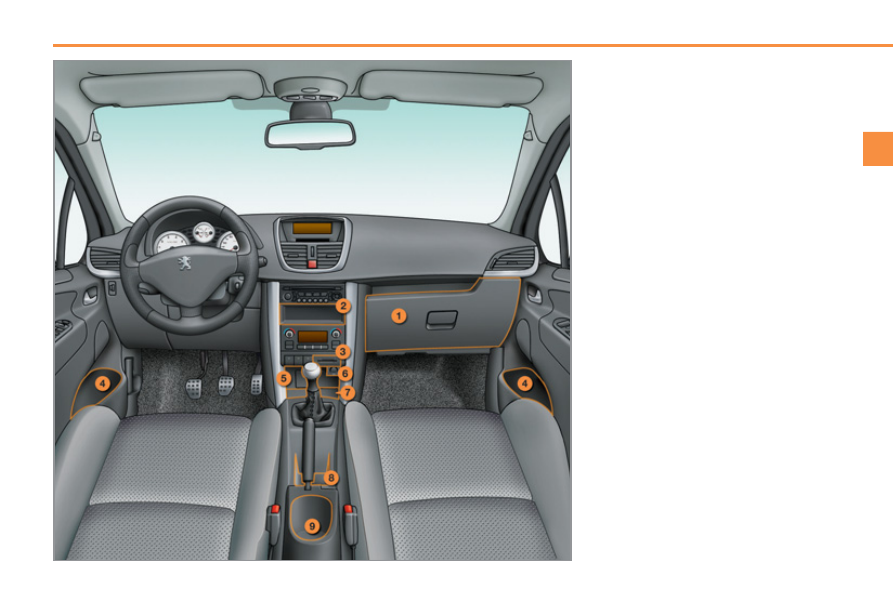

INTERIOR FITTINGS

1. Illuminated glove box

(see details on following page)

2. Storage compartment with

non-slip mat

3. Card /ticket holder

4. Door tray

5. Storage compartment with non-

slip mat

6. USB port

(see details on previous page)

7. 12 V accessories socket

(see details on following page)

8. Storage compartments

9. Cup holder

COMFORT

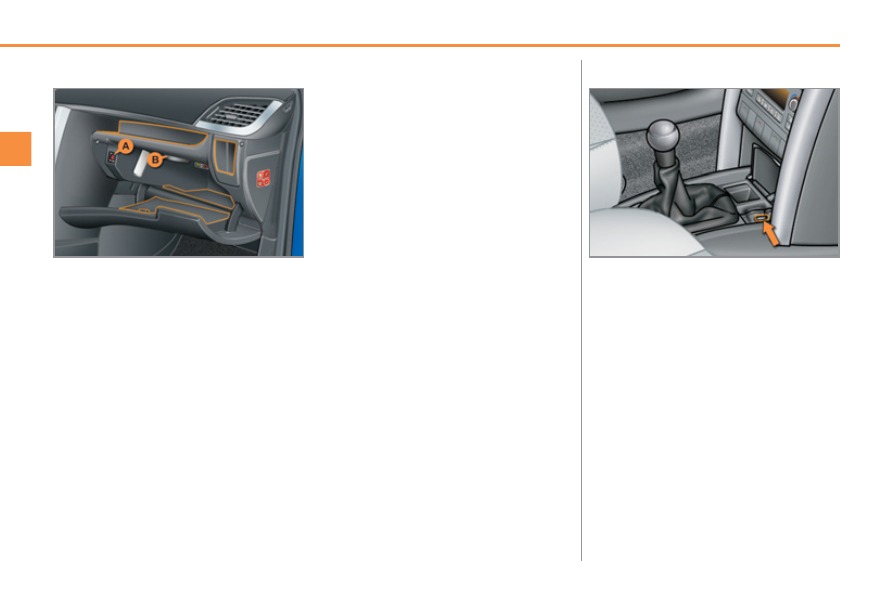

Illuminated glove box *

This has an upper open storage com-

partment, a recess and locations for

storing a bottle of water, the vehicle's

handbook, ...
Its lid has locations for storing a pen,

a pair of spectacles, tokens, cards, a

can, ...
) To open the glove box, raise the

handle.

It is illuminated when the lid is opened.
It houses the front passenger's airbag

deactivation switch A .

) To connect a 12 V accessory (max

power: 120 Watts), lift the cover and

connect a suitable adaptor.

12 V accessory socket

If the vehicle is fi tted with digital air con-

ditioning, it provides access to the ven-

tilation nozzle B , which can be opened

or closed, distributing the same condi-

tioned air as the vents in the passenger

compartment.

* According to version.

Content .. 2 3 4 5 ..
