Peugeot 206 SW (2008 year). Manual

INSTRUMENTS and CONTROLS

20 -

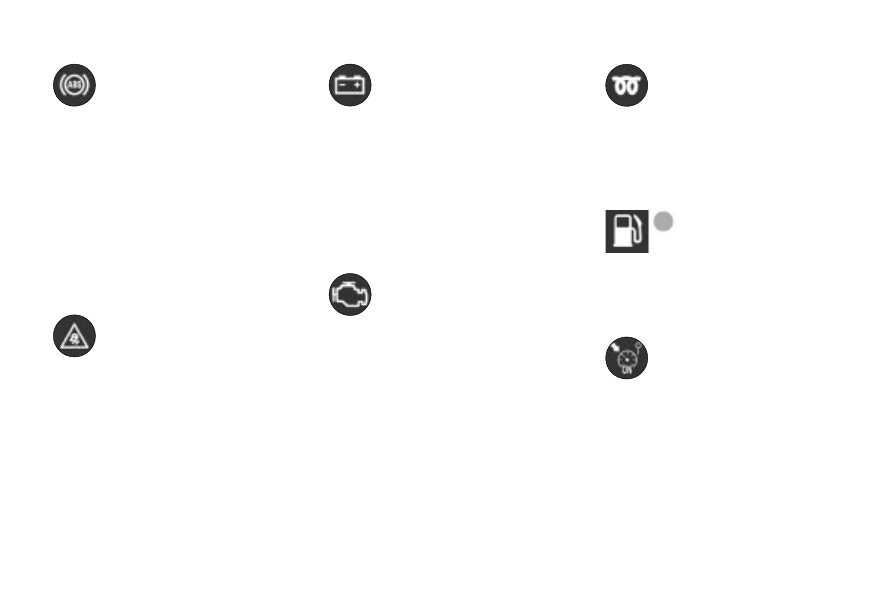

Battery charge warning
light

This indicates one of the fol-

lowing:

faulty operation of the charging

circuit,

- slack battery or starter terminals,
- a cut or slack alternator belt,
-

an alternator failure.

Consult a PEUGEOT dealer.

Emission control
system warning light
(according to model)

This comes on for a few seconds each

time the ignition is switched on.

If it comes on with the engine run-

ning, this indicates incorrect operation

of the injection, ignition or emission

control system.

If the warning light lashes, there

is a risk of damage to the catalytic
converter on petrol engines.
Consult a PEUGEOT dealer.

Diesel engine pre-heat
warning light

Wait until the warning light

goes out before starting the engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Low fuel level
warning light

When this light irst co-

mes on, you have enough fuel to drive

at least 30 miles (50 km). The tank ca-
pacity is approximately 50 litres.

Speed limiter/cruise
control indicator light

This comes on when the

speed limiter or cruise control
is activated.

Dynamic stability
control system (ESP/
ASR) warning light

This comes on for a few seconds each

time the ignition is switched on.

With the engine running and when

the vehicle is moving, it comes on if

the system is activated.
It lights permanently accompanied by
a message on the multifunction dis-

play when the system is disarmed.

If the warning light remains lit with

the engine running and when the ve-

hicle is moving, consult a PEUGEOT

dealer.

Anti-lock braking
system (ABS) warning
light

This comes on for a few seconds each

time the ignition is switched on.

If the warning light remains on or co-

mes on above 8 mph (12 km/h), this

indicates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Illumination of this warning light, ac-

companied by an audible signal and
a message on the multifunction dis-

play, indicates a fault in the ABS sys-

tem.
Consult a PEUGEOT dealer.

INSTRUMENTS and CONTROLS -

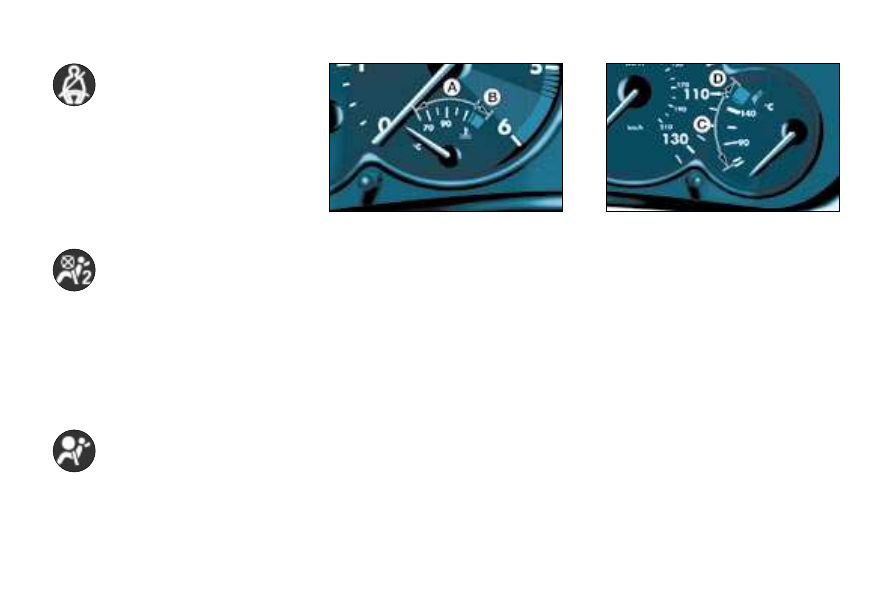

Seat belt not fastened
warning light

When the ignition is switched

on, this indicator light comes on if the

driver has not fastened his seat belt.

Above 12 mph (20 km/h), the war-

ning light lashes for about two minu-

tes accompanied by an increasingly
audible signal and a message on the

multifunction display. This warning

light remains lit until the driver's seat
belt is fastened.

Passenger air bag
disarmed warning light

Illumination of this warning light accom-

panied by a message on the multifunc-

tion display, indicates that the passenger

air bag is disarmed.

The warning light remains lit as long as

the passenger air bag is disarmed.

Always consult a PEUGEOT dealer if

the warning light lashes.

Air bags warning light

The light will come on for a

few seconds when the igni-

tion is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multifunction display, indicates a

fault in the air bags.
Consult a PEUGEOT dealer.

Coolant temperature indicator

needle in zone (A)

, the

temperature is correct,

needle in zone (B)

, the

temperature is too high. The
central STOP

warning light

lashes.

You must stop.
Consult a PEUGEOT dealer.

Engine oil temperature
indicator

With the engine running, this indica-

tes the oil temperature:
-

needle in zone (C)

, the

temperature is correct,

needle in zone (D)

, the

temperature is too high.

To lower the oil temperature,

reduce your speed.

INSTRUMENTS and CONTROLS -

Seat belt not fastened
warning light

When the ignition is switched

on, this indicator light comes on if the

driver has not fastened his seat belt.

Above 12 mph (20 km/h), the war-

ning light lashes for about two minu-

tes accompanied by an increasingly
audible signal and a message on the

multifunction display. This warning

light remains lit until the driver's seat
belt is fastened.

Passenger air bag
disarmed warning light

Illumination of this warning light accom-

panied by a message on the multifunc-

tion display, indicates that the passenger

air bag is disarmed.

The warning light remains lit as long as

the passenger air bag is disarmed.

Always consult a PEUGEOT dealer if

the warning light lashes.

Air bags warning light

The light will come on for a

few seconds when the igni-

tion is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multifunction display, indicates a

fault in the air bags.
Consult a PEUGEOT dealer.

Coolant temperature indicator

needle in zone (A)

, the

temperature is correct,

needle in zone (B)

, the

temperature is too high. The
central STOP

warning light

lashes.

You must stop.
Consult a PEUGEOT dealer.

Engine oil temperature
indicator

With the engine running, this indica-

tes the oil temperature:
-

needle in zone (C)

, the

temperature is correct,

needle in zone (D)

, the

temperature is too high.

To lower the oil temperature,

reduce your speed.

INSTRUMENTS and CONTROLS

22 -

Display screen showing the
positions of the automatic
gearbox selector lever

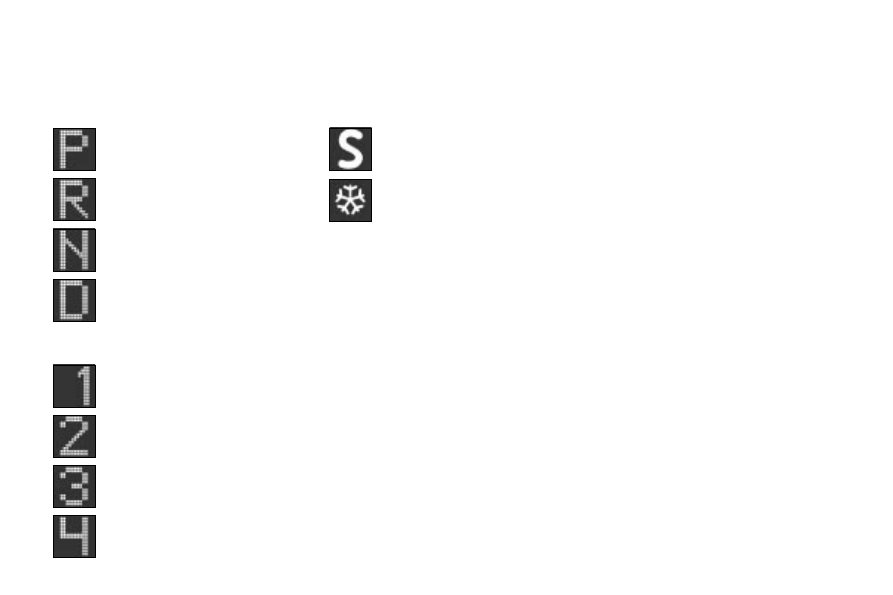

Automatic gearbox indicator
lights

Park

Reverse

Neutral

Drive

Manual mode:

1st gear engaged

2nd gear engaged

3rd gear engaged

4th gear engaged

"SPORT" Indicator light
This comes on when the "SPORT"

programme is selected.

"SNOW" Indicator light
This comes on when the "SNOW"

programme is selected.

Operating abnormality
If the Sport and Snow indicator lights

lash, accompanied by an audible

signal and a message on the multi-

function display, consult a PEUGEOT

dealer.

INSTRUMENTS and CONTROLS -

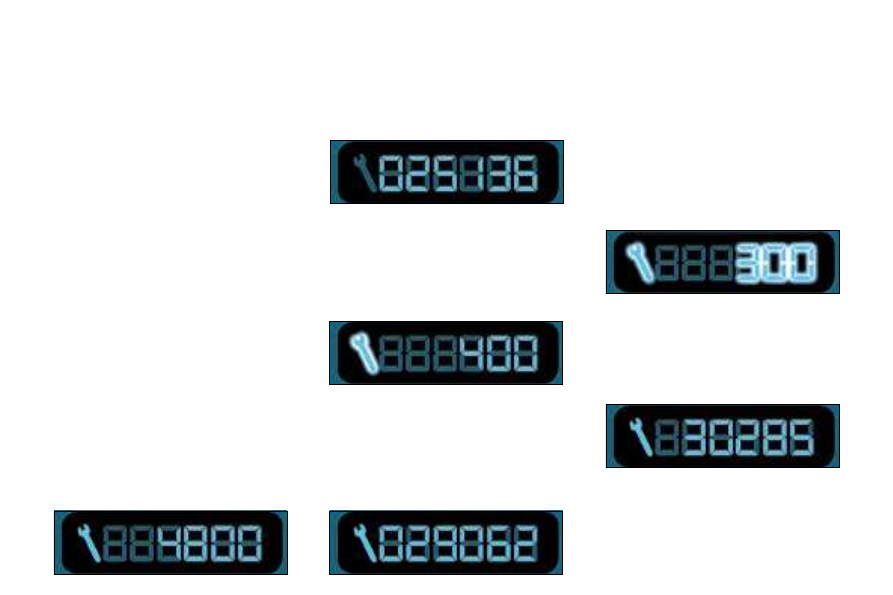

Service indicator

This is a visual reminder of when the

next service is due. This service is to
be carried out according to the manu-
facturer’s servicing schedule.

5 seconds

after

the

ignition

switched on, the total distance re-

corder resumes normal operation and

the display shows the total or trip dis-

tances.

The distance remaining before
the next service is less than
500 miles (1.000 km).
Example: 400 miles (900 km) remain
before the next service is due.

When switching on the ignition and

for 5 seconds, the display shows:

INSTRUMENT PANEL
DISPLAY

After switching on the ignition, three

functions are shown in succession:

-  service indicator,
-  engine oil level indicator,
-  total distance recorder, it remains

displayed for 30 seconds after

the ignition is switched off.

It also displays the speed limiter/

cruise control information, when one

of these systems is active (see cor-
responding section).

Operation
As soon as the ignition is switched

on and for 5 seconds, the spanner

symbolising service operations is lit.

The trip recorder display shows the

distance remaining (in round igures)

before the next service.
Example: 400 miles (900 km) re-
main before the next service is due.

When switching on the ignition and

for 5 seconds, the display shows:

The service is overdue.
Each time the ignition is switched on

and for 5 seconds, the spanner and

the excess distance lash.

Example: the service is overdue by
300 miles/km. The service should be
carried out very shortly.
When the ignition is switched on and

for 5 seconds, the display shows:

5 seconds

after

the

ignition

switched on, the total distance re-

corder resumes normal operation and
the spanner remains lit. The display

shows the total or trip distances.

5 seconds

after

the

ignition

switched on, the total distance re-

corder resumes normal operation and

the display shows the total or trip dis-

tances.
This indicates that a service should
be carried out shortly. The display

shows the total or trip distances.

INSTRUMENTS and CONTROLS

24 -

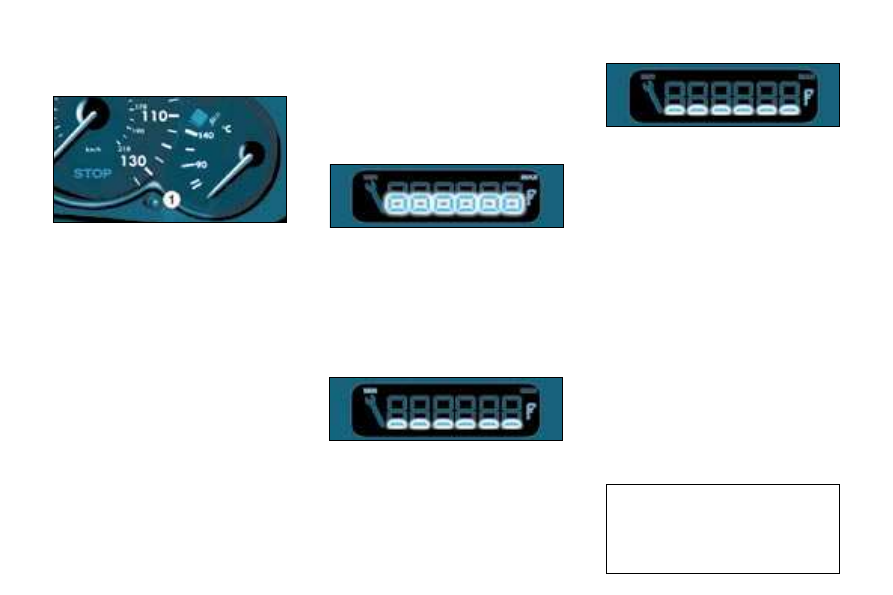

Resetting the service indicator

Your PEUGEOT dealer carries out
this operation after each service.

The reset procedure is as follows:

- Switch off the ignition.
-

Press and hold button 1.

- Switch on the ignition.

The display begins a 10 second

countdown

Keep button 1 pressed for
10 seconds.

The display shows [= 0] and the

spanner disappears.

Engine oil level indicator

When the ignition is switched on,

the engine oil level is indicated for

approximately 10 seconds, after the

service information.

Oil level gauge fault
Flashing of the six segments indi-
cates a malfunction of the oil level
gauge.
There is a risk of damage to the en-
gine.
Consult a PEUGEOT dealer.

Surplus of oil
Flashing of the six squares and dis-
playing of "max" indicate a surplus of

oil which could damage the engine.

If the surplus of oil is conirmed by

a check using the dipstick, contact a

PEUGEOT dealer without delay.

Lack of oil
Flashing of the six segments and dis-
playing of "min" indicate a lack of oil

which could damage the engine.

If the lack of oil is conirmed by a

check using the dipstick, it is essen-

tial that the level is topped up.

The  level  read  on  the  gauge  will
only  be  correct  if  the  vehicle  is
on  level  ground  and  the  engine
has been off for more than 15 mi-
nutes.

INSTRUMENTS and CONTROLS -

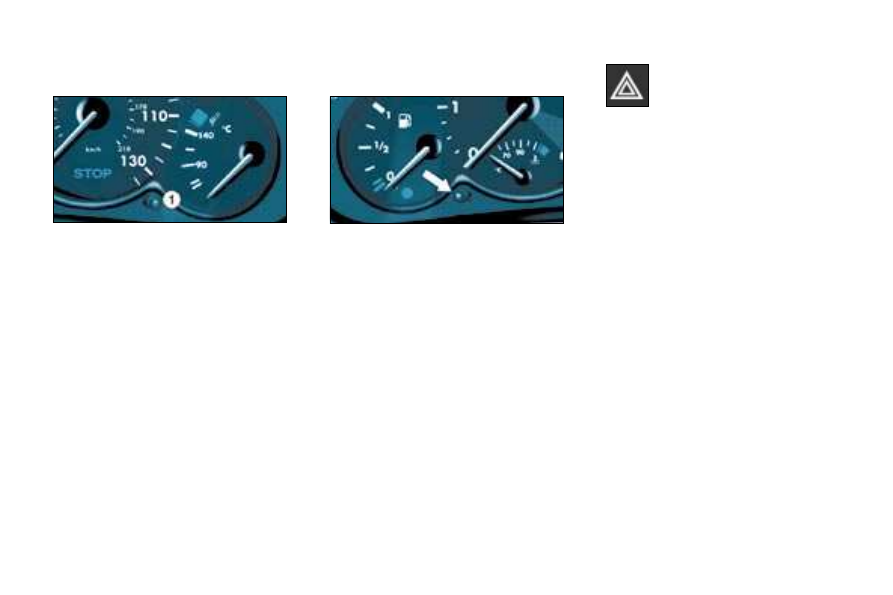

TOTAL DISTANCE
RECORDER

Pressing button 1 alternates be-

tween:

- the total distance display,
- the trip distance display,
-

the speed limiter or cruise

control display when one of

these systems is selected with

the engine running.

To reset the trip recorder to zero,

when it is displayed press button 1

until zeros appear.

LIGHTING RHEOSTAT

With the lights on, press the button

to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or re-
duce) the brightness.
As soon as the lighting is of the re-

quired brightness, release the button.

HAZARD WARNING
LIGHTS

Press the button, the direction indica-

tors lash.

They can operate with the ignition off.

Automatic lighting of hazard
warning lights

When braking in an emergency, de-

pending on the deceleration, the hazard

warning lights come on automatically.

They switch off automatically the irst

time you accelerate.

It is also possible to switch them off

by pressing the button.

MULTIFUNCTION DISPLAYS

26 -

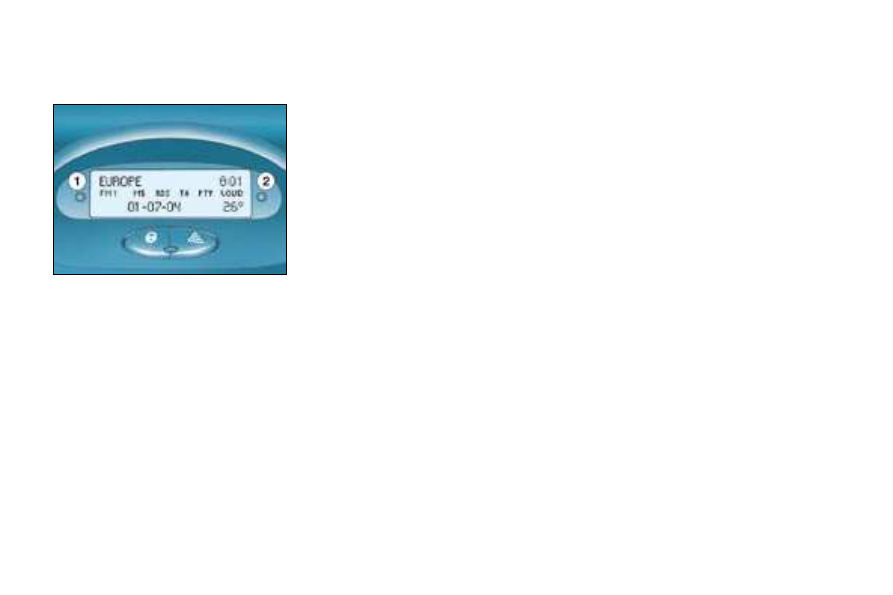

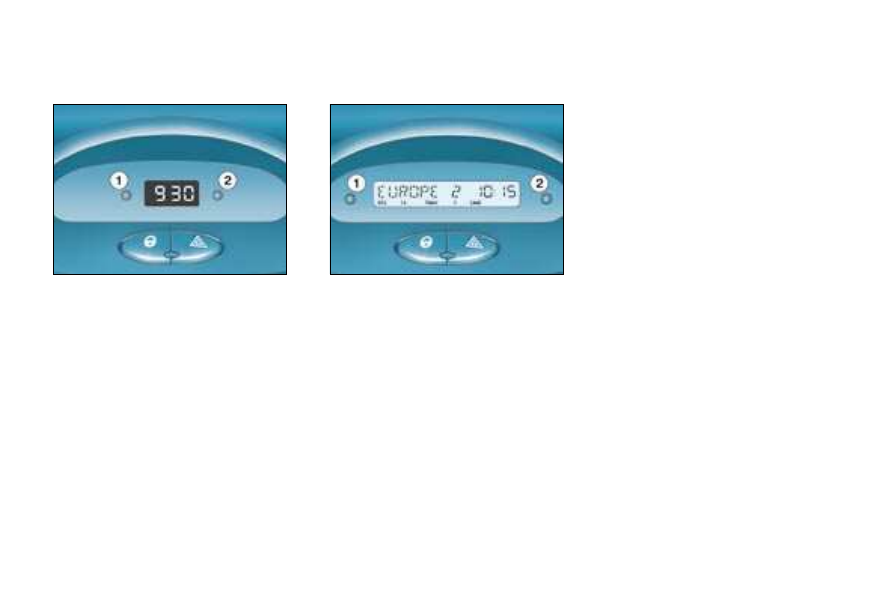

CLOCK

Adjusting the parameters
Press and hold button 1

for two sec-

onds to access the settings; the data

lashes, indicating it is ready to be

modiied.

Then, each press of button 1 scrolls

through the various data in the fol-

lowing order:

language of information

displayed,

-  hours (12 then 24 hour mode),
-  minutes,
-  year,
-  month,
-  day,
-

unit of temperature (degrees
Celsius or Fahrenheit).

Pressing button 2

allows modiication

of the data selected. Press and hold
for rapid advance (return to start after
the last possible value).

After 7 seconds with no action, the

main display returns; the modiied

data are now recorded.

Note: Pressing button 2

briely dis-

plays the outside temperature for a

few seconds.

Button 1: hour adjustment
Button 2: minute adjustment
Press and hold the button for rapid
advance.

DISPLAY A

This displays the following informa-

tion:

- the time,
- the date,
-

the outside temperature (this

lashes if there is a risk of ice),

- the audio system displays,
-

a door check (e.g.: ''left front

door open''),

- warning messages (e.g. ''remote

control battery lat'')

or information messages

(e.g. ''economy mode active''),

displayed temporarily.

MULTIFUNCTION DISPLAYS -

Setting the parameters
Press button 1

for two seconds to

access the settings. The informa-

tion lashes to show it is ready to be

modiied.

Then, individual presses on button 1

allow you to scroll through the vari-

ous data in the following sequence:

- language in which the

information is displayed,

- unit of distance (kms or miles),
-

unit of temperature

(degrees Celsius or Fahrenheit),

time format

(12 then 24 hour mode),

-  hour,
-  minutes,
-  year,
-  month,
-

day.

Pressing button 2

allows you to

change the information selected.
Maintain the pressure for rapid
scrolling.

After 7 seconds without operation,

the screen returns to the normal

display and the modiied data is

recorded.

MONOCHROME DISPLAY B

This enables the following informa-

tion to be displayed:

- the time,
- the date,
-

the outside temperature

(this lashes when there is a risk

of ice),

- the radio displays,
-

the status of the doors. The

display shows you, by means

of a graphic, whether a door is

open,

- the warning messages

(e.g. "battery charge fault")
or information messages

(e.g. "fuel level low"), displayed

temporarily, can be cleared by

pressing button 1 or 2

the trip computer.

AUDIO EQUIPMENT

28 -

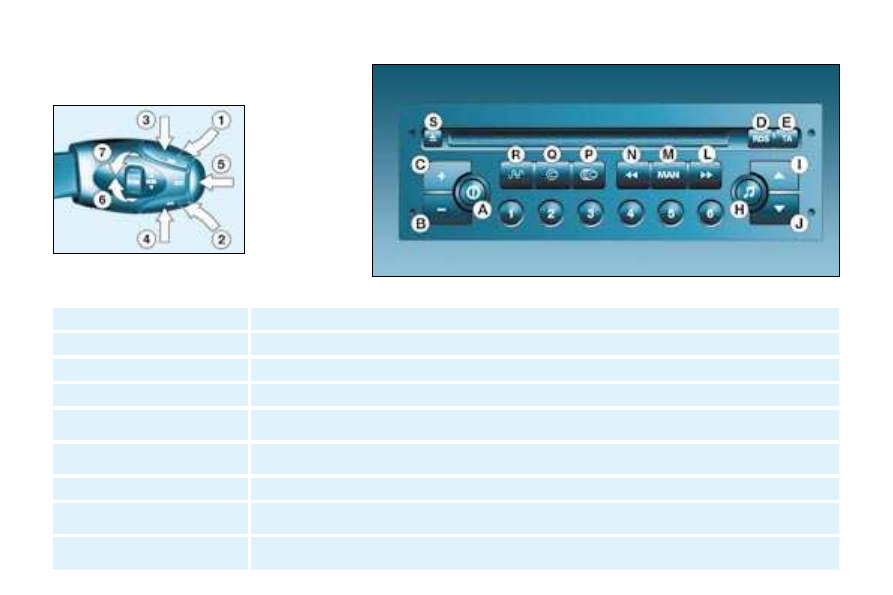

AUDIO RD3

Stalk movement

Function

1 - Press (behind)

Increase volume.

2 - Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Sound cut-off (mute); restoring of the sound by pressing any button.

3 - Press

Automatic search of higher frequencies (radio) - Selection of the next track (CD).

4 - Press

Automatic search of lower frequencies (radio) - Selection of the previous track (CD).

5 - Press the end

Change of source (radio/CD/CD changer).

- Rotation (clockwise)

Selection of next station stored in the memory (radio) - Selection of following CD.

- Rotation (anti-clockwise)

Selection of previous station stored in the memory (radio) - Selection of previous CD.

AUDIO EQUIPMENT -

Button

Function

Radio on/off.

Decrease volume.

Increase volume.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

Trafic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

Selection of bass, treble, loudness, sound distribution and automatic volume correction.

Increase setting of functions associated with button H.

Decrease setting of functions associated with button H.

Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).

MAN

Manual/automatic operation of buttons L and N.

Manual and automatic search of lower frequency.

Selection of previous CD track and PTY (radio).

CH.CD

Selection of the CD changer.

Press for more than 2 seconds: shufle.

Selection of the CD.

Press for more than 2 seconds: shufle.

Radio

Selection of the radio. Selection of FM1, FM2, FMast, AM wavebands.

Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

Ejection of the CD.

1 to 6

1 2 3 4 5 6

Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.

1 to 5

1 2 3 4 5

Selection of a CD changer disc.

AUDIO EQUIPMENT

30 -

GENERAL FUNCTIONS

AUDIO SETTINGS

Adjusting the loudness
This function automatically empha-
sises bass and treble tones. Press
button I or J

to switch the function on

or off.

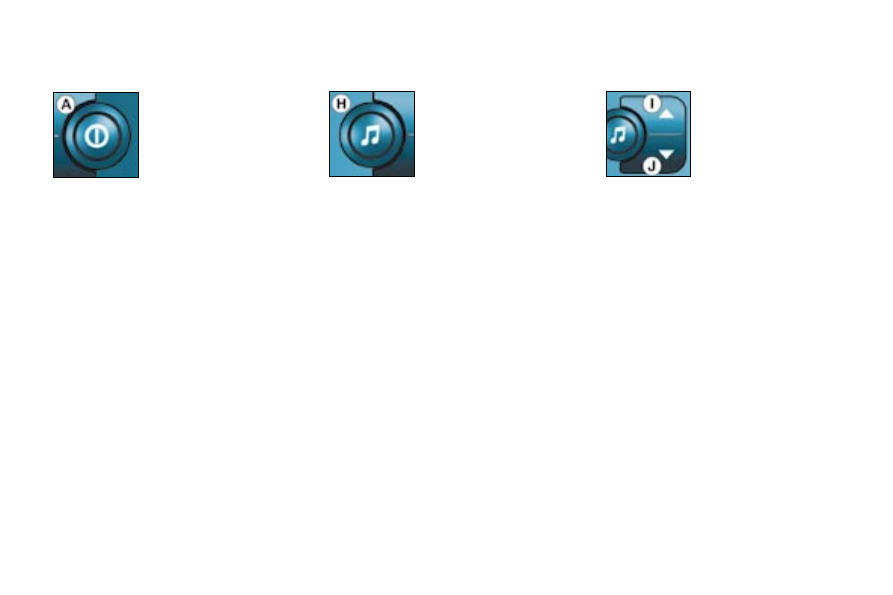

On/off
With the ignition key
in the accessories or

ignition position, press

button A

to switch the

set on or off.
The set can oper-
ate for 30 minutes

without the vehicle ignition being
switched on.

Anti-theft system
The audio system is coded in such a

way that it can operate only on your

vehicle. It would not function if itted

to another vehicle.
The anti-theft system is automatic
and requires no action on your
part.

ADJUSTING THE VOLUME

Press button C to increase the

volume, or button B to decrease it.
Continuous pressure on buttons C
and B

allows a gradual adjustment of

the volume.

Adjusting the bass

Adjusting the treble
When "TREB"

is displayed, press

button I or J to vary the setting.
-

"TREB -9" for a minimum treble

setting,

"TREB 0"

for a normal setting,

"TREB +9" for a maximum
treble setting.

Press button H sev-
eral times in succes-
sion to access the bass
(BASS)

, treble (TREB),

loudness (LOUD)

, fader

(FAD)

, balance (BAL)

and automatic volume
correction settings.

Exit from audio mode is automatic

after a few seconds without pressing

any button, or by pressing button H

after coniguration of the automatic

volume correction.
Note:

bass, treble and loudness set-

tings are speciic to each source. It

is possible to set them differently for

radio, CD and CD changer.

When "BASS" is dis-

played, press button

I or J to vary the set-
ting.
- "BASS -9" for a

minimum bass

setting,

"BASS 0"

for a normal setting,

"BASS +9" for a maximum bass
setting.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

Adjusting the front/rear sound
distribution (Fader)
When "FAD"

is displayed, press

button I or J.
Button I increases the volume in the
front.
Button J increases the volume in the
rear.

Adjusting the right/left sound
distribution (Balance)
When "BAL"

is displayed, press

button I or J.
Button I increases the volume on the
right-hand side.
Button J increases the volume on the
left-hand side.

Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press buttons I or J

to switch the

function on or off.

Press button R.

Briely press button

to select the FM1,

FM2 FMast and AM

wavebands.

Notes on radio reception
Your car radio is subject to phenom-

ena which do not affect domestic ra-

dio sets. Both AM (MW/LW) and FM
reception are subject to various forms

of interference. This is no relection on

the quality of the equipment, but is due

to the nature of the signals and the

way in which they are transmitted.

On MW/LW, interference may be no-

ticed when passing under high voltage

power lines or bridges, or in tunnels.

On FM, interference may be the re-

sult of increasing distance from the

transmitter, delection of the signals by

obstacles (mountains, hills, buildings,

etc.), or of being in an area which is

not covered by a transmitter.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

Adjusting the front/rear sound
distribution (Fader)
When "FAD"

is displayed, press

button I or J.
Button I increases the volume in the
front.
Button J increases the volume in the
rear.

Adjusting the right/left sound
distribution (Balance)
When "BAL"

is displayed, press

button I or J.
Button I increases the volume on the
right-hand side.
Button J increases the volume on the
left-hand side.

Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press buttons I or J

to switch the

function on or off.

Press button R.

Briely press button

to select the FM1,

FM2 FMast and AM

wavebands.

Notes on radio reception
Your car radio is subject to phenom-

ena which do not affect domestic ra-

dio sets. Both AM (MW/LW) and FM
reception are subject to various forms

of interference. This is no relection on

the quality of the equipment, but is due

to the nature of the signals and the

way in which they are transmitted.

On MW/LW, interference may be no-

ticed when passing under high voltage

power lines or bridges, or in tunnels.

On FM, interference may be the re-

sult of increasing distance from the

transmitter, delection of the signals by

obstacles (mountains, hills, buildings,

etc.), or of being in an area which is

not covered by a transmitter.

AUDIO EQUIPMENT

32 -

Manual station search
Press the "MAN" button.
Briely press button L or N to in-

crease or decrease the frequency
displayed.
By continuing to press the button in

the direction selected, you will obtain

continuous scrolling of the frequency.
The  scrolling  stops  as  soon  as  the
button is released.
Pressing  the  "MAN"  button  again
returns  you  to  automatic  station
search.

Automatic storing of FM stations
in the memory (autostore)

Your radio automatically stores the

6 stations with the strongest signal in

FM. These stations are stored in the

FMast waveband.

If it is not possible to ind 6 stations,

the remaining memories are empty.

Automatic station search

Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"

for more than two seconds.
The sound stops then becomes audi-

ble again, conirming that the station

has been stored in the memory.

Press and hold button
R

for more than two

seconds.

Recalling stations stored in the
memory
For each waveband, briely press

buttons "1" to "6" to recall the cor-
responding station.

Briely press button L or N to search

for the station immediately above or

below. By continuing to press the

button in the direction selected, you

will obtain continuous scrolling of the

frequency.
The scrolling stops at the irst sta-

tion found as soon as the button is
released.
If the TA

trafic programme is select-

ed, only stations broadcasting this

type of programme are selected.
Searching for a station occurs irst in

"LO" sensitivity (selection of the most

powerful transmitters) during scan-

ning of the waveband, then in "DX"

sensitivity (selection of the weakest

and most distant transmitters).
To make a direct search in "DX" sen-

sitivity, press button L or N twice.

AUDIO EQUIPMENT -

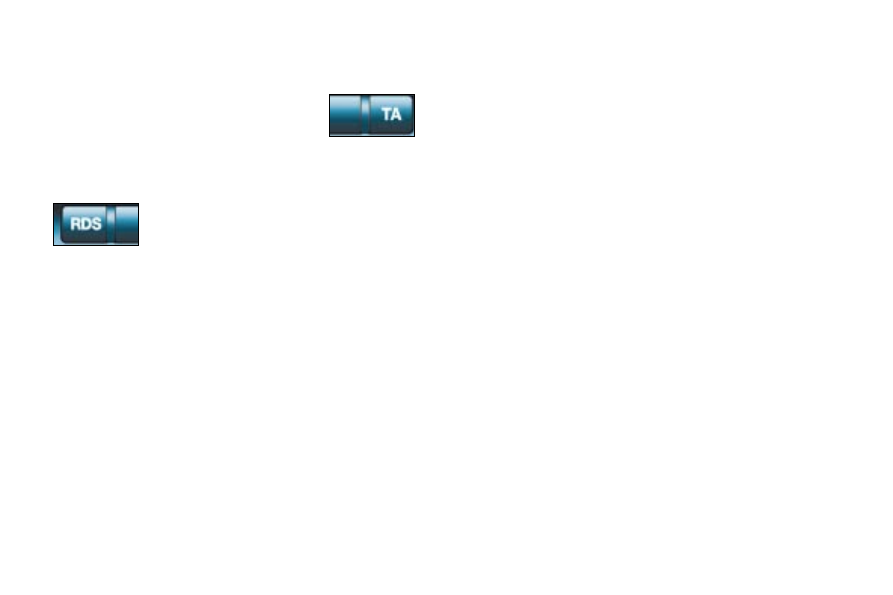

RDS

Trafic information programme

(TA)

Regional following mode
When they are part of a network,

certain stations broadcast regional
programmes in the various areas

they serve. With regional following

mode you can keep listening to the
same programme.
Press the "RDS" button for more

than two seconds to switch the func-

tion on or off.

RDS station following
The display indicates the name of the
station selected. The radio is contin-

ually searching for the station which

has the best reception and which is

transmitting the same programme.

Press the "TA" button

to switch the function

on or off.
The multifunction dis-

play will show:

"TA"

if the function is selected,

"(TA)" if the function is selected
but not available.

Any trafic information lash will be

given priority, whatever source you

are listening to (radio, CD or CD

changer).
If you wish to interrupt a message,

press the "TA"

button; this switches

the function off.
Note: the volume of trafic informa-

tion is independent of the volume
of normal radio listening. You can
adjust it using the volume button.
The setting will be stored and will
be used when the next messages
are broadcast.

Briely press the "RDS"

button to switch the

function on or off.
The multifunction dis-

play will show:

"RDS" if the function is selected.

"(RDS)" if the function is
selected but not available.

Using the RDS (Radio Data
System) function on FM
Radio Data System allows you to

continue listening to the same sta-

tion, whatever frequency it is using

for the region you are going through.

Peugeot 206 SW (2008 year). Manual - part 2
