Peugeot 206 S Dag (2008 year). Manual

INSTRUMENTS and CONTROLS

20 -

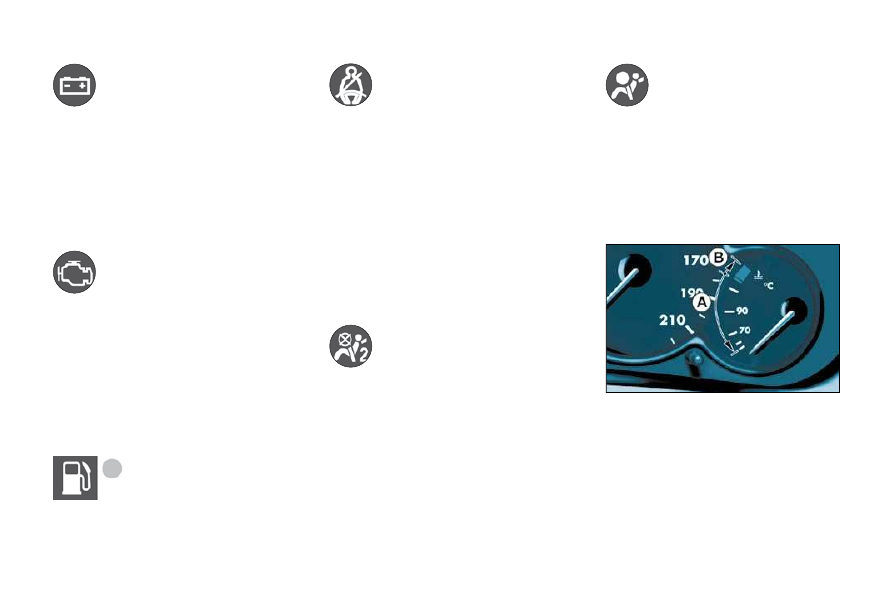

Battery charge warning
light

This indicates one of the following:
- faulty operation of the charging

circuit,

slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control
system warning light
(according to model)

This comes on for a few seconds
each time the ignition is switched

on.

If it comes on with the engine running,

this indicates incorrect operation of
the injection, ignition or emission

control system.

If the warning light ﬂ ashes, there

is a risk of damage to the catalytic

converter on petrol engines.

Consult a PEUGEOT dealer.

Low fuel level
warning light

When this light ﬁ rst

comes on, you have enough fuel to

drive at least 30 miles (50 km). The tank

capacity is approximately 50 litres.

Seat belt not fastened
warning light *

When the ignition is switched

on, this indicator light comes on if the

driver has not fastened his seat belt.
Above 12 mph (20 km/h), the warning

light ﬂ ashes for about two minutes

accompanied by an increasingly

audible signal and a message on the

multifunction display. This warning

light remains lit until the driver"s seat

belt is fastened.

The driver must ensure that all

passengers fasten their seat belt

correctly.

Passenger air bag
disarmed warning light

Illumination of this warning

light accompanied by a message on

the multifunction display, indicates

that the passenger air bag is

disarmed.
The warning light remains lit as
long as the passenger air bag is

disarmed.

Always consult a PEUGEOT dealer if

the warning light ﬂ ashes.

Air bags warning light

The light will come on for
a few seconds when the

ignition is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multifunction display, indicates a

fault in the air bags.

Consult a PEUGEOT dealer.

Coolant temperature indicator

needle in zone (A) , the

temperature is correct,

needle in zone (B) , the

temperature is too high. The

central STOP warning light

ﬂ ashes.

You must stop.
Consult a PEUGEOT dealer.

* According to country.

INSTRUMENTS and CONTROLS -

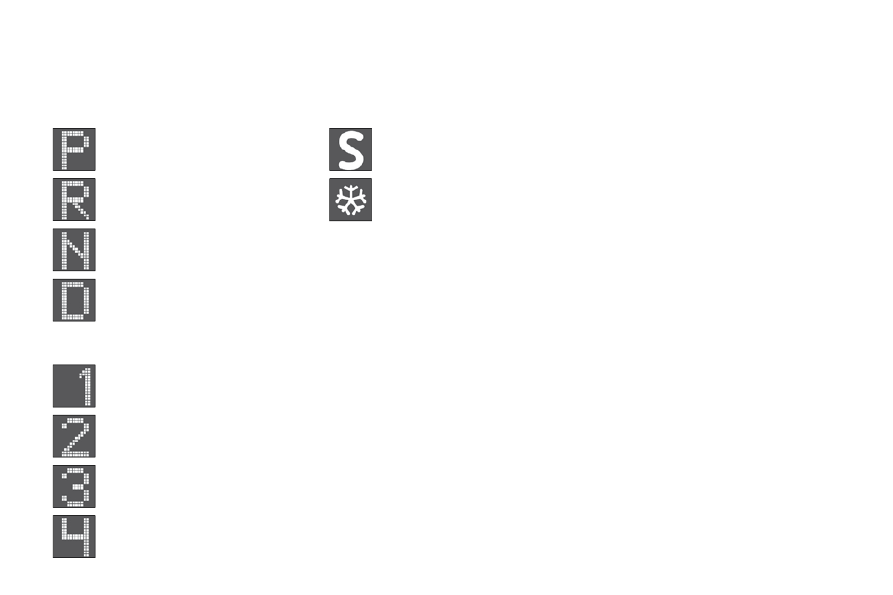

Display screen showing the
positions of the automatic
gearbox selector lever

Automatic gearbox indicator
lights

Park

Reverse

Neutral

Drive

Manual mode:

1st gear engaged

2nd gear engaged

3rd gear engaged

4th gear engaged

"SPORT" Indicator light
This comes on when the "SPORT"

programme is selected.

  "SNOW" Indicator light
This  comes  on  when  the
"SNOW"

programme

selected.

Operating abnormality
If the Sport and Snow indicator

lights ﬂ ash, accompanied by an

audible signal and a message on

the multifunction display, consult a

PEUGEOT dealer.

INSTRUMENTS and CONTROLS

20 -

Battery charge warning
light

This indicates one of the following:
- faulty operation of the charging

circuit,

slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control
system warning light
(according to model)

This comes on for a few seconds
each time the ignition is switched

on.

If it comes on with the engine running,

this indicates incorrect operation of
the injection, ignition or emission

control system.

If the warning light ﬂ ashes, there

is a risk of damage to the catalytic

converter on petrol engines.

Consult a PEUGEOT dealer.

Low fuel level
warning light

When this light ﬁ rst

comes on, you have enough fuel to

drive at least 30 miles (50 km). The tank

capacity is approximately 50 litres.

Seat belt not fastened
warning light *

When the ignition is switched

on, this indicator light comes on if the

driver has not fastened his seat belt.
Above 12 mph (20 km/h), the warning

light ﬂ ashes for about two minutes

accompanied by an increasingly

audible signal and a message on the

multifunction display. This warning

light remains lit until the driver"s seat

belt is fastened.

The driver must ensure that all

passengers fasten their seat belt

correctly.

Passenger air bag
disarmed warning light

Illumination of this warning

light accompanied by a message on

the multifunction display, indicates

that the passenger air bag is

disarmed.
The warning light remains lit as
long as the passenger air bag is

disarmed.

Always consult a PEUGEOT dealer if

the warning light ﬂ ashes.

Air bags warning light

The light will come on for
a few seconds when the

ignition is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multifunction display, indicates a

fault in the air bags.

Consult a PEUGEOT dealer.

Coolant temperature indicator

needle in zone (A) , the

temperature is correct,

needle in zone (B) , the

temperature is too high. The

central STOP warning light

ﬂ ashes.

You must stop.
Consult a PEUGEOT dealer.

* According to country.

INSTRUMENTS and CONTROLS

22 -

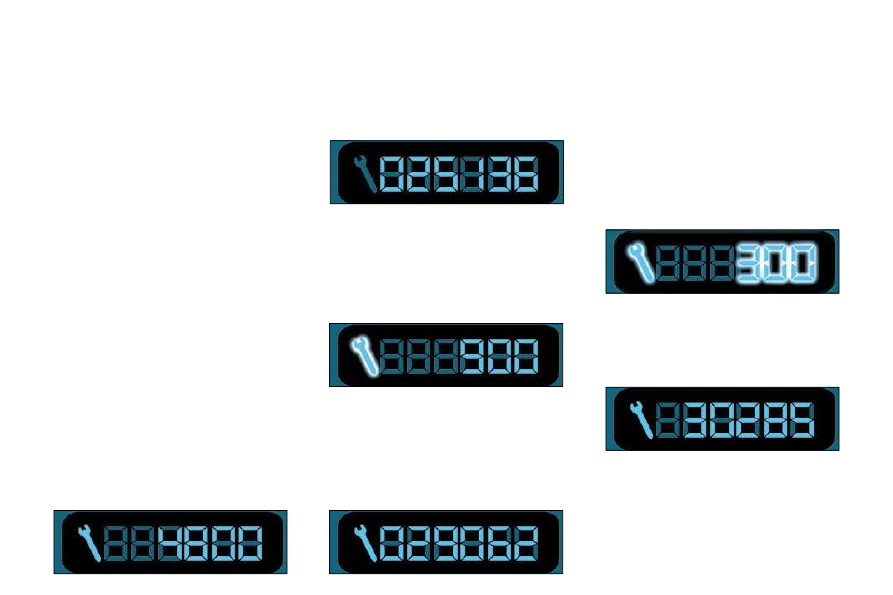

Service indicator

This is a visual reminder of when

the next service is due. This service

is to be carried out according to the

manufacturer"s servicing schedule.

5 seconds after the ignition is switched
on, the total distance recorder re-

sumes normal operation and the dis-

play shows the total or trip distances.

The distance remaining before the
next service is less than 500 miles
(1,000 km).
Example: 400 miles (900 km) remain

before the next service is due.
When switching on the ignition and
for 5 seconds, the display shows:

5 seconds

after

the

ignition

switched on, the total distance re-

corder resumes normal operation

and the spanner remains lit.

This indicates that a service should

be carried out shortly. The display

shows the total or trip distances.

INSTRUMENT PANEL
DISPLAY

After switching on the ignition, three

functions are shown in succession:
-

service indicator,

engine oil level indicator,

total distance recorder, it remains
displayed for 30 seconds when
the ignition is switched off, on

opening the driver"s door, as

well as on locking and unlocking

the vehicle.

  Operation
As  soon  as  the  ignition  is  switched
on  and  for  5  seconds,  the  spanner

symbolising service operations is lit.

The trip recorder display shows the

distance remaining (in round ﬁ gures)

before the next service.
Example:

4,800 miles/km

remain

before the next service is due. When

the ignition comes on and for 5 seconds
the display shows:

The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the spanner and

the excess distance ﬂ ash.
Example:

the service is overdue by

300 miles/km. The service should be

carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:

5 seconds

after

the

ignition

switched on, the total distance re-

corder resumes normal operation and

the spanner remains lit. The display

shows the total or trip distances.

INSTRUMENTS and CONTROLS -

Resetting the service indicator

Your PEUGEOT dealer carries out

this operation after each service.

The reset procedure is as follows:

- Switch off the ignition.

- Press and hold button 1 .

- Switch on the ignition.
The display begins a 10 second

countdown.

- Keep button 1 pressed for

10 seconds.

The display shows [=0] and the

spanner disappears.

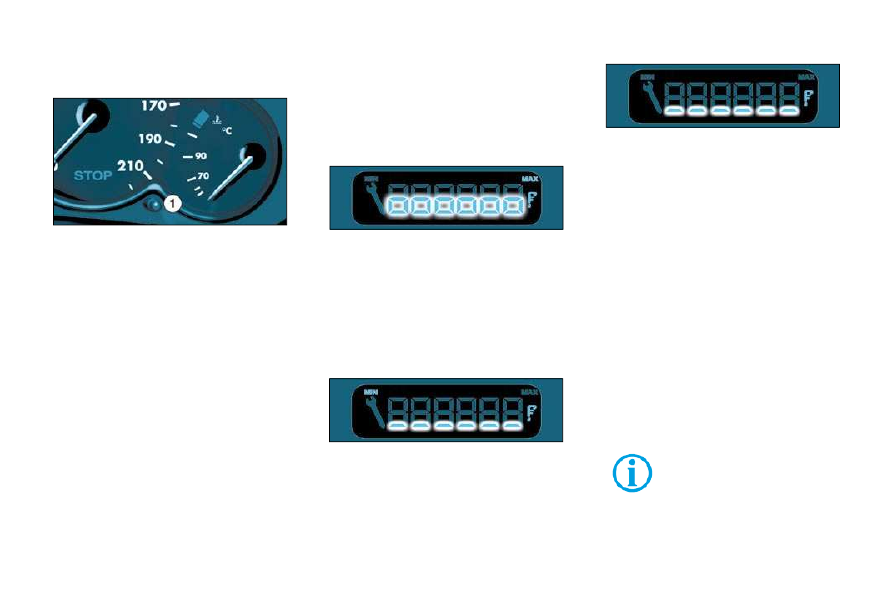

Engine oil level indicator

When  the  ignition  is  switched  on,
the  engine  oil  level  is  indicated  for
approximately  10  seconds,  after  the

service information.

Oil level gauge fault
Flashing of the six segments indicates

a malfunction of the oil level gauge.
There is a risk of damage to the

engine.

Consult a PEUGEOT dealer.

Surplus of oil
Flashing of the six squares and

displaying of "max" indicate a

surplus of oil which could damage

the engine.

If the surplus of oil is conﬁ rmed by

a check using the dipstick, contact a

PEUGEOT dealer without delay.

Lack of oil
Flashing of the six segments and

displaying of "min" indicate a lack of

oil which could damage the engine.

If the lack of oil is conﬁ rmed by a

check using the dipstick, it is essential

that the level is topped up.

  The  level  read  on  the
gauge will only be correct
if  the  vehicle  is  on  level
ground  and  the  engine
has  been  off  for  more
than 15 minutes.

INSTRUMENTS and CONTROLS

24 -

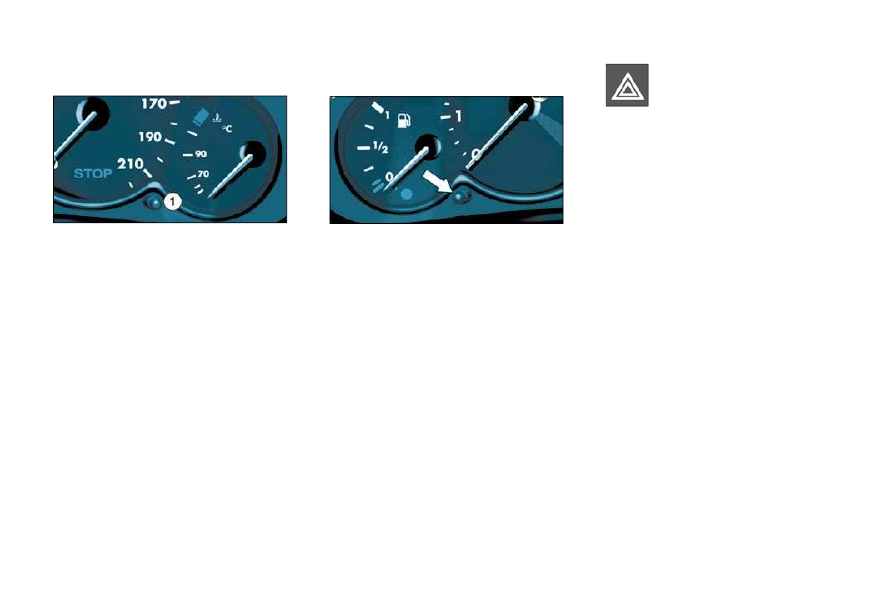

Total distance recorder

Brieﬂ y pressing button 1 alternates

between the total and trip distance

displays.

LIGHTING RHEOSTAT

With the lights on, press the button

to vary the intensity of the lighting of

the instruments and controls. When

the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or

reduce) the brightness.
As soon as the lighting is of the

required brightness, release the

button.

HAZARD WARNING
LIGHTS

Automatic lighting of hazard
warning lights

Equipment conditioned according to

country: when braking in an emergen-

cy, depending on the deceleration, the

hazard warning lights come on auto-

matically. They switch off automatically

the ﬁ rst time you accelerate.
It is also possible to switch them off

by pressing the button.

Trip recorder

To reset the trip recorder to zero,

when it is displayed press button 1

until zeros appear.

Press the button, the direction

indicators ﬂ ash.
They can operate with the ignition

off.

INSTRUMENTS and CONTROLS -

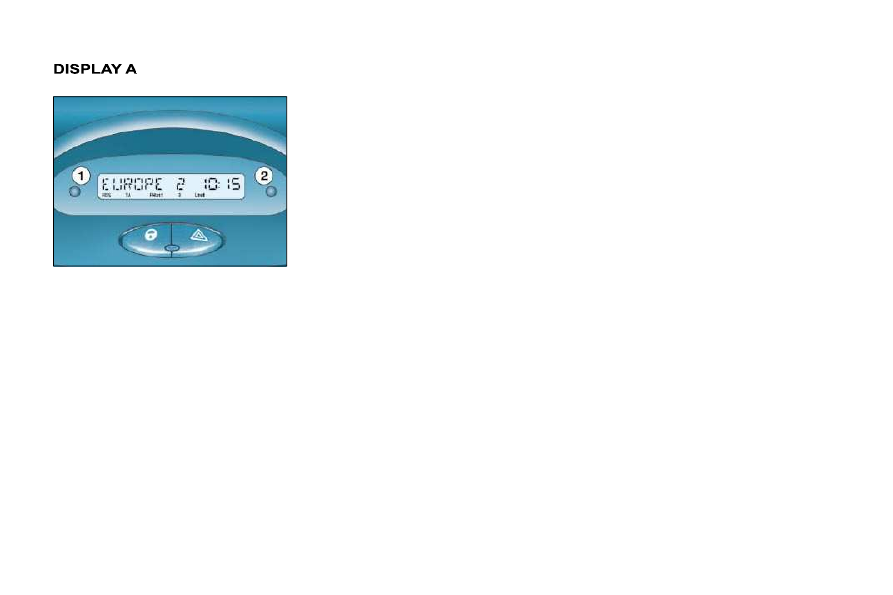

Adjusting the parameters
Press and hold button 1 for two

seconds to access the settings; the

data ﬂ ashes, indicating it is ready to

be modiﬁ ed.

Then, each press of button 1 scrolls

through the various data in the

following order:
- language of information

displayed,

- hours (12 then 24 hour mode),

- minutes,
-

year,

month,

day,

- unit of temperature (degrees

Celsius or Fahrenheit).

Pressing button 2 allows modiﬁ cation

of the data selected. Press and hold

for rapid advance (return to start after

the last possible value).
After 7 seconds with no action, the

main display returns; the modiﬁ ed

data are now recorded.
Note:

Pressing button 2 brieﬂ y

displays the outside temperature for

a few seconds.

This displays the following information:
-

the time,

the date,

- the outside temperature (this

ﬂ ashes if there is a risk of ice),

- the audio system displays,

- a door check (e.g.: ‘"left front door

open"),

- warning messages (e.g. ‘"remote

control battery ﬂ at") or information

messages (e.g. "economy mode

active"), displayed temporarily.

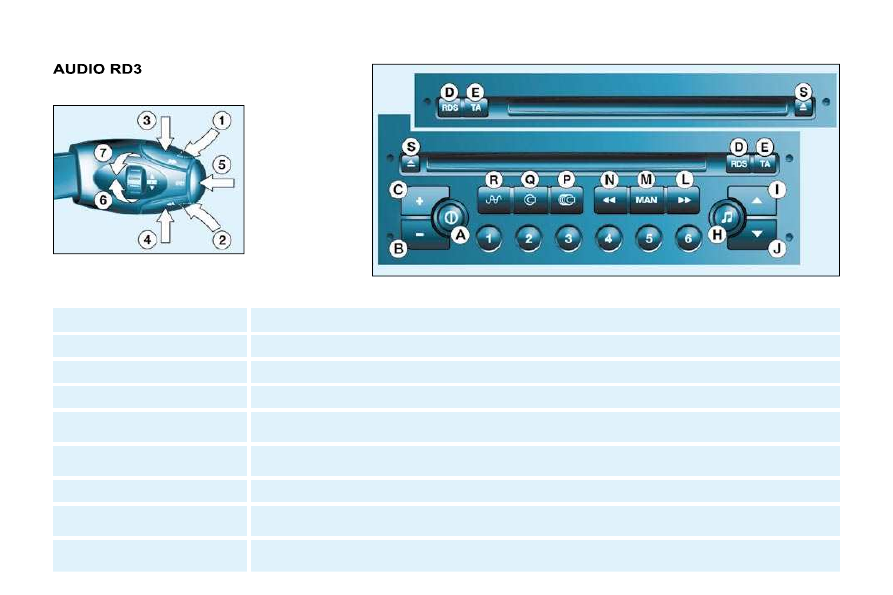

AUDIO EQUIPMENT

26 -

Stalk movement

Function

1 - Press (behind)

Increase volume.

2 - Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Sound cut-off (mute); restoring of the sound by pressing any button.

3 - Press

Automatic search of higher frequencies (radio) - Selection of the next track (CD).

4 - Press

Automatic search of lower frequencies (radio) - Selection of the previous track (CD).

5 - Press the end

Change of source (radio/CD/CD changer).

6 - Rotation (clockwise)

Selection of next station stored in the memory (radio) - Selection of following CD.

7 - Rotation

(anti-clockwise)

Selection of previous station stored in the memory (radio) - Selection of previous CD.

AUDIO EQUIPMENT -

Button

Function

Radio on/off.

Decrease volume.

Increase volume.

RDS

RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.

Trafﬁ c information priority on/off.

Press for more than 2 seconds: PTY function on/off.



Selection of bass, treble, loudness, sound distribution and automatic volume correction.



Increase setting of functions associated with button H .



Decrease setting of functions associated with button H .



Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).

MAN

Manual/automatic operation of buttons L and N .



Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).

CH.CD

Selection of the CD changer.

Press for more than 2 seconds: shufﬂ e.

Selection of the CD.

Press for more than 2 seconds: shufﬂ e.

Radio

Radio Selection of the radio. Selection of FM1, FM2, FMast, AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).



Ejection of the CD.

1 to 6

1 2 3 4 5 6

Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.

1 to 5

1 2 3 4 5

Selection of a CD changer disc.

AUDIO EQUIPMENT

28 -

GENERAL FUNCTIONS

AUDIO SETTINGS

  Adjusting the loudness
This  function  automatically  empha-
sises  bass  and  treble  tones.  Press
button  I  or  J  to switch the function on
or off.

  On/off
With  the  ignition  key
in  the  accessories  or
ignition position, press
button  A  to switch the
set on or off.
  The  set  can  oper-
ate  for  30  minutes

without the vehicle ignition being
switched on.

Anti-theft system
The audio system is coded in such a
way that it can operate only on your

vehicle. It would not function if ﬁ tted

to another vehicle.
  The anti-theft system is automatic
and  requires  no  action  on  your
part.

ADJUSTING THE VOLUME

Press  button   C   to  increase  the  vol-
ume, or button  B  to decrease it.
Continuous  pressure  on  buttons   C
and  B  allows a gradual adjustment of
the volume.

Adjusting the bass

  Adjusting the treble
When   "TREB"   is  displayed,  press
button  I  or  J  to vary the setting.
   -

"TREB -9" for a minimum treble
setting,

"TREB 0" for a normal setting,

"TREB +9" for a maximum
treble setting.

  Press  button   H   sev-
eral  times  in  succes-
sion  to  access  the
bass   (BASS) ,  treble
(TREB) ,

loudness

(LOUD) , fader (FAD) ,
balance (BAL) and
automatic volume cor-
rection settings.

Exit from audio mode is automatic
after a few seconds without pressing
any button, or by pressing button H

after conﬁ guration of the automatic

volume correction.
Note: bass, treble and loudness set-

tings are speciﬁ c to each source. It

is possible to set them differently for
radio, cassette (RB3) , CD (RD3) and
CD changer.

When   "BASS"   is  dis-
played,  press  button
I   or   J   to  vary  the  set-
ting.
   -    "BASS -9"  for a

minimum bass
setting,

- "BASS 0" for a

normal setting,

"BASS +9" for a maximum bass
setting.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

  Adjusting the front/rear sound
distribution (Fader)
When  "FAD"  is displayed, press but-
ton  I  or  J .
Button  I  increases the volume in the
front.
Button  J  increases the volume in the
rear.

  Adjusting the right/left sound
distribution (Balance)
When  "BAL"  is displayed, press but-
ton  I  or  J .
Button  I  increases the volume on the
right-hand side.
Button  J  increases the volume on the
left-hand side.

  Automatic volume correction
This  function  enables  the  volume  to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press  buttons   I   or   J   to  switch  the
function on or off.

Press button R .

Press  button   R   brief-
ly  to  select  the  FM1,
FM2  FMast  and  AM
wavebands.

  Notes on radio reception
Your car radio is subject to phenome-
na which do not affect domestic radio
sets.  Both AM  (MW/LW)  and  FM  re-
ception  are  subject  to  various  forms

of interference. This is no reﬂ ection

on  the  quality  of  the  equipment,  but
is due to the nature of the signals and
the  way  in  which  they  are  transmit-
ted.
On  MW/LW,  interference  may  be
noticed  when  passing  under  high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the result
of increasing distance from the trans-

mitter, deﬂ ection of the signals by ob-

stacles  (mountains,  hills,  buildings,
etc.),  or  of  being  in  an  area  which  is
not covered by a transmitter.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

Press button R .

Press  button   R   brief-
ly  to  select  the  FM1,
FM2  FMast  and  AM
wavebands.

  Notes on radio reception
Your car radio is subject to phenome-
na which do not affect domestic radio
sets.  Both AM  (MW/LW)  and  FM  re-
ception  are  subject  to  various  forms

of interference. This is no reﬂ ection

mitter, deﬂ ection of the signals by ob-

stacles  (mountains,  hills,  buildings,
etc.),  or  of  being  in  an  area  which  is
not covered by a transmitter.

AUDIO EQUIPMENT

30 -

  Manual station search
Press the  "MAN"  button.
Brieﬂ y  press  button   L   or   N   to  in-

crease  or  decrease  the  frequency
displayed.
By  continuing  to  press  the  button  in
the direction selected, you will obtain
continuous scrolling of the frequency.
The  scrolling  stops  as  soon  as  the
button is released.
Pressing  the   "MAN"   button  again
returns  you  to  automatic  station
search.

Automatic storing of FM stations
in the memory (autostore)

Your radio automatically stores the 6
stations with the strongest signal in
FM . These stations are stored in the
FMast waveband.
If it is not possible to ﬁ nd 6 stations,

the remaining memories are empty.

Automatic station search

Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"
for more than two seconds.
The sound stops then becomes audi-

ble again, conﬁ rming that the station

has been stored in the memory.

Recalling stations stored in the
memory
For each waveband, brieﬂ y press

buttons "1" to "6" to recall the cor-
responding station.

Brieﬂ y press button L or N to search

for  the  station  immediately  above  or
below.  By  continuing  to  press  the
button  in  the  direction  selected,  you
will obtain continuous scrolling of the
frequency.
The  scrolling  stops  at  the  ﬁ rst  sta-

tion found as soon as the button is
released.
If the TA

trafﬁ c programme is select-

ed, only stations broadcasting this
type of programme are selected.
Searching for a station occurs ﬁ rst in

"LO"  sensitivity (selection of the most
powerful  transmitters)  during  scan-
ning  of  the  waveband,  then  in   "DX"
sensitivity  (selection  of  the  weakest
and most distant transmitters).
To make a direct search in  "DX"  sen-
sitivity, press button  L  or  N  twice.

Press and hold button
R for more than two
seconds.

AUDIO EQUIPMENT -

RDS

Trafﬁ c information programme

  Regional following mode
When they are part of a network, cer-
tain  stations  broadcast  regional  pro-
grammes  in  the  various  areas  they
serve.  With  regional  following  mode
you  can  keep  listening  to  the  same
programme.

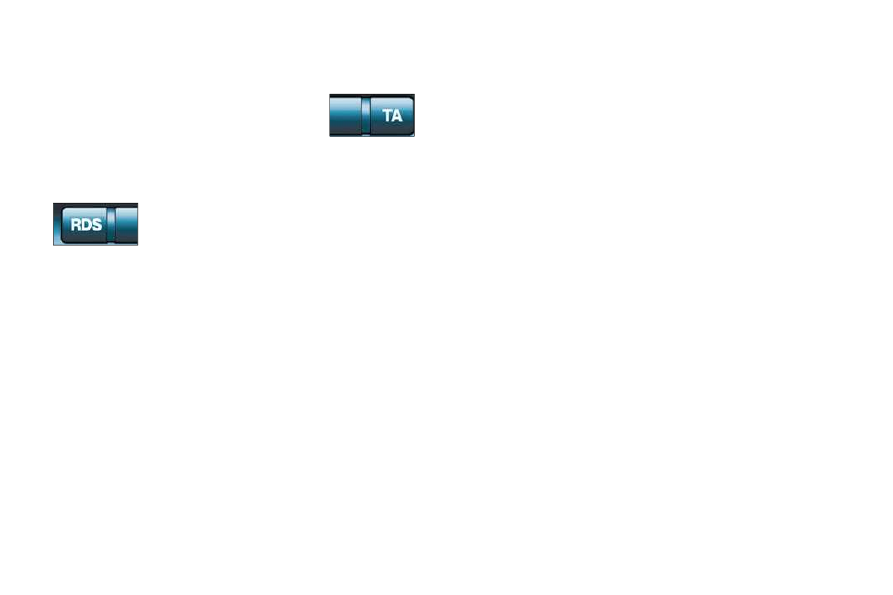

Press  the   "RDS"   button  for  more
than two seconds to switch the func-
tion on or off.

  RDS station following
The display indicates the name of the
station selected. The radio is contin-
ually  searching  for  the  station  which
has  the  best  reception  and  which  is
transmitting the same programme.

Press the "TA" button
to switch the function
on or off.

Brieﬂ y press the "RDS"

button to switch the
function on or off.

The multifunction display will show:
-

"RDS" if the function is selected.

"(RDS)" if the function is
selected but not available.

  Using the RDS (Radio Data
System) function on FM
Radio  Data  System    allows  you  to
continue  listening  to  the  same  sta-
tion,  whatever  frequency  it  is  using
for the region you are going through.

The multifunction display will show:
-

"TA" if the function is selected,

"(TA)" if the function is selected
but not available.

Any trafﬁ c information ﬂ ash will be

given  priority,  whatever  source  you
are listening to (radio, cassette or CD
changer).
If  you  wish  to  interrupt  a  message,
press the  "TA"  button; this switches
the function off.

Note: the volume of trafﬁ c informa-

tion  announcements  is  independ-
ent of the volume of normal radio
listening.  You  can  adjust  it  using
the volume button. The setting will
be  stored  and  will  be  used  when
the next messages are broadcast.

AUDIO EQUIPMENT

32 -

EON system
This connects stations which are part
of the same network. It enables the

broadcast of trafﬁ c information or a

PTY  programme, by a station that is
part of the same network as the sta-
tion to which you are listening.
This  service  is  available  when  you
have selected the  TA

trafﬁ c informa-

tion programme or the PTY function.

PTY function
This allows you to listen to stations broad-

casting a speciﬁ c type of programme

(news, culture, sport, rock, etc.).

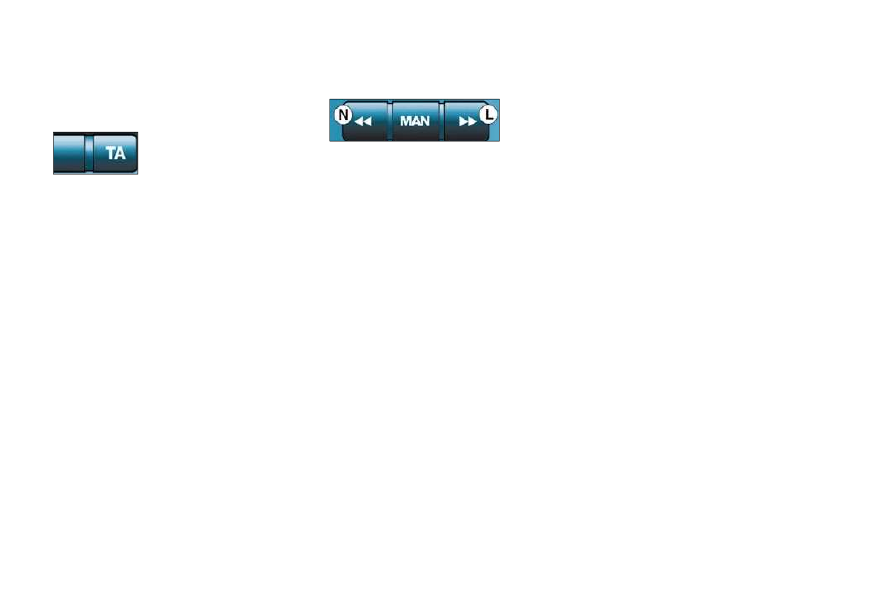

To search for a PTY programme:

With

selected,

press the "TA" but-
ton for two seconds to
switch this function on
or off.

select the PTY function,

- brieﬂ y press button L or N to

scroll down the list of the various
types of programmes offered.

when the programme of your
choice is displayed, keep button
L or N pressed for two seconds
to carry out an automatic search
(after an automatic search the
PTY function is switched off).

In   PTY   mode  the  different  types  of
programmes  can  be  stored  in  the
memory. To do this, press the prese-
lection  buttons   "1"   to   "6"   for  two

seconds. Brieﬂ y press the corre-

sponding button to recall the type of
programme stored in the memory.

AUDIO EQUIPMENT -

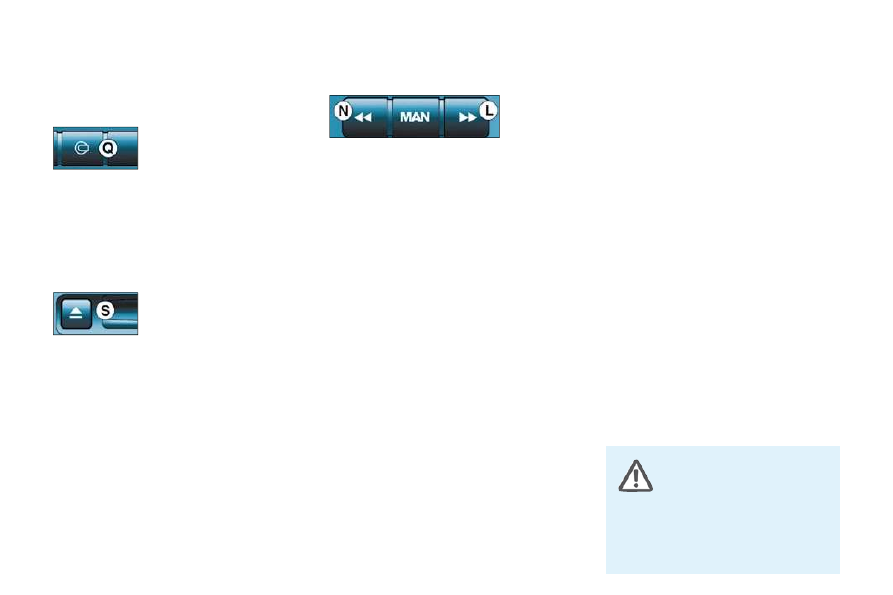

Ejection of a disc

Selecting a track

  Shufﬂ e (RDM)
When  the  CD  player  is  selected,
press and hold button  Q  for two sec-
onds.  The  tracks  will  be  played  in
random sequence. Pressing the but-
ton  again  for  two  seconds  returns
you to   normal play.
Shufﬂ e  mode  is  de-activated  each

time the set is switched off.

After insertion of a
disc,

printed

face

upwards, the player
starts automatically.

If a disc is already inserted, press
button Q .

COMPACT DISC

Press  button   L   to  select  the  next
track.
Press  button   N   to  return  to  the  start
of  the  current  track  or  to  select  the
previous track.

The  use  of  copied  com-
pact  discs  may  cause
faults.
  Insert  circular  compact
discs only.

Press button S to
eject the disc from the
player.

  Accelerated play
Press  and  hold  button   L   or   N   for
forwards  or  backwards  accelerated
play.
Accelerated  play  stops  as  soon  as
the button is released.

Selecting CD mode

Peugeot 206 S Dag (2008 year). Manual - part 2
