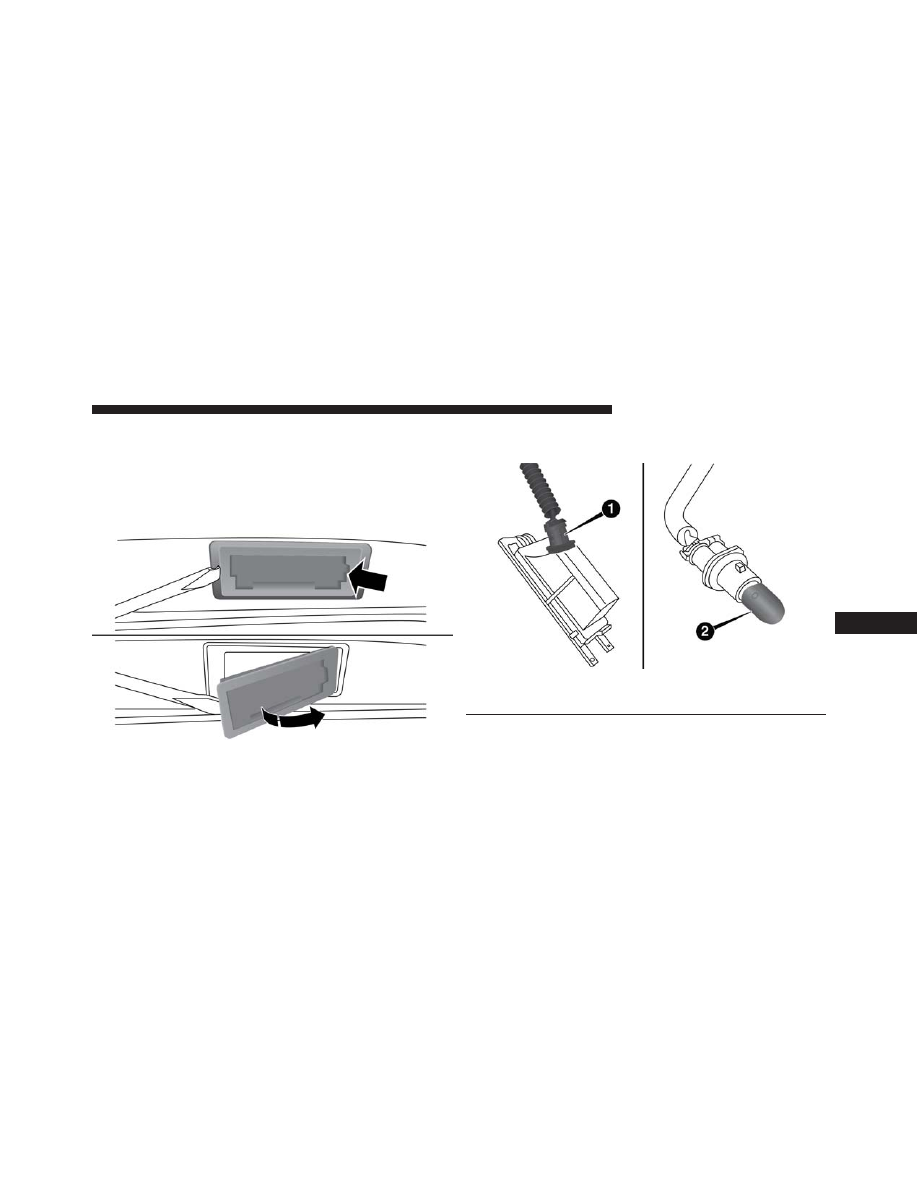

License Plate Lights

To replace the bulbs proceed as follows:

1. Position the lens in the point shown laterally to

compress the retaining clip, then pull the license plate
light cluster out.

2. Turn bulb holder (1) counterclockwise, remove bulb

(2) and replace it.

License Plate Lamp Removal

1 — Bulb Holder
2 — Bulb

MAINTAINING YOUR VEHICLE

303

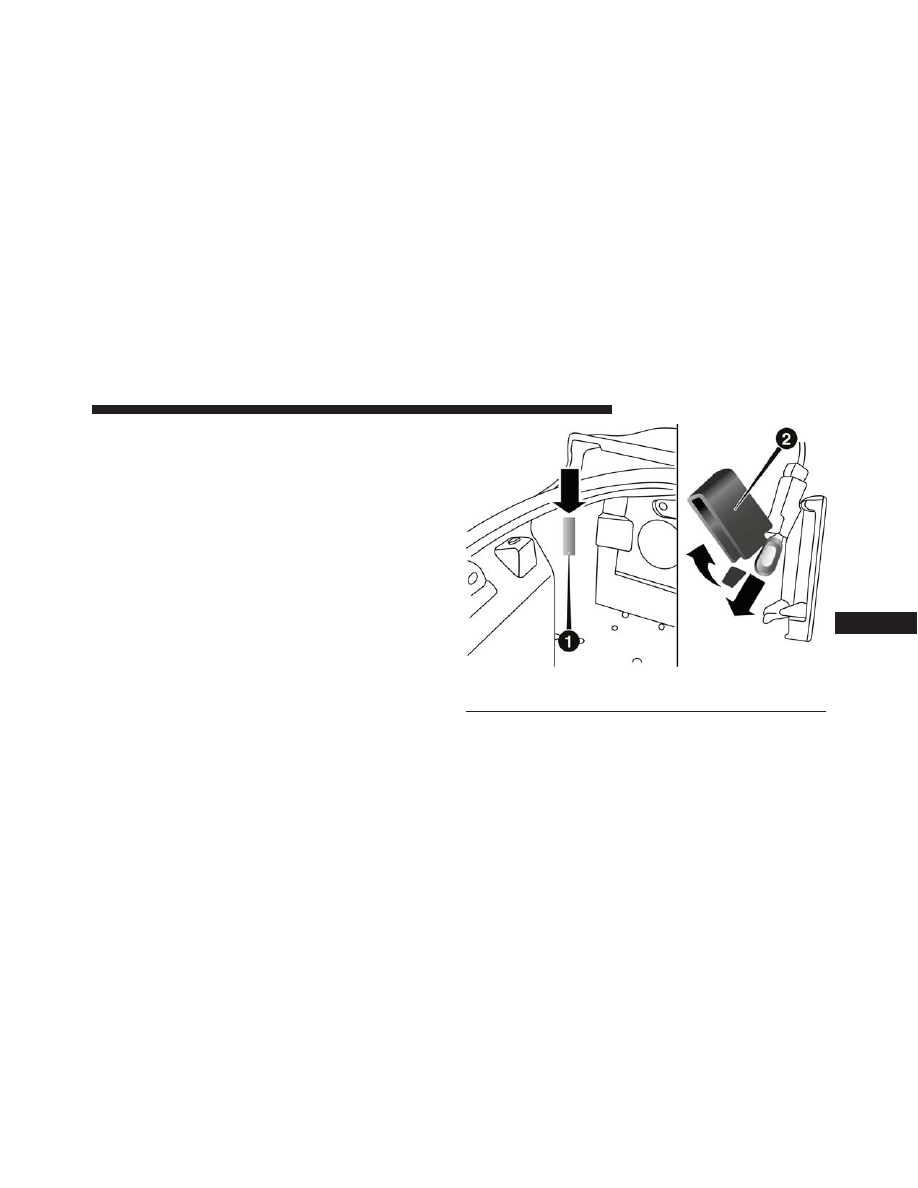

3. Close protective flap (2) and install roof light in its

housing, making sure that it is locked in place.

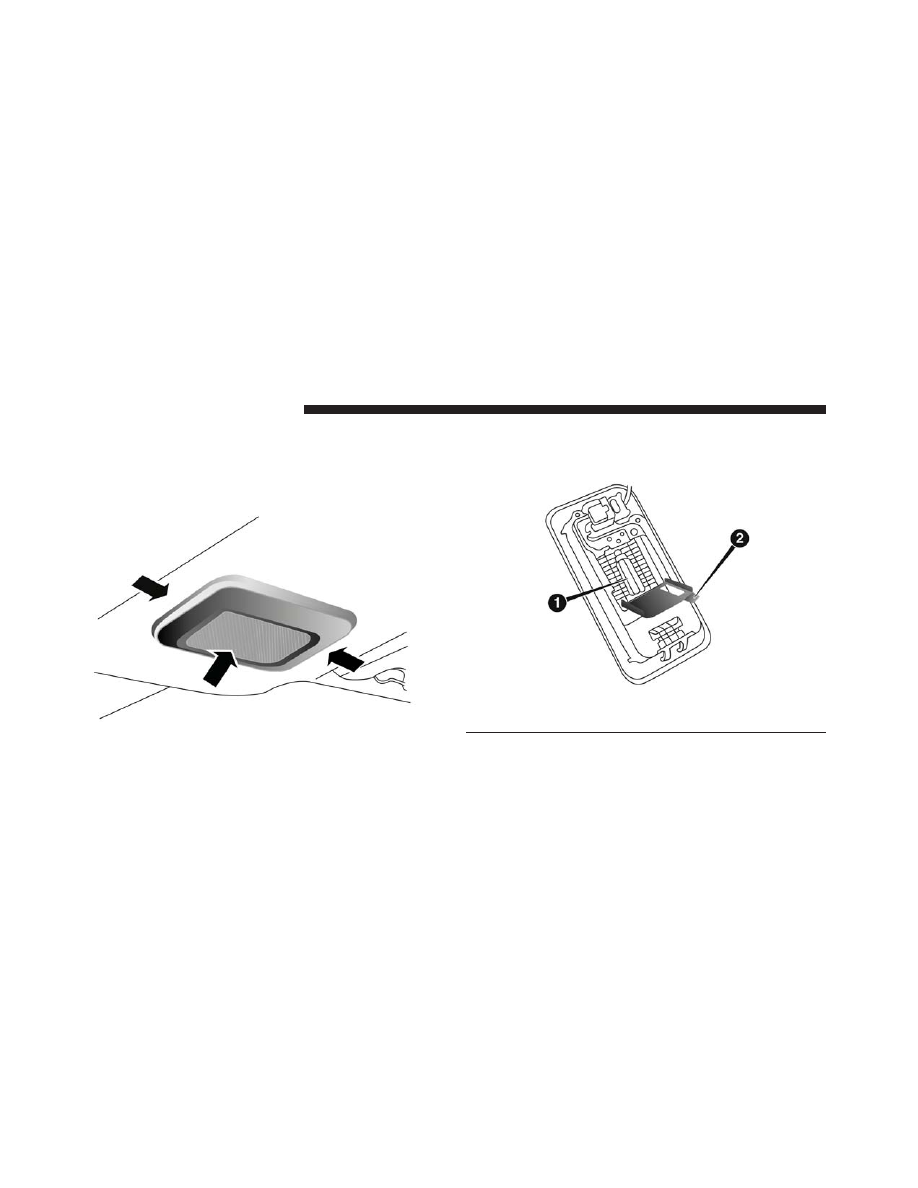

Luggage Compartment Roof Light

To replace the bulb, proceed as follows:

1. Open the luggage compartment and remove luggage

compartment roof light, working in the direction
shown by the arrow.

2. Open light protector (2) and replace the bulb.

3. Close protector on the lens.

1 — Light Cover
2 — Light Protector

MAINTAINING YOUR VEHICLE

305

4. Install luggage compartment roof light by inserting it

in its correct position, first on one side and then
pressing on the other side until it clicks into place.

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)
1.750 Turbo Engine

10.5 Gallons

40 Liters

Reserve Fuel

1.1 Gallons

4 Liters

Engine Oil with Filter
1.750 Turbo Engine

6.1 Quarts

5.8 Liters

Cooling System
1.750 Turbo Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula).

11.2 Quarts

10.6 Liters

306

MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant - 1.750 Turbo Engine

We recommend you use MOPAR® Antifreeze/Coolant
10 Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS.90032.

Engine Oil - 1.750 Turbo Engine

We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of
Chrysler Material Standard MS-12991. Refer to your
engine oil filler cap for correct SAE grade.

Engine Oil Filter - 1.750 Turbo Engine

We recommend you use MOPAR® Engine Oil Filter.

Spark Plugs - 1.750 Turbo Engine

We recommend you use MOPAR® Spark Plugs. *

Fuel Selection - 1.750 Turbo Engine

Use Only 91 Octane or higher.

MAINTAINING YOUR VEHICLE

307

MAINTENANCE SCHEDULE

Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.

Based on engine operation conditions, the oil change
indicator message will illuminate in the instrument clus-
ter. This means that an engine oil and engine oil filter
change is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” or “Oil Change Re-
quired” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next 500
miles (805 km).

The Wrench Warning Light may appear in the cluster as
a service reminder when vehicle maintenance is required,
according to the scheduled maintenance mileage. The
maintenance schedule intervals are set by the manufac-
turer. Failure to have them carried out may void your
New Vehicle Warranty.

NOTE:

The actual interval for changing the oil and

replacing the engine oil filter depends on the vehicle
usage conditions and is signalled by the warning light or
message (if present) on the instrument panel or every 12
months.

Severe Duty All Models

In addition, if your vehicle is used under demanding
conditions, including:

• On the track
• On dusty roads

312

MAINTENANCE SCHEDULES

• Short, repeated trips (less than 4-5 miles or 7-8 km) at

sub-zero temperatures

• Allowing the engine to idle for extended periods of

time

• Driving for long distances at low speeds
• Allowing the vehicle to sit for long periods of inactiv-

ity

Under any of the above circumstances, the following
checks need to be performed more frequently than indi-
cated in the Maintenance Schedule:

• Check front and rear disc brake pad condition and

wear

• Check cleanliness of tailgate locks.
• Check cleanliness and lubrication of chassis and steer-

ing linkage

• Visually inspect condition of: engine, gearbox, trans-

mission, pipes and hoses (exhaust - fuel system -
brakes) and rubber elements (gaiters - sleeves - bushes
- etc.)

• Check battery charge and battery fluid level (electro-

lyte)

• Visually inspect condition of the auxiliary drive belts
• Check and, if necessary, change engine oil and replace

oil filter

• Check and, if necessary, replace air cleaner

Using the car on track should be regarded as an excep-
tion. The car has been designed and produced for road
use.

MAINTENANCE SCHEDULES

313

Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.

If the vehicle is operated in a dusty or dirty environment
the engine air filter has to be changed every 6500 miles
(10,000 km).

Once A Month Or Before A Long Trip/Periodic Checks

Every 600 miles (1,000 km) or before long trips, check
and, if necessary, top off the following:

• Check engine oil level
• Check brake fluid level
• Check windshield washer fluid level

• Check the tire inflation pressures and look for unusual

wear or damage

• Check the fluid levels of the coolant reservoir and

brake master cylinder reservoir, and add as needed

• Check function of all interior and exterior lights
• Check screen wash/wipe system and positioning/

wear of windscreen

Every 2000 miles (3000 km) check and, if necessary, top
up: engine oil level

314

MAINTENANCE SCHEDULES

Required Maintenance Intervals

Refer to the maintenance schedules on the following
page for the required maintenance intervals.

At Every Oil Change Interval As Indicated By Oil

Change Indicator System:

Change oil and filter.

Inspect battery and clean and tighten terminals as

required.

Inspect brake pads, shoes, rotors, drums, and hoses.

Inspect engine cooling system protection and hoses.

Check and adjust hand brake.

Inspect exhaust system.

Inspect engine air cleaner if using in dusty or off-road

conditions.

MAINTENANCE SCHEDULES

315

Maintenance Chart

Mileage or time passed (whichever comes first)

12,000

24,000

36,000

48,000

60,000

72,000

Or Months:

Or Kilometers:

20,000

40,000

60,000

80,000

100,000

120,000

Check battery charge status and possibly recharge ⌂

Check tire condition/wear and adjust pressure if required

Check lighting system operation (headlights, direction indicators,
hazard lights, passenger compartment lights, boot lights, instrument
panel warning lights, etc.)

Check vehicle fasteners

Check mechanical components fasteners

Check windscreen wiper/washer operation, adjust nozzles

Check position/wear of windscreen wiper blade

316

MAINTENANCE SCHEDULES

Mileage or time passed (whichever comes first)

12,000

24,000

36,000

48,000

60,000

72,000

Or Months:

Or Kilometers:

20,000

40,000

60,000

80,000

100,000

120,000

Check cleanliness of hood and deck lid locks, as well as cleanli-
ness and lubrication of associated linkages

Visually inspect condition of: exterior bodywork, carbon monocoque,
aerodynamic bottom, pipes and hoses (exhaust, fuel supply system,
brakes), rubber elements (boots, driveshaft boots, sleeves, bushes,
etc.)

Check condition and wear of front brake pads and discs, and op-
eration of pad wear indicator

Check condition and wear of rear brake pads and discs, and opera-
tion of pad wear indicator

Check and top off, if required, fluid levels (engine coolant, brake/
hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)

Visually inspect the condition of accessory drive belt(s)

MAINTENANCE SCHEDULES

317

Mileage or time passed (whichever comes first)

12,000

24,000

36,000

48,000

60,000

72,000

Or Months:

Or Kilometers:

20,000

40,000

60,000

80,000

100,000

120,000

Check condition of timing belt

Check handbrake lever travel and adjust, if necessary (or every 12
months)

Check exhaust gas emissions, or as required by applicable laws

Check engine control system operation (via diagnostic tool)

Check and, if necessary, top off oil level of dual clutch automatic
transmission

Replace accessory drive belt(s)

Replace spark plugs (#)

Replace toothed timing drive belt (*)

Change engine oil and oil filter (**)

Change brake fluid (or every 24 months)

318

MAINTENANCE SCHEDULES
