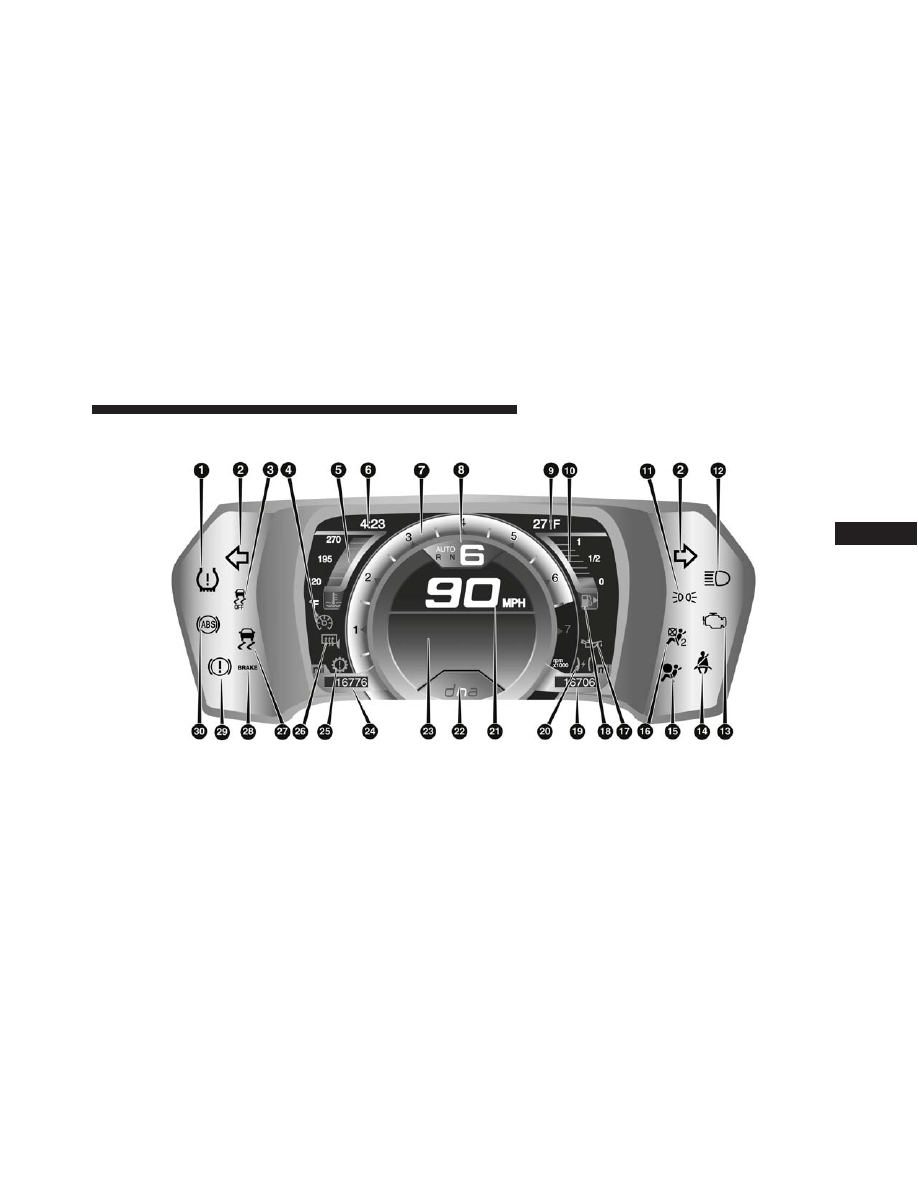

INSTRUMENT CLUSTER DESCRIPTIONS

1. Tire Pressure Monitoring Telltale Light — If Equipped

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle

placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)

As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving

on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.

Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire pressure

112

UNDERSTANDING YOUR INSTRUMENT PANEL

as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.

WARNING!

The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause

(Continued)

WARNING! (Continued)

sensor damage. Do not use tire sealant from a can or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.

2. Turn Signal Indicators

The arrows will flash in unison with the exte-
rior turn signal, when using the turn signal
lever.

3. Electronic Stability Control (ESC) OFF Indicator
Light

This light indicates the Electronic Stability Con-
trol (ESC) is off.

UNDERSTANDING YOUR INSTRUMENT PANEL

113

4. Electronic Speed Control Set Indicator Light — If
Equipped

This light will turn on when the electronic
speed control is set.

5. Temperature Gauge

The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.

The digital gauge will likely indicate a higher tempera-
ture when driving in hot weather, or up mountain
grades. It should not be allowed to exceed the upper
limits of the normal operating range.

NOTE:

Driving with a hot engine cooling system could

damage your vehicle. The digital warning light may
switch on (together with a message on the display) to
indicate that the coolant temperature is too high; in this
case, stop the engine and contact a dedicated authorized
dealership.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle.” Follow the warnings under the Cooling
System Pressure Cap paragraph.

6. Time Display

This area of the cluster displays the time.

114

UNDERSTANDING YOUR INSTRUMENT PANEL

7. Tachometer

This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage.

8. Transmission Gear Status

This area of the cluster displays the current gear selected.

9. Outside Temperature

This area of the cluster displays the outside temperature
in degrees Fahrenheit or degrees Celsius.

10. Fuel Gauge

The digital display shows the amount of fuel in the tank.

The switching on of the digital warning light indicates
that 1 – 1.3 gallons of fuel are left in the tank; in this
situation, refuel as soon as possible.

Do not travel with the fuel tank almost empty; any gaps
in fuel delivery could damage the catalytic converter.

11. Park/Headlight ON Indicator

This indicator will illuminate when the park
lights or headlights are turned on.

12. High Beam Indicator

This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-

ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.

13. Malfunction Indicator Light (MIL)

The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system, called OBD II, that
monitors engine and automatic transmission con-

trol systems. The light will illuminate when the key is in
the ON/RUN position, before engine start. If the bulb

UNDERSTANDING YOUR INSTRUMENT PANEL

115

does not come on when turning the key from OFF to
ON/RUN, have the condition checked promptly.

Certain conditions, such as smart fuel door left open,
poor fuel quality, etc., may illuminate the MIL after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations, the vehicle will drive normally and will
not require towing.

CAUTION!

Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the engine
control system. It also could affect fuel economy and
driveability. If the MIL is flashing, severe catalytic
converter damage and power loss will soon occur.
Immediate service is required.

WARNING!

A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants, wood, cardboard, etc. This could result
in death or serious injury to the driver, occupants or
others.

14. Seat Belt Reminder Light

Seat Belt Reminder Light will turn on and remain
on until the driver seat belt is buckled. If the
driver seat belt is unbuckled once the vehicle

speed is over 12.5 mph (20 km/h) or when travelling at a
speed from 6 to 12.5 mph (10 to 20 km/h) for few
seconds, the Seat Belt Reminder Light and sounding an
intermittent chime. Once the sequence starts, it will
continue for the entire duration or until the driver’s seat

116

UNDERSTANDING YOUR INSTRUMENT PANEL

belt is buckled. After the sequence completes, the Seat
Belt Reminder Light remains illuminated until the driv-
er’s seat belt is buckled. The driver should instruct all
other occupants to buckle their seat belts. Refer to
“Occupant Restraints” in “Things To Know Before Start-
ing Your Vehicle” for further information.

15. Air Bag Warning Light

This light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while

driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.

16. Passenger Air Bag Warning Light

This light should come and remain on for four
to eight seconds as a bulb check when the
ignition is first turned to the START or ON/
RUN position. If the light stays on, or comes on

while driving it may indicate a problem with a passenger
air bag system, if the light flickers it may indicate an air
bag warning bag failure. Have an authorized dealer
service the air bag system immediately.

17. Oil Pressure Warning Light

This telltale indicates low engine oil pressure. If

the light turns on while driving, stop the vehicle and shut
off the engine as soon as possible. A chime will sound
when this light turns on.

Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.

UNDERSTANDING YOUR INSTRUMENT PANEL

117

18. Fuel Door Reminder

The arrow in this symbol is a reminder that the
Fuel Filler Door is located on the right side of
the vehicle.

19. Trip Odometer

This area of the cluster displays the total distance trav-
eled since the last Trip reset.

20. Electronic Throttle Control (ETC) Light

This light informs you of a problem with the
Electronic Throttle Control (ETC) system. The
light will come on when the ignition is first
turned ON and remain on briefly as a bulb

check. If the light does not come on during starting, have
the system checked by an authorized dealer.

If a problem is detected, the light will come on while the
engine is running. Cycle the ignition key when the
vehicle has completely stopped and the gear selector is

placed in the 1st position. The light should turn off.

If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an autho-
rized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is
required. You may experience reduced performance, an
elevated/rough idle or engine stall and your vehicle may
require towing.

21. Speedometer

Indicates vehicle speed.

22. “Alfa DNA” Driving Mode Indicator

This area of the cluster displays which driving mode the
vehicle is currently in. A letter (d, n, or a) corresponding
to the active driving mode (dynamic or race, natural, all
weather) and a dedicated message is shown on the
display.

118

UNDERSTANDING YOUR INSTRUMENT PANEL

23. Electronic Vehicle Information Center (EVIC) Dis-
play

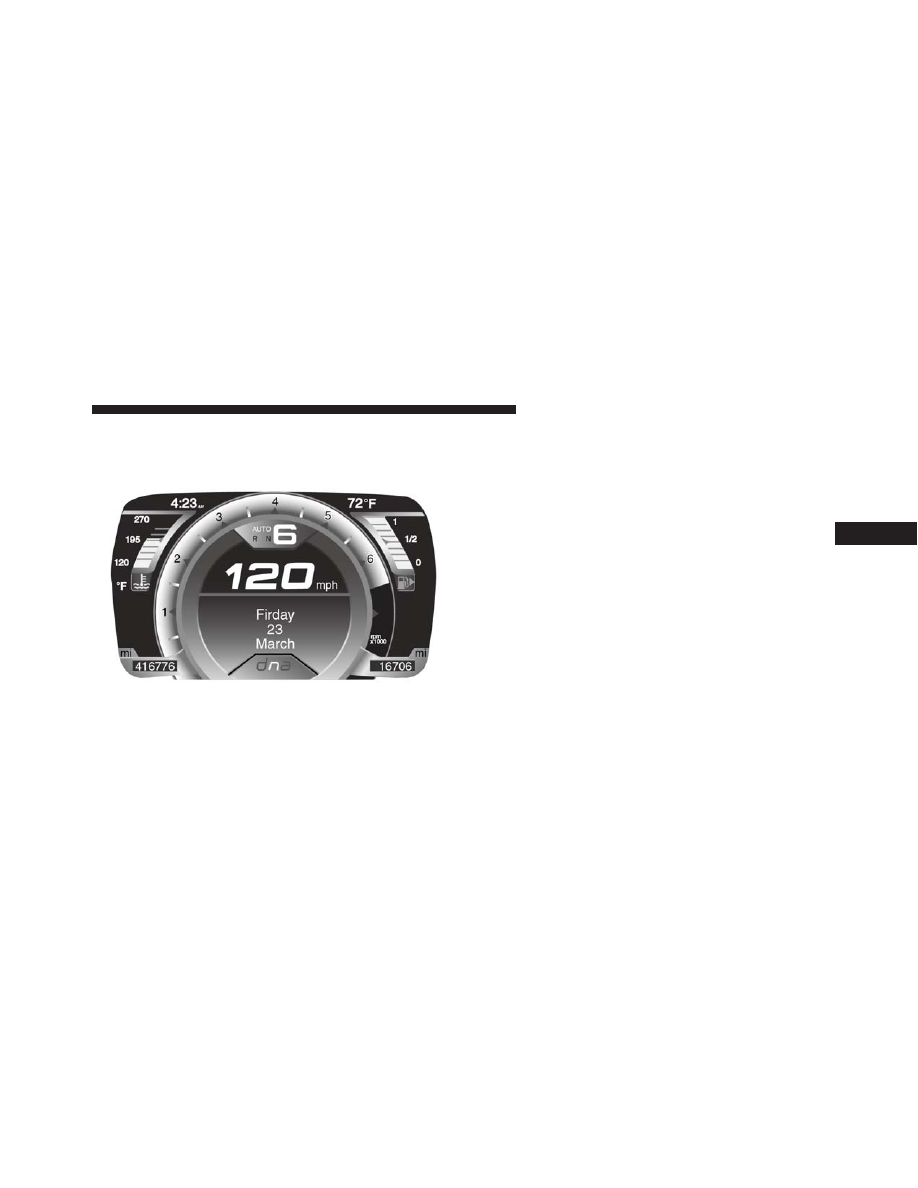

The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster. For further information, refer to
“Electronic Vehicle Information Center (EVIC)” in “Un-
derstanding Your Instrument Panel.”

EVIC Service Item Display

• Service Warning light – If Equipped

NOTE:

The “Scheduled Servicing Plan” in-

cludes car maintenance at fixed intervals, refer
to the

⬙Maintenance⬙ chapter. This message is

displayed automatically along with the warn-

ing light when the key is turned to MAR-ON - 1242 miles
(2,000 km) before these deadlines and reappears every
124 miles (200 km). Below 124 miles (200 km) servicing
indications are more frequent. The indication will appear

in miles or kilometers according to the

⬙Unit Of Measure-

ment

⬙ settings. When the next scheduled service is ap-

proaching and the key is turned to MAR-ON, the word
Service will appear on the display, followed by the
number of miles or kilometers left. Contact a dedicated
Alfa Romeo Dealership. The operations in the “Sched-
uled Servicing Plan” will be performed and the message
will be reset.

24. Odometer Display

The odometer display shows the total distance the ve-
hicle has been driven.

U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair
technician should leave the odometer reading the same
as it was before the repair or service. If s/he cannot do so,

UNDERSTANDING YOUR INSTRUMENT PANEL

119

then the odometer must be set at zero, and a sticker must
be placed in the door jamb stating what the mileage was
before the repair or service. It is a good idea for you to
make a record of the odometer reading before the repair/
service, so that you can be sure that it is properly reset, or
that the door jamb sticker is accurate if the odometer
must be reset at zero.

25. Transmission Fault Indicator

This light will illuminate (together with a mes-
sage in the EVIC and a buzzer) to indicate a
transmission fault. Contact your authorized
dealer if the message remains after restarting

the engine.

26. Door Mirror Defrost Indicator

This indicator will illuminate when the Door
Mirror Defrost button on the instrument panel
is pushed to the ON position.

27. Electronic Stability Control (ESC) Activation/
Malfunction Indicator Light

If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine
running, a malfunction has been detected in
the ESC system. If this light remains on after

several ignition cycles, and the vehicle has been driven
several miles (kilometers) at speeds greater than 30 mph
(48 km/h), see your authorized dealer as soon as possible
to have the problem diagnosed and corrected.

NOTE:

• Each time the ignition is turned to ON/RUN, the

ESC system will be ON, even if it was turned off
previously.

• The ESC system will make buzzing or clicking

sounds when it is active. This is normal; the sounds
will stop when ESC becomes inactive following the
maneuver that caused the ESC activation.

120

UNDERSTANDING YOUR INSTRUMENT PANEL

28. Brake Warning Light — If Equipped

This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that

the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir.

If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop.

The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the reservoir has dropped
below a specified level.

The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.

If brake failure is indicated, immediate repair is neces-
sary.

UNDERSTANDING YOUR INSTRUMENT PANEL

121

WARNING!

Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
a collision. Have the vehicle checked immediately.

Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.

Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON/RUN position. The light should illuminate for ap-
proximately two seconds. The light should then turn off
unless the parking brake is applied or a brake fault is
detected. If the light does not illuminate, have the light
inspected by an authorized dealer.

The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi-
tion.

NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake application.

29. Brake Warning Light — If Equipped

This light monitors various brake functions, in-
cluding brake fluid level and parking brake ap-

plication. If the brake light turns on it may indicate that
the parking brake is applied, that the brake fluid level is
low, or that there is a problem with the anti-lock brake
system reservoir.

122

UNDERSTANDING YOUR INSTRUMENT PANEL

In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop.

The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.

If brake failure is indicated, immediate repair is neces-
sary.

WARNING!

UNDERSTANDING YOUR INSTRUMENT PANEL

123

The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi-
tion.

NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake application.

30. Anti-Lock Brake (ABS) Light

This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.

If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.

If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.

124

UNDERSTANDING YOUR INSTRUMENT PANEL

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)

The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.

The EVIC consists of the following:

• Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip Info
• Screen Setup
• Vehicle Settings

Electronic Vehicle Information Center (EVIC)

UNDERSTANDING YOUR INSTRUMENT PANEL

125

The system allows the driver to select information by
pushing the following buttons mounted on the instru-
ment panel to the left of the steering column:

• UP Arrow Button

Push and release the UP arrow button to scroll
upward through the main menu and sub-
menus or to increase the displayed value. Out-
side of the menu, the UP arrow will adjust the

brightness of the instrument panel.
• DOWN Arrow Button

Push and release the DOWN arrow button to
scroll downward through the main menu and
sub-menus or to decrease the displayed value.
Outside of the menu, the DOWN arrow will

adjust the brightness of the instrument panel.
• SET/BACK Arrow Button

Push and release the SET/BACK arrow button to access/
select the information screens or sub-menu screens of a

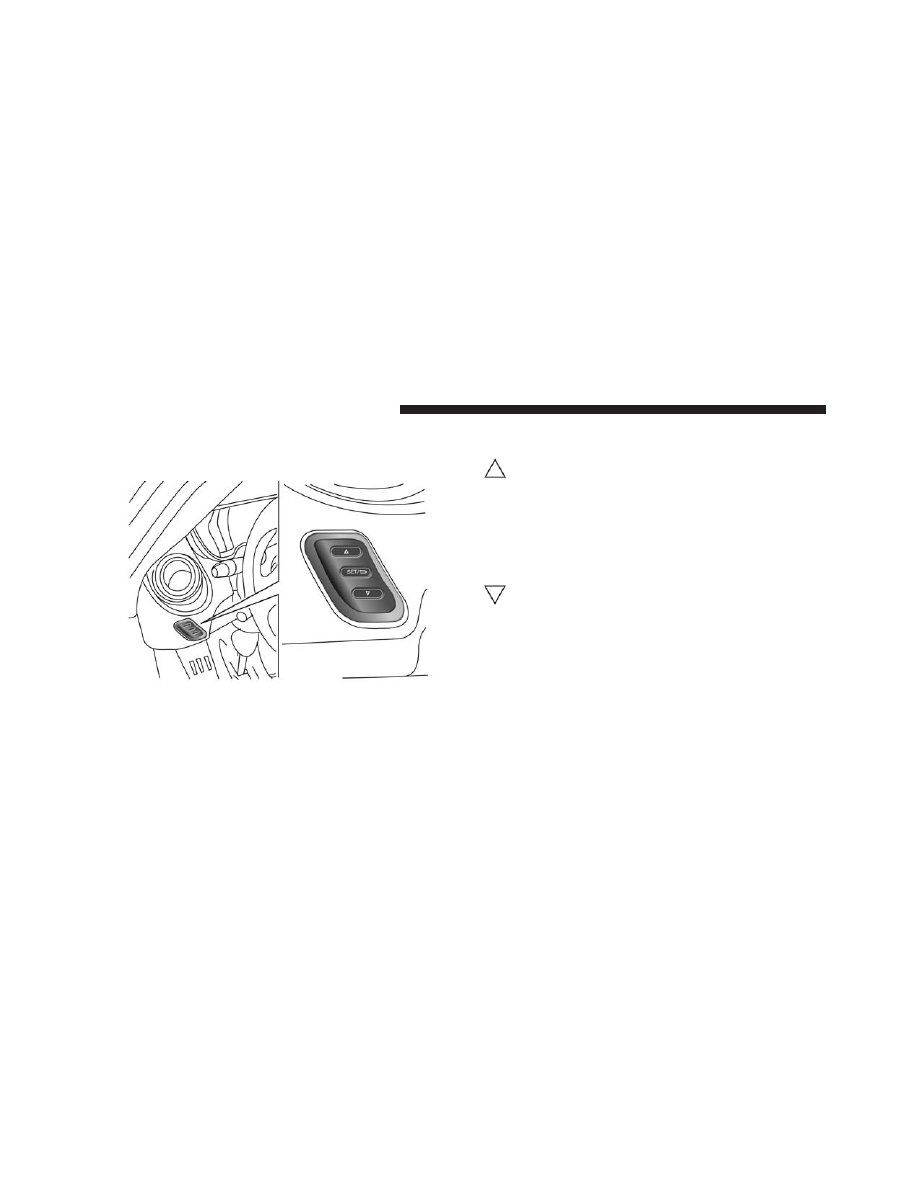

EVIC Control Buttons

126

UNDERSTANDING YOUR INSTRUMENT PANEL

Peugeot 4C (2015 year). Manual - part 8
