Peugeot 306 C Dag (2001 year). Manual - part 1

YOUR 306 CABRIOLET AT A GLANCE

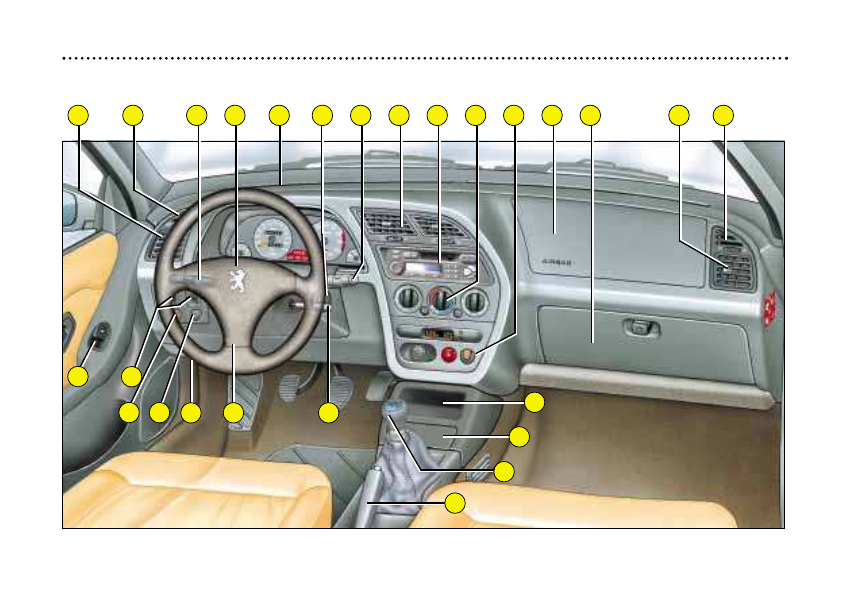

1 - Adjustable side vent.

2 - Side window demisting vents.

3 - Lights stalk, fog lamps* and

horn.

4 - Steering wheel with airbag.

5 - Windscreen demisting vents.

6 - Steering lock and ignition.

7 - Windscreen wash-wipe

control.

8 - Adjustable central vents.

9 - Audio equipment*.

10 - Heating/Ventilation,

Air conditioning controls*.

11 - Controls:

Lighter
Hazard warning lights
Rear screen and mirrors
demisting.

12 - Passenger airbag.

13 - Glove box.

14 - Storage compartment.

15 - Ashtray.

16 - Gear lever.

17 - Handbrake.

18 - Audio remote control*.

19 - Fuse box.

20 - Bonnet opening control.

21 - Passenger airbag

disarming switch*.

22 - Control for rear window lock.

23 - Headlamp height

adjustment.

- Instrument dials lighting

rheostat.

24 - Controls for:

- Electric mirrors.
- Electric windows.

* According to specification.

YOUR 306 CABRIOLET AT A GLANCE

103

YOUR 306 CABRIOLET AT A GLANCE

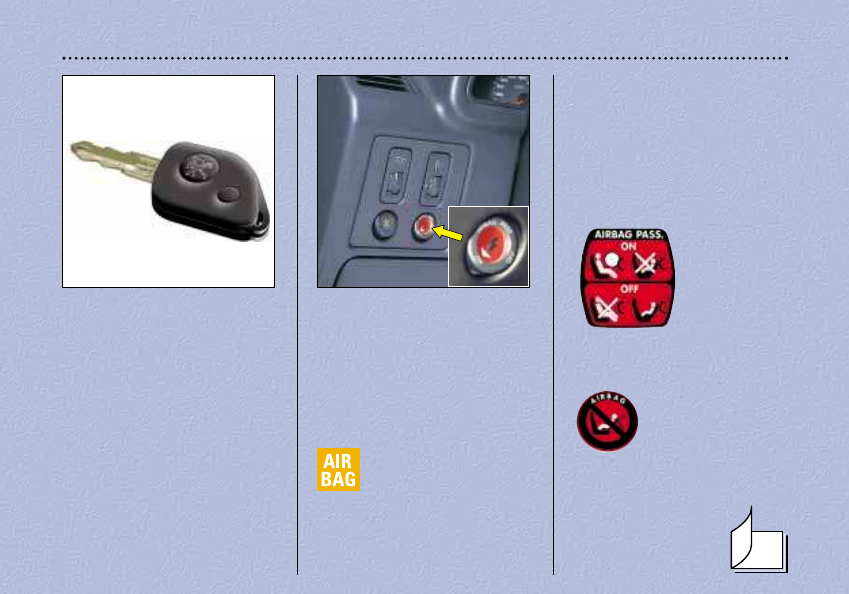

FRONT AIRBAGS

Disarming the passenger airbag.
Insert the ignition key in switch 1
and turn it:
– to the “ON” position, the pas-

senger airbag is armed,

– to the “OFF” position, the pas-

senger airbag is not armed.

Operational check

This is by means of the
warning light on the instru-
ment panel.

If the passenger airbag is not
armed, the warning light remains
on.
Always contact your PEUGEOT
dealer if the warning light flashes.

THE REMOTE CONTROL

A single press on button A locks
the doors and boot.
A single press on button B unlocks
the vehicle.

KEYS

Using the key in the driver’s door
lock will lock or unlock the doors
and boot.

Passenger airbag precautions

If the passenger airbag is armed
or if your vehicle is not fitted with a
passenger airbag, the warning
light comes on for 6 seconds when
the ignition is switched on.

For a vehicle fitted with a disarm-
ing switch:

– disarm the

airbag if you
install a rear-
wards-facing
child seat.

– arm the

airbag when
an adult is in
the seat.

For a vehicle not fitted with a
disarming switch:

– do not install rear-

wards-facing child
seats on the front
passenger seat.

Never place your feet or any
object on the fascia.

YOUR 306 CABRIOLET AT A GLANCE

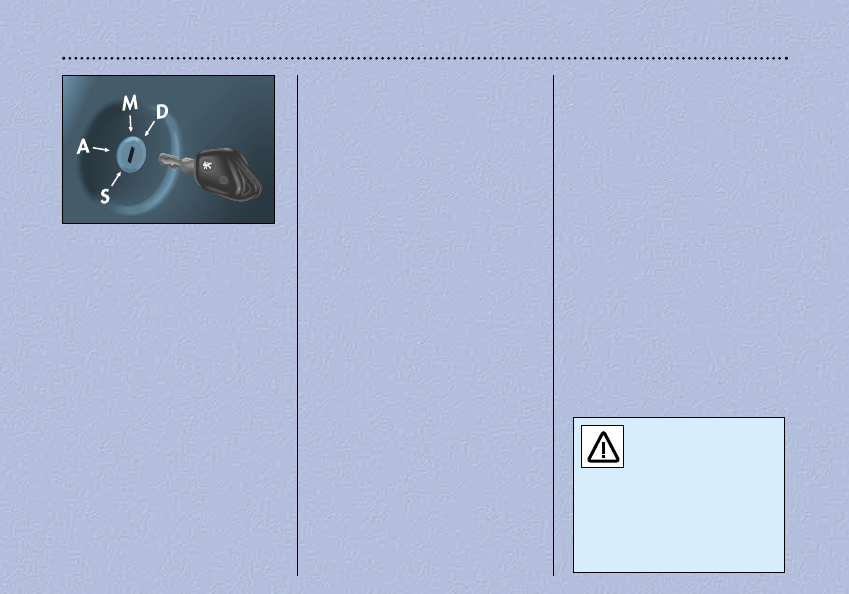

STARTING

The 4 positions of the key in the
ignition:
“S” for STOP The ignition is off.
“A” for Accessories The ignition
is off but the accessories can be
used.
“M” for Running The ignition is
on.
“D’’ for Starting Operates the
starter.

STEERING LOCK
Before starting, unlock the steer-
ing if necessary, by gently turning
the steering wheel at the same
time as you turn the key.
It is advisable to press the clutch
pedal while operating the starter
to make starting easier.

STARTING A PETROL ENGINE
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engine
turns.

Never race a cold
engine.
Never run the engine
in a confined space.

Do not make any modifications
to the steering lock.

YOUR 306 CABRIOLET AT A GLANCE

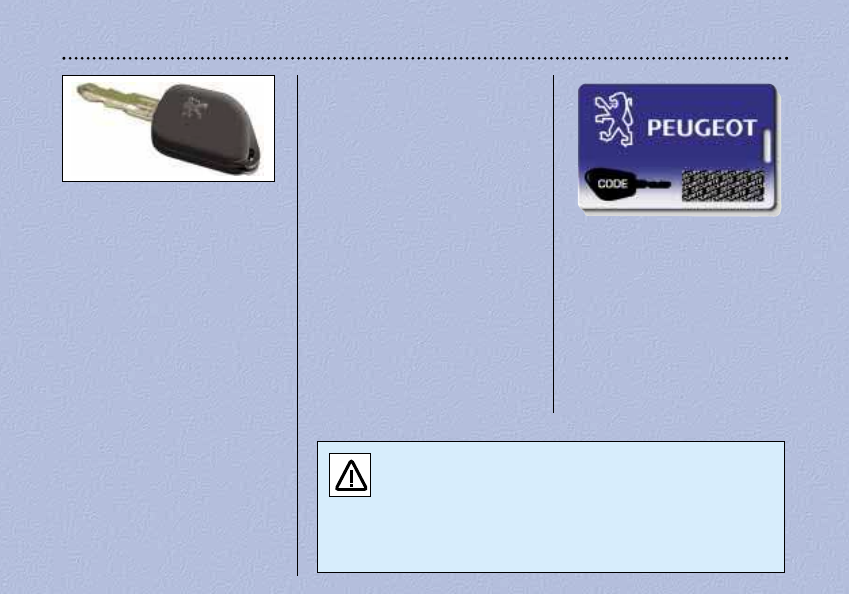

Confidential card
This contains the identification
combination which is required if
any work is carried out on the
system by a PEUGEOT dealer.
This combination is concealed by
a strip which must not be removed
unless required.
Keep your card in a safe place,
never in your vehicle.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control
system a few moments after the
ignition has been switched off and
therefore prevents starting of the
vehicle by anyone who has not
got the key.

Operation
Each key has an electronic chip
which has a special code.
When the ignition is switched on
the key code is recognised and
starting is possible.
If the key does not have a code or
has a different code from that
stored in the system memory, the
vehicle will not start.

Additional key
You can store up to 5 keys in the
memory.
If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealer
with the confidential card and all
the keys in your possession.

When buying a second hand car:
ensure that you are given the confidential card: it is advisable
to have the key codes memorised by a PEUGEOT dealer to
ensure that the keys in your possession are the only ones which

can start the vehicle.
Do not make any modifications to the PEUGEOT electronic engine
immobiliser system.

YOUR 306 CABRIOLET AT A GLANCE

STEERING WHEEL
STALKS

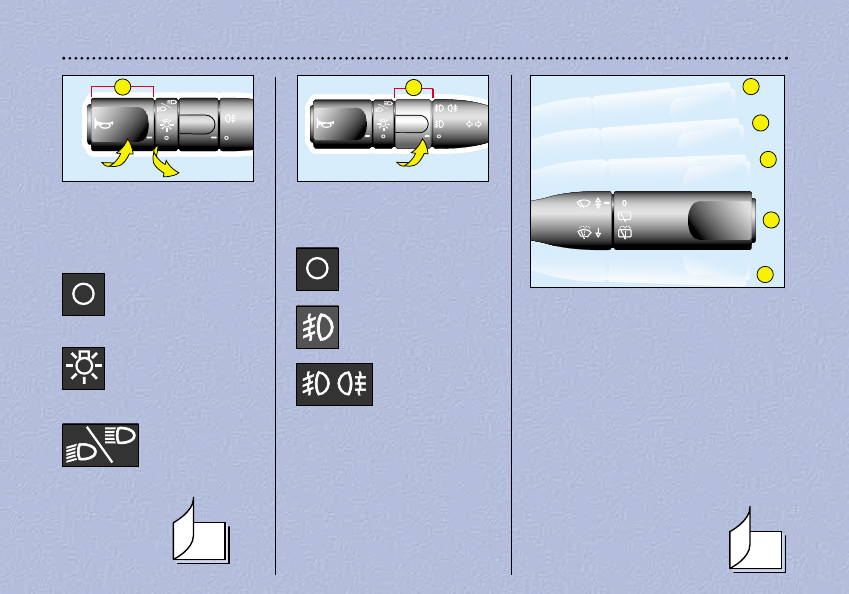

LIGHTING
Front lights (ring A)

Front/rear fog lamps (ring B)

Front and rear
fog lamps on.

Front windscreen wipers

3 Rapid wipe
2 Normal wipe
1 Intermittent wipe
0 Stop
4 Single wipe
Wash-wipe: pull the stalk towards you.

Lights off.

Side lights on.

Dipped/main
beam head-
lamps on

Fog lamp off.

Front fog lamps on.

YOUR 306 CABRIOLET AT A GLANCE

FRONT - REAR HEAD
RESTRAINT

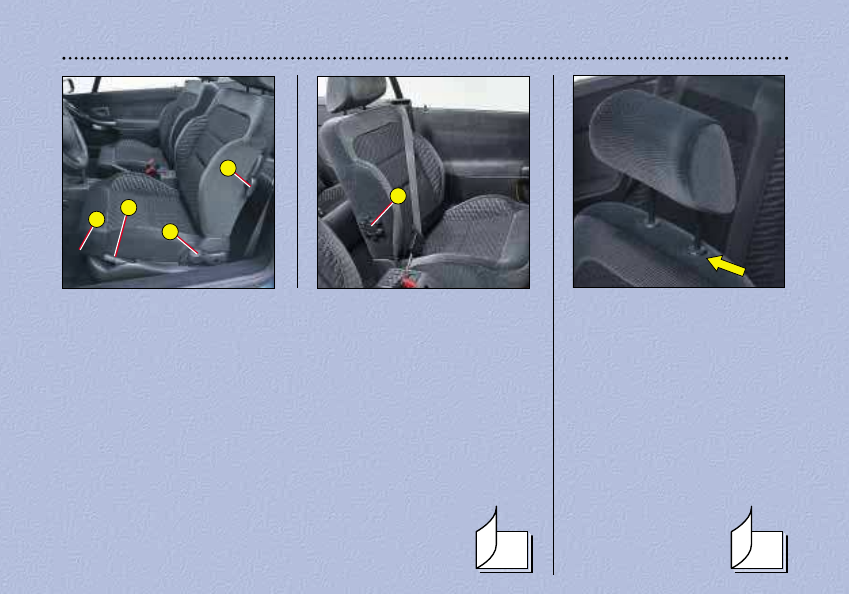

- Height adjustment: slide them.
- Adjusting the angle: tilt them.

To remove the head restraint, posi-
tion it at maximum height and
press the tab.

ADJUSTING THE FRONT SEATS

Forwards-backwards adjustment.

Seat back angle adjustment.

Driver’s seat height adjustment: pull the telescopic handle and
pivot it.

Lumbar adjustment.

Access to rear seats.

ELECTRIC WINDOWS

1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as
the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window.
Automatic opening and closing only work when the engine is running.

2. Passenger’s electric window.

3. Left rear electric window.

4. Right rear electric window.

YOUR 306 CABRIOLET AT A GLANCE

ADJUSTING THE HEIGHT
OF THE STEERING WHEEL

Push the handle to unlock the
steering wheel.
Adjust the steering wheel to the
desired height and pull the handle
to lock it into position.

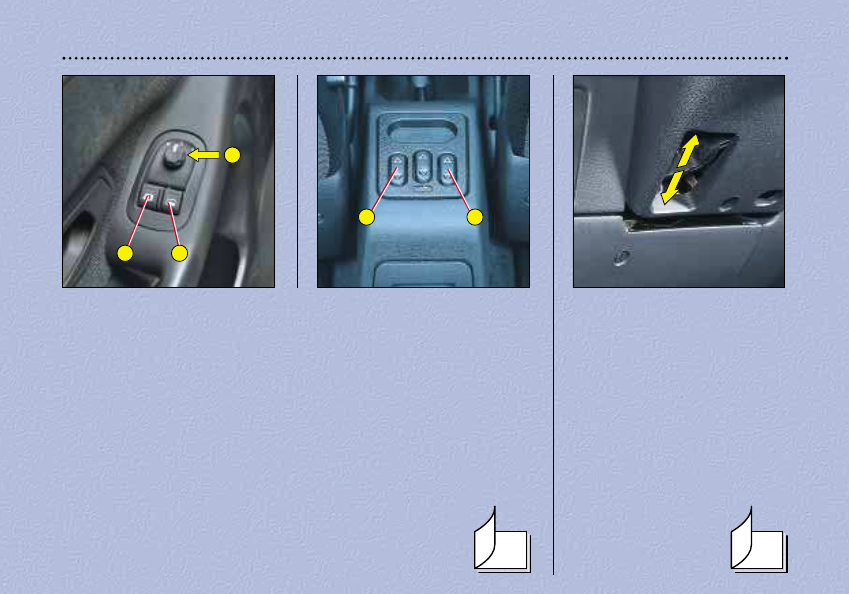

ELECTRIC MIRRORS

Turn the knob A

to the right or to the left to select the

corresponding mirror.
Move the knob in all four directions to adjust the mirror.

YOUR 306 CABRIOLET AT A GLANCE

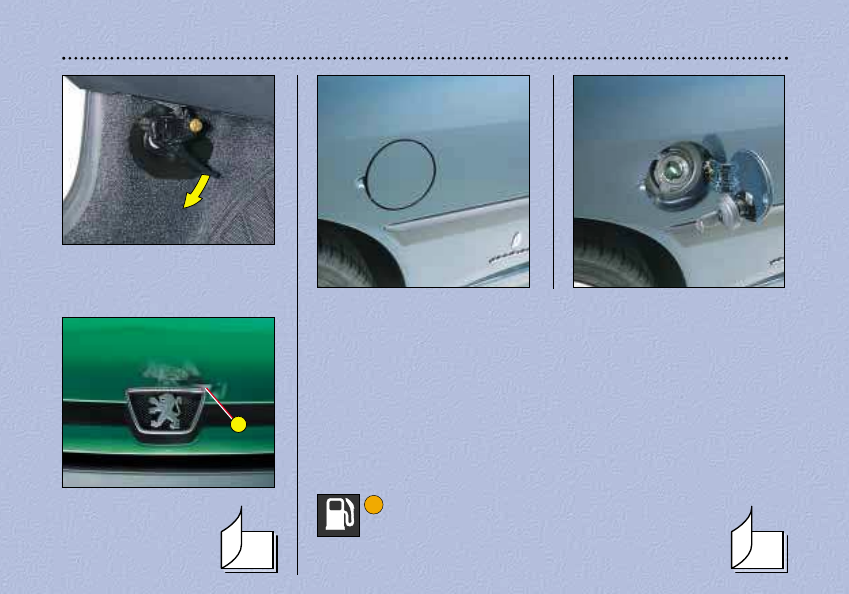

FUEL FILLER FLAP

To open: firmly pull the handle on the floor to the outside of the driver’s seat.
To close: from outside, push the flap back and check that it is secured
correctly.

Filling with fuel

Switch off the engine.
There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which
are not allowed.
The capacity of the tank is approximately 11 gallons (50 litres).

Fuel low warning light

The fuel low warning light indicates that the quantity of
fuel remaining in the tank is approximately
1.3 gallons (6 litres).

Outside the vehicle
Raise the catch 1 and support the
bonnet as it rises.

OPENING THE BONNET

Inside the vehicle:

Pull the

handle.

YOUR 306 CABRIOLET AT A GLANCE

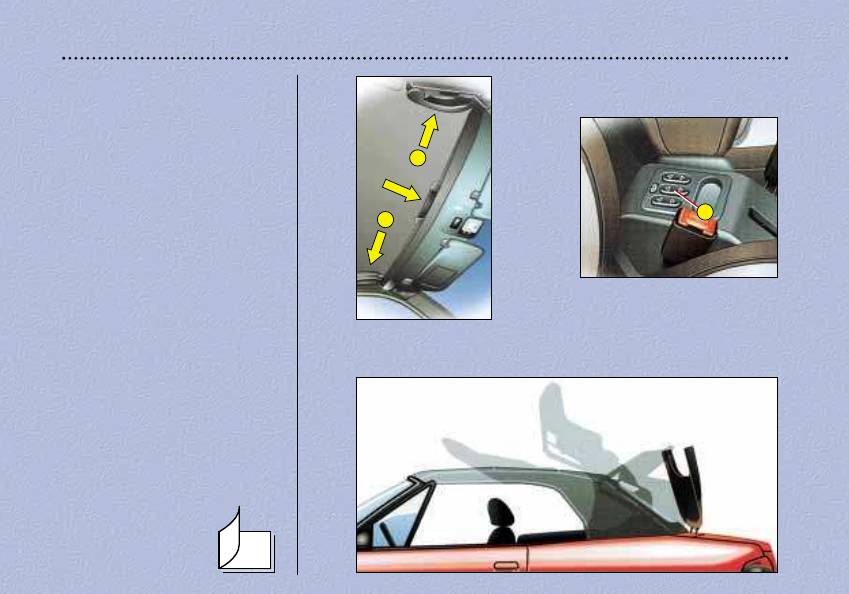

ELECTRIC HOOD

Opening

- Switch on the ignition.
- Unlock and raise the front of

the hood by approximately
10 inches (25 cm) using the
two side handles 1.

- Press switch 2 until the opera-

tion has been completed.

Closing

- Turn the ignition key to position

M and lower the front windows.

- Press switch 2 until the opera-

tion has been completed.

- Secure the two side handles 1.

100

YOUR 306 CABRIOLET AT A GLANCE

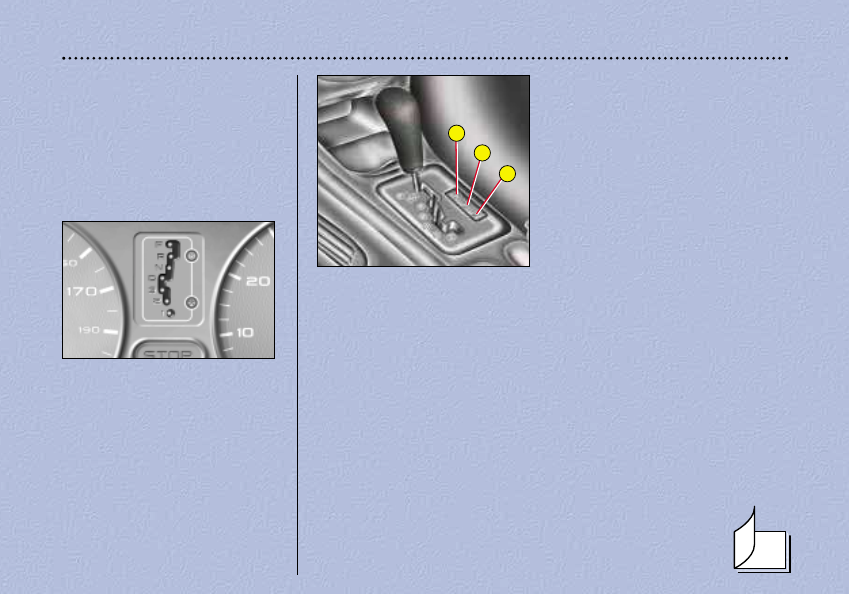

THE AUTOMATIC
AUTOADAPTIVE GEARBOX

P. Park.

R. Reverse.

N. Neutral.

D. Drive: in this position, all four gears change automatically.

3. Automatic changing of the first three gears only.

2. Automatic changing of the first two gears only.

1. Selection of first gear only.

Selection of first gear is from position 2 by pressing switch 1.

Position of selector lever
This is shown by an indicator on
the instrument panel.

Starting
To start the engine, place the
selector lever in position N or P.
Press the brake pedal when start-
ing the engine or when selecting a
forwards or reverse gear.

A. Sport programme.

B. Snow programme.

YOUR 306 CABRIOLET AT A GLANCE

5 Recirculation of interior air.

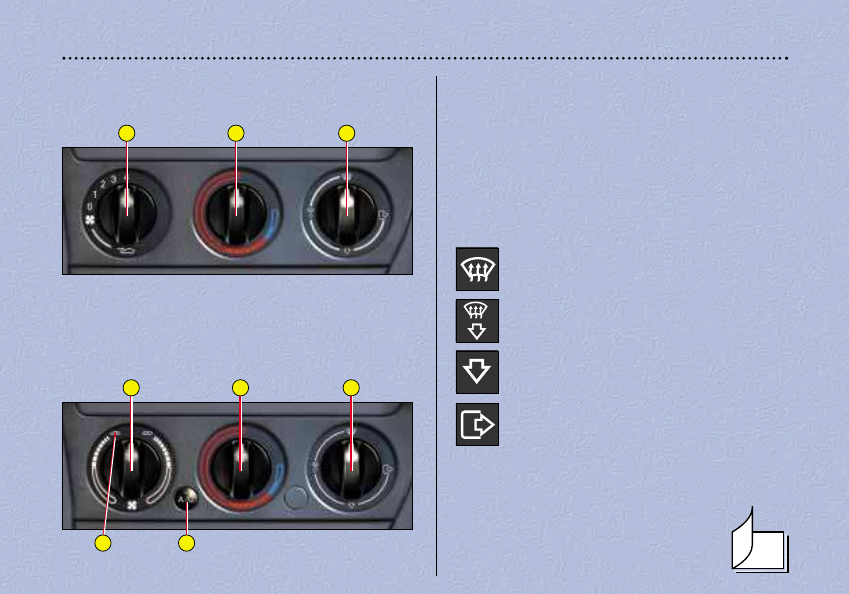

VENTILATION/HEATING/AIR CONDITIONING

1 Air flow adjustment.

2 Temperature adjustment.

3 Air distribution.

Windscreen and side windows.

Windscreen, side windows and footwells.

Footwells.

Central and side vents.

4 Air conditioning on/off.

MAINTENANCE OF YOUR 306 CABRIOLET

PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
• For petrol engines: every 20,000 miles (30,000 km) or every two years.

The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the
oil between oil changes is normal.

That is why the PEUGEOT network is offering you an intermediate service between each regular service.
The date of this service is not shown by the service indicator. It is to be carried out every 9 000 miles (15 000 km) for
petrol engines.

A Peugeot dealer will carry out a rapid check and top up fluids as necessary (oil, coolant, windscreen wash fluid to
the 2 litre limit).

If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000
to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use.

This extended servicing has been made possible by modifications to our vehicles and to the lubricants:

THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

MAINTENANCE OF YOUR 306 CABRIOLET

SPECIAL FEATURES

Some of your vehicle’s vital components have specific servicing schedules.

The airbags and the pretensioning seat belts must be replaced every 10 years.
The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).

NB: the coolant does not need to be renewed.

Arduous conditions of use

If the vehicle is used under certain particularly arduous conditions:

• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures,

Or in long stays under the following conditions:

• Hot countries with temperatures often above 30 °C.
• Cold countries with temperatures often below minus 15 °C.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.

It is necessary to follow an “Arduous conditions” service schedule which includes special operations and shorter service
intervals:

• Every 12,000 miles (20 000 km) or every year.

YOUR 306 CABRIOLET IN DETAIL

5 seconds after switching on the
ignition the display resumes normal
operation and shows the total and trip
distances.

SERVICE INDICATOR

This is a reminder of when the next
service is due in accordance with the
manufacturer’s maintenance sched-
ule.

Operation

The spanner symbolising the service
operations comes on for five seconds
when the ignition is switched on. The
total distance recorder displays the dis-
tance remaining (rounded down) before
the next service.

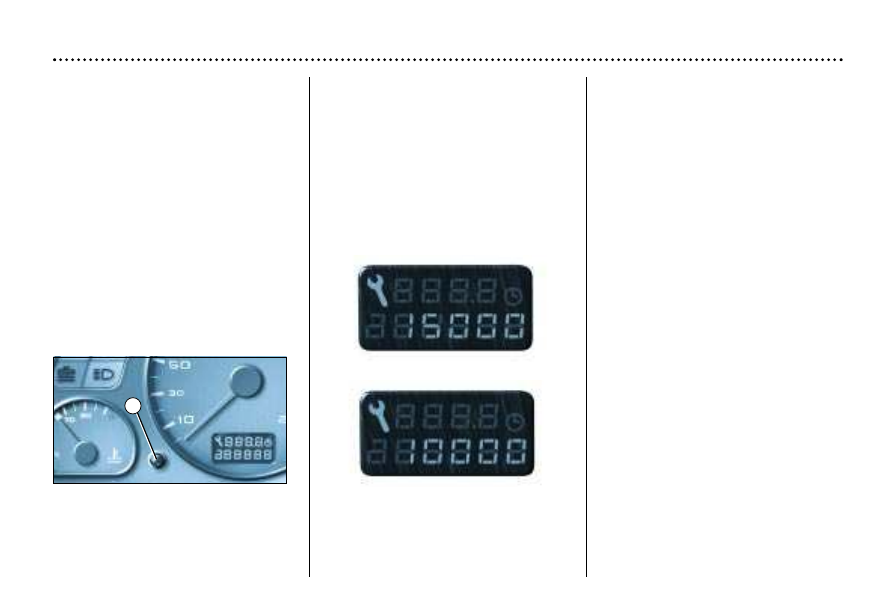

When the distance remaining before
the next service is less than 1000 km.

When a service is overdue.
For five seconds after the ignition is
switched on, the service symbol and
the excess distance flash.

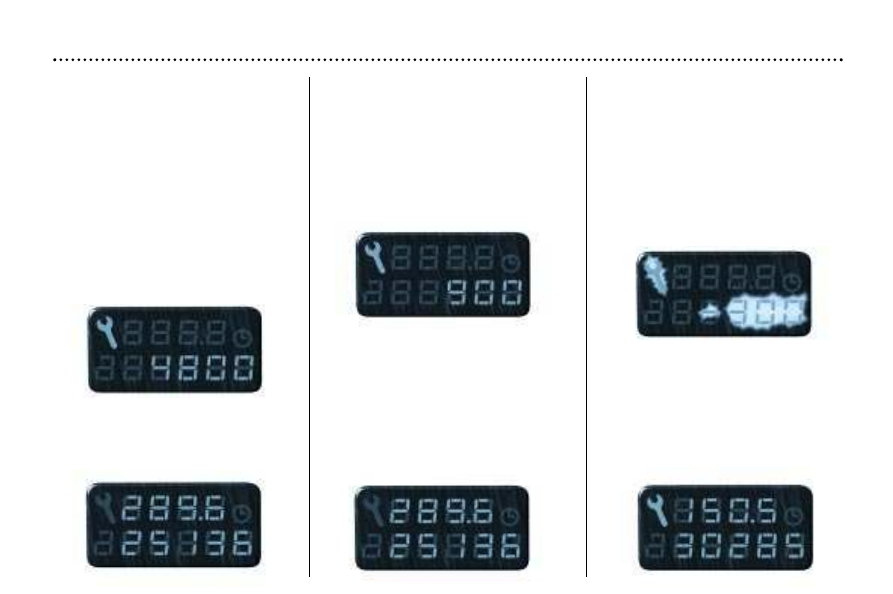

Example: 4800 km remain before the
next service is due. For five seconds
after the ignition is switched on, the
display shows:

5 seconds after switching on the igni-
tion, the display resumes normal oper-
ation and the service symbol remains
lit. The display shows the total and trip
distances.

5 seconds after switching on the igni-
tion, the display resumes normal oper-
ation and the symbol remains lit.
This indicates that a service should
be carried out shortly. The display
shows the total and trip distances.

Example: the service is overdue by
300 km. The vehicle should be
serviced very soon.
For five seconds after the ignition is
switched on, the display shows:

Example: 900 km remain before the
next service is due.
For five seconds after the ignition is
switched on, the display shows:

YOUR 306 CABRIOLET IN DETAIL

- Switch on the ignition.
- The display begins a 10 second

countdown.

- Release the button before the

countdown finishes.

- The service interval is displayed.
- Each brief press of button 1 alter-

nates the service intervals.

To change the service interval
- Switch off the ignition.
- Press and hold button 1.

Example:

- When the chosen service interval

is displayed, press button 1 for
10 seconds (countdown) to confirm.

Reset

Your PEUGEOT dealer carries out this
operation after each service.
However, if you service the vehicle
yourself, reset as follows:

- Switch off the ignition.
- Press and hold button 1.
- Switch on the ignition.
- The display begins a 10 second

countdown.

- Keep button 1

pressed for

10 seconds.

- The display shows [= 0] and the

service symbol disappears.

Service intervals

If your vehicle is used in certain
particularly difficult conditions it is
necessary to follow the "Arduous
conditions" servicing schedule, which
involves shorter intervals between
services (see your Warranty and
Maintenance Record booklet).

Comment: If the time limit between
two services is reached before the
relevant mileage limit, the service
spanner symbol will light up and the
display will show 0.

Content .. 1 2 3 ..
