Nissan NV200 Taxi (2017 year). Manual

Adjust the air flow direction of the vents by open-
ing, closing or rotating.

Adjust the air flow direction of the vents by mov-
ing the slide

䊊

WARNING

● The air conditioner cooling function op-

erates only when the engine is running.

● Do not leave children or adults who

would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

● Do not use the recirculation mode for

long periods as it may cause the interior
air to become stale and the windows to
fog up.

Side and rear vents

SAA3126

Center

LHA2594

VENTS

HEATER AND AIR CONDITIONER
(manual)

Monitor, climate, audio, phone and voice recognition systems

4-15

NOTE:

● Odors from inside and outside the vehicle

can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.

● When parking, set the heater and air condi-

tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.

CONTROLS

1. Air flow control dial

2. Air intake lever (Fresh air/Air recirculation)

3. Temperature control dial

Air conditioner button

Fan control dial

Rear window and outside mirror de-

froster switch

Fan control dial

The

fan control dial turns the fan on and off,

and controls fan speed.

Air flow control dial

The air flow control dial allows you to select the
air flow outlets.

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot outlets.
— Air flows from defroster outlets and

foot outlets.

— Air flows mainly from defroster

outlets.

LHA2727

4-16

Monitor, climate, audio, phone and voice recognition systems

Temperature control dial

The temperature control dial allows you to adjust
the temperature of the outlet air. To lower the
temperature, turn the dial to the left. To increase
the temperature, turn the dial to the right.

Fresh air

Move the air intake lever to the

position.

The air flow is drawn from outside the vehicle.

Air recirculation

Move the air intake lever to the

position to

recirculate air inside the vehicle.

Use the

selection:

● when driving on a dusty road.
● to prevent traffic fumes from entering pas-

senger compartment.

● for maximum cooling when using the air con-

ditioner.

Air conditioner button

Start the engine, turn the

fan control dial to

the desired position and press the

button

to turn on the air conditioner. To turn off the air
conditioner, press the

button again.

The air conditioner cooling function oper-
ates only when the engine is running.

Rear window and outside mirror
defroster switch

For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.

HEATER OPERATION

Heating

This mode is used to direct heated air to the foot
outlets. Some air also flows from the defrost
outlets.

1. Move the air intake lever to the

posi-

tion for normal heating.

2. Turn the air flow control dial to the

position.

3. Turn the

fan control dial to the desired

position.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

Ventilation

This mode directs outside air to the side and
center vents.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the

fan control dial to the desired

position.

4. Turn the temperature control dial to the de-

sired position.

Defrosting or defogging

This mode directs the air to the defrost outlets to
defrost/defog the windows.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

● To quickly remove ice or fog from the win-

dows, turn the fan control dial to the maxi-
mum position and the temperature control
dial to the full hot position.

Monitor, climate, audio, phone and voice recognition systems

4-17

When the

position is selected,

press the

button to turn on the air condi-

tioner for better performance. This will dehumidify
the air and help defog the windows.

Bi-level heating

This mode directs cooler air from the side and
center vents and warmer air from the floor outlets.
When the temperature control dial is moved to
the full hot or full cool position, the air between
the vents and the floor outlets is the same tem-
perature.

1. Move the air intake lever to

position.

2. Turn the air flow control dial to the

position.

3. Turn the

fan control dial to the desired

position.

4. Turn the temperature control dial to the de-

sired position.

Heating and defogging

This mode heats the interior and defogs the wind-
shield.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

When the

position is selected,

press the

button to turn on the air condi-

tioner for better performance. This will dehumidify
the air and help defog the windows.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield. This
improves heater operation.

AIR CONDITIONER OPERATION

Start the engine, turn the

fan control dial to

the desired position, and press the

button

to activate the air conditioner. When the air con-
ditioner is on, cooling and dehumidifying func-
tions are added to the heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.

Cooling

This mode is used to cool and dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the

fan control dial to the desired

position.

4. Press the

button. The indicator light

comes on.

5. Turn the temperature control dial to the de-

sired position.

● For quick cooling when the outside tem-

perature is high, move the air intake lever to
the

position. Be sure to return to

the

position for normal cooling.

Dehumidified heating

This mode is used to heat and dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the

fan control dial to the desired

position.

4. Press the

button. The indicator light

comes on.

5. Turn the temperature control dial to the de-

sired position.

4-18

Monitor, climate, audio, phone and voice recognition systems

Dehumidified defogging

This mode is used to defog the windows and
dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion. When the

position is

selected, press the

button to turn on

the air conditioner for better performance.
This will dehumidify the air and help defog
the windows.

4. Turn the temperature control dial to the de-

sired position.

Operating tips

● Keep the windows closed while the air con-

ditioner is in operation.

● After parking in the sun, drive for 2 or 3 min-

utes with the windows open to vent hot air
from the passenger compartment before
closing the windows. This allows the air con-
ditioner to cool the interior more quickly.

● The air conditioning system should be

operated for approximately 10 minutes
at least once a month. This helps pre-
vent damage to the system due to lack
of lubrication.

● A visible mist may be seen coming from the

ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.

● If the high temperature warning

light

illuminates in red indicating

engine coolant temperature is over the
normal range, turn the air conditioner
off. For additional information, refer to
“If your vehicle overheats” in the “In
case of emergency” section of this
manual.

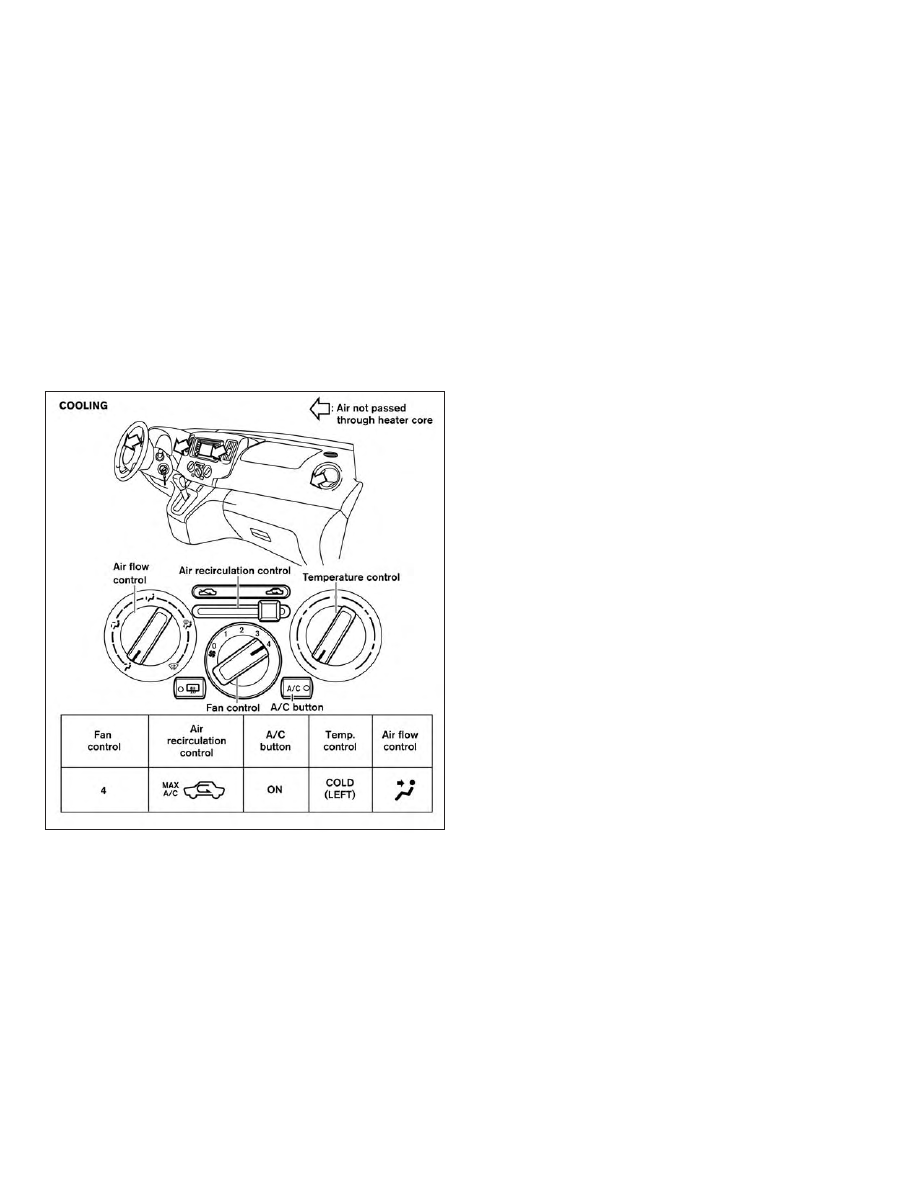

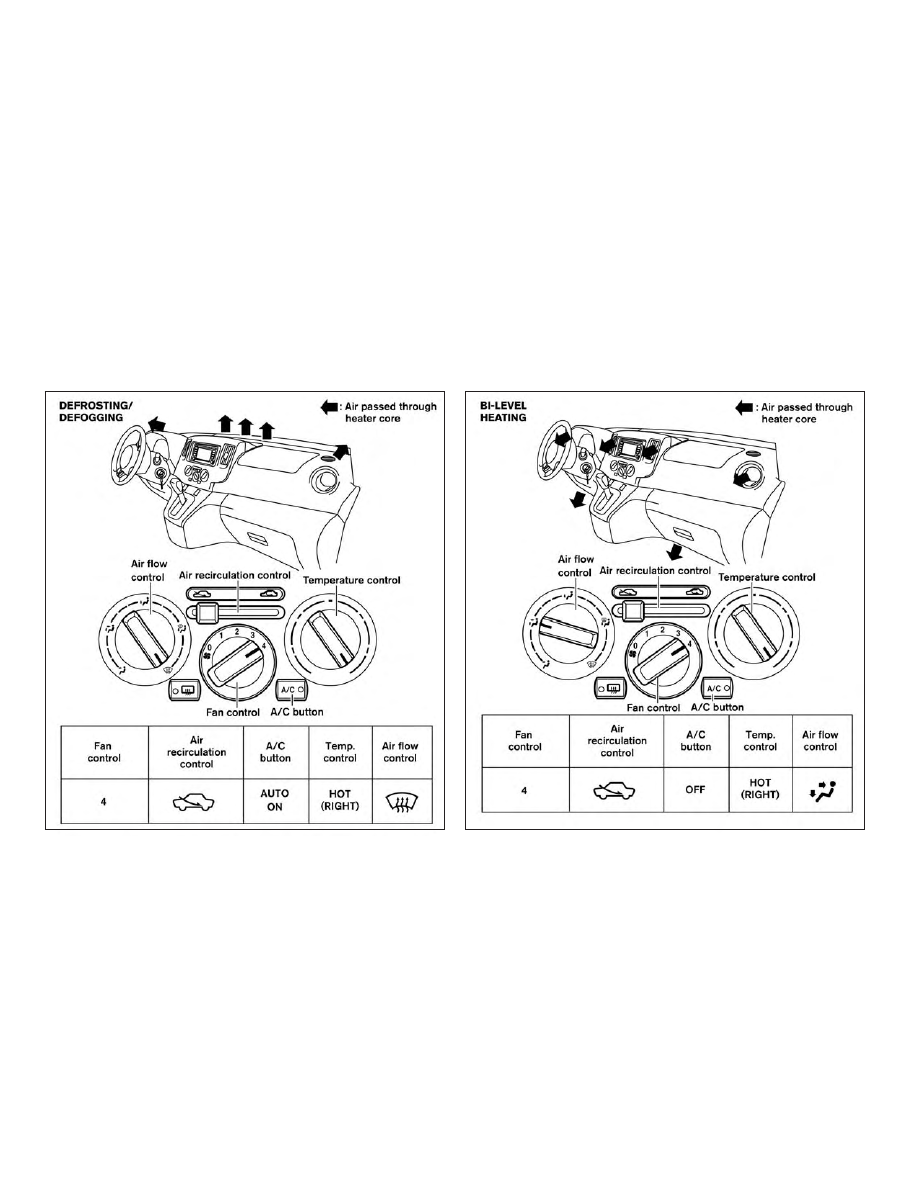

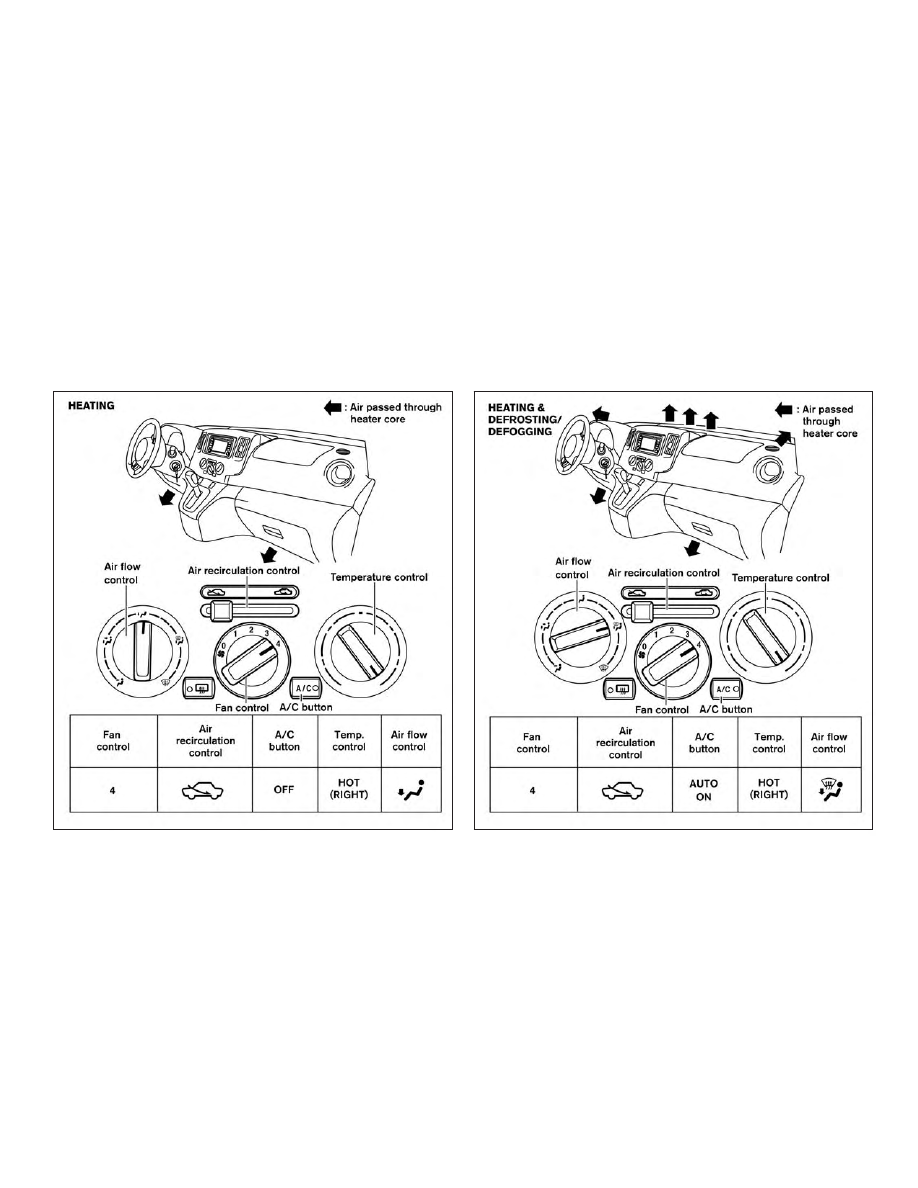

AIR FLOW CHARTS

The following charts show the button and dial
positions for MAXIMUM AND QUICK heating,
cooling or defrosting. The air intake lever
should always be in the

position for

heating and defrosting.

Monitor, climate, audio, phone and voice recognition systems

4-19

REAR SEAT AIR CONDITIONER

1. OFF button

(fan speed increase) button

3. A/C button

4. MODE button

(temperature increase) button

(temperature decrease) button

7. Display

8. (-) (fan speed decrease) button

The rear seat passengers can adjust the rear
automatic air conditioning system using the con-
trol switches at the rear of the center console.

To activate the rear control buttons, press the fan
speed increase button (+), fan speed decrease
button (-), or the “A/C” button on the rear air
conditioner control panel.

OFF button: Turns rear automatic air conditioning
system off.

Fan speed increase and decrease buttons: Ad-
justs the rear fan speed up or down.

A/C button: Turns on air conditioner. “A/C’ will be
appear in display indicating when air conditioning
is turned on.

Mode button: Pressing the MODE button manu-
ally controls air flow and selects the air outlet:

— Air flows from center and side

vents.

— Air flows from center and side vents

and foot outlets.

— Air flows mainly from foot outlets.

Temperature increase and decrease buttons: Ad-
justs the rear temperature up or down.

Rear Air Conditioning Reset Button

The rear air conditioning reset button allows the
driver to reset the rear climate control settings
from the front of the vehicle. The button is located
on the center console. Upon pressing the button,
the rear temperature setting will return to 75
degrees and the fan speed will return to the
middle position.

LHA2720

Monitor, climate, audio, phone and voice recognition systems

4-23

The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.

This refrigerant does not harm the earth’s
ozone layer.

Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. For additional information, refer to “Air
conditioner system refrigerant and oil recommen-
dations” in the “Technical and consumer informa-
tion” section of this manual.

It is recommended that you visit a NISSAN dealer
to service your “environmentally friendly” air con-
ditioner system.

WARNING

The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.

RADIO

With the ignition placed in the ACC or ON posi-
tion, press the ON·OFF button/VOL (volume)
knob to turn the radio on. If you listen to the radio
with the engine not running, the ignition should
be placed in the ACC position.

Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external influ-
ences. Intermittent changes in reception quality
normally are caused by these external influences.

Using a cellular phone in or near the vehicle
may influence radio reception quality.

Radio reception

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance ra-
dio reception. These circuits are designed to
extend reception range, and to enhance the qual-
ity of that reception.

However, there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These char-
acteristics are completely normal in a given re-
ception area and do not indicate any malfunction
in your NISSAN radio system.

Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can work against ideal reception. De-
scribed below are some of the factors that can
affect your radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the de-
vice in a different location may reduce or elimi-
nate the noise.

FM RADIO RECEPTION

Range: FM range is normally limited to 25 – 30 mi
(40 – 48 km), with monaural (single channel) FM
having slightly more range than stereo FM. Exter-
nal influences may sometimes interfere with FM
station reception even if the FM station is within
25 mi (40 km). The strength of the FM signal is
directly related to the distance between the
transmitter and receiver. FM signals follow a line-
of-sight path, exhibiting many of the same char-
acteristics as light. For example, they will reflect
off objects.

Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.

SERVICING AIR CONDITIONER

AUDIO SYSTEM

4-24

Monitor, climate, audio, phone and voice recognition systems

Static and flutter: During signal interference from
buildings, large hills or due to antenna position
(usually in conjunction with increased distance
from the station transmitter), static or flutter can
be heard. This can be reduced by adjusting the
treble control to reduce treble response.

Multipath reception: Because of the reflective
characteristics of FM signals, direct and reflected
signals reach the receiver at the same time. The
signals may cancel each other, resulting in mo-
mentary flutter or loss of sound.

AM RADIO RECEPTION

AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics, AM signals are also sub-
ject to interference as they travel from transmitter
to receiver.

Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.

SATELLITE RADIO RECEPTION

When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a mal-
function. Wait more than 10 minutes with satellite
radio ON and the vehicle outside of any metal or
large building for satellite radio to receive all of
the necessary data.

No satellite radio reception is available and “NO
SAT” is displayed when the SAT band option is
selected unless optional satellite receiver and
antenna are installed and a SiriusXM ®Satellite
Radio service subscription is active. Satellite ra-
dio is not available in Alaska, Hawaii and Guam.

Satellite radio performance may be affected if
cargo carried on the roof blocks the satellite radio
signal.

If possible, do not put cargo over the satellite
antenna.

A build up of ice on the satellite radio antenna can
affect satellite radio performance. Remove the
ice to restore satellite radio reception.

AUDIO OPERATION PRECAUTIONS

LHA0099

Monitor, climate, audio, phone and voice recognition systems

4-25

Compact disc (CD) player

CAUTION

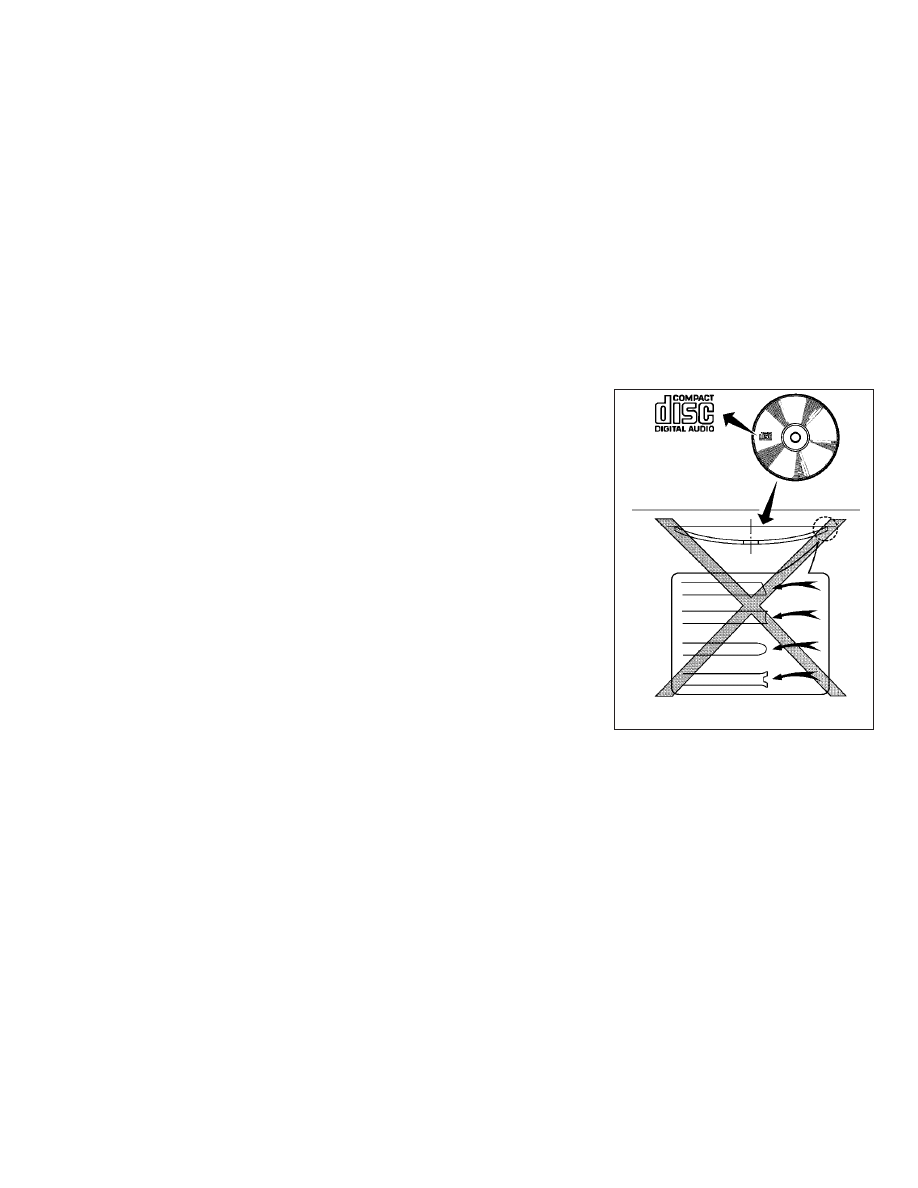

● Do not force a compact disc into the CD

insert slot. This could damage the CD
and/or CD player.

● Trying to load a CD with the CD door

closed could damage the CD and/or CD
player.

● Only one CD can be loaded into the CD

player at a time.

● Only use high quality 4.7 in (12 cm)

round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.

● During cold weather or rainy days, the

player may malfunction due to the hu-
midity. If this occurs, remove the CD
and dehumidify or ventilate the player
completely.

● The player may skip while driving on

rough roads.

● The CD player sometimes cannot func-

tion when the compartment tempera-
ture

extremely

high

low.

Decrease/increase

the

temperature

before use.

● Do not expose the CD to direct sun-

light.

● CDs that are in poor condition or are

dirty, scratched or covered with finger-
prints may not work properly.

● The following CDs may not work prop-

erly:

● Copy control compact discs (CCCD)
● Recordable compact discs (CD-R)
● Rewritable compact discs (CD-RW)

● Do not use the following CDs as they

may cause the CD player to malfunc-
tion:

● 3.1 in (8 cm) discs with an adapter
● CDs that are not round
● CDs with a paper label
● CDs that are warped, scratched, or

have abnormal edges

● This audio system can only play pre-

recorded CDs. It has no capability to
record or burn CDs.

● If the CD cannot be played, one of the

following messages will be displayed.

CHECK DISC:

● Confirm that the CD is inserted cor-

rectly (the label side is facing up,
etc.).

● Confirm that the CD is not bent or

warped and it is free of scratches.

PRESS EJECT:

This is an error due to excessive tem-
perature inside the player. Remove the
CD by pressing the EJECT button. After
a short time, reinsert the CD. The CD
can be played when the temperature of
the player returns to normal.

UNPLAYABLE:

The file is unplayable in this audio sys-
tem (only MP3 or WMA CD).

4-26

Monitor, climate, audio, phone and voice recognition systems

Compact disc with MP3 or WMA

Terms

● MP3 — MP3 is short for Moving Pictures

Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size of
normal audio files. MP3 conversion of an
audio track from CD-ROM can reduce the
file size by approximately a 10:1 ratio with
virtually no perceptible loss in quality. MP3
compression removes the redundant and
irrelevant parts of a sound signal that the
human ear doesn’t hear.

● WMA — Windows Media Audio (WMA)* is a

compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.

● Bit rate — Bit rate denotes the number of

bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

● Sampling frequency — Sampling frequency

is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.

● Multisession — Multisession is one of the

methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is called
a multisession.

● ID3/WMA Tag — The ID3/WMA tag is the

part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, encoding bit
rate, track time duration, etc. ID3 tag infor-
mation is displayed on the Artist/song title
line on the display.

* Windows® and Windows Media® are regis-
tered trademarks and trademarks in the United
States of America and other countries of Micro-
soft Corporation of the USA.

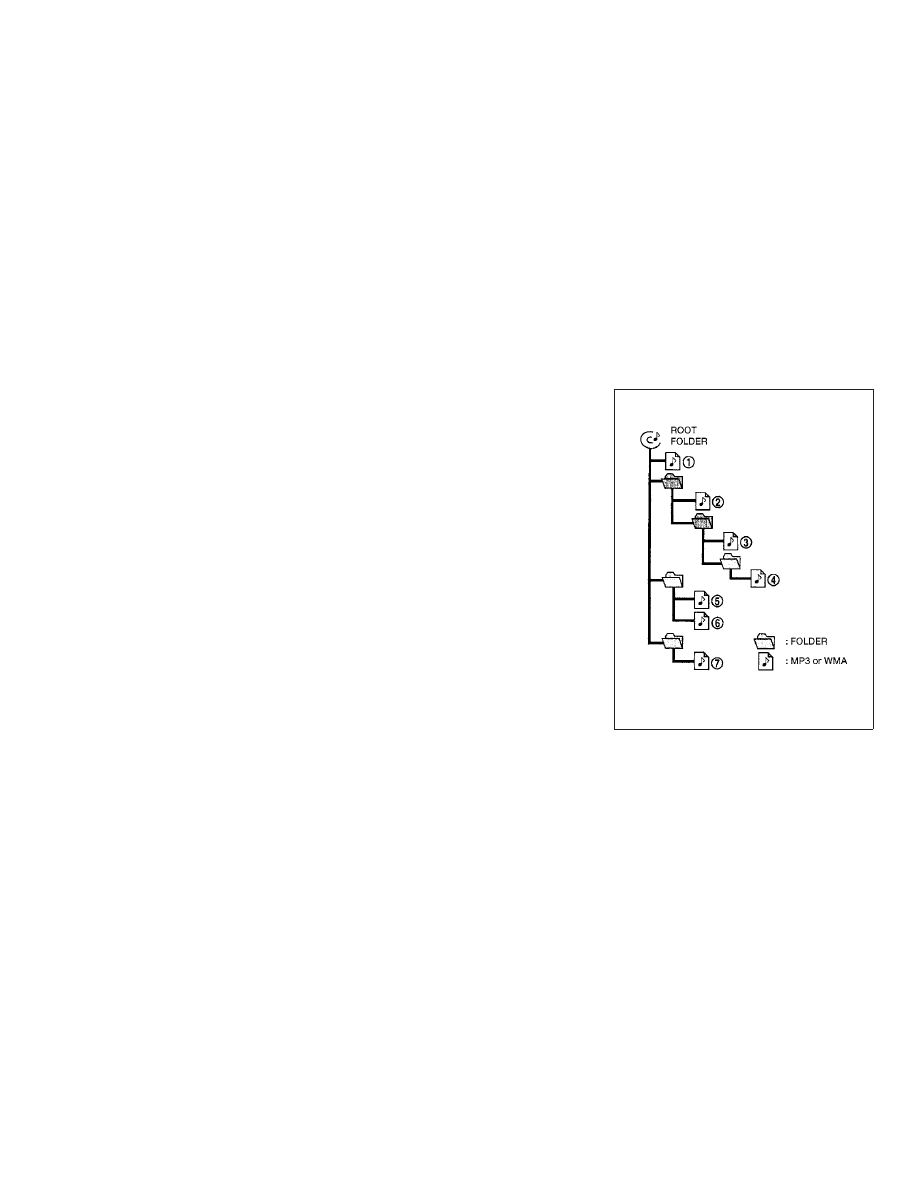

Playback order

Music playback order of a CD with MP3 or WMA
files is as illustrated.

● The names of folders not containing MP3 or

WMA files are not shown in the display.

Playback order chart

WHA1078

Monitor, climate, audio, phone and voice recognition systems

4-27

● If there is a file in the top level of the disc,

“Root Folder” is displayed.

● The playback order is the order in which the

files were written by the writing software.
Therefore, the files might not play in the
desired order.

Specification chart

Supported media

CD, CD-R, CD-RW

Supported file systems

ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not supported.

Supported
versions*1

MP3

Version

MPEG1, MPEG2, MPEG2.5

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR

WMA

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

48 kbps - 192 kbps, VBR

Tag information

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)

Folder levels

Folder levels: 8, Max folders: 255 (including root folder), Files: 512 (Max. 255 files for one folder)

Text character number limitation

128 characters

Displayable character codes*2

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big Endian),
05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian)

*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

*2 Available codes depend on what kind of media, versions and information are going to be displayed.

4-28

Monitor, climate, audio, phone and voice recognition systems

Troubleshooting guide

Symptom

Cause and Countermeasure

Cannot play

Check if the disc was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the player.

If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.

If there is a mixture of music CD files (CD-DA data) and MP3/WMA files on a CD, only the music CD files (CD-DA data) will be played.

Files with extensions other than “.MP3”,“.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of characters for
folder names and file names should be in compliance with the specifications.

Check if the finalization process, such as session close and disc close, is done for the disc.

Check if the disc is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

Bit rate may be too low.

It takes a relatively long time
before the music starts
playing.

If there are many folders or file levels on the MP3/WMA disc, or if it is a multisession disc, some time may be required before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not match the
specifications. Try using the slowest writing speed.

Skipping with high bit rate
files

Skipping may occur with large quantities of data, such as for high bit rate data.

Moves immediately to the
next song when playing

When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, .“mp3”or “.wma”, or when play is prohibited by copyright protection, there
will be approximately 5 seconds of no sound and then the player will skip to the next song.

Songs do not play back in
the desired order

The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the desired order.

Monitor, climate, audio, phone and voice recognition systems

4-29

USB (Universal Serial Bus)
Connection Port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

The vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.

This system cannot be used to format USB
memory devices. To format a USB device, use a
personal computer.

In some jurisdictions, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.

This system supports various USB memory de-
vices, USB hard drives and iPod® players. Some
USB devices may not be supported by this sys-
tem.

● Partitioned USB devices may not play cor-

rectly.

● Some characters used in other languages

(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.

General notes for USB use

● For additional information, refer to your de-

vice manufacturer’s owner information re-
garding the proper use and care of the de-
vice.

Notes for iPod® use

iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

● Improperly plugging in the iPod® may cause

a check mark to be displayed on and off
(flickering). Always make sure that the
iPod® is connected properly.

● An iPod® nano (1st Generation) may remain

in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®.

● An iPod® nano (2nd Generation) will con-

tinue to fast-forward or rewind if it is discon-
nected during a seek operation.

● An incorrect song title may appear when the

Play Mode is changed while using an iPod®
nano (2nd Generation).

● Audiobooks may not play in the same order

as they appear on an iPod®.

● Large video files cause slow responses in an

iPod®. The vehicle center display may mo-
mentarily black out, but will soon recover.

● If an iPod® automatically selects large video

files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.

4-30

Monitor, climate, audio, phone and voice recognition systems

Nissan NV200 Taxi (2017 year). Manual - part 10
