Map light

Headlight assembly/daytime run-
ning lights

High-mounted stop light

Cargo light

Rear combination light

License plate light

Replacement procedures

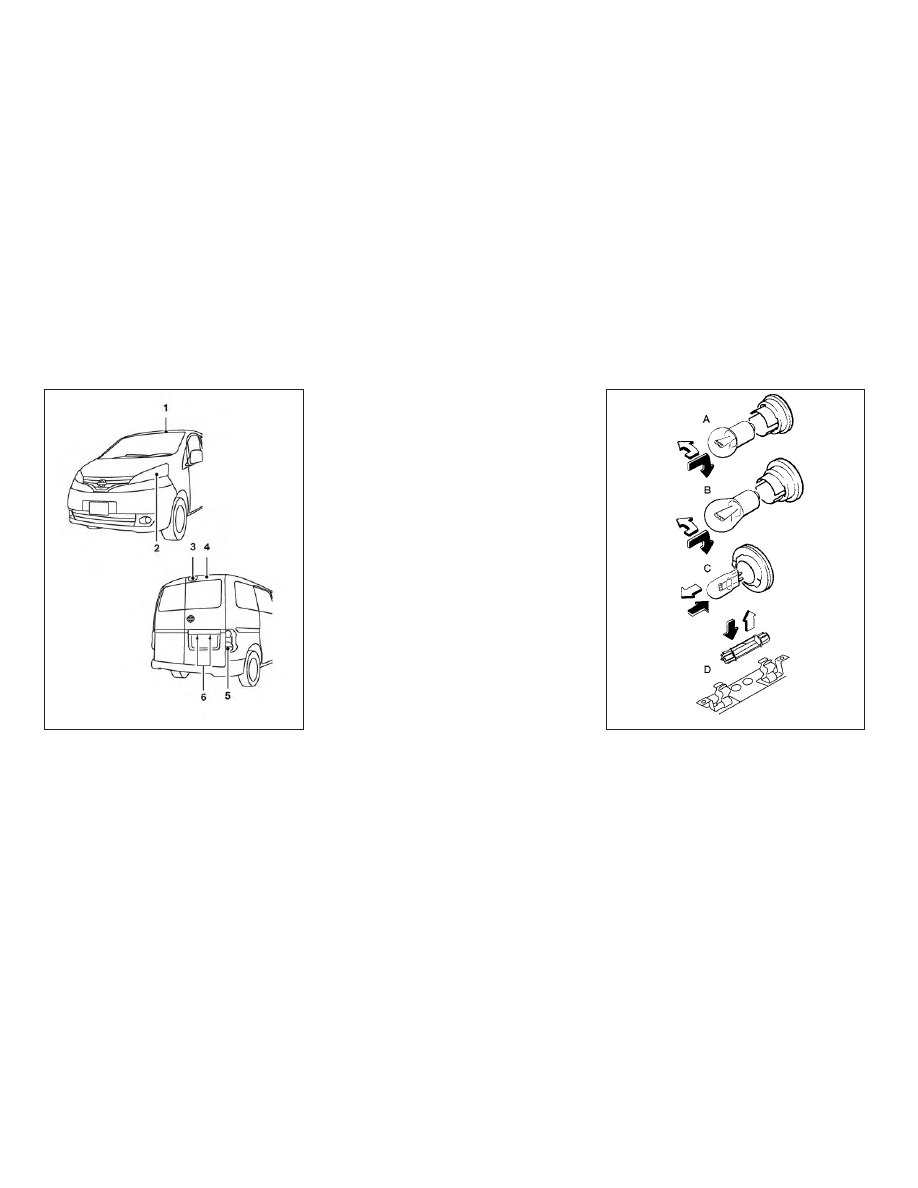

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover using a cloth and
suitable tool.

LDI2507

WDI0263

8-30

Do-it-yourself

Indicates bulb removal

Indicates bulb installation

Use a cloth to protect the housing.

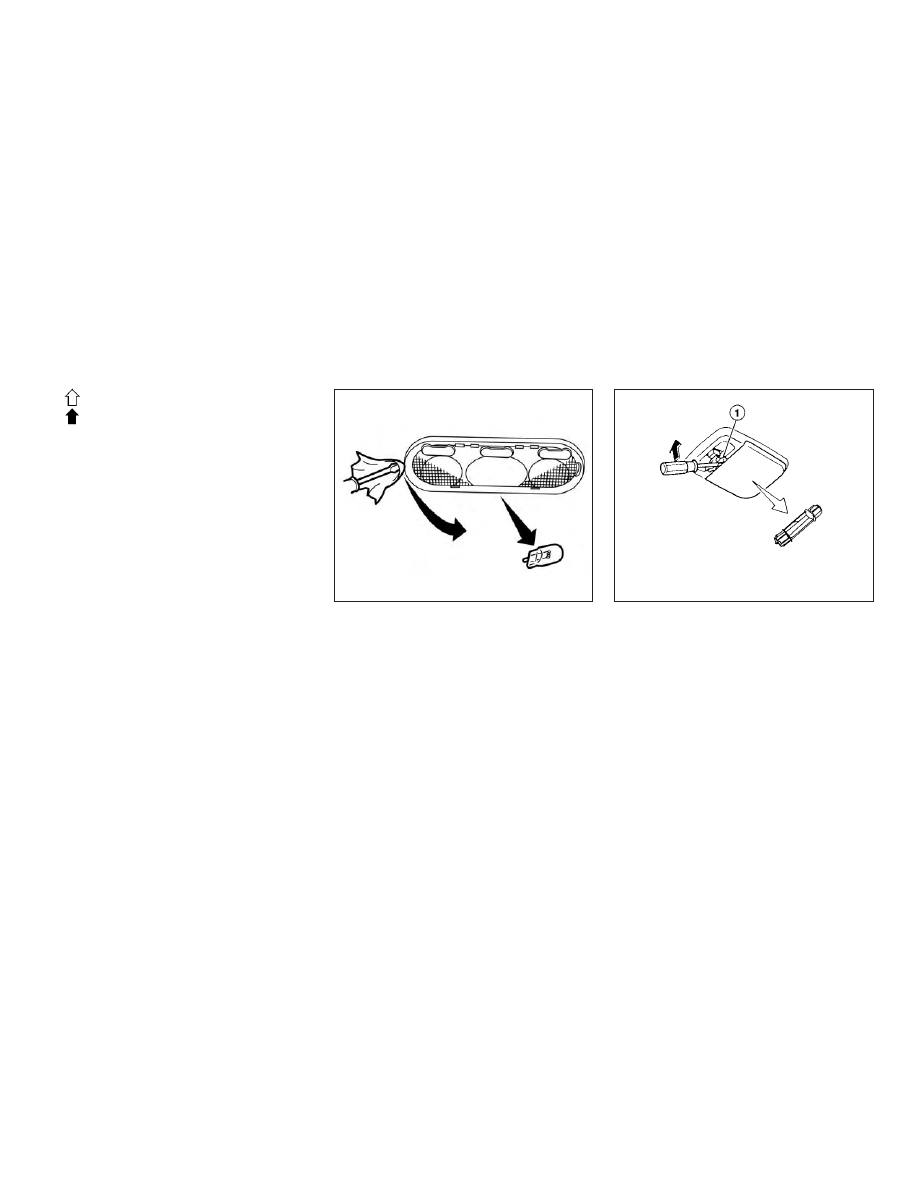

Map light

LDI2217

Cargo light

WDI0233

Do-it-yourself

8-31

䊊

Remove the fasteners.

䊊

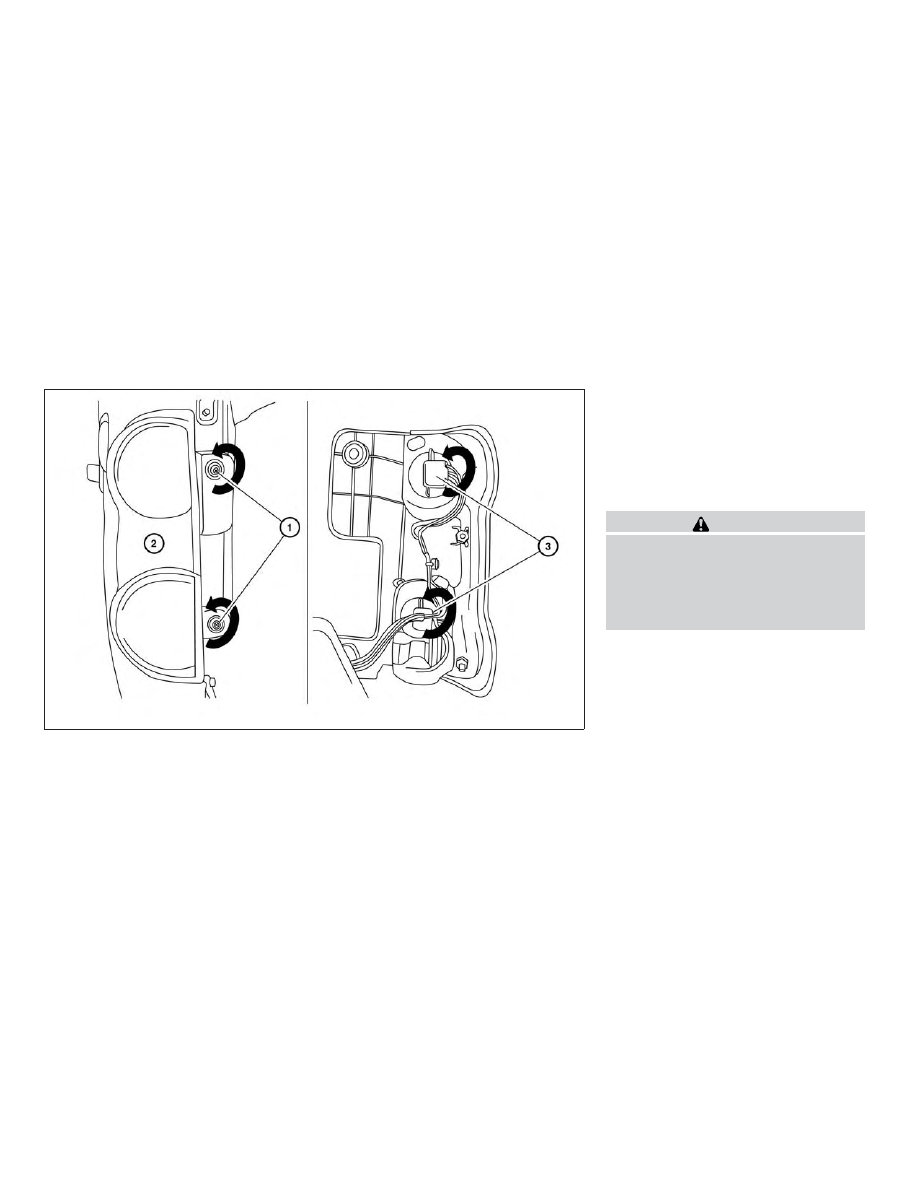

Remove the rear combination light as-
sembly.

䊊

Remove the bulb(s) and replace as
necessary.

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely af-
fect electric medical equipment.
Those

who

use

pacemaker

should contact the electric medi-
cal equipment manufacturer for
the possible influences before use.

This vehicle is equipped with TPMS. It
monitors tire pressure of all four tires
except the spare. When the low tire
pressure warning light is lit and the
CHECK TIRE PRES (pressure) warning
message is displayed in the odom-
eter, one or more of your tires is sig-
nificantly under-inflated.

The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system

Rear combination light

LDI2221

WHEELS AND TIRES

8-32

Do-it-yourself

may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, refer to
“Warning lights, indicator lights and
audible reminders” in the “Instru-
ments and controls” section, “Tire
Pressure Monitoring System (TPMS)”
in the “Starting and driving” section,
and “Flat tire” in the “In case of emer-
gency” section of this manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
are at the specified level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-33

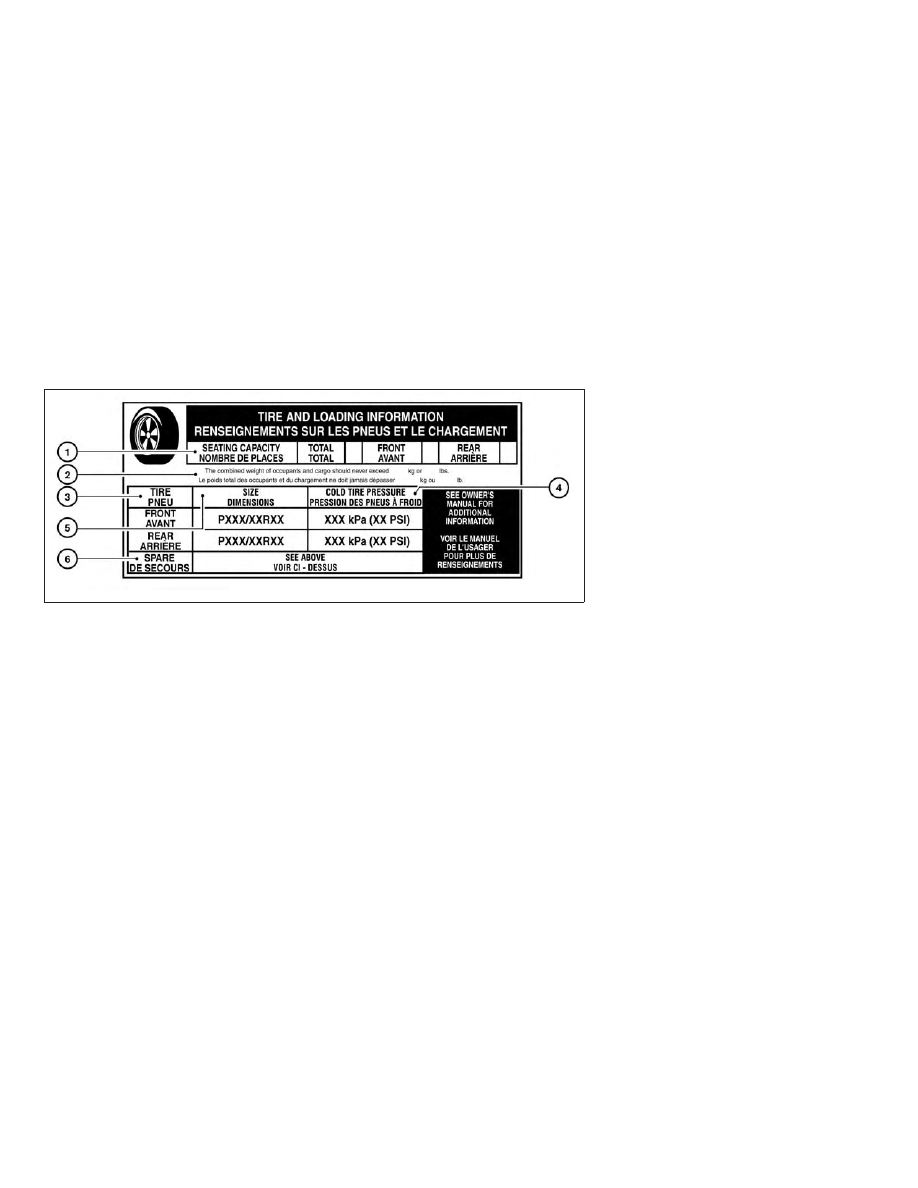

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: For additional
information, refer

“Vehicle

information”

the

“Technical and consumer infor-
mation” section of this manual.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Tire size - For additional infor-
mation, refer to “Tire labeling” in
this section.

䊊

Spare tire size.

LDI2495

8-34

Do-it-yourself

Payload and replacement tire

Your vehicle is equipped with special high
load index 94 tires to carry a payload of up
to 1,480 lbs (671 kg) and also special high
load index 92 tires to carry a payload of up
to 1,450 lbs (658 kg) as indicated on your tire
information placard. Some aftermarket re-
placement tires may have lower load index
ratings. While NISSAN does not encourage
you to do so, please note that if you choose
to purchase a tire with a lower load index
rating, the max payload capacity of your
vehicle will be reduced.

Please refer to replacement tire manufac-
turer usage recommendations and tire
pressures.

Checking tire pressure

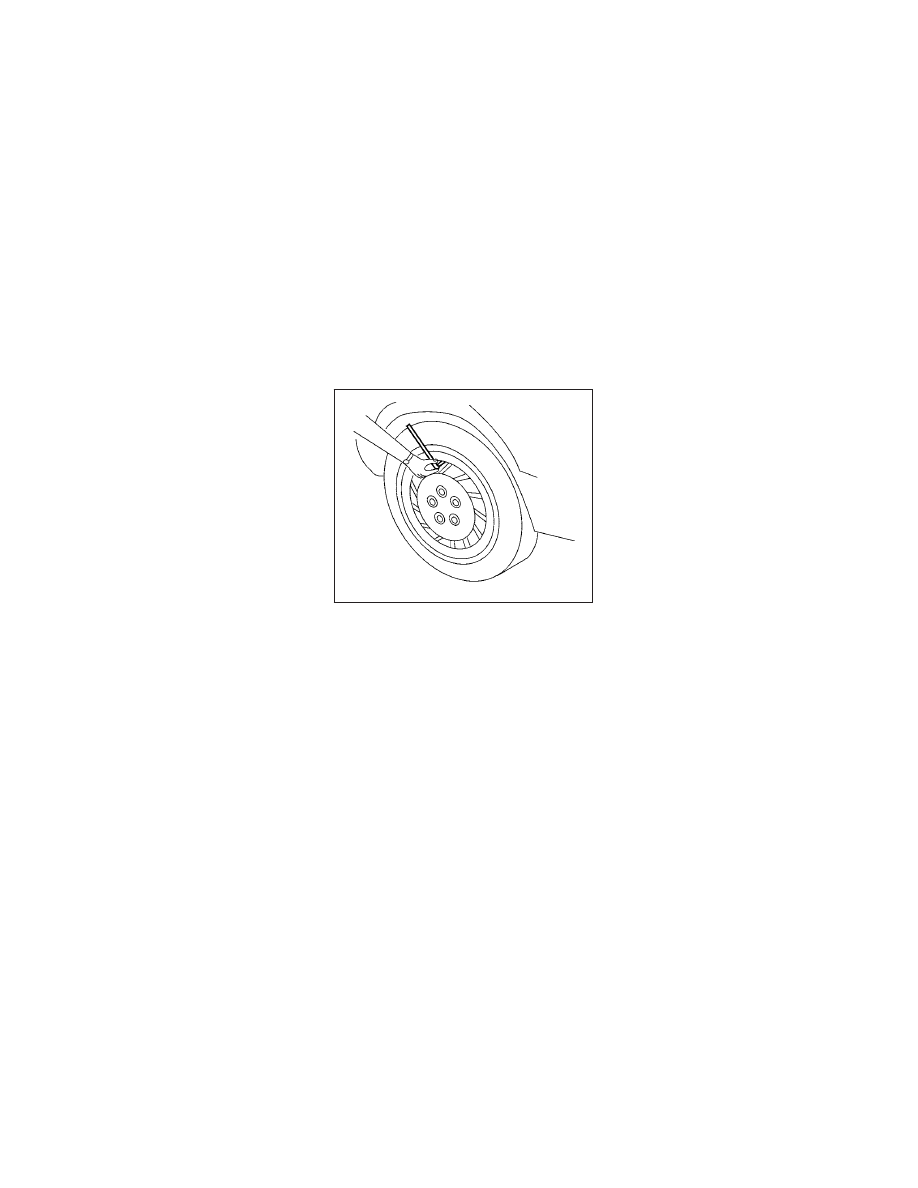

1. Remove the valve stem cap from

the tire.

2. Press

the

pressure

gauge

squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

LDI0393

Do-it-yourself

8-35

7. Check the pressure of all other

tires, including the spare.

Size

Cold Tire
Inflation
Pressure

Front Original Tire:
185/60R15C 94/92T

44 psi
(300 kPa)

Rear Original Tire:
185/60R15C 94/92T

48 psi
(325 kPa)

Spare Tire:

Full size

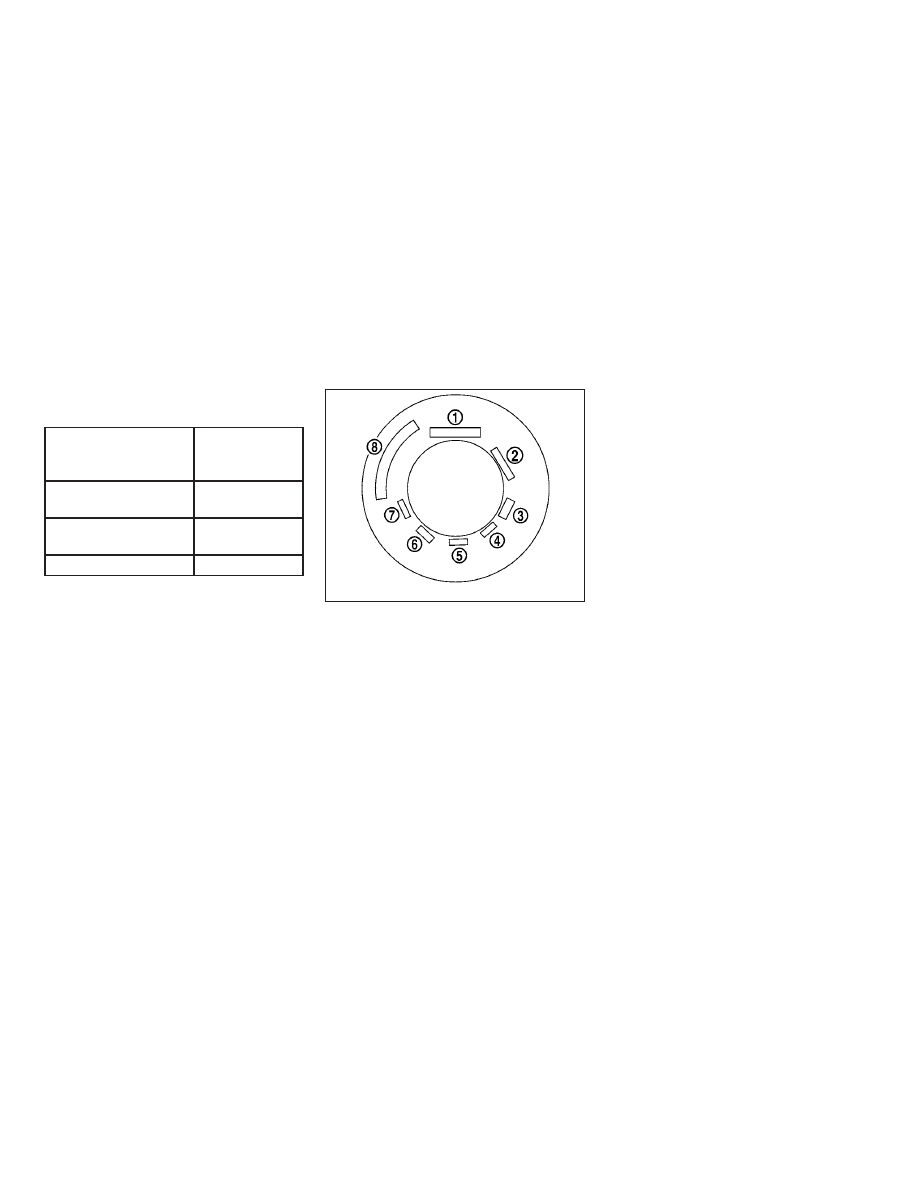

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
tire identification number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

Example

WDI0394

8-36

Do-it-yourself

䊊

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

Example

WDI0395

Do-it-yourself

8-37

䊊

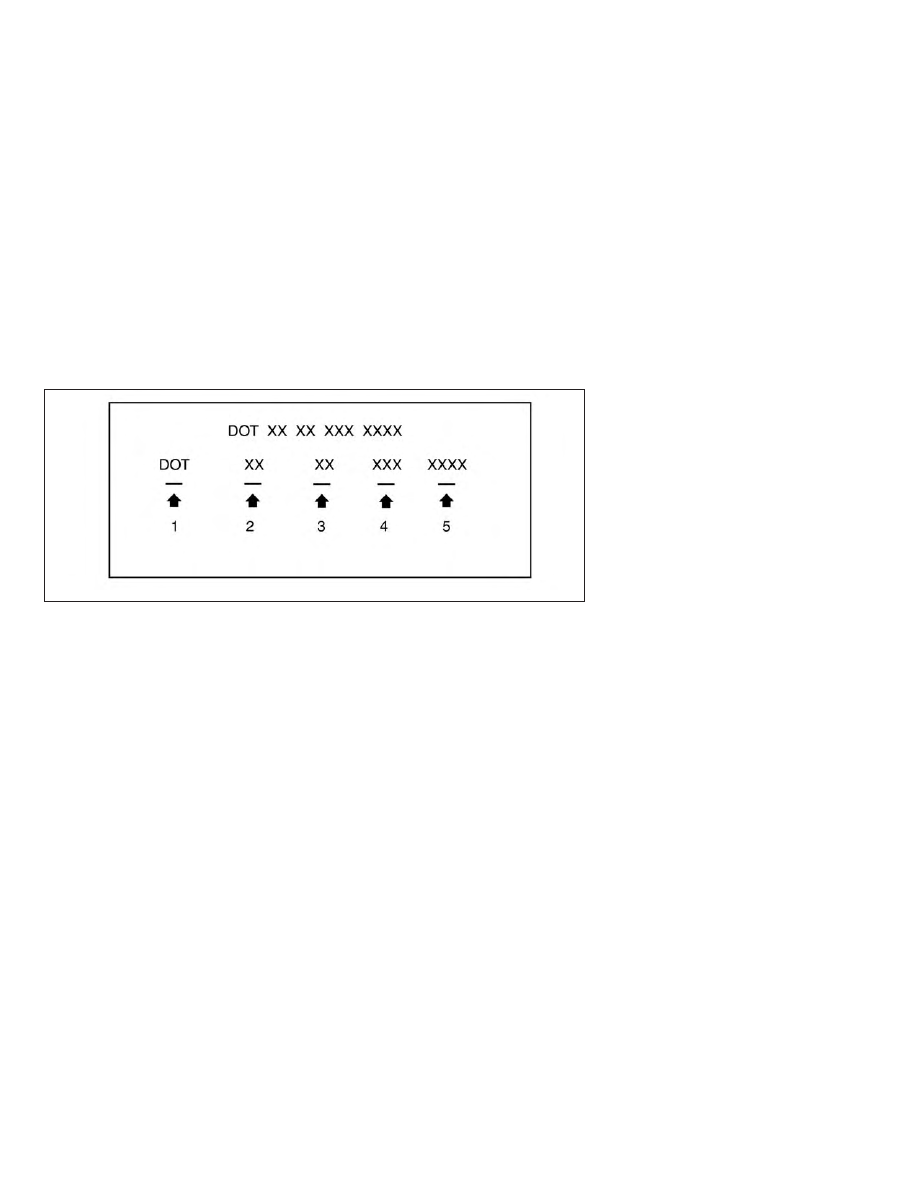

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “De-

partment

Transportation”.

The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

䊊

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate
the materials in the tire, which include
steel, nylon, polyester and others.

䊊

Maximum permissible inflation

pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

䊊

Maximum load rating

This number indicates the maxi-
mum load in kilograms and pounds
that can be carried by the tire. When
replacing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.

䊊

Term of “tubeless” or “tube type”

Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).

Example

LDI2786

8-38

Do-it-yourself

䊊

The word “radial”

The word “radial” is shown if the tire
has radial structure.

䊊

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other Tire-related Terminology

In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears

white

lettering

bears

manufacturer, brand, and/or model
name molding that is higher or
deeper than the same molding on
the other sidewall of the tire, or (2)
the outward facing sidewall of an
asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounted on a vehicle.

TYPES OF TIRES

WARNING

∙ When changing or replacing tires, be

sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. A NISSAN dealer may be
able to help you with information
about tire type, size, speed rating and
availability.

∙ Replacement tires may have a lower

speed

rating

than

the

factory

equipped tires, and may not match
the

potential

maximum

vehicle

speed. Never exceed the maximum
speed rating of the tire.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the low tire
pressure warning system.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

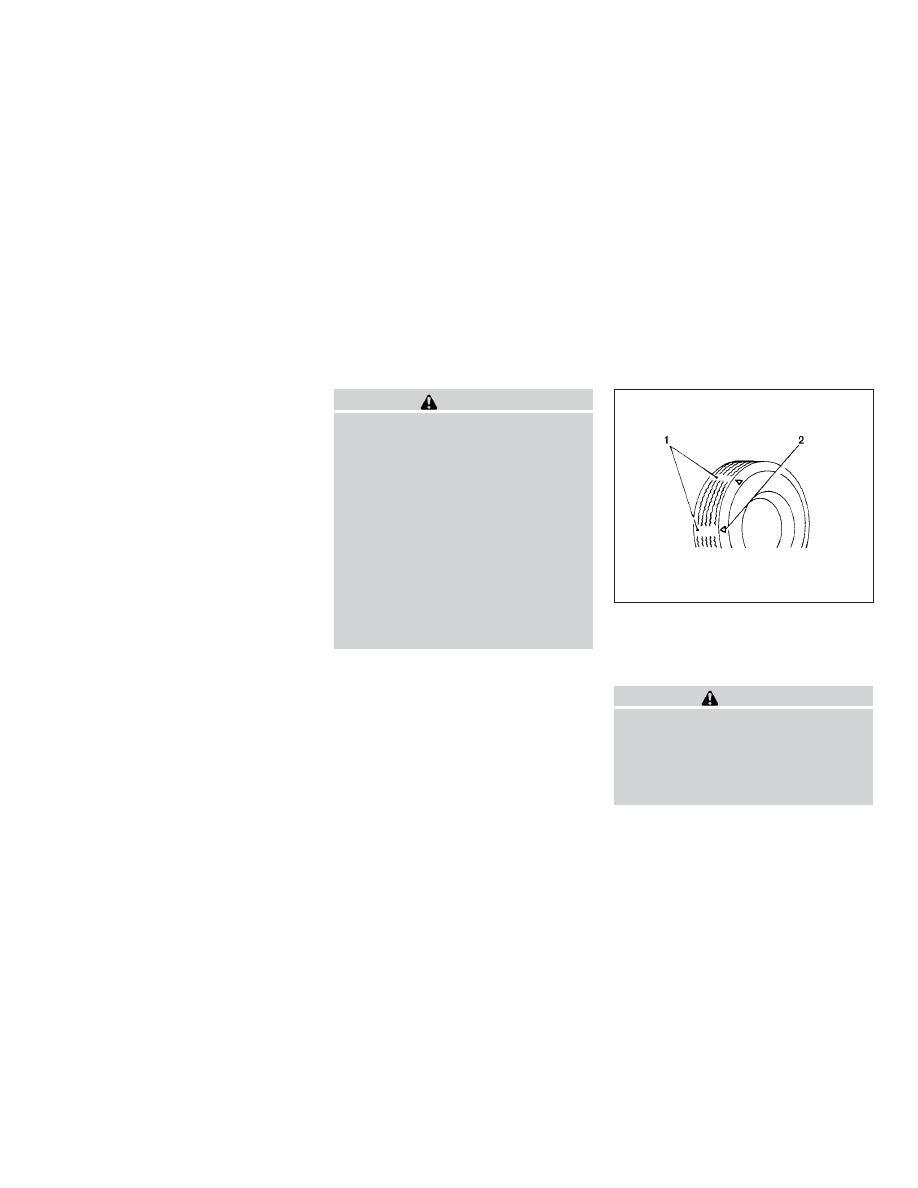

All season tires

NISSAN specifies All Season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than
All Season tires and may be more appropri-
ate in some areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.

Do-it-yourself

8-39

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, stud-
ded tires may be used. However, some U.S.
states and Canadian provinces prohibit
their use. Check local, state and provincial
laws before installing studded tires. Skid
and traction capabilities of studded snow
tires on wet or dry surfaces may be poorer
than that of non-studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited ac-
cording to location. Check the local laws
before installing tire chains. When installing
tire chains, make sure they are the proper
size for the tires on your vehicle and are
installed according to the chain manufac-
turer’s suggestions. Use only SAE class “S”
chains. Class “S” chains are used on ve-
hicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains
are designed to meet the minimum clear-
ances between the tire and the closest ve-

hicle suspension or body component re-
quired to accommodate the use of a
winter traction device (tire chains or
cables). The minimum clearances are de-
termined using the factory equipped tire
size. Other types may damage your vehicle.
Use chain tensioners when recommended
by the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chain
must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. If possible,
avoid fully loading your vehicle when using
tire chains. In addition, drive at a reduced
speed. Otherwise, your vehicle may be
damaged and/or vehicle handling and
performance may be adversely affected.

Tire chains must be installed only on the
front wheels and not on the rear wheels.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the
tires every 5,000 miles (8,000 km).

For additional information on tire re-
placement procedures, refer to “Flat
tire” in the “In case of emergency”
section in this manual for tire replac-
ing procedures.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

WDI0258

8-40

Do-it-yourself

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.

After rotating the tires, adjust the tire
pressure to the cold tire pressure
specification shown on the tire and
loading information label. For addi-
tional information, refer to “Checking
tire pressure” in this section and “Tire
and Loading Information label” in the
“Technical and consumer informa-
tion” section of this manual.

WARNING

∙ After rotating the tires, check

and adjust the tire pressure.

∙ Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

∙ Do not include the spare tire in

the tire rotation.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

∙ Tires should be periodically in-

spected

for

wear,

cracking,

bulging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

WDI0259

Do-it-yourself

8-41

∙ The original tires have built-in

tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

∙ Tires degrade with age and use.

Have tires, including the spare,
over 6 years old checked by a
qualified

technician

because

some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

∙ Improper service of the spare

tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, it is recom-
mended that you visit a NISSAN
dealer for this service.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. For ad-
ditional information, refer to “Wheels and
tires” in the “Technical and consumer infor-
mation” section of this manual.

WARNING

∙ The use of tires other than those rec-

ommended or the mixed use of tires
of

different

brands,

construction

(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking,

handling,

VDC

system,

ground clearance, body-to-tire clear-
ance, tire chain clearance, speedom-
eter calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could re-
sult in serious personal injury.

∙ If

your

vehicle

was

originally

equipped with four tires that were the
same size and you are only replacing
two of the four tires, install the new
tires on the rear axle. Placing new tires
on the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and per-
sonal injury.

∙ If the wheels are changed for any rea-

son,

always

replace

with

wheels

which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear, de-
grade vehicle handling characteris-
tics, affect the VDC system and/or in-
terference with the brake discs. Such
interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information,
refer to “Wheels and tires” in the
“Technical and consumer informa-
tion” section of this manual for wheel
off-set dimensions.

8-42

Do-it-yourself

∙ When replacing a wheel without the

TPMS, such as the spare tire, TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after 1 minute. Have your tires re-
placed and/or TPMS system reset as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

∙ The TPMS sensor may be damaged if

it is not handled correctly. Be careful
when handling the TPMS sensor.

∙ When replacing the TPMS sensor, the

ID registration may be required. It is
recommended that you visit a NISSAN
dealer for ID registration.

∙ Do not use a valve stem cap that is not

specified by NISSAN. The valve stem
cap may become stuck.

∙ Be sure that the valve stem caps are

correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause

malfunction

loss

pressure.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ Do not install a damaged or deformed

wheel or tire even if it has been re-
paired. Such wheels or tires could
have structural damage and could fail
without warning.

∙ The

use

retread

tires

not

recommended.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

Wheel balance

Unbalanced wheels may affect vehicle
handling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.

Care of wheels

∙ Wash the wheels when washing the ve-

hicle to maintain their appearance.

∙ Clean the inner side of the wheels when

the wheel is changed or the underside
of the vehicle is washed.

∙ Do not use abrasive cleaners when

washing the wheels.

∙ Inspect wheel rims regularly for dents

or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead.

∙ NISSAN recommends waxing the road
