Replacing

LED headlight:

If replacement is required, it is recom-
mended you visit a NISSAN dealer for this
service.

Halogen headlight bulb:

The headlight (high-beam) is a semi-
sealed beam type which uses a replace-
able headlight (halogen) bulb.

CAUTION

. Do not leave the bulb out of the

headlight reflector for a long
period of time. Dust, moisture,
smoke, etc. entering the head-
light body may affect bulb per-
formance.

. High pressure halogen gas is

sealed inside the halogen bulb.
The bulb may break if the glass
envelope is scratched or the bulb
is dropped.

. Only touch the plastic base when

handling the bulb. Never touch
the glass envelope.

. Aiming is not necessary after

replacing the bulb. When aiming
adjustment is necessary, it is

recommended you visit a NISSAN
dealer for this service.

Use the same number and wattage as
originally installed as shown in the chart.

JVM0823X

The high-beam headlight can be replaced
from inside the engine compartment
without removing the headlight assem-
bly.

Do-it-yourself

8-25

8-26

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight

High-beam (Halogen)

Low-beam*

LED

—

Front turn signal light

28/8

7444NA

Fog light (if so equipped)

Front parking light*

LED

—

Front side marker light*

LED

—

Side turn signal light*

LED

—

Rear combination light

tail*

LED

—

back-up

W16W

stop

W21W

side marker*

LED

—

turn signal

WY21W

License plate light

W5W

Puddle light* (if so equipped)

LED

—

Map light*

LED

—

Rear personal light

—

Cargo light

—

Vanity mirror light

1.8

—

Step light (if so equipped)

—

Footwell light* (if so equipped)

1.4

—

Glove box light*

1.4

—

High-mounted stop light*

LED

—

It is recommended you visit a NISSAN dealer for replacement.

NOTE: Always check with the Parts Depart-

ment at a NISSAN dealer for the latest
information about parts.

Replacement procedures

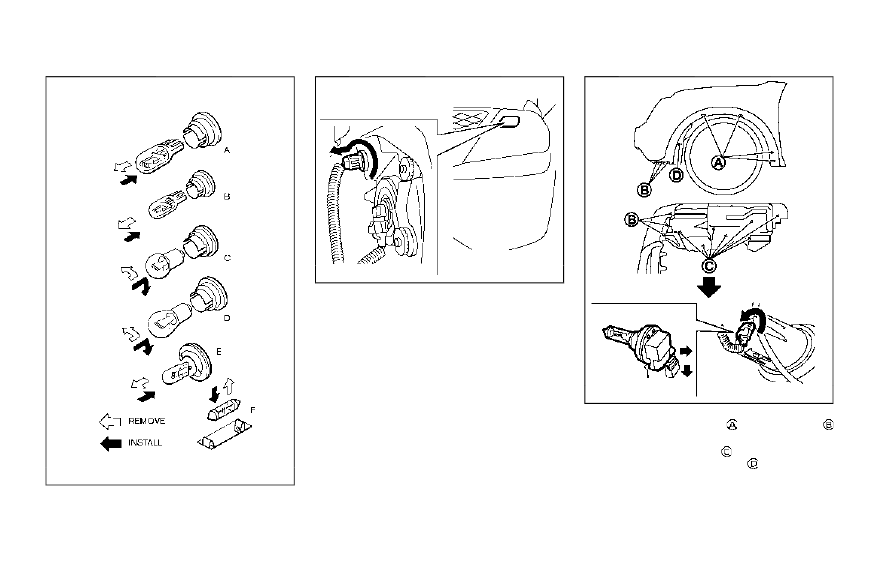

All other lights are either type A, B, C, D, E
or F. When replacing a bulb, first remove
the lens and/or cover.

SDI1679

JVM0825X

Front turn signal light

SDI2628

Front fog light (if so equipped)

Remove the screws

and the bolts

using a suitable tool.

Remove the clips

and remove the

wheel house inner cover

Do-it-yourself

8-27

8-28

Do-it-yourself

JVM0335X

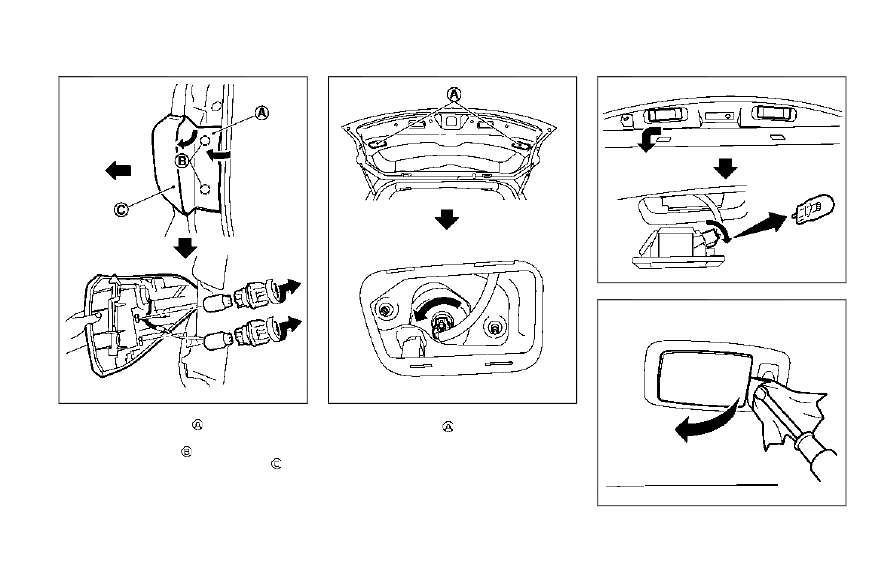

Rear combination light (turn signal and stop)

Remove the cover

by pulling it back-

ward.

Remove the bolts

, and gradually pry the

rear combination light whole unit

out-

ward.

SDI2524

Back-up light

Remove the cover

on the inside of the

liftgate.

SDI2525

License plate light

SDI2031

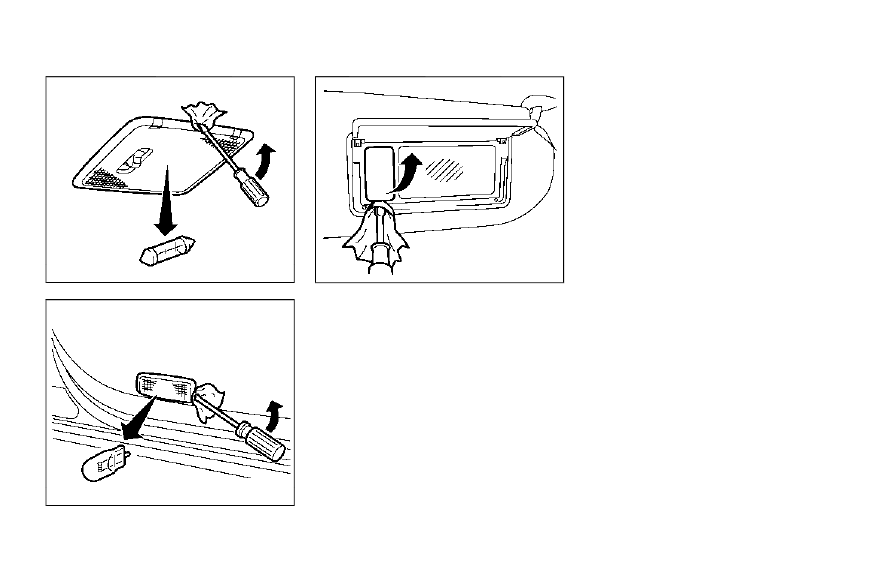

Rear personal light

8-30

Do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-
3).

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears in the vehicle
information display, one or more of your
tires is significantly under-inflated.

The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure
(for example, a flat tire while driving).

For more details, see “Low tire pressure
warning light” (P.2-15), “Tire Pressure Mon-
itoring System (TPMS)” (P.5-5) and “Tire
Pressure Monitoring System (TPMS) ” (P.6-
3).

Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al-
ways prior to long distance trips.
The recommended tire pressure
specifications are shown on the
Tire and Loading Information label
under the “Cold Tire Pressure”
heading. The Tire and Loading In-
formation label is affixed to the
driver side center pillar. Tire pres-
sures should be checked regularly
because:
. Most tires naturally lose air over

time.

. Tires can lose air suddenly when

driven over potholes or other
objects or if the vehicle strikes
a curb while parking.

The tire pressures should be
checked when the tires are cold.
The tires are considered COLD after
the vehicle has been parked for 3 or
more hours, or driven less than 1
mile (1.6 km) at moderate speeds.

TPMS with Easy Fill Tire Alert pro-
vides visual and audible signals

outside the vehicle for inflating the
tires to the recommended COLD
tire pressure. (See “TPMS with Easy
Fill Tire Alert” (P.5-8).)

Incorrect tire pressure, including
under inflation, may adversely
affect tire life and vehicle hand-
ling.

WARNING

. Improperly inflated tires can

fail suddenly and cause an
accident.

. The Gross Vehicle Weight

rating (GVWR) is located on
the F.M.V.S.S./C.M.V.S.S. cer-
tification label. The vehicle
weight capacity is indicated
on the Tire and Loading In-
formation label. Do not load
your vehicle beyond this ca-
pacity. Overloading your ve-
hicle may result in reduced
tire life, unsafe operating
conditions due to premature
tire failure, or unfavorable

WHEELS AND TIRES

8-32

Do-it-yourself

SDI2496

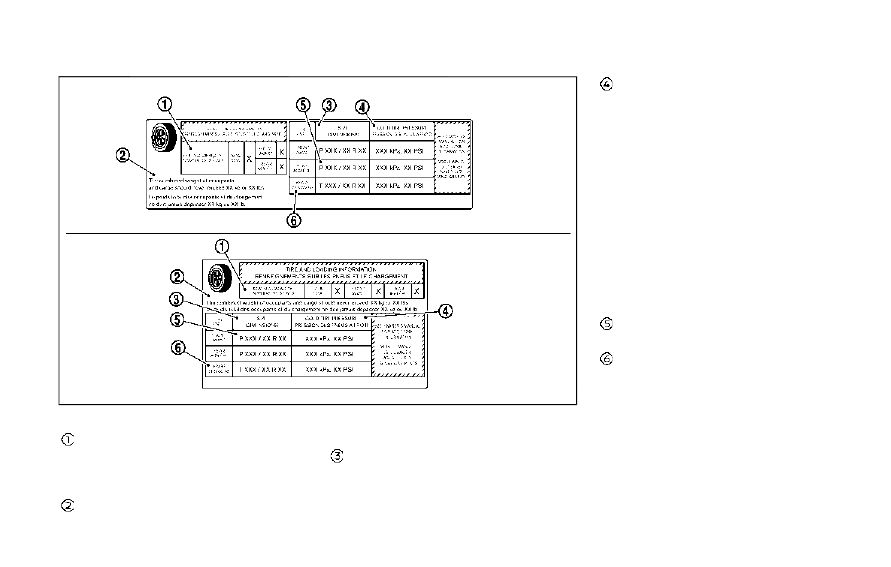

Tire and Loading Information label

Seating capacity: The max-
imum number of occu-
pants that can be seated
in the vehicle.
Vehicle load limit: See “Ve-

hicle loading information”
(P.10-13).
Original size: The size of
the tires originally installed
on the vehicle at the fac-
tory.

Cold tire pressure: Inflate
the tires to this pressure
when the tires are cold.
Tires are considered COLD
after the vehicle has been
parked for 3 or more hours,
or driven less than 1 mile
( 1 . 6

k m )

a t

m o d e r a t e

speeds. The recommended
cold tire inflation is set by
the manufacturer to pro-
vide the best balance of
tire wear, vehicle handling,
driveability, tire noise, etc.,
up to the vehicle’s GVWR.
Tire size — see “Tire label-
ing” (P.8-34).
Spare tire size or compact
s p a r e

t i r e

s i z e

( i f

s o

equipped)

SDI1949

Checking the tire pressure
1. Remove the valve stem cap from

the tire.

2. P r e s s t h e p r e s s u r e g a u g e

squarely onto the valve stem.
Do not press too hard or force
the valve stem sideways, or air
will escape. If the hissing sound
of air escaping from the tire is
heard while checking the pres-
sure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare it to
the specification shown on the
Tire and Loading Information
label.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGI-

NAL

TIRE

265/70R18
116H

240 kPa,
35 PSI

P275/60R20
114H

240 kPa,
35 PSI

REAR

ORIGI-

NAL

TIRE

265/70R18
116H

240 kPa,
35 PSI

P275/60R20
114H

240 kPa,
35 PSI

SPARE

TIRE

265/70R18
116H

240 kPa,
35 PSI

P275/60R20
114H

240 kPa,
35 PSI

Do-it-yourself

8-33

8-34

Do-it-yourself

SDI1575

Example

TIRE LABELING
Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides
the tire identification number (TIN)
for safety standard certification.
The TIN can be used to identify
the tire in case of a recall.

SDI1606

Example

T i r e

s i z e

( e x a m p l e :

P215/60R16 94H)

1. P: The “P” indicates the tire is

designed for passenger vehicles.
(Not all tires have this informa-
tion.)

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit number (60): This

number, known as the aspect
ratio, gives the tire’s ratio of

height to width.

4. R: The “R” stands for radial.

5. Two-digit number (16): This

number is the wheel or rim
diameter in inches.

6. Two- or three-digit number (94):

This number is the tire’s load
index. It is a measurement of
how much weight each tire can
support. You may not find this
information on all tires because
it is not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

JVM0694X

Example

T I N

( T i r e

I d e n t i f i c a t i o n

Number) for a new tire
(example: DOT XX XX XXX
XXXX)

1. DOT: Abbreviation for the “De-

partment of Transportation”.
The symbol can be placed
above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark

3. Two-digit code: Tire size

4. Three-digit code: Tire type code

(Optional)

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.

Tire ply composition and
material
The number of layers or
plies of rubber-coated fab-
ric in the tire.
Tire manufacturers also
must indicate the materials
in the tire, which include
steel, nylon, polyester, and
others.
Maximum permissible infla-
tion pressure
This number is the greatest
amount of air pressure
that should be put in the
tire. Do not exceed the

maximum permissible in-
flation pressure.
Maximum load rating
This number indicates the
maximum

load

kilo-

grams and pounds that
can be carried by the tire.
When replacing the tires on
the vehicle, always use a
tire that has the same load
rating as the factory in-
stalled tire.
Term of “tubeless” or “tube
type”
Indicates whether the tire
requires

inner

tube

(“tube type”) or not (“tube-
less”).
The word “radial”
The word “radial” is shown,
if the tire has radial struc-
ture.
Manufacturer

brand

name
Manufacturer

brand

name is shown.

Do-it-yourself

8-35

8-36

Do-it-yourself

Other tire-related terminology:

In addition to the many terms that
are defined throughout this sec-
tion, Intended Outboard Sidewall is
(1) the sidewall that contains a
whitewall, bears white lettering or
bears manufacturer, brand and/or
model name molding that is higher
or deeper than the same molding
on the other sidewall of the tire, or
(2) the outward facing sidewall of
an asymmetrical tire that has a
particular side that must always
face outward when mounted on a
vehicle.

TYPES OF TIRES

WARNING

. When changing or replacing tires,

be sure all four tires are of the
same type (Example: Summer, All
Season or Snow) and construc-
tion. A NISSAN dealer may be able
to help you with information
about tire type, size, speed rating
and availability.

. Replacement tires may have a

lower speed rating than the fac-
tory equipped tires, and may not
match the potential maximum
vehicle speed. Never exceed the
maximum speed rating of the
tire.

. Replacing tires with those not

originally specified by NISSAN
could affect the proper operation
of the TPMS.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.

All season tires

NISSAN specifies all season tires on some
models to provide good performance all
year, including snowy and icy road con-
ditions. All Season tires are identified by
ALL SEASON and/or M&S (Mud and Snow)
on the tire sidewall. Snow tires have
better snow traction than All Season tires
and may be more appropriate in some
areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire trac-
tion rating M&S on the tire sidewall.

If you plan to operate your vehicle in
snowy or icy conditions, NISSAN recom-
mends the use of SNOW tires or ALL
SEASON tires on all four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.

Generally, snow tires will have lower
speed ratings than factory equipped tires
and may not match the potential max-
imum vehicle speed. Never exceed the
maximum speed rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads,
studded tires may be used. However,
some U.S. states and Canadian provinces
prohibit their use. Check local, state and
provincial laws before installing studded

tires. Skid and traction capabilities of
studded snow tires, on wet or dry sur-
faces, may be poorer than that of non-
studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited
according to location. Check the local
laws before installing tire chains. When
installing tire chains, make sure they are
the proper size for the tires on your
vehicle and are installed according to
the chain manufacturer’s suggestions.
Use only SAE Class S chains. Class “S”
chains are used on vehicles with re-
stricted tire to vehicle clearance. Vehicles
that can use Class “S” chains are designed
to meet the SAE standard minimum
clearances between the tire and the
closest vehicle suspension or body com-
ponent required to accommodate the
use of a winter traction device (tire chains
or cables). The minimum clearances are
determined using the factory equipped
tire size. Other types may damage your
vehicle. Use chain tensioners when re-
commended by the tire chain manufac-
turer to ensure a tight fit. Loose end links
of the tire chain must be secured or
removed to prevent the possibility of
whipping action damage to the fenders
or underbody. If possible, avoid fully load-
ing your vehicle when using tire chains. In

addition, drive at a reduced speed. Other-
wise, your vehicle may be damaged and/
or vehicle handling and performance may
be adversely affected.

Tire chains must be installed only on
the rear wheels and not on the front
wheels.

Do not use tire chains on dry roads.
Driving with tire chains in such conditions
can cause damage to the various me-
chanisms of the vehicle due to some
overstress.

SDI1662

CHANGING WHEELS AND TIRES

Tire rotation
NISSAN recommends rotating the
tires every 5,000 miles (8,000 km).
(See “Flat tire” (P.6-3) for tire repla-
cing procedures.)

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

98 ft-lb (133 N·m)

The wheel nuts must be kept
tightened to the specification at

Do-it-yourself

8-37

8-38

Do-it-yourself

all times. It is recommended that
wheel nuts be tightened to the
specification at each tire rotation
interval.

WARNING

. After rotating the tires,

check and adjust the tire
pressure.

. Retighten the wheel nuts

when the vehicle has been
driven for 600 miles (1,000
km) (also in cases of a flat
tire, etc.).

. For additional information

regarding tires, refer to “Im-
portant Tire Safety Informa-
tion” (US) or “Tire Safety
Information” (Canada) in the
Warranty Information Book-
let.

SDI1663

Wear indicator

Wear

indicator

location

mark

Tire wear and damage

WARNING

. Tires should be periodically

inspected for wear, cracking,
bulging or objects caught in
the tread. If excessive wear,
cracks, bulging or deep cuts
are found, the tire(s) should

be replaced.

. The original tires have built-

in tread wear indicators.
When wear indicators are
visible, the tire(s) should be
replaced.

. Tires degrade with age and

use. Have tires, including the
spare, over 6 years old
checked by a qualified tech-
nician, because some tire
damage may not be ob-
vious. Replace the tires as
necessary to prevent tire
failure and possible perso-
nal injury.

. Improper service of the

spare tire may result in ser-
ious personal injury. If it is
necessary to repair the
spare tire, it is recom-
mended you visit a NISSAN
dealer for this service.

. For additional information

regarding tires, refer to “Im-
portant Tire Safety Informa-
tion” (US) or “Tire Safety

Information” (Canada) in the
Warranty Information Book-
let.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load
carrying capacity as originally equipped.
(See “Specifications” (P.10-7) for recom-
mended types and sizes of tires and
wheels.)

WARNING

. The use of tires other than those

recommended or the mixed use
of tires of different brands, con-
struction (bias, bias-belted or ra-
dial), or tread patterns can
adversely affect the ride, braking,
handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibra-
tion, headlight aim and bumper
height. Some of these effects
may lead to accidents and could
result in serious personal injury.

. For Two-Wheel Drive (2WD) mod-

els, if your vehicle was originally
equipped with 4 tires that were

the same size and you are only
replacing 2 of the 4 tires, install
the new tires on the rear axle.
Placing new tires on the front
axle may cause loss of vehicle
control in some driving condi-
tions and cause an accident and
personal injury.

. If the wheels are changed for any

reason, always replace with
wheels which have the same off-
set dimension. Wheels of a differ-
ent off-set could cause prema-
ture tire wear, degrade vehicle
handling characteristics and/or
interference with the brake
discs/drums. Such interference
can lead to decreased braking
efficiency and/or early brake
pad/shoe wear. See “Wheels and
tires” (P.10-8) for wheel off-set
dimensions.

. Since the spare tire is not

equipped with the TPMS, when a
spare tire is mounted or a wheel
is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for ap-
proximately 1 minute. The light
will remain on after 1 minute.
Have your tires replaced and/or
TPMS system reset as soon as

possible. It is recommended you
visit a NISSAN dealer for these
services.

. Replacing tires with those not

originally specified by NISSAN
could affect the proper operation
of the TPMS.

. The TPMS sensor may be da-

maged if it is not handled cor-
rectly. Be careful when handling
the TPMS sensor.

. When replacing the TPMS sensor,

the ID registration may be re-
quired. It is recommended you
visit a NISSAN dealer for ID regis-
tration.

. Do not use a valve stem cap that

is not specified by NISSAN. The
valve stem cap may become
stuck.

. Be sure that the valve stem caps

are correctly fitted. Otherwise the
valve may be clogged up with dirt
and cause a malfunction or loss
of pressure.

. Do not install a damaged or

deformed wheel or tire even if it
has been repaired. Such wheels
or tires could have structural
damage and could fail without
warning.

Do-it-yourself

8-39

8-40

Do-it-yourself

. The use of retread tire is not

recommended.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.

Four-Wheel Drive (4WD) models

CAUTION

. Always use tires of the same type,

size, brand, construction (bias,
bias-belted or radial), and tread
pattern on all four wheels. Failure
to do so may result in a circum-
ference difference between tires
on the front and rear axles which
will cause excessive tire wear and
may damage the transmission,
transfer case and differential
gears.

. ONLY use spare tires specified for

the 4WD model.

If excessive tire wear is found, it is
recommended that all four tires be re-
placed with tires of the same size, brand,

construction and tread pattern. The tire
pressure and wheel alignment should
also be checked and corrected as neces-
sary. It is recommended you visit a
NISSAN dealer for this service.

Wheel balance

Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance.
Therefore, they should be balanced as
required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehi-
cle could lead to mechanical damage.

For additional information regarding tires,
refer to “Important Tire Safety Informa-
tion” (US) or “Tire Safety Information”
(Canada) in the NISSAN Warranty Infor-
mation Booklet.

Care of wheels

See “Cleaning exterior” (P.7-2) for details
about care of the wheels.

Spare tire

Since the spare tire is not equipped with
the Tire Pressure Monitoring System
(TPMS), when a spare tire is mounted,
the TPMS will not function.

A conventional tire is supplied with your
vehicle as a spare tire.

Nissan Armada (2019 year). Manual - part 29
