Nissan Armada (2019 year). Manual - part 14

JVH1688X

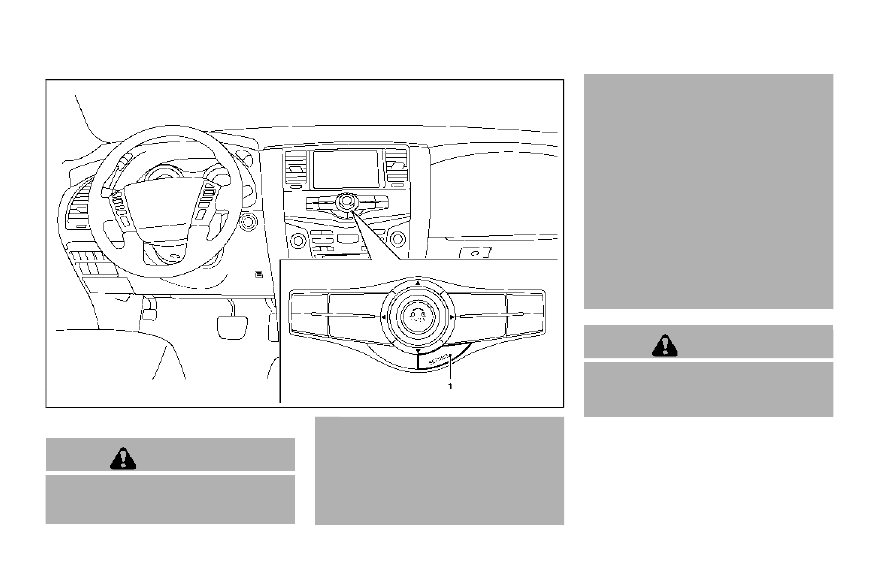

1. SETTING button

WARNING

Failure to follow the warnings and
instructions for proper use of the
RearView Monitor system could re-

sult in serious injury or death.

. The RearView Monitor is a conve-

nience but it is not a substitute
for proper backing. Always turn
and look out the windows, and
check mirrors to be sure that it is
safe to move before operating

the vehicle. Always back up
slowly.

. The system is designed as an aid

to the driver in showing large
stationary objects directly behind
the vehicle, to help avoid dama-
ging the vehicle.

. The distance guide line and the

vehicle width line should be used
as a reference only when the
vehicle is on a level paved sur-
face. The distance viewed on the
monitor is for reference only and
may be different than the actual
distance between the vehicle and
displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front
of camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle
when the shift lever is placed in the R
(Reverse) position.

The radio can still be heard while the
RearView Monitor is active.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-3

REARVIEW MONITOR (if so equipped)

4-4

Monitor, heater, air conditioner, audio, phone and voice recognition systems

JVH1395X

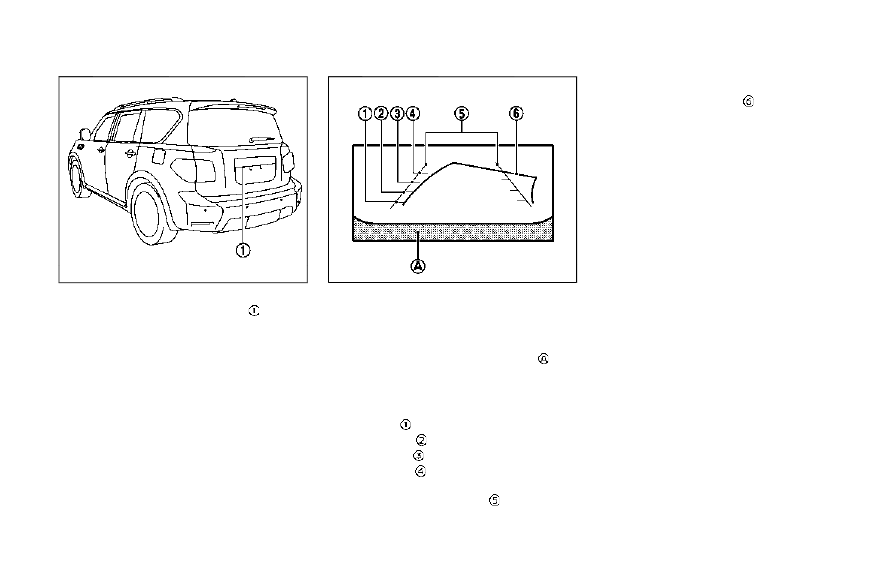

To display the rear view, the RearView
Monitor system uses a camera

located

just above the vehicle’s license plate.

REARVIEW MONITOR SYSTEM OP-
ERATION

With the ignition switch in the ON posi-
tion, move the shift lever to the R
(Reverse) position to operate the Rear-
View Monitor.

SAA1896

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with
reference to the bumper line

are

displayed on the monitor.

Distance guide lines:

Indicate distances from the bumper.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line

(if so equipped): approx.

10 ft (3 m)

Vehicle width guide lines

Indicate the approximate vehicle width

when backing up.

Predictive course lines

Indicate the predictive course when back-
ing up. The predictive course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and
will not be displayed while the steering
wheel is in the neutral position.

The vehicle width guide lines and the
width of the predictive course lines are
wider than the actual width and course.

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or down-
hill surfaces or projecting objects will be
actually located at distances different
from those displayed in the monitor
relative to the guidelines (refer to illustra-
tions). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the
positioning of objects behind the vehicle.

JVH1214X

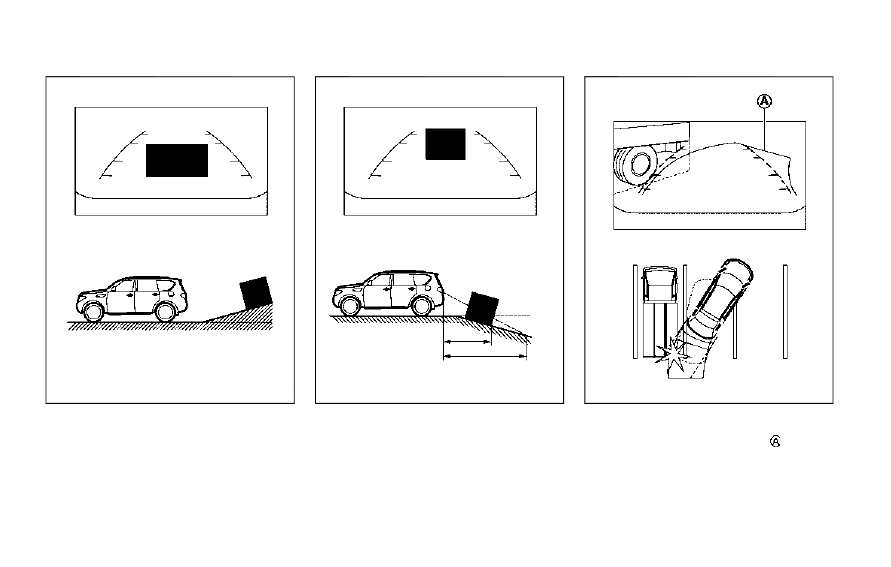

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the
actual distance. Note that any object on
the hill is farther than it appears on the
monitor.

JVH1215X

Backing up on a steep downhill

When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any object
on the hill is closer than it appears on the
monitor.

SAA1923

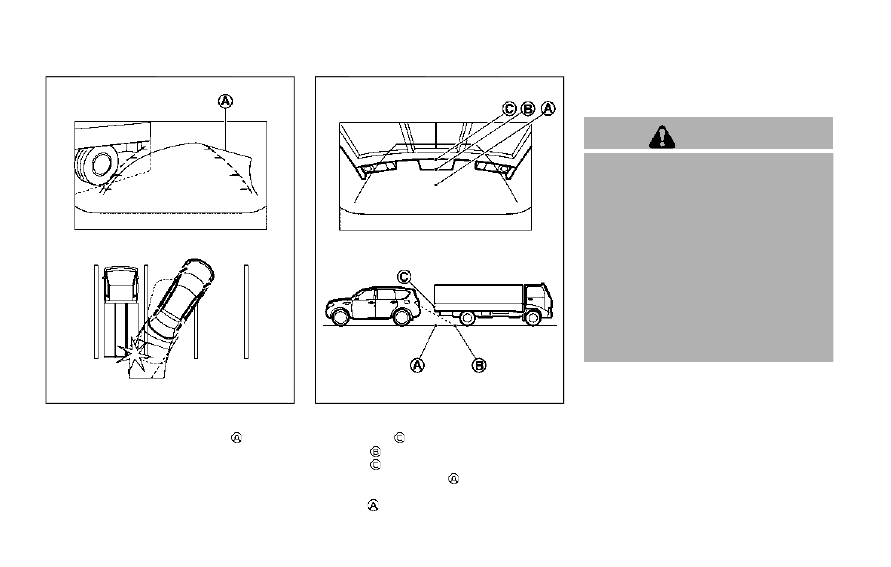

Backing up near a projecting object

The predictive course lines

do not

touch the object in the display. However,
the vehicle may hit the object if it projects
over the actual backing up course.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-5

4-6

Monitor, heater, air conditioner, audio, phone and voice recognition systems

JVH1216X

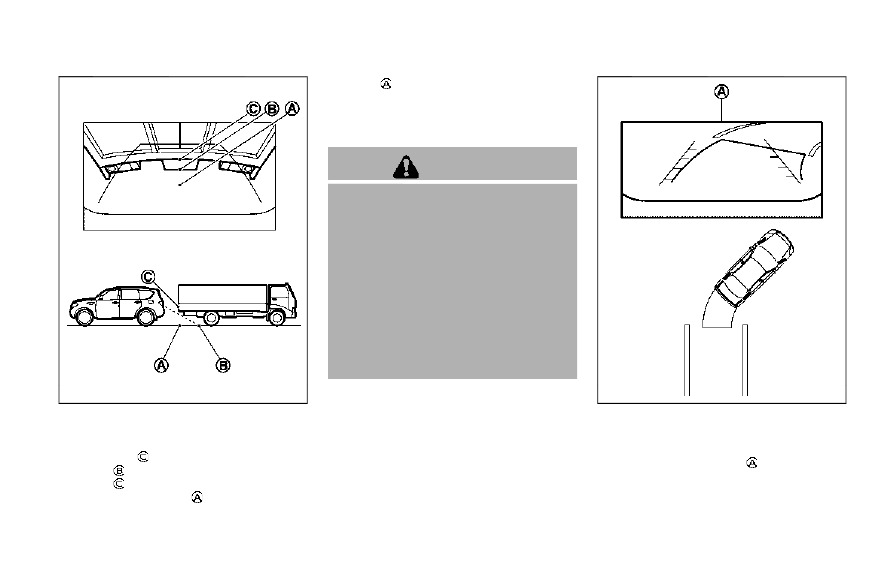

Backing up behind a projecting
object

The position

is shown farther than the

position

in the display. However, the

position

is actually at the same dis-

tance as the position

. The vehicle may

hit the object when backing up to the

position

if the object projects over the

actual backing up course.

HOW TO PARK WITH PREDICTIVE
COURSE LINES

WARNING

. If the tires are replaced with

different sized tires, the predic-
tive course line may not be dis-
played correctly.

. On a snow-covered or slippery

road, there may be a difference
between the predictive course
line and the actual course line.

. The displayed lines will appear

slightly off to the right because
the rearview camera is not in-
stalled in the rear center of the
vehicle.

SAA1897

Visually check that the parking space
is safe before parking your vehicle.

The rearview of the vehicle is dis-
played on the screen

when the shift

lever is moved to the R (Reverse)
position.

SAA1898

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dictive course lines

enter the park-

ing space

4. Maneuver the steering wheel to make

the vehicle width guide lines

parallel

to the parking space

while referring

to the predictive course lines.

5. When the vehicle is parked in the

space completely, move the shift lever
to the P (Park) position and apply the
parking brake.

SONAR INDICATOR

When the sonar system is ON, the sonar
indicator will appear in the display. (See
“Sonar system” (P.5-132).)

JVH1690X

ADJUSTING THE SCREEN

The display settings such as Brightness,
Contrast, Black Level, Tint and Color of
the RearView Monitor can be adjusted.

Push the SETTING button while the
RearView Monitor screen is displayed.

The Display settings menu is dis-
played. Select an item you wish to
adjust.

3. Adjust the selected item by touching

the “+” or “-” key.

Select “Reset Settings” key to return all
settings to default.

Display settings menu can also be ac-
cessed while the RearView Monitor

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-7

4-8

Monitor, heater, air conditioner, audio, phone and voice recognition systems

screen is not displayed. Push the SETTING
button and select “Camera/Sonar” key,
and then select “Display” key.

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the
vehicle is moving. Make sure the park-
ing brake is firmly applied.

PREDICTIVE COURSE LINE SET-
TINGS

To toggle on and off the predictive course
lines:

Push the SETTING button while the
RearView Monitor screen is not dis-
played.

Select “Camera/Sonar” key.

3. Select “Camera” key.

4. Select “Predictive Course Lines” key to

turn the feature on or off. When this
item is turned on, the predictive
course lines will be displayed on the
monitor.

REARVIEW MONITOR SYSTEM LIM-
ITATIONS

WARNING

Listed below are the system limita-
tions for RearView Monitor. Failure to
operate the vehicle in accordance
with these system limitations could
result in serious injury or death.
. The system cannot completely

eliminate blind spots and may
not show every object.

. Underneath the bumper and the

corner areas of the bumper can-
not be viewed on the RearView
Monitor because of its monitoring
range limitation. The system will
not show small objects below the
bumper, and may not show ob-
jects close to the bumper or on
the ground.

. Objects viewed in the RearView

Monitor differ from actual dis-
tance because a wide-angle lens
is used.

. Objects in the RearView Monitor

will appear visually opposite
compared to when viewed in the
rearview and outside mirrors.

. Use the displayed lines as a re-

ference. The lines are highly af-
f e c t e d

b y

t h e

n u m b e r

o f

occupants, fuel level, vehicle po-
sition, road conditions and road
grade.

. Make sure that the liftgate is

securely closed when backing up.

. Do not put anything on the rear-

view camera. The rearview cam-
era is installed above the license
plate.

. When washing the vehicle with

high-pressure water, be sure not
to spray it around the camera.
Otherwise, water may enter the
camera unit causing water con-
densation on the lens, a malfunc-
tion, fire or an electric shock.

. Do not strike the camera. It is a

precision instrument. Otherwise,
it may malfunction or cause da-
mage resulting in a fire or an
electric shock.

The following are operating limitations
and do not represent a system malfunc-
tion:
. When the temperature is extremely

high or low, the screen may not clearly
display objects.

. When strong light is directly coming

on the camera, objects may not be
displayed clearly.

. Vertical lines may be seen in objects

on the screen. This is due to strong
reflected light from the bumper.

. The screen may flicker under fluores-

cent light.

. The colors of objects on the RearView

Monitor may differ somewhat from
the actual color of objects.

. Objects on the monitor may not be

clear in a dark environment.

. There may be a delay when switching

to the RearView Monitor.

. When activating the RearView Moni-

tor, the guide lines, the icons and the
messages may not be displayed for a
while.

. If dirt, rain or snow accumulates on

the camera, the RearView Monitor
may not display object clearly. Clean
the camera.

. Do not use wax on the camera win-

dow. Wipe off any wax with a clean
cloth dampened with mild detergent
diluted with water.

JVH1395X

SYSTEM MAINTENANCE

CAUTION

. Do not use alcohol, benzine or

thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth
dampened with diluted mild
cleaning agent and then wipe
with a dry cloth.

. Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the
camera

, RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then
wiping it with a dry cloth.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-9

4-10

Monitor, heater, air conditioner, audio, phone and voice recognition systems

JVH1689X

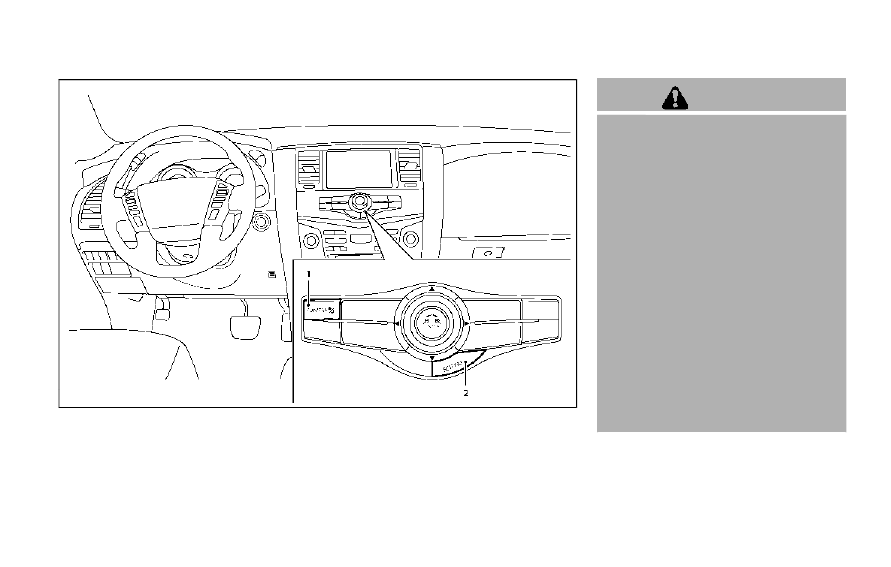

1. CAMERA button

2. SETTING button

WARNING

Failure to follow the warnings and
instructions for the proper use of the
Intelligent Around View Monitor sys-
tem could result in serious injury or
death.

. The Intelligent Around View Moni-

tor is a convenience feature and
is not a substitute for proper
vehicle operation because it has
areas where objects cannot be
viewed. The four corners of the
vehicle in particular, are areas
where objects do not always ap-
pear in the bird’s-eye, front, or
rear views. Always check your
surroundings to be sure that it is
safe to move before operating
the vehicle. Always operate the
vehicle slowly.

. The driver is always responsible

for safety during parking and
other maneuvers.

INTELLIGENT AROUND VIEW
MONITOR (if so equipped)

CAUTION

Do not scratch the lens when clean-
ing dirt or snow from the front of the
camera.

The Intelligent Around View Monitor sys-
tem is designed as an aid to the driver in
situations such as slot parking or parallel
parking.

The monitor displays various views of the
position of the vehicle in a split screen
format. All views are not available at all
times.

Available views:
. Front view

An approximately 150-degree view of
the front of the vehicle.

. Rear view

An approximately 150-degree view of
the rear of the vehicle.

. Bird’s-eye view

The surrounding view of the vehicle
from above.

. Front-side view

The view around and ahead of the
front passenger’s side wheel.

. Front-wide view

An approximately 180-degree view of

the front of the vehicle.

. Rear-wide view

An approximately 180-degree view of
the rear of the vehicle.

JVH1397X

To display the multiple views, the Intelli-
gent Around View Monitor system uses
cameras

located in the front grill, on the

vehicle’s outside mirrors and one just
above the vehicle’s license plate.

INTELLIGENT AROUND VIEW MONI-
TOR SYSTEM OPERATION

With the ignition switch in the ON posi-
tion, move the shift lever to the R
(Reverse) position or press the CAMERA
button to operate the Intelligent Around
View Monitor.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-11

4-12

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Available views

WARNING

. The distance guide lines and the

vehicle width lines should be
used as a reference only when
the vehicle is on a paved, level
surface. The apparent distance
viewed on the monitor may be
different than the actual distance
between the vehicle and dis-
played objects.

. Use the displayed lines and the

bird’s-eye view as a reference.
The lines and the bird’s-eye view
are greatly affected by the num-
ber of occupants, fuel level, vehi-
cle position, road condition and
road grade.

. If the tires are replaced with

different sized tires, the predic-
tive course lines and the bird’s-
eye view may be displayed incor-
rectly.

. When driving the vehicle up a hill,

objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear.

. Objects in the monitor will appear

visually opposite compared to
when viewed in the rearview and
outside mirrors.

. Use the mirrors or actually look to

properly judge distances to other
objects.

. The distance between objects

viewed in the rear view differs
from actual distance because a
wide-angle lens is used.

. On a snow-covered or slippery

road, there may be a difference
between the predictive course
line and the actual course line.

. The vehicle width and predictive

course lines are wider than the
actual width and course.

. The displayed lines on the rear

view will appear slightly off to the
right because the rearview cam-
era is not installed in the rear
center of the vehicle.

SAA1840

Front view

SAA1896

Rear view

Front and rear view:

Guiding lines that indicate the approx-
imate vehicle width and distances to
objects with reference to the vehicle body
line

are displayed on the monitor.

Distance guide lines

Indicate distances from the vehicle body.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line

(if so equipped): approx.

10 ft (3 m)

Vehicle width guide lines

Indicate the approximate vehicle width.

Predictive course lines

Indicate the predictive course when op-
erating the vehicle. The predictive course
lines will be displayed on the monitor
when the steering wheel is turned. The
predictive course lines will move depend-
ing on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the straight-ahead
position.

The front view will not be displayed when
the vehicle speed is above 6 MPH (10
km/h).

NOTE:

When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
straight ahead position, both the right
and left predictive course lines

are

displayed. When the steering wheel
turns about 90 degrees or more, a line
is displayed only on the opposite side of
the turn.

JVH1140X

Bird’s-eye view:

The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm
the vehicle position and the predictive
course to a parking space.

The vehicle icon

shows the position of

the vehicle. Note that the size of the
vehicle icon on the bird’s-eye view may
differ somewhat from the actual distance
to the vehicle.

The areas that the cameras cannot cover

are indicated in black.

The non-viewable area

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only
the first time after the ignition switch is

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-13

4-14

Monitor, heater, air conditioner, audio, phone and voice recognition systems

placed in the ON position.

The driver can check the approximate
direction and angle of the tire on the
display by tire icon

when driving the

vehicle forward or backward.

Predictive course lines (

and

) indicate

the predictive course when operating the
vehicle. The predictive course lines will be
displayed on the monitor when the steer-
ing wheel is turned. The predictive course
lines will move depending on how much
the steering wheel is turned and will not
be displayed while the steering wheel is in
the straight-ahead position.

When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight-ahead
position, the two green predictive course
lines

are shown in front of the vehicle.

When the steering wheel turns about 90
degrees or more, one green predictive
course line

is shown in front of the

vehicle and the other green predictive
course line

is shown at side of the

vehicle.

When the monitor displays the rear view,
the predictive course lines are shown at
back of the vehicle.

WARNING

. Objects in the bird’s-eye view will

appear further than the actual
distance.

. Tall objects, such as a curb or

vehicle, may be misaligned or not
displayed at the seam of the
views.

. Objects that are above the cam-

era cannot be displayed.

. The view for the bird’s-eye view

may be misaligned when the
camera position alters.

. A line on the ground may be

misaligned and is not seen as
being straight at the seam of the
views. The misalignment will in-
crease as the line proceeds away
from the vehicle.

. Tire angle display does not indi-

cate the actual tire angle.

JVH1141X

Front-side view:

Guiding lines:

Guiding lines that indicate the width and
the front end of the vehicle are displayed
on the monitor.

The front-of-vehicle line

shows the

front part of the vehicle.

The side-of-vehicle line

shows the

vehicle width including the outside mir-
rors.

The extensions

of both the front

and

side

lines are shown with a green

dotted line.

CAUTION

The turn signal light may look like
the side of- vehicle line. This is not a
malfunction.

JVH1142X

Front-wide view

JVH1143X

Rear-wide view

Front-wide/rear-wide view:

The front-wide/rear-wide view shows a
wider area on the entire screen and
allows the checking of the blind corners
on the right and left sides. The front-
wide/rear-wide view displays an approxi-
mately 180-degree area while the front
view and the rear view display an ap-
proximately 150-degree area. The predic-
tive course lines are not displayed when
using the front-wide/rear-wide view.

Distance guide lines

Indicates distances from the vehicle body.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line

(if so equipped): approx.

10 ft (3 m)

Vehicle width guide lines

Indicates the approximate vehicle width.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-15

4-16

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Difference between predicted and
actual distances

JVH1214X

Backing up on a steep uphill:

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the
actual distance. Note that any object on
the hill is further than it appears on the
monitor.

JVH1215X

Backing up on a steep downhill:

When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown further than
the actual distance. Note that any object
on the hill is closer than it appears on the
monitor.

SAA1923

Backing up near a projecting object:

The predictive course lines

do not

touch the object in the display. However,
the vehicle may hit the object if it projects
over the actual backing up course.

JVH1216X

Backing up behind a projecting object:

The position

is shown further than the

position

in the display. However, the

position

is actually at the same dis-

tance as the position

. The vehicle may

hit the object when backing up to the
position

if the object projects over the

actual backing up course.

How to park with predictive course
lines

WARNING

. If the tires are replaced with

different sized tires, the predic-
tive course lines may be dis-
played incorrectly.

. On a snow-covered or slippery

road, there may be a difference
between the predictive course
line and the actual course line.

. If the battery is disconnected or

becomes discharged, the predic-
tive course lines may be dis-
played incorrectly. If this occurs,
drive the vehicle on a straight
road for more than 5 minutes.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-17

4-18

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA1897

Visually check that the parking space
is safe before parking your vehicle.

The rear view of the vehicle is dis-
played on the screen

when the shift

lever is moved to the R (Reverse)
position.

SAA1898

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dictive course lines

enter the park-

ing space

4. Maneuver the steering wheel to make

the vehicle width guide lines

parallel

to the parking space

while referring

to the predictive course lines.

5. When the vehicle is parked in the

space completely, move the shift lever
to the P (Park) position and apply the
parking brake.

Content .. 12 13 14 15 ..
