Nissan Altima Hybrid (2010 year). Manual

Power meter

Speedometer

Fuel gauge

High voltage battery status meter

Odometer/twin trip odometer/trip com-
puter

Vehicle Information Display

Speedometer

Odometer

Change button

WIC1602

WIC1260

METERS AND GAUGES

Instruments and controls

2-3

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.

The odometer records the total distance the ve-
hicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the change button changes the display
as follows:

Trip

→ Trip

Resetting the trip odometer:

Pushing the change button for more than 1 sec-
ond resets the currently displayed trip odometer
to zero.

POWER METER

The power meter indicates the total amount of
power in the Hybrid System. In the start position,

䊊

, the READY light illuminates and the vehicle

can be started and driven.

When the power meter is in the

䊊

range, the

Hybrid System is being charged.

WIC1261

LIC1107

2-4

Instruments and controls

HIGH VOLTAGE BATTERY STATUS
METER

The gauge indicates the amount of power that is
left in the high voltage battery. The ideal battery
charge is within the normal range

䊊

when the

gauge needle points within the zone shown in the
illustration.

FUEL GAUGE

The gauge indicates the approximate fuel level
in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the
ignition switch is placed in the OFF position.

The low fuel warning light comes on when the
amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge regis-
ters E (Empty).

The

indicates that the fuel-filler door is

located on the driver’s side of the vehicle.

CAUTION

● If the low fuel warning appears on the

vehicle information display indicator
while driving with the low fuel level,
refill the fuel tank immediately and start
the hybrid system. Do not attempt to
start (READY mode) and/or drive the
vehicle if the fuel tank is empty. The
engine will not be able to start to re-
charge the high voltage battery and the
high voltage battery will become dis-
charged and may become damaged or
rendered inoperable.

● If the vehicle runs out of fuel,

the

Malfunction Indicator Light

(MIL) may come on. Refuel immediately.

After a few driving trips, the

light should turn off. If the light remains
on after a few driving trips, have the
vehicle inspected by a NISSAN dealer.

● For additional information, see “Mal-

function Indicator Light (MIL)” later in
this section.

WIC1603

LIC1060

Instruments and controls

2-5

This unit measures terrestrial magnetism and in-
dicates the direction of the vehicle’s heading.

With the ignition switch placed in the ON posi-
tion, press the

button as described in the

chart below to activate various features of the
automatic anti-glare rearview mirror.

Push and hold

the
button for about:

Feature:
(Push button again for about 1 sec-
ond to change settings)

1 second

Compass display toggles on/off

5 seconds

Compass zone can be changed to
correct false compass readings

9 seconds

Compass enters calibration mode

For information about the automatic anti-glare
feature, refer to “Automatic anti-glare rearview
mirror” in the “Pre-driving checks and adjust-
ments” section.

Push the

button for about 1 second when

the ignition switch is placed in the ON position to
toggle the compass display

䊊

on or off. The

display will indicate the direction of the vehicle’s
heading.

N: North
E: East
S: South
W: West

If the display reads “C”, calibrate the compass by
driving the vehicle in three complete circles at
less than 5 MPH (8 km/h).

You can also calibrate the compass by driving
your vehicle on your everyday route. The com-
pass will be calibrated once it has tracked three
complete circles.

COMPASS DISPLAY

Push the

button when the ignition switch is

placed in the ON position. The direction will be
displayed.

LIC1487

COMPASS DISPLAY (if so equipped)

2-6

Instruments and controls

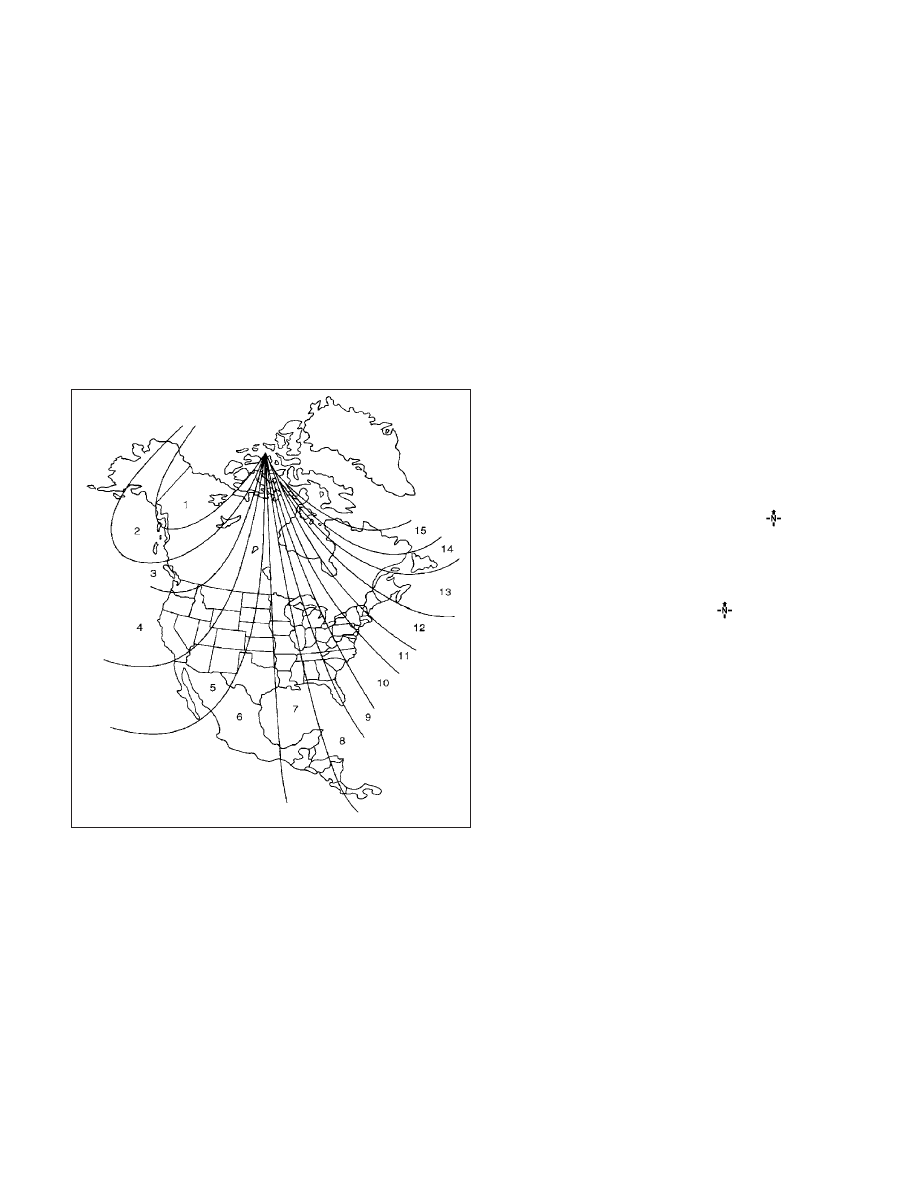

Zone variation change procedure

The difference between magnetic north and geo-
graphical north is known as variance. In some
areas, this difference can sometimes be great
enough to cause false compass readings. Follow
these instructions to set the variance for your
particular location if this happens:

1. Press and hold the

button for about 5

seconds. The current zone number will ap-
pear in the display. Release the button.

2. Find your current location on the zone map.

Refer to the illustration.

3. Press the

button repeatedly to toggle

through the zone numbers until the desired
number appears in the display. Once you
have selected a zone number, the display
will show a compass direction within a few
seconds.

NOTE:

Use zone number 5 for Hawaii.

Inaccurate compass direction:

The compass display is equipped with automatic
correction function. If the correct direction is not
shown, follow this procedure.

WIC0355

Instruments and controls

2-7

1. With the display turned on, press and hold

the

switch for about 9 seconds. The

display will read “C.”

2. Calibrate the compass by driving the vehicle

in three complete circles at a maximum
speed of 5 MPH (8 km/h).

3. After completing the circles the display

should return to normal.

● If the compass deviates from the correct

indication soon after repeated adjustment,
have the compass checked at an authorized
NISSAN dealer.

● The compass may not indicate the correct

compass point in tunnels or while driving up
or down a steep hill. (The compass returns
to the correct compass point when the ve-
hicle moves to an area where the geomag-
netism is stabilized.)

CAUTION

● Do not install a ski rack, antenna, etc.,

which are attached to the vehicle by
means of a magnet. They affect the op-
eration of the compass.

● When cleaning the mirror, use a paper

towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it may
cause the liquid cleaner to enter the
mirror housing.

2-8

Instruments and controls

Anti-lock Braking System (ABS)
warning light

Hybrid System warning light

High beam indicator light (blue)

Brake warning light (red)

Low tire pressure warning light

Low temperature indicator light (blue)

12–volt battery charge warning light

Master warning light

Malfunction Indicator Light (MIL)

Electric power steering warning light

Seat belt warning light and chime

Ready operation indicator light (green)

Electronically controlled brake warning light
(yellow)

Supplemental air bag warning light

Security indicator light

Engine oil pressure warning light

Vehicle Dynamic Control warning light

Slip indicator light

High temperature warning light (red)

Electronically controlled Continuously Variable
Transmission (eCVT) position indicator light

Turn signal/hazard indicator lights

High voltage battery warning light

Front passenger air bag status light

CHECKING BULBS

With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the Hybrid System. The following
lights will come on:

The following lights come on when the ignition
switch is placed in the ON position before the
READY light comes on indicating the Hybrid Sys-
tem is activated:

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

Instruments and controls

2-9

The following light comes on briefly and then
goes off:

If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.

WARNING LIGHTS

For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates. After the Hybrid System
is in the READY mode, the ABS warning light
turns off.

If the ABS warning light illuminates while the
Hybrid System is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates

normally, but without anti-lock assistance. See
⬙Brake system⬙ in the ⬙Starting and driving⬙ sec-
tion.

Brake warning light

(red)

This light preforms the following functions for the
parking brake and brake systems.

● Parking brake indicator
● Low brake fluid warning light
● Hydraulic brake system warning light

Parking brake indicator

When the ignition switch is placed in the ON
position and the Hybrid System is in the READY
mode, the light comes on when the parking brake
is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position and the Hybrid System is in the READY
mode, the light warns of a low brake fluid level.
Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “Maintenance
and do-it-yourself” section of this manual. If the
brake fluid level is correct, see “Hydraulic brake
system warning light” in this section.

Hydraulic brake system warning light

When the ignition switch is placed in the ON
position and the Hybrid System is in the READY
mode, the light warns that the hydraulic brake
system is not functioning properly. If the brake
warning light comes on with the parking brake not
applied when the Hybrid System is in READY
position, perform the following:

1. Check the brake fluid level. Add brake fluid

as necessary. See “Brake fluid” in the “Main-
tenance and do-it-yourself” section of this
manual.

2. If the brake fluid level is correct, have the

warning system checked by a NISSAN
dealer.

If the hydraulic brake warning light comes on
when the parking brake is not applied and the
electronically controlled brake system warning
light also comes on, stop the vehicle immedi-
ately and call a NISSAN dealer.

2-10

Instruments and controls

WARNING

● Your brake system may not be working

properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.

● Pressing the brake pedal with the igni-

tion switch placed in the OFF position
and/or a low brake fluid level may in-
crease your stopping distance and
braking will require greater pedal effort
as well as pedal travel.

● If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.

● Your brake system may not be working

properly if both the brake warning light
and electronically controlled brake sys-
tem warning light come on when the
Hybrid System is in READY mode and
the parking brake is not applied. Driving
could be dangerous. If you judge it to be
safe, drive carefully to the nearest ser-
vice station for repairs. Otherwise, have
your vehicle towed because driving
could be dangerous.

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) waning light illuminate, it may indicate the
ABS is not functioning properly. Have the brake
system checked, and if necessary, repaired by a
NISSAN dealer promptly. Avoid high-speed driv-
ing and abrupt braking. (See “Anti-lock Braking
System (ABS) warning light” in this section.)

12–volt battery charge warning
light

If this light comes on while the Hybrid System is
running, it may indicate the 12-volt battery charg-
ing system is not functioning properly. See a
NISSAN dealer immediately.

CAUTION

The charging system may not be function-
ing properly if the charge warning light
comes on while the Hybrid System is run-
ning. The Hybrid System will stop operat-
ing when the 12-volt battery becomes dis-
charged. Immediately stop the vehicle in a
safe place and contact your NISSAN
dealer.

Electric power steering
warning light

WARNING

● If the ignition switch is not placed in the

ON position and the Hybrid System is
not in the READY mode, the power as-
sist for the steering will not work. Steer-
ing will be harder to operate.

● When the power steering warning light

illuminates with the Hybrid System in
the READY mode, there will be no
power assist for the steering. You will
still have control of the vehicle but the
steering will be harder to operate. Have
the power steering system checked by a
NISSAN dealer.

Instruments and controls

2-11

When the ignition switch is placed in the ON
position, the power steering warning light illumi-
nates. After the Hybrid System is in the READY
mode, the power steering warning light turns off.
This indicates the power steering system is op-
erational.

If the power steering warning light illuminates
while the Hybrid System is in the READY mode, it
may indicate the power steering system is not
functioning properly and may need servicing.
Have the power steering system checked by a
NISSAN dealer.

When the power steering warning light illumi-
nates with the Hybrid System in the READY
mode, there will be no power assist for the steer-
ing but you will still have control of the vehicle. At
this time, greater steering effort is required to
operate the steering wheel, especially in sharp
turns and at low speeds.

See “Power steering” in the “Starting and driving”
section.

Electronically controlled brake
warning light (yellow)

This light functions for both the regenerative
brake and electronically controlled brake sys-
tems.

When the ignition switch is placed in the ON
position and the Hybrid System is in the READY
mode, the light stays on for about 2 seconds. If
the light comes on at any other time, it may
indicate the regenerative brake and/or the elec-
tronically controlled brake systems are not func-
tioning properly. Have the system checked by a
NISSAN dealer.

If the hydraulic brake warning light also comes on
with the parking brake not applied, stop the ve-
hicle immediately and call a NISSAN dealer. For
additional information, see

⬙Brake system⬙ in

⬙Starting and Driving⬙ section.

WARNING

Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem warning light come on when the Hy-
brid System is in READY mode and the
parking brake is not applied. Driving could
be dangerous. If you judge it to be safe,
drive carefully to the nearest service sta-
tion for repairs. Otherwise, have your ve-
hicle towed because driving could be
dangerous.

Engine oil pressure warning
light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. See “Engine oil” in
the “Maintenance and do-it-yourself” section of
this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.

High temperature warning light
(red)

When the ignition switch is placed in the ON
position, the high temperature warning light illu-
minates and then turns off. This indicates that the
high temperature sensor in the engine coolant
system is operational.

2-12

Instruments and controls

CAUTION

If the high temperature warning light illu-
minates while the engine is running, it
may indicate the engine temperature is
extremely high. Stop the vehicle safely as
soon as possible. If the vehicle is over-
heated, continuing vehicle operation may
seriously damage the engine. See “If your
vehicle overheats” in the “In case of emer-
gency” section.

High-voltage battery warning
light

This light may appear during the following condi-
tions:

● The high voltage battery voltage drops due

to the shift selector being left in “N”.

– The Hybrid System will work properly if

the shift selector is placed in “P” and the
light goes off.

● The high voltage battery is discharged.

– If this light comes on when the READY

light is on, stop your vehicle and contact
your NISSAN dealer

Hybrid system warning light

The hybrid system warning light comes on when:

● The amount of fuel in the tank is getting low.
● There is a problem with the traction motor or

other Hybrid System components.

If the fuel gauge indicates the fuel level is low,
refill the fuel tank immediately. See “Fuel gauge”
earlier in this section. After the fuel tank is filled,
the ignition switch is placed in the ON position,
and the Hybrid System is in the READY mode,
the hybrid system warning light should be off.

If the fuel gauge indicates a sufficient fuel level, or
if the hybrid system warning light comes on after
refilling the tank, there may be a problem with the
traction motor or other Hybrid System compo-
nents. Stop your vehicle immediately and contact
your NISSAN dealer.

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.

When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low
tire pressure warning light. Use a tire pres-
sure gauge to check the tire pressure.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and in the “In case of emergency”
section.

Instruments and controls

2-13

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked by a
NISSAN dealer.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section.

WARNING

● If the light does not illuminate with the

ignition switch placed in the ON posi-
tion, have the vehicle checked by a
NISSAN dealer as soon as possible.

● If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury. Check
the tire pressure for all four tires. Adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label located
in the driver’s door opening to turn the
low tire pressure warning light OFF. If
the light still comes on while driving
after adjusting the tire pressure, a tire
may be flat. If you have a flat tire, re-
place it with a spare tire as soon as
possible.

● When a spare tire is mounted or a wheel

is replaced the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.

● Replacing tires with those not originally

specified by NISSAN could affect the
proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

● If the vehicle is being driven at speeds

of less than 16 MPH (25 km/h), the
TPMS may not operate correctly.

● Be sure to install the specified size of

tires to the 4 wheels correctly.

Master warning light

This light comes on when various vehicle infor-
mation display warnings appear.

Seat belt warning light and
chime

The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened.

2-14

Instruments and controls

The seat belt warning light may also illuminate if
the front passenger’s seat belt is not fastened
when the front passenger’s seat is occupied. For
7 seconds after the ignition switch is placed in
the ON position, the system does not activate the
warning light for the front passenger.

Refer to “Seat belts” in the “Safety—Seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.

Supplemental air bag warning
light

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag, and preten-
sioner systems need servicing and your vehicle
must be taken to a NISSAN dealer:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the pre-
tensioners may not function properly. For addi-
tional details, see “Supplemental restraint sys-
tem” in the “Safety—Seats, seat belts and
supplemental restraint system” section of this
manual.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag systems
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury
to yourself or others, have your vehicle
checked by a NISSAN dealer as soon as
possible.

Vehicle Dynamic Control
warning light

The Vehicle Dynamic Control light also comes on
when you place the ignition switch in the ON
position and the Hybrid System is in the READY
mode. The light will turn off after about 2 seconds
if the system is operational.

The light also comes on when the power of the
12-volt battery is reduced or the battery cable is
disconnected. The light will turn off automatically
after the vehicle is driven slightly for more than 5

seconds at above 22 mph. If the light remains on,
have the vehicle checked by a NISSAN dealer.

While the Vehicle Dynamic Control system is
operating, you might feel slight vibration or hear
the system working when starting the vehicle or
accelerating, but this is normal.

INDICATOR LIGHTS

For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.

Electronically controlled
Continuously Variable
Transmission (eCVT) position
indicator light

When the ignition switch is placed in the ON
position, this indicator light shows the shift selec-
tor position. See “Driving the vehicle” in the
“Starting and driving” section of this manual.

Front passenger air bag status
light

The front passenger air bag status light (

)

will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.

Instruments and controls

2-15

For front passenger air bag status light operation,
see “Front passenger air bag and status light” in
the “Safety — Seats, seat belts and supplemental
restraint system” section of this manual.

High beam indicator light
(blue)

This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.

The high beam indicator light also comes on
when the passing signal is activated.

Low temperature indicator
light (blue)

The low temperature indicator light illuminates
when the engine coolant temperature is low.

When the ignition switch is placed in the ON
position, the low temperature indicator light illu-
minates and then turns off after the engine cool-
ant has warmed up.

If the low temperature indicator light stays illumi-
nated after the engine has sufficiently warmed
up, it may indicate the low temperature sensor in
the engine coolant system is not functioning
properly and may need servicing. Have the sys-
tem checked, and if necessary repaired, by a
NISSAN dealer promptly.

Malfunction Indicator Light
(MIL)

If this indicator light comes on steady or blinks
while the Hybrid System is in READY mode, it
may indicate a potential emission control mal-
function.

The Malfunction Indicator Light may also come
on steady if the fuel-filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 gallons
(11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light should

turn off if no other potential emission control
system malfunction exists.

If this indicator light comes on steady for 20
seconds and then blinks for 10 seconds when
the engine is not running, it indicates that the
vehicle is not ready for an emission control sys-
tem inspection/maintenance test. See “Readi-
ness for inspection/maintenance (I/M) test” in the
“Technical and consumer information” section of
this manual.

Operation

The Malfunction Indicator Light will come on in
one of two ways:

● Malfunction Indicator Light on steady — An

emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The

light should turn off after

a few driving trips. If the

light does not

turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to
the dealer.

● Malfunction Indicator Light blinking — An

engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:

– do not drive at speeds above 45 MPH

(72 km/h).

– avoid hard acceleration or deceleration.

– avoid steep uphill grades.

– if possible, reduce the amount of cargo

being hauled or towed.

2-16

Instruments and controls

The Malfunction Indicator Light may stop blinking
and come on steady. Have the vehicle inspected
by a NISSAN dealer. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.

Ready operation indicator light
(green)

The ready indicator light illuminates when the
Hybrid System is powered and the vehicle may
be driven.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF, LOCK or ACC position.

The blinking security indicator light indicates that
the security systems equipped on the vehicle are
operational.

For additional information, see “Security sys-
tems” later in this section.

Slip indicator light

This indicator light will blink when the traction
control system, Vehicle Dynamic Control System
or Anti-lock Braking System is limiting wheel
spin. Slippery road conditions may exist if the slip
indicator blinks on. If this happens, adjust your
driving accordingly.

The slip indicator light also comes on when the
ignition switch is placed in the ON position and
the Hybrid System is in the READY mode. The
light will turn off after about 2 seconds if the
system is operational. If the light does not come
on or does not go off, have the system checked
by a NISSAN dealer.

Turn signal/hazard indicator

lights

The appropriate light flashes when the turn signal
switch is activated.

Both lights flash when the hazard switch is turned
on.

AUDIBLE REMINDERS
Brake pad wear warning

The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC or
OFF position or placed in the OFF or LOCK
position with the Intelligent Key left in the Intelli-
gent Key port. Make sure the ignition switch is
placed in the LOCK position, and take the Intel-
ligent Key with you when leaving the vehicle.

Light reminder chime

With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.

Turn the headlight control switch off before leav-
ing the vehicle.

Instruments and controls

2-17

NISSAN Intelligent Key™ door buzzer

The Intelligent Key door buzzer sounds if the
Intelligent Key is left inside the vehicle when
locking the doors. When the buzzer sounds, be
sure to check both the vehicle and the Intelligent
Key. See “NISSAN Intelligent Key™” in the “Pre-
driving checks and adjustments” section.

The vehicle information display

䊊

is located on

the bottom of the speedometer. It displays such
items as:

● cruise control system information
● Intelligent Key operation information
● some indicators and warnings
● other information

For details about the Intelligent Key, see
“NISSAN Intelligent Key™” in the “Pre-driving
checks and adjustments” section.

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

Press the

button, located on the instru-

ment panel just behind the steering wheel, to
display the following modes:

MPG

→ MPG/MPH → Time/Miles → Range →

Exterior Temperature

→ Setting → Warning

WIC1102

LIC1103

VEHICLE INFORMATION DISPLAY

2-18

Instruments and controls

Nissan Altima Hybrid (2010 year). Manual - part 6
