Nissan Pathfinder (2012 year). Instruction - part 556





SRC-28

< DTC/CIRCUIT DIAGNOSIS >

B1129 – B1132 SIDE AIRBAG MODULE RH

Replace the related harness.

>>

END

August 2012

2012 Pathfinder

B1198 – B1201 SIDE CURTAIN AIR BAG MODULE LH (FRONT)

SRC-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

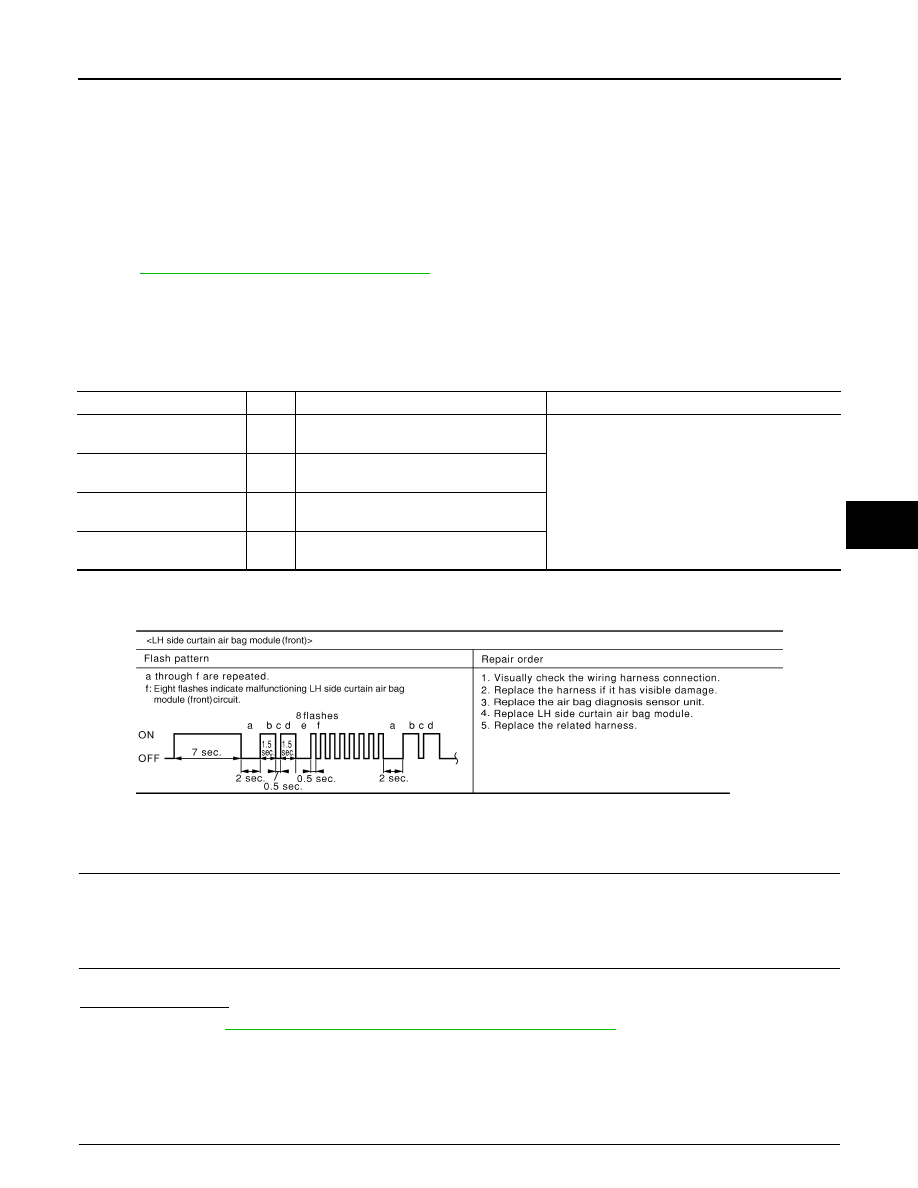

B1198 – B1201 SIDE CURTAIN AIR BAG MODULE LH (FRONT)

Description

INFOID:0000000007356519

DTC B1198 – B1201 LH SIDE CURTAIN AIR BAG MODULE (FRONT)

The LH side curtain air bag module (front) is wired to the air bag diagnosis sensor unit.  The air bag diagnosis

sensor unit will monitor for opens and shorts in detected lines to the LH side curtain air bag module (front).

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356520

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-30, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

CONSULT name

DTC

DTC detecting condition

Repair order

FR CURTN MODULE LH

[OPEN]

B1198

LH side curtain air bag module (front) cir-
cuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the LH side curtain air bag module.

5.

Replace the related harness.

FR CURTN MODULE LH

[VB-SHORT]

B1199

LH side curtain air bag module (front) cir-
cuit is shorted to a power supply circuit.

FR CURTN MODULE LH

[GND-SHORT]

B1200

LH side curtain air bag module (front) cir-
cuit is shorted to ground.

FR CURTN MODULE LH

[SHORT]

B1201

LH side curtain air bag module (front) cir-
cuits are shorted to each other.

ALHIA0201GB

August 2012

2012 Pathfinder

SRC-30

< DTC/CIRCUIT DIAGNOSIS >

B1198 – B1201 SIDE CURTAIN AIR BAG MODULE LH (FRONT)

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356521

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> GO TO 4

4.

LH SIDE CURTAIN AIR BAG MODULE

Replace the LH side curtain air bag module.  Refer to

SR-12, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

August 2012

2012 Pathfinder

B1198 – B1201 SIDE CURTAIN AIR BAG MODULE LH (FRONT)

SRC-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Replace the related harness.

>>

END

August 2012

2012 Pathfinder

SRC-32

< DTC/CIRCUIT DIAGNOSIS >

B1193 – B1196 SIDE CURTAIN AIR BAG MODULE RH (FRONT)

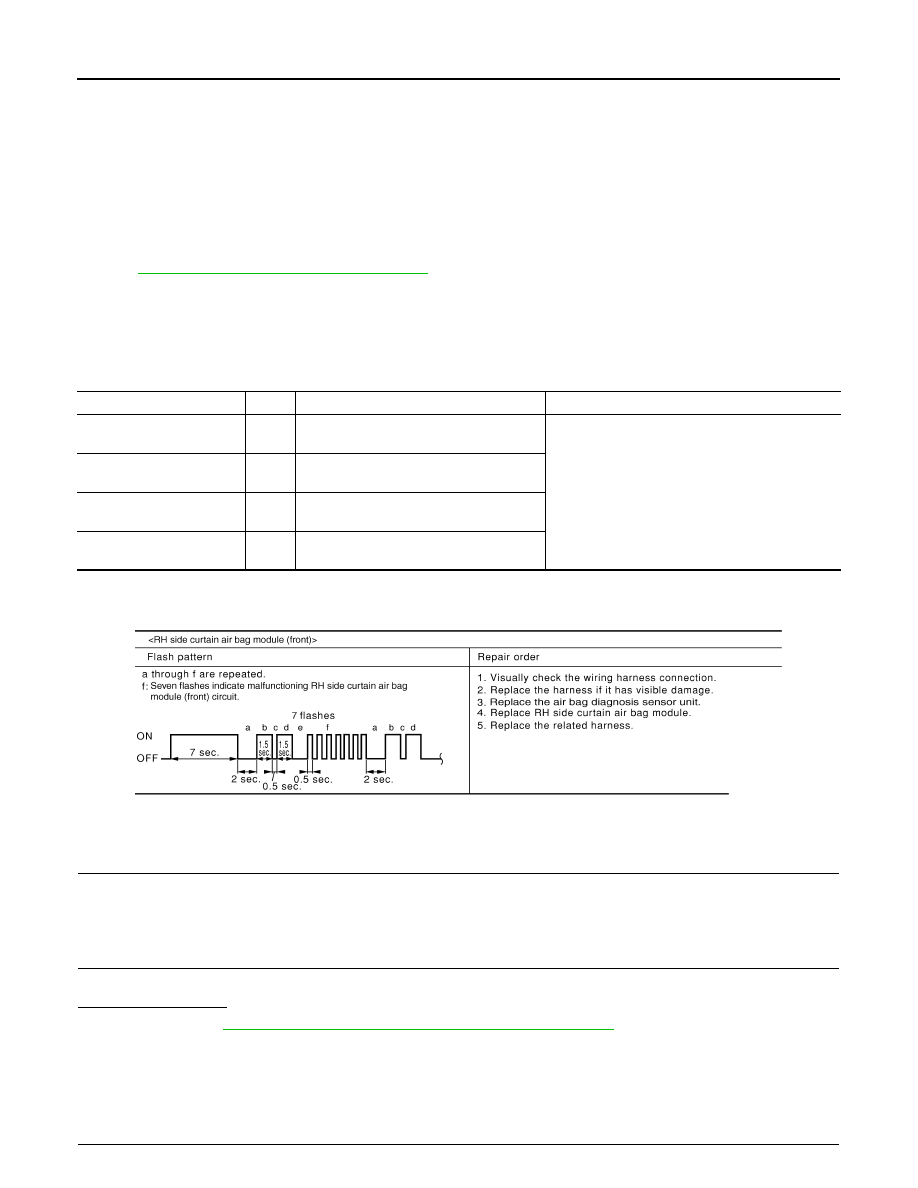

B1193 – B1196 SIDE CURTAIN AIR BAG MODULE RH (FRONT)

Description

INFOID:0000000007356522

DTC B1193 – B1196 RH SIDE CURTAIN AIR BAG MODULE (FRONT)

The RH side curtain air bag module (front) is wired to the air bag diagnosis sensor unit.  The air bag diagnosis

sensor unit will monitor for opens and shorts in detected lines to the RH side curtain air bag module (front).

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356523

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-33, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

CONSULT name

DTC

DTC detecting condition

Repair order

FR CURTN MODULE RH

[OPEN]

B1193

RH side curtain air bag module (front) cir-
cuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the RH side curtain air bag module.

5.

Replace the related harness.

FR CURTN MODULE RH

[VB-SHORT]

B1194

RH side curtain air bag module (front) cir-
cuit is shorted to a power supply circuit.

FR CURTN MODULE RH

[GND-SHORT]

B1195

RH side curtain air bag module (front) cir-
cuit is shorted to ground.

FR CURTN MODULE RH

[SHORT]

B1196

RH side curtain air bag module (front) cir-
cuits are shorted to each other.

ALHIA0202GB

August 2012

2012 Pathfinder

B1193 – B1196 SIDE CURTAIN AIR BAG MODULE RH (FRONT)

SRC-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356524

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> GO TO 4

4.

RH SIDE CURTAIN AIR BAG MODULE

Replace the RH side curtain air bag module.  Refer to

SR-12, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

August 2012

2012 Pathfinder

SRC-34

< DTC/CIRCUIT DIAGNOSIS >

B1193 – B1196 SIDE CURTAIN AIR BAG MODULE RH (FRONT)

Replace the related harness.

>>

END

August 2012

2012 Pathfinder

B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH (REAR)

SRC-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH (REAR)

Description

INFOID:0000000007356525

DTC B1150 – B1153 LH SIDE CURTAIN AIR BAG MODULE (REAR)

The LH side curtain air bag module (rear) is wired to the air bag diagnosis sensor unit.  The air bag diagnosis

sensor unit will monitor for opens and shorts in detected lines to the LH side curtain air bag module (rear).

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356526

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-36, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

CONSULT name

DTC

DTC detecting condition

Repair order

CURTAIN MODULE LH

[OPEN]

B1150

LH side curtain air bag module (rear) circuit
is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the LH side curtain air bag module.

5.

Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

B1151

LH side curtain air bag module (rear) circuit
is shorted to a power supply circuit.

CURTAIN MODULE LH

[GND-SHORT]

B1152

LH side curtain air bag module (rear) circuit
is shorted to ground.

CURTAIN MODULE LH

[SHORT]

B1153

LH side curtain air bag module (rear) cir-
cuits are shorted to each other.

ALHIA0203GB

August 2012

2012 Pathfinder
