Nissan Pathfinder (2012 year). Instruction - part 507





PWC-86

< REMOVAL AND INSTALLATION >

FRONT POWER WINDOW SWITCH

FRONT POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000007355933

REMOVAL

1. Using a suitable tool, release the metal clip and pawls, then lift

the front power window and door lock/unlock switch and finisher

upward as an assembly from the door finisher.

: Metal clip
: Pawl

CAUTION:

Wrap a cloth around suitable tool to protect components

from damage.

2. Disconnect the harness connector, then remove the assembly

from front door finisher.

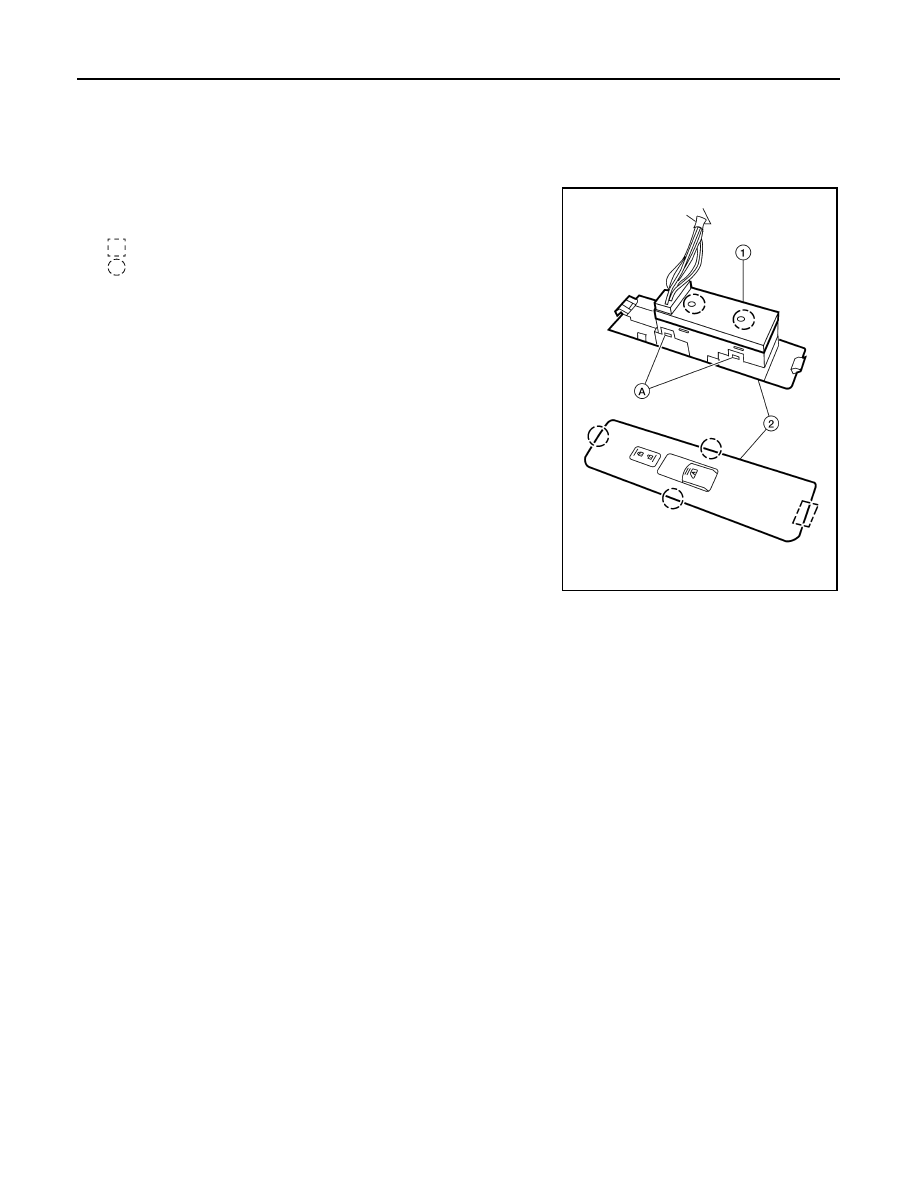

3. Release the four tabs (A), two on each side, then separate the

front power window and door lock/unlock switch (1) from the

switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1098ZZ

August 2012

2012 Pathfinder

REAR POWER WINDOW SWITCH

PWC-87

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000007355934

REMOVAL

1. Using a suitable tool, release the metal clip and pawls, then lift

the rear power window switch and finisher (2) upward as an

assembly from the rear door finisher.

: Metal clip
: Pawl

CAUTION:

Wrap a cloth around suitable tool to protect components

from damage.

2. Disconnect the harness connector, then remove the assembly

from the rear door finisher.

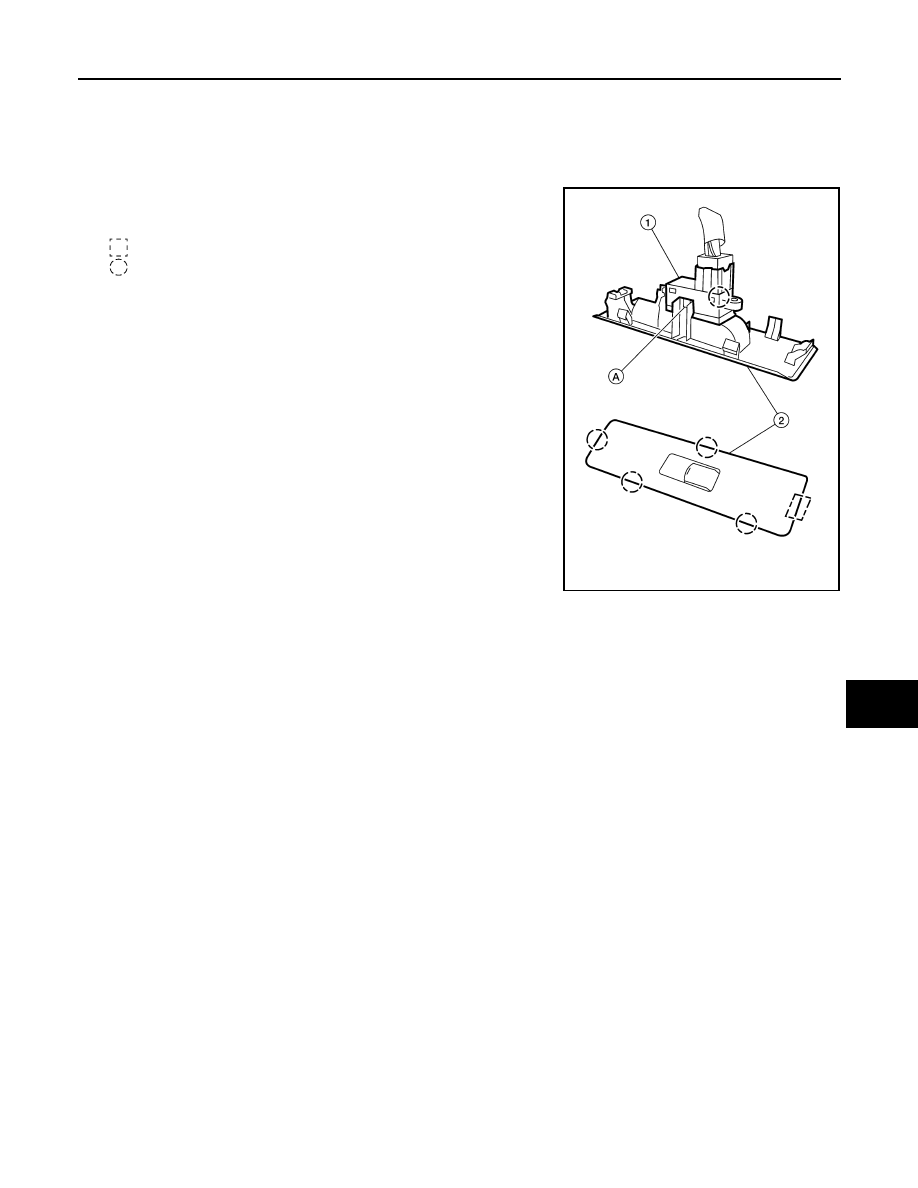

3. Release the two tabs (A), one on each side, then separate the

rear power window switch (1) from the rear power window

switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1099ZZ

August 2012

2012 Pathfinder

PWO-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007354893

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007354894

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

PWO

PRECAUTIONS

PWO-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

August 2012

2012 Pathfinder

PWO-4

< WIRING DIAGRAM >

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

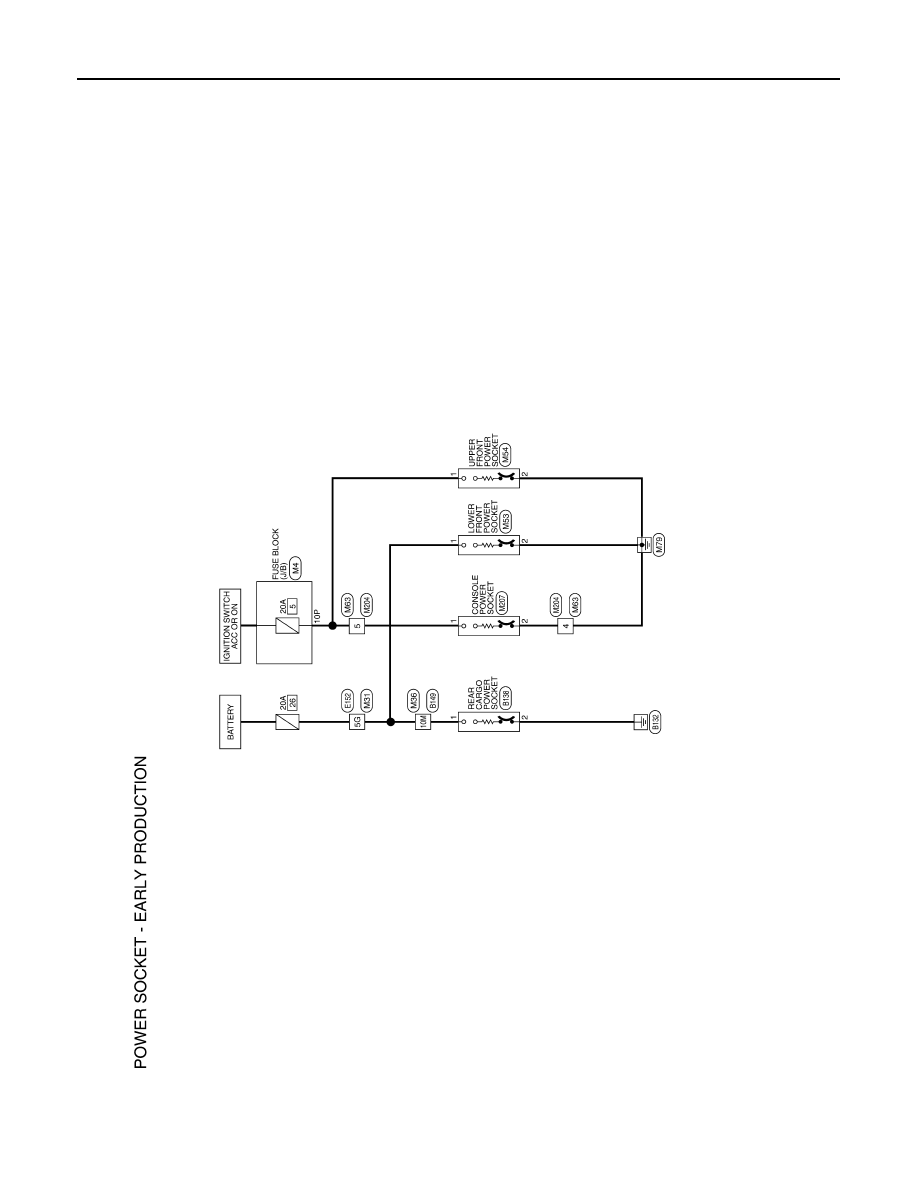

Wiring Diagram - Early Production

INFOID:0000000008166408

ABMWA1707GB

August 2012

2012 Pathfinder

PWO

POWER SOCKET

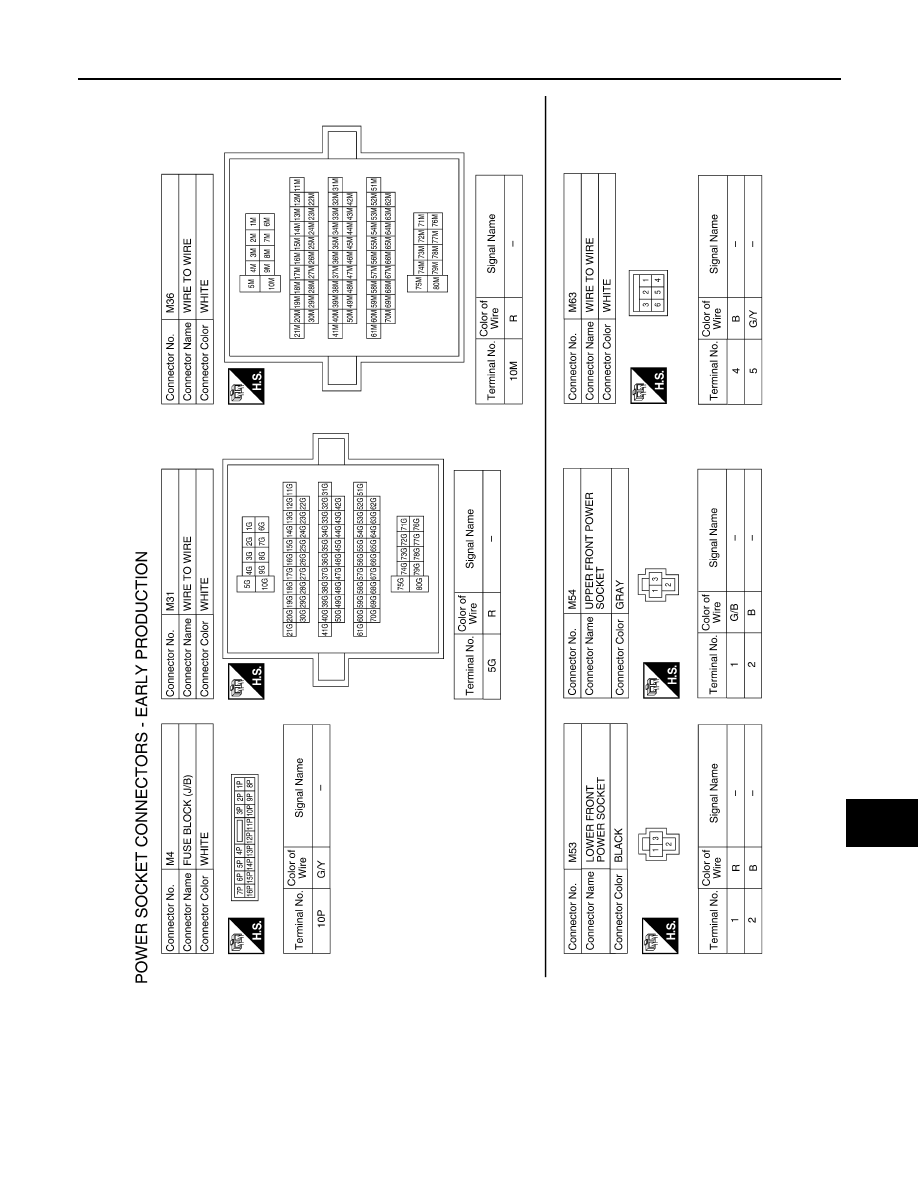

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA3955GB

August 2012

2012 Pathfinder

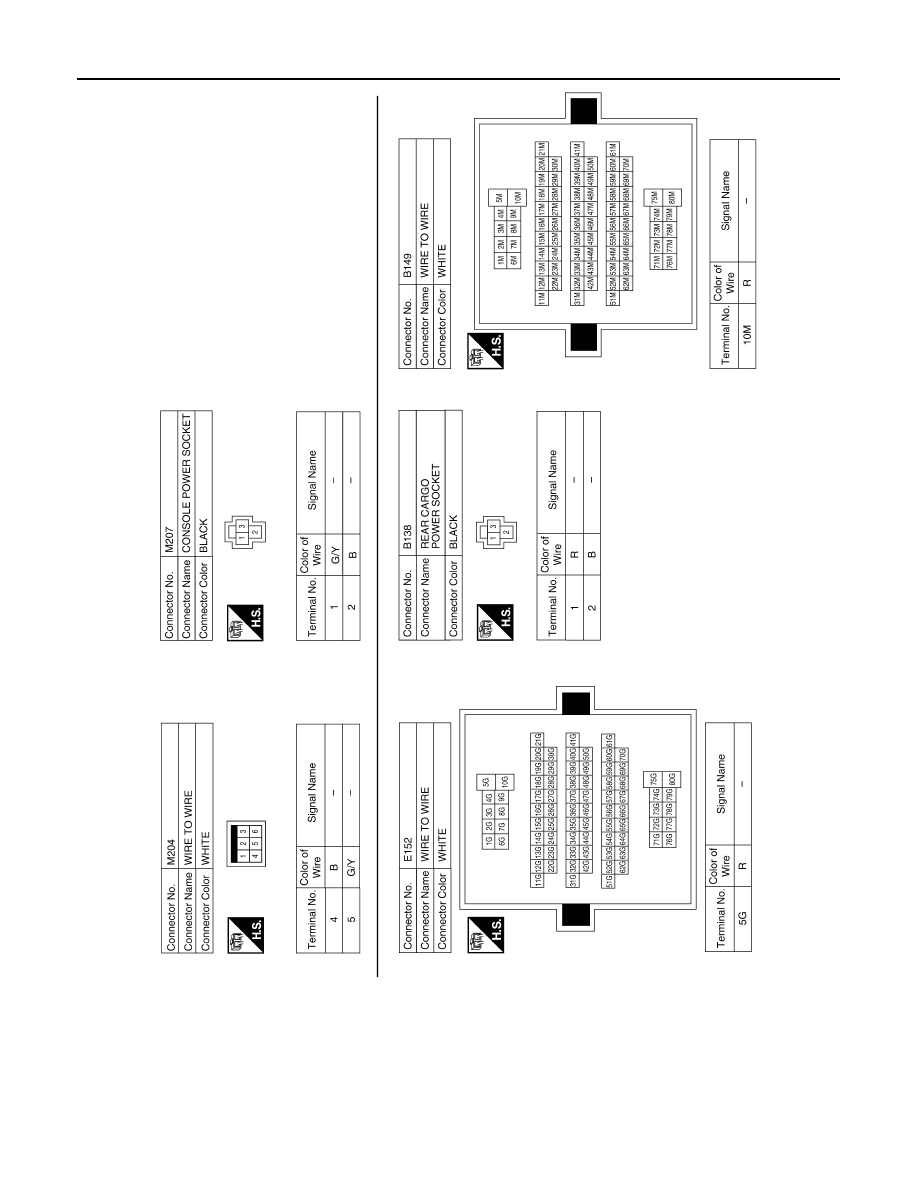

PWO-6

< WIRING DIAGRAM >

POWER SOCKET

ABMIA0059GB

August 2012

2012 Pathfinder
