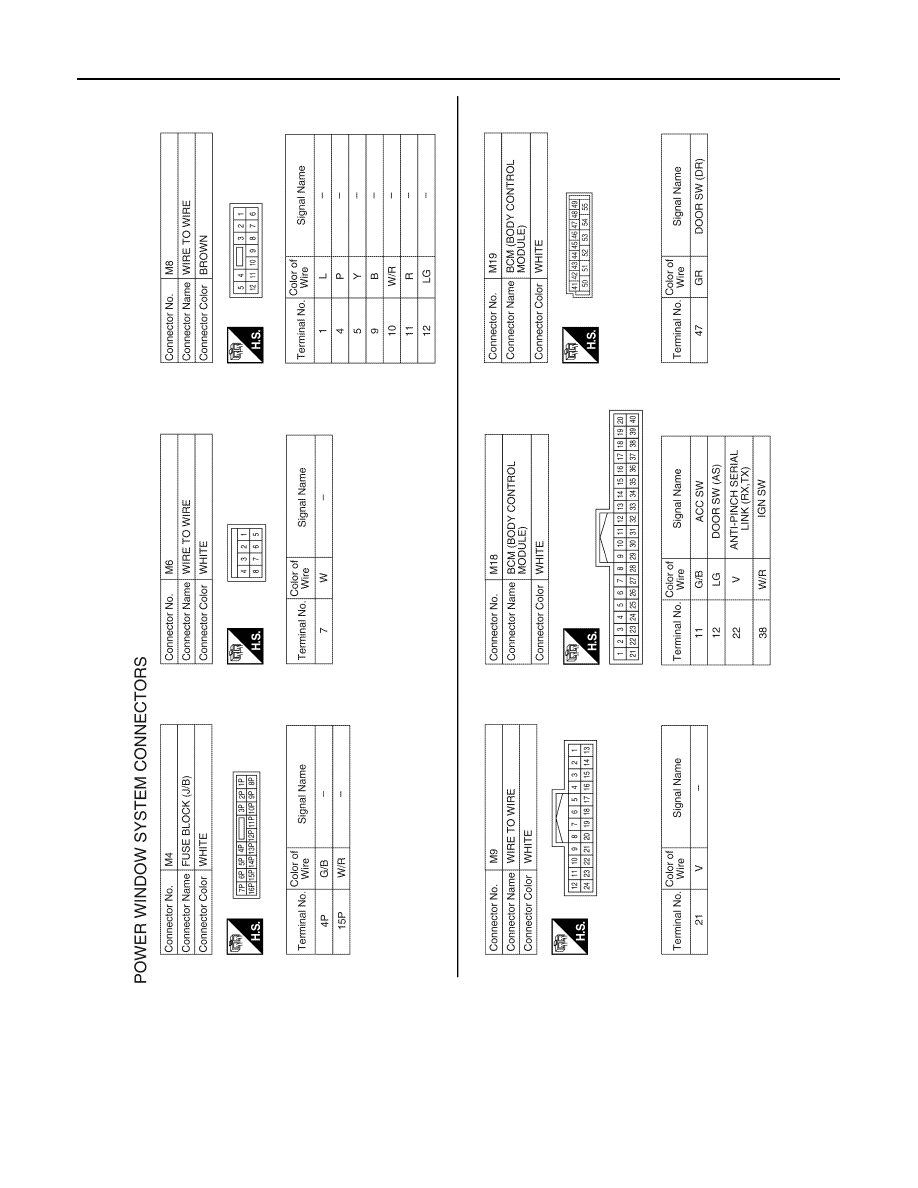

PWC-62

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA1746GB

August 2012

2012 Pathfinder

POWER WINDOW SYSTEM

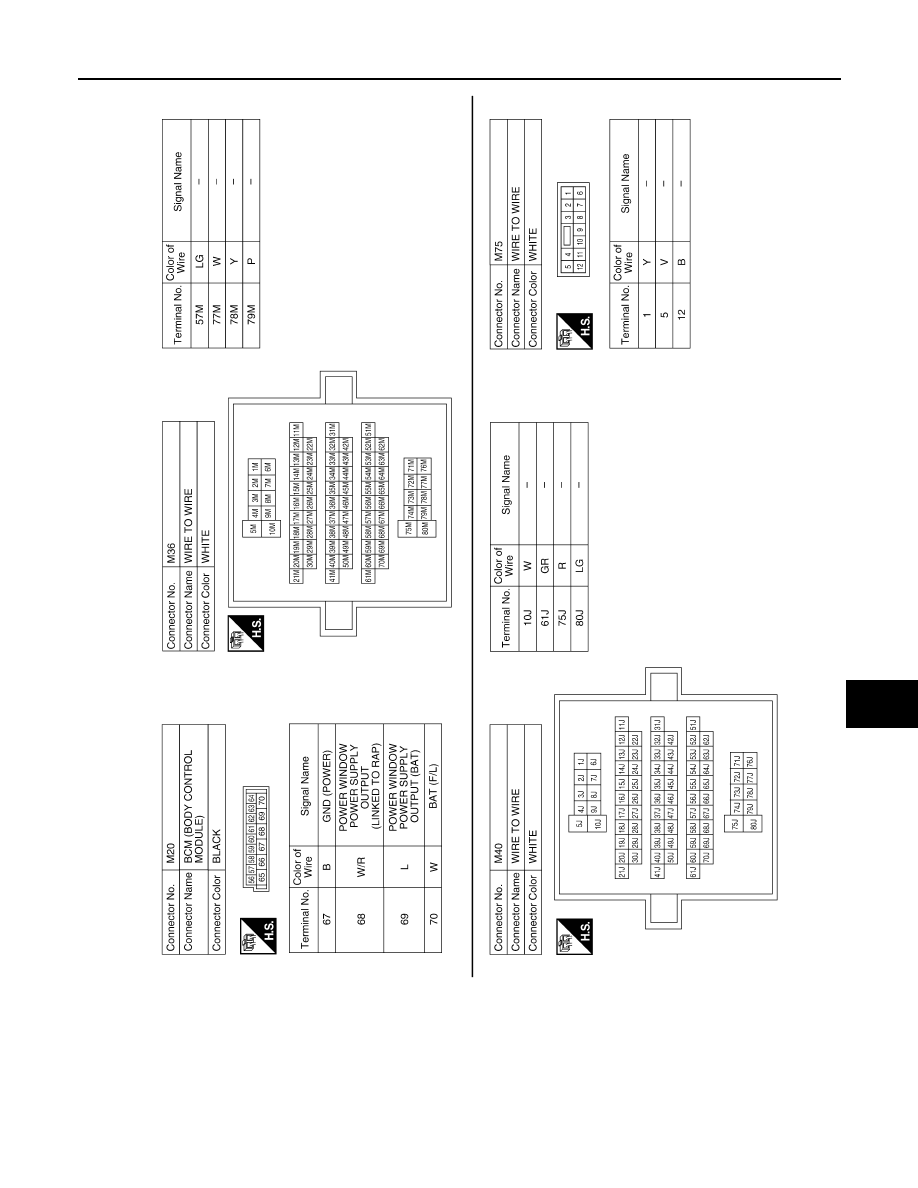

PWC-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA3398GB

August 2012

2012 Pathfinder

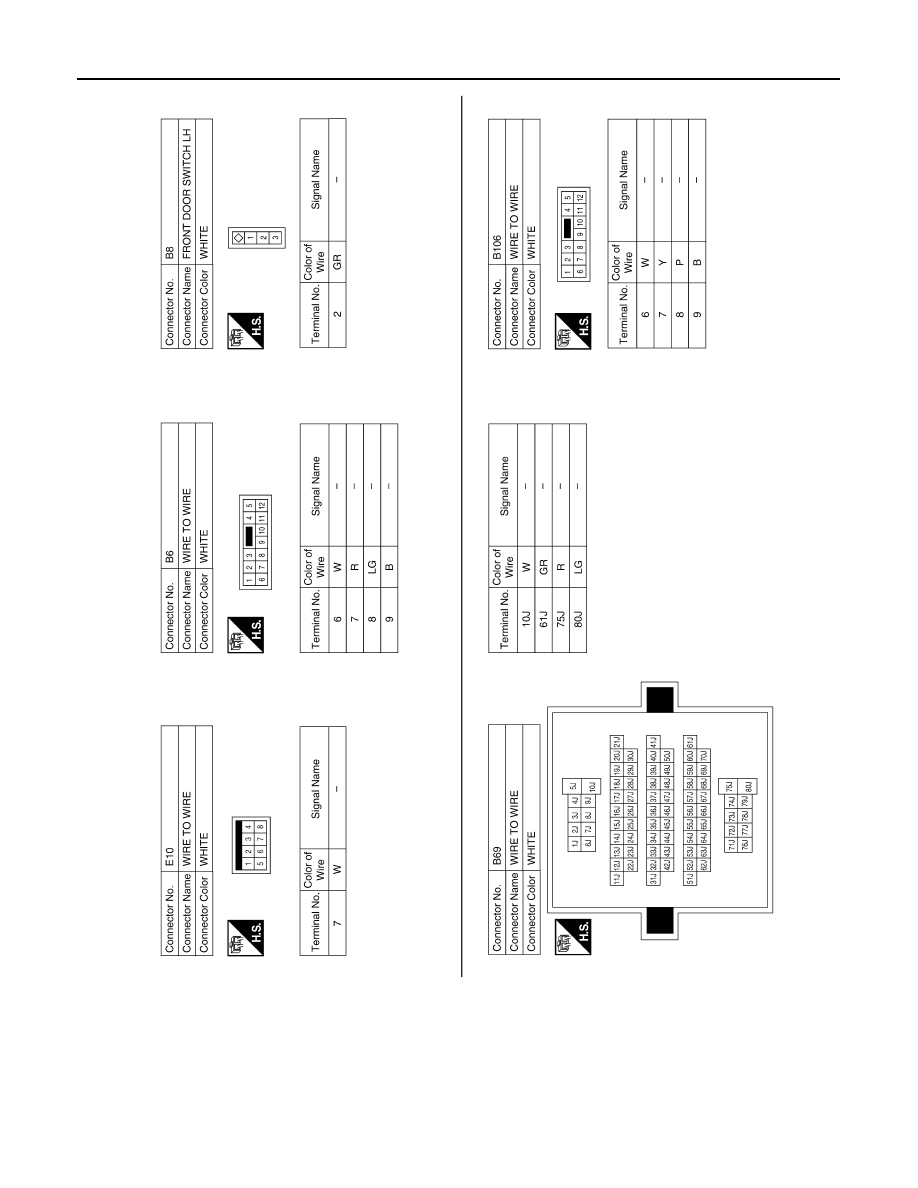

PWC-64

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA0331GB

August 2012

2012 Pathfinder

POWER WINDOW SYSTEM

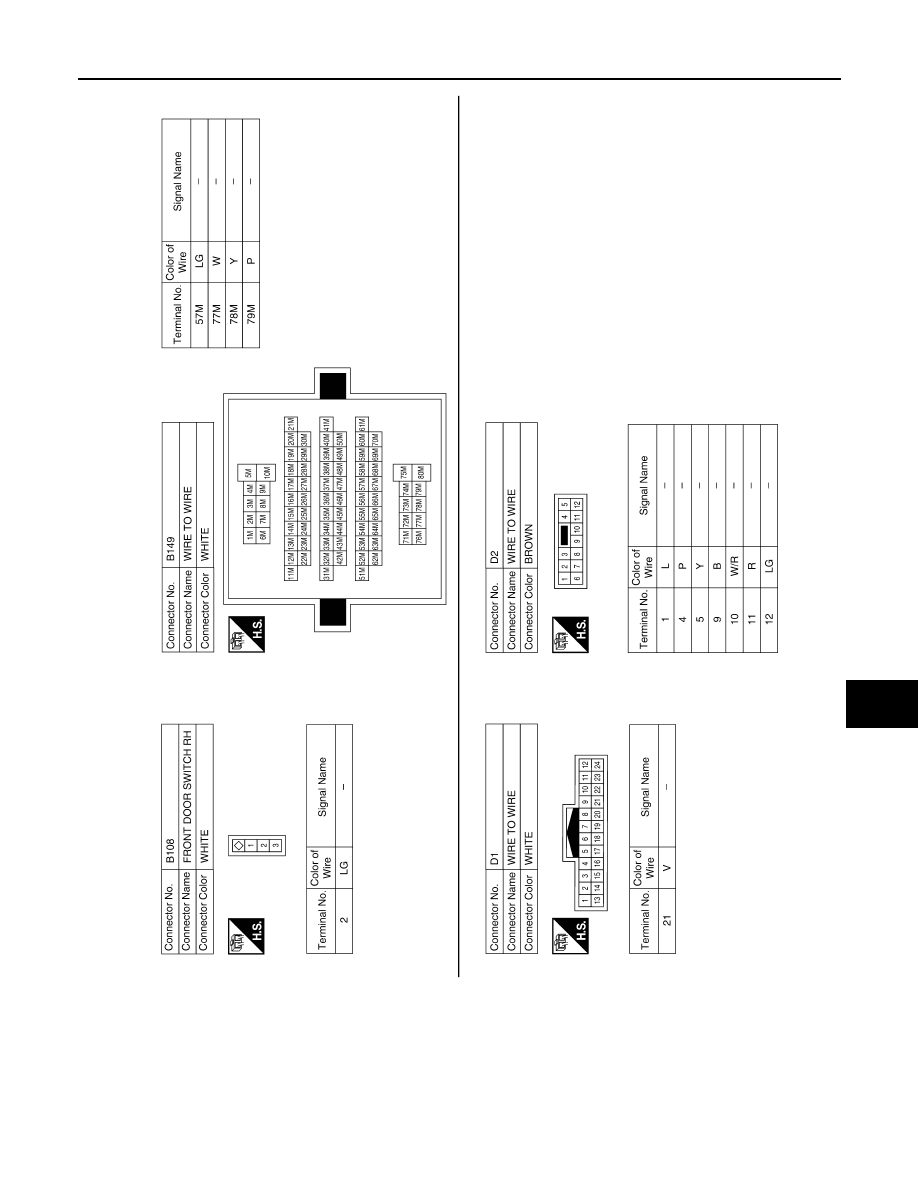

PWC-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA0332GB

August 2012

2012 Pathfinder

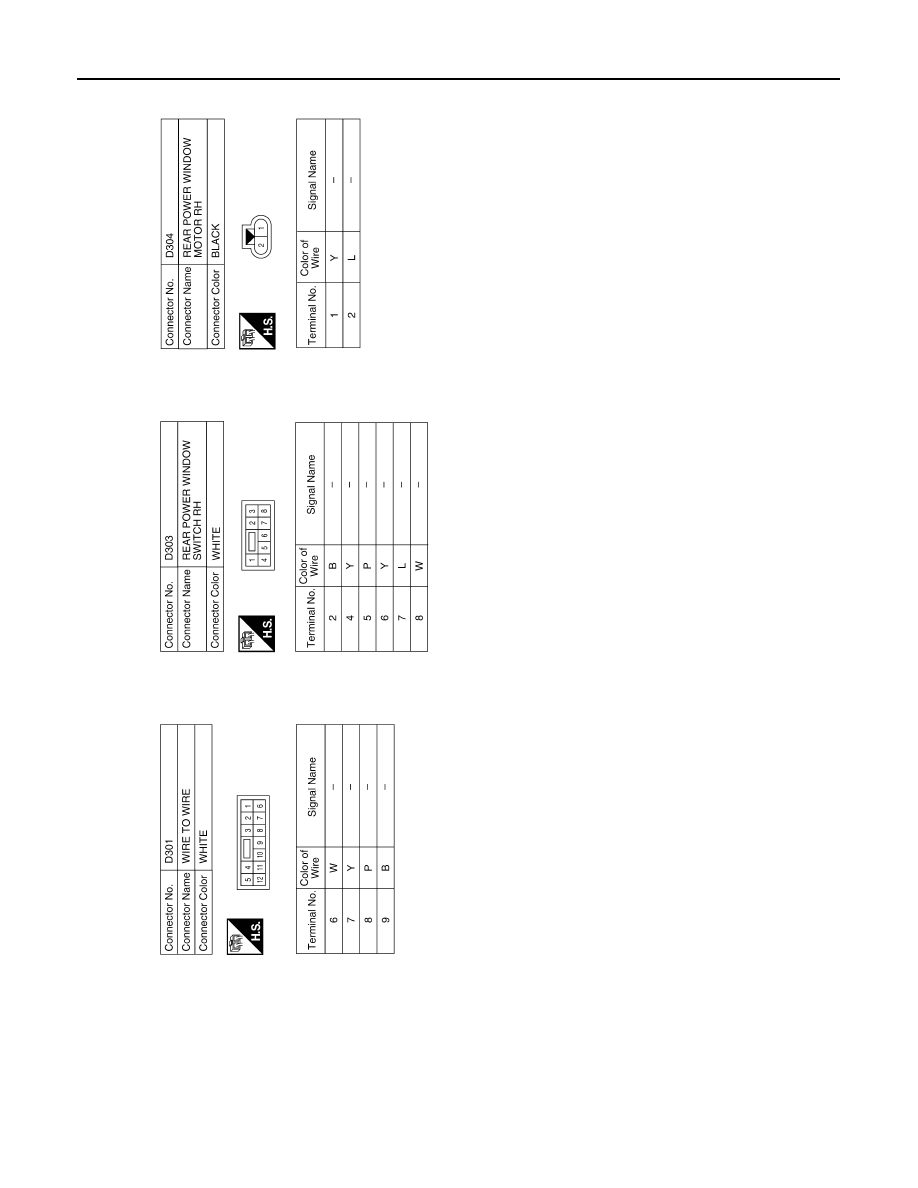

PWC-66

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA2885GB

August 2012

2012 Pathfinder

POWER WINDOW SYSTEM

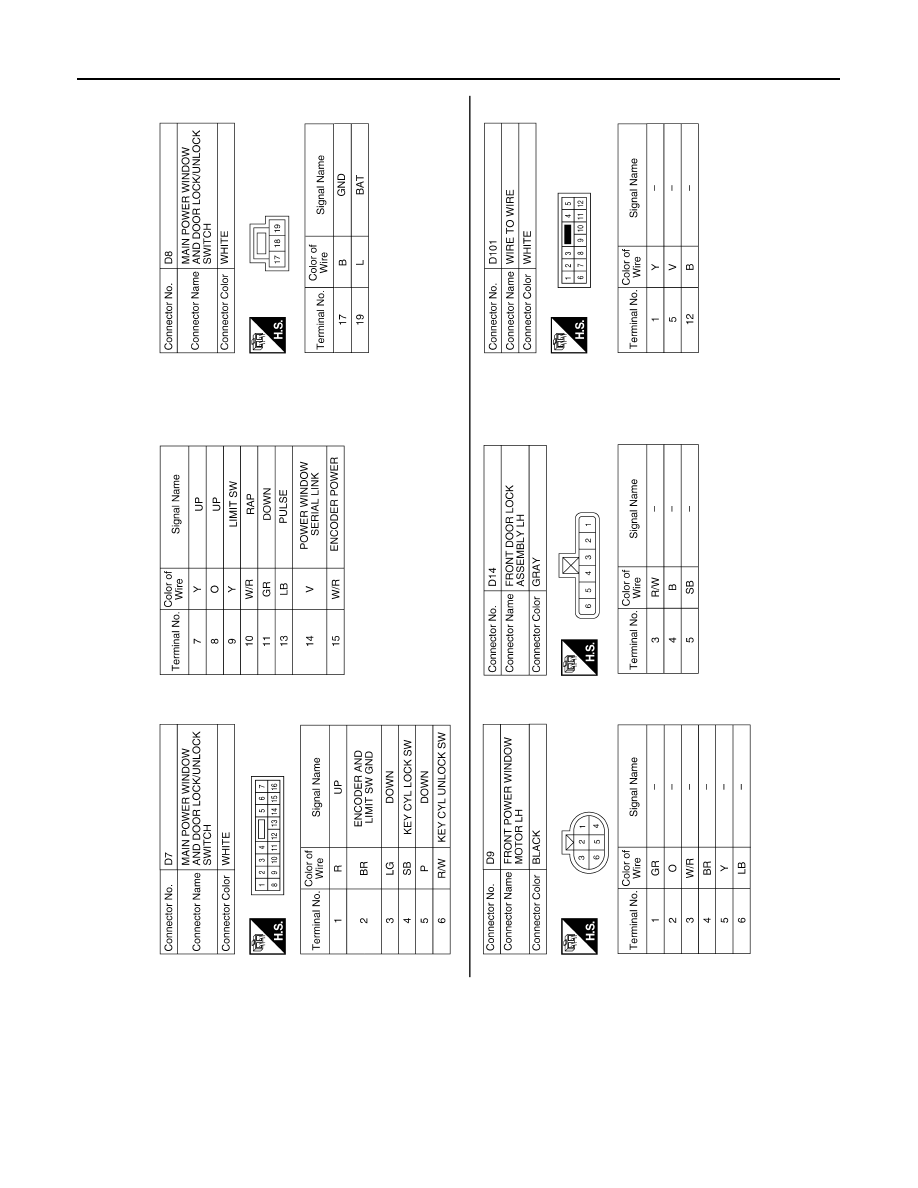

PWC-67

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA0334GB

August 2012

2012 Pathfinder

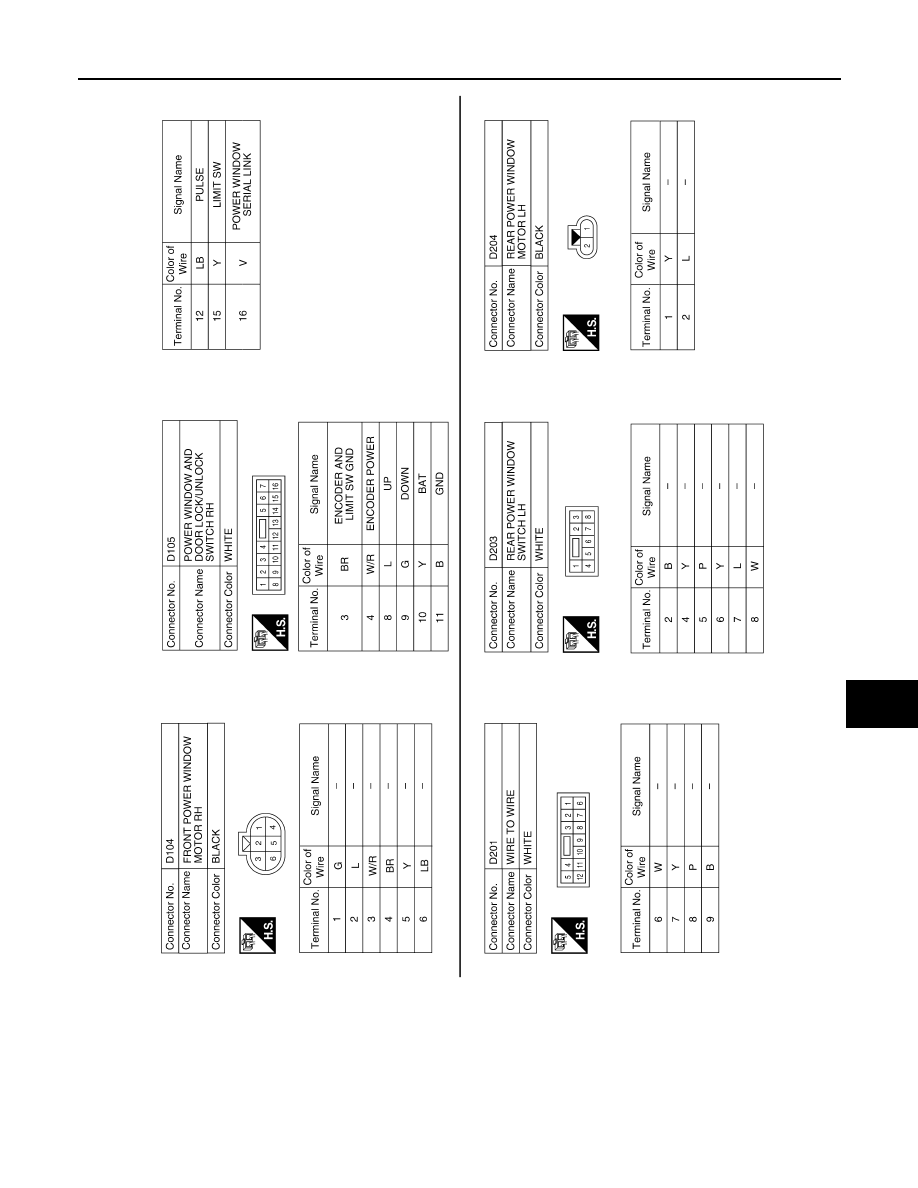

PWC-68

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA2886GB

August 2012

2012 Pathfinder

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY SWITCH

PWC-69

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYMPTOM DIAGNOSIS

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY
SWITCH

Diagnosis Procedure

INFOID:0000000007355915

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

BCS-30, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY AND

GROUND CIRCUIT

Check power window switch main power supply and ground circuit.

Refer to

PWC-13, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the malfunctioning parts.

3.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window and door lock/unlock switch.

Refer to

PWC-13, "POWER WINDOW MAIN SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace the malfunctioning parts.

4.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SERIAL CIRCUIT

Check main power window and door lock/unlock switch serial circuit.

Refer to

PWC-40, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.
