Nissan Pathfinder (2012 year). Instruction - part 177

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-311

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

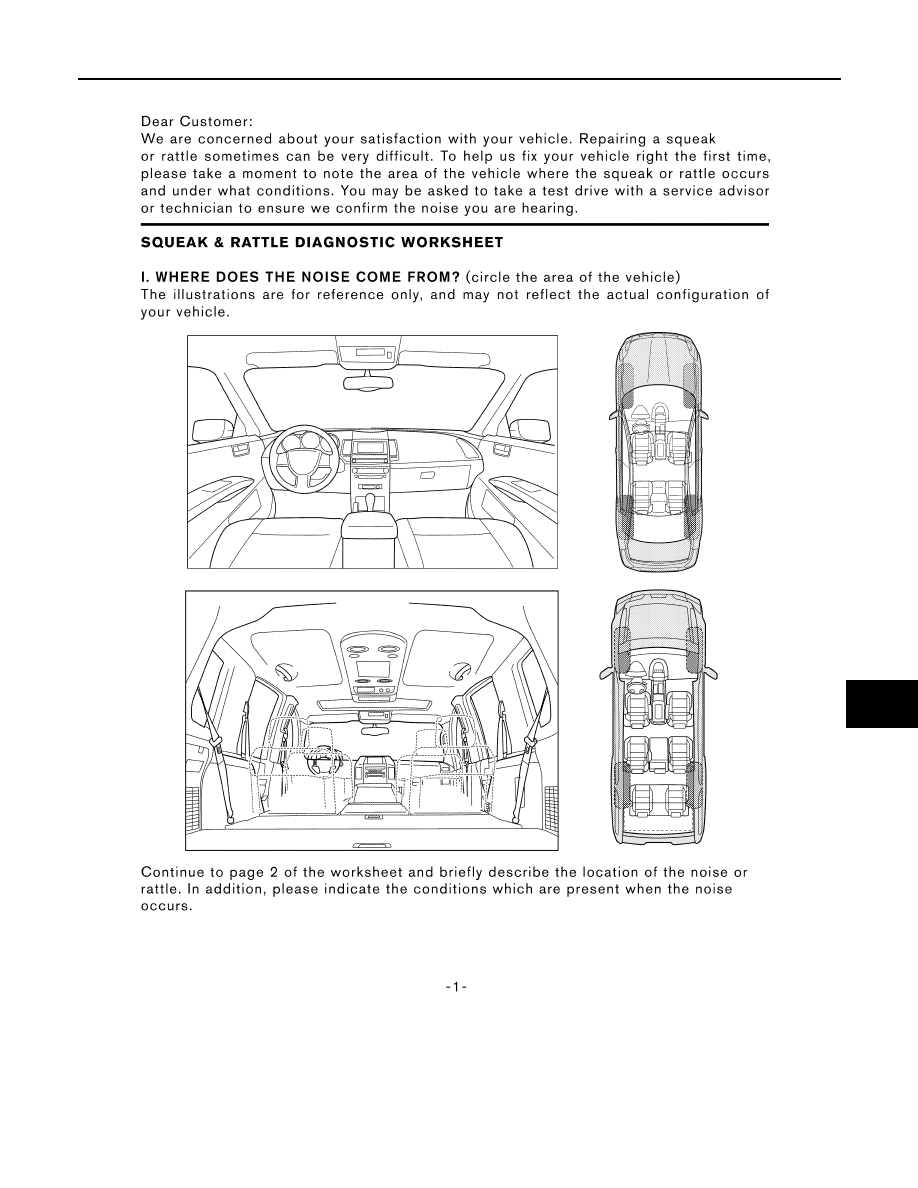

Diagnostic Worksheet

INFOID:0000000007830140

LAIA0072E

August 2012

2012 Pathfinder

DLK-312

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

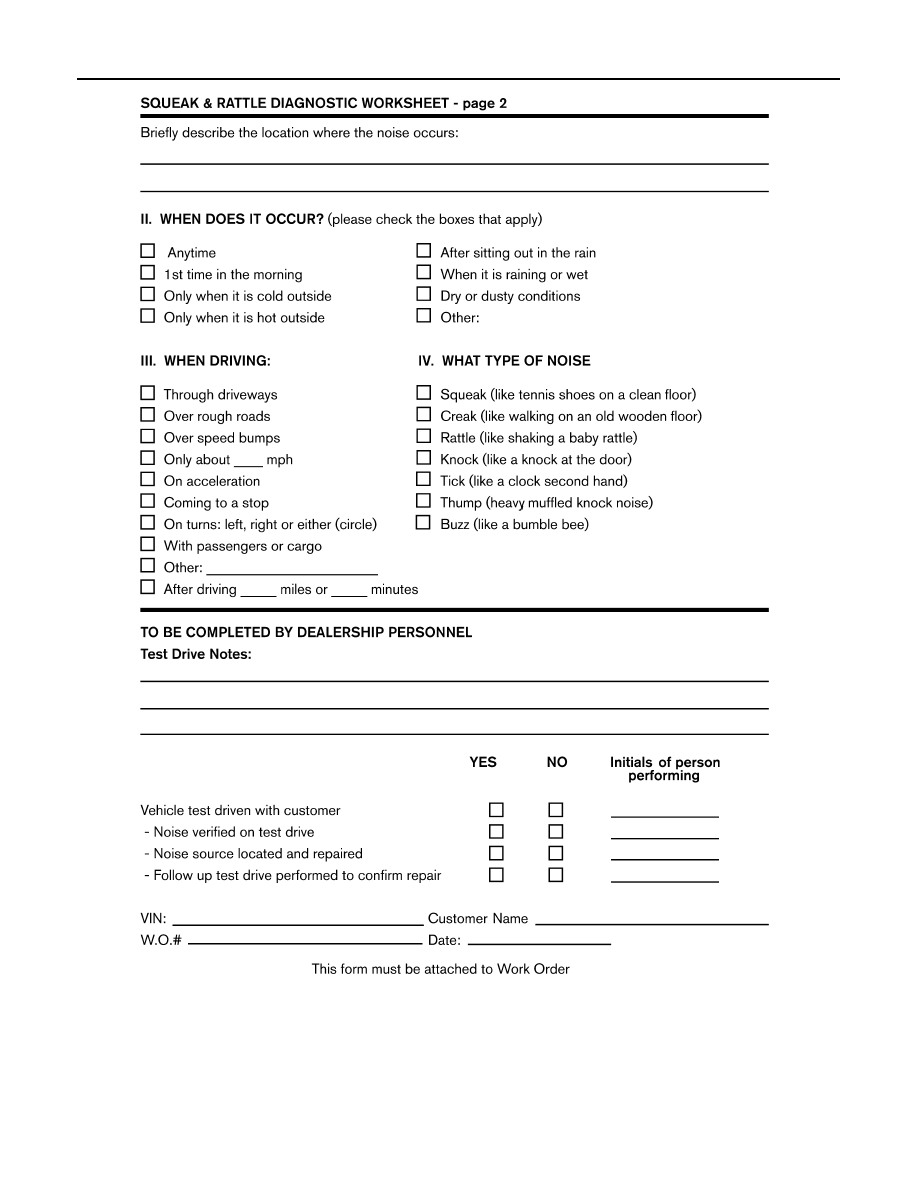

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

August 2012

2012 Pathfinder

PRECAUTIONS

DLK-313

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007355645

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Work for Door and Lock

INFOID:0000000007830148

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

August 2012

2012 Pathfinder

DLK-314

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

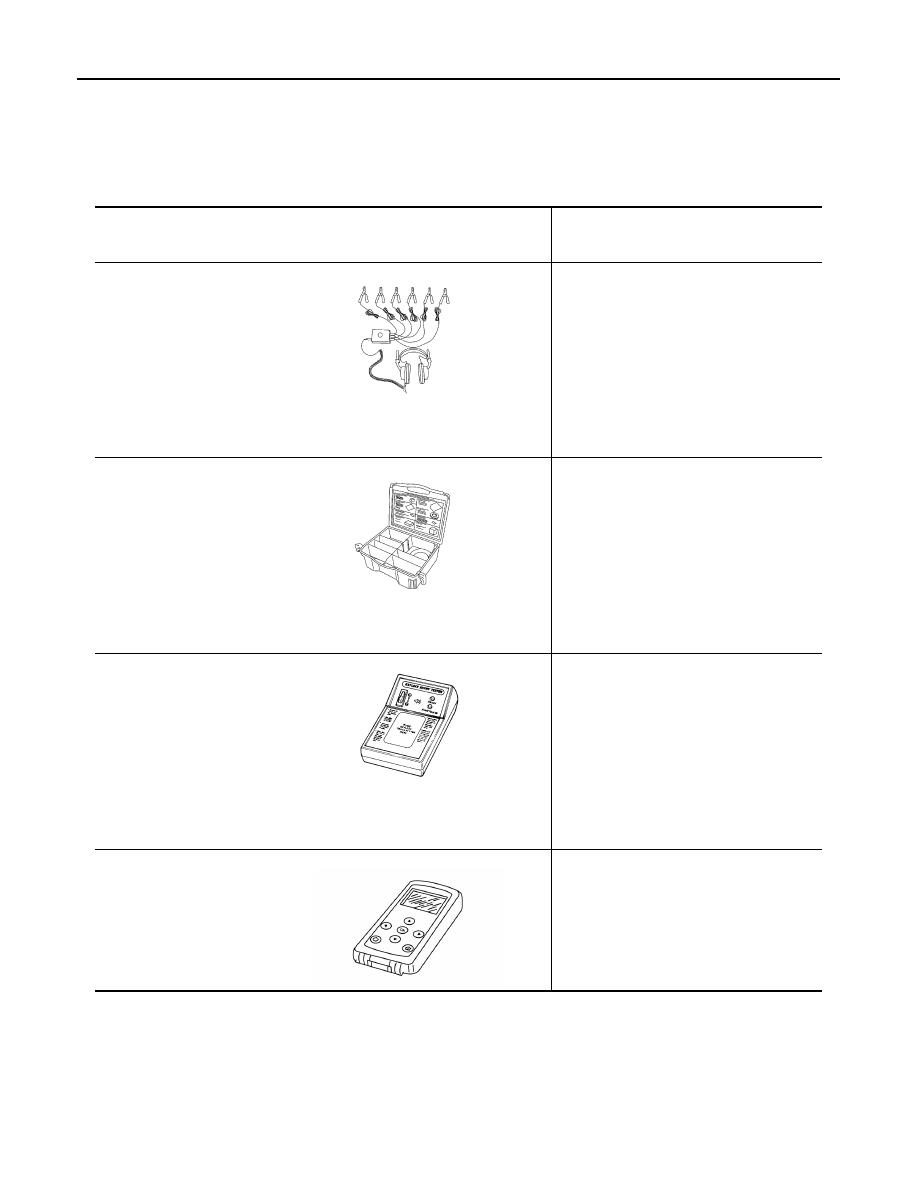

Special Service Tool

INFOID:0000000007830152

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test key fobs

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter

IDs

• Display tire pressure reported by the

TPMS transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Test remote keyless entry keyfob relative

signal strength

SIIA0993E

SIIA0994E

LEL946A

ALEIA0131ZZ

August 2012

2012 Pathfinder

PREPARATION

DLK-315

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

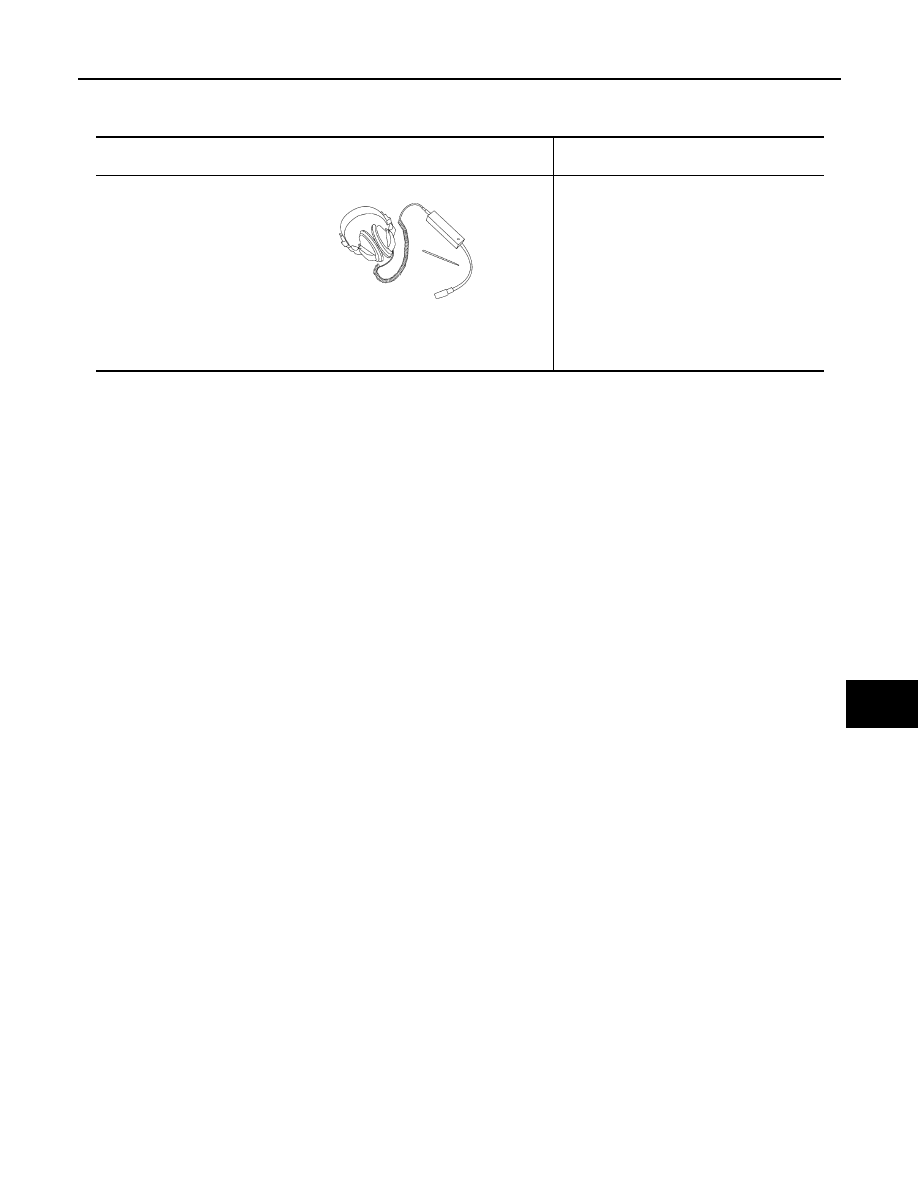

Commercial Service Tool

INFOID:0000000007830151

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

August 2012

2012 Pathfinder

DLK-316

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD

REMOVAL AND INSTALLATION

HOOD

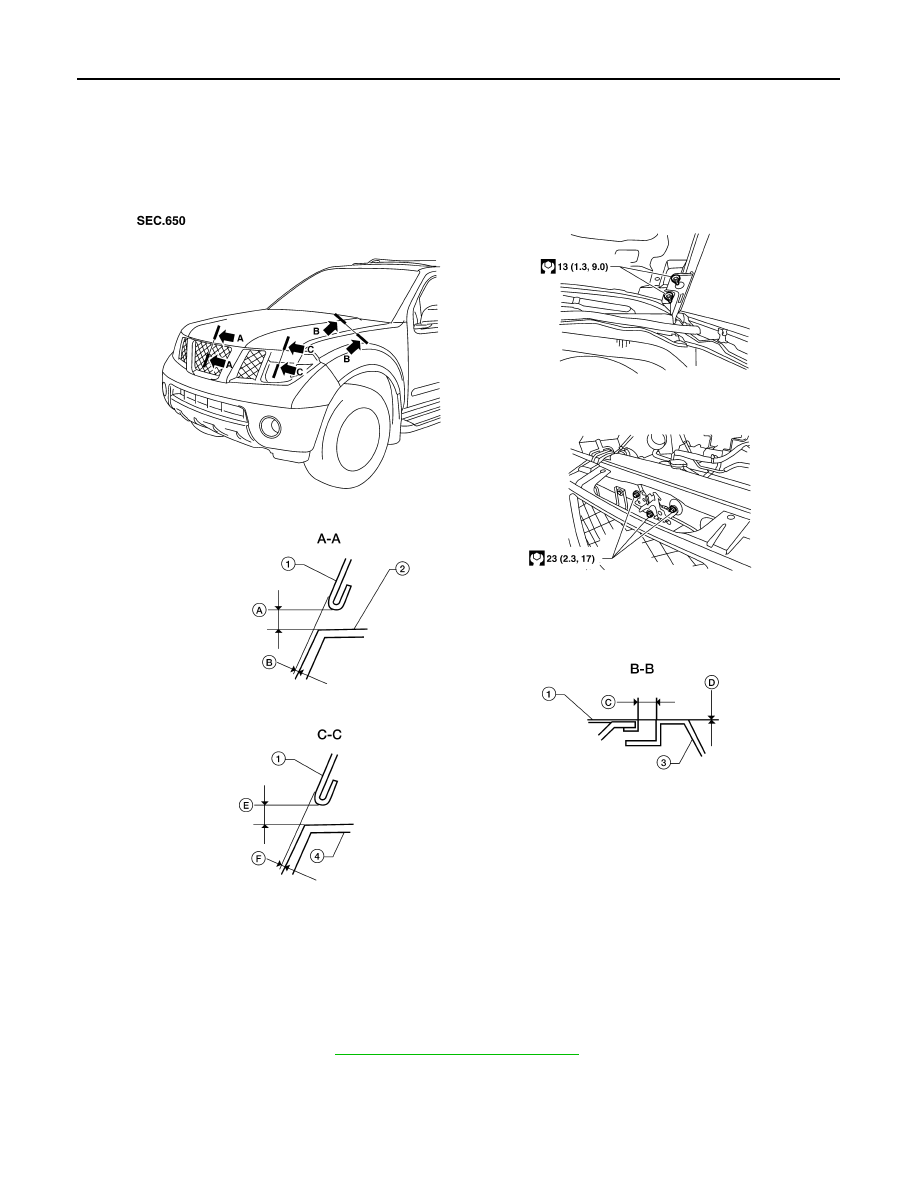

Fitting Adjustment

INFOID:0000000007355649

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1. Remove the front grille. Refer to

EXT-20, "Removal and Installation"

2. Loosen the hood lock assembly and adjust the rubber bumpers until the surface height of the hood

becomes 1 mm (0.04 in) lower than the fender.

3. Engage the hood striker and temporarily tighten.
4. Check the lock and striker for looseness.

Hood

Front grille

Front fender

Front combination lamp

6.0

2.3 mm (0.24

0.09 in)

0.0

2.4 mm (0.0

0.09 in)

4.6

1.0 mm (0.18

0.04 in)

0.0

1.0 mm (0.0

0.04 in)

6.0

2.0 mm (0.24

0.08 in)

0.0

2.0 mm (0.0

0.08 in)

WIIA0774E

August 2012

2012 Pathfinder

HOOD

DLK-317

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

5. Tighten the bolts to specification.
6. Adjust the surface height of the hood according to the fitting standard dimension by rotating right and left

rubber bumpers.

7. Install the front grille. Refer to

EXT-20, "Removal and Installation"

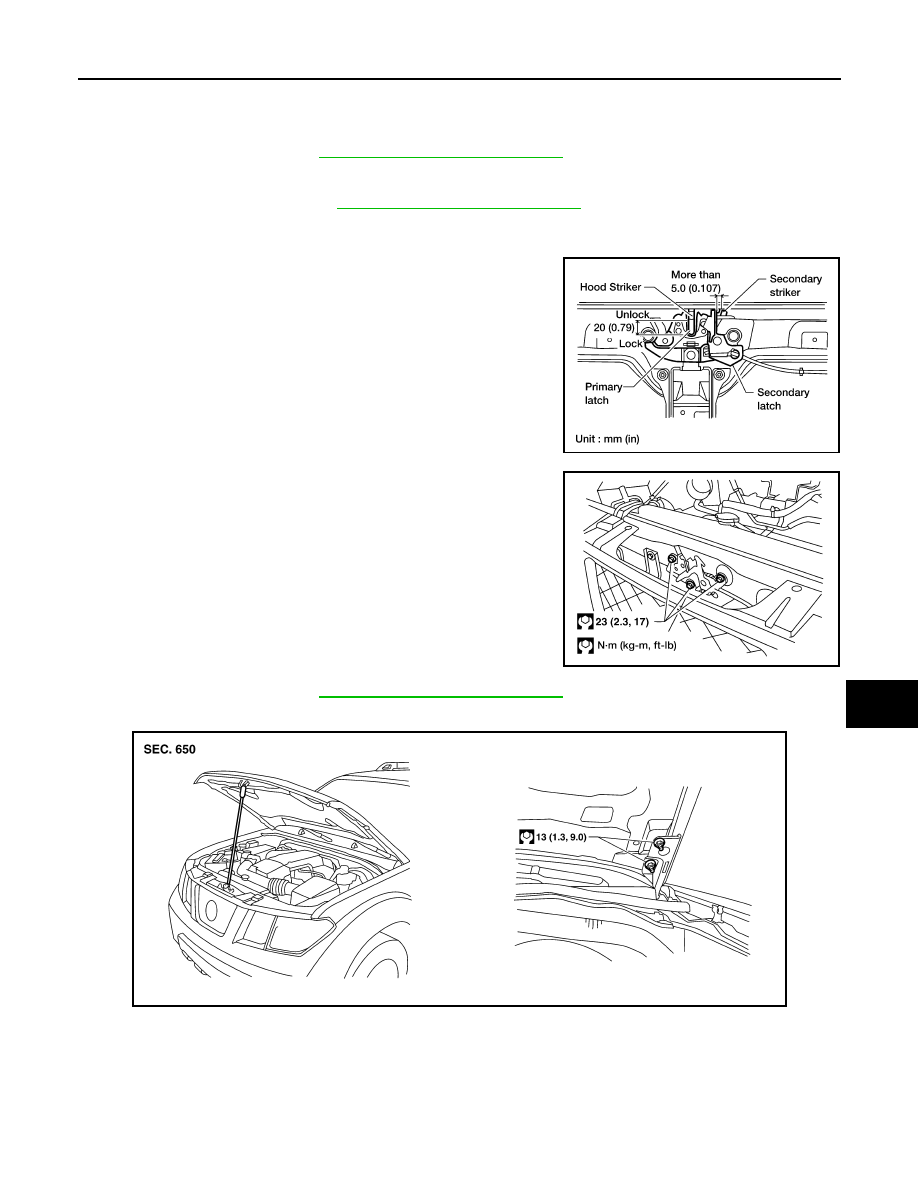

HOOD LOCK ADJUSTMENT

1. Remove the front grille. Refer to

EXT-20, "Removal and Installation"

2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center

(when viewed from vehicle front).

3. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height or by pressing it lightly approx.

29 N (3 kg-f, 6.5 ft-lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or

higher.

4. After adjusting hood lock, tighten the lock bolts to the specified

torque.

5. Install the front grille. Refer to

EXT-20, "Removal and Installation"

Removal and Installation of Hood Assembly

INFOID:0000000007355650

1. Support the hood striker with suitable tool to prevent it from falling.

CAUTION:

Operate with two workers, because of its heavy weight.

Remove the hinge nuts from the hood to remove the hood assembly.

Installation is in the reverse order of removal.

LIIA1696E

LIIA1701E

WIIA1055E

August 2012

2012 Pathfinder

DLK-318

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD

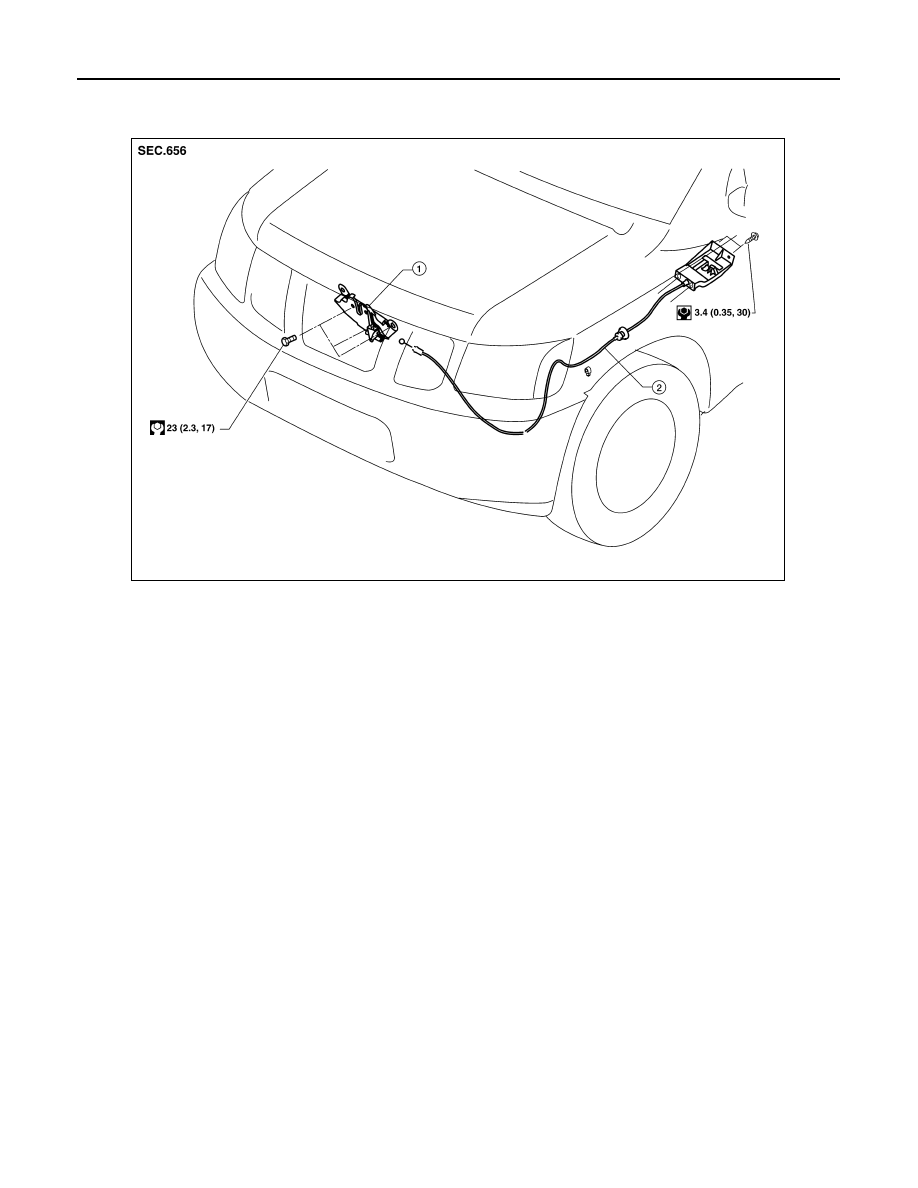

Removal and Installation of Hood Lock Control

INFOID:0000000007355651

REMOVAL

1. Remove the bolts and the hood lock assembly.
2. Disconnect the hood lock cable from the hood lock, and unclip it from the radiator core support upper and

hoodledge.

3. Remove the bolts, and the hood release handle.
4. Separate the grommet from the lower dash panel. Pull the hood lock cable out through the passenger

compartment.

CAUTION:

While pulling, be careful not to damage the outside of the hood lock cable.

INSTALLATION

1. Pull the hood lock cable through the lower dash panel hole into the engine room.

Hood lock assembly

Hood lock cable

WIIA0775E

August 2012

2012 Pathfinder
