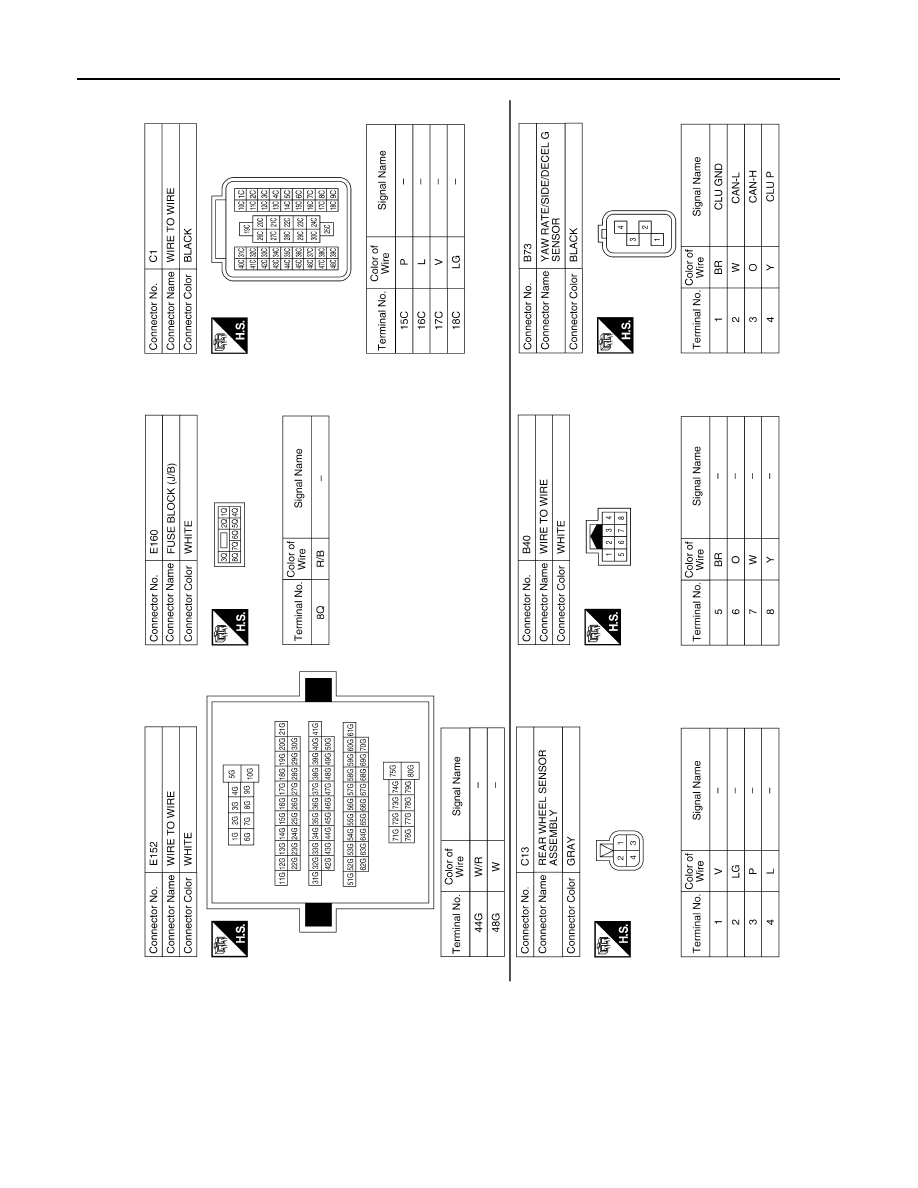

Nissan Pathfinder (2012 year). Instruction - part 118

BRC-210

< WIRING DIAGRAM >

[TYPE 2]

BRAKE CONTROL SYSTEM - VDC

ABFIA0528GB

August 2012

2012 Pathfinder

BRAKE CONTROL SYSTEM - VDC

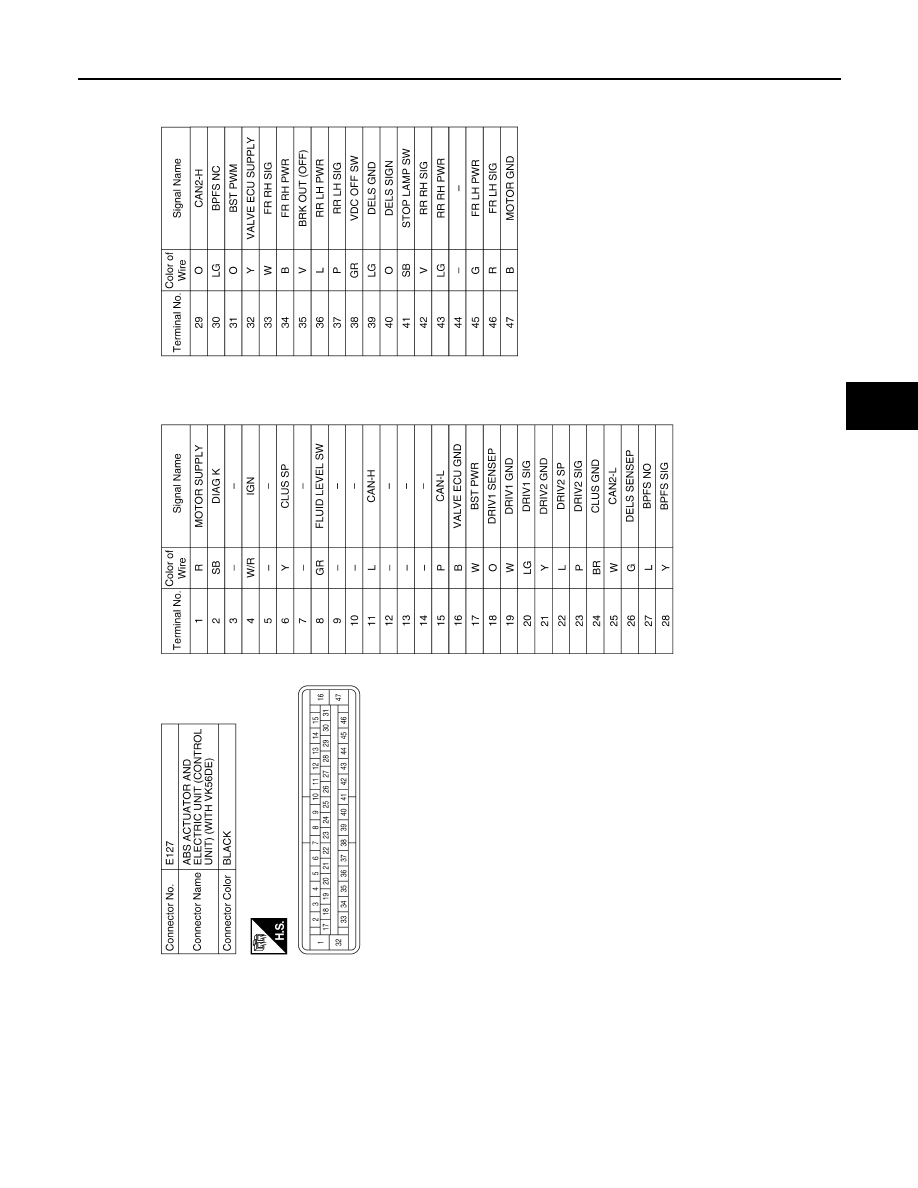

BRC-211

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0529GB

August 2012

2012 Pathfinder

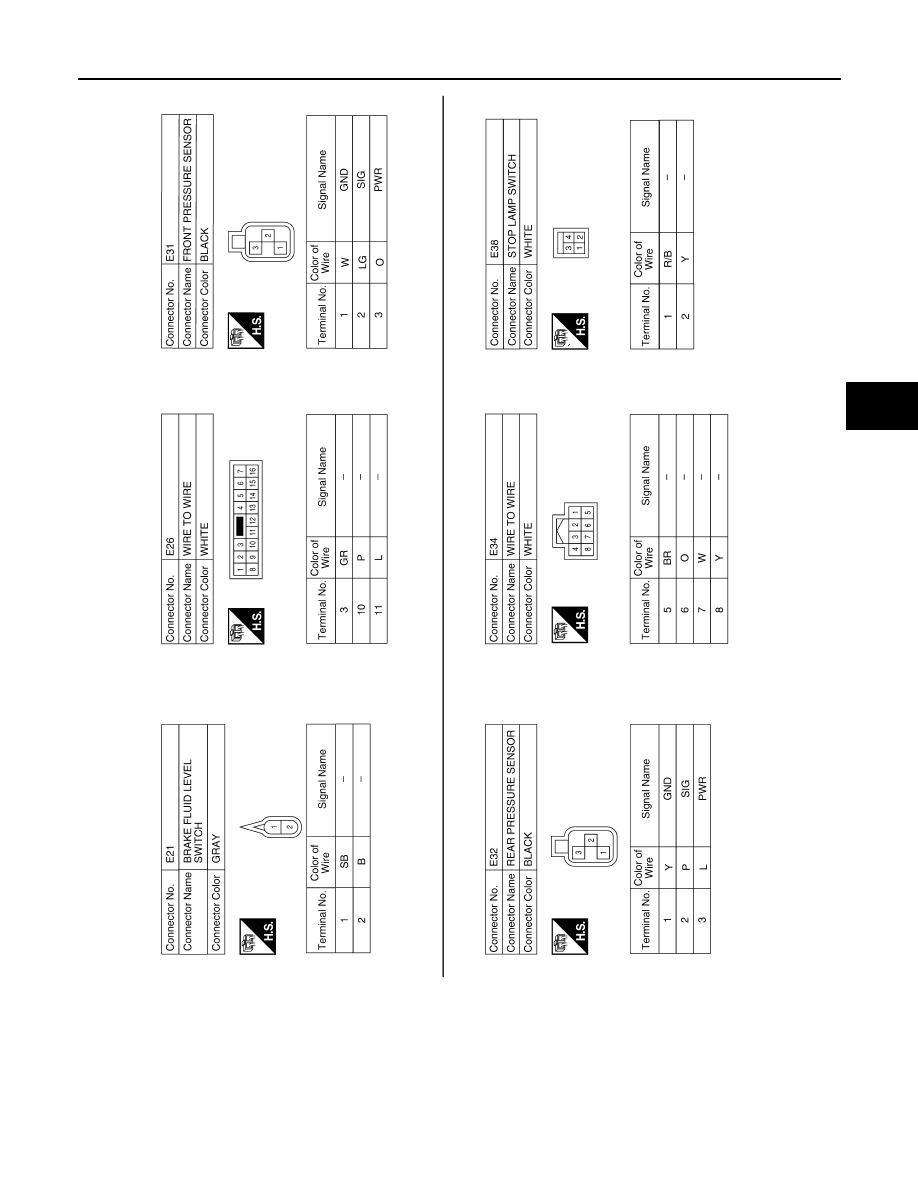

BRC-212

< WIRING DIAGRAM >

[TYPE 2]

BRAKE CONTROL SYSTEM - VDC

ABFIA0530GB

August 2012

2012 Pathfinder

BRAKE CONTROL SYSTEM - VDC

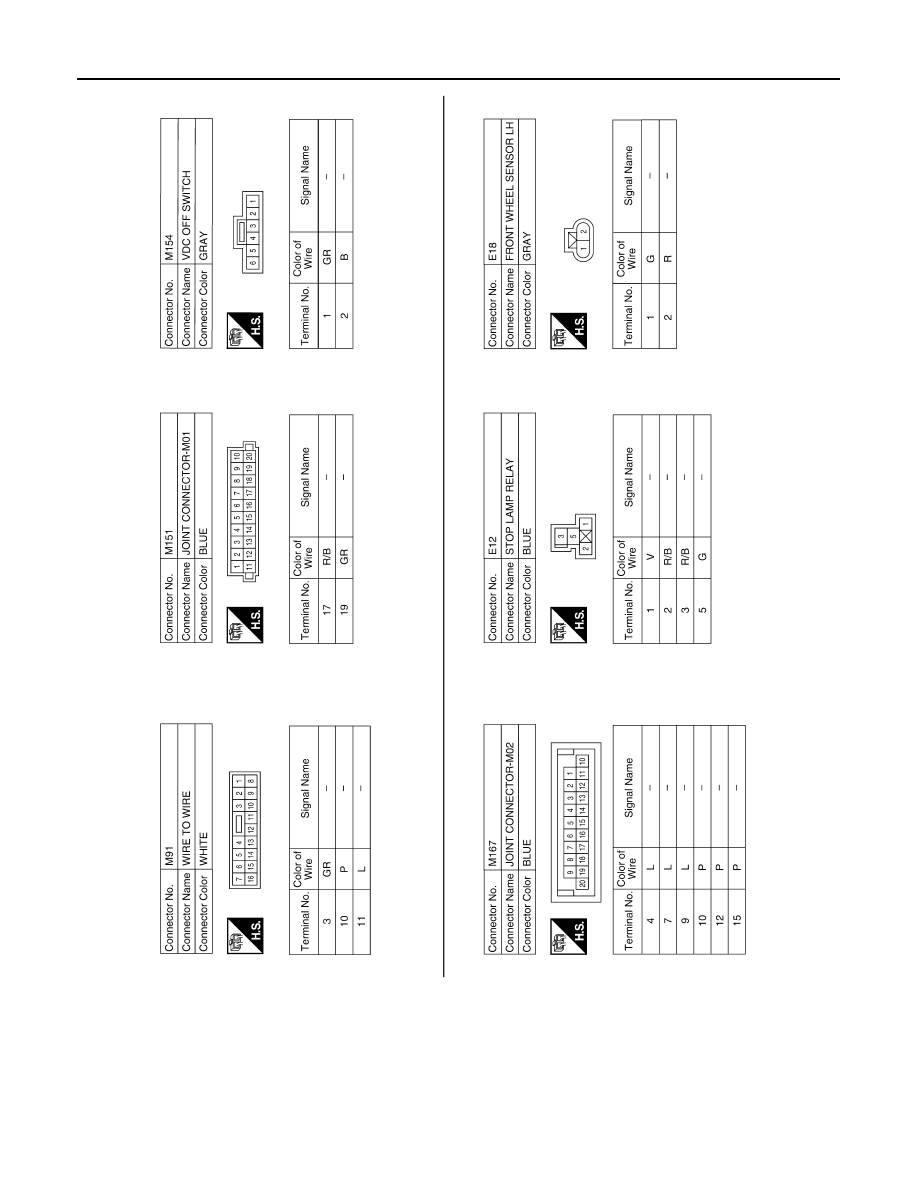

BRC-213

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0065GB

August 2012

2012 Pathfinder

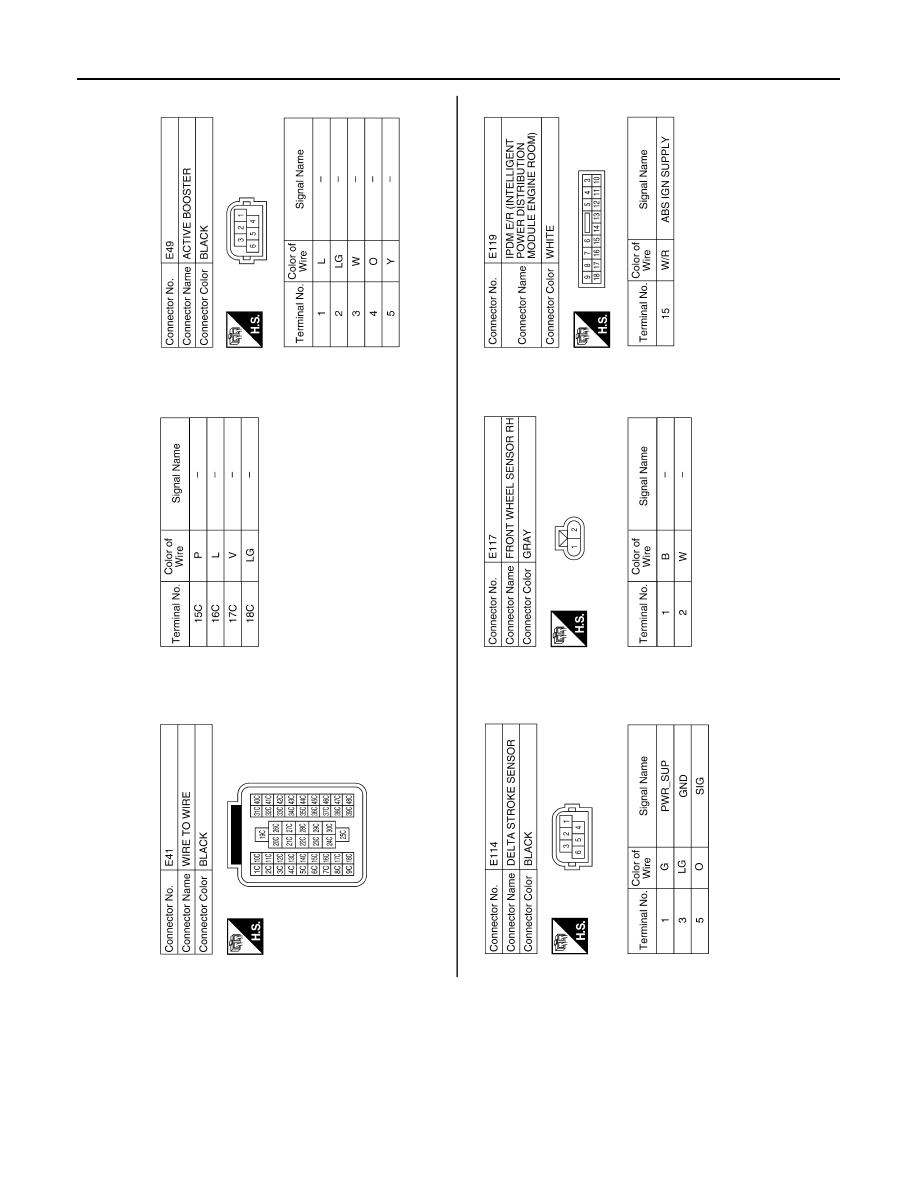

BRC-214

< WIRING DIAGRAM >

[TYPE 2]

BRAKE CONTROL SYSTEM - VDC

ABFIA0435GB

August 2012

2012 Pathfinder

APPLICATION NOTICE

BRC-215

< SYMPTOM DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SYMPTOM DIAGNOSIS

APPLICATION NOTICE

Application Notice

INFOID:0000000007818422

Service information

Remarks

TYPE 1

VDC/TCS/ABS (VQ40DE)

TYPE 2

VDC/TCS/ABS (VK56DE)

August 2012

2012 Pathfinder

BRC-216

< SYMPTOM DIAGNOSIS >

[TYPE 2]

VDC/TCS/ABS

VDC/TCS/ABS

Symptom Table

INFOID:0000000007356969

If ABS warning lamp and SLIP indicator lamp turn ON, perform self-diagnosis.

NOTE:

• 1: The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
• 2: Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly depressed. However, this is normal.
- When shifting gears
- When driving on slippery road
- During cornering at high speed
- When passing over bumps or grooves [at approximately 50 mm (1.97 in) or more]
- When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]

Symptom

Check item

Reference

Excessive ABS function operation fre-
quency

Brake force distribution

BRC-217, "Diag-

nosis Procedure"

Looseness of front and rear axle

Wheel sensor and rotor system

Unexpected pedal reaction

Brake pedal stroke

BRC-218, "Diag-

nosis Procedure"

Make sure the braking force is sufficient when the ABS is not operating.

The braking distance is long

Check stopping distance when the ABS is not operating.

BRC-219, "Diag-

nosis Procedure"

ABS function does not operate (Note 1)

ABS actuator and electric unit (control unit)

BRC-220, "Diag-

nosis Procedure"

Pedal vibration or ABS operation sound
occurs (Note 2)

Brake pedal

BRC-221, "Diag-

nosis Procedure"

ABS actuator and electric unit (control unit)

Vehicle jerks during VDC/TCS/ABS con-
trol

ABS actuator and electric unit (control unit)

BRC-222, "Diag-

nosis Procedure"

TCM

ECM

August 2012

2012 Pathfinder

EXCESSIVE ABS FUNCTION OPERATION FREQUENCY

BRC-217

< SYMPTOM DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EXCESSIVE ABS FUNCTION OPERATION FREQUENCY

Diagnosis Procedure

INFOID:0000000007356970

1.

CHECK START

Check front and rear brake force distribution using a brake tester.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check brake system.

2.

CHECK FRONT AND REAR AXLE

Make sure that there is no excessive play in the front and rear axles. Refer to front:

FAX-6, "On-Vehicle

Inspection and Service"

, Rear:

RAX-6, "On-Vehicle Inspection and Service"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK WHEEL SENSOR AND SENSOR ROTOR

Check the following.

• Wheel sensor installation for damage.

• Sensor rotor installation for damage.

• Wheel sensor connector connection.

• Wheel sensor harness inspection.
Is the inspection result normal?

YES

>> GO TO 4

NO

>> • Replace wheel sensor or sensor rotor. Refer to

BRC-229, "Removal and Installation"

 (wheel

sensor) or

BRC-230, "Removal and Installation"

 (sensor rotor).

• Repair harness.

4.

CHECK ABS WARNING LAMP DISPLAY

Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
Is the ABS warning lamp illuminated?

YES

>> Perform self-diagnosis. Refer to

BRC-138, "CONSULT Function (ABS)"

.

NO

>> Inspection End.
