STR-22

< WIRING DIAGRAM >

STARTING SYSTEM

ABBIA0869GB

2011 Pathfinder

STARTING SYSTEM

STR-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA0397GB

2011 Pathfinder

STR-24

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000006245762

Symptom

Reference

No normal cranking

Refer to

STR-5, "Work Flow"

.

Starter motor does not rotate

2011 Pathfinder

STARTER MOTOR

STR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

VQ40DE

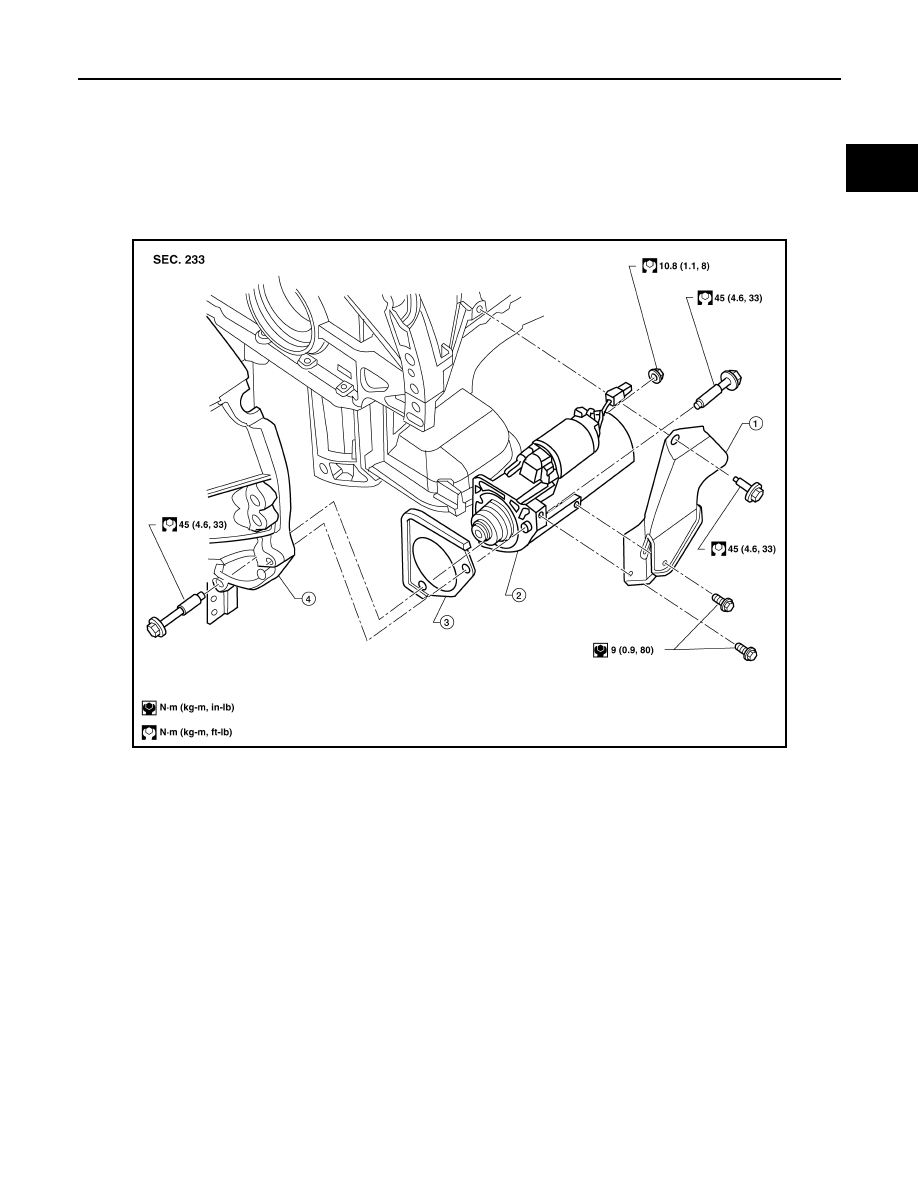

VQ40DE : Exploded View

INFOID:0000000006245763

VQ40DE Models

VQ40DE : Removal and Installation

INFOID:0000000006245764

VQ40DE MODELS

Removal

1. Disconnect the negative battery terminal.
2. Remove starter cover bolts and starter cover.

WKIA3190E

1.

Starter cover

2.

Starter motor assembly

3.

Starter cover plate (rear)

4.

Transmission housing

2011 Pathfinder

STR-26

< REMOVAL AND INSTALLATION >

STARTER MOTOR

3. Disconnect terminal "S" connector and terminal "B" nut.
4. Remove the two starter bolts, using power tools.
5. Remove the starter.

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "B" nut carefully.

VK56DE

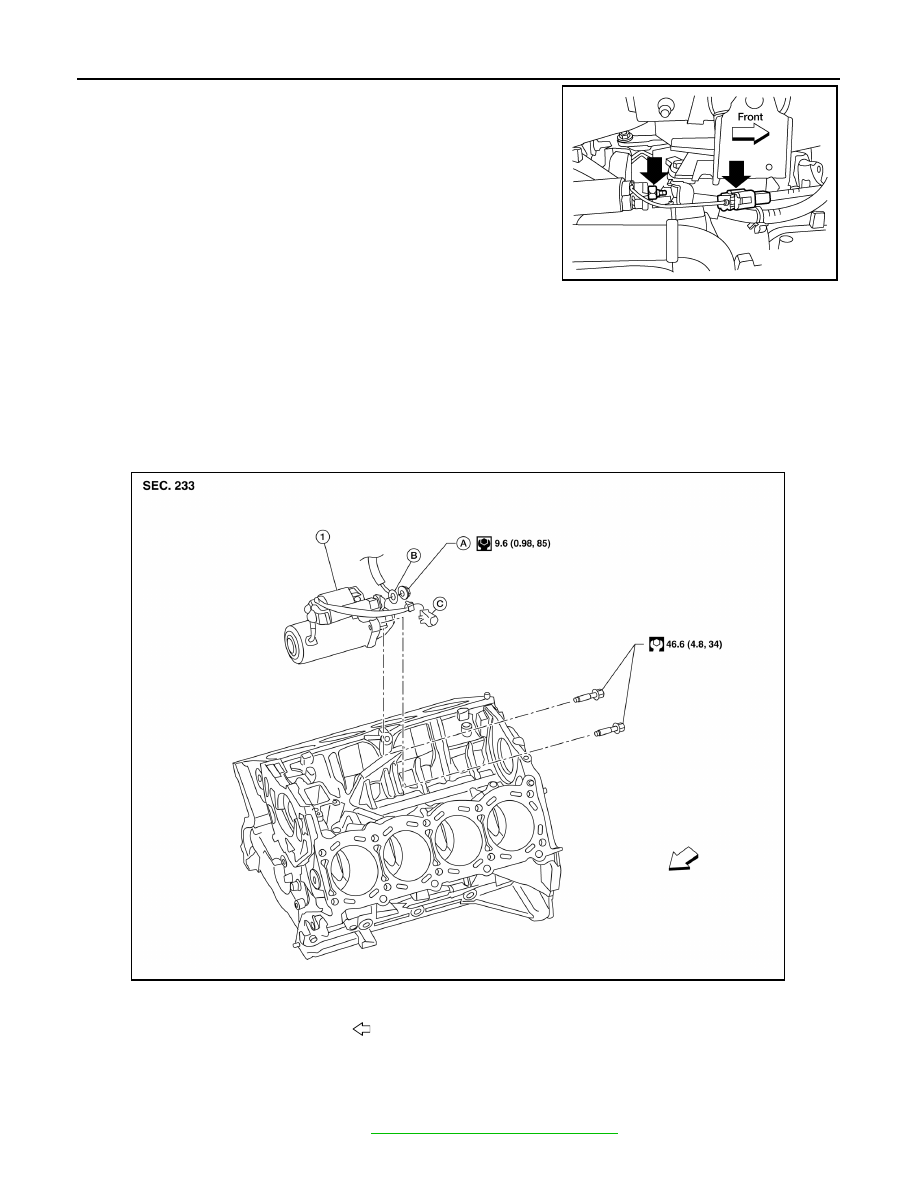

VK56DE : Exploded View

INFOID:0000000008185207

VK56DE : Removal and Installation

INFOID:0000000008185208

REMOVAL

1. Remove the intake manifold. Refer to

EM-166, "Removal and Installation"

.

WKIA3189E

1.

Starter motor assembly

A. Terminal "1" (B) nut

B. Terminal "1" (B) cable

C. Terminal "2" (S) connector

Vehicle front

AWBIA1149GB

2011 Pathfinder

STARTER MOTOR

STR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

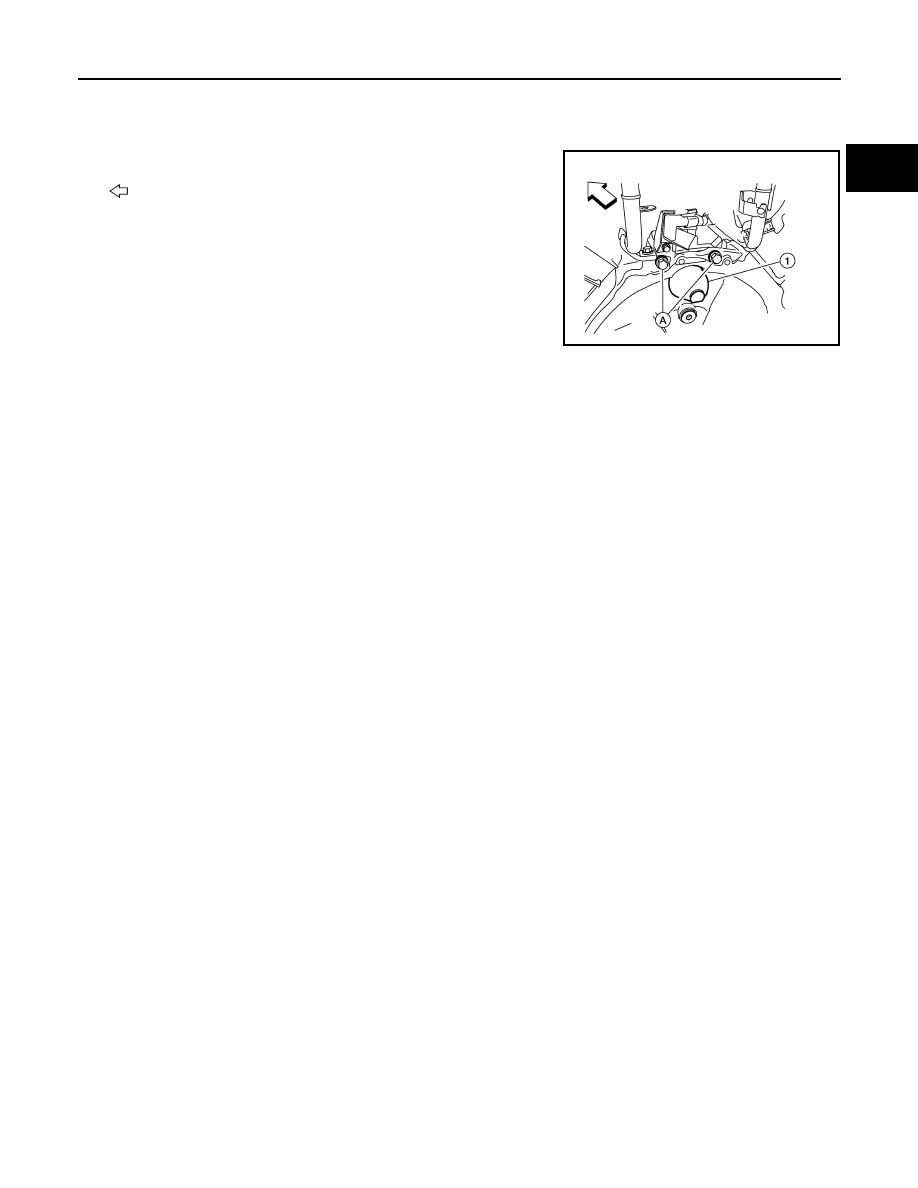

2. Remove the starter motor assembly harness terminal "1" (B) nut and terminal "1" (B) cable.
3. Disconnect terminal "2" (S) connector.
4. Remove terminal “2” (S) harness clips from brackets.
5. Remove the two starter motor assembly bolts (A), using power

tools.

: Vehicle front

6. Remove the starter motor assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "1" (B) nut carefully.

AWBIA0878GB

2011 Pathfinder

STR-28

< SERVICE DATA AND SPECIFICATIONS (SDS)

STARTER MOTOR

SERVICE DATA AND SPECIFICATIONS (SDS)

STARTER MOTOR

Starter

INFOID:0000000006245765

* : Always check with the Parts Department for the latest parts information.

Application

VQ40DE

VK56DE

Type*

Mitsubishi

M001TA0072

Mitsubishi

M001T30671

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11V

Current

Less than 120A

Less than 120A

Revolution

More than 3,100 rpm

More than 3,220 rpm

2011 Pathfinder

TM-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

TM

A

B

TM

N

O

P

CONTENTS

TRANSAXLE & TRANSMISSION

BASIC INSPECTION  ....................................

6

DIAGNOSIS AND REPAIR WORKFLOW  ..........

6

How to Perform Trouble Diagnosis For Quick and
Accurate Repair  ........................................................

6

Diagnostic Work Sheet ..............................................

7

SYSTEM DESCRIPTION  ..............................

9

A/T CONTROL SYSTEM .....................................

9

Cross-Sectional View  ................................................

9

Shift Mechanism ......................................................

10

TCM Function ..........................................................

22

CAN Communication ...............................................

24

Input/Output Signal of TCM .....................................

25

Line Pressure Control  .............................................

25

Shift Control  ............................................................

27

Lock-up Control .......................................................

28

Engine Brake Control  ..............................................

29

Control Valve ...........................................................

29

A/T Electrical Parts Location  ...................................

31

A/T SHIFT LOCK SYSTEM ................................

32

System Description  .................................................

32

Component Parts Location (With Instruction Mode) ....

32

Component Parts Location (Without Instruction
Mode) ......................................................................

33

ON BOARD DIAGNOSTIC (OBD) SYSTEM ......

34

Introduction .............................................................

34

OBD-II Function for A/T System ..............................

34

One or Two Trip Detection Logic of OBD-II  ............

34

OBD-II Diagnostic Trouble Code (DTC) ..................

34

Malfunction Indicator Lamp (MIL) ............................

35

DIAGNOSIS SYSTEM (TCM) .............................

36

CONSULT-III Function (TRANSMISSION)  .............

36

Diagnosis Procedure without CONSULT-III  ............

41

DTC/CIRCUIT DIAGNOSIS  .........................

46

U1000 CAN COMM CIRCUIT .............................

46

Description ...............................................................

46

On Board Diagnosis Logic .......................................

46

Possible Cause ........................................................

46

DTC Confirmation Procedure  ..................................

46

Diagnosis Procedure  ...............................................

46

P0615 STARTER RELAY  .................................

47

Description ...............................................................

47

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

47

On Board Diagnosis Logic .......................................

47

Possible Cause ........................................................

47

DTC Confirmation Procedure  ..................................

47

Diagnosis Procedure  ...............................................

47

P0700 TRANSMISSION CONTROL  .................

49

Description ...............................................................

49

On Board Diagnosis Logic .......................................

49

Possible Cause ........................................................

49

DTC Confirmation Procedure  ..................................

49

Diagnosis Procedure  ...............................................

49

P0705 TRANSMISSION RANGE SWITCH A  ...

50

Description ...............................................................

50

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

50

On Board Diagnosis Logic .......................................

50

Possible Cause ........................................................

50

DTC Confirmation Procedure  ..................................

50

Diagnosis Procedure  ...............................................

50

P0717 INPUT SPEED SENSOR A ....................

52

Description ...............................................................

52

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

52

On Board Diagnosis Logic .......................................

52

Possible Cause ........................................................

52

DTC Confirmation Procedure  ..................................

52

Diagnosis Procedure  ...............................................

52

P0720 OUTPUT SPEED SENSOR  ...................

54

Description ...............................................................

54
