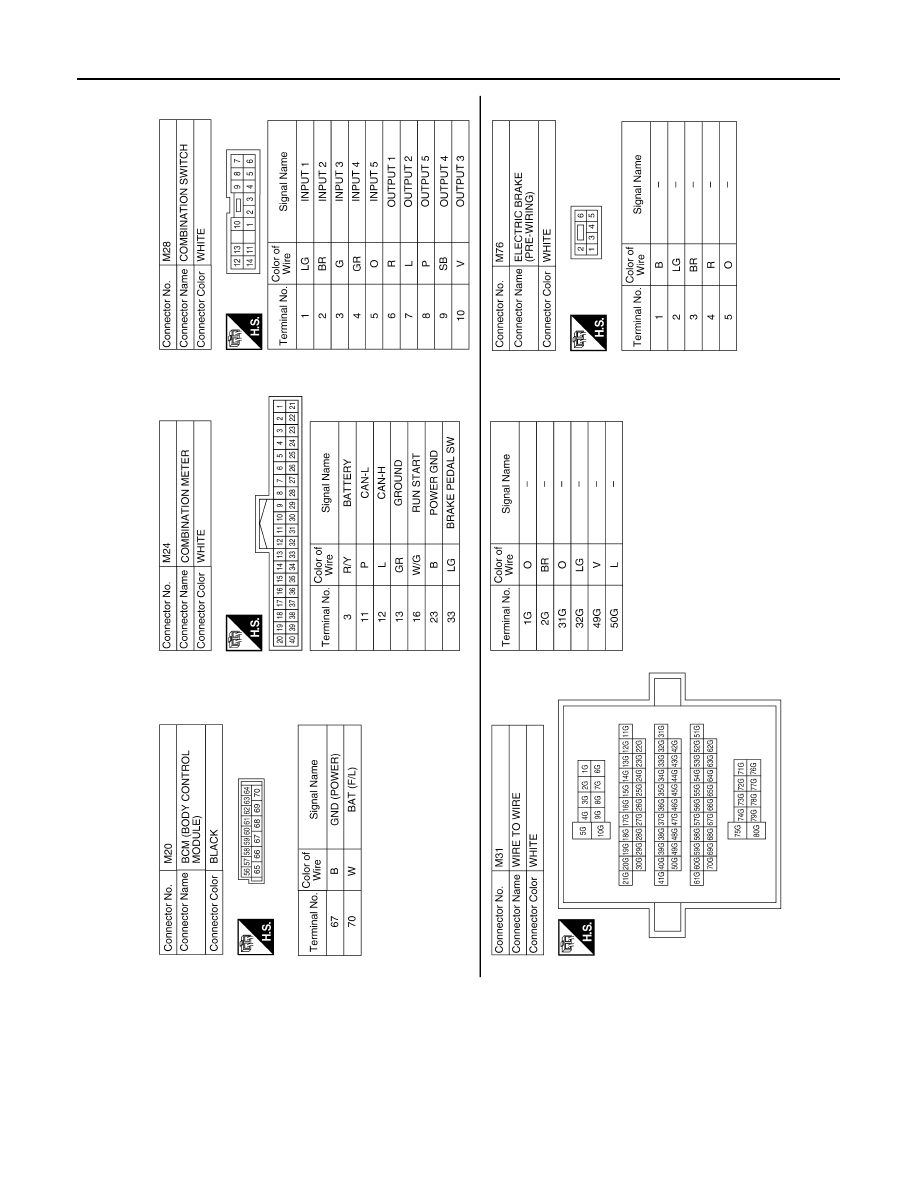

EXL-126

< WIRING DIAGRAM >

TRAILER TOW

ABLIA2805GB

2011 Pathfinder

TRAILER TOW

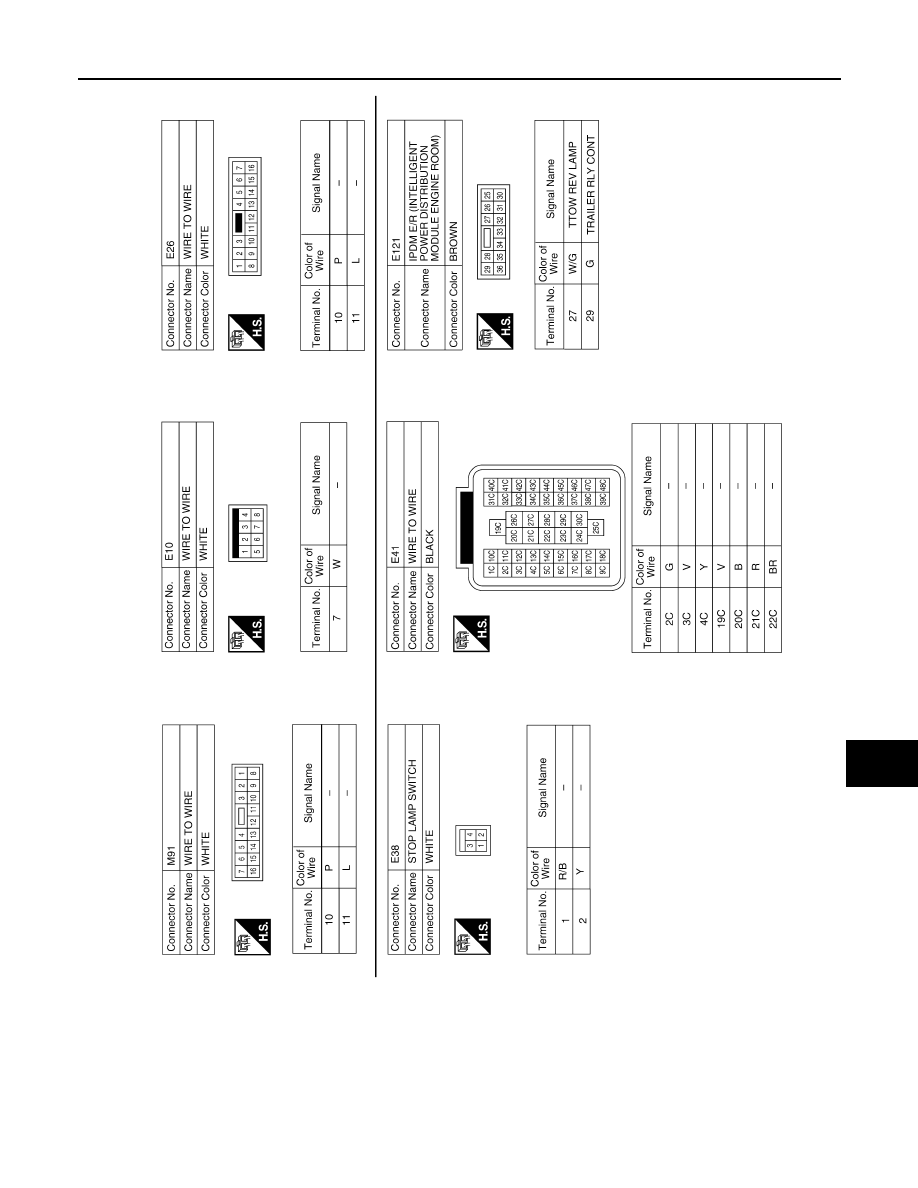

EXL-127

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA2806GB

2011 Pathfinder

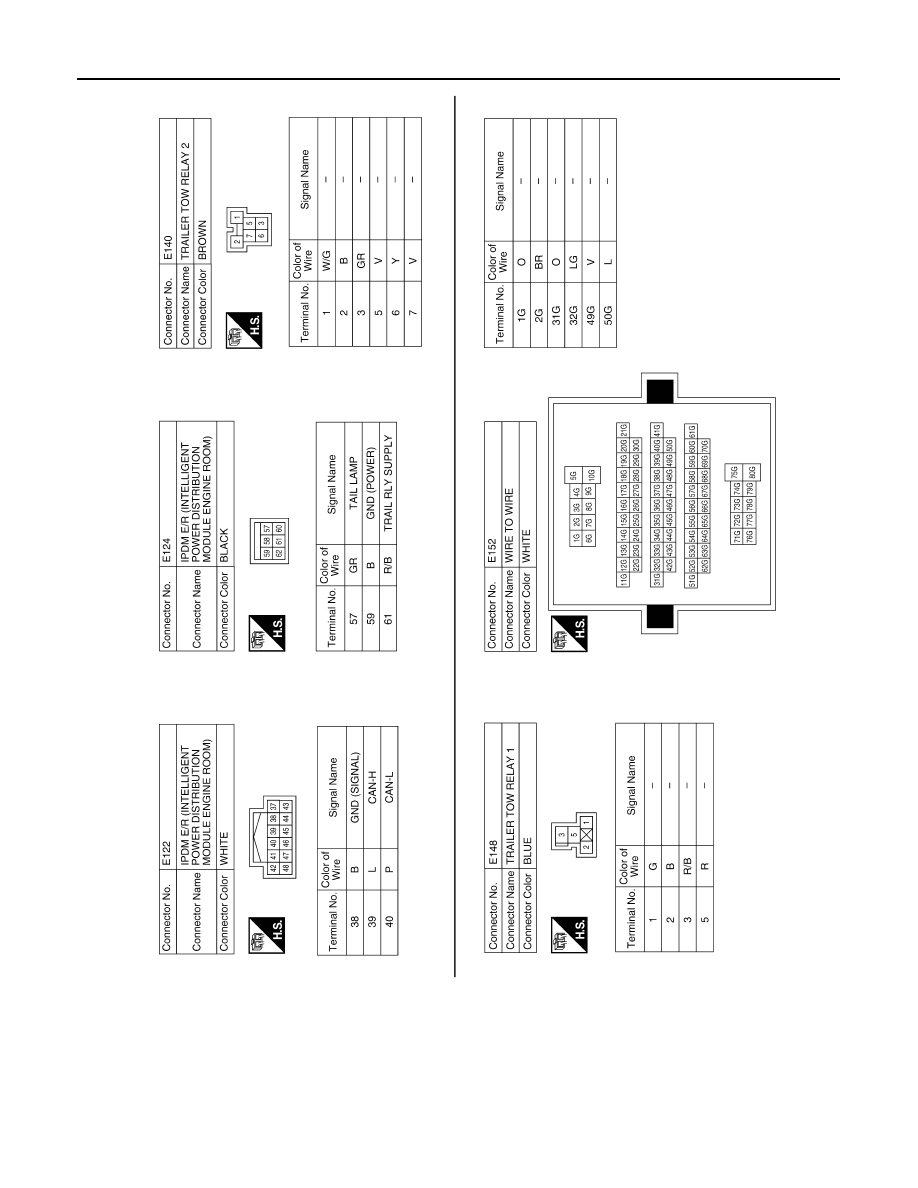

EXL-128

< WIRING DIAGRAM >

TRAILER TOW

ABLIA2807GB

2011 Pathfinder

TRAILER TOW

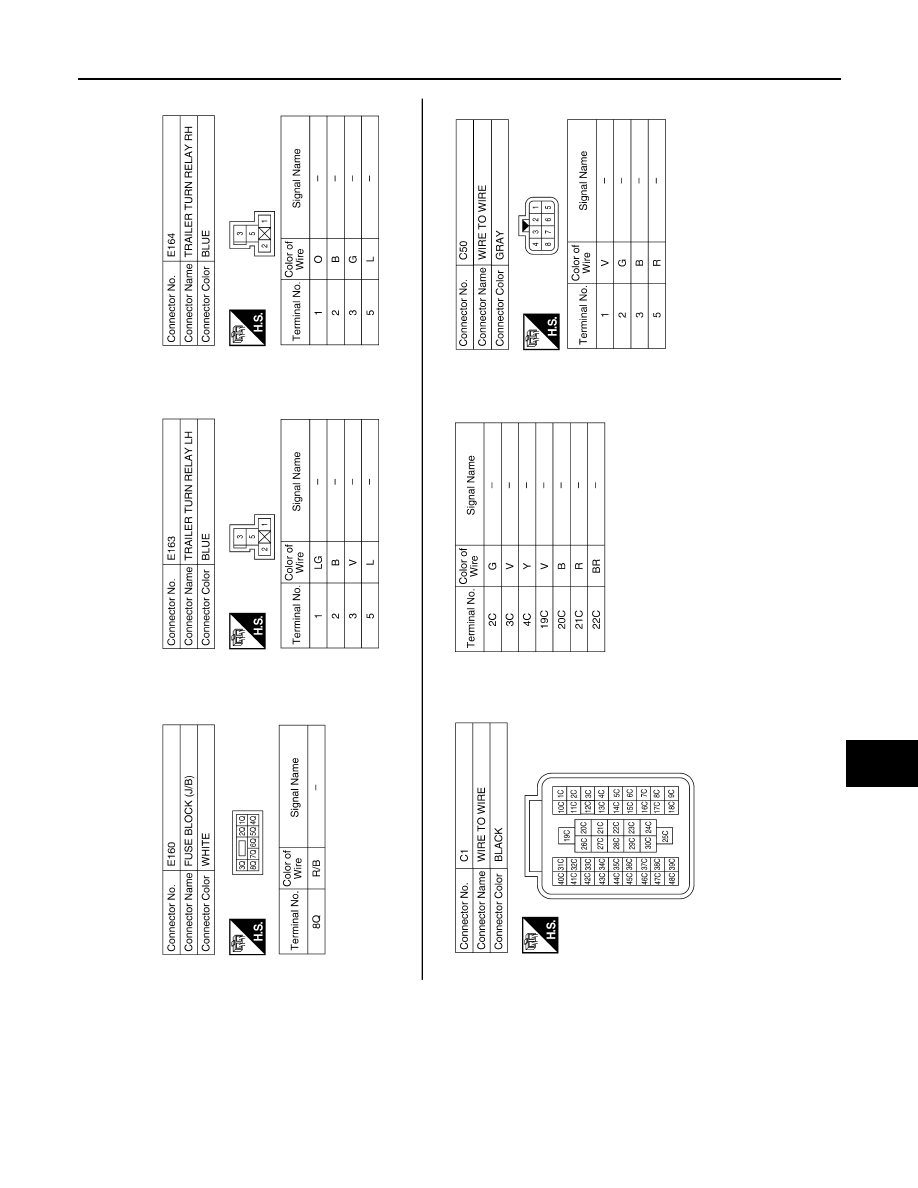

EXL-129

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA1812GB

2011 Pathfinder

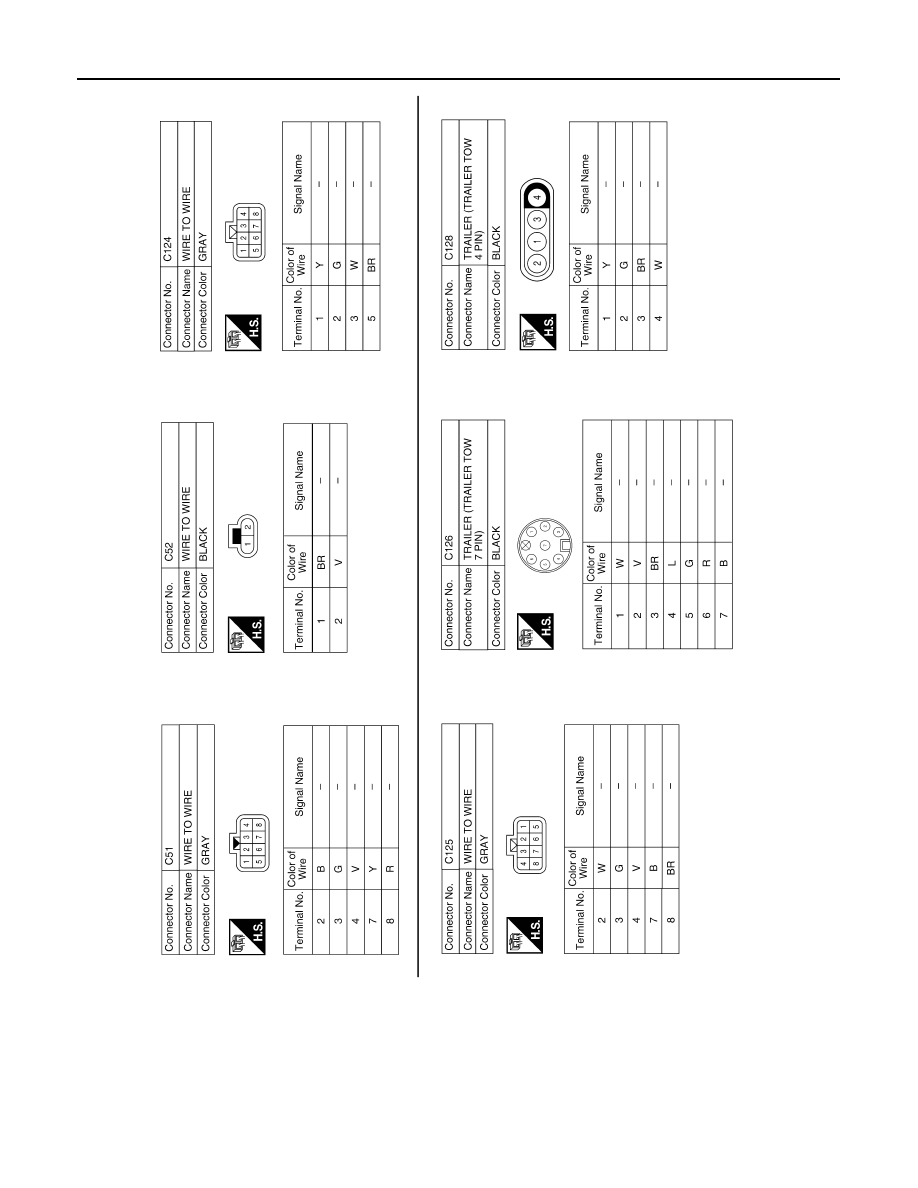

EXL-130

< WIRING DIAGRAM >

TRAILER TOW

ABLIA2808GB

2011 Pathfinder

TRAILER TOW

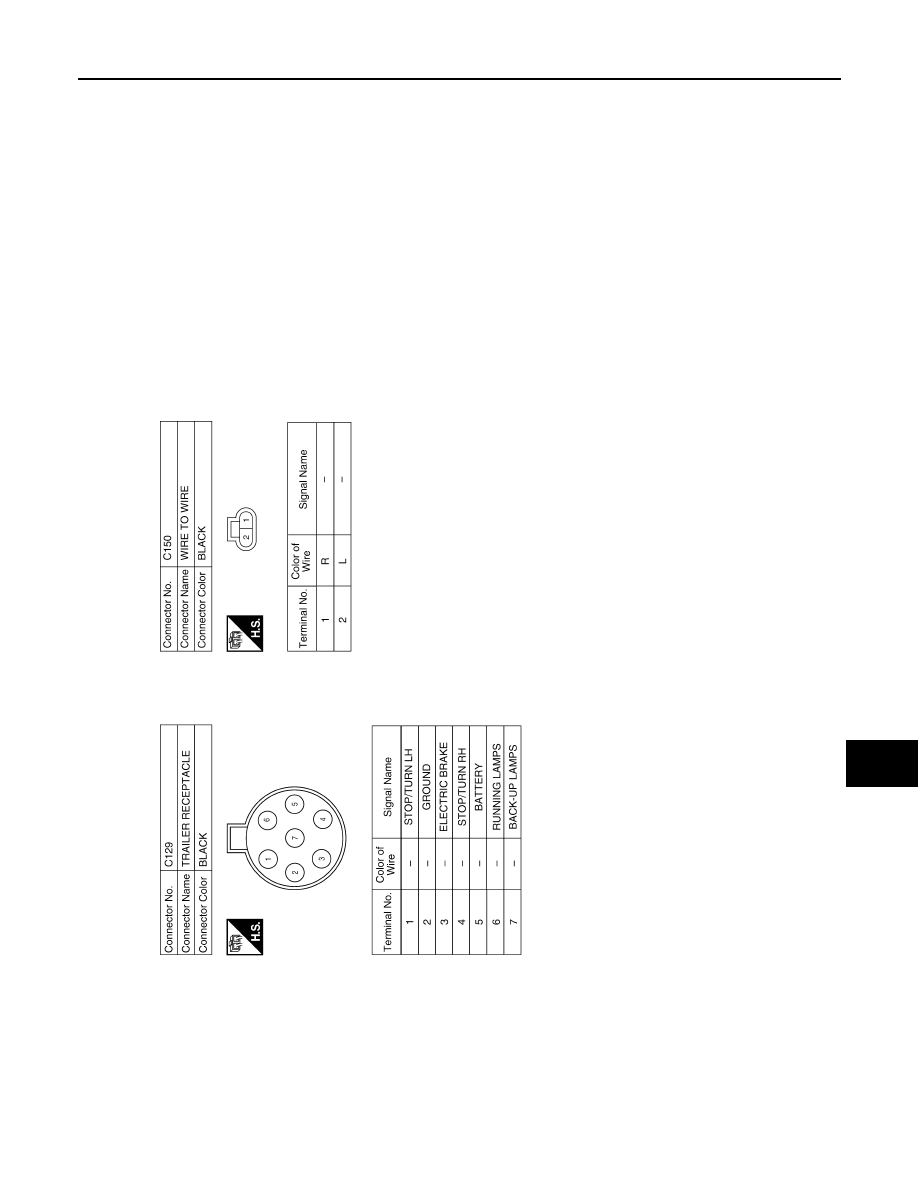

EXL-131

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA3639GB

2011 Pathfinder

EXL-132

< SYMPTOM DIAGNOSIS >

EXTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

EXTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006247694

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-

nosis if any DTC is detected.

Symptom

Possible cause

Inspection item

Headlamp does not
switch to the high beam.

One side

• Fuse
• Harness between IPDM E/R

and the front headlamp

• Front headlamp

(High beam relay)

• IPDM E/R

Headlamp (HI) circuit
Refer to

EXL-39

.

Both sides

Symptom diagnosis

 "BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM"
Refer to

EXL-135

.

High beam indicator lamp is not turned ON.
(Headlamp switches to the high beam.)

• Combination meter
• BCM

• Combination meter.

Data monitor "HI-BEAM IND"

• BCM (HEAD LAMP)

Active test "HEADLAMP"

Headlamp does not
switch to the low beam.

One side

• Daytime light relay 2
• Harness between IPDM, day-

time light relay 2 and front com-
bination lamp LH.

• Front combination lamp (Low

beam)

Headlamp (LO) circuit
Refer to

EXL-45

.

Both sides

• Combination switch (lighting

and turn signal switch)

• Harness between the combina-

tion switch (lighting and turn sig-
nal switch) and BCM

• BCM

Combination switch (lighting and
turn signal switch)
Refer to

BCS-7

.

High beam request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "HL HI REQ"

IPDM E/R

—

Headlamp does not turn
ON.

One side

• Fuse
• Bulb
• Harness between IPDM E/R

and the front headlamp

• Front headlamp
• IPDM E/R

Headlamp (LO) circuit
Refer to

EXL-42

.

Both sides

Symptom diagnosis

"BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON"
Refer to

EXL-137, "Description"

.

Headlamp does not turn
OFF.

When the ignition
switch is turned ON

• BCM
• Combination switch (lighting

and turn signal swith)

Combination switch (lighting and
turn signal switch)
Refer to

BCS-7

.

The ignition switch is
turned OFF (After acti-
vating the battery sav-
er).

IPDM E/R

—

2011 Pathfinder

EXTERIOR LIGHTING SYSTEM SYMPTOMS

EXL-133

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Headlamp is not turned ON/OFF with the lighting
switch AUTO.

• Combination switch (lighting

and turn signal switch)

• Harness between the combina-

tion switch (lighting and turn sig-
nal switch) and BCM

• BCM

Combination switch (lighting and
turn signal switch)
Refer to

BCS-7

.

• Optical sensor
• Harness between the optical

sensor and BCM

• BCM

Optical sensor
Refer to

EXL-58

.

Daytime light system does not activate.

• Either high beam bulb
• Parking brake switch
• Combination switch (lighting

and turn signal switch)

• BCM
• IPDM E/R
• Daytime light relay
• Harness between IPDM E/R

and daytime light relay.

Daytime light system description.
Refer to

EXL-9, "System Descrip-

tion"

.

Front fog lamp is not
turned ON.

One side

• Front fog lamp bulb
• Harness between IPDM E/R

and the front fog lamp

• IPDM E/R

Front fog lamp circuit
Refer to

EXL-48

.

Both side

Symptom diagnosis

"BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON"
Refer to

EXL-139

.

Parking lamp is not turned
ON.

One side

• Fuse
• Parking lamp bulb
• Harness between IPDM E/R

and the front/rear combination
lamp

• Front/rear combination lamp
• IPDM E/R

Parking lamp circuit
Refer to

EXL-50

.

Both sides

Symptom diagnosis

"PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED
ON"
Refer to

EXL-138

.

Turn signal lamp does not
blink.

Indicator lamp is nor-
mal.
(The applicable side
performs the high flash-
er activation).

• Harness between BCM and

each turn signal lamp

• Turn signal lamp bulb
• Door mirror (if equipped with

turn signals in the door mirrors)

Turn signal lamp circuit
Refer to

EXL-55

.

Turn signal indicator lamp
does not blink.

One side

Combination meter

—

Both sides
(Always)

• Turn signal indicator lamp sig-

nal

• Combination meter
• BCM

• Combination meter.

Data monitor "TURN IND"

• BCM (FLASHER)

Active test "FLASHER"

Both sides
(Does blink when acti-
vating the hazard warn-
ing lamp with the
ignition switch OFF)

• The combination meter power

supply and the ground circuit

• Combination meter

Combination meter
Power supply and the ground circuit
Refer to

MWI-31

.

Symptom

Possible cause

Inspection item
