Nissan Pathfinder (2011 year). Instruction

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-263

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

: Always check with the Parts Department for the latest parts information

: Total indicator reading

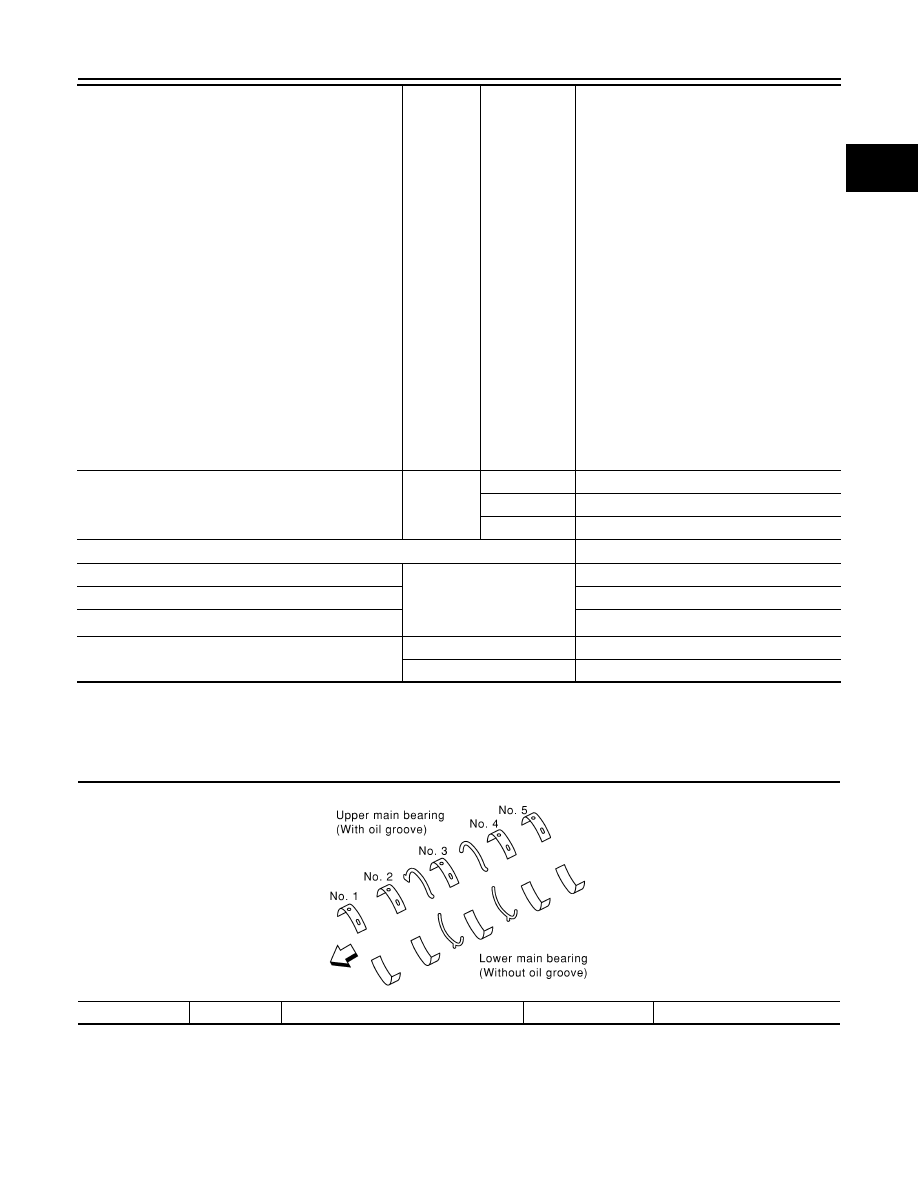

MAIN BEARING

Unit: mm (in)

Main journal dia. “Dm” grade (No. 2, 3 and 4)

Standard

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 1
Grade No. 2

63.963 - 63.964 (2.5182 - 2.5183)
63.962 - 63.963 (2.5182 - 2.5182)
63.961 - 63.962 (2.5181 - 2.5182)
63.960 - 63.961 (2.5181 - 2.5181)
63.959 - 63.960 (2.5181 - 2.5181)
63.958 - 63.959 (2.5180 - 2.5181)
63.957 - 63.958 (2.5180 - 2.5180)
63.956 - 63.957 (2.5179 - 2.5180)
63.955 - 63.956 (2.5179 - 2.5179)
63.954 - 63.955 (2.5179 - 2.5179)
63.953 - 63.954 (2.5178 - 2.5179)
63.952 - 63.953 (2.5178 - 2.5178)
63.951 - 63.952 (2.5178 - 2.5178)
63.950 - 63.951 (2.5177 - 2.5178)
63.949 - 63.950 (2.5177 - 2.5177)
63.948 - 63.949 (2.5176 - 2.5177)
63.947 - 63.948 (2.5176 - 2.5176)
63.946 - 63.947 (2.5176 - 2.5176)
63.945 - 63.946 (2.5175 - 2.5176)
63.944 - 63.945 (2.5175 - 2.5175)
63.943 - 63.944 (2.5174 - 2.5175)
63.942 - 63.943 (2.5174 - 2.5174)
63.941 - 63.942 (2.5174 - 2.5174)
63.940 - 63.941 (2.5173 - 2.5174)

Pin journal dia. “Dp”

Standard

Grade No. 0

53.968 - 53.974 (2.1247 - 2.1250)

Grade No. 1

53.962 - 53.968 (2.1245 - 2.1247)

Grade No. 2

53.956 - 53.962 (2.1243 - 2.1245)

Center distance “r”

45.96 - 46.04 (1.8094 - 1.8126)

Out-of-round (Difference between

″

and

″

)

Limit

0.002 (0.0001)

Taper (Difference between

″

and

″

)

0.002 (0.0001)

Runout [TIR

]

Less than 0.05 (0.002)

Crankshaft end play

Standard

0.10 - 0.26 (0.0039 - 0.0102)

Limit

0.30 (0.0118)

Grade number*

UPR/LWR

Thickness

Identification color

Remarks

PBIC0189E

2011 Pathfinder

EM-264

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Always check with the Parts Department for the latest parts information

Undersize

Unit: mm (in)

Main Bearing Oil Clearance

Unit: mm (in)

Connecting Rod Bearing

*: Always check with the Parts Department for the latest parts information

Undersize

—

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is the same for upper
and lower bearings

—

2.486 - 2.489 (0.0979 - 0.0980)

Brown

—

2.489 - 2.492 (0.0980 - 0.0981)

Green

—

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

—

2.495 - 2.498 (0.0982 - 0.0983)

Blue

—

2.498 - 2.501 (0.0983 - 0.0985)

Pink

—

2.501 - 2.504 (0.0985 - 0.0986)

Purple

—

2.504 - 2.507 (0.0986 - 0.0987)

White

—

2.507 - 2.510 (0.0987 - 0.0988)

Red

UPR

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is different for upper and
lower bearings.

LWR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

UPR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

LWR

2.489 - 2.492 (0.0980 - 0.0981)

Green

UPR

2.489 - 2.492 (0.0980 - 0.0981)

Green

LWR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

UPR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

LWR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

UPR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

LWR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

UPR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

LWR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

UPR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

LWR

2.504 - 2.507 (0.0986 - 0.0987)

White

UPR

2.504 - 2.507 (0.0986 - 0.0987)

White

LWR

2.507 - 2.510 (0.0987 - 0.0988)

Red

Undersize

Thickness

Main journal diameter

0.25 (0.0098)

2.618 - 2.626 (0.1031 - 0.1034)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Main bearing oil clearance

No.1 and 5

0.001 - 0.011 (0.00004 - 0.0004)

0.021 (0.0008)

No.2, 3 and 4

0.007 - 0.017 (0.0003 - 0.0007)

0.027 (0.0011)

Grade number*

Thickness “T” mm (in)

Identification color (mark)

1.500 - 1.503 (0.0591 - 0.0592)

Black

1.503 - 1.506 (0.0592 - 0.0593)

Brown

1.506 - 1.509 (0.0593 - 0.0594)

Green

1.509 - 1.512 (0.0594 - 0.0595)

Yellow

2011 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-265

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

Unit: mm (in)

Connecting Rod Bearing Oil Clearance

Unit: mm (in)

Undersize

Thickness

Crank pin journal diameter “Dp”

0.25 (0.0098)

1.627 - 1.635 (0.0641 - 0.0644)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Connecting rod bearing oil clearance

0.020 - 0.039 (0.0008 - 0.0015)

0.055 (0.0022)

2011 Pathfinder

EXL-2

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) .............................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

HEADLAMP (HI) CIRCUIT ................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

HEADLAMP (LO) CIRCUIT ...............................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

DAYTIME LIGHT RELAY CIRCUIT ...................

Description ..............................................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

FRONT FOG LAMP CIRCUIT ...........................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

PARKING LAMP CIRCUIT ................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

TURN SIGNAL LAMP CIRCUIT ........................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

OPTICAL SENSOR ...........................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

ECU DIAGNOSIS INFORMATION ..............

BCM (BODY CONTROL MODULE) ..................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values ......................................................

Fail Safe .................................................................

DTC Inspection Priority Chart ..............................

DTC Index ..............................................................

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values ......................................................

Fail Safe .................................................................

DTC Index ..............................................................

WIRING DIAGRAM ....................................

HEADLAMP .......................................................

Wiring Diagram .......................................................

DAYTIME LIGHT SYSTEM ...............................

Wiring Diagram .......................................................

AUTO LIGHT SYSTEM .....................................

Wiring Diagram .......................................................

FRONT FOG LAMP SYSTEM ...........................

Wiring Diagram .......................................................

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM ................................................

101

Wiring Diagram .....................................................

101

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM ..............................................

107

Wiring Diagram .....................................................

107

STOP LAMP .....................................................

114

Wiring Diagram .....................................................

114

BACK-UP LAMP ..............................................

119

Wiring Diagram .....................................................

119

TRAILER TOW .................................................

123

Wiring Diagram .....................................................

123

SYMPTOM DIAGNOSIS ...........................

132

EXTERIOR LIGHTING SYSTEM SYMPTOMS ..

132

Symptom Table .....................................................

132

NORMAL OPERATING CONDITION ...............

134

Description ............................................................

134

BOTH SIDE HEADLAMPS DO NOT SWITCH
TO HIGH BEAM ................................................

135

Description ............................................................

135

Diagnosis Procedure .............................................

135

DAYTIME LIGHT SYSTEM INOPERATIVE .....

136

Description ............................................................

136

Diagnosis Procedure .............................................

136

BOTH SIDE HEADLAMPS (LO) ARE NOT
TURNED ON .....................................................

137

Description ............................................................

137

Diagnosis Procedure .............................................

137

PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON ......................

138

Description ............................................................

138

Diagnosis Procedure .............................................

138

BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .....................................................

139

Description ............................................................

139

2011 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

EXL-5

< BASIC INSPECTION >

EXL

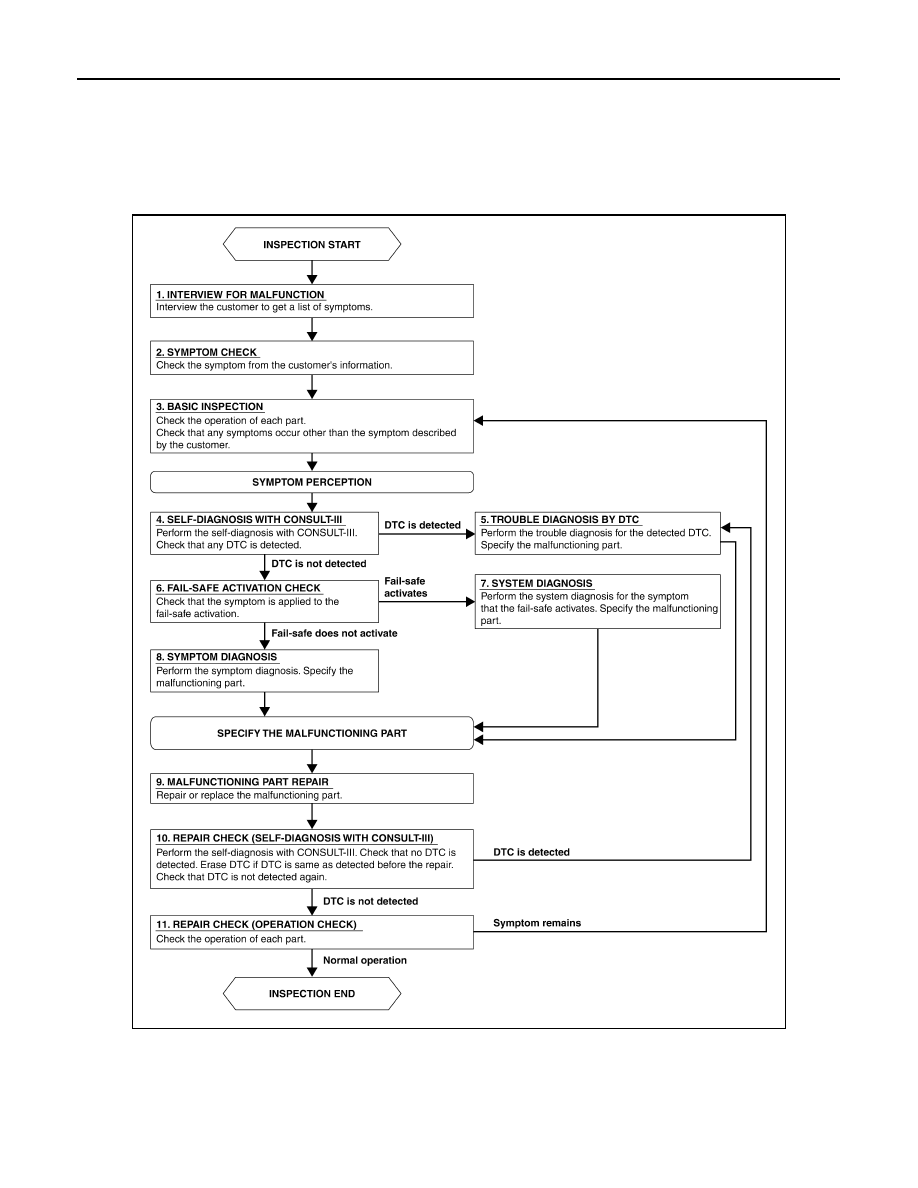

DETAILED FLOW

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

>> GO TO 6

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7

>> GO TO 8

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verify that no DTCs are detected. Erase all DTCs detected prior

to the repair. Verify that DTC is not detected again.
Is any DTC detected?

2011 Pathfinder

Nissan Pathfinder (2011 year). Instruction - part 394
