Nissan Pathfinder (2011 year). Instruction - part 230

DLN-378

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FRONT FINAL DRIVE: R180A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Gear Thrust Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness Part

number*

Thickness Part

number*

3.09 (0.1217)
3.12 (0.1228)
3.15 (0.1240)
3.18 (0.1252)
3.21 (0.1264)
3.24 (0.1276)
3.27 (0.1287)
3.30 (0.1299)

3.33 (0.1311)

3.36 (0.1323)

38154 EA000
38154 EA001
38154 EA002
38154 EA003
38154 EA004
38154 EA005
38154 EA006
38154 EA007
38154 EA008
38154 EA009

3.39 (0.1335)
3.42 (0.1346)
3.45 (0.1358)
3.48 (0.1370)
3.51 (0.1382)
3.54 (0.1394)
3.57 (0.1406)
3.60 (0.1417)
3.63 (0.1429)
3.66 (0.1441)

38154 EA010

38154 EA011

38154 EA012
38154 EA013
38154 EA014
38154 EA015
38154 EA016
38154 EA017
38154 EA018
38154 EA019

Thickness Part

number*

Thickness Part

number*

0.75 (0.0295)
0.78 (0.0307)
0.81 (0.0319)
0.84 (0.0331)

38424 W2010

38424 W2011

38424 W2012
38424 W2013

0.87 (0.0343)
0.90 (0.0354)
0.93 (0.0366)
0.96 (0.0378)

38424 W2014
38424 W2015
38424 W2016
38424 W2017

Thickness

Part number*

Thickness

Part number*

1.95 (0.0768)
2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)

38453 EA000
38453 EA001
38453 EA002
38453 EA003
38453 EA004
38453 EA005
38453 EA006
38453 EA007

2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)

38453 EA008
38453 EA009
38453 EA010

38453 EA011

38453 EA012
38453 EA013
38453 EA014

2011 Pathfinder

PRECAUTIONS

DLN-379

< PRECAUTION >

[FRONT FINAL DRIVE: M205]

DLN

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006245187

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000006245188

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2011 Pathfinder

DLN-380

< PRECAUTION >

[FRONT FINAL DRIVE: M205]

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Servicing Front Final Drive

INFOID:0000000006245189

• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic

operations.

• Check for the correct installation status prior to removal or disassembly. When matching marks are required,

be certain they do not interfere with the function of the parts they are applied to.

• Overhaul should be done in a clean work area, a dust proof area is recommended.

• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from

entering into the unit during disassembly or assembly.

• Always use shop paper for cleaning the inside of components.

• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.

• Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace them

with new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.

• Clean and flush the parts sufficiently and blow them dry.

• Be careful not to damage sliding surfaces and mating surfaces.

• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and

foreign materials from the application and mating surfaces.

• In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a

tightening sequence is specified, observe it.

• During assembly, observe the specified tightening torque.

• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

2011 Pathfinder

PREPARATION

DLN-381

< PREPARATION >

[FRONT FINAL DRIVE: M205]

DLN

PREPARATION

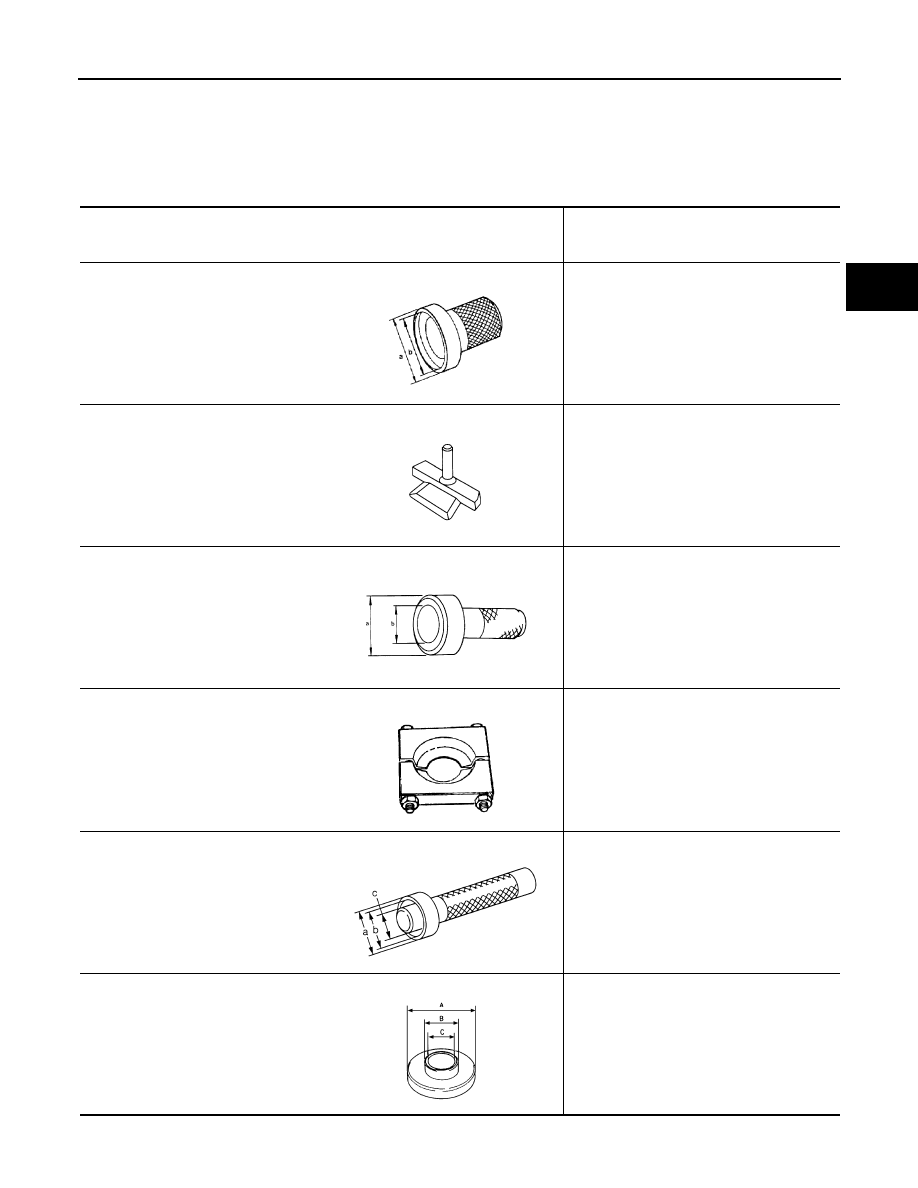

Special Service Tool

INFOID:0000000006245190

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST35271000
( — )
Drift

Installing drive pinion front bearing outer
race.

a: 72 mm (2.83 in) dia.
b: 36 mm (1.42 in) dia.

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

KV38100500
(J-25273)
Drift

Installing front oil seal.

a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

ST30021000
( — )
Puller

• Removing side bearing inner race.
• Removing drive pinion rear bearing inner

race.

KV38100300
(J-25523)
Drift

Installing side bearing inner race.

a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

ST30901000
( — )
Drift

Installing drive pinion rear bearing outer race.

A: 79 mm (3.11 in) dia.
B: 45 mm (1.77 in) dia.
C: 35.2 mm (1.39 in) dia.

ZZA0702D

NT046

ZZA0811D

ZZA0700D

ZZA1046D

SDIA0217J

2011 Pathfinder

DLN-382

< PREPARATION >

[FRONT FINAL DRIVE: M205]

PREPARATION

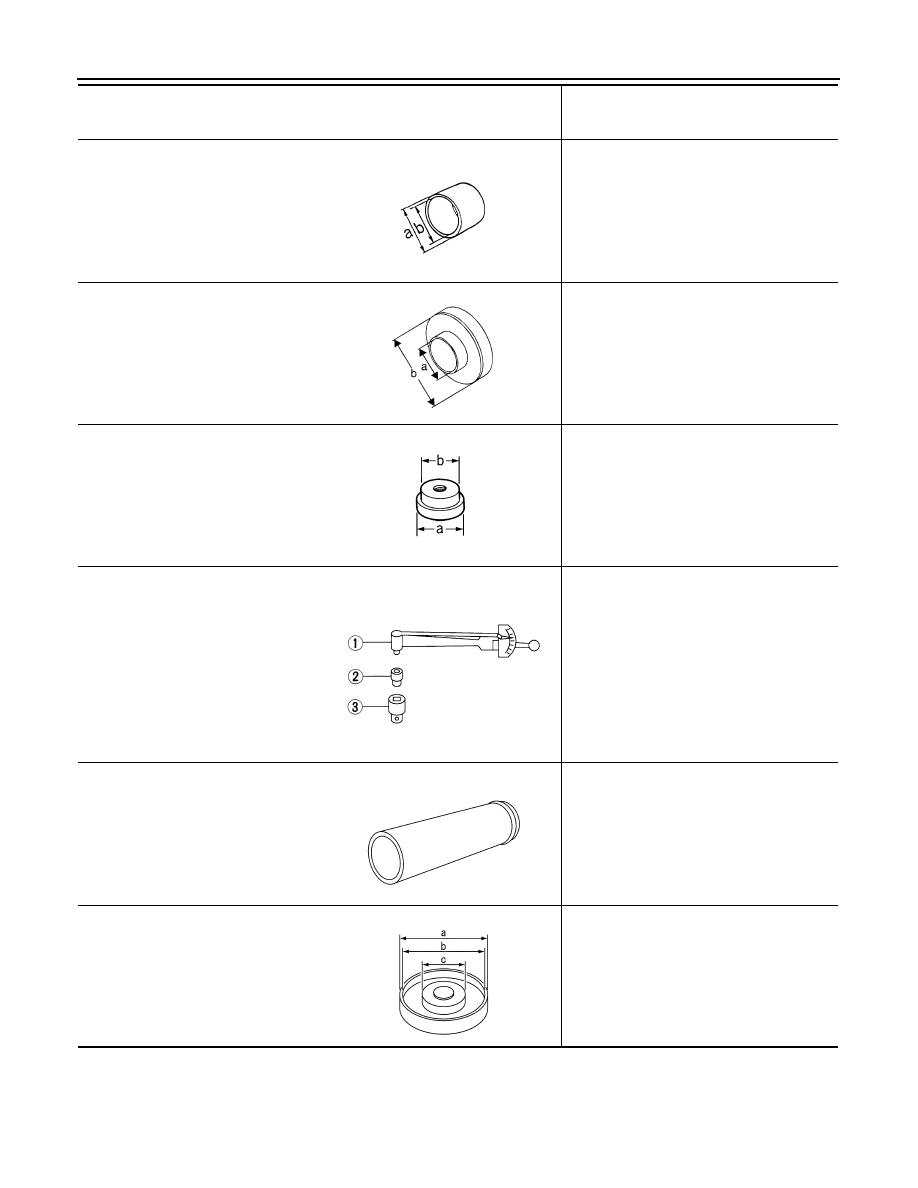

KV40104810
( — )
Drift

Installing drive pinion front bearing outer
race.

a: 68 mm (2.68 in) dia.
b: 55 mm (2.17 in) dia.

KV38102200
( — )
Drift

Installing front oil seal.

a: 55.3 mm (2.18 in) dia

90 mm (3.54 in) dia.

ST33081000
( — )
Adapter

Removing and installing side bearing inner
race.

a: 43 mm (1.69 in) dia

b: 33.5 mm (1.32 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1. GG91030000
  (J-25765)
  Torque wrench
2. HT62940000
  ( — )
  Socket adapter (1/2

″

)

3. HT62900000
( — )
Socket adapter (3/8

″

)

Inspecting drive pinion bearing preload and
total preload

—

(C-4040)
Installer

Installing drive pinion rear bearing inner race.

KV40105230
( — )
Drift

Installing drive pinion rear bearing outer race.

a: 92 mm (3.62 in) dia.
b: 86 mm (3.39 in) dia.
c: 45 mm (1.77 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

NT660

ZZA1000D

NT124

SDIA2607E

PDIA0591E

2011 Pathfinder

PREPARATION

DLN-383

< PREPARATION >

[FRONT FINAL DRIVE: M205]

DLN

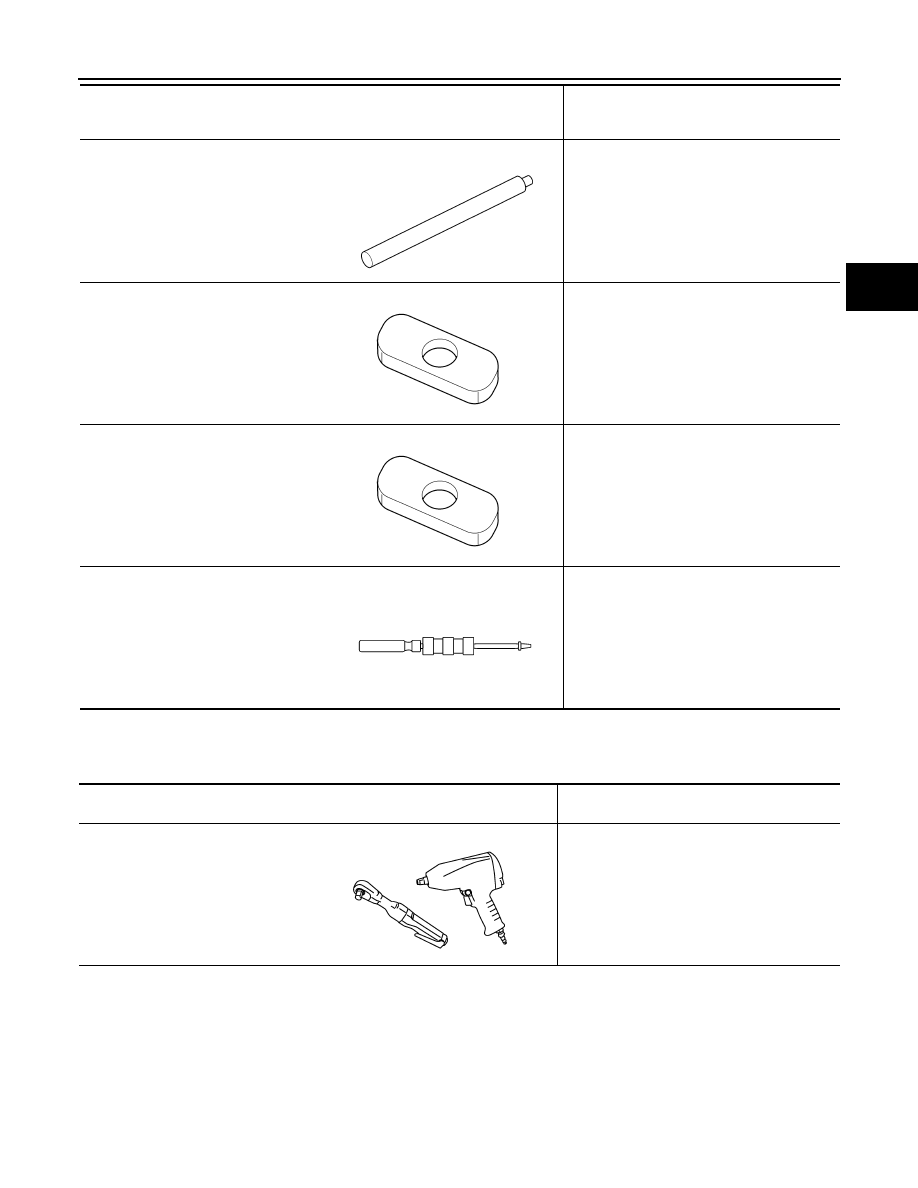

Commercial Service Tool

INFOID:0000000006245191

—

(C-4171)
Handle

• Removing drive pinion front bearing outer

race

• Removing drive pinion rear bearing outer

race

—

(D-103)
Remover

Removing drive pinion front bearing outer
race

—

(C-4307)
Remover

Removing drive pinion rear bearing outer
race

(SP8P)
Slide hammer

• Removing front oil seal
• Removing side oil seal

Tool number
(Kent-Moore No.)
Tool name

Description

LDIA0134E

LDIA0135E

LDIA0133E

(Kent-Moore No.)
Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

2011 Pathfinder

DLN-384

< SYSTEM DESCRIPTION >

[FRONT FINAL DRIVE: M205]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYSTEM DESCRIPTION

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000006245192

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

Possible cause and SUSPECTED PARTS

ar t

rou

Gea

r co

t i

rop

h s

rre

ct ba

n f

lan

run

Gea

r oi

l i

rop

FRO

T A

ONT

SUSPENSI

ROAD W

EEL

DRIV

E SHAFT

EERING

Symptom

Noise

2011 Pathfinder

DIFFERENTIAL GEAR OIL

DLN-385

< PERIODIC MAINTENANCE >

[FRONT FINAL DRIVE: M205]

DLN

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000006245193

DRAINING

1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the

specified torque. Refer to

DLN-393, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Prod-

ucts and Sealants"

FILLING

1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

DLN-393, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

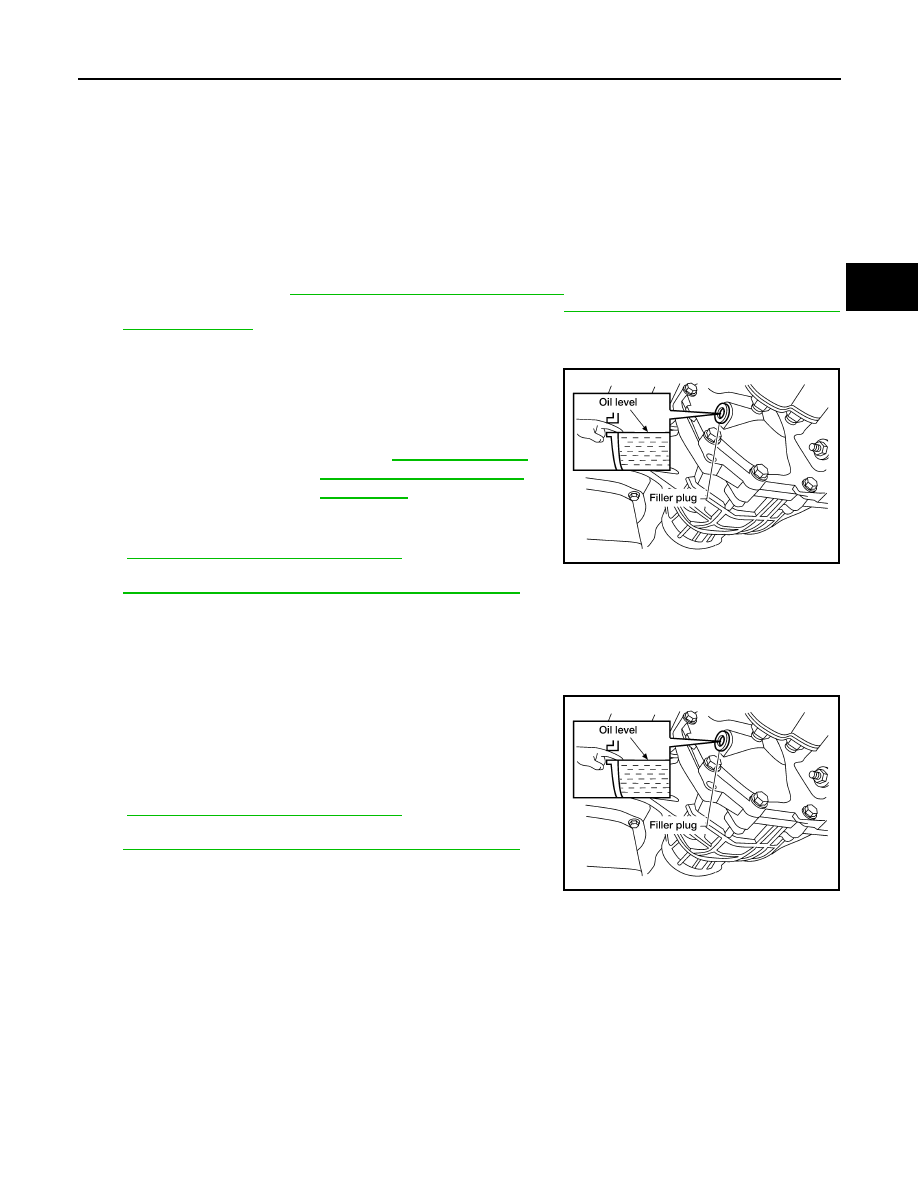

Checking Differential Gear Oil

INFOID:0000000006245194

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

DLN-393, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

LDIA0176E

2011 Pathfinder

Content .. 228 229 230 231 ..
