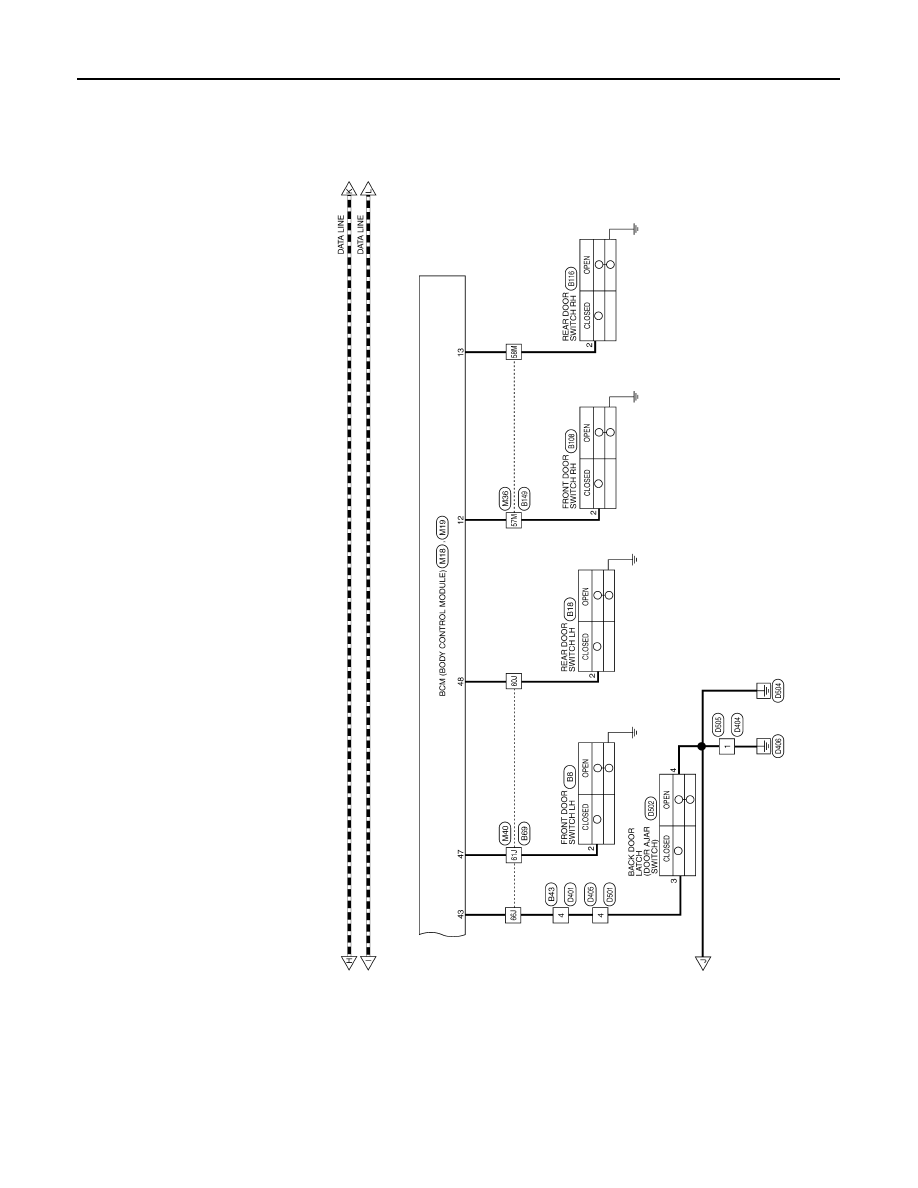

DLK-154

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

ABKWA1263GB

2011 Pathfinder

INTELLIGENT KEY SYSTEM

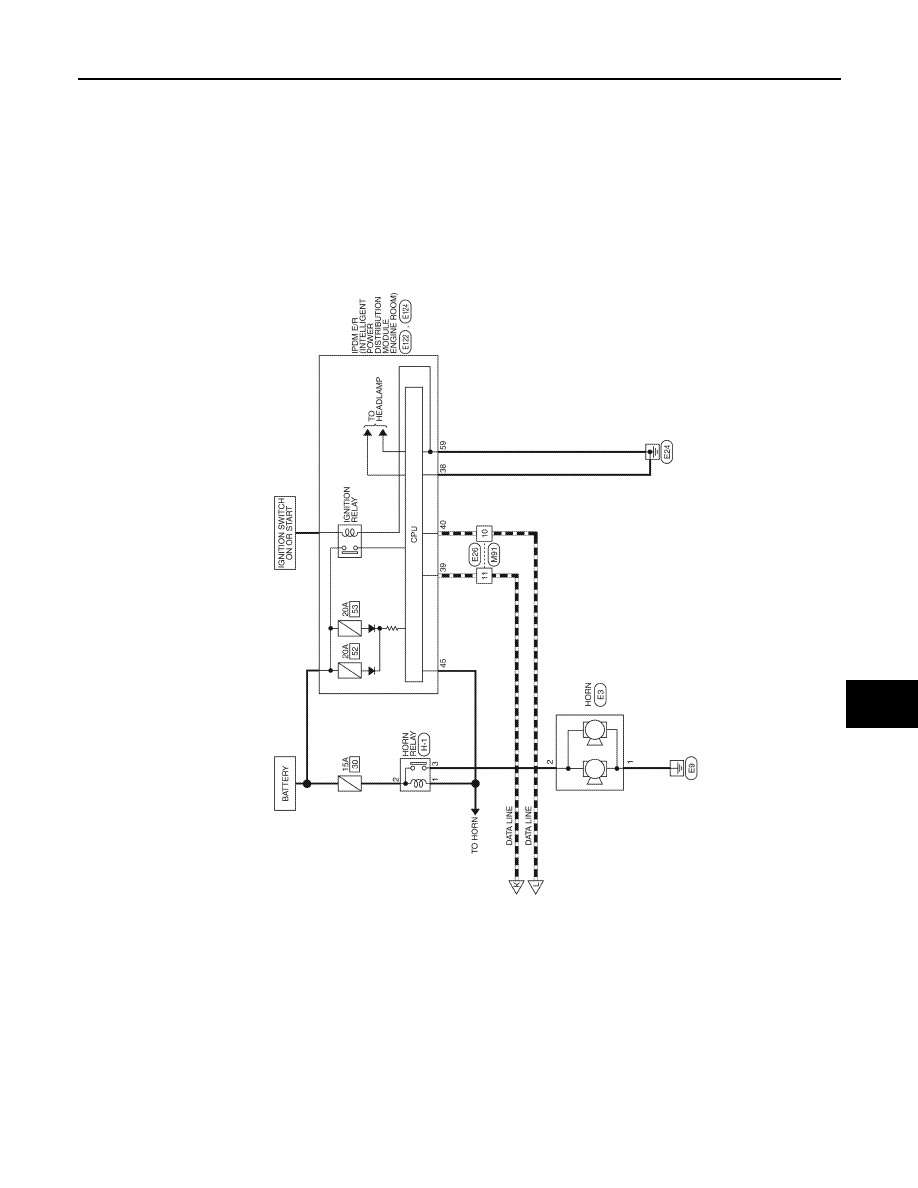

DLK-155

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKWA0590GB

2011 Pathfinder

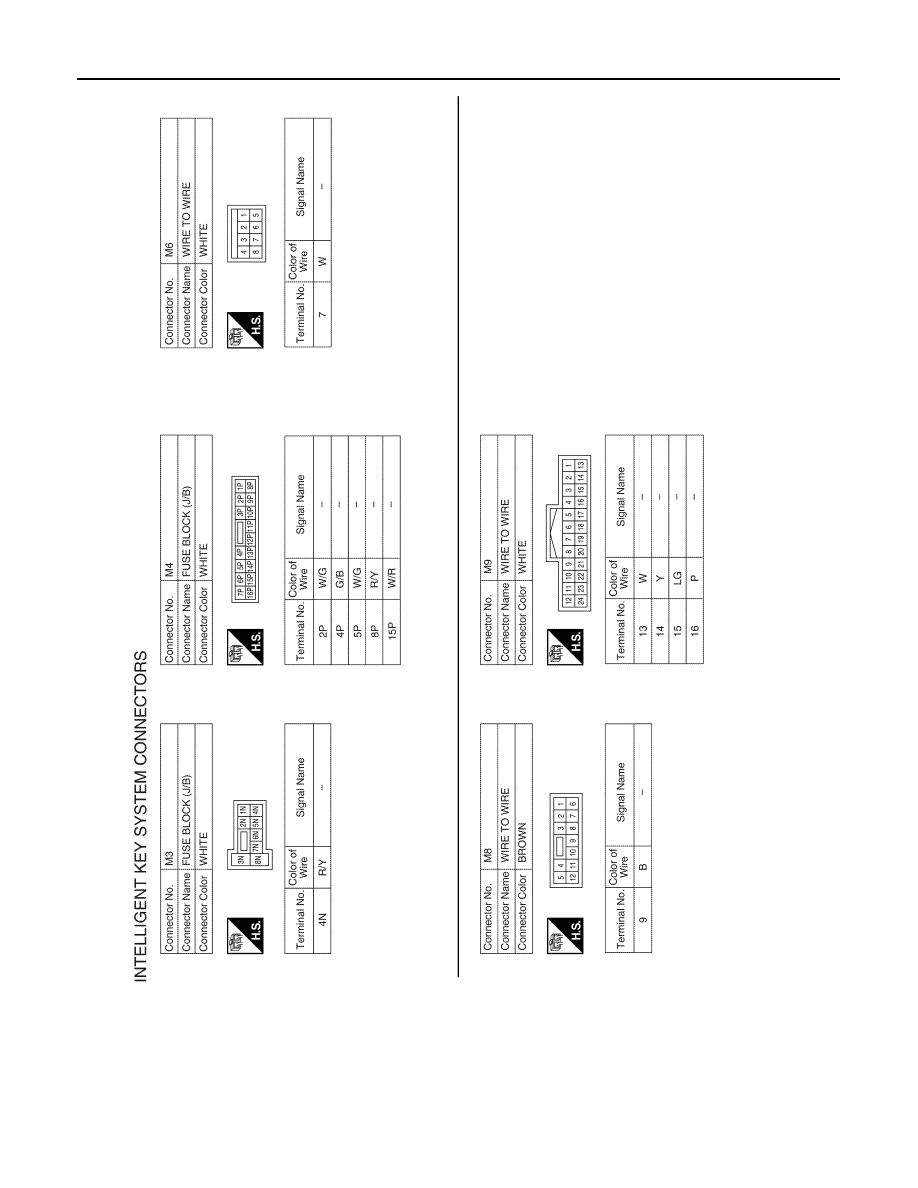

DLK-156

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

ABKIA1724GB

2011 Pathfinder

INTELLIGENT KEY SYSTEM

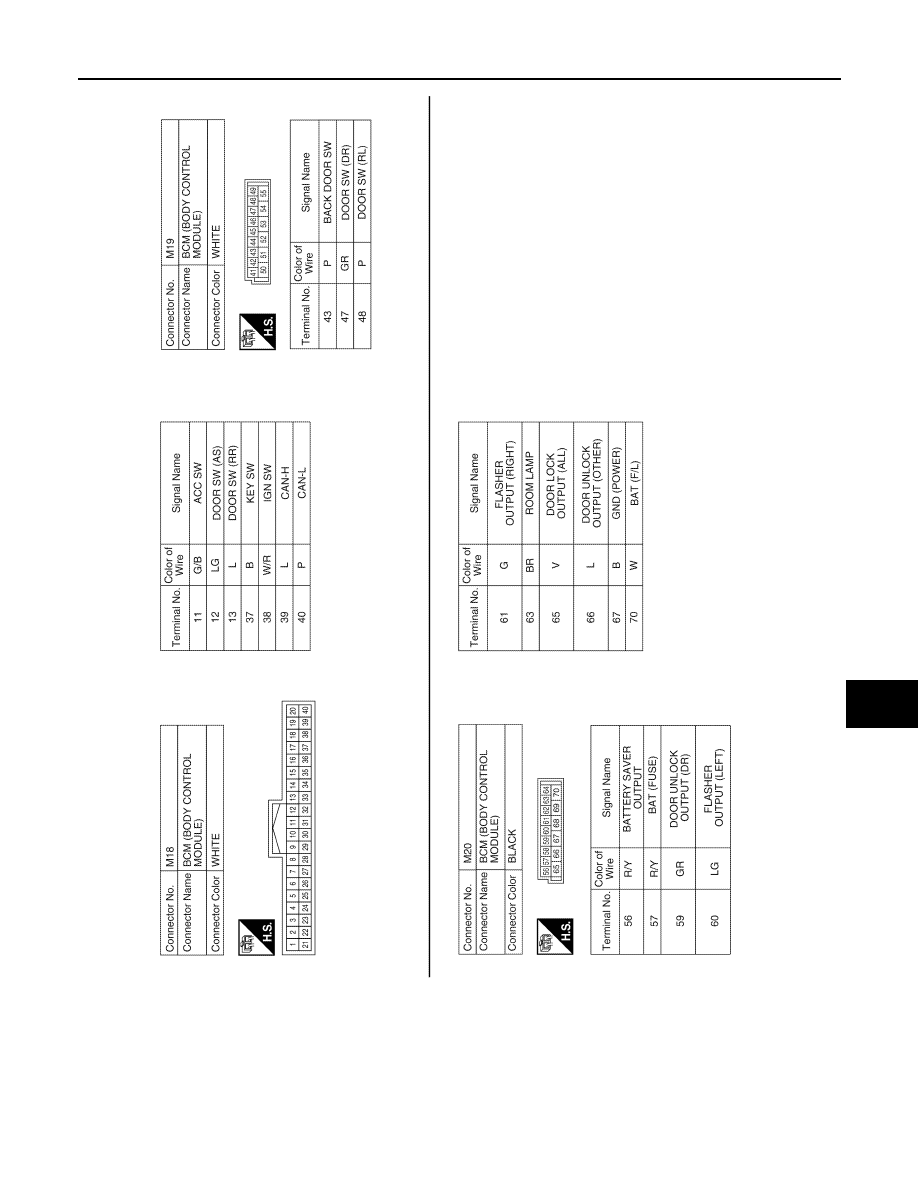

DLK-157

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA1725GB

2011 Pathfinder

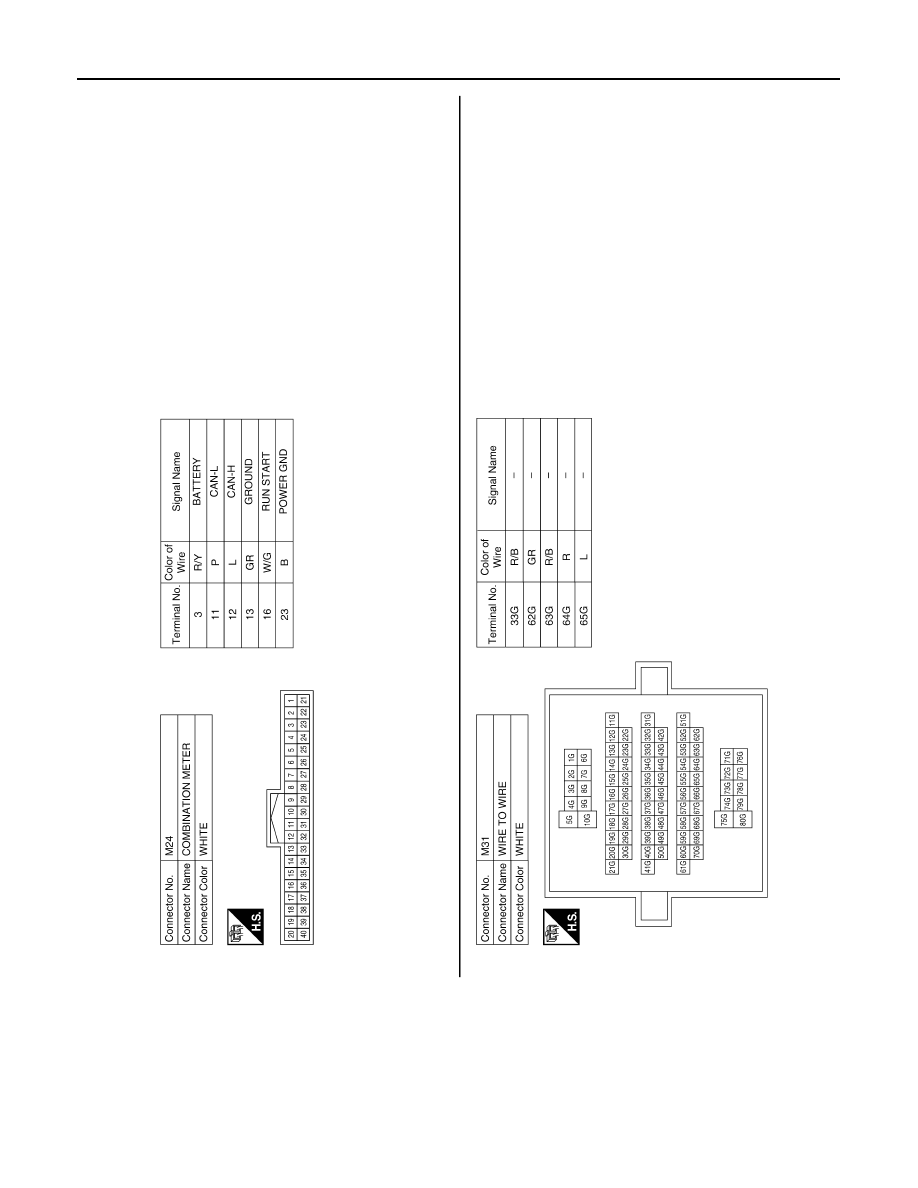

DLK-158

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

ABKIA0376GB

2011 Pathfinder

INTELLIGENT KEY SYSTEM

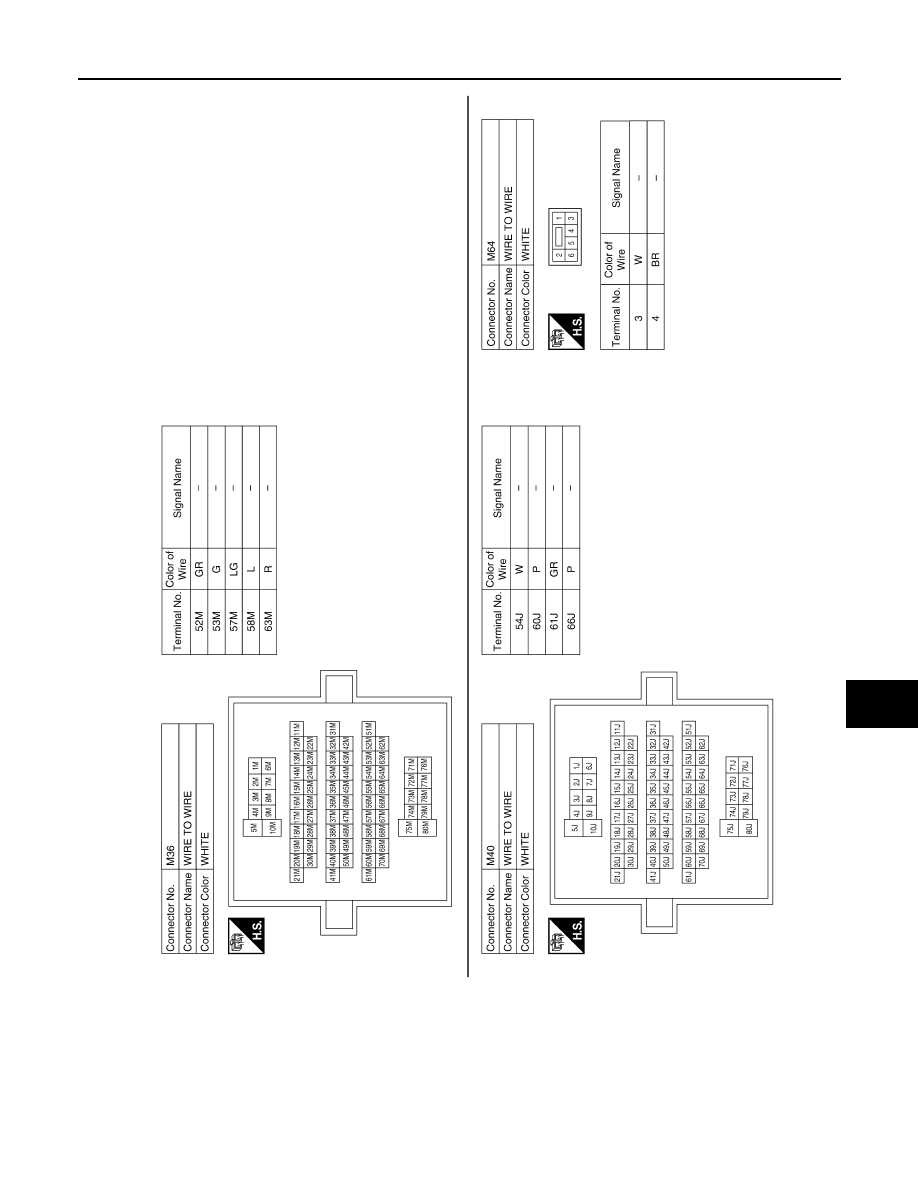

DLK-159

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA0377GB

2011 Pathfinder

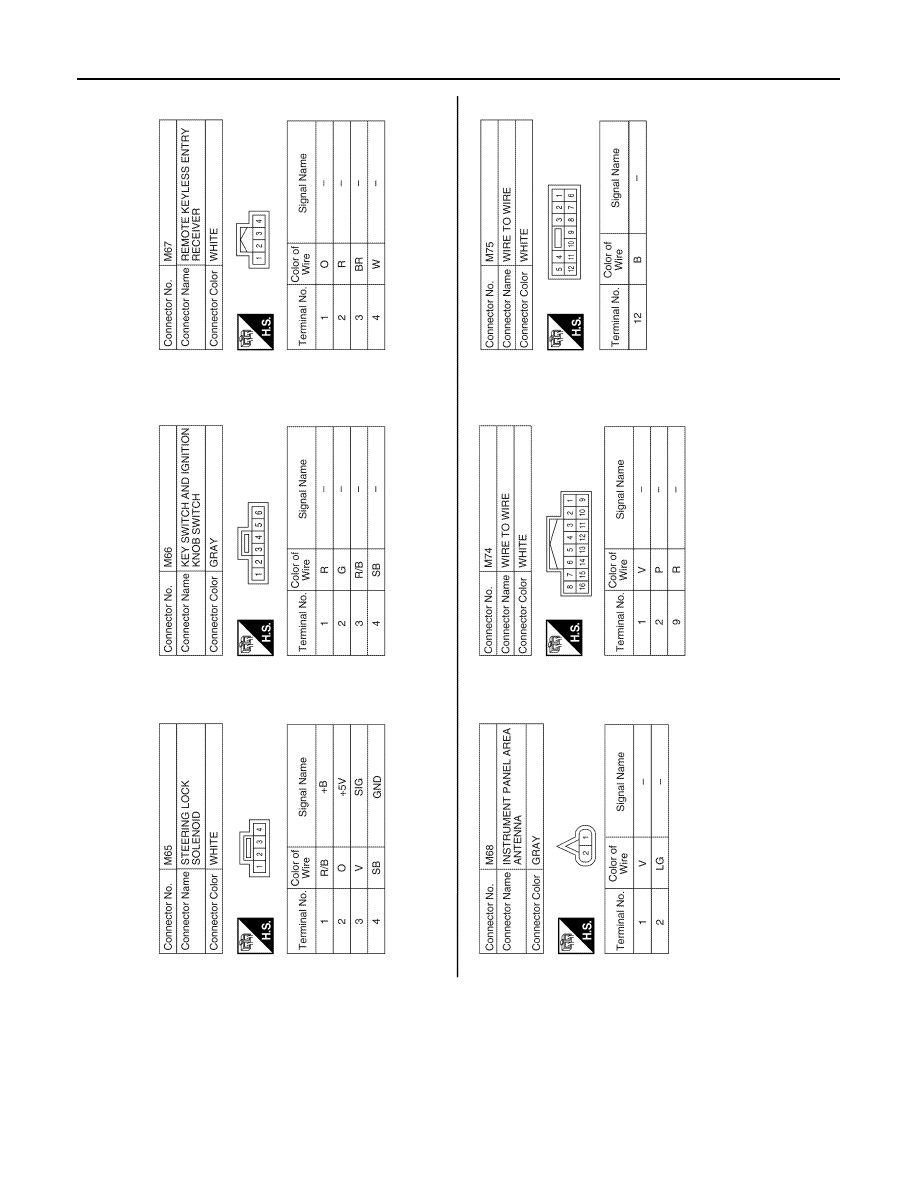

DLK-160

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

ABKIA1726GB

2011 Pathfinder

INTELLIGENT KEY SYSTEM

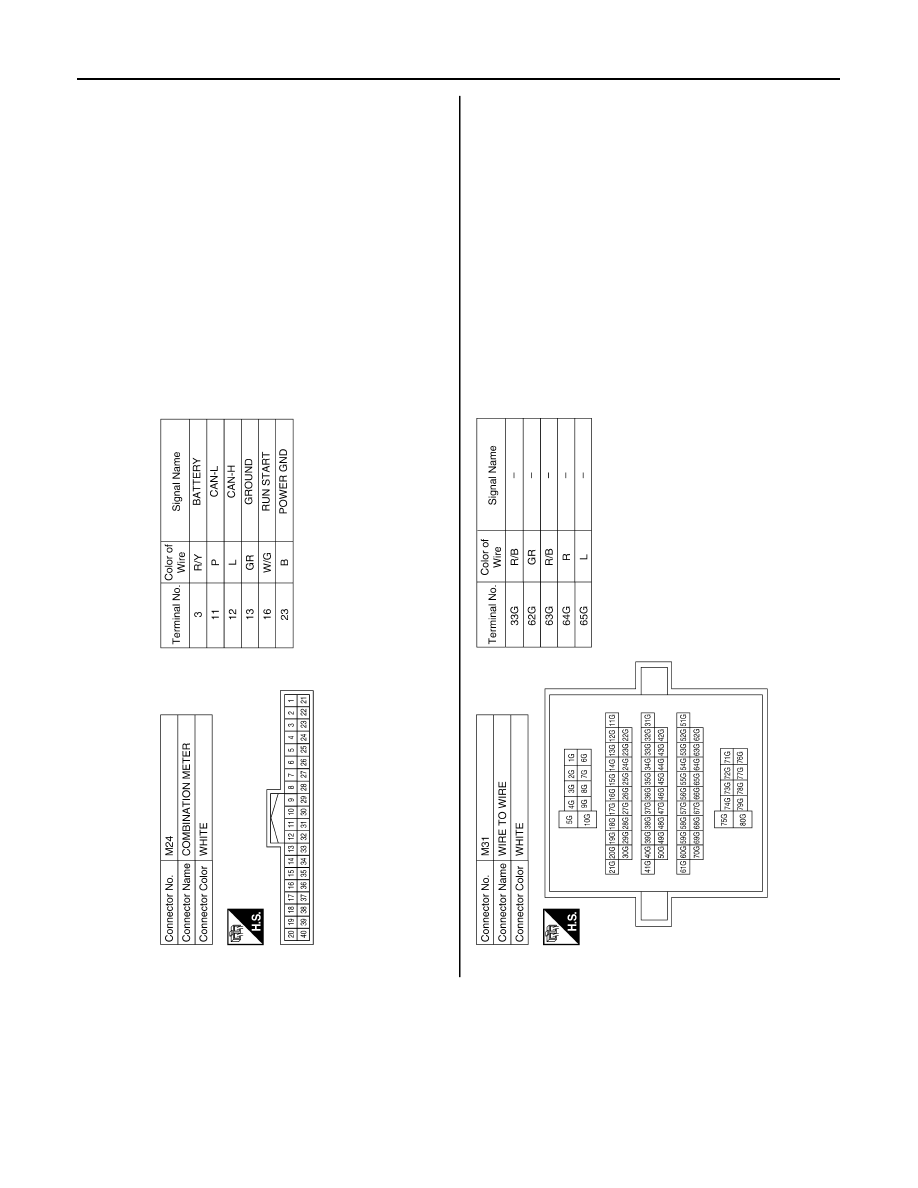

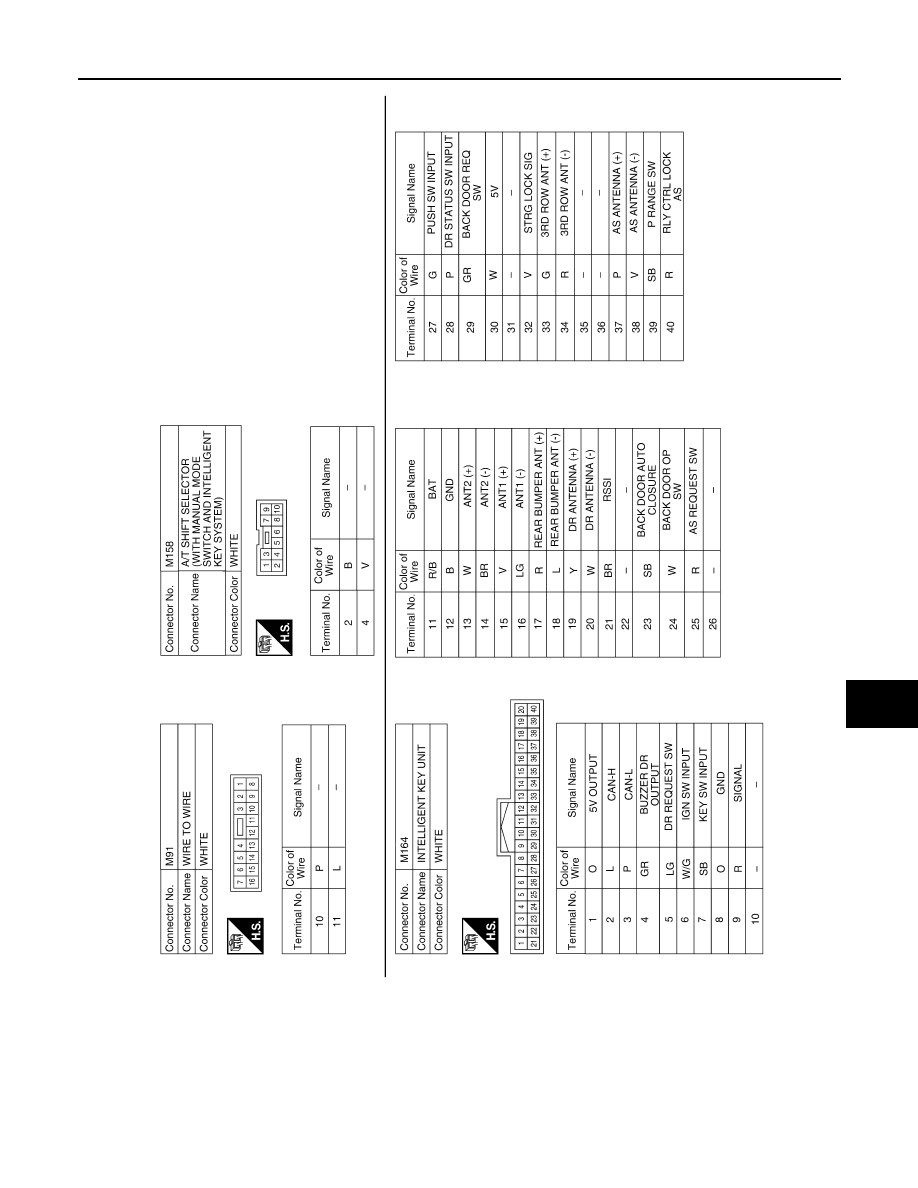

DLK-161

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA3012GB

2011 Pathfinder
