BCS-6

< SYSTEM DESCRIPTION >

BODY CONTROL SYSTEM

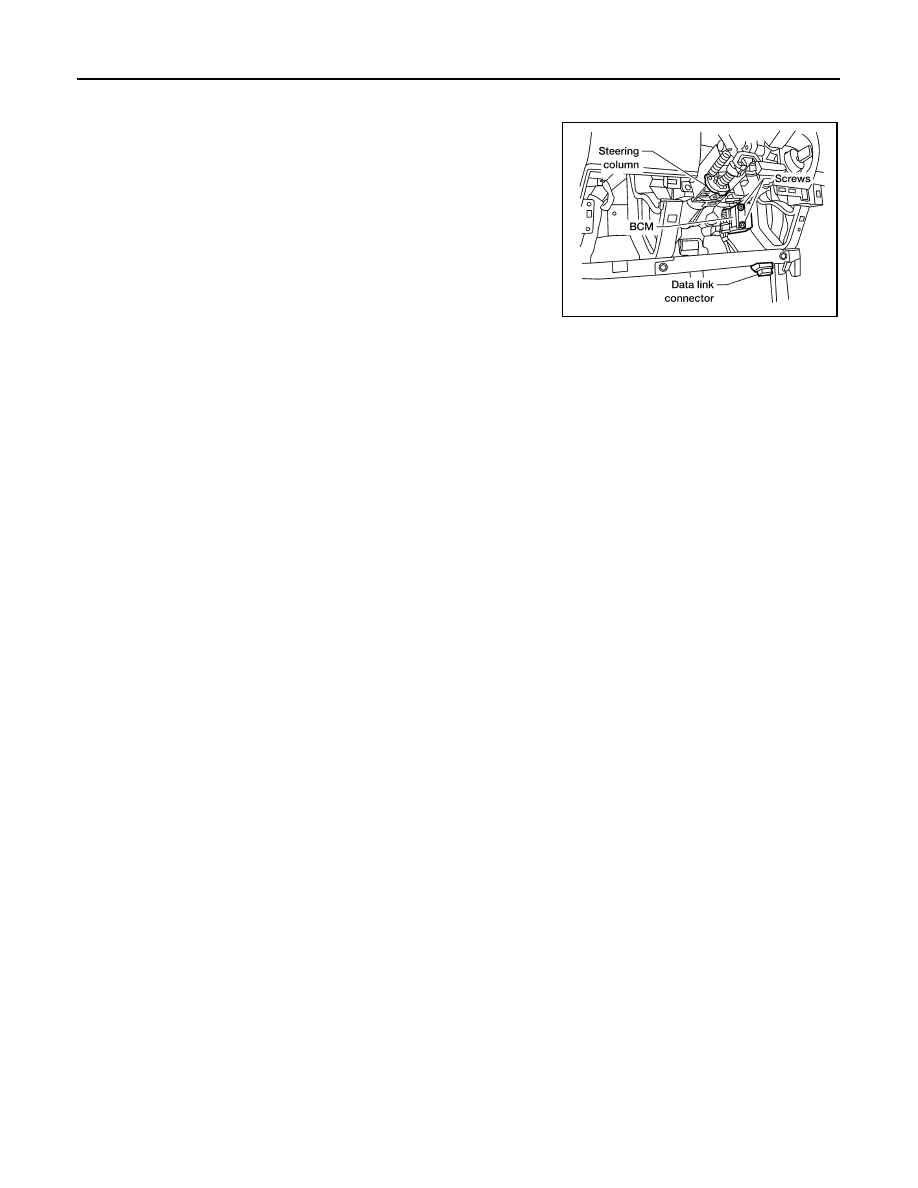

Component Parts Location

INFOID:0000000006247435

• BCM M18, M19, M20 (view with instrument panel removed)

LKIA0564E

2011 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

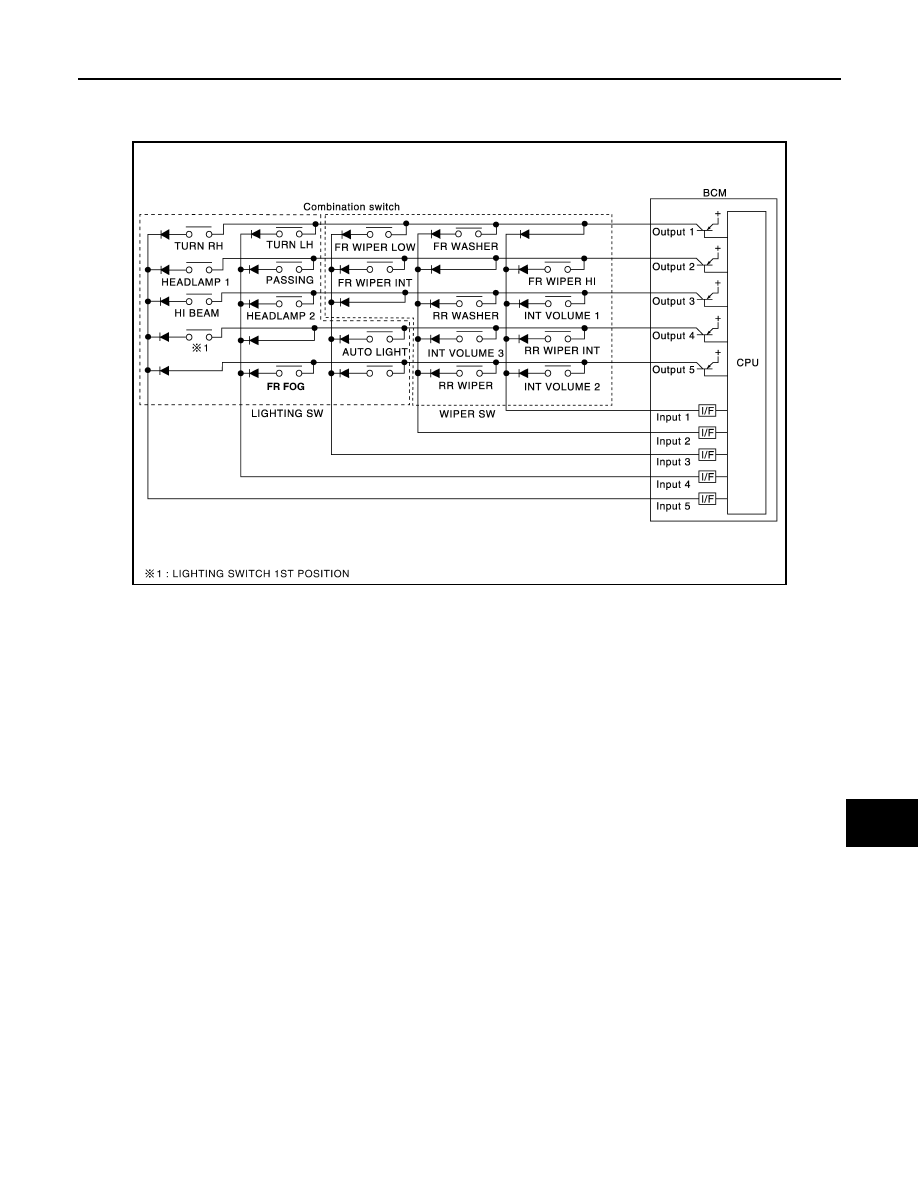

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000006247436

System Description

INFOID:0000000006247437

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

LIIA0757E

2011 Pathfinder

BCS-8

< SYSTEM DESCRIPTION >

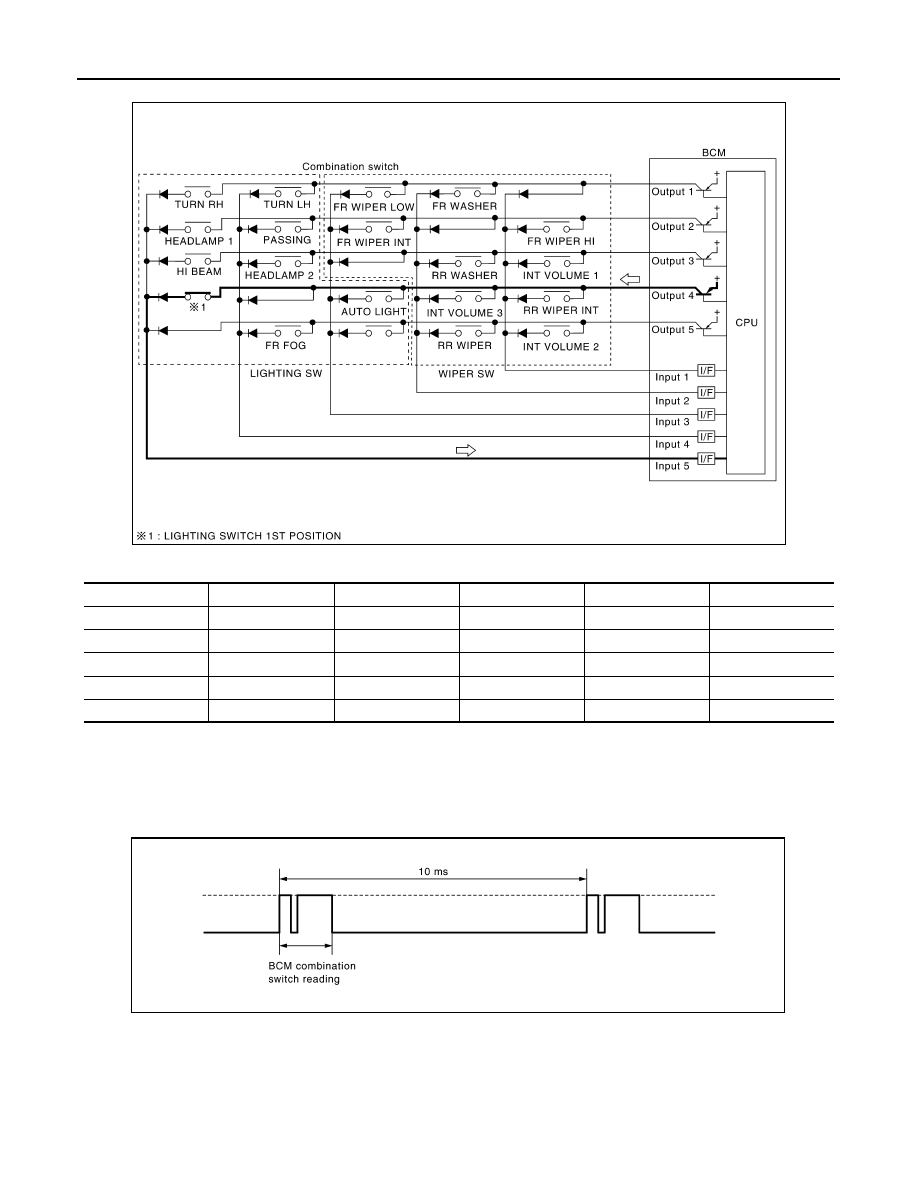

COMBINATION SWITCH READING SYSTEM

Combination switch circuit

Combination switch INPUT-OUTPUT system list

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:

BCM reads the status of the combination switch at 20 ms interval when BCM is controlled at low power con-

sumption control mode.

• BCM operates as follows and judges the status of the combination switch.

- INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.

- It operates the transistor on OUTPUT side in the following order: OUTPUT 5

→

 4

→

 3

→

 2

→

 1.

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

INPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

INPUT 2

FR WIPER HI

—

FR WIPER INT

PASSING

HEADLAMP 1

INPUT 3

INT VOLUME 1

RR WASHER

—

HEADLAMP 2

HI BEAM

INPUT 4

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INPUT 5

INT VOLUME 2

RR WIPER

—

FR FOG

—

LIIA0760E

JPMIA0067GB

2011 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

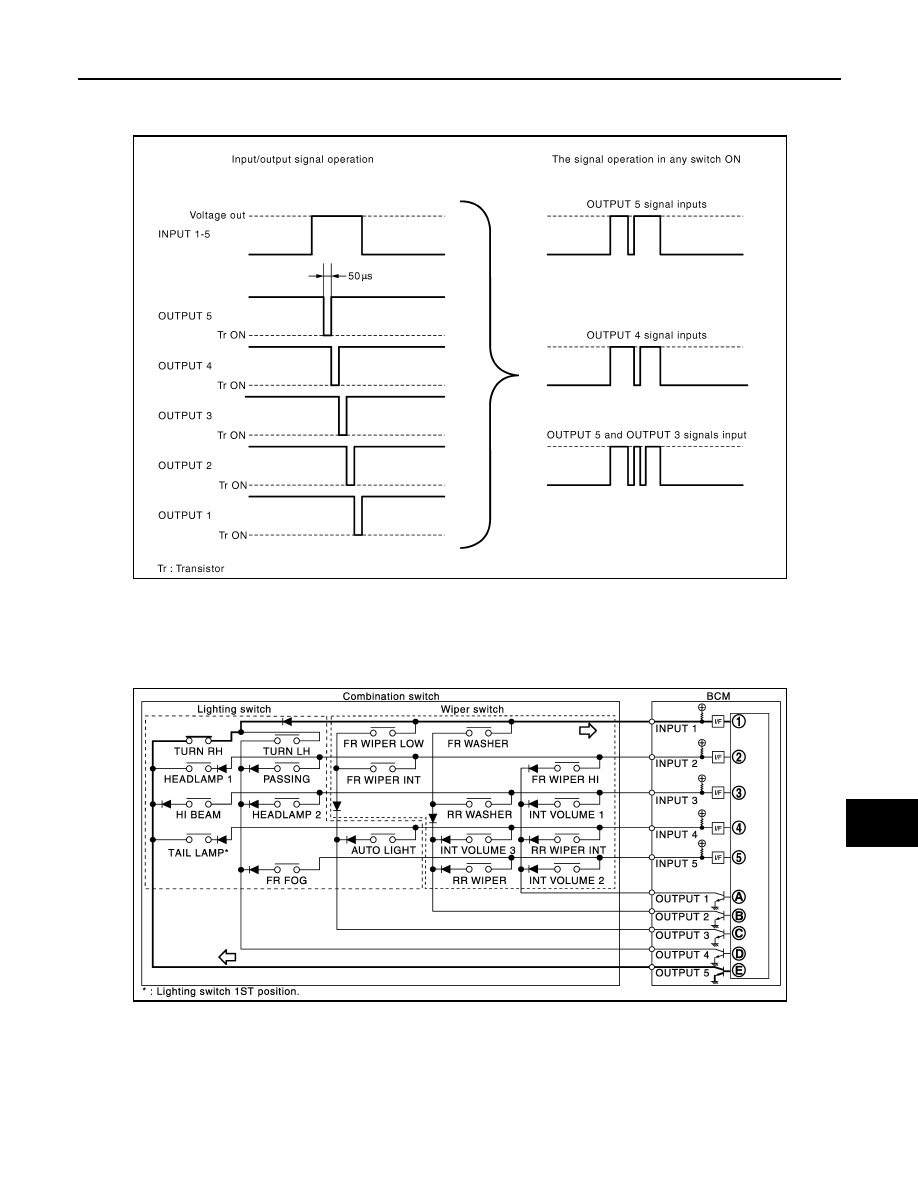

- The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of

the transistor on OUTPUT side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced

as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TURN RH switch) is turned ON

• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.

• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.

Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON

JPMIA0068GB

ALMIA0260GB

2011 Pathfinder

BCS-10

< SYSTEM DESCRIPTION >

COMBINATION SWITCH READING SYSTEM

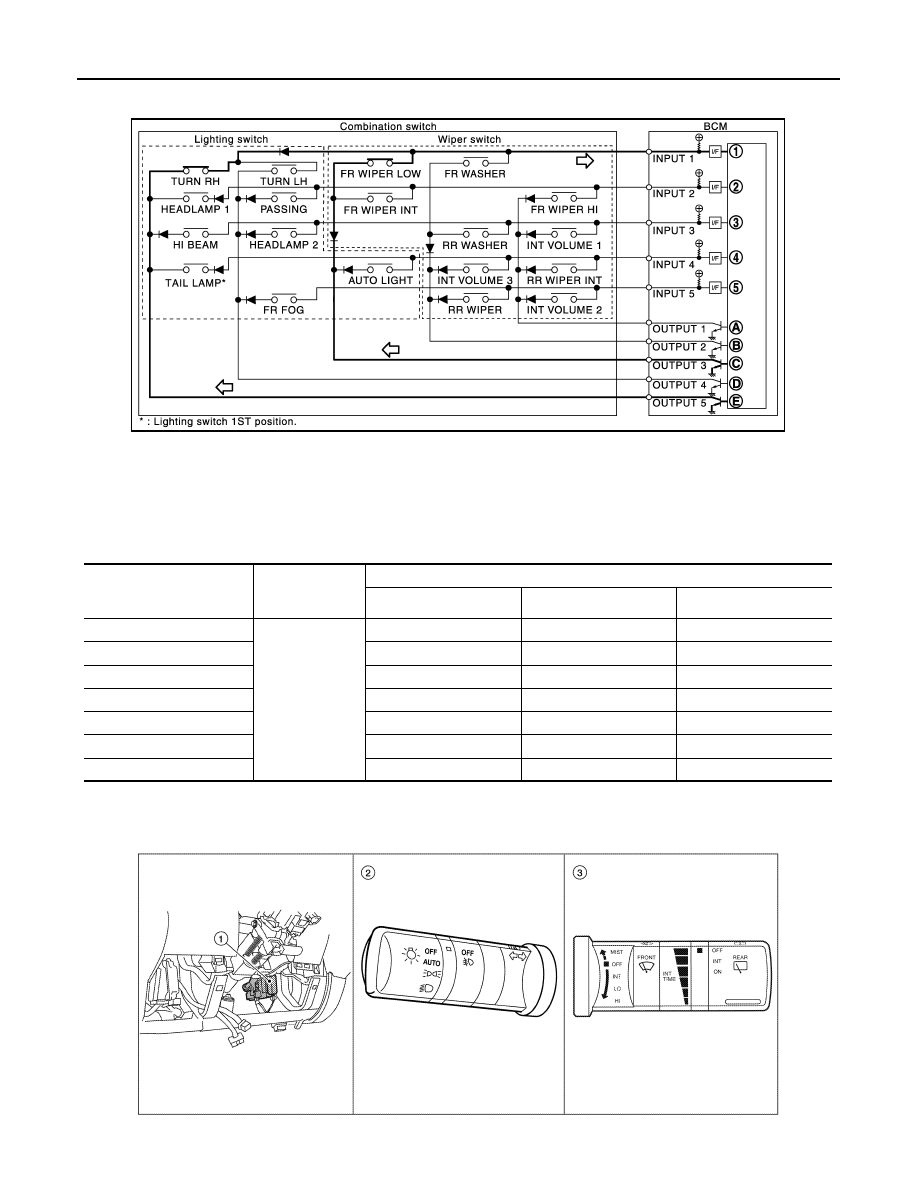

• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the

TURN RH switch and FR WIPER LOW switch are turned ON.

• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are

input to INPUT 1.

• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is

detected.

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

Component Parts Location

INFOID:0000000006247438

ALMIA0261GB

Wiper intermittent

dial position

Intermittent

operation delay

interval

INT VOLUME switch ON/OFF status

INT VOLUME 1 switch

INT VOLUME 2 switch

INT VOLUME 3 switch

1

Short

↑

↓

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

ALMIA0308ZZ

2011 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

2.

Combination switch (lighting and
turn signal switch) M28

3.

Combination switch (wiper and
washer switch) M28

2011 Pathfinder

BCS-12

< SYSTEM DESCRIPTION >

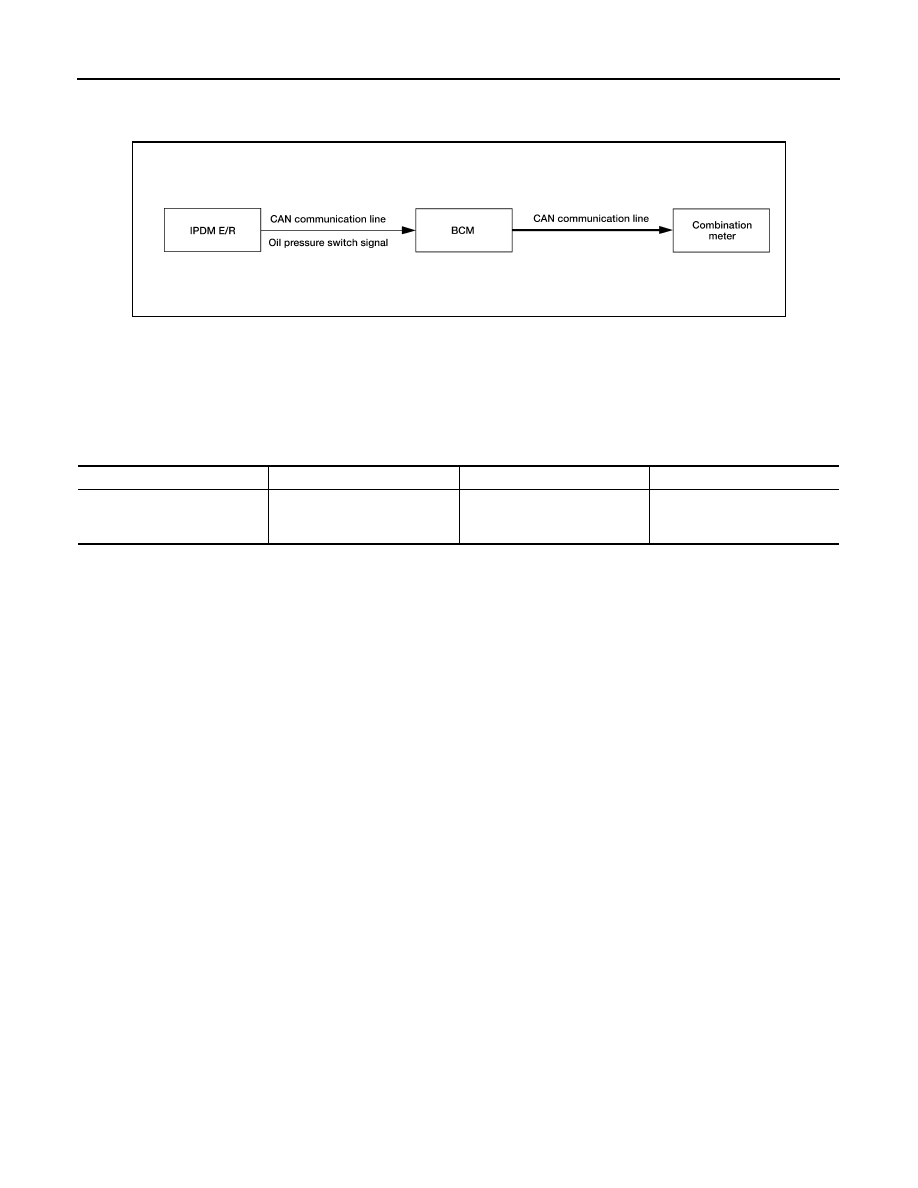

SIGNAL BUFFER SYSTEM

SIGNAL BUFFER SYSTEM

System Diagram

INFOID:0000000006247439

System Description

INFOID:0000000006247440

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

ALMIA0263GB

Signal name

Input

Output

Description

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal via CAN
communication.

2011 Pathfinder

BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

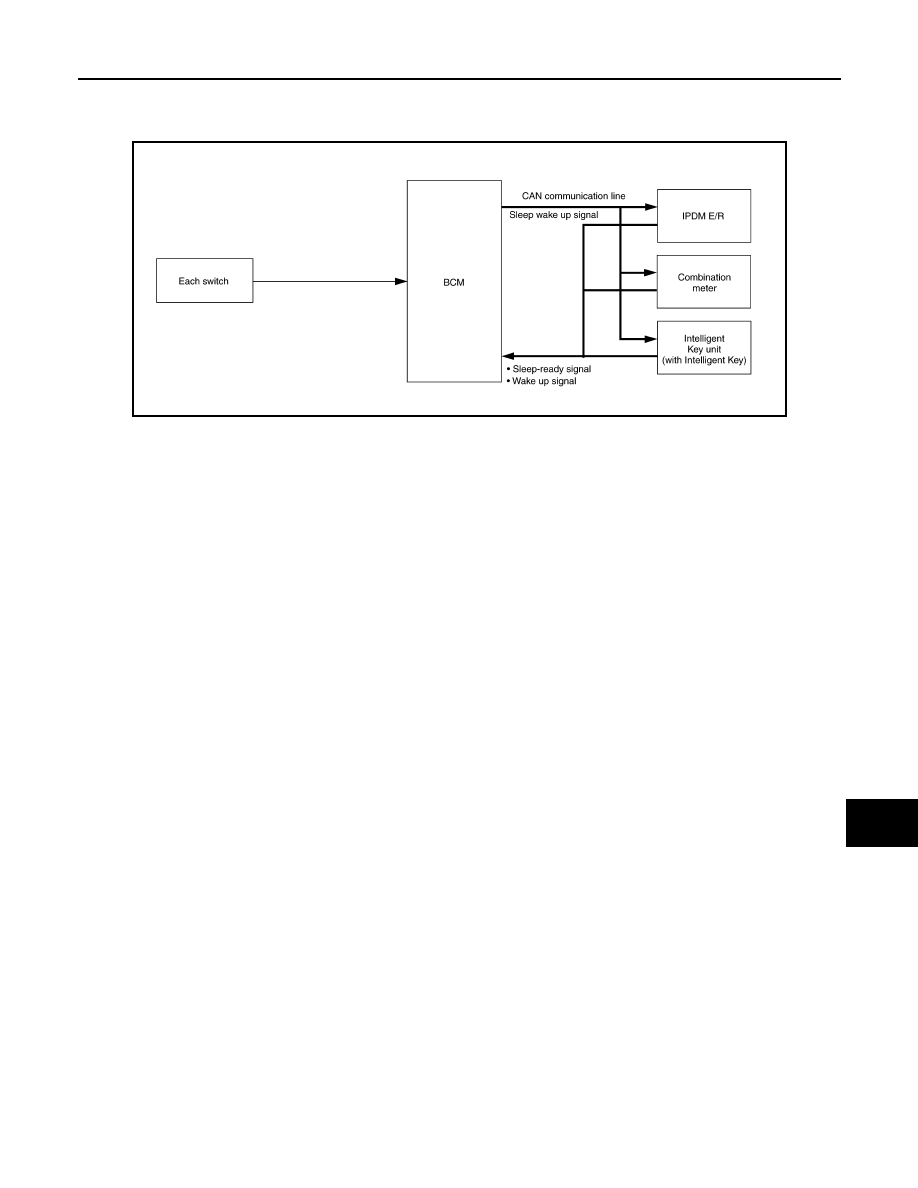

POWER CONSUMPTION CONTROL SYSTEM

System Diagram

INFOID:0000000006247441

System Description

INFOID:0000000006247442

OUTLINE

• BCM incorporates a power consumption control function that reduces the power consumption according to

the vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit [IPDM E/R, combination meter and Intelligent Key unit (with Intelligent Key)] that oper-

ates with the ignition switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units

- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped

- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active

- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.

• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and Intelligent Key unit

(with Intelligent Key) via CAN communication.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

AWMIA0019GB
