Nissan Pathfinder (2011 year). Instruction - part 75





AV

PREPARATION

AV-419

< PREPARATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

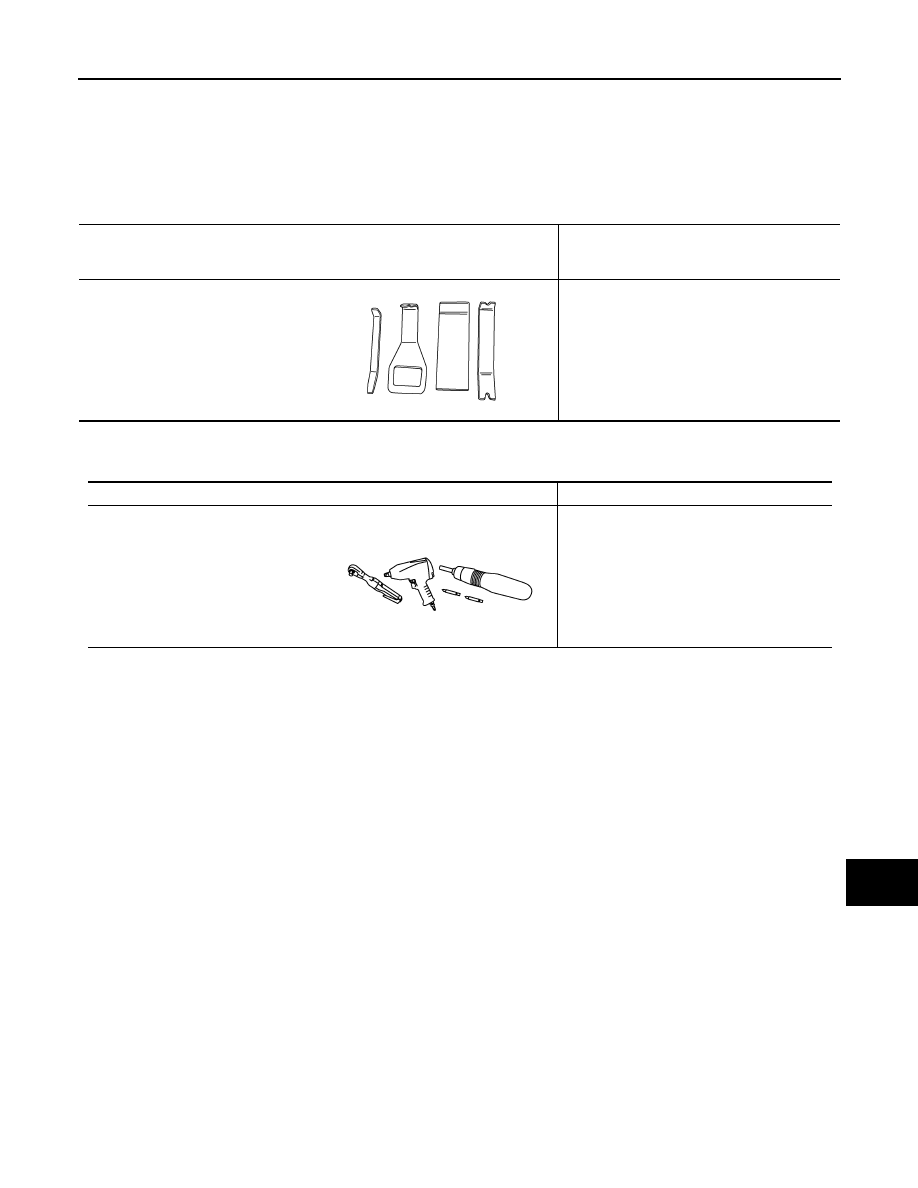

Special Service Tool

INFOID:0000000006832789

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000006246799

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim tool set

For removing trim

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening bolts, screws and nuts

PIIB1407E

2011 Pathfinder

AV-420

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000006246800

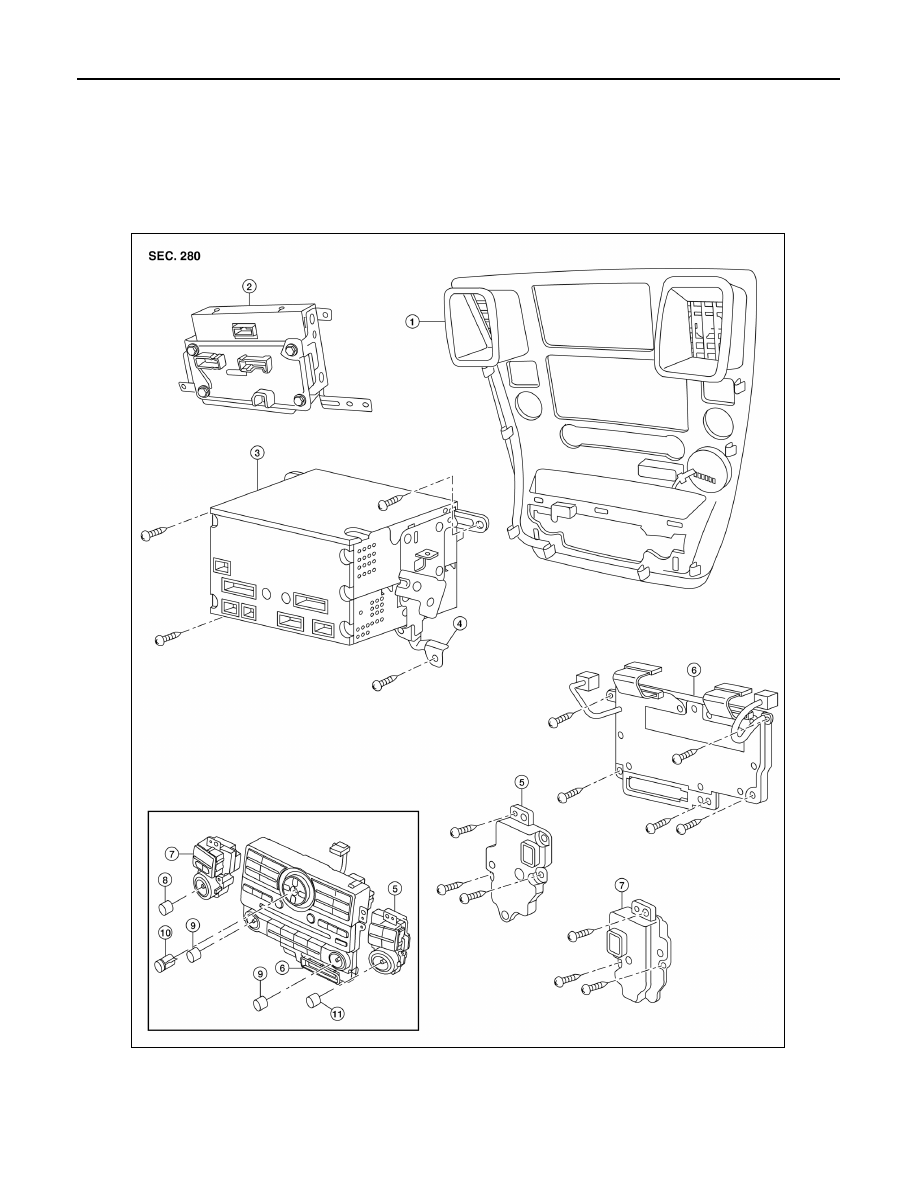

AUDIO UNIT

1.

Cluster lid C

2.

Display unit

3.

AV control unit

4.

AV control unit brackets

5.

Tuner knob switch

6.

A/C and AV switch assembly

7.

Volume knob switch

8.

Volume knob

9.

Temp knobs RH and LH

10. Enter button

11. Tuner knob

AWNIA2528ZZ

2011 Pathfinder

AV

AV CONTROL UNIT

AV-421

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAUTION:

Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs

must not be removed from switches when removing and installing the A/C or AV switch assembly to

prevent damage to the switch assembly.

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

3. Remove the AV control unit screws, using a power tool.
4. Remove the AV control unit.
5. Remove the A/C and AV switch assembly screws, then remove the A/C and AV switch assemblies as nec-

essary.

INSTALLATION

Installation is in the reverse order of removal.

2011 Pathfinder

AV-422

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

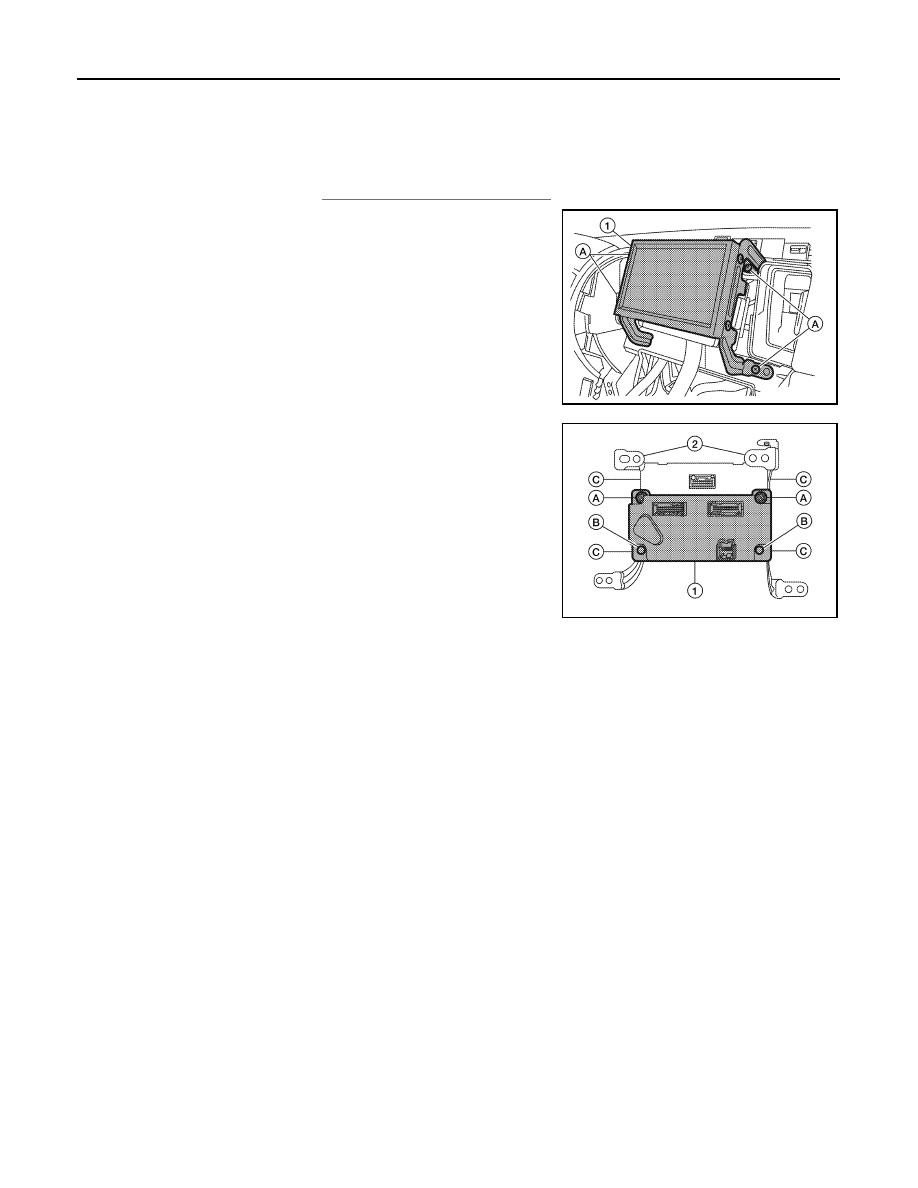

DISPLAY UNIT

DISPLAY UNIT

Removal and Installation

INFOID:0000000006246801

REMOVAL

1. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

2. Remove the display unit screws (A).
3. Pull out the display unit (1), then disconnect the display unit con-

nectors and remove the display unit (1).

4. Remove the A/C auto amp.screws (A), remove the (C103) fas-

teners (B) from the display unit assembly brackets and remove

the A/C auto amp. (1).

5. Remove the display unit bracket unit screws (C) and remove the

display unit brackets (2).

INSTALLATION

Installation is in reverse order of removal.

ALNIA0358ZZ

ALNIA0359ZZ

2011 Pathfinder

AV

FRONT TWEETER

AV-423

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

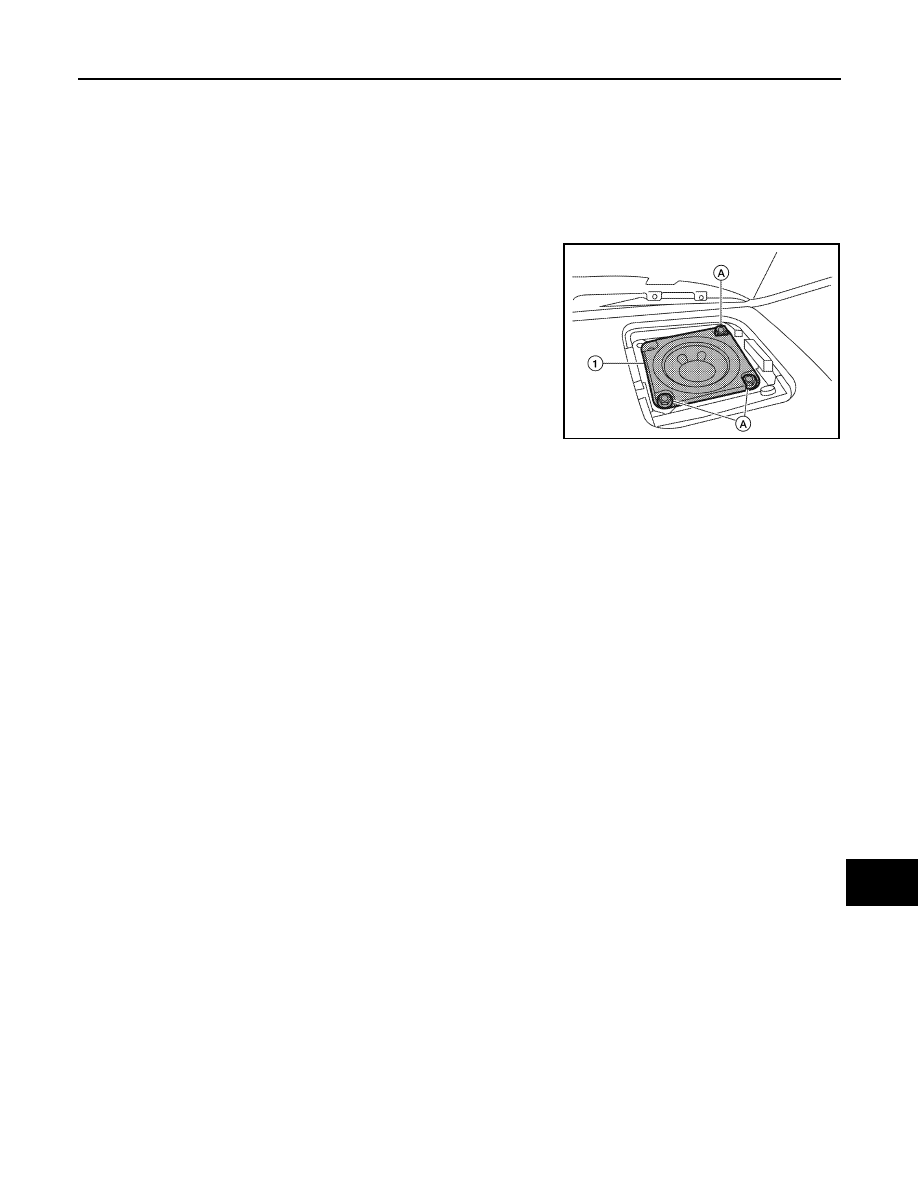

FRONT TWEETER

Removal and Installation

INFOID:0000000006246802

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille, using a suitable tool.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

2011 Pathfinder

AV-424

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

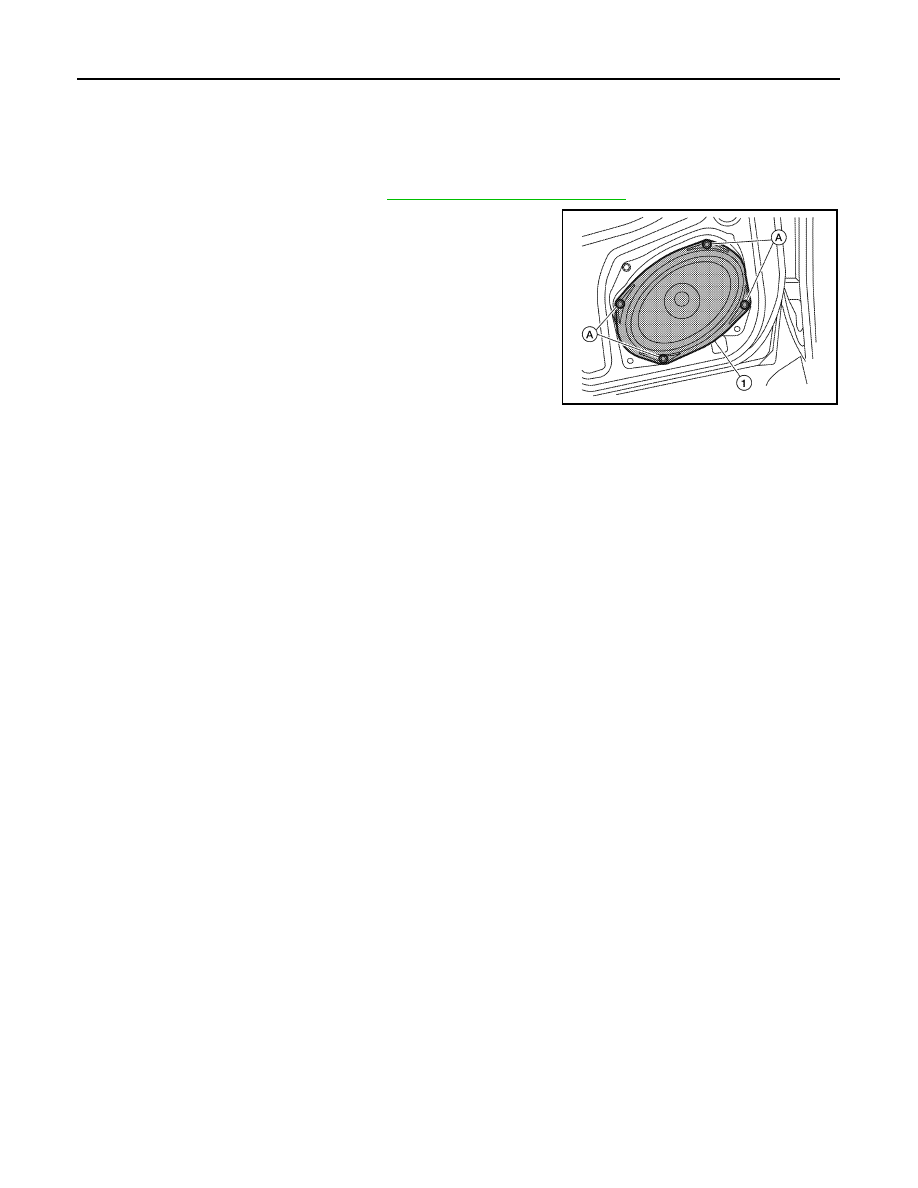

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000006246803

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

2011 Pathfinder

AV

REAR DOOR SPEAKER

AV-425

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

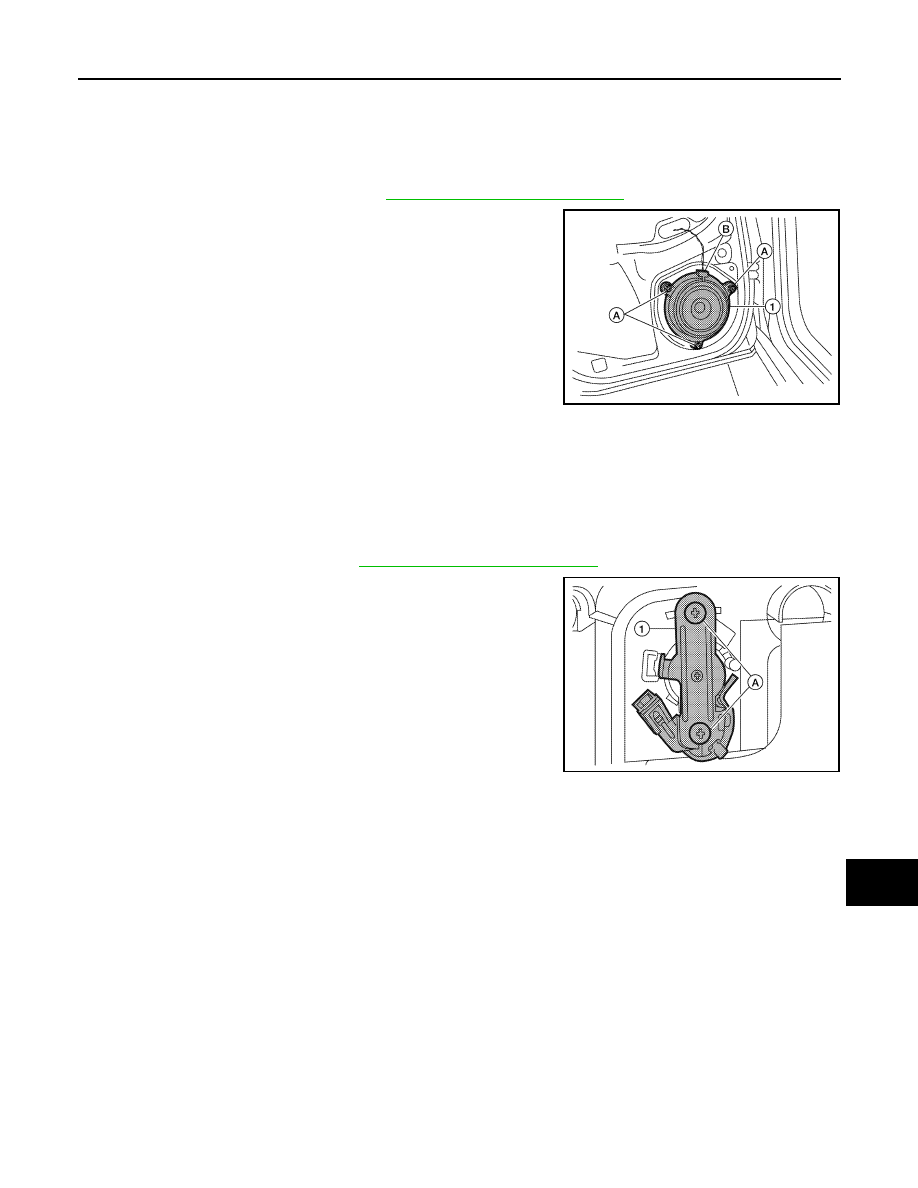

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000006246804

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000006246805

REAR TWEETER

Removal

1. Remove rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear tweeter screws (A) and remove the rear

tweeter (1).

Installation

Installation is in the reverse order of removal.

ALNIA0348ZZ

ALNIA0351ZZ

2011 Pathfinder

AV-426

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

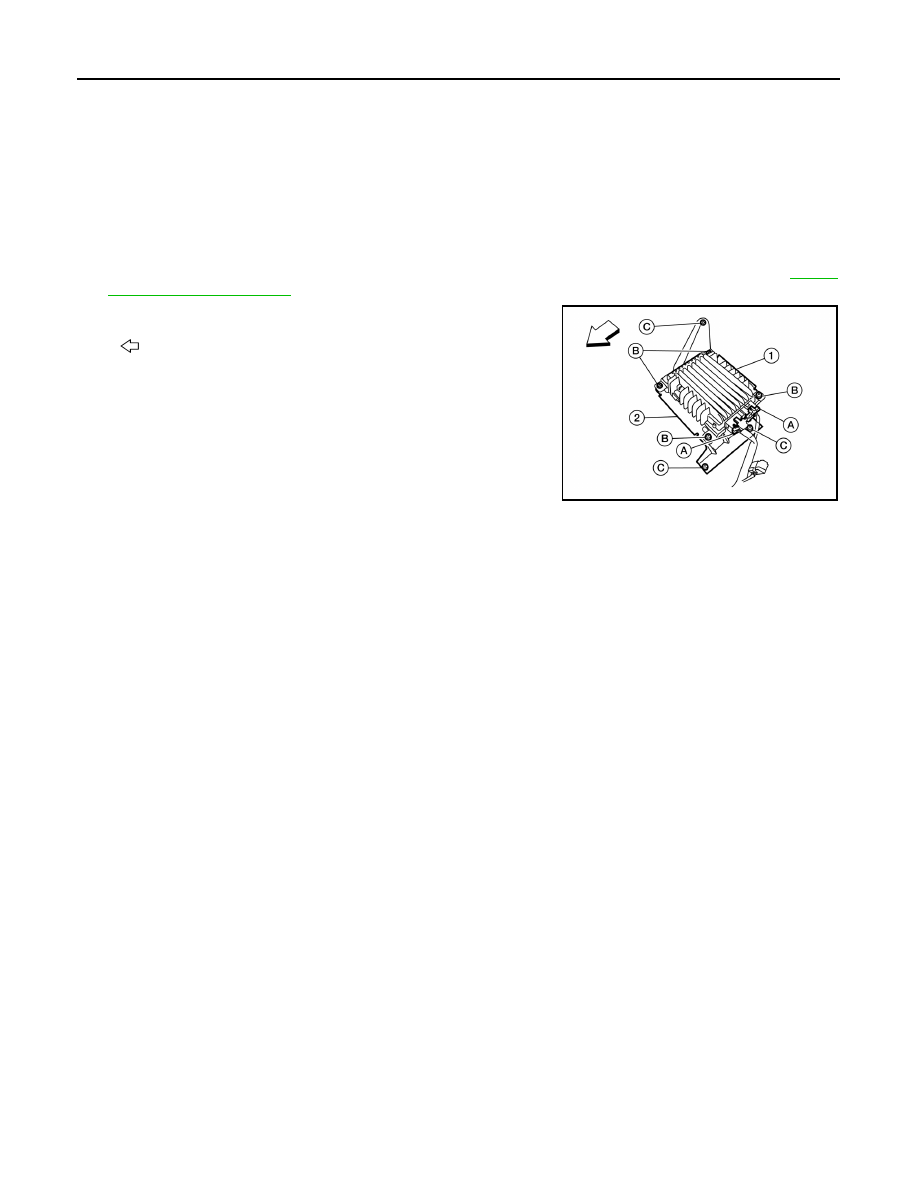

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000006246806

REMOVAL

NOTE:

Do not remove the LH front seat from the vehicle.
1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to

SE-33,

"Removal and Installation"

.

2. Tilt the LH front seat back to access the BOSE speaker amp.

(1), then remove the BOSE speaker amp. screws (B).
•

: Vehicle front

3. Disconnect the Bose speaker amp. connectors (A) and remove

Bose speaker amp. (1) from the bracket (2).

4. Then remove the BOSE speaker amp. bracket screws (C) and

remove bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1249ZZ

2011 Pathfinder
