Accuracy of the GPS will deteriorate under the following conditions.

• In two-dimensional positioning, the GPS accuracy will deteriorate when the altitude of the vehicle position

changes.

• There may be an error of approximately 10 m (30 ft.) in position detected by three-dimensional positioning,

which is more accurate than two-dimensional positioning. The accuracy can be even lower depending on the

arrangement of the GPS satellites utilized for the positioning.

• Position detection is not possible when the vehicle is in an area where radio waves from the GPS satellite do

not reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves from

the GPS satellites may not be received when some object is located over the GPS antenna.

• Position correction by GPS is not available while the vehicle is stopped.

2011 Pathfinder

AV-284

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

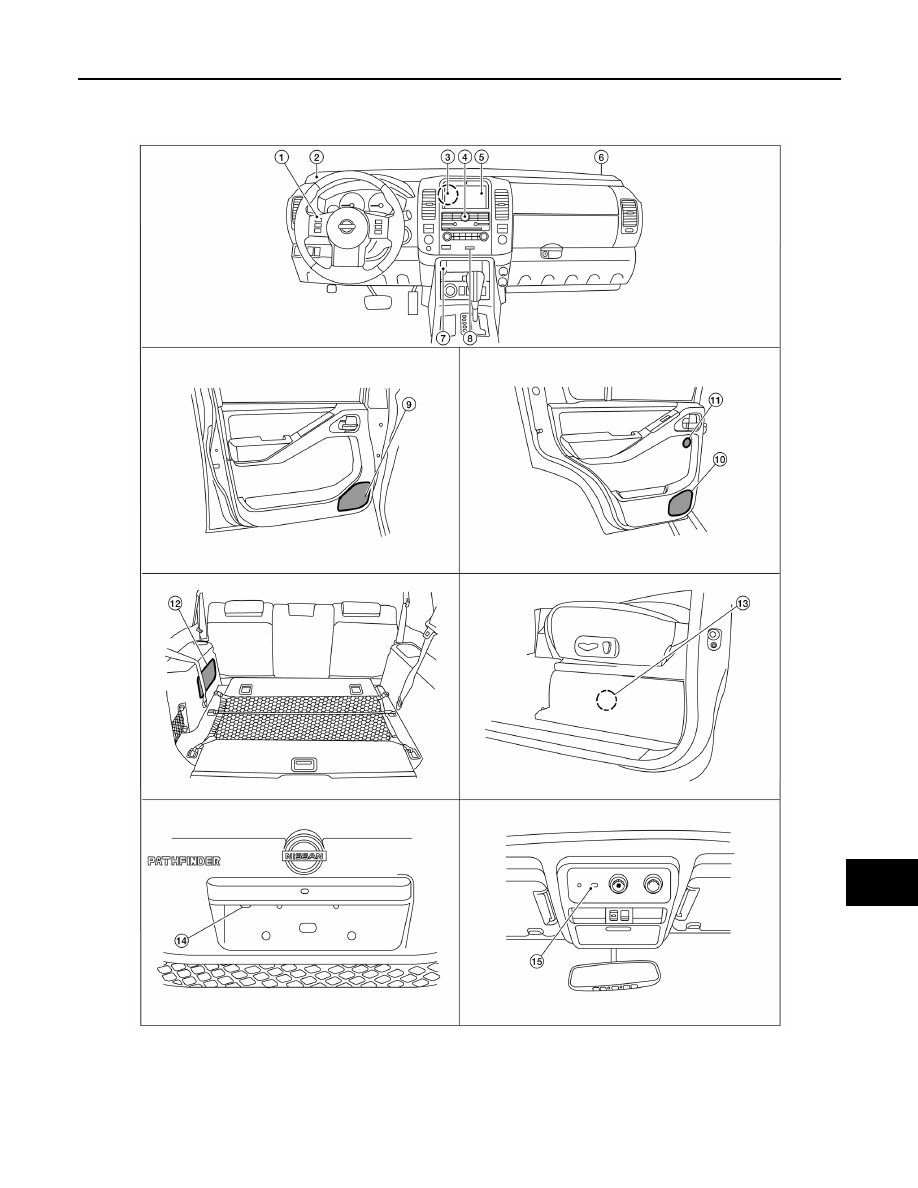

Component Parts Location

INFOID:0000000006709611

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M23, M37, M39, M44,
M48, M71, M72

4.

A/C and AV switch assembly M98

5.

Display unit M92

6.

Front tweeter RH M111

AWNIA2301ZZ

2011 Pathfinder

AV

NAVIGATION SYSTEM

AV-285

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000006246674

7.

Aux. jack M85

8.

Compact Flash insert slot

9.

Front door speaker
LH D12
RH D112

10. Rear door speaker

LH D207
RH D307

11. Rear tweeter

LH D208
RH D308

12. Subwoofer B72

13. BOSE speaker amp B74, B75 (locat-

ed under driver seat)

14. Rear view camera  D551

15. Microphone R8

Part name

Description

AV control unit

• Controls each operation of the navigation system
• DVD-ROM drive is built in
• Voice guidance signal is output to BOSE speaker amp.

BOSE speaker amp.

Voice guidance signal is input from AV control unit, and it is output to speakers.

Tweeter

Voice guidance signal from BOSE speaker amp. is output.

Steering wheel audio control switches

• Each operation of navigation system can be performed
• Switch operating signal is output to AV control unit

Microphone

Sends voice signals to AV control unit

GPS antenna

GPS signal is received and is output to AV control unit.

2011 Pathfinder

AV-286

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

REAR VIEW MONITOR SYSTEM

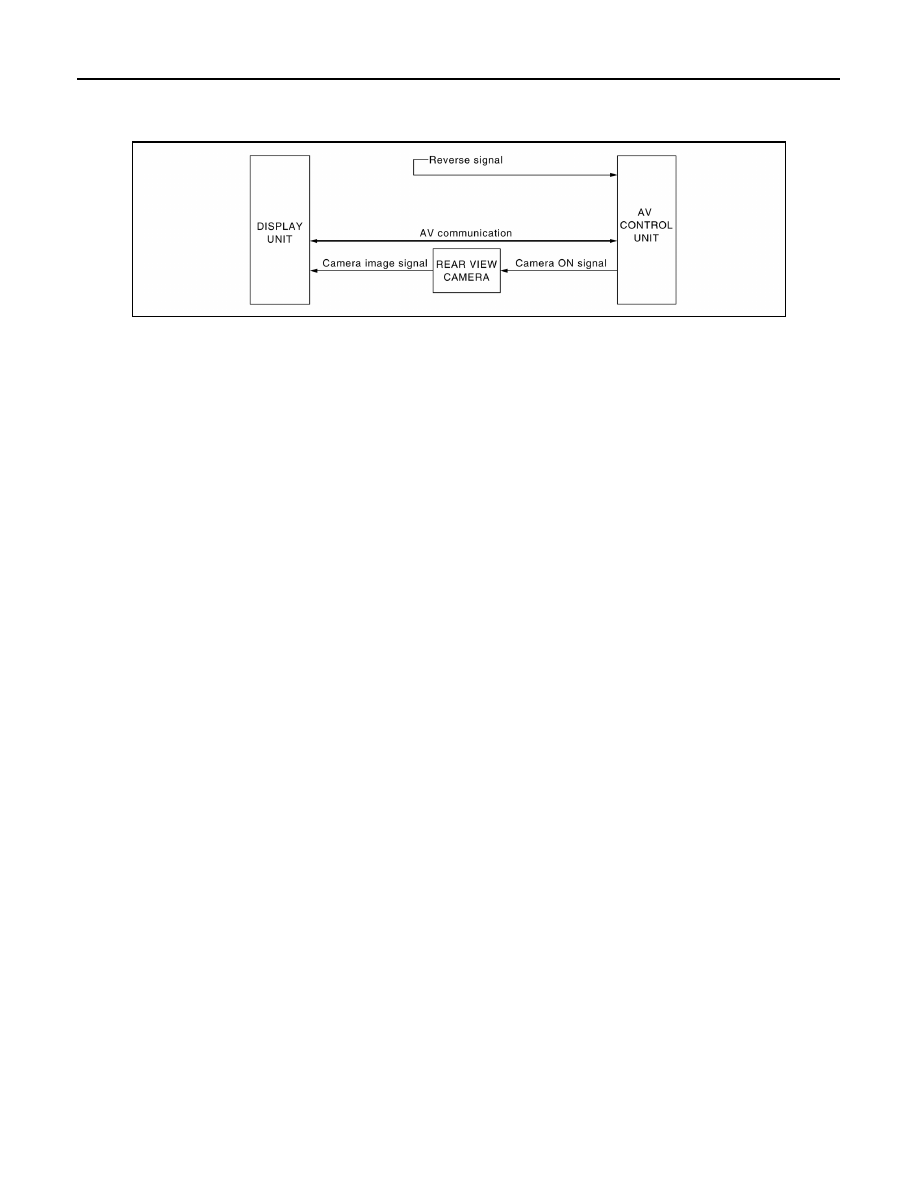

System Diagram

INFOID:0000000006246675

System Description

INFOID:0000000006246676

When the shift selector is in the R position, the display unit receives camera image signals from the rear view

camera which shows a view to the rear of the vehicle. Lines which indicate the vehicle clearance and dis-

tances are also displayed.

AWNIA2302GB

2011 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-287

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

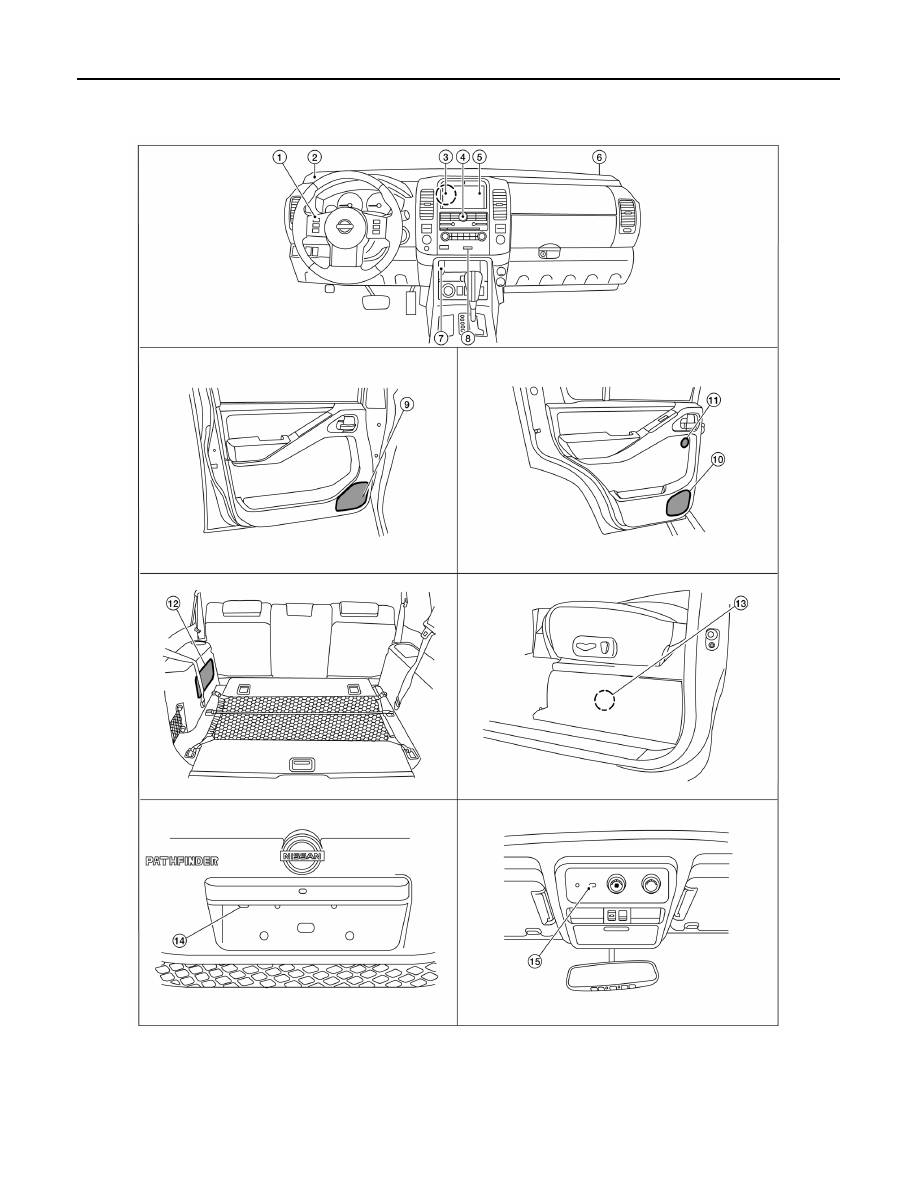

Component Parts Location

INFOID:0000000006709612

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M23, M37, M39, M44,
M48, M71, M72

4.

A/C and AV switch assembly M98

5.

Display unit M92

6.

Front tweeter RH M111

AWNIA2301ZZ

2011 Pathfinder

AV-288

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

Component Description

INFOID:0000000006246678

7.

Aux. jack M85

8.

Compact Flash insert slot

9.

Front door speaker
LH D12
RH D112

10. Rear door speaker

LH D207
RH D307

11. Rear tweeter

LH D208
RH D308

12. Subwoofer B72

13. BOSE speaker amp B74, B75 (locat-

ed under driver seat)

14. Rear view camera  D551

15. Microphone R8

Part name

Description

AV control unit

• Receives reverse signal from back-up lamp relay
• Sends camera ON signal to rear view camera

Rear view camera

• Receives camera ON signal from AV control unit
• Sends image signal to the display unit

Display unit

• Receives image signal from rear view camera

2011 Pathfinder

AV

DVD PLAYER

AV-289

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DVD PLAYER

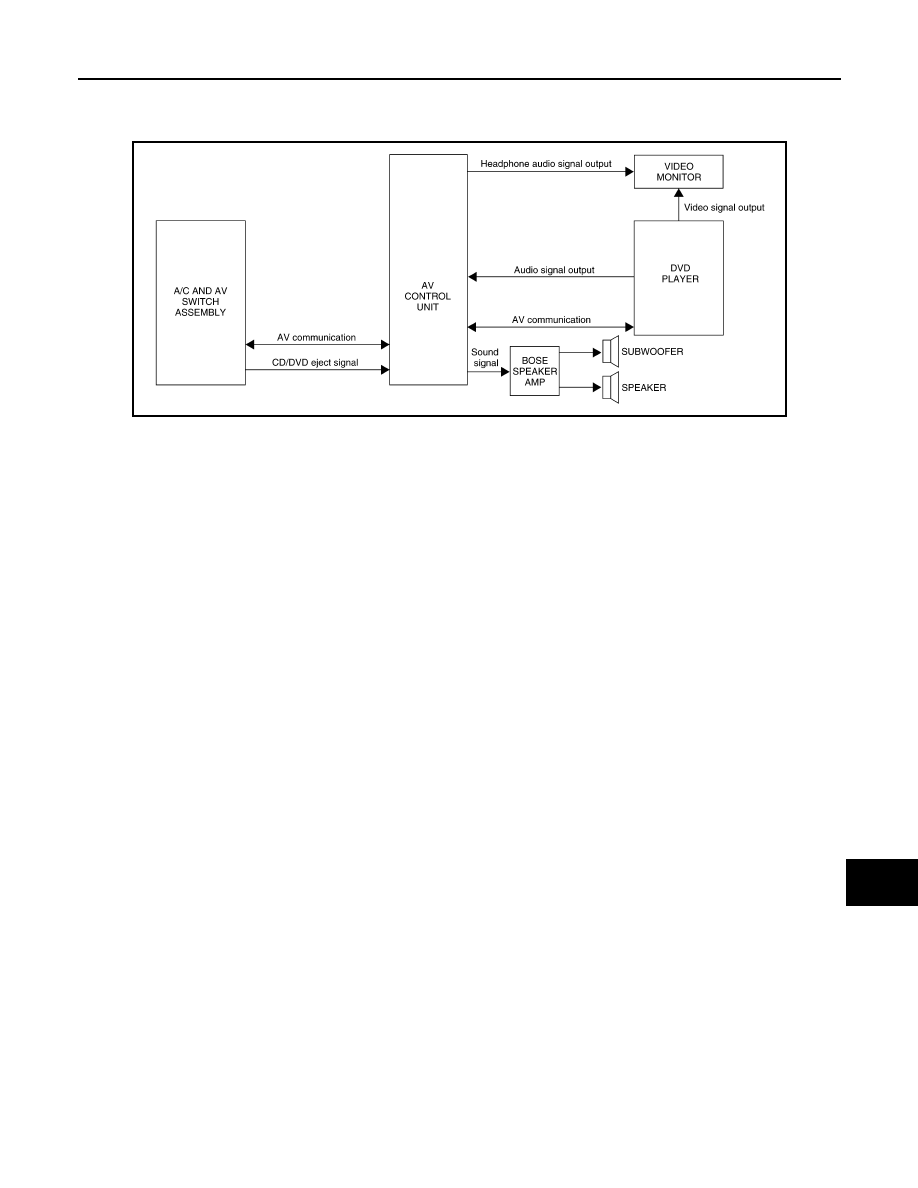

System Diagram

INFOID:0000000006246679

System Description

INFOID:0000000006246680

The DVD entertainment system consists of the following components

• AV control unit

• Display unit

• DVD player

• Video monitor

• A/C and AV switch assembly

• Steering wheel audio control switches

• BOSE speaker amp.

• Front tweeters

• Front door speakers

• Rear tweeters

• Rear door speakers

• Subwoofer

When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.

Audio signals are sent to the AV control unit. Audio signals can be directed through wireless infrared head-

phones or through the BOSE speaker amp. to the vehicle speakers. Refer to the Owner's Instruction for complete

DVD entertainment system operating instructions.

ALNIA0561GB

2011 Pathfinder

AV-290

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DVD PLAYER

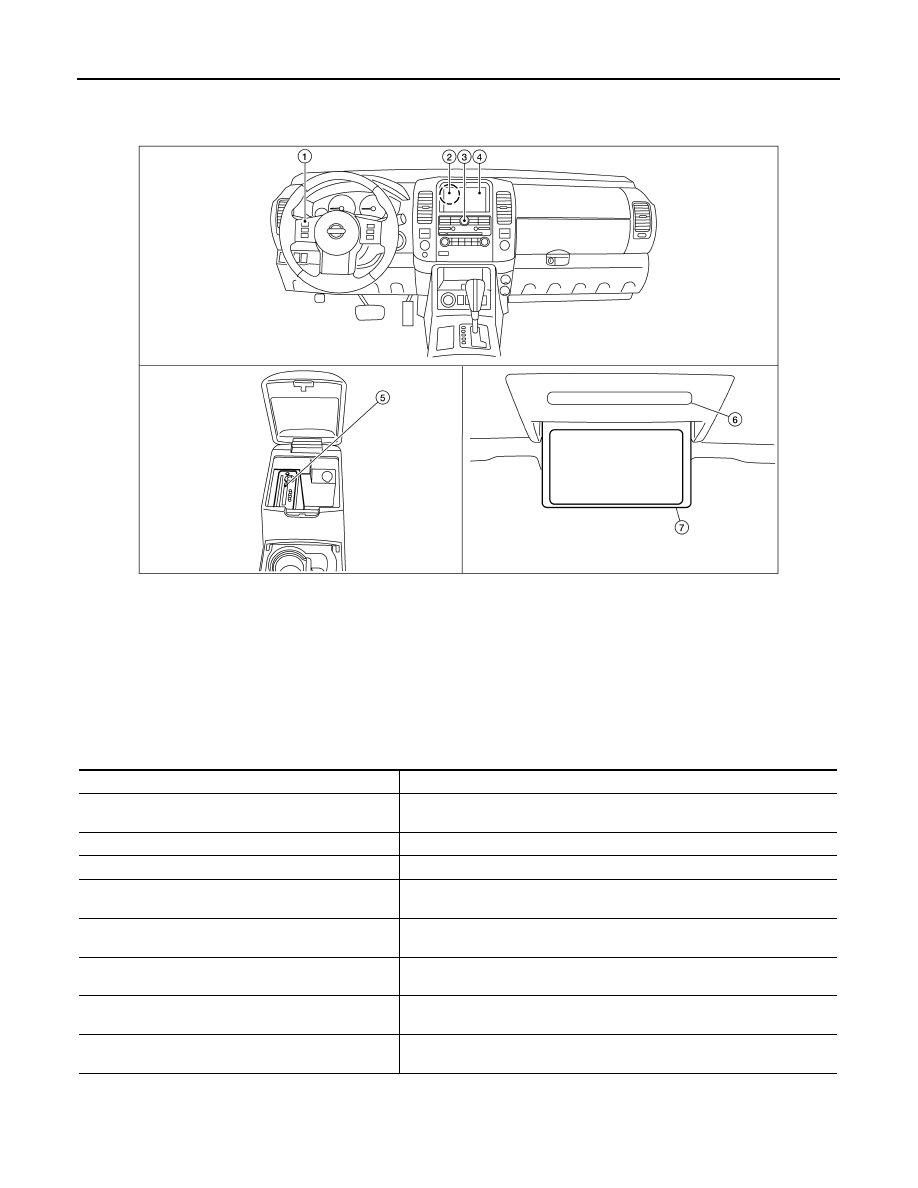

Component Parts Location

INFOID:0000000006246681

Component Description

INFOID:0000000006246682

1.

Steering wheel audio control switches 2.

AV control unit M23, M37, M39, M44,
M48, M71, M72

3.

A/C and AV switch assembly M98

4.

Display unit M92

5.

DVD player M205 (located in center
console)

6.

Infrared headphone and remote re-
ceiver/transmitter (part of video moni-
tor assembly)

7.

Video monitor B76

ALNIA0558GB

Part name

Description

DVD player

• Outputs DVD video to video monitor
• Outputs DVD audio to the AV control unit

Video monitor

• Receives and displays the DVD video signal

AV control unit

• Controls audio system and DVD entertainment system functions

BOSE speaker amp.

• Receives audio signals from the AV control unit
• Outputs amplified audio signals to the speakers

A/C and AV switch assembly

• All audio and A/C operations can be operated
• Switch signal is output to the AV control unit and A/C auto amp

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal (operation signal) is output to AV control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front and rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds
