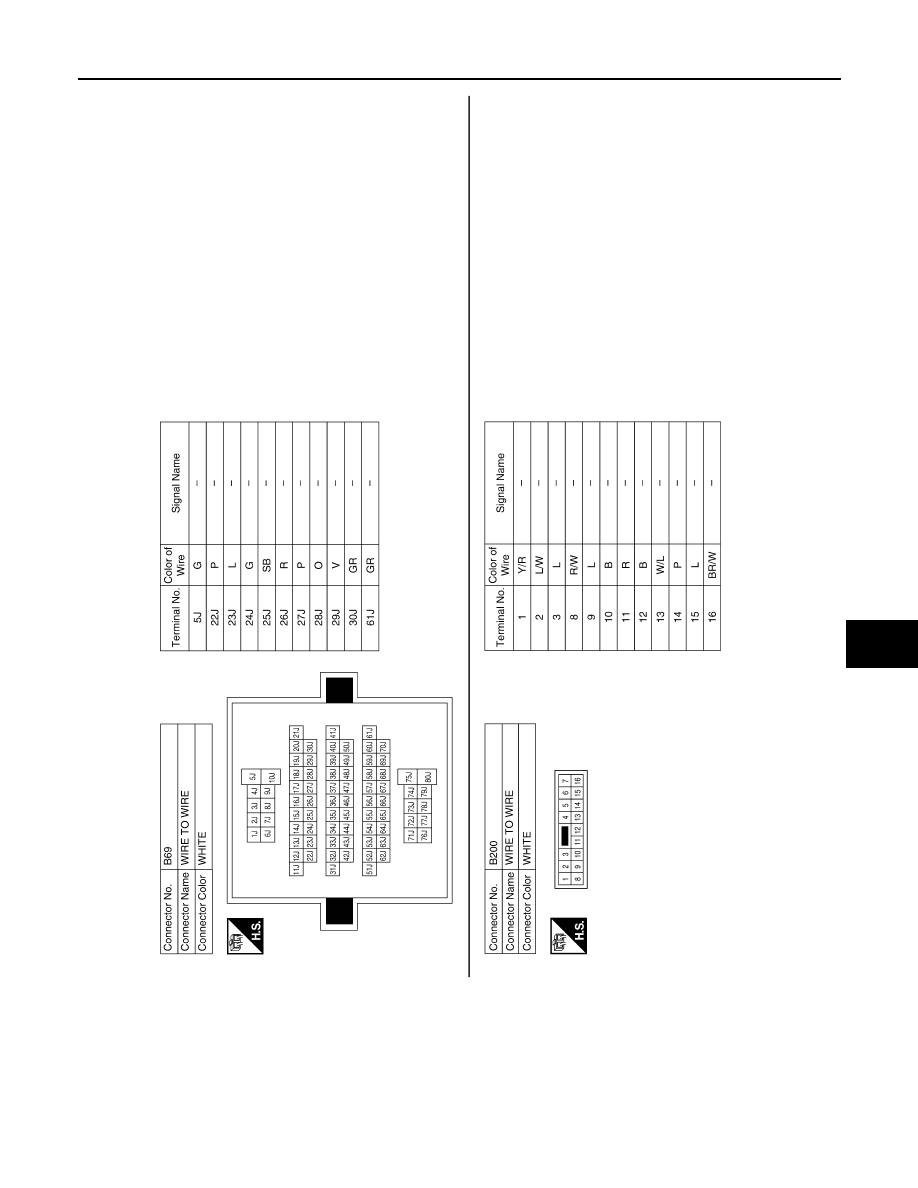

AUTOMATIC DRIVE POSITIONER

ADP-137

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0017GB

2011 Pathfinder

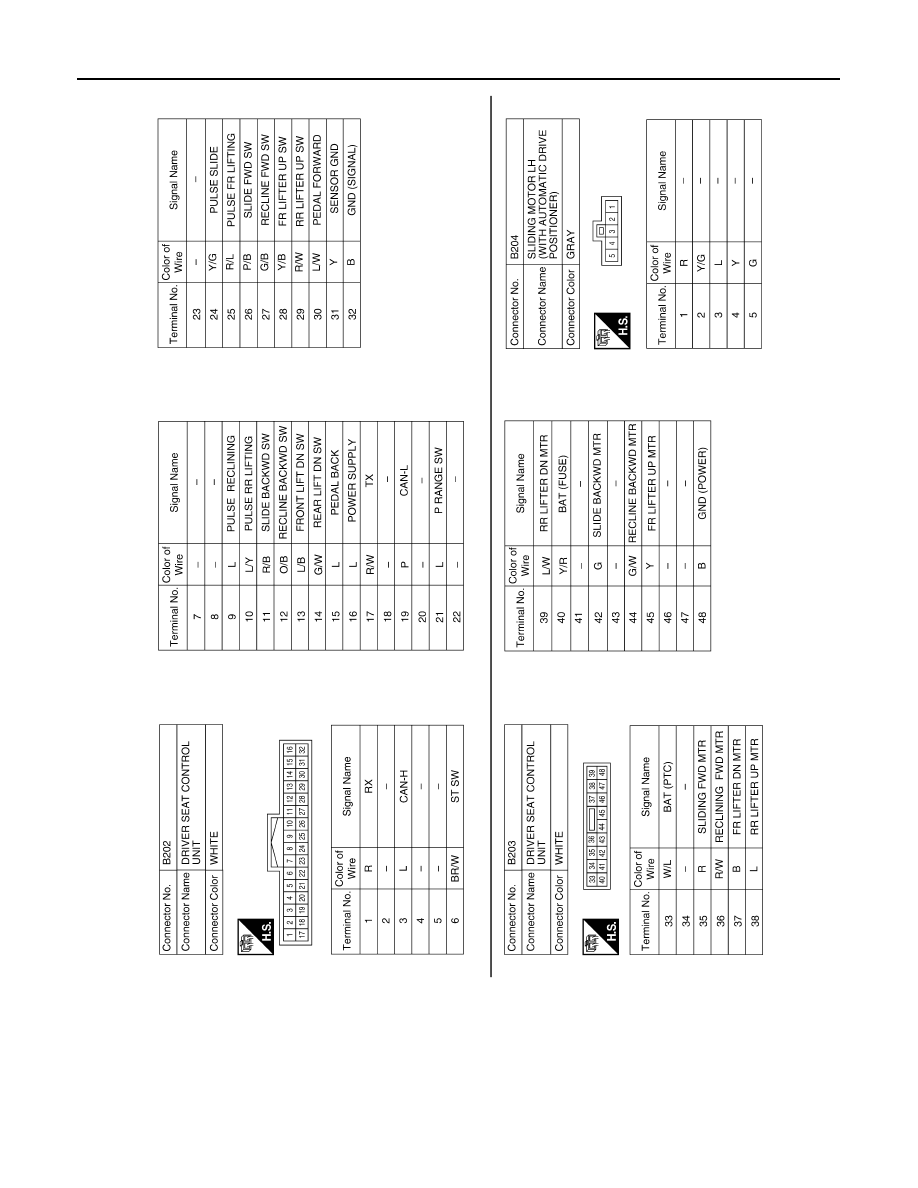

ADP-138

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0018GB

2011 Pathfinder

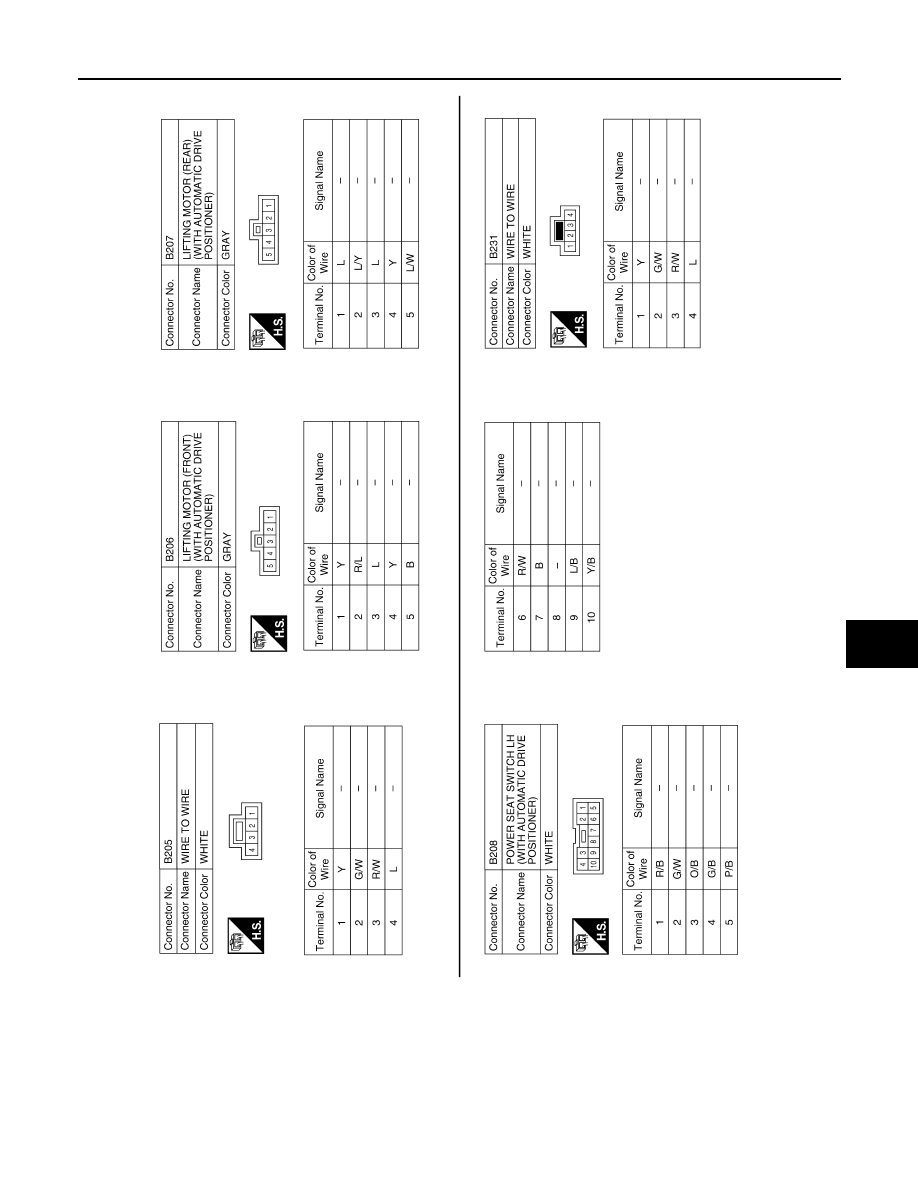

AUTOMATIC DRIVE POSITIONER

ADP-139

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0019GB

2011 Pathfinder

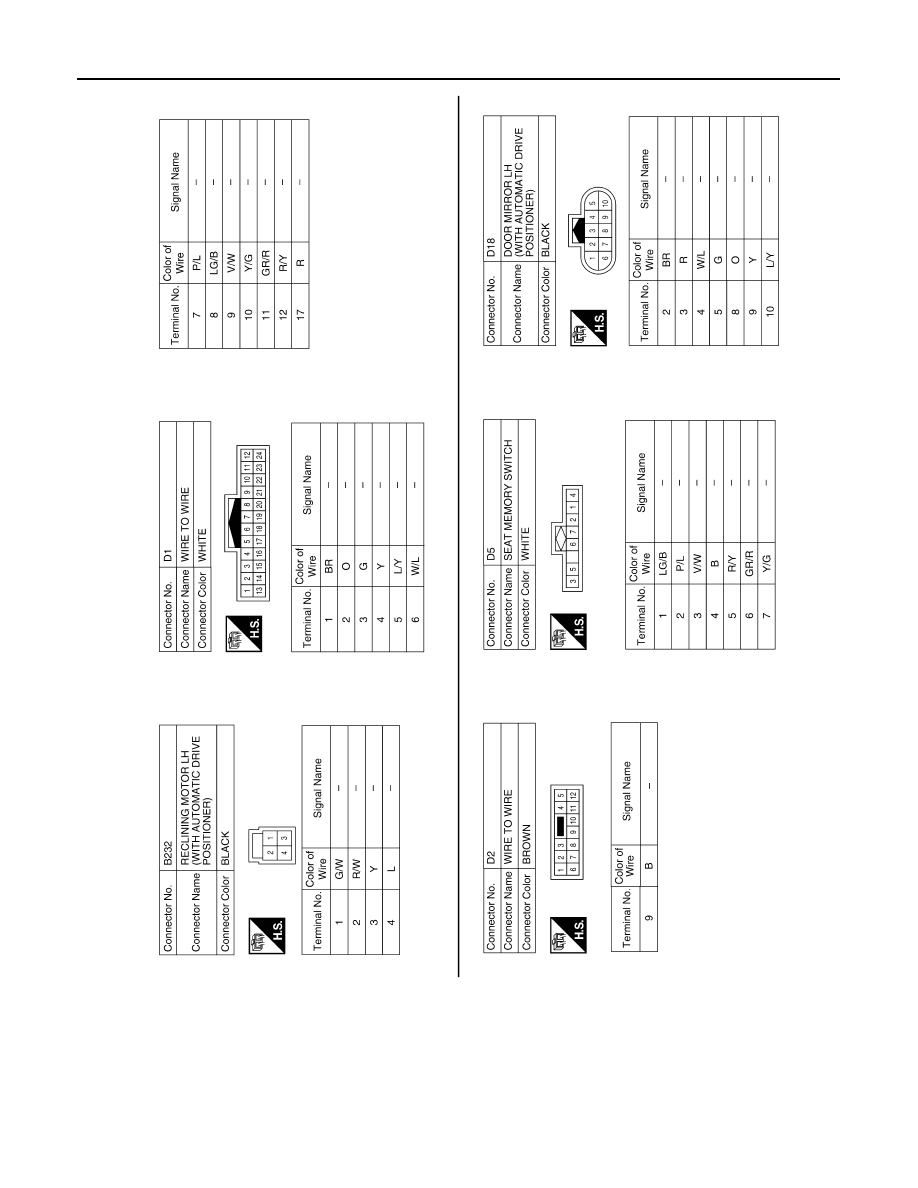

ADP-140

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0161GB

2011 Pathfinder

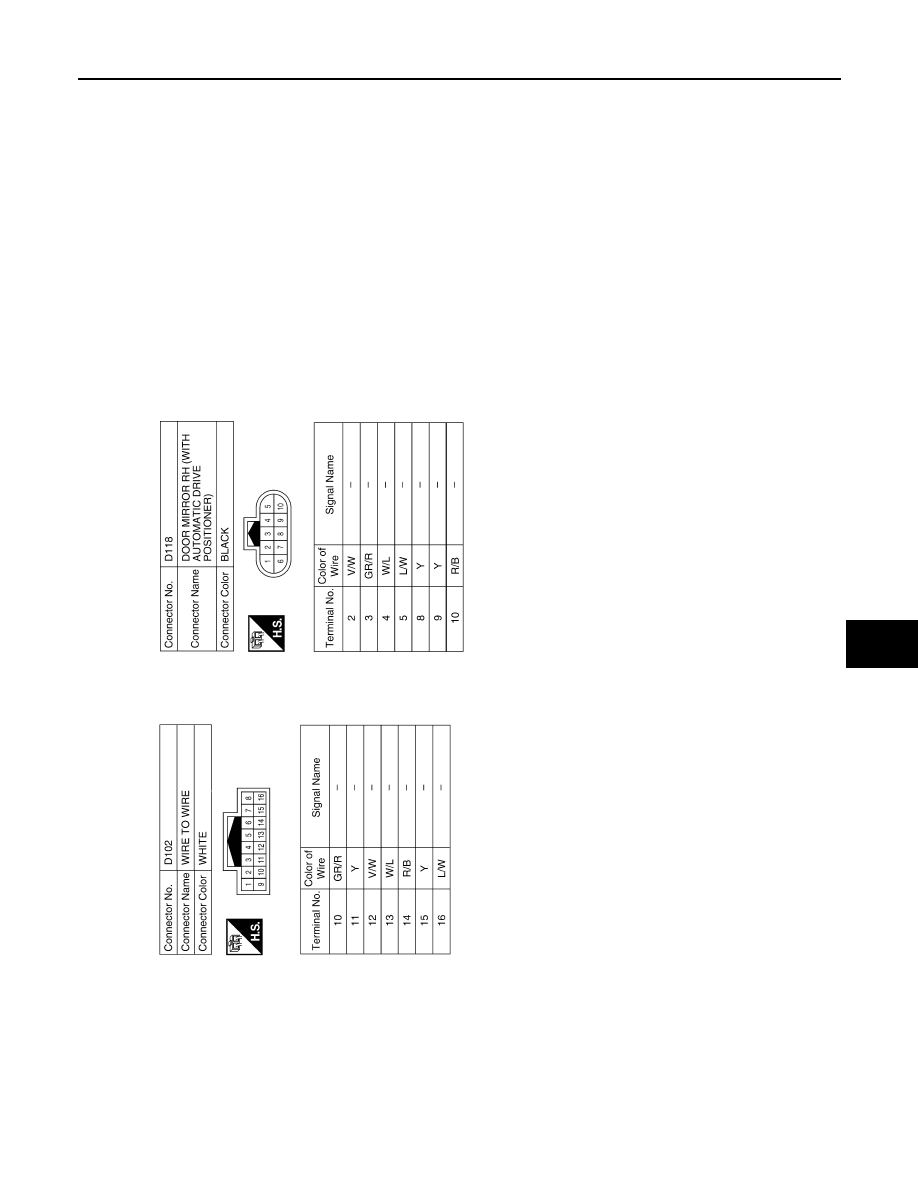

AUTOMATIC DRIVE POSITIONER

ADP-141

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0162GB

2011 Pathfinder

ADP-142

< SYMPTOM DIAGNOSIS >

ADP SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

ADP SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006247413

NOTE:

 Always perform the “Basic Inspection” before performing diagnosis in the following table. Refer to

ADP-7,

"Work Flow"

.

SYMPTOM 1

SYMPTOM 2

SYMPTOM 3

SYMPTOM 4

Symptom

Diagnosis procedure

Reference

page

Instruction functions (for specific part) do
not operate

Sliding operation

Check sliding switch.

ADP-50

Reclining operation

Check reclining switch.

ADP-53

Lifting operation (front)

Check lifting switch (front).

ADP-56

Lifting operation (rear)

Check lifting switch (rear).

ADP-59

Pedal operation

1. Check pedal adjusting switch.

ADP-62

2. Check pedal adjusting sensor.

ADP-86

Door mirror operation

1. Changeover switch.

ADP-67

2. Mirror switch

ADP-69

All parts of seat

Check power seat switch ground cir-
cuit.

ADP-73

Symptom

Diagnosis procedure

Reference

page

Memory functions (for specific part) do
not operate

Sliding operation

Check sliding sensor.

ADP-78

Reclining operation

Check reclining sensor.

ADP-80

Lifting operation (front)

Check lifting sensor (front).

ADP-82

Lifting operation (rear)

Check lifting sensor (rear).

ADP-84

Pedal operation

Check pedal adjusting sensor.

ADP-86

Door mirror operation

Check door mirror sensor.

Driver side:

ADP-88

Passenger

side:

ADP-90

Symptom

Diagnosis procedure

Reference

page

Memory functions and instruction func-
tions (for specific part) do not operate

Sliding operation

Check sliding motor.

ADP-92

Reclining operation

Check reclining motor.

ADP-94

Lifting operation (front)

Check lifting motor (front).

ADP-96

Lifting operation (rear)

Check lifting motor (rear).

ADP-98

Pedal operation

Check pedal adjusting motor.

ADP-100

Door mirror operation

Check door mirror motor.

ADP-102

2011 Pathfinder

ADP SYSTEM SYMPTOMS

ADP-143

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SYMPTOM 5

SYMPTOM 6

Symptom

Diagnosis procedure

Reference

page

Entry/Exit assist function does not operate.

1. Check system setting.

ADP-22

2. Perform initialization.

ADP-23

3. Check front door switch (driver side).

ADP-76

Intelligent Key interlock function does not operate.
(Other automatic operations and Intelligent Key system
are normal)

1. Check door lock function.

DLK-22

2. Perform memory storing.

ADP-12

Symptom

Diagnosis procedure

Reference

page

Memory indicators 1 and/or 2 do not illuminate.

1. Check seat memory switch.

ADP-65

2. Check seat memory indicator.

ADP-105

Symptom

Diagnosis procedure

Reference

page

Memory operation does not operate.

Check A/T shift selector (park position switch).

ADP-74

2011 Pathfinder

ADP-144

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000006247414

The following symptoms are normal operations, and they do not indicate a malfunction.

Symptom

Cause

Action to take

Reference page

Entry/Exit assist function does
not operate.

No initialization has been performed.

Perform initialization.

ADP-21

Entry/exit assist function is disabled.

NOTE:

The entry/exit assist function is disabled
before delivery (initial setting).

Change the settings.

ADP-24

Entry assist function does not op-
erate.

Instruction operation with power seat switch
was performed after exit assist function
execution.

Perform the memory

function.

ADP-24

Memory function, entry/exit as-
sist function or Intelligent Key in-
terlock function does not
operate.

The operating conditions are not fulfilled.

Fulfill the operation

conditions.

Memory function:

ADP-18

Exit assist function:

ADP-22

Entry assist function:

ADP-24

Intelligent Key interlock

function:

ADP-12

2011 Pathfinder
