STR-18

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

ABBIA0395GB

2010 Pathfinder

STARTING SYSTEM

STR-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

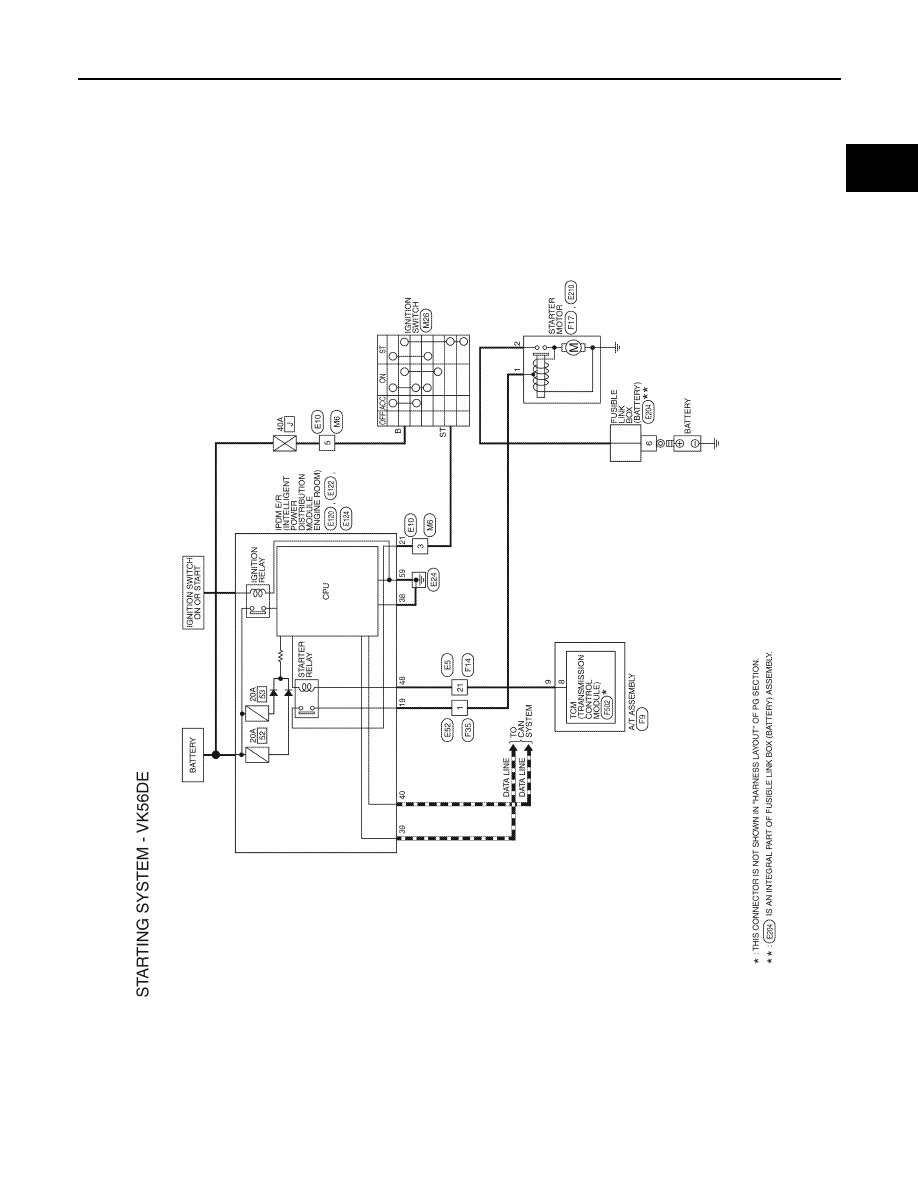

Wiring Diagram - VK56DE

INFOID:0000000005260640

ABBWA0187GB

2010 Pathfinder

STR-20

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

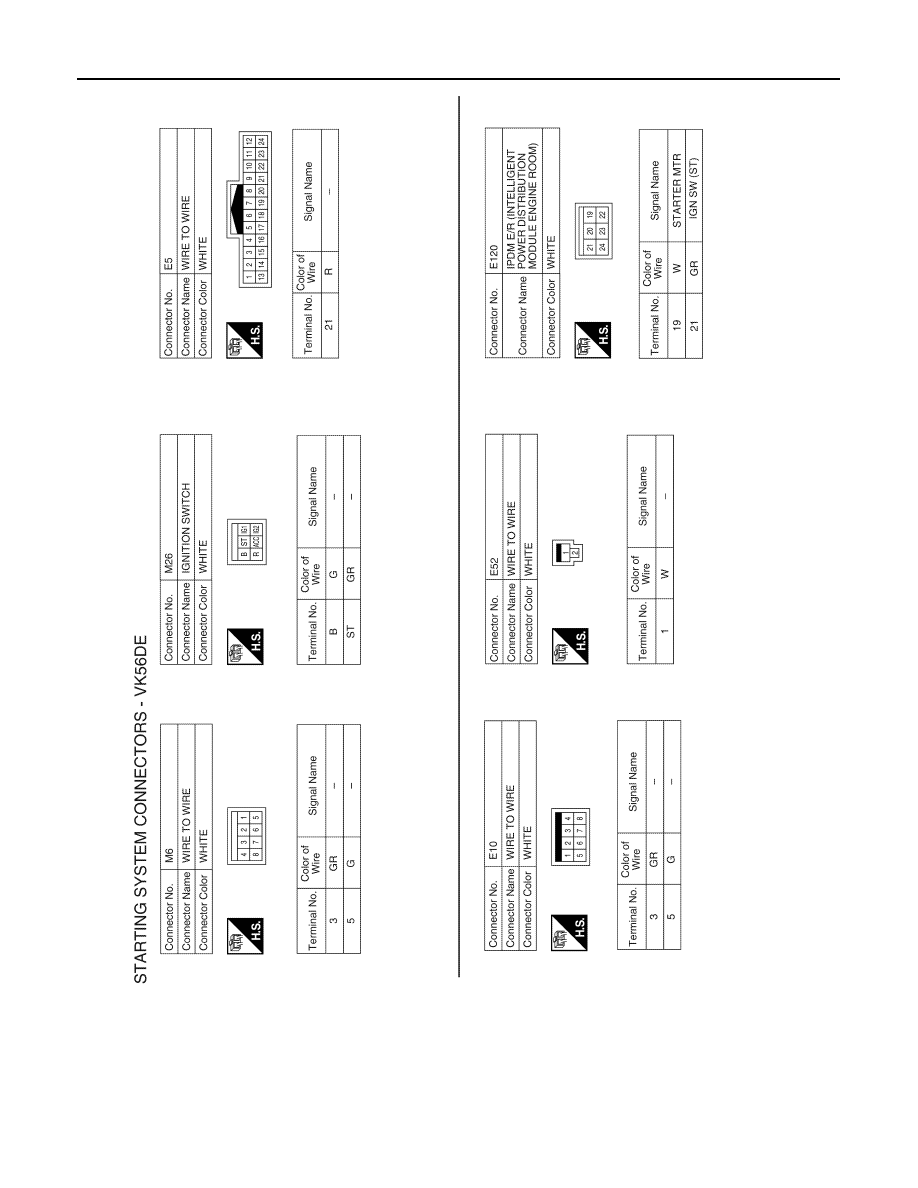

ABBIA0399GB

2010 Pathfinder

STARTING SYSTEM

STR-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

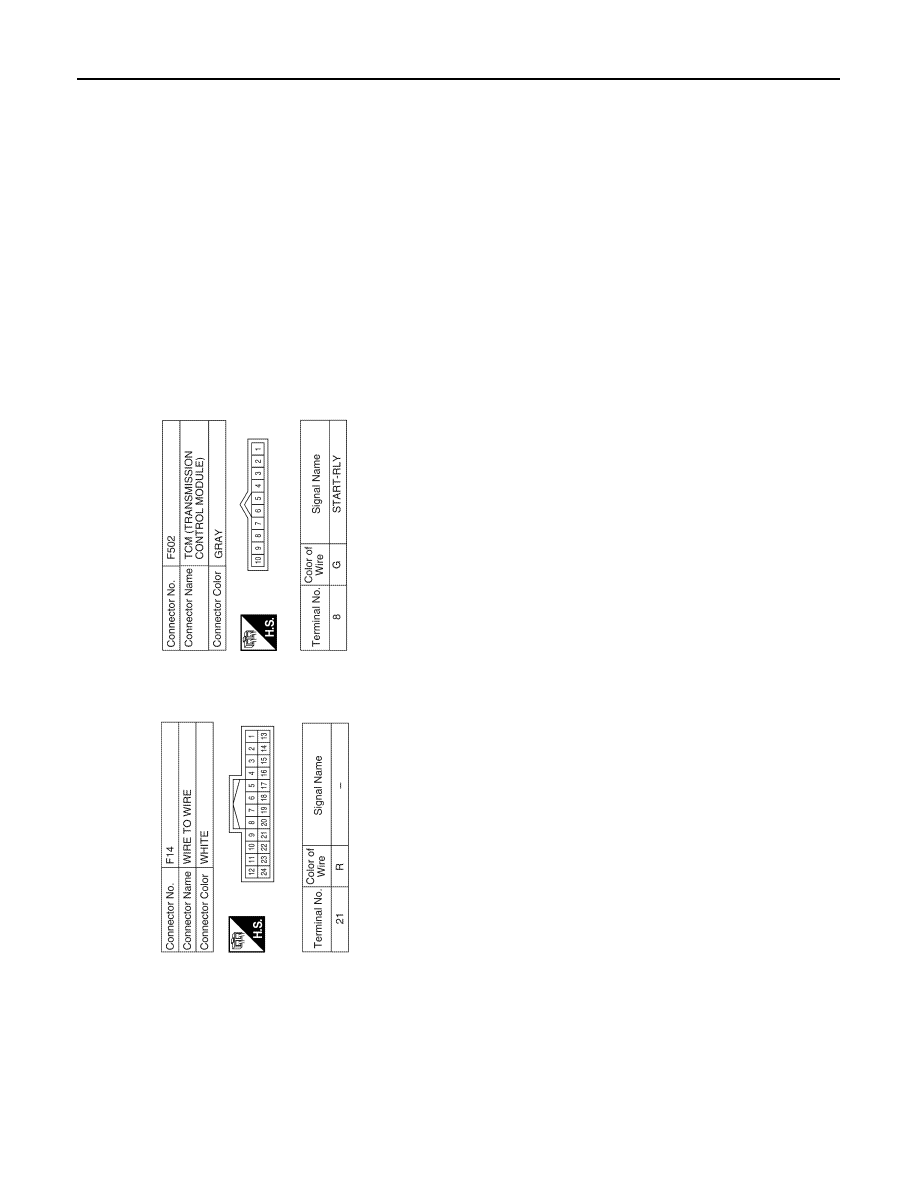

ABBIA0396GB

2010 Pathfinder

STR-22

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

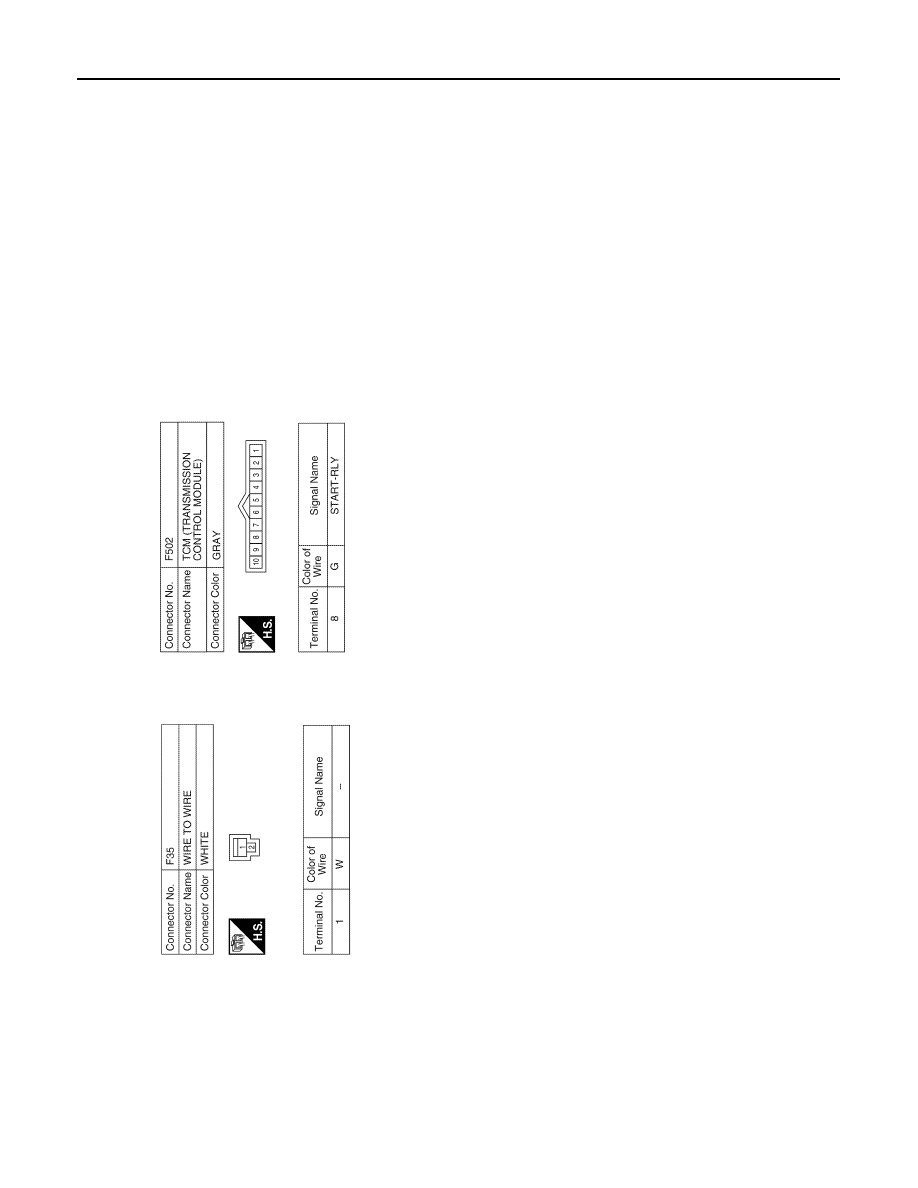

ABBIA0397GB

2010 Pathfinder

STARTING SYSTEM

STR-23

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000005260641

Symptom

Reference

No normal cranking

Refer to

STR-5, "Work Flow"

.

Starter motor does not rotate

2010 Pathfinder

STR-24

< ON-VEHICLE REPAIR >

STARTER MOTOR

ON-VEHICLE REPAIR

STARTER MOTOR

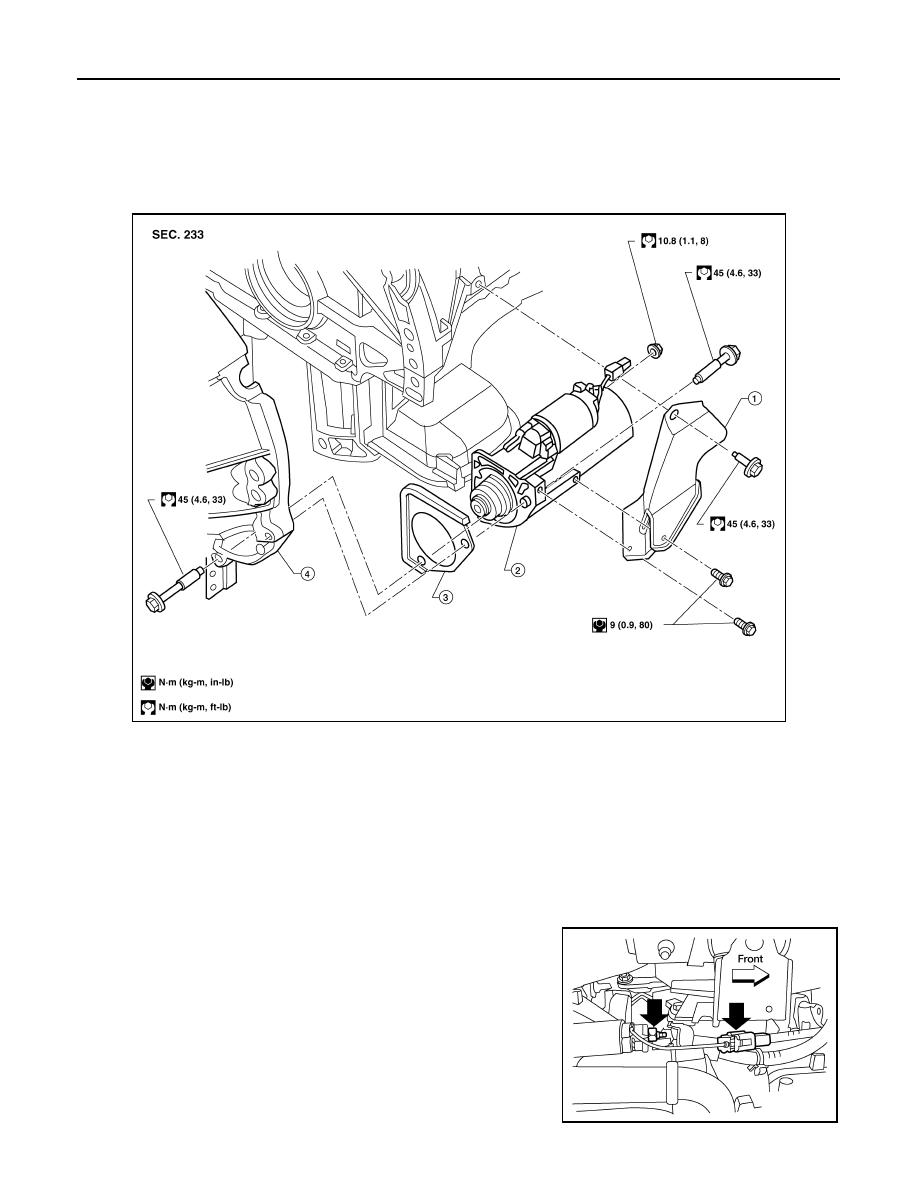

Exploded View

INFOID:0000000005260642

VQ40DE Models

Removal and Installation

INFOID:0000000005260643

VQ40DE MODELS

Removal

1. Disconnect the negative battery terminal.
2. Remove starter cover bolts and starter cover.
3. Disconnect terminal "S" connector and terminal "B" nut.
4. Remove the two starter bolts, using power tools.
5. Remove the starter.

WKIA3190E

1.

Starter cover

2.

Starter motor assembly

3.

Starter cover plate (rear)

4.

Transmission housing

WKIA3189E

2010 Pathfinder

STARTER MOTOR

STR-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "B" nut carefully.

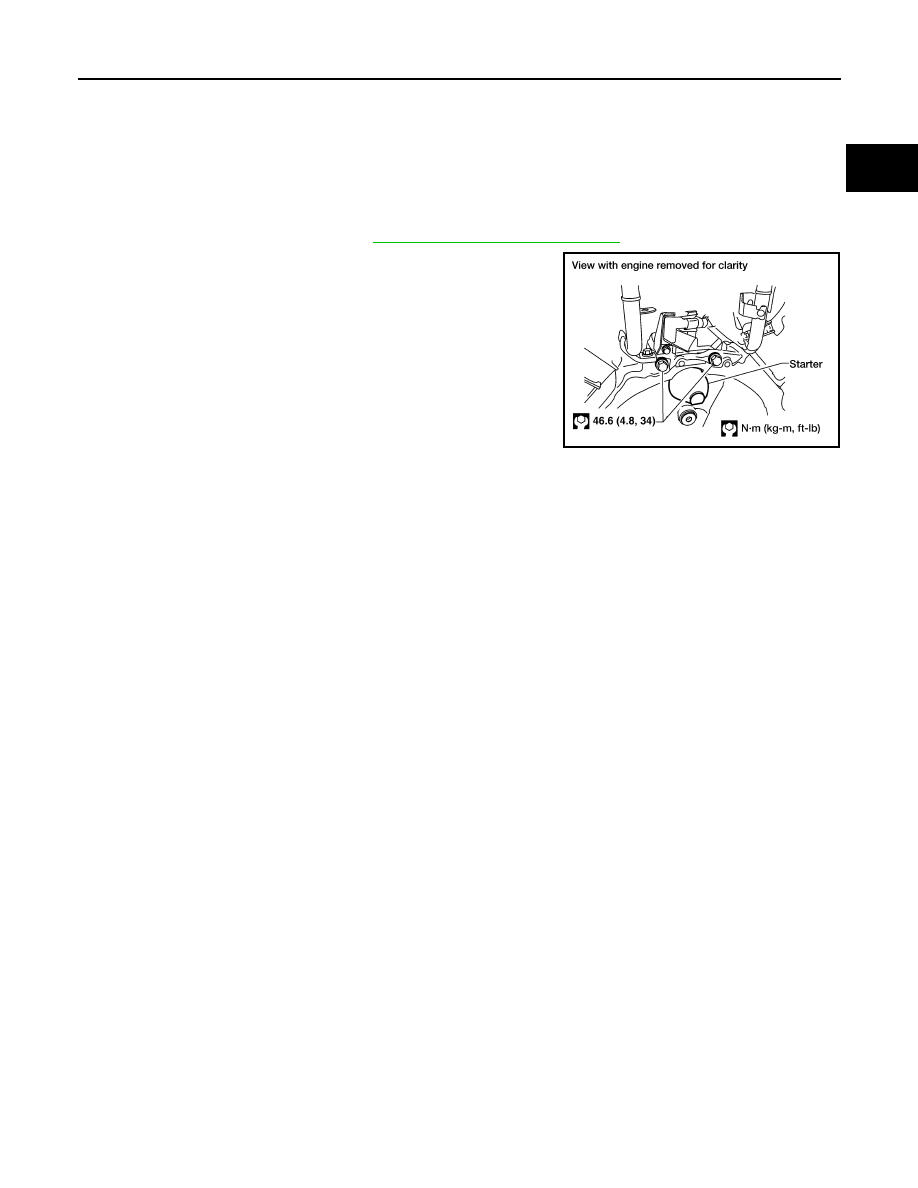

VK56DE MODELS

Removal

1. Remove the intake manifold. Refer to

EM-162, "Removal and Installation"

.

2. Disconnect terminal "S" connector and terminal "B" nut.
3. Remove the two starter bolts, using power tools.
4. Remove the starter.

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal "B" nut carefully.

WKIA1388E

Terminal "B" nut

: 9.6 N·m (0.98 kg-m, 85 in-lb)
