Nissan Pathfinder (2010 year). Instruction - part 599

SRC-68

< ECU DIAGNOSIS >

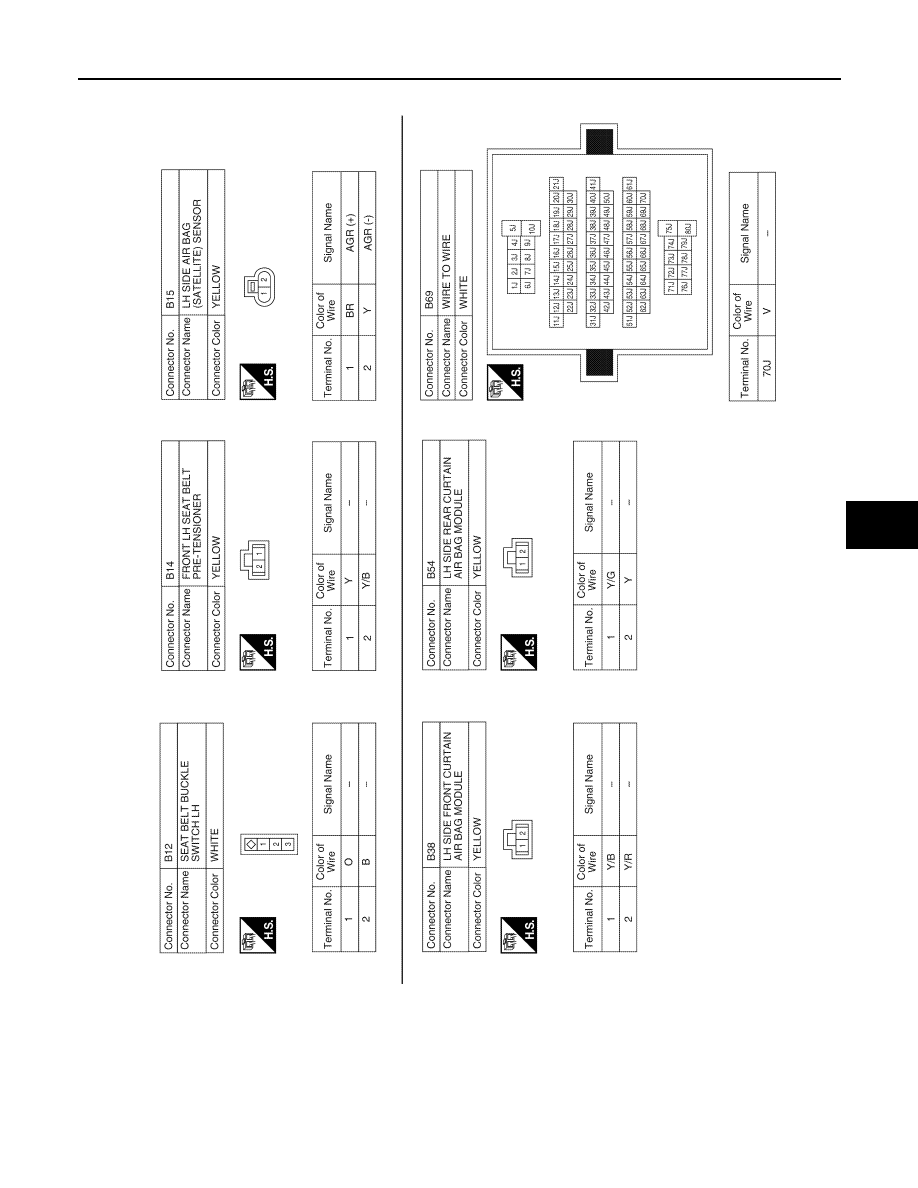

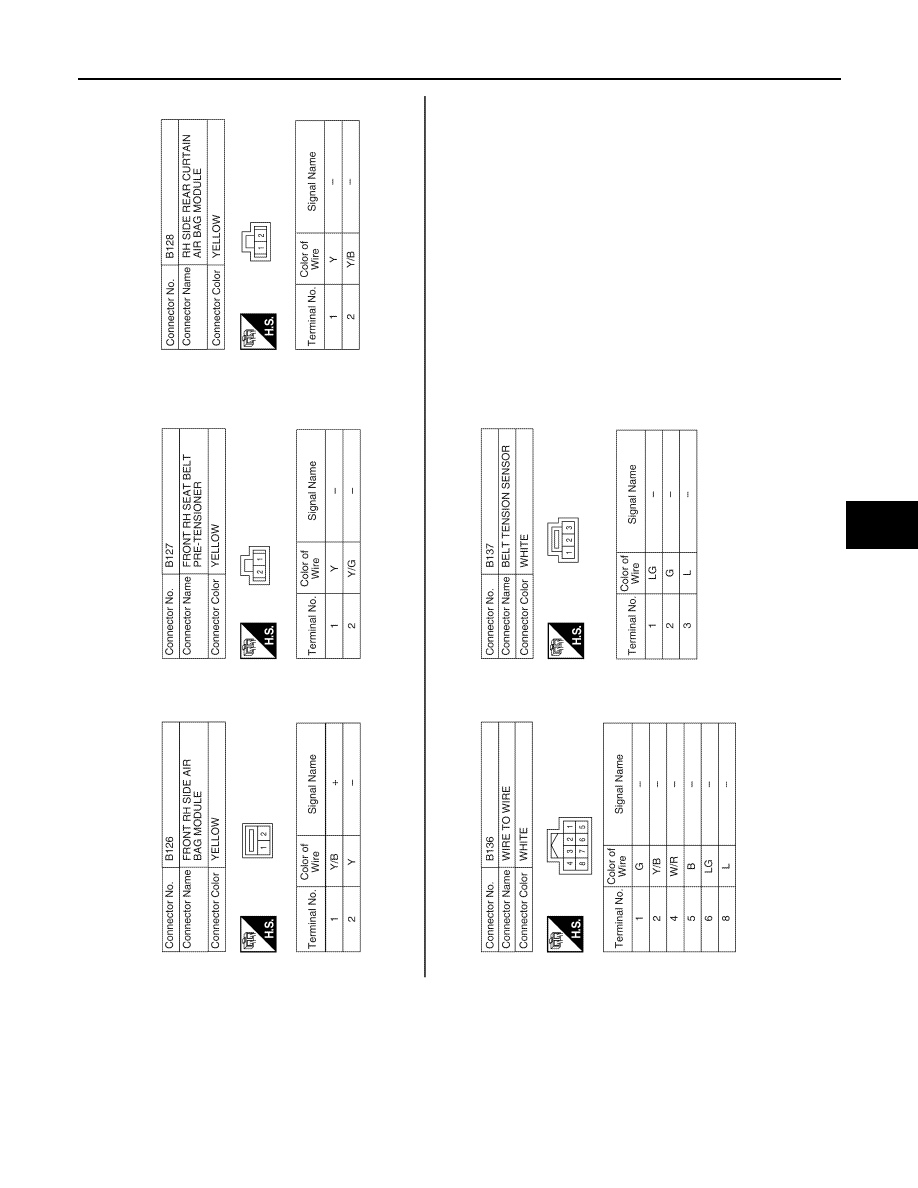

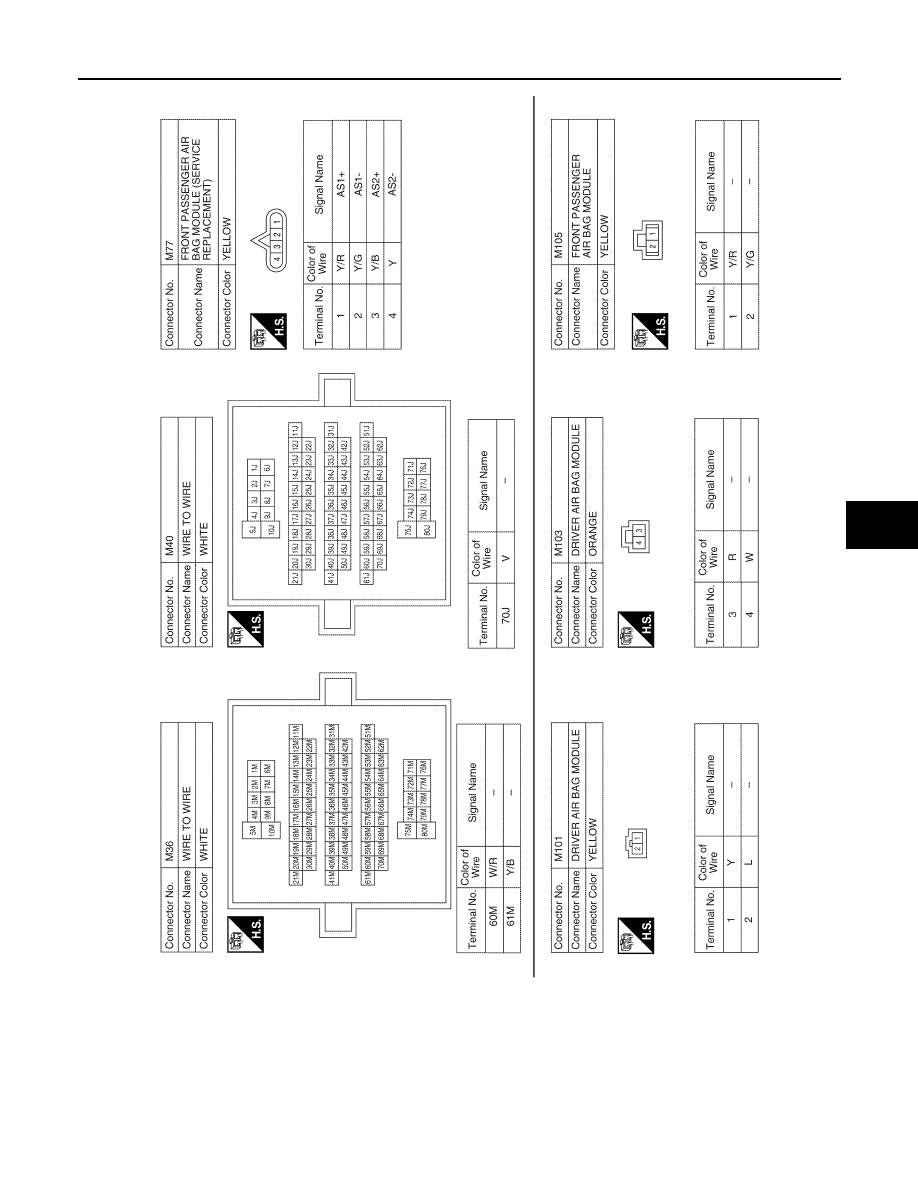

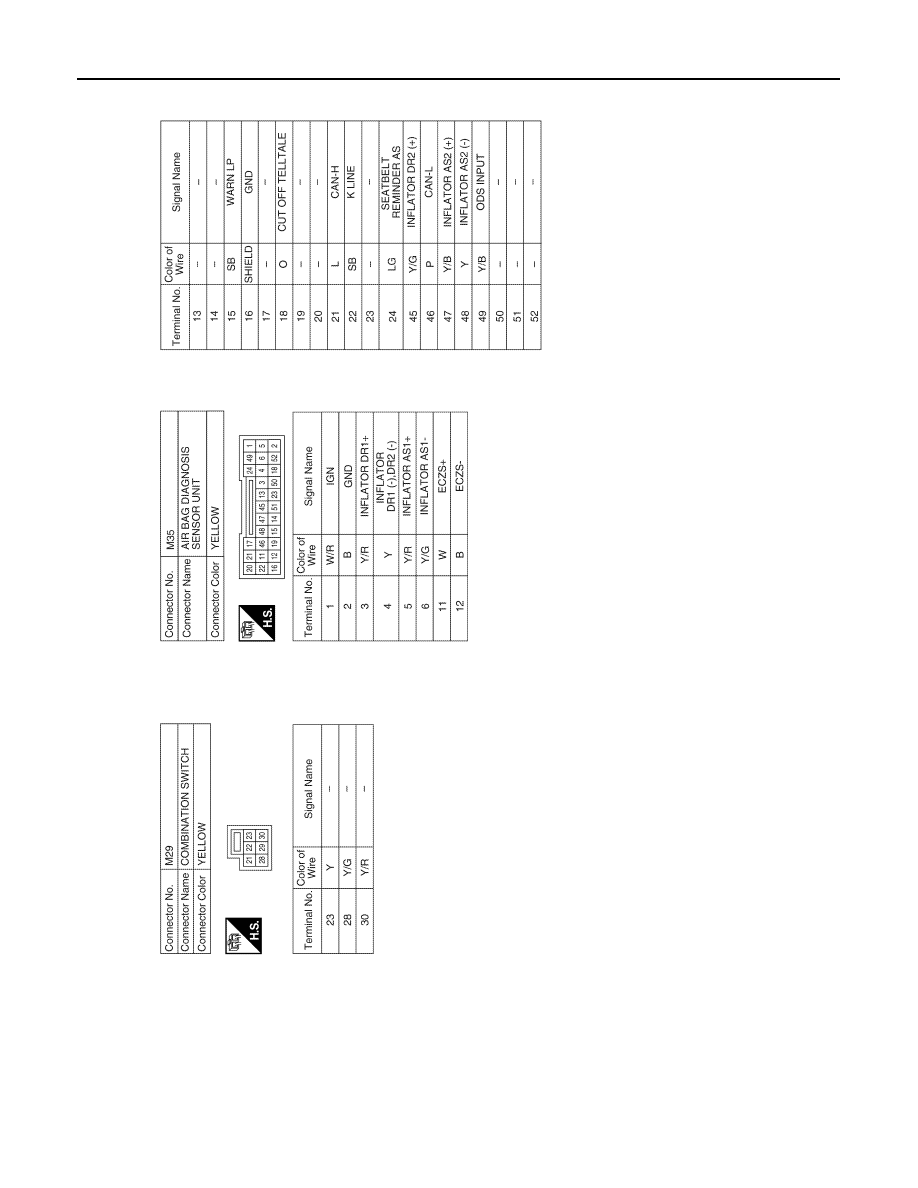

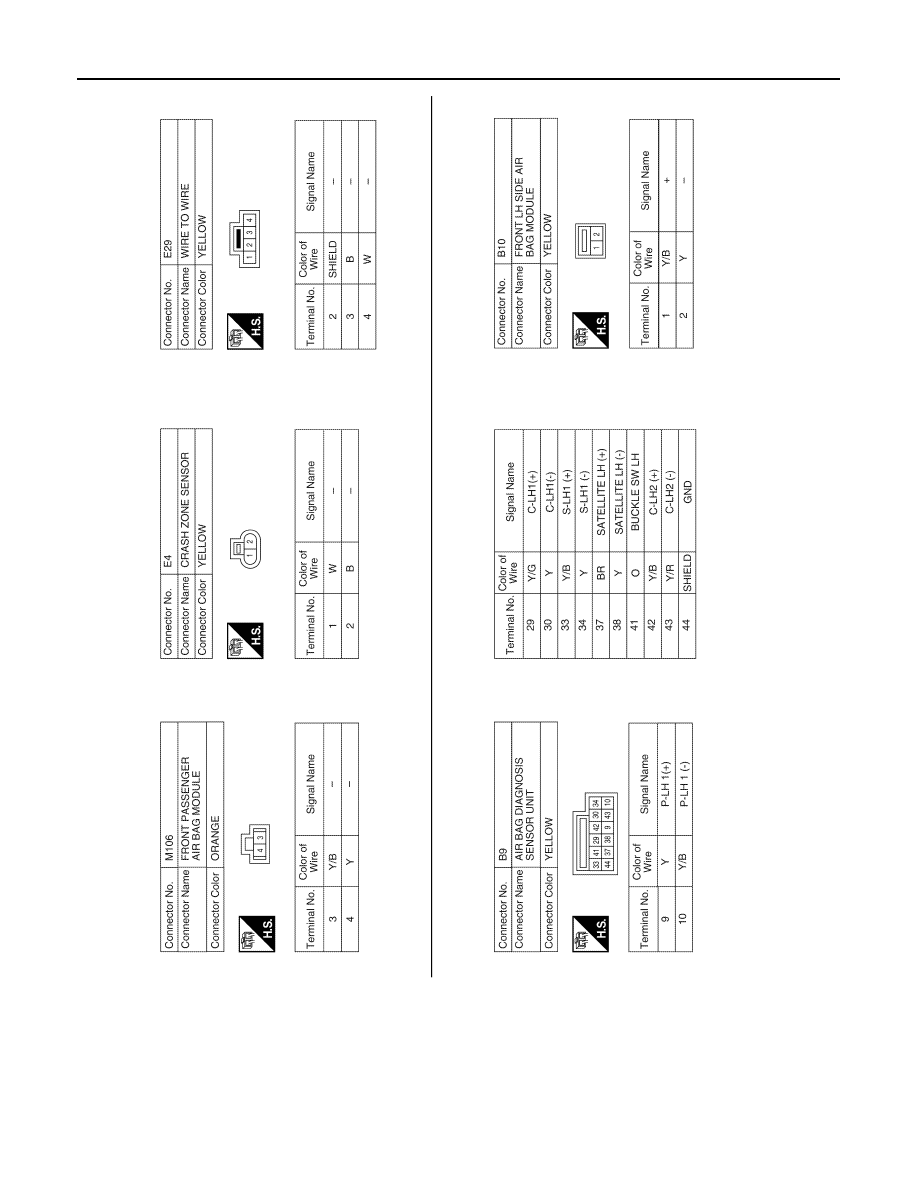

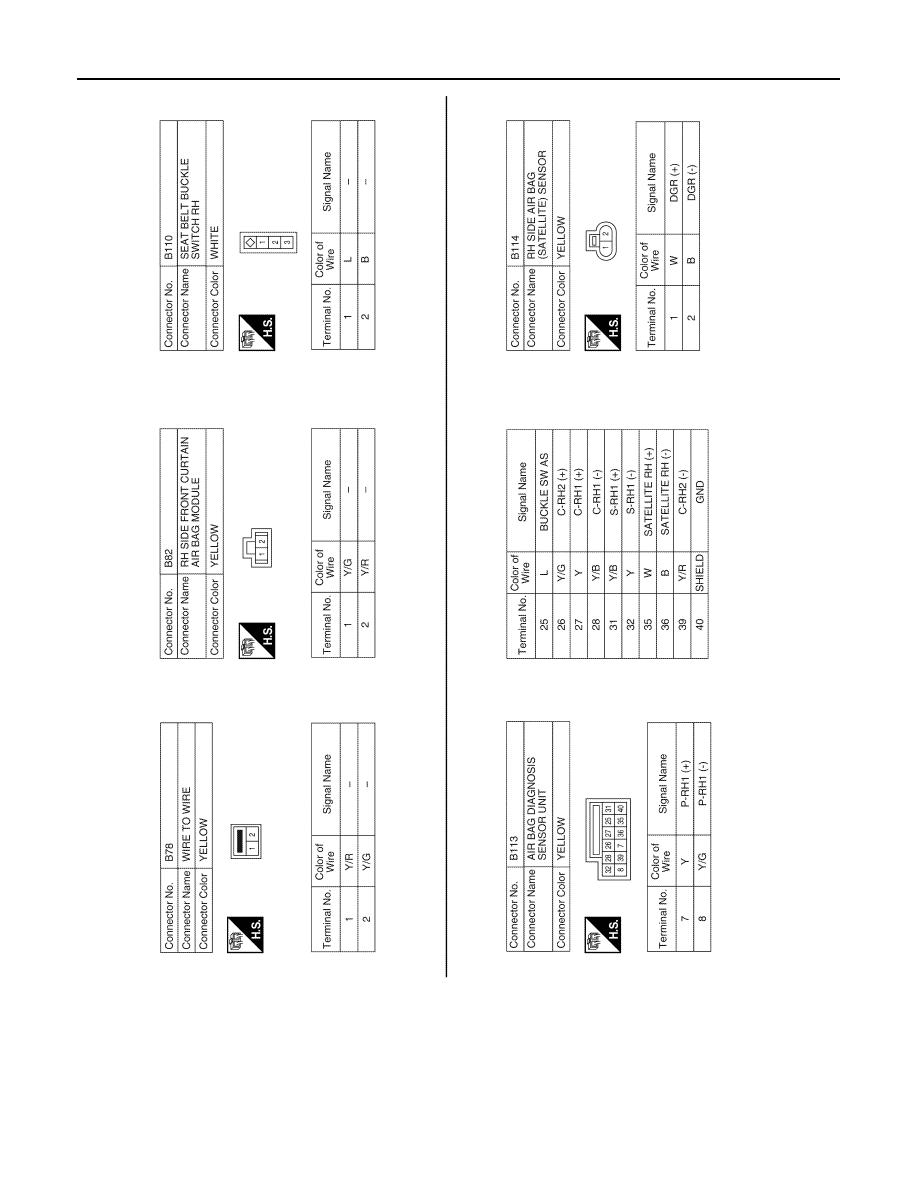

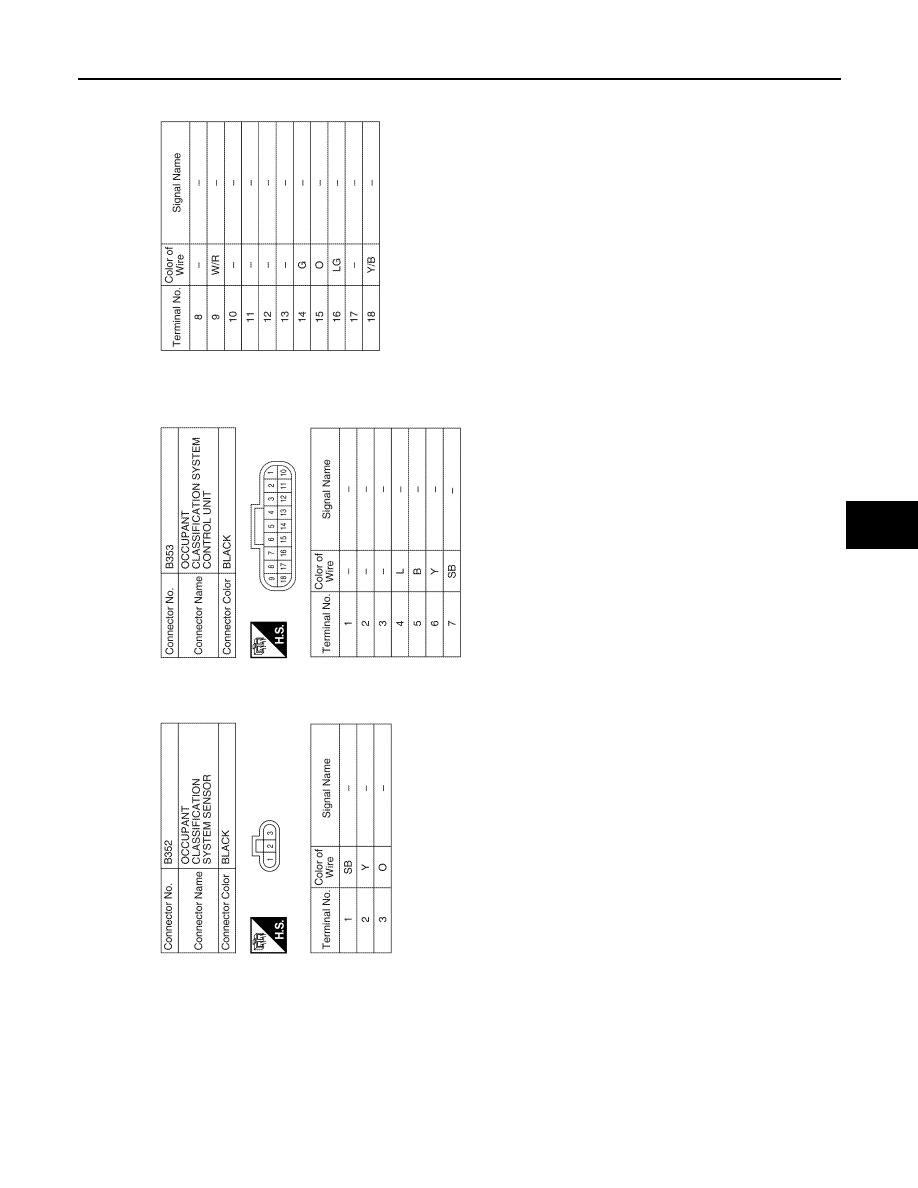

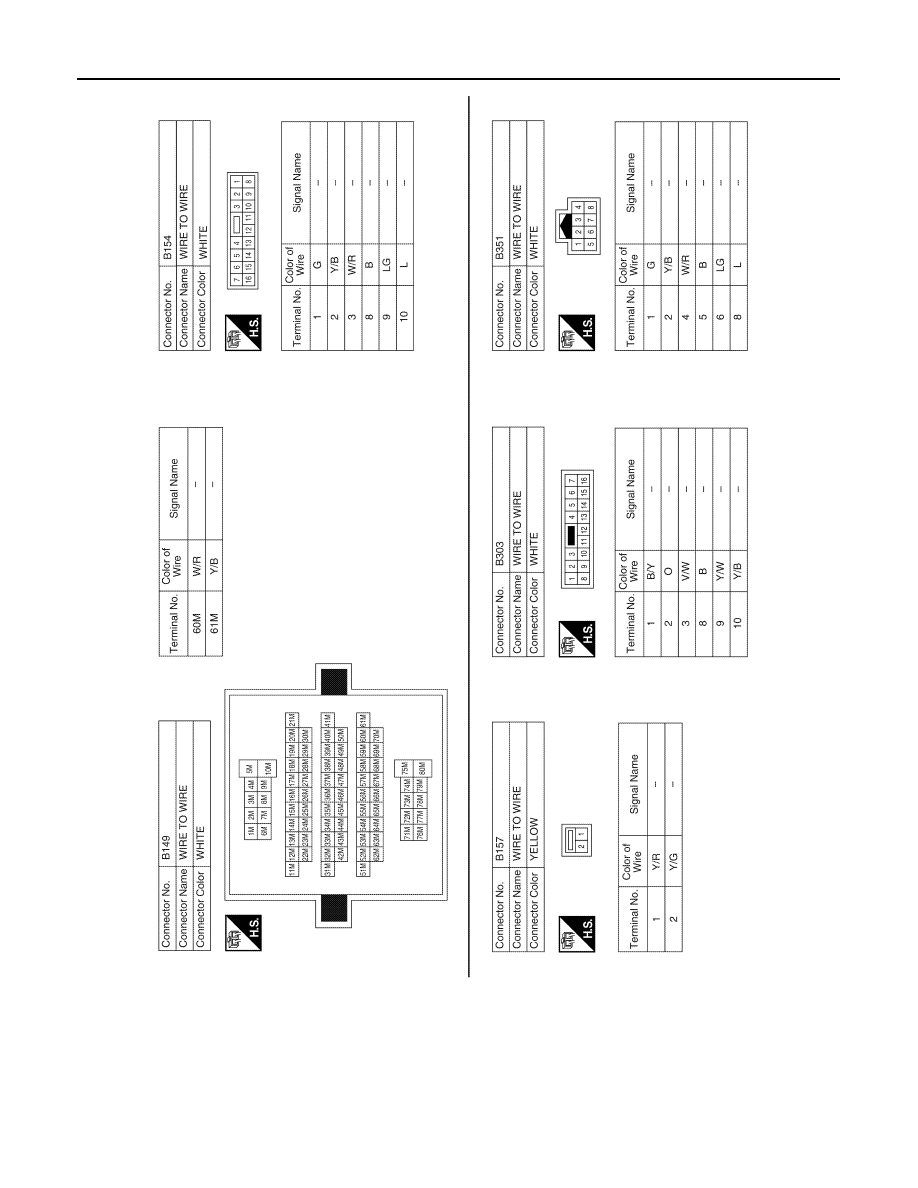

DIAGNOSIS SENSOR UNIT

ABHIA0198GB

2010 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-69

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHIA0199GB

2010 Pathfinder

SRC-70

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ABHIA0200GB

2010 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-71

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHIA0201GB

2010 Pathfinder

SRC-72

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ABHIA0202GB

2010 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-73

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHIA0203GB

2010 Pathfinder

SRC-74

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ABHIA0204GB

2010 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-75

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Trouble Diagnosis with CONSULT-III

INFOID:0000000005258614

DIAGNOSTIC CODE CHART

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is

eliminated using air bag warning lamp or CONSULT-III each time repair is finished. If malfunction is still

observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

ABHIA0205GB

2010 Pathfinder
