MWI-36

< COMPONENT DIAGNOSIS >

COMPASS

COMPASS

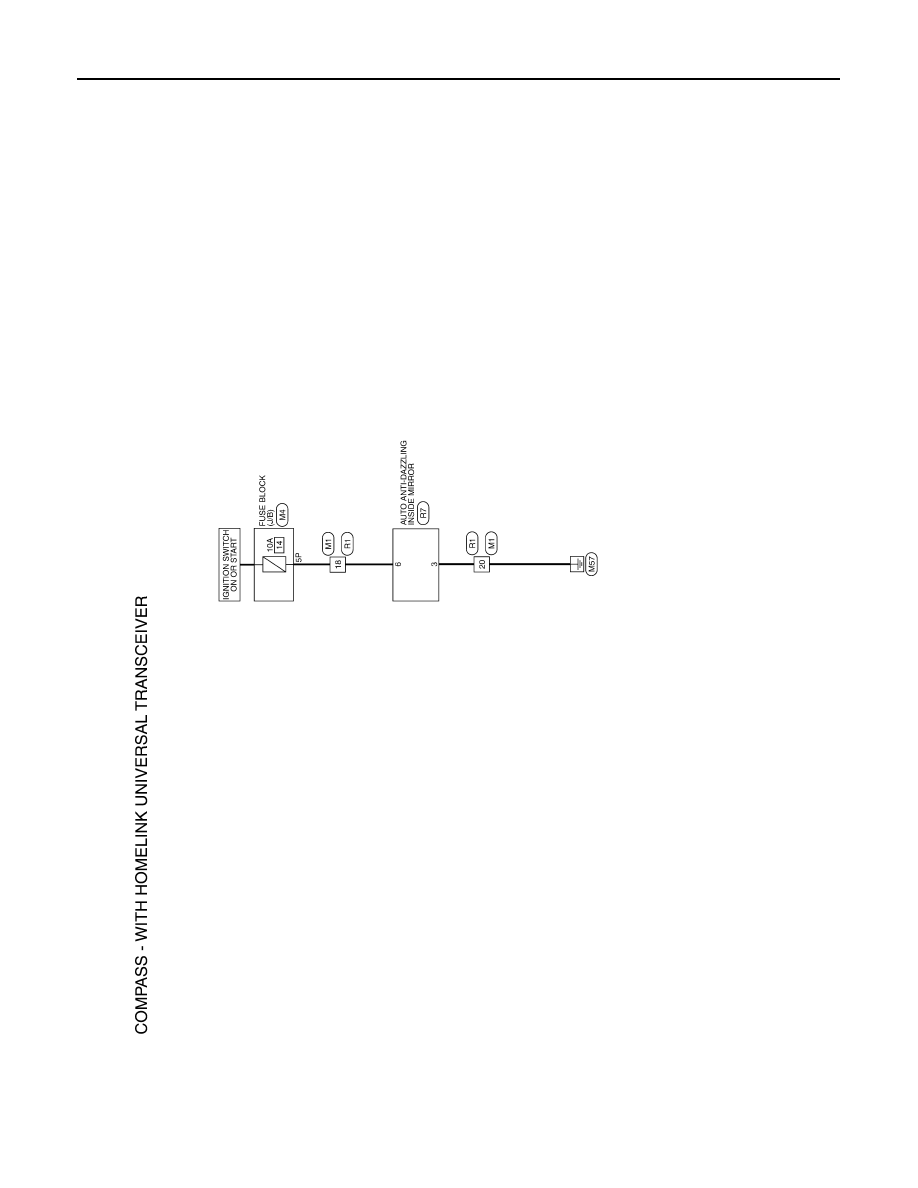

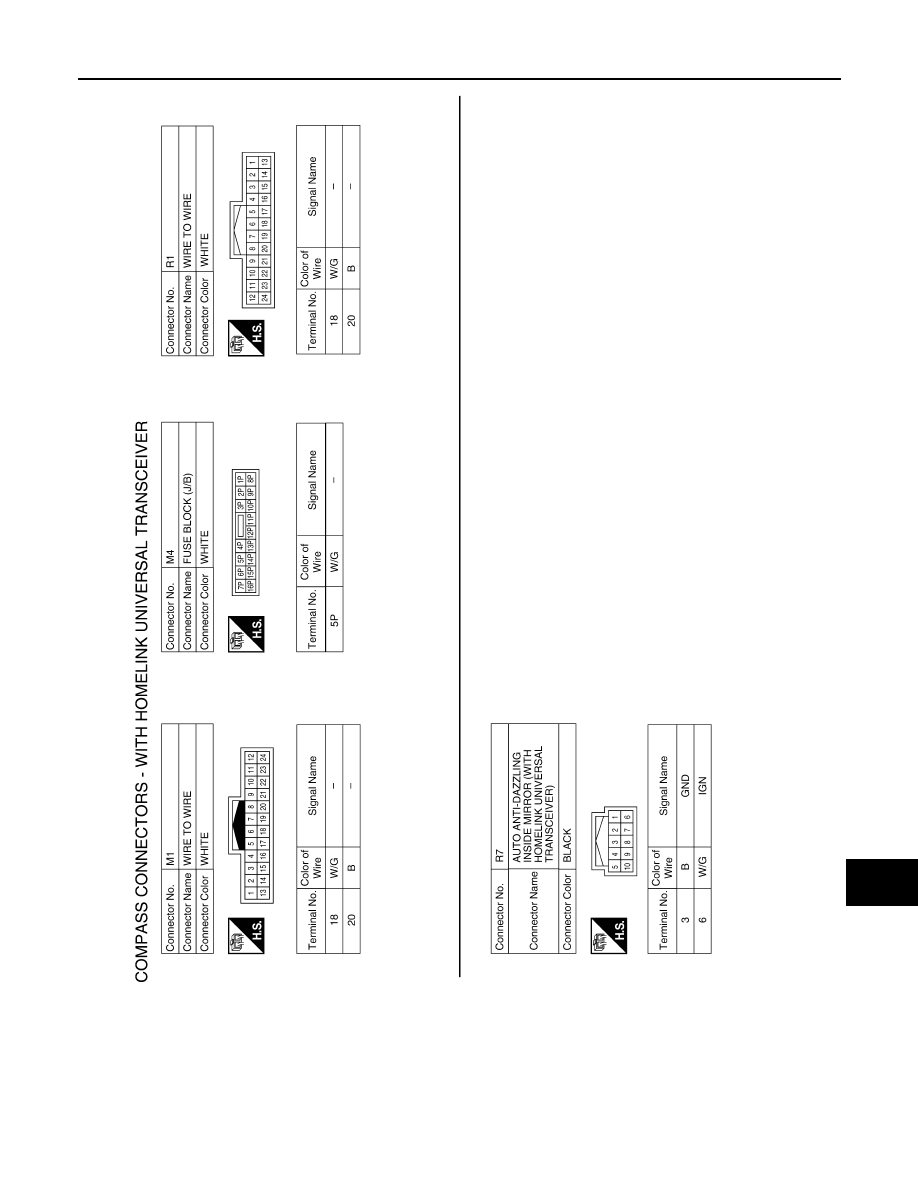

Wiring Diagram — With HomeLink® Universal Transceiver

INFOID:0000000005260387

ABNWA0163GB

2010 Pathfinder

MWI

COMPASS

MWI-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA0509GB

2010 Pathfinder

MWI-38

< COMPONENT DIAGNOSIS >

COMPASS

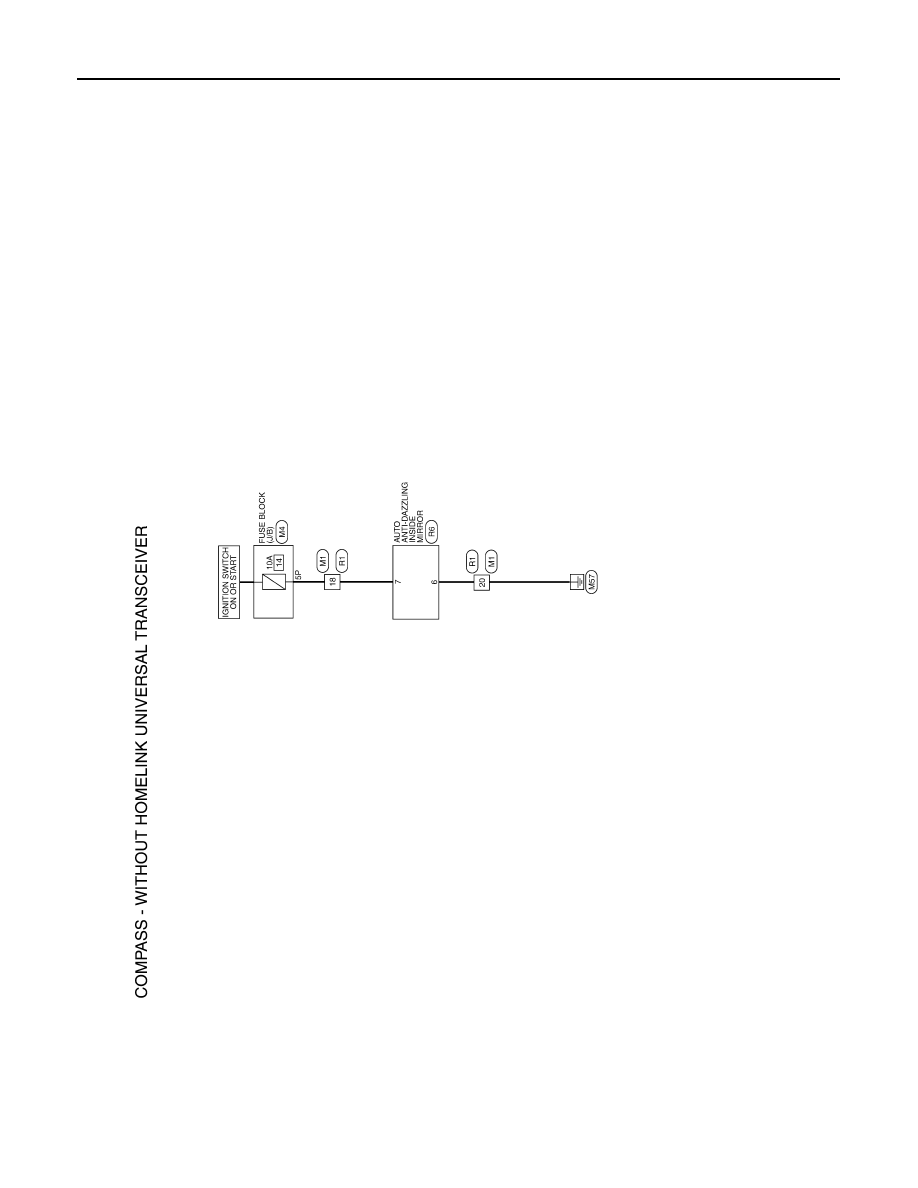

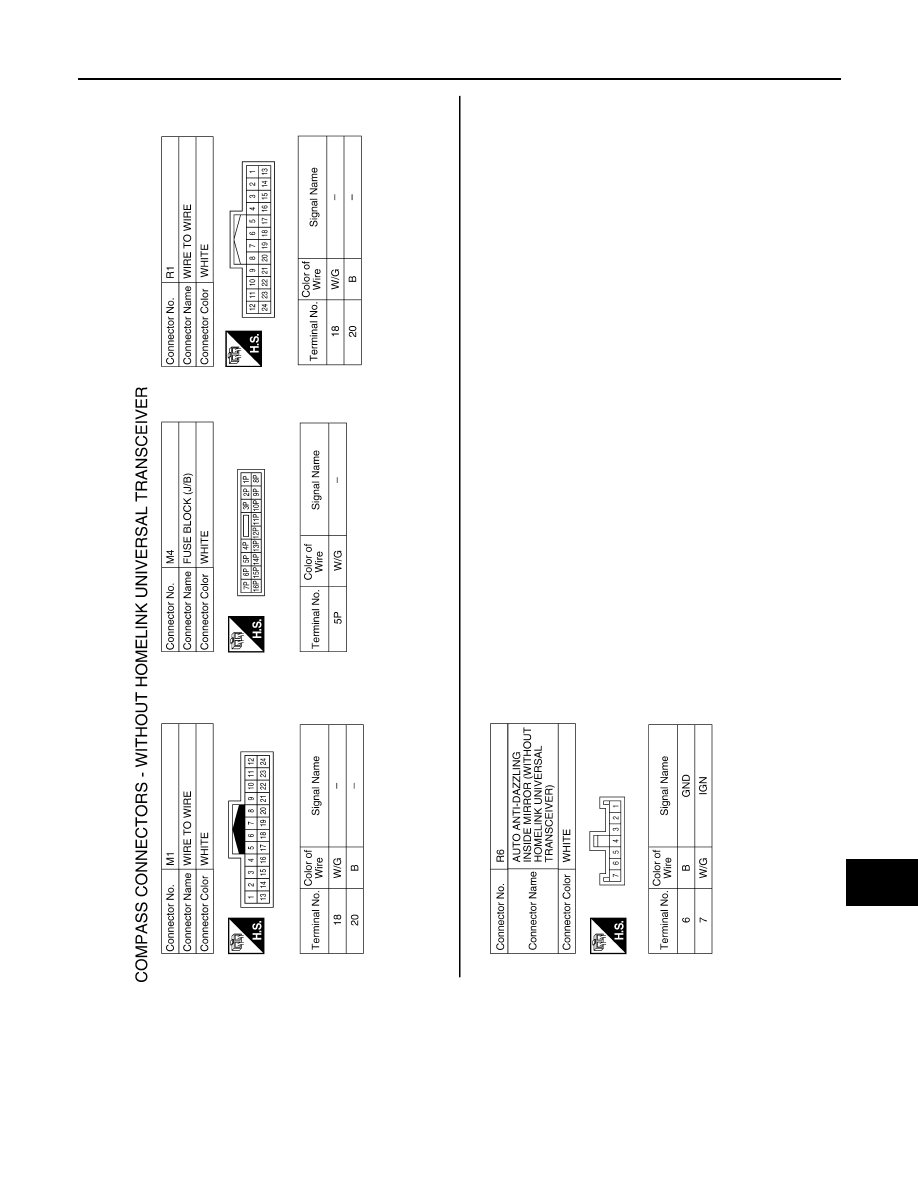

Wiring Diagram — Without HomeLink® Universal Transceiver

INFOID:0000000005260388

ABNWA0164GB

2010 Pathfinder

MWI

COMPASS

MWI-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA1796GB

2010 Pathfinder

MWI-40

< ECU DIAGNOSIS >

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

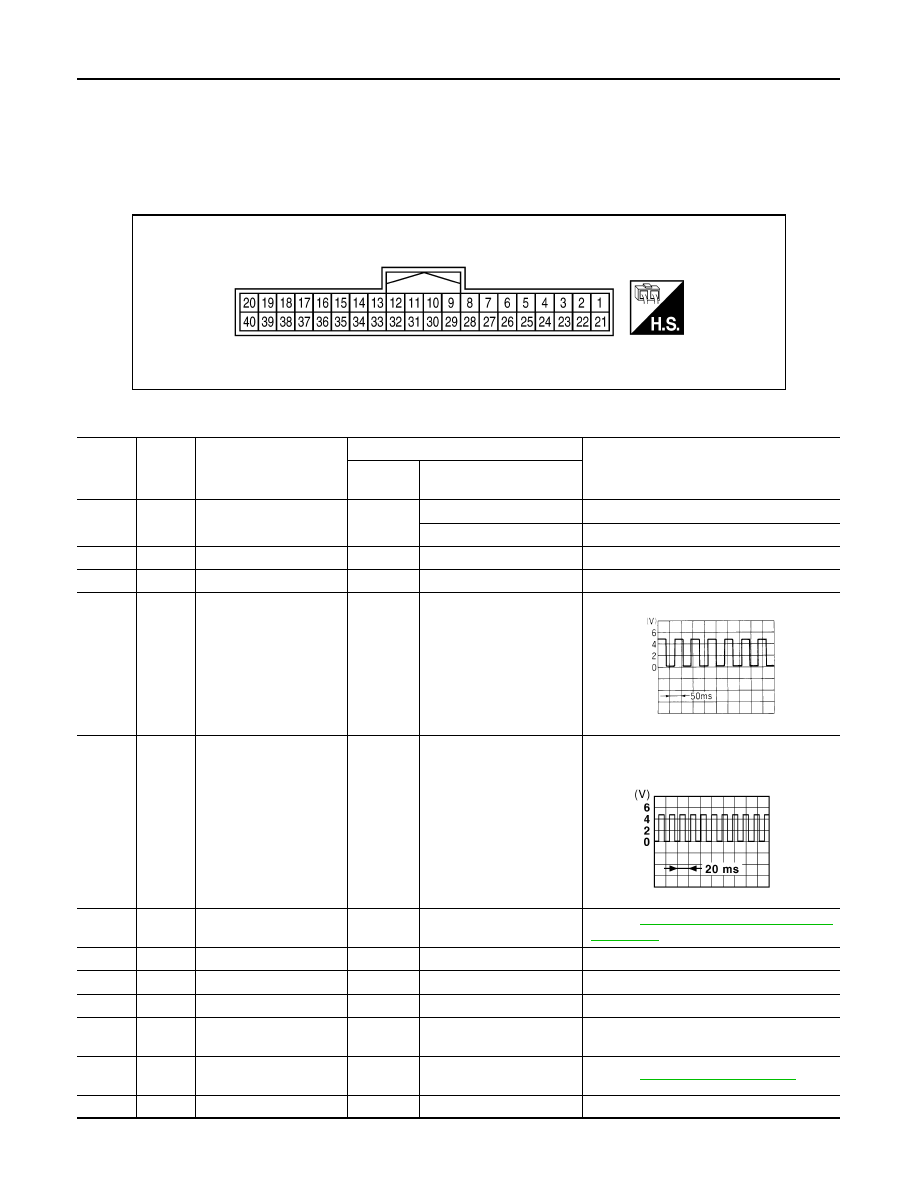

Reference Value

INFOID:0000000005260389

TERMINAL LAYOUT

PHYSICAL VALUES

LKIA0698E

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

2

P

Generator

ON

Generator voltage low

0

Generator voltage normal

Battery voltage

3

R/Y

Battery power supply

—

—

Battery voltage

4

B/Y

Fuel level sensor ground

ON

—

0

5

W

Vehicle speed signal out-
put

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

6

LG

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:

Maximum voltage may be 12V due to spec-
ifications (connected units).

9

BR

Fuel level sensor signal

—

—

Refer to

MWI-11, "FUEL GAUGE : System

Description"

.

11

P

CAN-L

—

—

—

12

L

CAN-H

—

—

—

13

GR

Ground

—

—

0

16

W/G

Ignition switch ON or
START

ON

—

Battery voltage

22

BR

Illumination control
switch

—

—

Refer to

INL-9, "System Description"

.

23

B

Ground

—

—

0

ELF1080D

PKIC0643E

2010 Pathfinder

MWI

COMBINATION METER

MWI-41

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

24

V

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

31

G

Parking brake switch

ON

Parking brake depressed

0

Parking brake released

Battery voltage

32

SB

Brake fluid level switch

ON

Brake fluid level low

0

Brake fluid level normal

Battery voltage

34

L

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

37

SB

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

4

Air bag warning lamp OFF

0

39

G

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage

40

LG

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

2010 Pathfinder

MWI-42

< ECU DIAGNOSIS >

COMBINATION METER

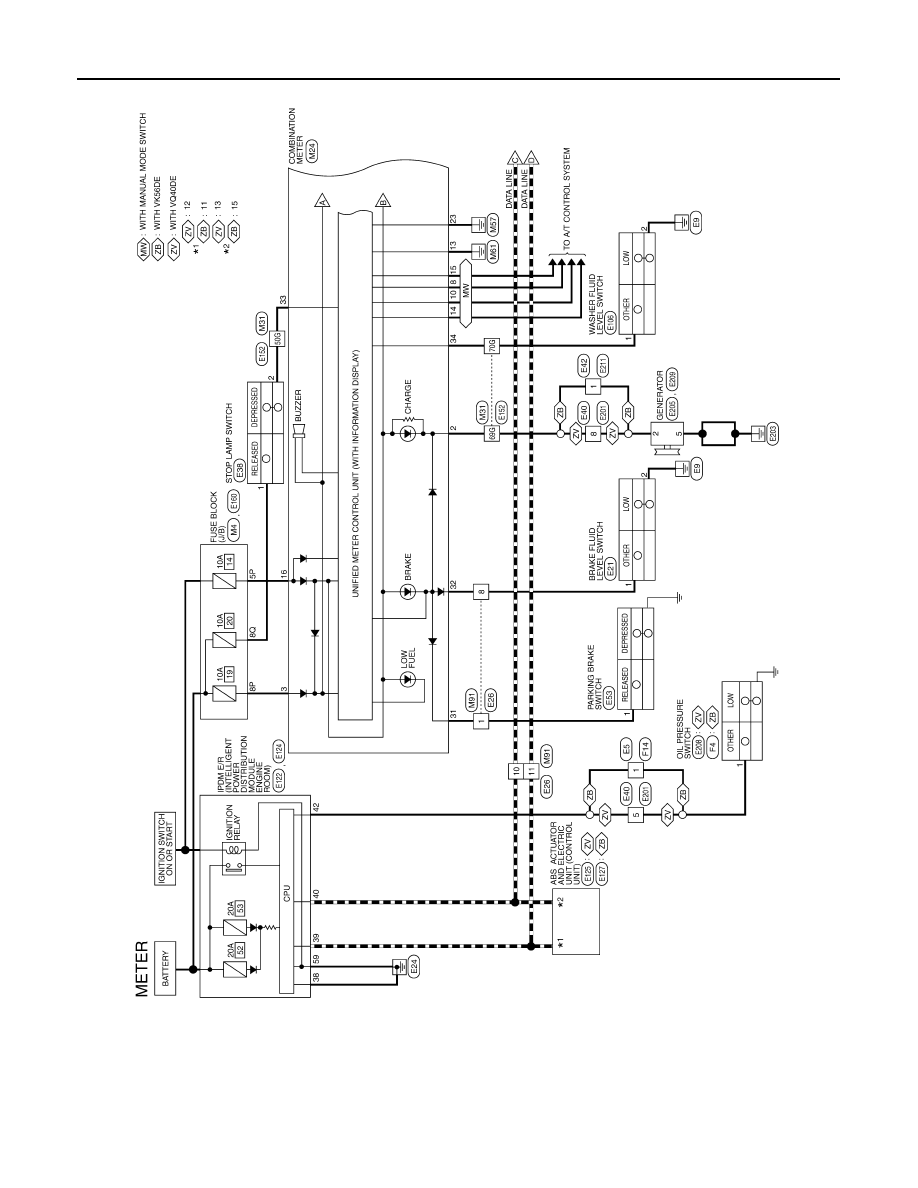

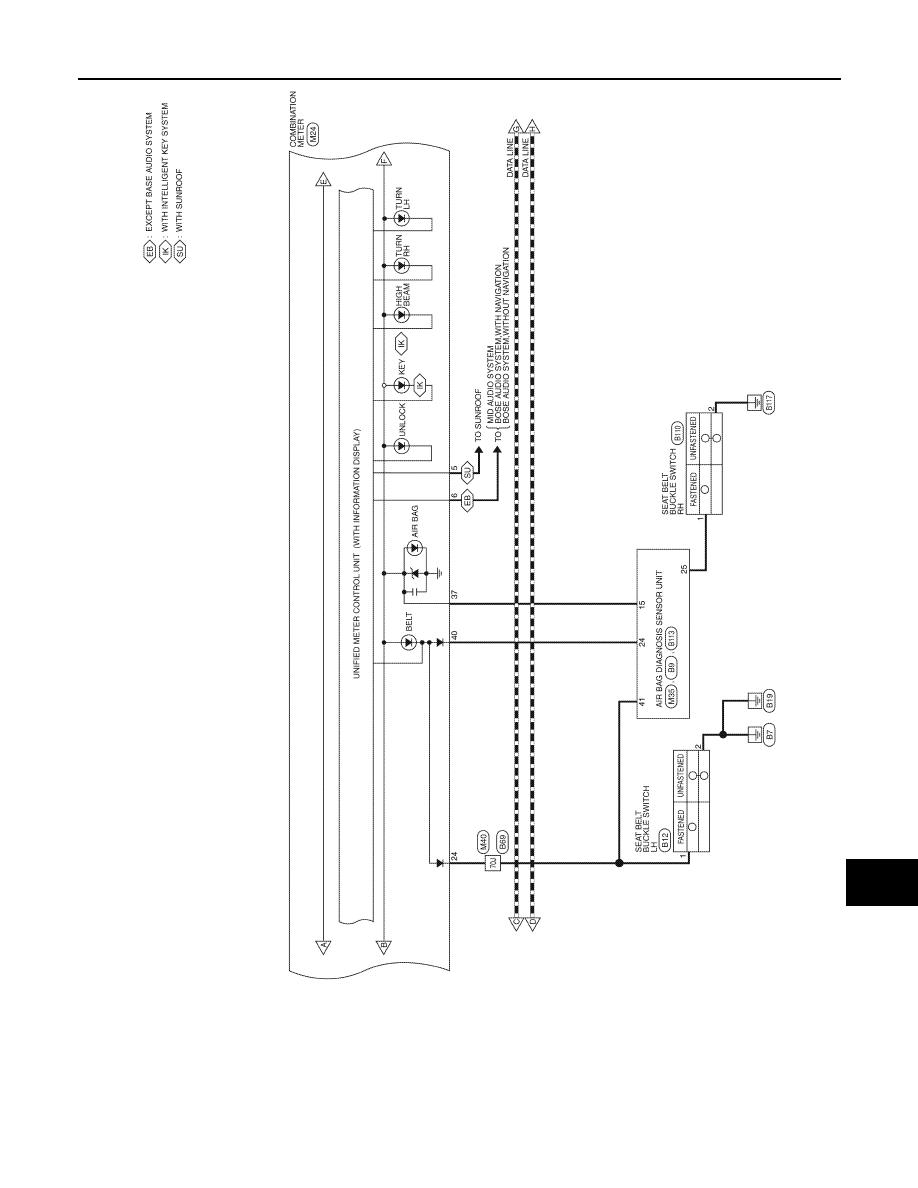

Wiring Diagram

INFOID:0000000005260390

ABNWA0503GB

2010 Pathfinder

MWI

COMBINATION METER

MWI-43

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNWA0504GB
