Nissan Pathfinder (2010 year). Instruction - part 124

CHG-14

< COMPONENT DIAGNOSIS >

CHARGING SYSTEM

CHARGING SYSTEM

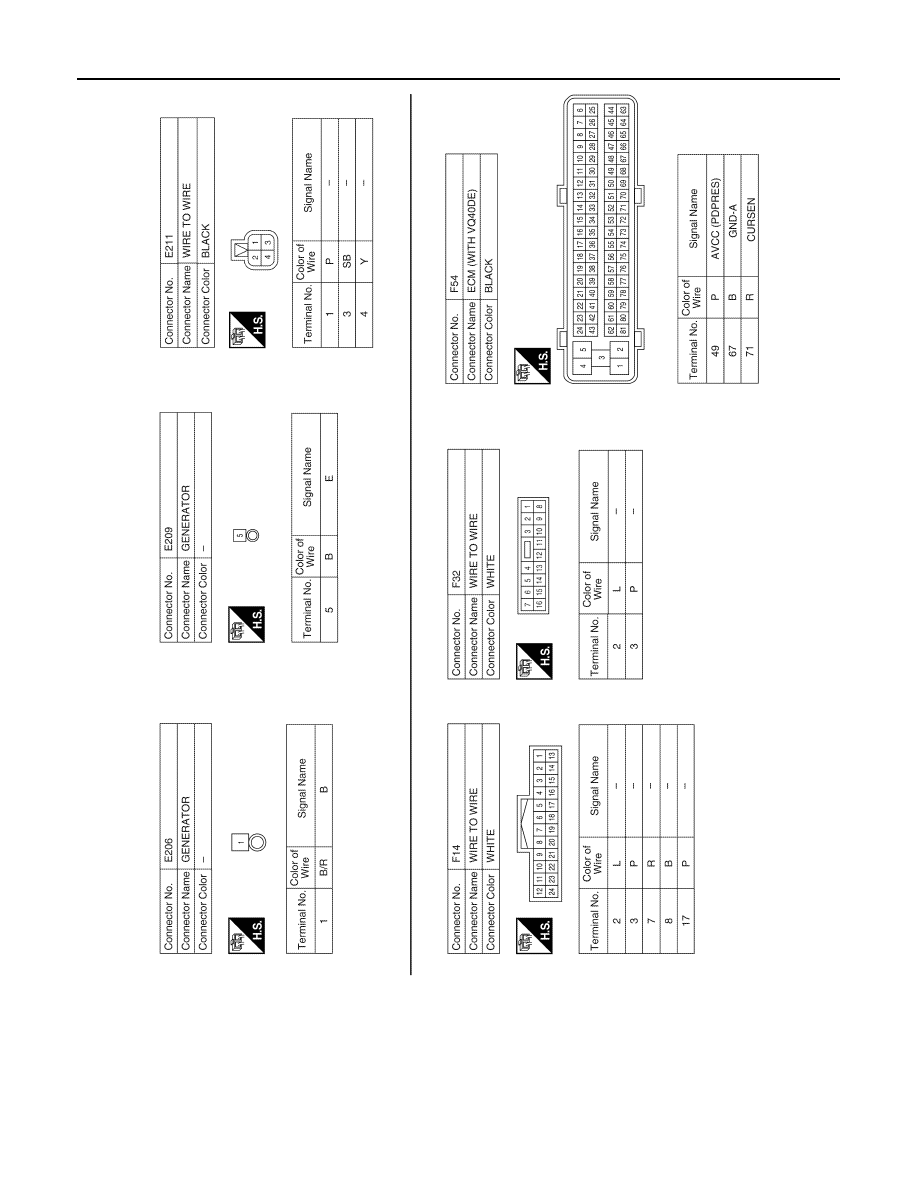

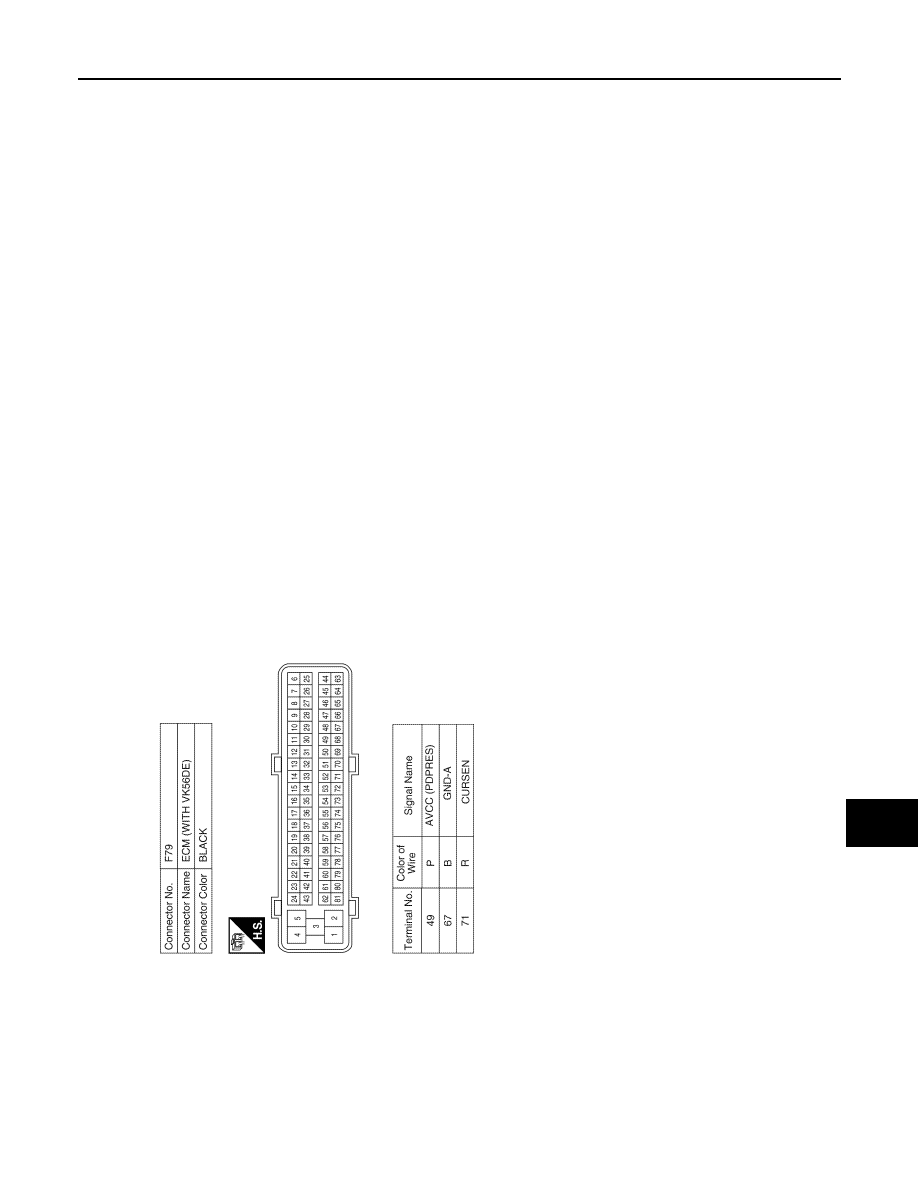

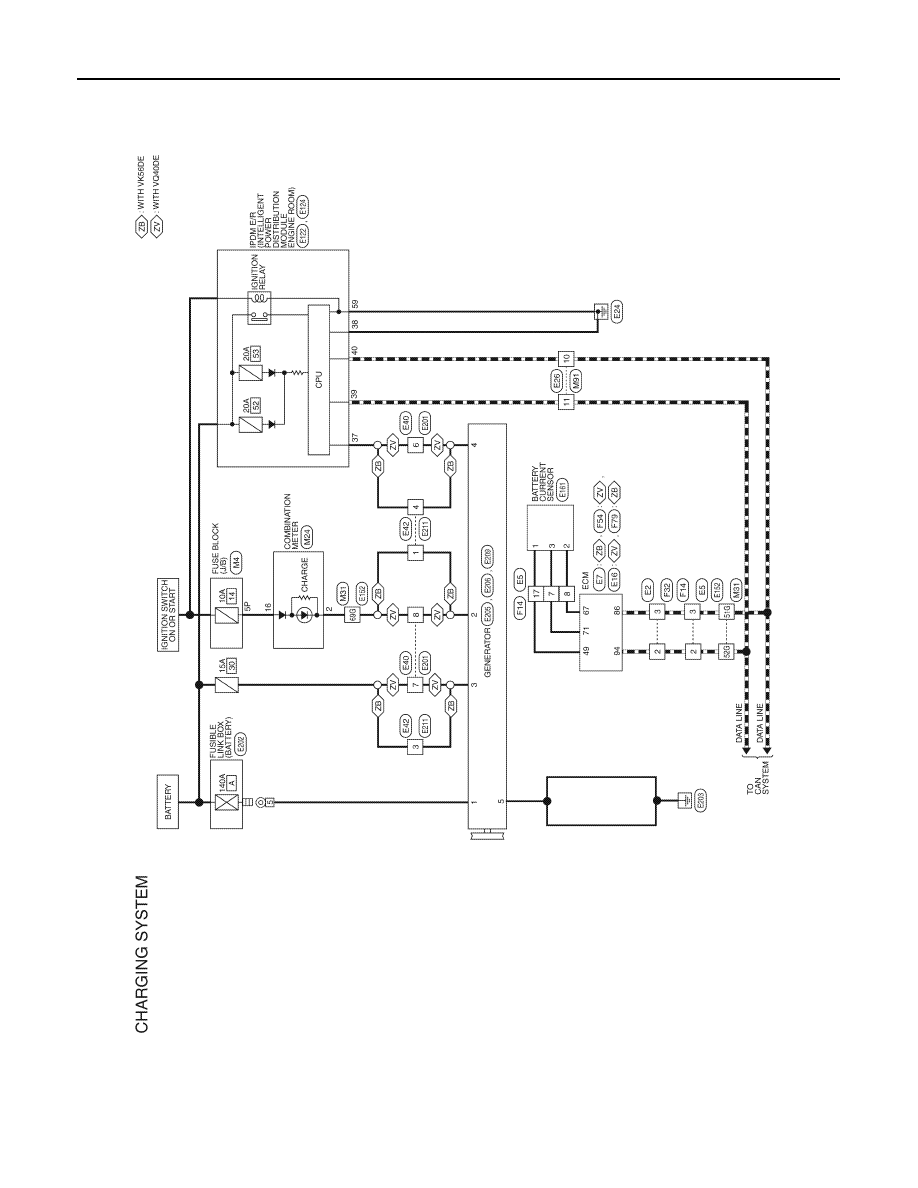

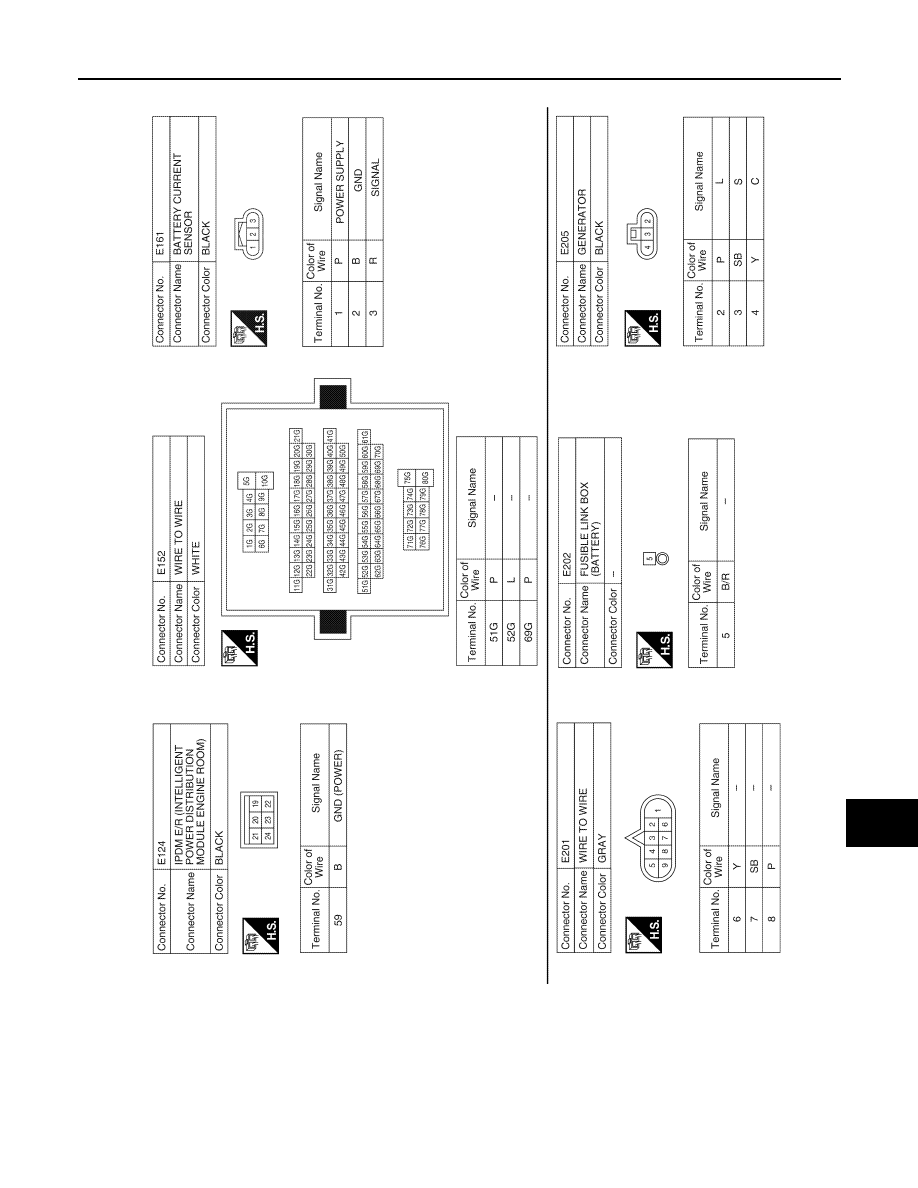

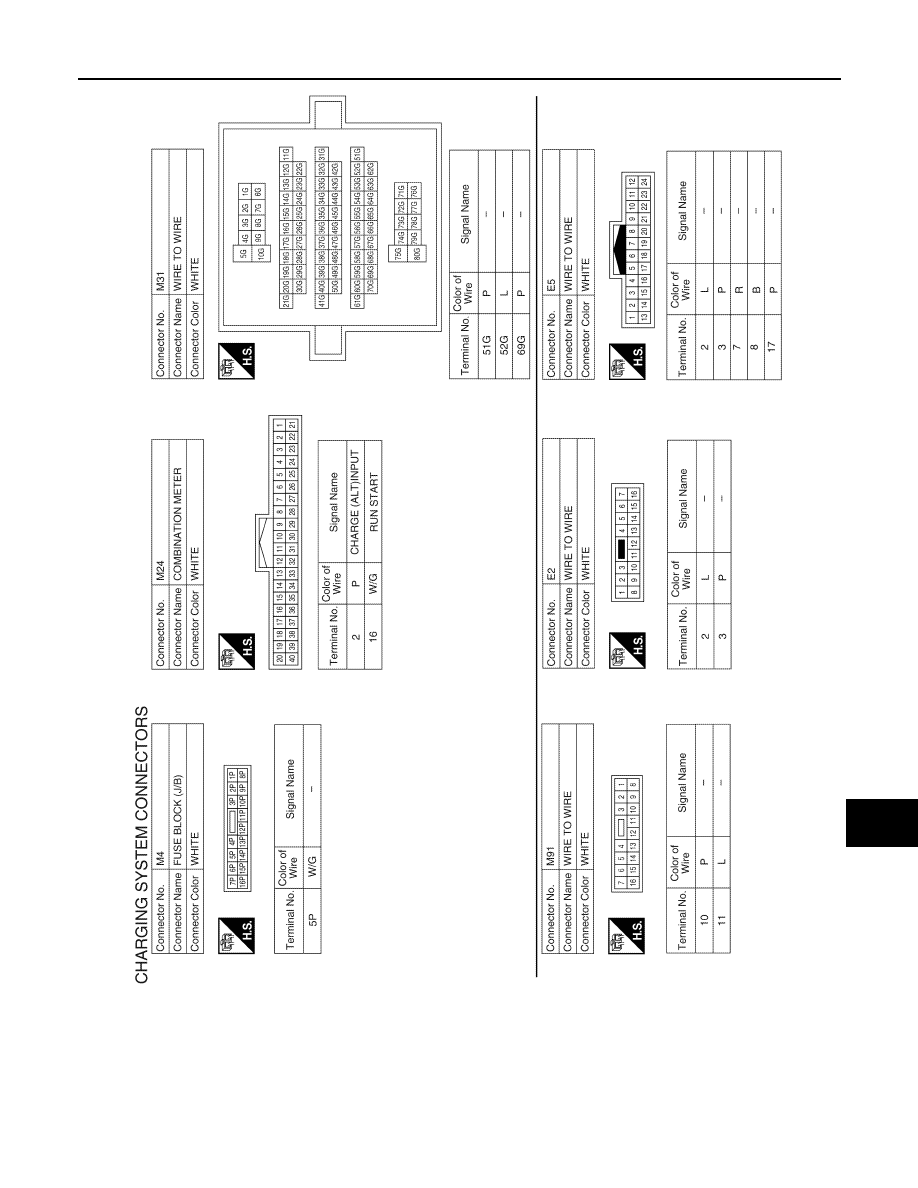

Wiring Diagram

INFOID:0000000005255219

ABMWA0475GB

2010 Pathfinder

CHG

CHARGING SYSTEM

CHG-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1293GB

2010 Pathfinder

CHG-16

< COMPONENT DIAGNOSIS >

CHARGING SYSTEM

ABMIA1294GB

2010 Pathfinder

CHG

CHARGING SYSTEM

CHG-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1295GB

2010 Pathfinder

CHG-18

< COMPONENT DIAGNOSIS >

CHARGING SYSTEM

ABMIA1296GB

2010 Pathfinder

CHG

CHARGING SYSTEM

CHG-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1297GB

2010 Pathfinder

CHG-20

< SYMPTOM DIAGNOSIS >

CHARGING SYSTEM

SYMPTOM DIAGNOSIS

CHARGING SYSTEM

Symptom Table

INFOID:0000000005255220

Symptom

Reference

Battery discharged

Refer to

CHG-5, "Work Flow"

.

The charge warning lamp does not illuminate when the ignition
switch is set to ON.

The charge warning lamp does not turn OFF after the engine
starts.

The charging warning lamp turns ON when increasing the engine
speed.

2010 Pathfinder

CHG

GENERATOR

CHG-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

GENERATOR

Removal and Installation

INFOID:0000000005255221

VQ40DE MODELS

Removal

1. Disconnect the negative battery terminal. Refer to

PG-78, "Removal and Installation"

.

2. Partially drain the engine coolant. Refer to

CO-12, "Changing Engine Coolant"

.

3. Remove engine room cover.
4. Remove air duct and resonator assembly. Refer to

EM-26, "Exploded View"

.

5. Remove upper radiator hose.
6. Disconnect coolant reservoir hose from radiator.
7. Remove the fan shroud. Refer to

CO-16, "Exploded View"

.

8. Remove engine cooling fan (Motor Driven Type). Refer to

CO-20, "Removal and Installation (Motor driven

type)"

.

9. Remove the drive belt. Refer to

EM-14, "Removal and Installation"

.

10. Remove the generator stay, using power tools.
11. Remove the generator upper bolt, using power tools.
12. Disconnect the generator harness connectors.
13. Remove the generator.

Installation

Installation is in the reverse order of removal.

• Install the generator and check the tension of the drive belt. Refer to

EM-14, "Checking Drive Belts"

.

CAUTION:

Tighten terminal nut carefully.

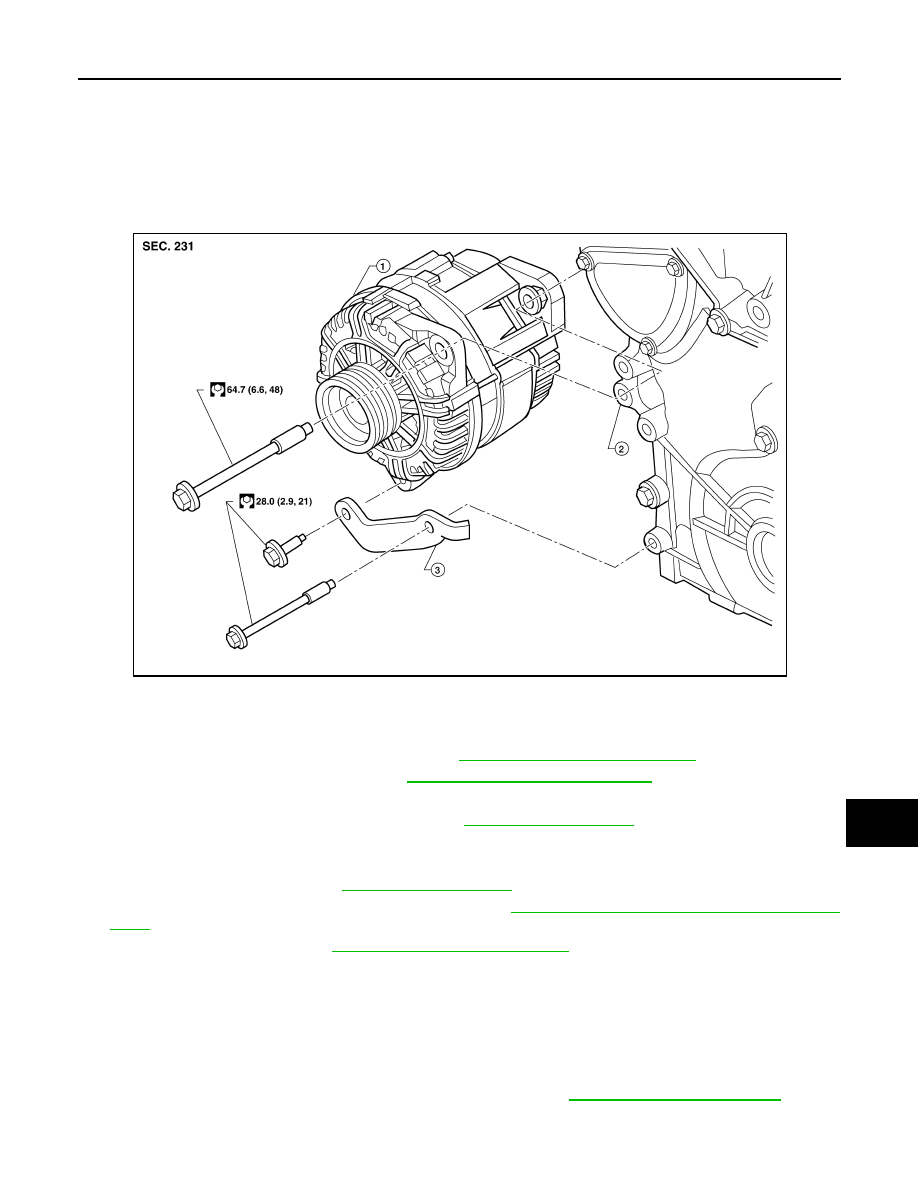

1.

Generator

2.

Engine block

3.

Generator stay

AWMIA1170GB

2010 Pathfinder
