BRC-12

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

VK56DE

AWFIA0461GB

2010 Pathfinder

VDC

BRC-13

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

HYDRAULIC CIRCUIT DIAGRAM

System Description

INFOID:0000000005258633

• Vehicle Dynamics Control system detects driver

′

s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensors. Using information from yaw rate/side/decel G sensor and

wheel sensor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle

driving stability by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT-III is available.

• Active booster, delta stroke sensor, front pressure sensor, rear pressure sensor and stop lamp relay are

available on vehicles equipped with VK56DE only.

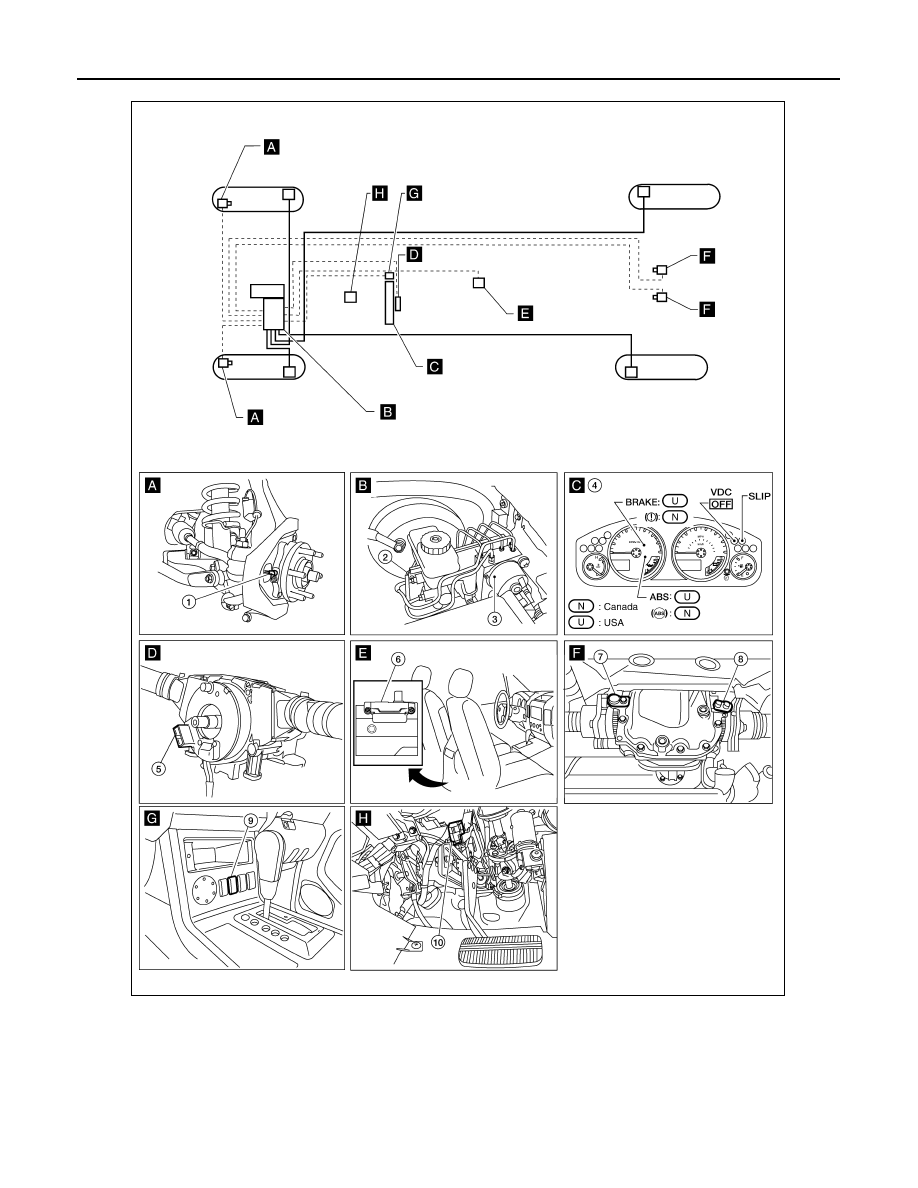

Component Parts Location

INFOID:0000000005258634

VQ40DE

WFIA0357E

2010 Pathfinder

BRC-14

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

AWFIA0454GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control
unit) E125

4.

Combination meter M24

5.

Steering angle sensor (behind spiral
cable) M47

6.

Yaw rate/side/decel G sensor B73

7.

Rear wheel sensor LH C13

8.

Rear wheel sensor RH C13

9.

VDC OFF switch M154

10. Stop lamp switch E38

2010 Pathfinder

VDC

BRC-15

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

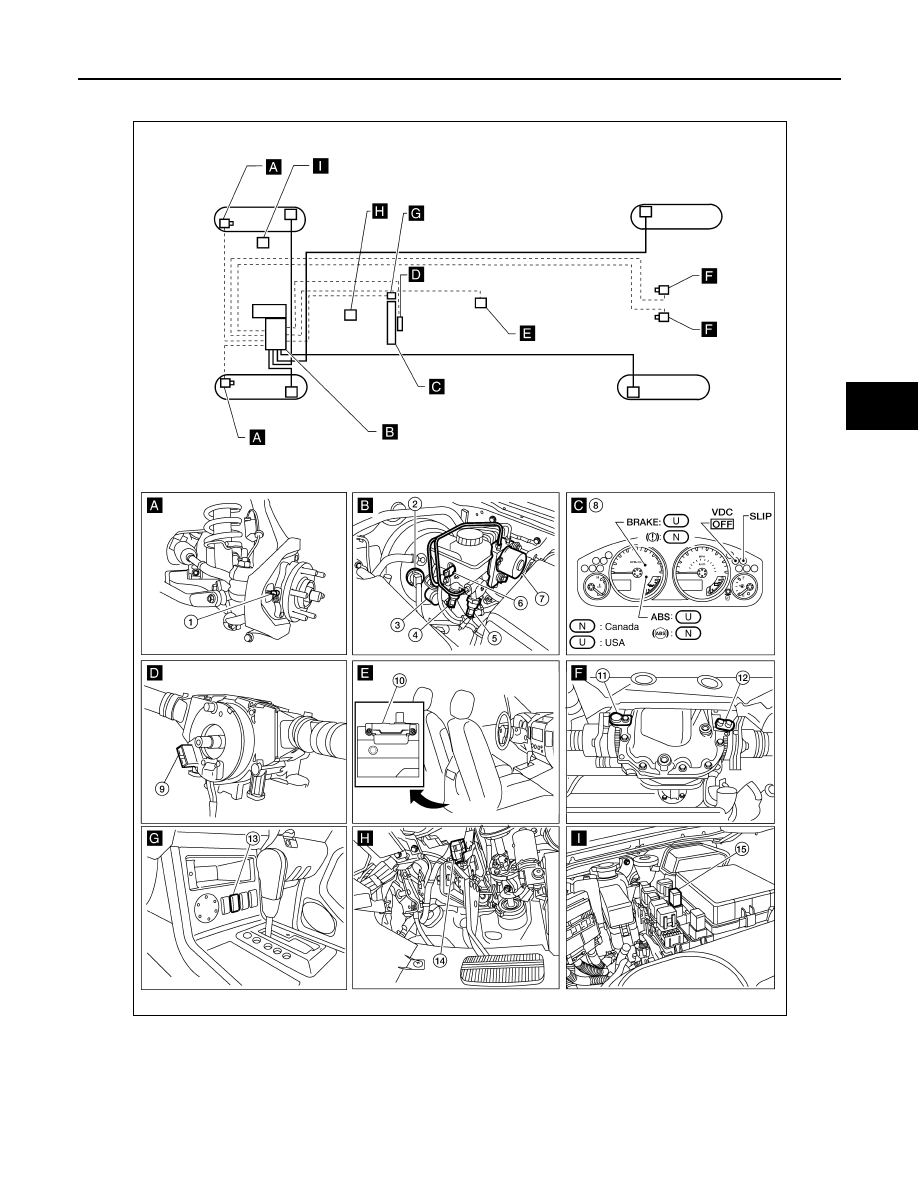

VK56DE

AWFIA0455GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Rear pressure sensor E32

5.

Front pressure sensor E31

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (control
unit) E127

8.

Combination meter M24

9.

Steering angle sensor (behind spiral
cable) M47

2010 Pathfinder

BRC-16

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

Component Description

INFOID:0000000005258635

*: With VK56DE only

10. Yaw rate/side/decel G sensor B73

11. Rear wheel sensor LH C13

12. Rear wheel sensor RH C13

13. VDC OFF switch M154

14. Stop lamp switch E38

15. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-37, "Description"

Motor

Actuator relay

BRC-56, "Description"

Solenoid valve

BRC-49, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-71, "Description"

Wheel sensor

BRC-27, "Description"

Yaw rate/side/decel G sensor

BRC-40, "Description"

Steering angle sensor

BRC-61, "Description"

VDC OFF switch

BRC-81, "Description"

ABS warning lamp

BRC-84, "Description"

Brake warning lamp

BRC-85, "Description"

VDC OFF indicator lamp

BRC-86, "Description"

SLIP indicator lamp

BRC-88, "Description"

Front pressure sensor*

BRC-58, "Description"

Rear pressure sensor*

Active booster*

BRC-74, "Description"

Delta stroke sensor*

BRC-77, "Description"

2010 Pathfinder

TCS

BRC-17

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

TCS

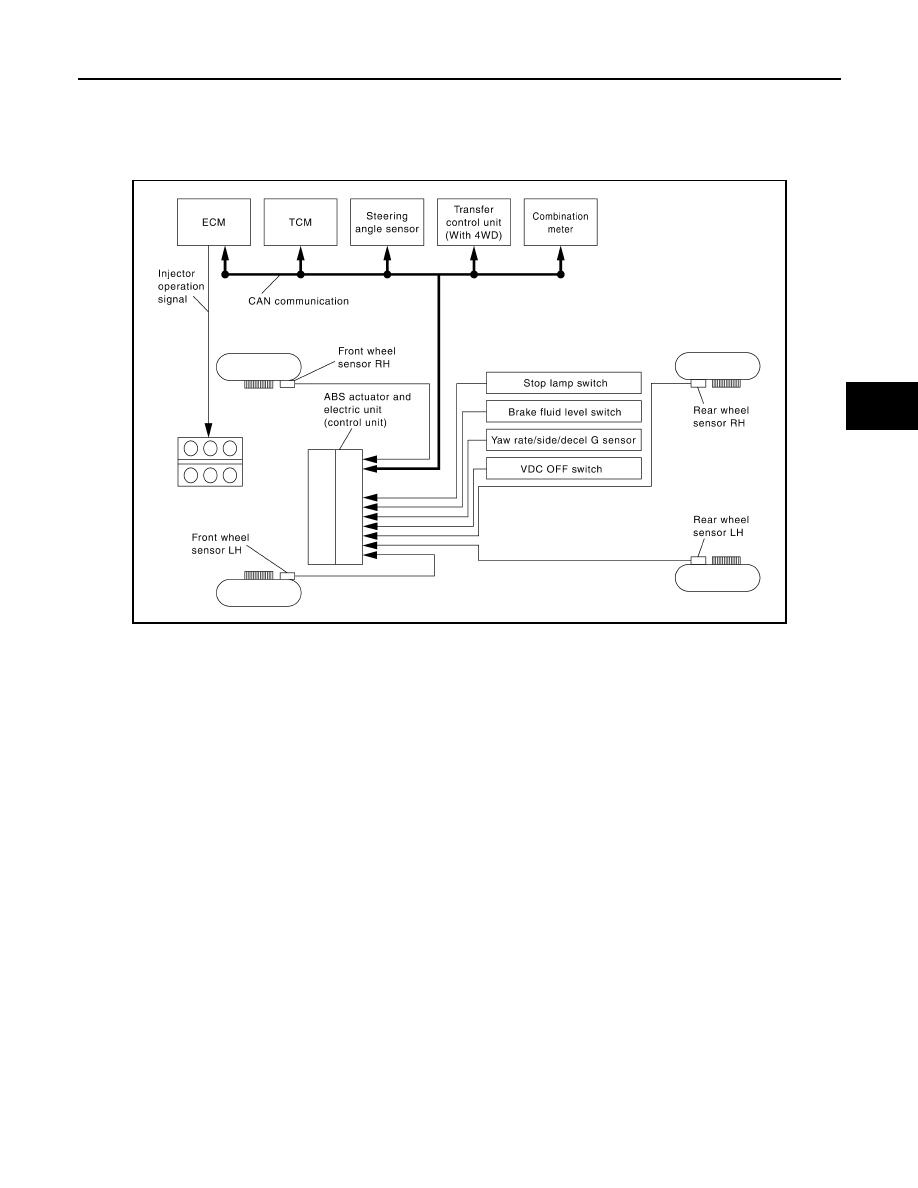

System Diagram

INFOID:0000000005484855

VQ40DE

AWFIA0453GB

2010 Pathfinder

BRC-18

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

TCS

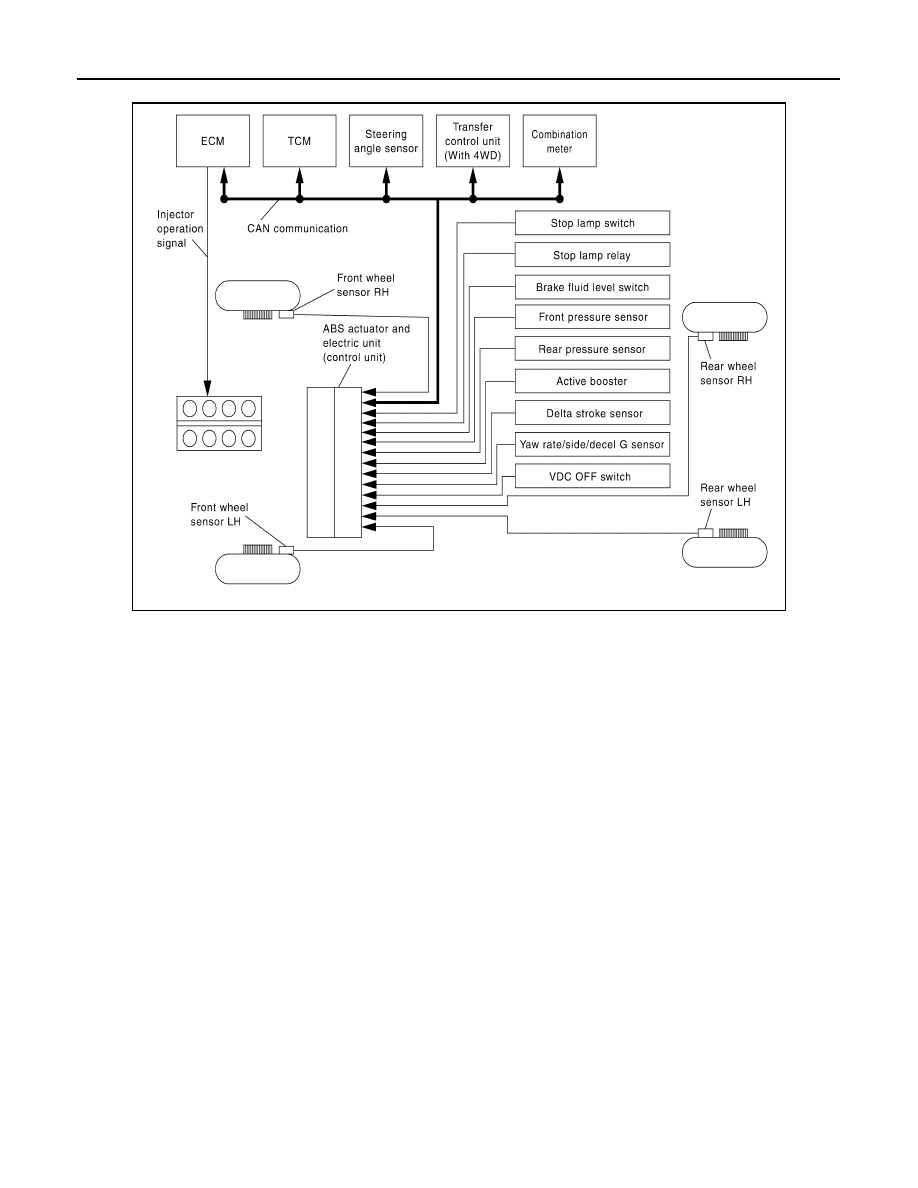

VK56DE

AWFIA0461GB

2010 Pathfinder

TCS

BRC-19

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

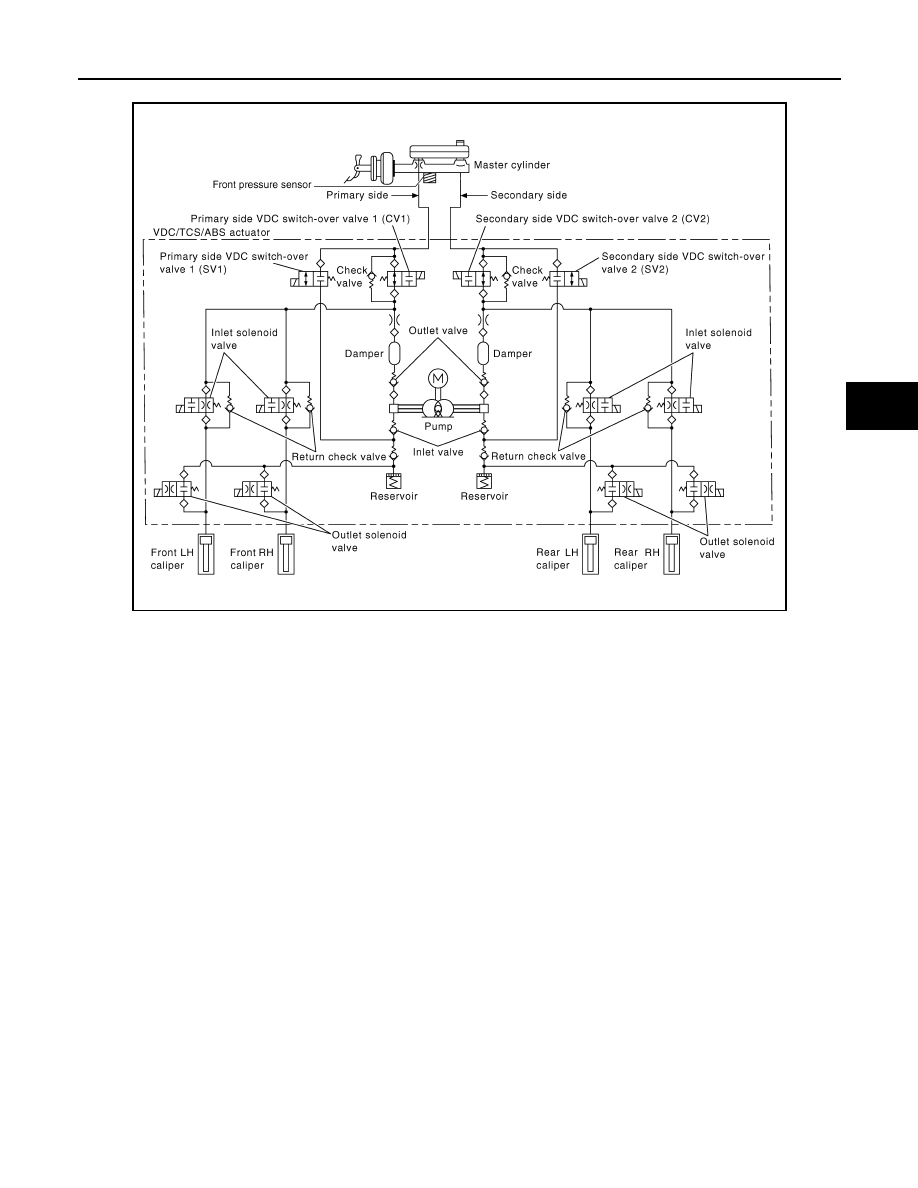

HYDRAULIC CIRCUIT DIAGRAM

System Description

INFOID:0000000005258637

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4

wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear

wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-

sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by

the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine

torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT-III is available.

• Active booster, delta stroke sensor, front pressure sensor, rear pressure sensor and stop lamp relay are

available on vehicles equipped with VK56DE only.

WFIA0357E
