Nissan Pathfinder (2009 year). Instruction - part 549

PWC-72

< ECU DIAGNOSIS >

FRONT POWER WINDOW SWITCH

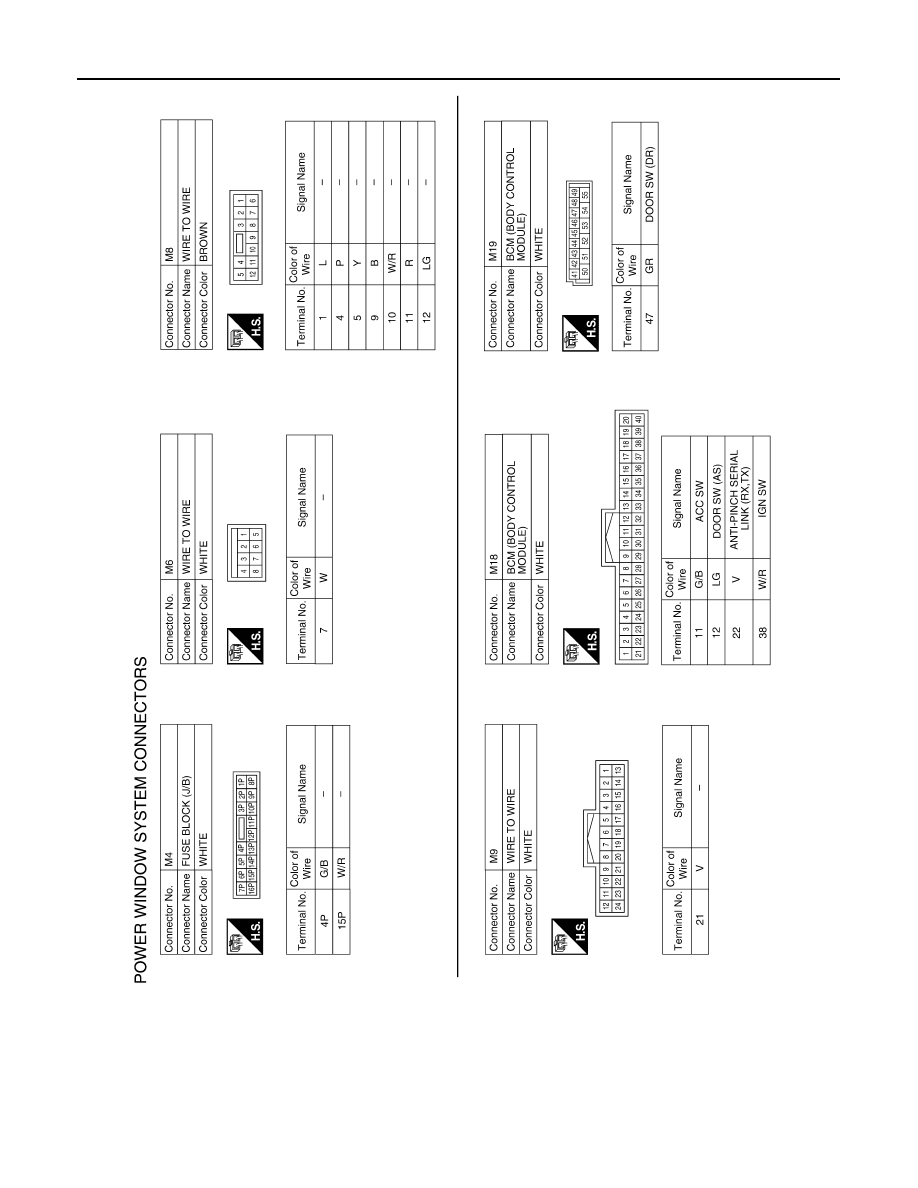

ABKIA0494GB

2009 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-73

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

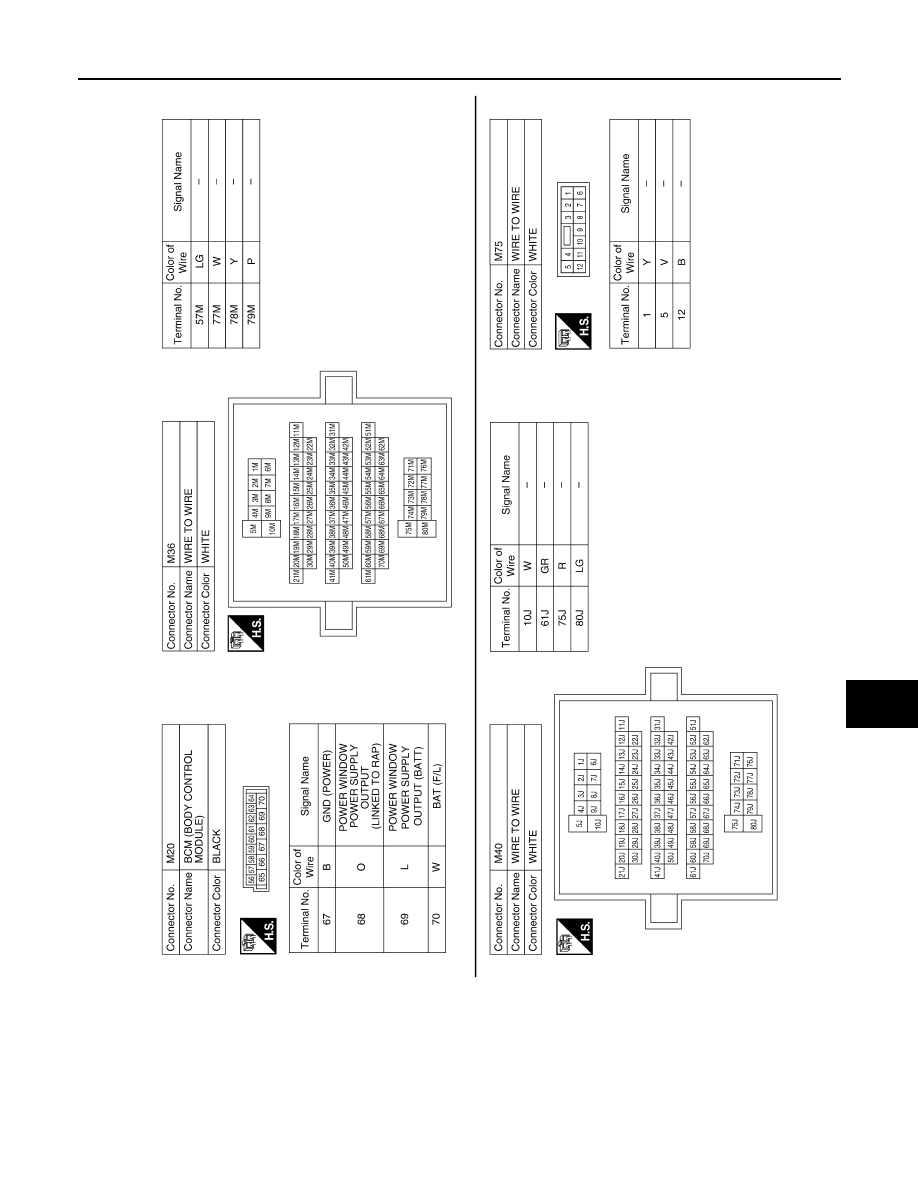

ABKIA0330GB

2009 Pathfinder

PWC-74

< ECU DIAGNOSIS >

FRONT POWER WINDOW SWITCH

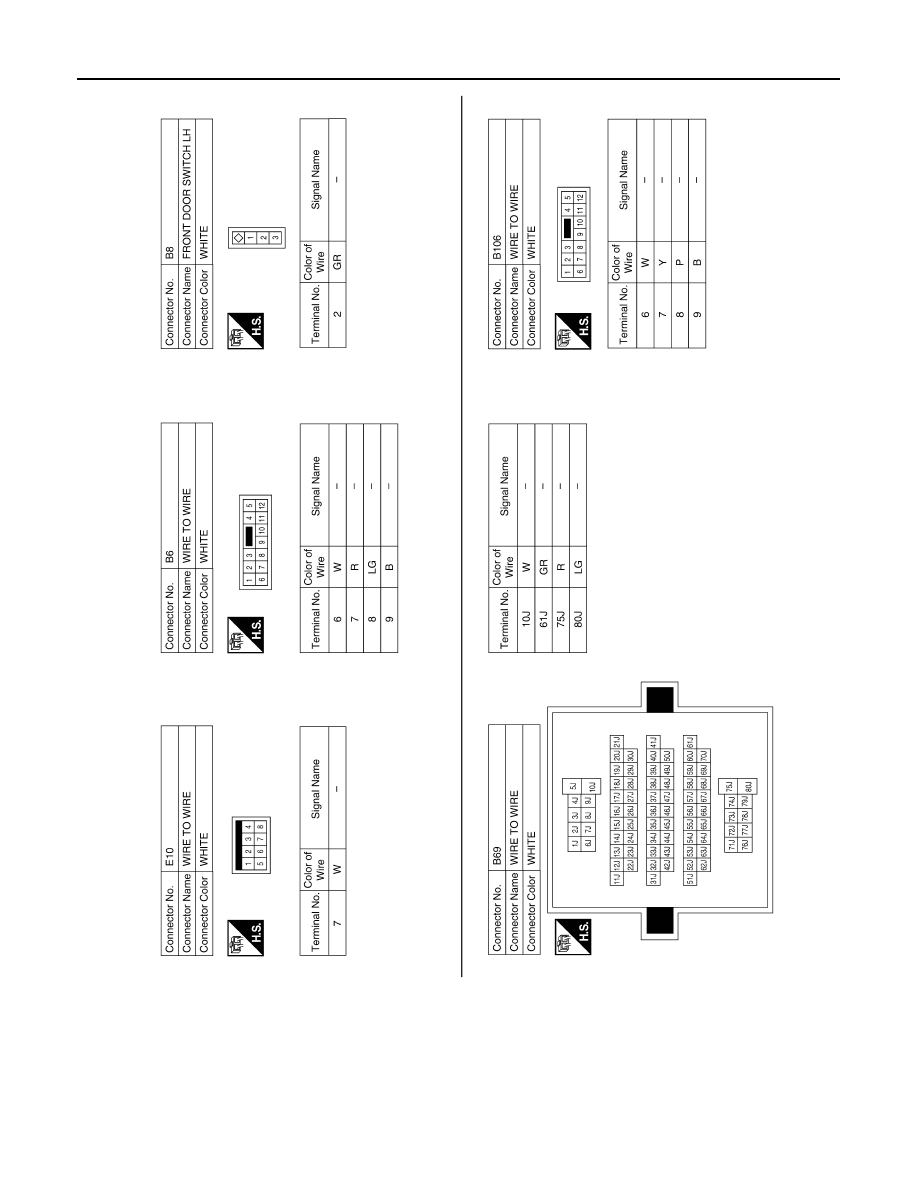

ABKIA0331GB

2009 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-75

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

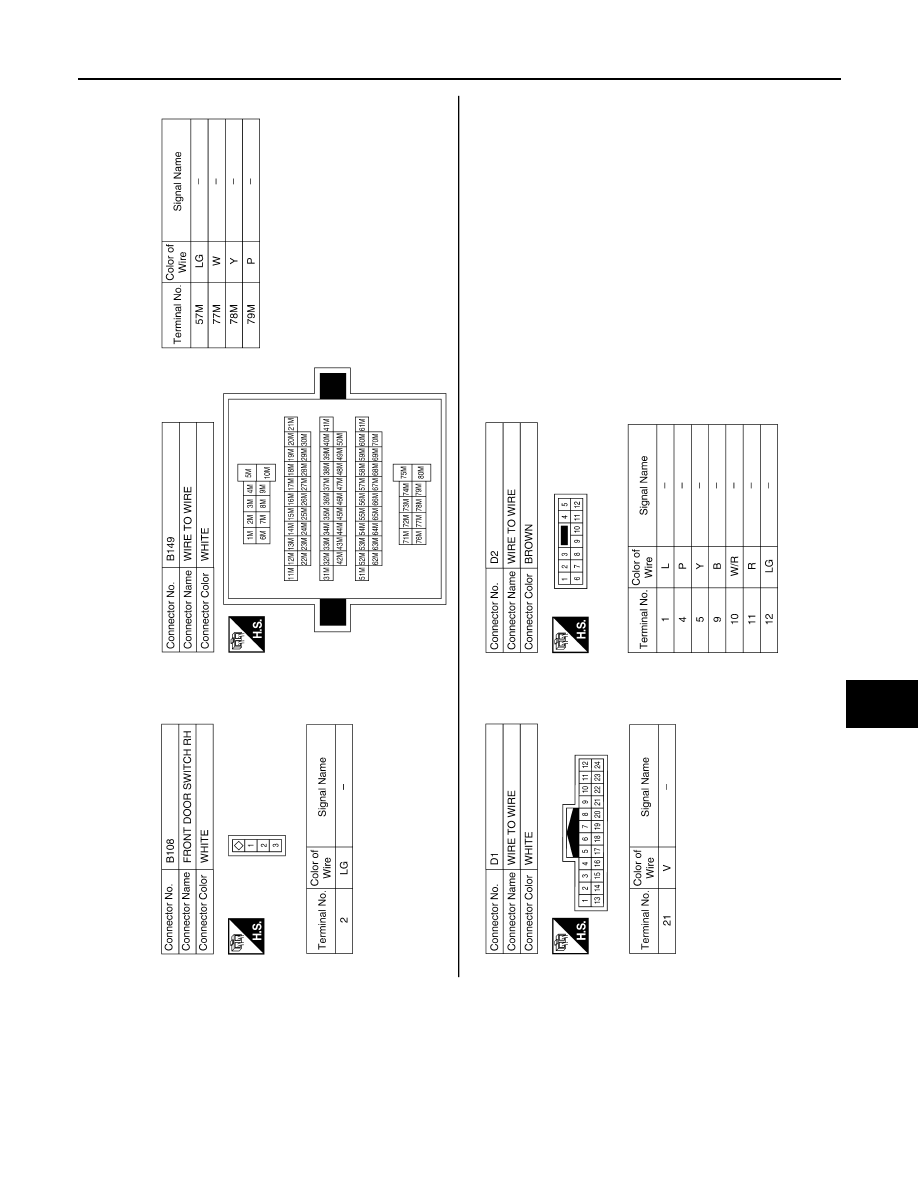

ABKIA0332GB

2009 Pathfinder

PWC-76

< ECU DIAGNOSIS >

FRONT POWER WINDOW SWITCH

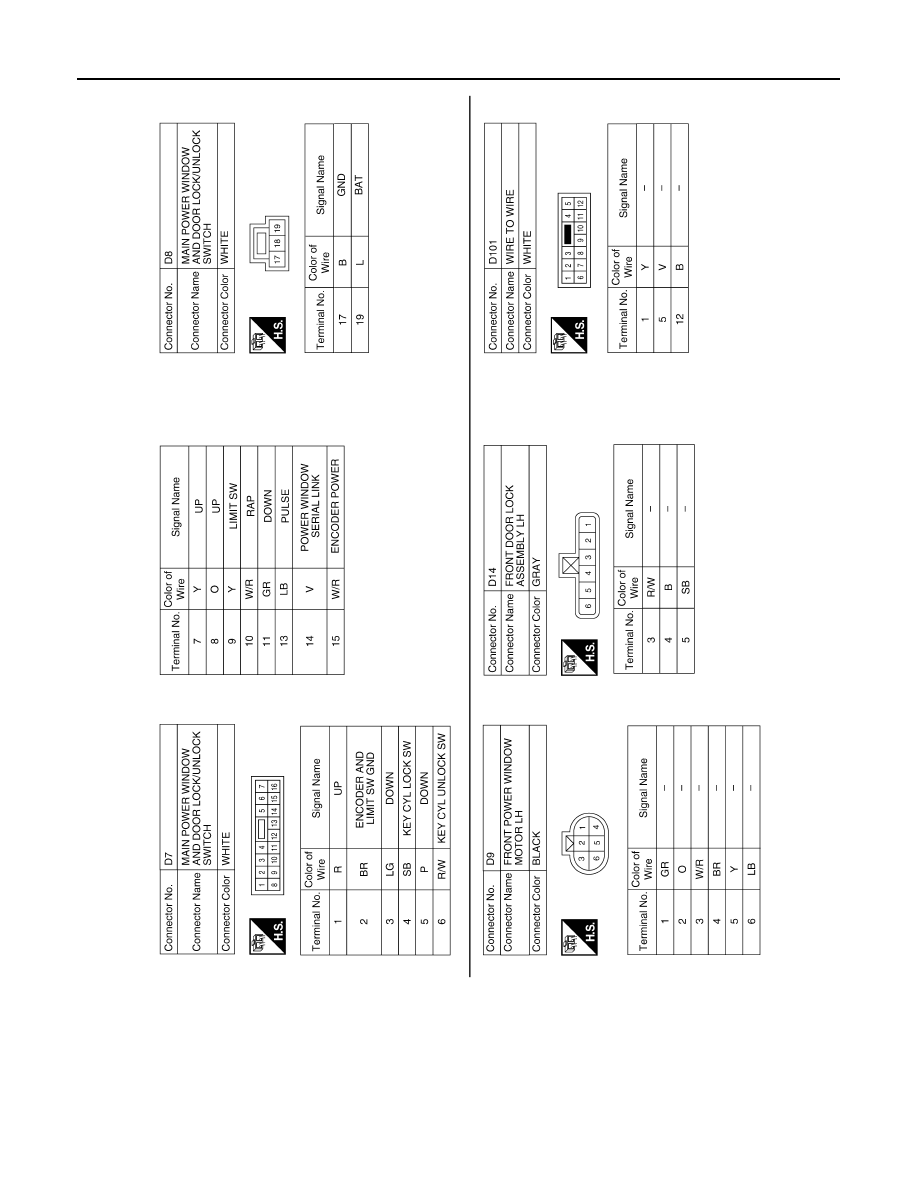

ABKIA0333GB

2009 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-77

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

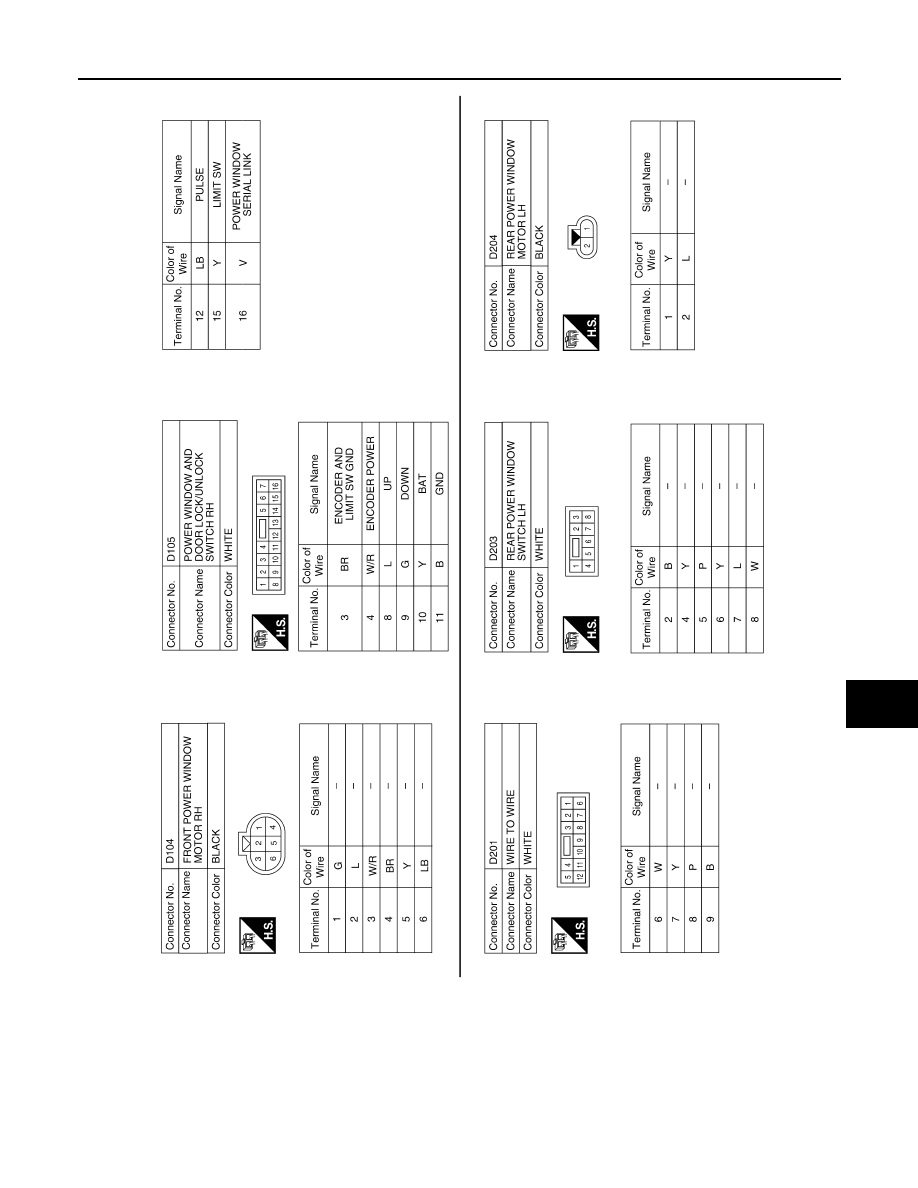

ABKIA0334GB

2009 Pathfinder

PWC-78

< ECU DIAGNOSIS >

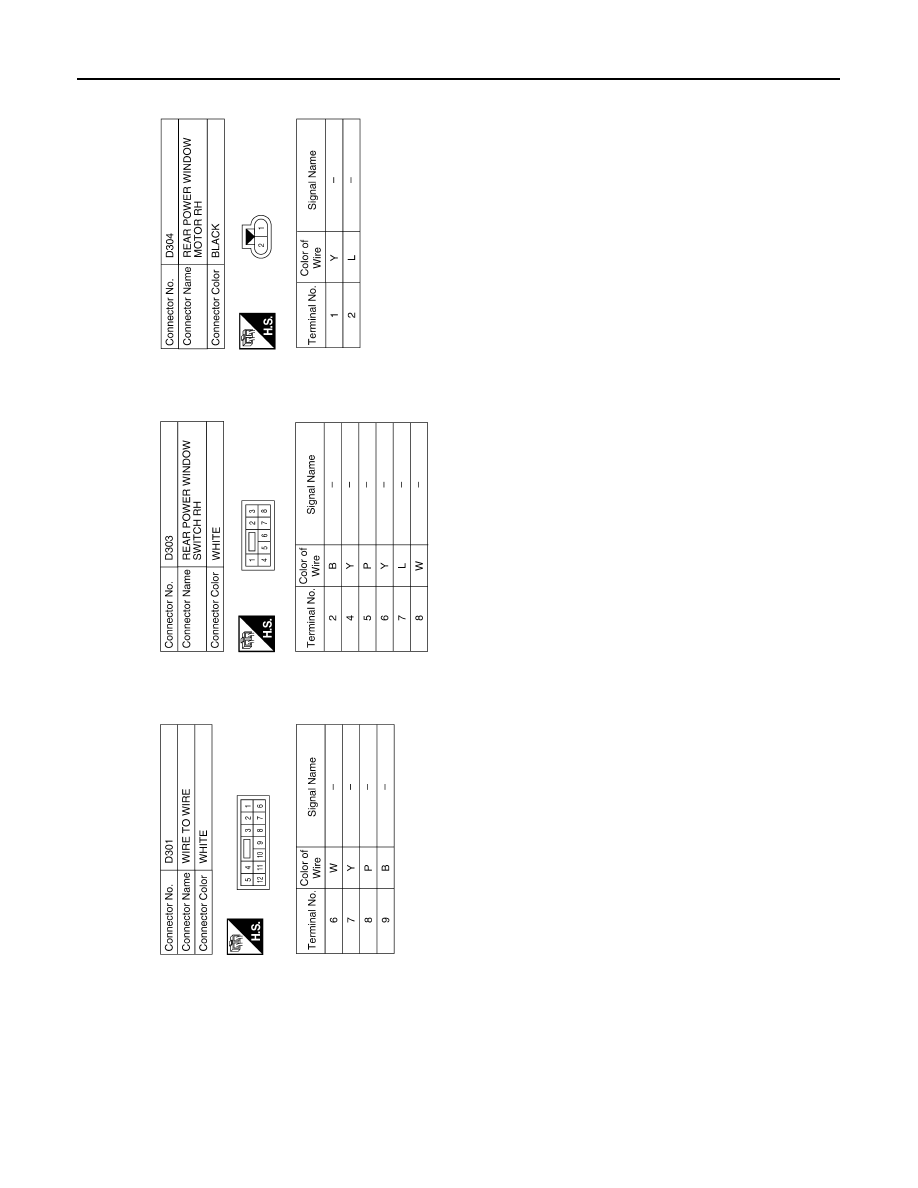

FRONT POWER WINDOW SWITCH

Fail Safe

INFOID:0000000004422051

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.

AWKIA0271GB

2009 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-79

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function
• Retained power function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window switch or in motor.

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is being detected for more than the specified value.

Both pulse sensors mal-
function

When both pulse signals have not been detected for more than the specified value during glass open/
close operation.

Pulse direction malfunction

When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.

Glass recognition position
malfunction 1

When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close operation.

Malfunction of not yet up-
dated closed position of
glass

When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).

2009 Pathfinder
