Nissan Pathfinder (2009 year). Instruction

GI-34

< FEATURES OF NEW MODEL >

IDENTIFICATION INFORMATION

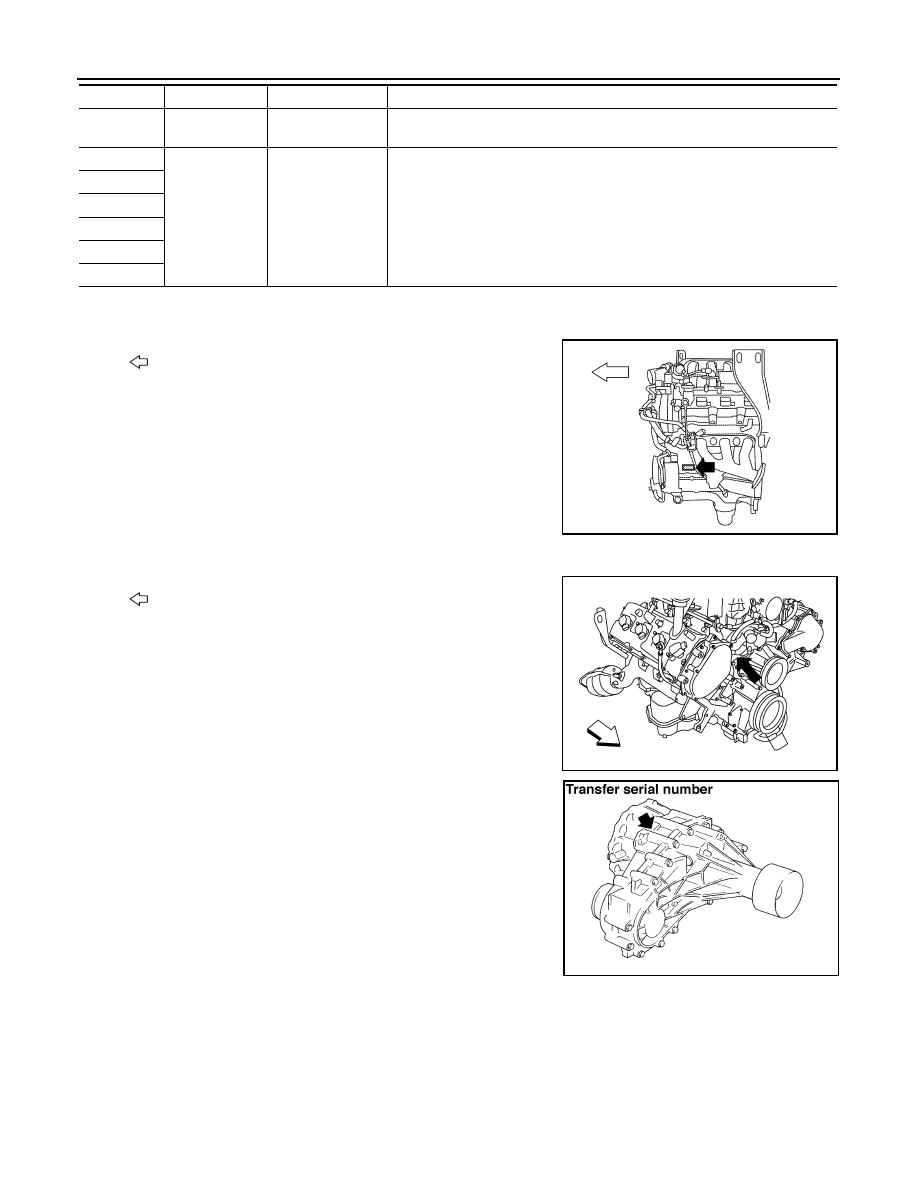

ENGINE SERIAL NUMBER

VQ40DE

VK56DE

TRANSFER SERIAL NUMBER

Manufacturing
plant

C: Smyrna Tennessee

XXXXXX

Vehicle serial num-
ber

Chassis number

Position

Character

Qualifier

Definition

: Vehicle front

ALAIA0010ZZ

: Vehicle front

ALAIA0011ZZ

AGI108

2009 Pathfinder

IDENTIFICATION INFORMATION

GI-35

< FEATURES OF NEW MODEL >

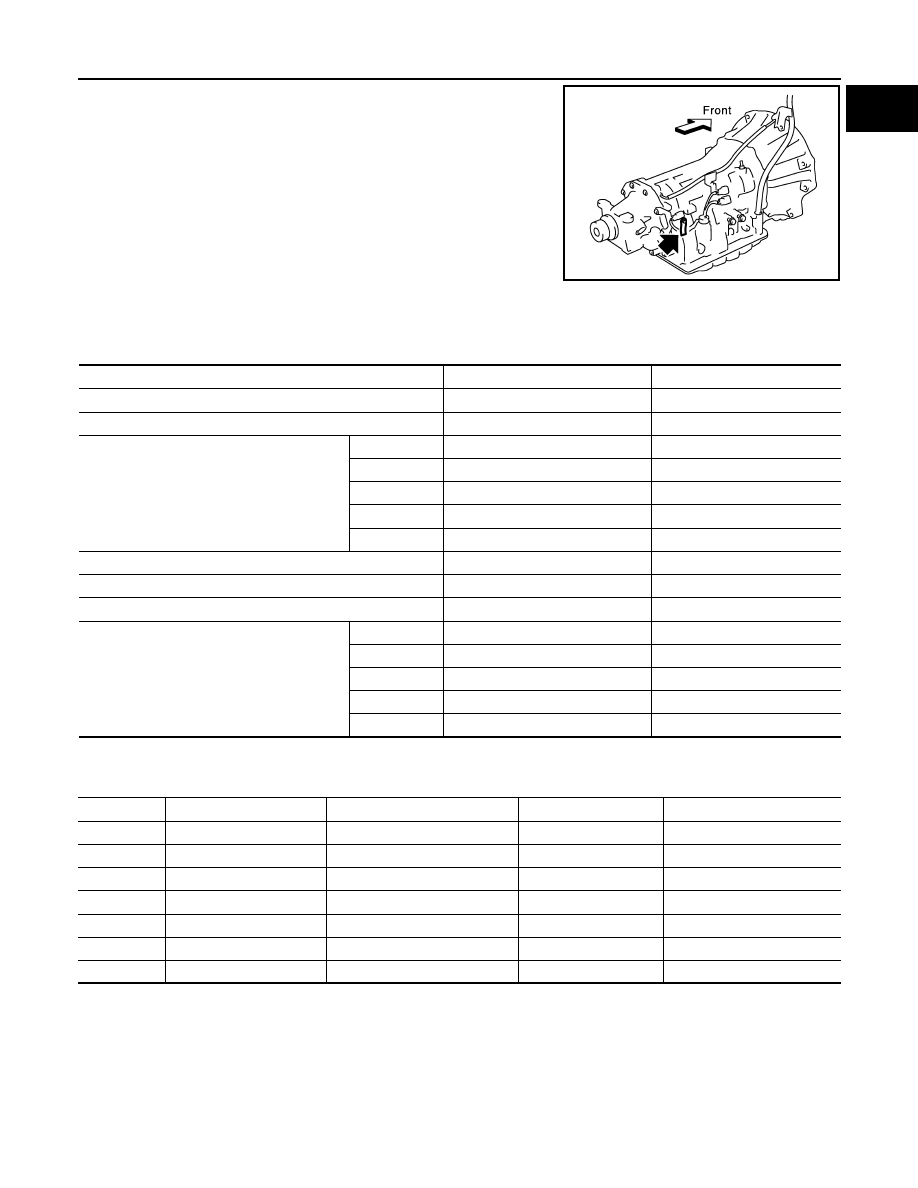

AUTOMATIC TRANSMISSION NUMBER

Dimensions

INFOID:0000000003938053

Unit: mm (in)

Wheels & Tires

INFOID:0000000003938054

* Steel wheel

PAIA0054E

Drive type

2WD

4WD

Overall length

4884 (192.3)

Overall width (excludes mirrors)

1850 (72.8)

Overall height

S 1829

(72)

1845

(72.6)

SE (V-6)

1834 (72.2)

1843 (72.6)

SE-OR

—

1858 (73.1)

LE (V-6)

1834 (72.2)

1843 (72.6)

LE (V-8)

—

1846 (72.7)

Front tread width

1570 (61.8)

Rear tread width

1570 (61.8)

Wheelbase

2850 (112.2)

Minimum Running Ground Clearance (with

standard tires)

219.8 (8.7)

228.9 (9.0)

SE (V-6)

217.6 (8.6)

226.9 (8.9)

SE-OR

—

227.4 (9.0)

LE (V-6)

217.6 (8.6)

226.9 (8.9)

LE (V-8)

—

229.7 (9.0)

Drive Type

Grade

Road wheel

Tire

Spare tire size

All

16 X 7JJ Aluminum Alloy

P245/75R16

P245/75R16*

SE (V6)

17 X 7.5JJ Aluminum Alloy

P265/65/R17

P265/65/R17*

SE-OR

16 X 7JJ Aluminum Alloy

P265/75/R16

P265/75/R16*

LE (V6) USA

18 X 8JJ Aluminum Alloy

P265/65/R17

P265/60/R18*

LE (V6) Canada, Mexico

17 X 7.5JJ Aluminum Alloy

P265/65/R17

P265/60/R18*

LE (V8) USA, Mexico

18 X 8JJ Aluminum Alloy

P265/60/R18

P265/60/R18*

LE (V8) Canada

18 X 8JJ Aluminum Alloy

P265/60/R18

P265/60/R18 Aluminum Alloy

2009 Pathfinder

GI-36

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Description

INFOID:0000000003938056

Observe the following precautions to ensure safe and proper servicing. These precautions are not
described in each individual section.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003938057

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000003938059

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

Perform the necessary repair operation.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

PRECAUTIONS

GI-37

< PRECAUTION >

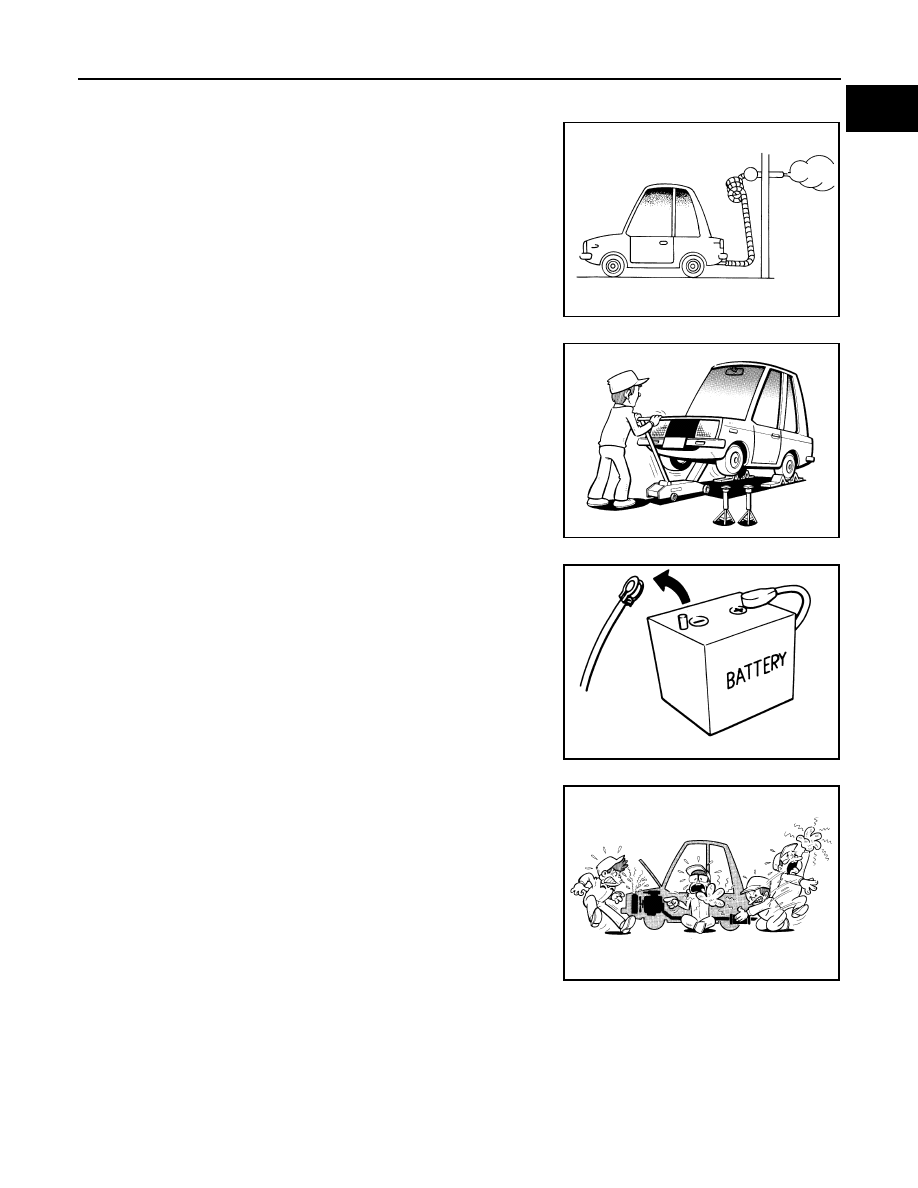

General Precaution

INFOID:0000000003938060

• Do not operate the engine for an extended period of time without

proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any inflam-
mable or poisonous materials, such as gasoline, refrigerant gas,
etc. When working in a pit or other enclosed area, be sure to prop-
erly ventilate the area before working with hazardous materials.
Do not smoke while working on the vehicle.

• Before jacking up the vehicle, apply wheel chocks or other tire

blocks to the wheels to prevent the vehicle from moving. After jack-
ing up the vehicle, support the vehicle weight with safety stands at
the points designated for proper lifting before working on the vehi-
cle.
These operations should be done on a level surface.

• When removing a heavy component such as the engine or tran-

saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.

• Before starting repairs which do not require battery power:

Turn off ignition switch.
Disconnect the negative battery terminal.

• If the battery terminals are disconnected, recorded memory of

radio and each control unit is erased.

• To prevent serious burns:

Avoid contact with hot metal parts.
Do not remove the radiator cap when the engine is hot.

• Dispose of drained oil or the solvent used for cleaning parts in an

appropriate manner.

• Do not attempt to top off the fuel tank after the fuel pump nozzle

shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray
and possibly a fire.

• Clean all disassembled parts in the designated liquid or solvent

prior to inspection or assembly.

• Replace oil seals, gaskets, packings, O-rings, locking washers,

cotter pins, self-locking nuts, etc. with new ones.

• Replace inner and outer races of tapered roller bearings and needle bearings as a set.
• Arrange the disassembled parts in accordance with their assembled locations and sequence.
• Do not touch the terminals of electrical components which use microcomputers (such as ECM).

Static electricity may damage internal electronic components.

• After disconnecting vacuum or air hoses, attach a tag to indicate the proper connection.
• Use only the fluids and lubricants specified in this instruction.
• Use approved bonding agent, sealants or their equivalents when required.
• Use tools and recommended special tools where specified for safe and efficient service repairs.

SGI285

SGI231

SEF289H

SGI233

2009 Pathfinder

GI-38

< PRECAUTION >

PRECAUTIONS

• When repairing the fuel, oil, water, vacuum or exhaust systems, check all affected lines for leaks.

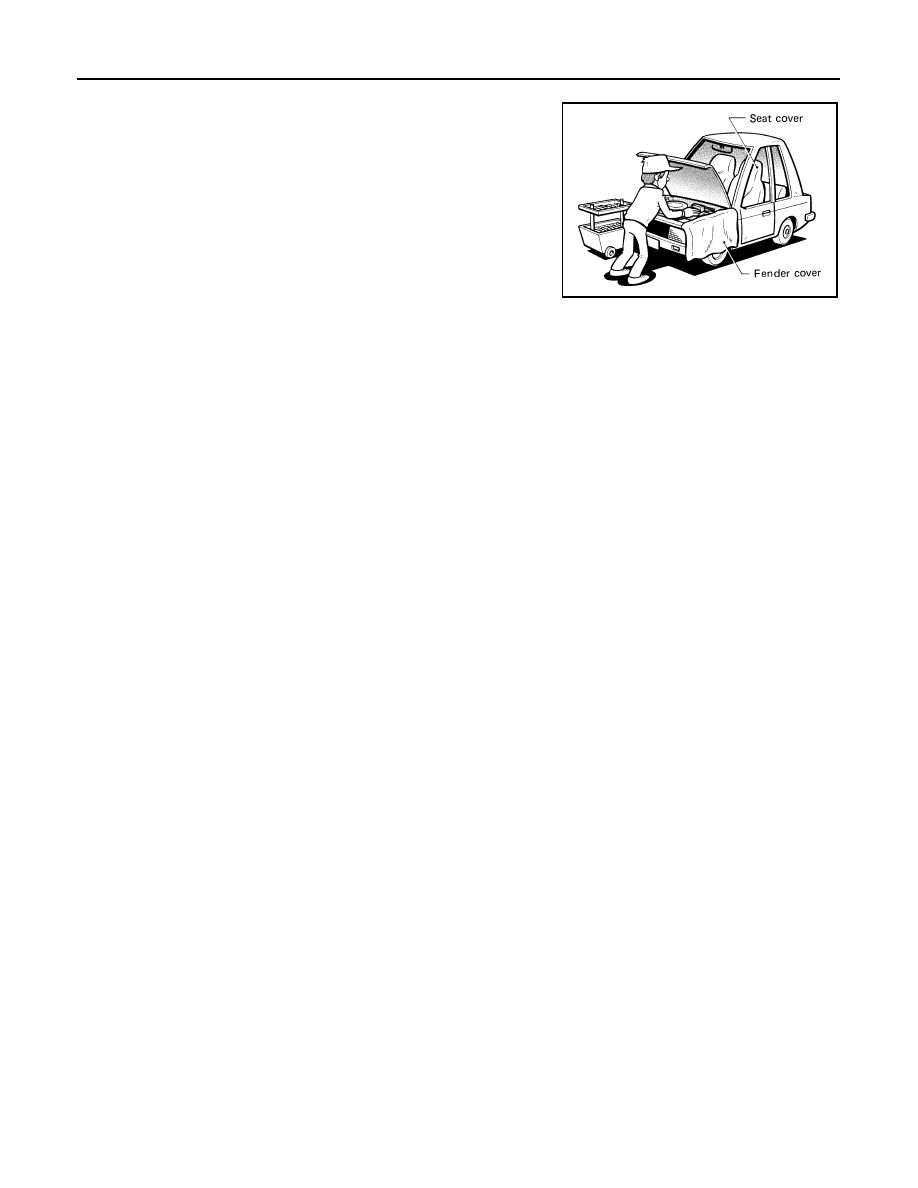

• Before servicing the vehicle:

Protect fenders, upholstery and carpeting with appropriate covers.
Take caution that keys, buckles or buttons do not scratch paint.

WARNING:

To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness
connectors which are related to the engine control system and TCM (transmission control module)
system. The connectors should be disconnected only when working according to the WORK FLOW of
TROUBLE DIAGNOSES in EC and TM sections.

Precaution for All Mode 4WD System

INFOID:0000000003938061

Even if the 2WD mode is selected, the All mode 4WD system occasionally changes from 2WD to 4WD auto-
matically depending on the driving conditions.
When spinning the front wheels by running the engine with the front wheels jacked up or mounted on the free
rollers / or a chassis dynamometer, be careful because the vehicle may suddenly move due to the driving
force from the rear wheels.
To avoid personal injury and vehicle damage, use one of the following methods when working with the front
wheels drive force and spinning freely.
• Remove the propeller shaft.
• Use free rollers / chassis dynamometer designed for 4WD vehicles.

Precaution for Three Way Catalyst

INFOID:0000000003938062

If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To
prevent this, follow the instructions.
• Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.
• When checking for ignition spark or measuring engine compression, make tests quickly and only when nec-

essary.

• Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to the

catalyst.

Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three
way catalyst.

Precaution for Fuel (Unleaded Premium Gasoline Recommended)

INFOID:0000000004437743

NISSAN recommends the use of unleaded premium gasoline with an octane rating of at least 91 AKI (Anti-
Knock Index) number (Research octane number 96). If unleaded premium gasoline is not available, unleaded
regular gasoline with an octane rating of at least 87 AKI number (Research octane number 91), but you may
notice a decrease in performance.

CAUTION:

Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Do not use E-85
fuel (85% fuel ethanol, 15% unleaded gasoline) unless the vehicle is specifically designed for E-85 fuel
(i.e. Flexible Fuel Vehicle - FFV models). Using a fuel other than that specified could adversely affect
the emission control devices and systems, and could also affect the warranty coverage validity.

SGI234

2009 Pathfinder

PRECAUTIONS

GI-39

< PRECAUTION >

Precaution for Multiport Fuel Injection System or Engine Control System

INFOID:0000000003938064

• Before connecting or disconnecting any harness connector for the

multiport fuel injection system or ECM:
Turn ignition switch to “OFF” position.
Disconnect negative battery terminal.
Otherwise, there may be damage to ECM.

• Before disconnecting pressurized fuel line from fuel pump to injec-

tors, be sure to release fuel pressure.

• Be careful not to jar components such as ECM and mass air flow

sensor.

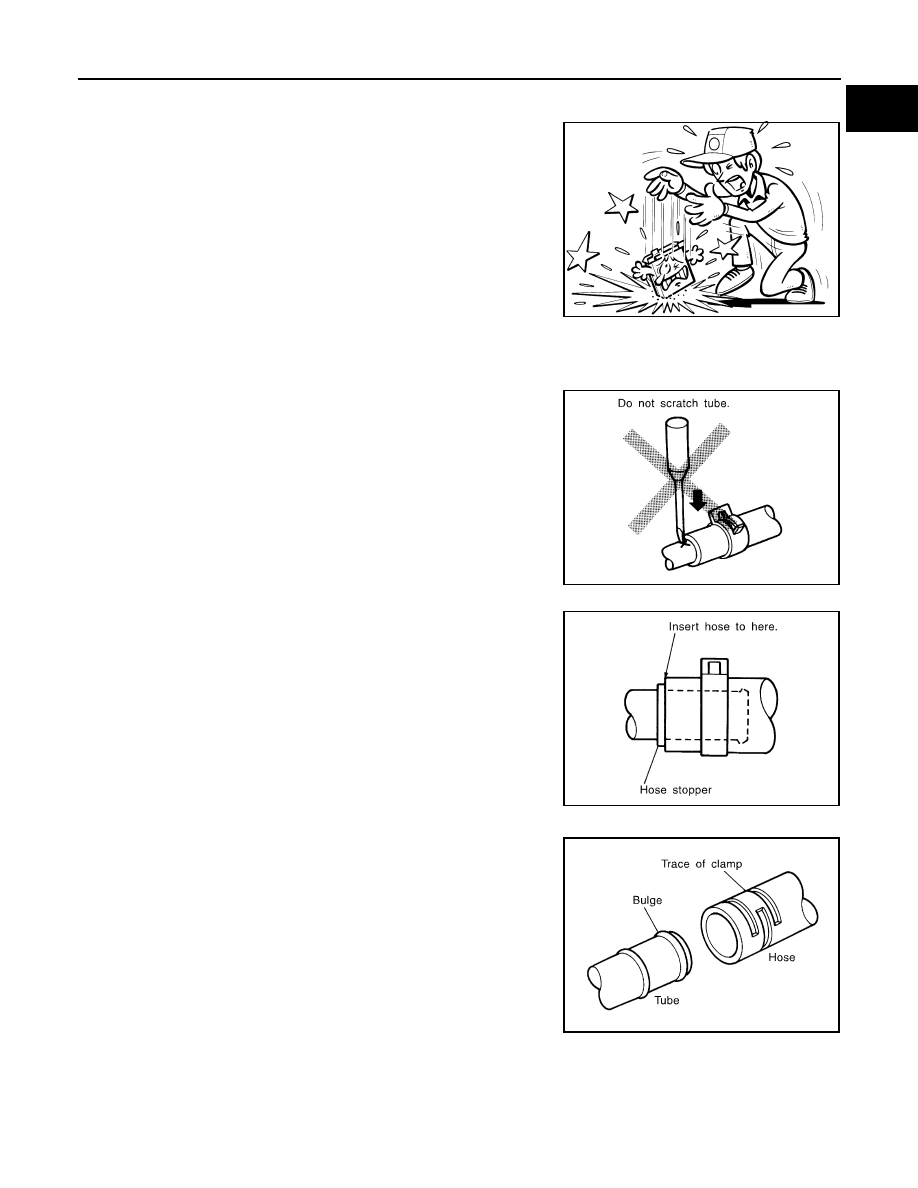

Precaution for Hoses

INFOID:0000000003938066

HOSE REMOVAL AND INSTALLATION

• To prevent damage to rubber hose, do not pry off rubber hose with

tapered tool or screwdriver.

• To reinstall the rubber hose securely, make sure that hose insertion

length and orientation is correct. (If tube is equipped with hose
stopper, insert rubber hose into tube until it butts up against hose
stopper.)

HOSE CLAMPING

• If old rubber hose is re-used, install hose clamp in its original posi-

tion (at the indentation where the old clamp was). If there is a trace
of tube bulging left on the old rubber hose, align rubber hose at
that position.

• Discard old clamps; replace with new ones.

SGI787

SMA019D

SMA020D

SMA021D

2009 Pathfinder

GI-40

< PRECAUTION >

PRECAUTIONS

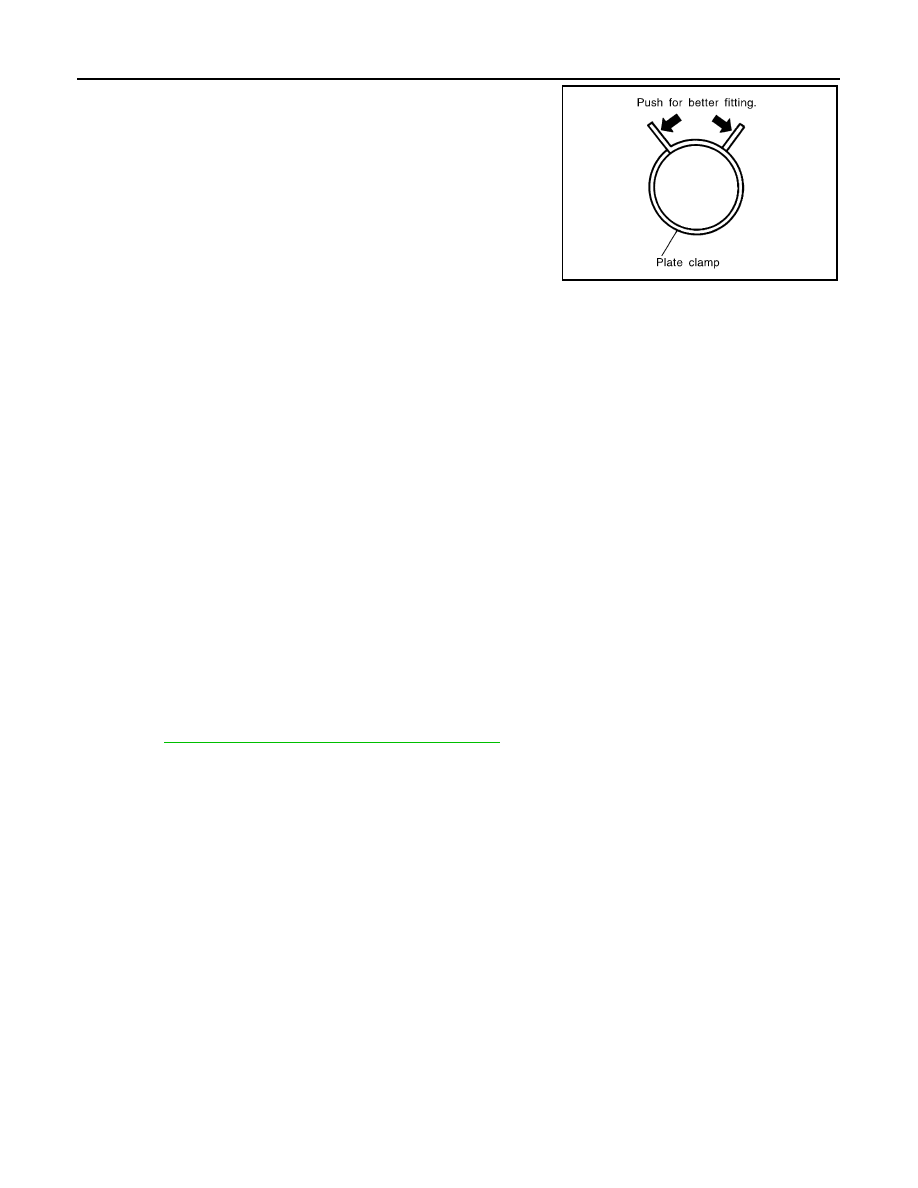

• After installing plate clamps, apply force to them in the direction of

the arrow, tightening rubber hose equally all around.

Precaution for Engine Oils

INFOID:0000000003938067

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact
with used oil.
If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

• Avoid prolonged and repeated contact with oils, particularly used engine oils.
• Wear protective clothing, including impervious gloves where practicable.
• Do not put oily rags in pockets.
• Avoid contaminating clothes, particularly underpants, with oil.
• Heavily soiled clothing and oil-impregnated footwear should not be worn. Overalls must be cleaned regu-

larly.

• First aid treatment should be obtained immediately for open cuts and wounds.
• Use barrier creams, applying them before each work period, to help the removal of oil from the skin.
• Wash with soap and water to ensure all oil is removed (skin cleansers and nail brushes will help). Prepara-

tions containing lanolin replace the natural skin oils which have been removed.

• Do not use gasoline, kerosene, diesel fuel, gas oil, thinners or solvents for cleaning skin.
• If skin disorders develop, obtain medical advice without delay.
• Where practical, degrease components prior to handling.
• Where there is a risk of eye contact, eye protection should be worn, for example, chemical goggles or face

shields; in addition an eye wash facility should be provided.

Precaution for Air Conditioning

INFOID:0000000003938068

Use an approved refrigerant recovery unit any time the air conditioning system must be discharged. Refer to
HA section “

HA-25, "HFC-134a (R-134a) Service Procedure"

for specific instructions.

SMA022D

2009 Pathfinder

LIFTING POINT

GI-41

< PRECAUTION >

LIFTING POINT

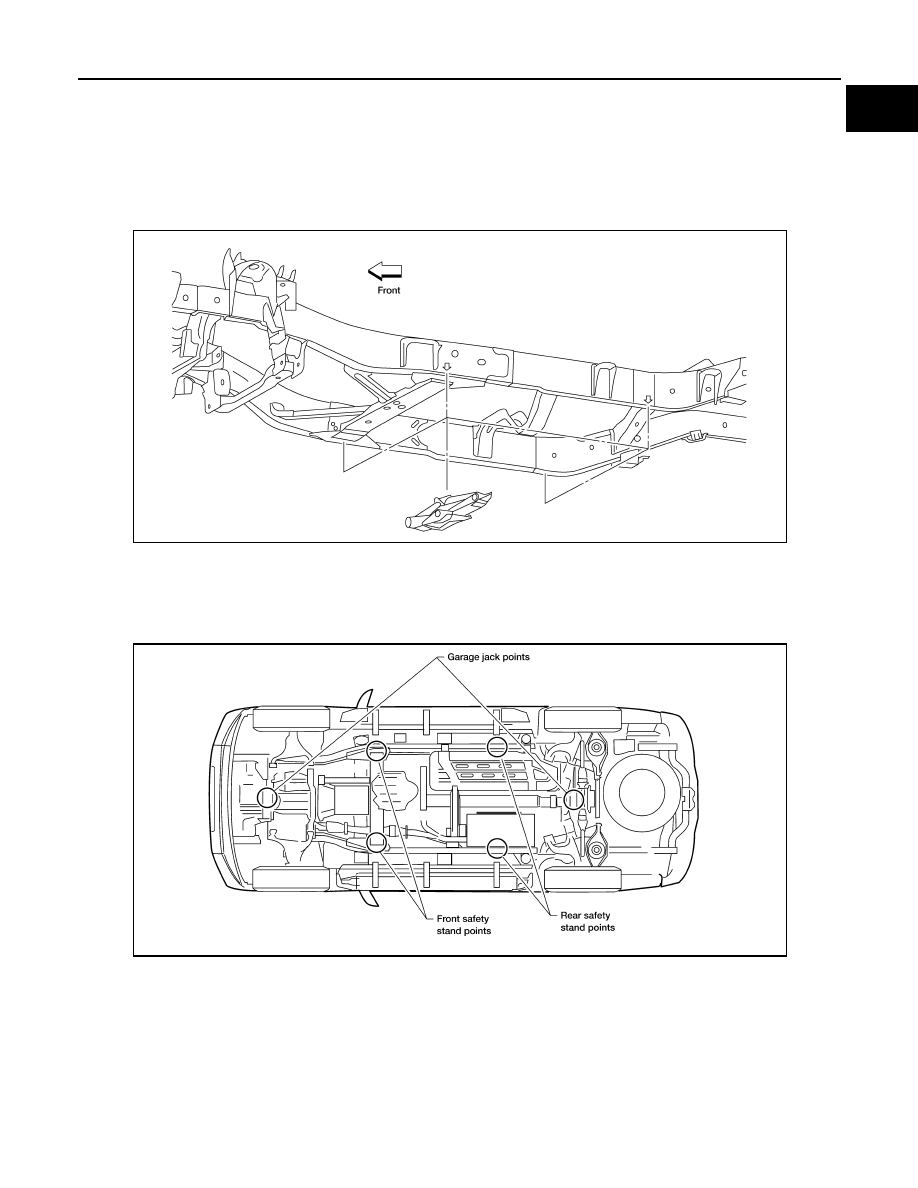

Pantograph Jack

INFOID:0000000003938069

WARNING:

• Never get under the vehicle while it is supported only by the jack. Always use safety stands to sup-

port the frame when you have to get under the vehicle.

• Place wheel chocks at both front and back of the wheels on the ground.

Garage Jack and Safety Stand

INFOID:0000000003938070

CAUTION:

Place a wooden or rubber block between safety stand and vehicle body when the supporting body is
flat.

2-Pole Lift

INFOID:0000000003938071

WARNING:

• When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of

the vehicle are well balanced.

LAIA0052E

WAIA0028E

2009 Pathfinder

Nissan Pathfinder (2009 year). Instruction - part 437
