CHARGING SYSTEM

ABMIA0012GB

2009 Pathfinder

CHG

CHARGING SYSTEM

CHG-19

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYMPTOM DIAGNOSIS

CHARGING SYSTEM

Symptom Table

INFOID:0000000003939691

Symptom

Reference

Battery discharged

Refer to

CHG-5, "Work Flow"

.

The charge warning lamp does not illuminate when the ignition
switch is set to ON.

The charge warning lamp does not turn OFF after the engine
starts.

The charging warning lamp turns ON when increasing the engine
speed.

2009 Pathfinder

CHG-20

< ON-VEHICLE REPAIR >

GENERATOR

ON-VEHICLE REPAIR

GENERATOR

Removal and Installation

INFOID:0000000003939692

VQ40DE MODELS

Removal

1.

Disconnect the negative battery terminal.

2.

Remove the fan shroud. Refer to

CO-16, "Exploded View"

.

3.

Remove the drive belt. Refer to

EM-13, "Removal and Installation"

.

4.

Remove the generator stay, using power tools.

5.

Remove the generator upper bolt, using power tools.

6.

Disconnect the generator harness connectors.

7.

Remove the generator.

Installation

Installation is in the reverse order of removal.
• Install the generator and check the tension of the drive belt. Refer to

EM-13, "Checking Drive Belts"

.

CAUTION:

Tighten terminal nut carefully.

• For this model, the power generation variable voltage control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation variable voltage control system
inspection should be performed after replacing the generator in order to ensure that the system operates
normally.

VK56DE MODELS

1.

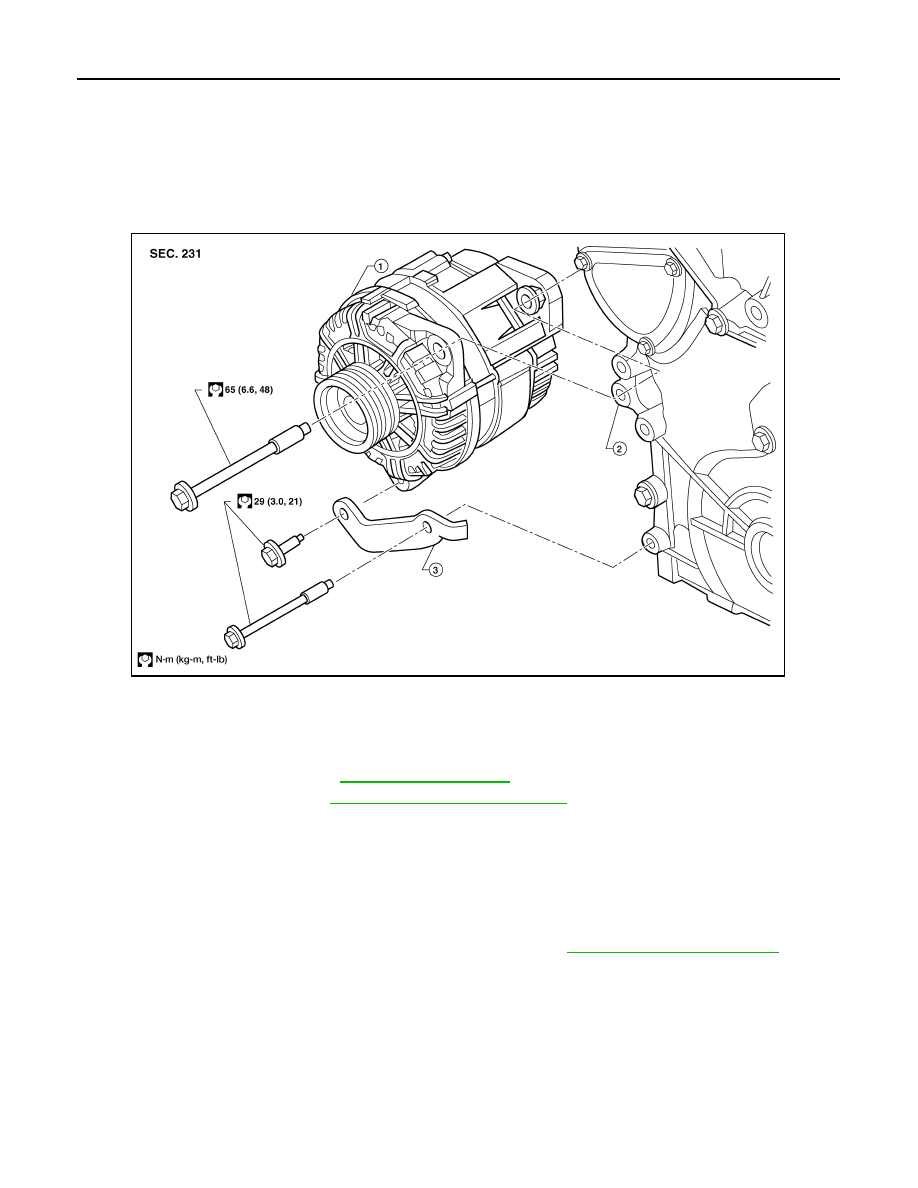

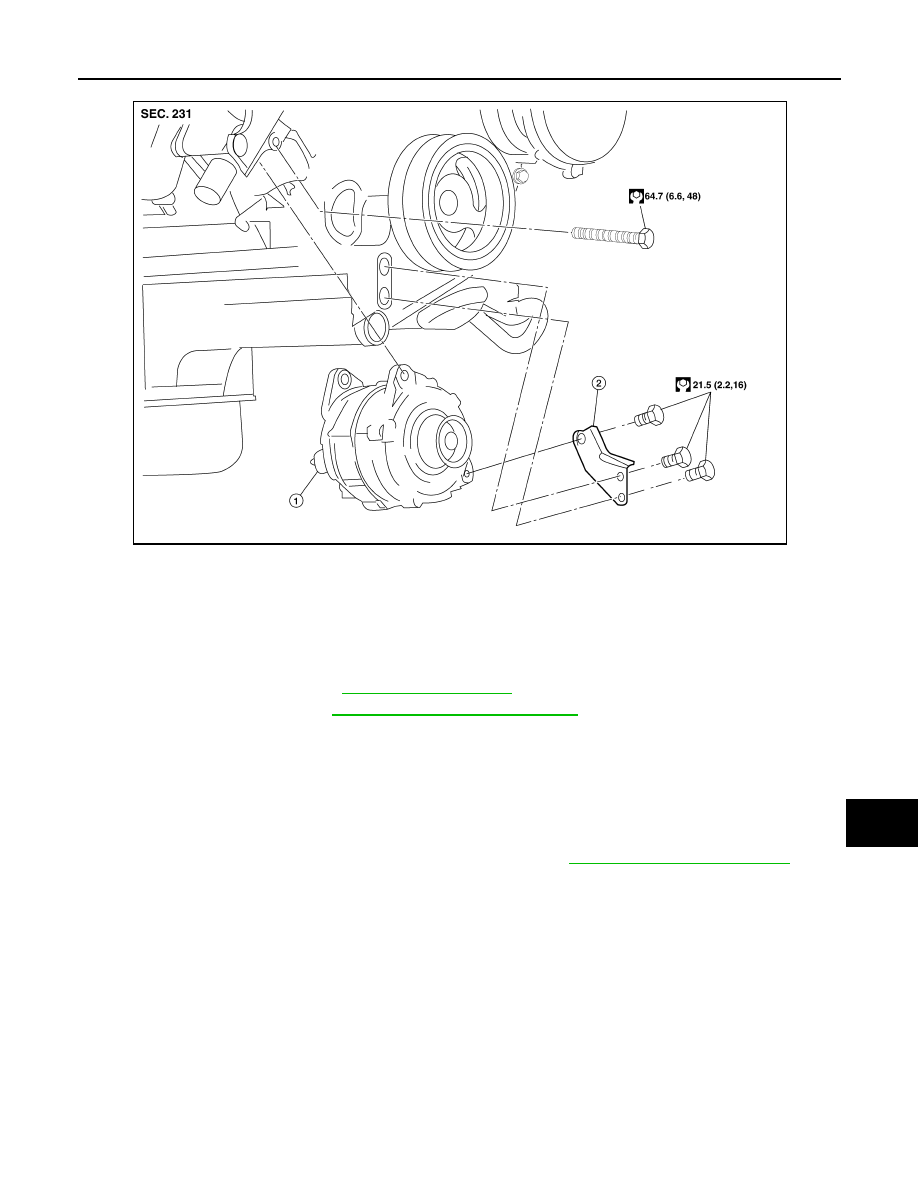

Generator

2.

Engine block

3.

Generator stay

WKIA3191E

Terminal nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

2009 Pathfinder

CHG

GENERATOR

CHG-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Removal

1.

Disconnect the negative battery terminal.

2.

Remove the air dam using power tool.

3.

Remove the engine undercover using power tool.

4.

Remove the fan shroud. Refer to

CO-45, "Exploded View"

.

5.

Remove the drive belt. Refer to

EM-155, "Removal and Installation"

.

6.

Remove the lower bracket, using power tools.

7.

Remove the generator upper bolt, using power tools.

8.

Disconnect the generator harness connectors.

9.

Remove the generator.

Installation

Installation is in the reverse order of removal.
• Install the generator and check the tension of the drive belt. Refer to

EM-155, "Checking Drive Belts"

.

CAUTION:

Tighten terminal nut carefully.

• For this model, the power generation variable voltage control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation variable voltage control system
inspection should be performed after replacing the generator in order to ensure that the system operates
normally.

GENERATOR PULLEY INSPECTION

Perform the following.
• Make sure that the generator pulley does not rattle.
• Make sure that the generator pulley nut is properly tightened.

1.

Generator

2.

Lower bracket

AWBIA0701GB

Terminal nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

Generator pulley nut

: 118 N·m (12.0 kg-m, 87 ft-lb)

2009 Pathfinder

CHG-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000003939693

Type

TG15S147

Valeo

Engine

VQ40DE/VK56DE

Nominal rating

14V-130A

Ground polarity

Negative

Minimum revolution under no-load

1,200 rpm

Hot output current (When 13.5 volts is applied)

More than 52A/1,500 rpm
More than 82A/1,800 rpm

More than 115A/2,500 rpm

More than 130A/5,000 rpm

Regulated output voltage

13.5V @ 5,000 rpm @ 20

°

C

Adjustment range of power generation variable
voltage control

11.4 - 15.6V

2009 Pathfinder
