Nissan Pathfinder (2009 year). Instruction - part 133

BRM-50

< SERVICE INFORMATION >

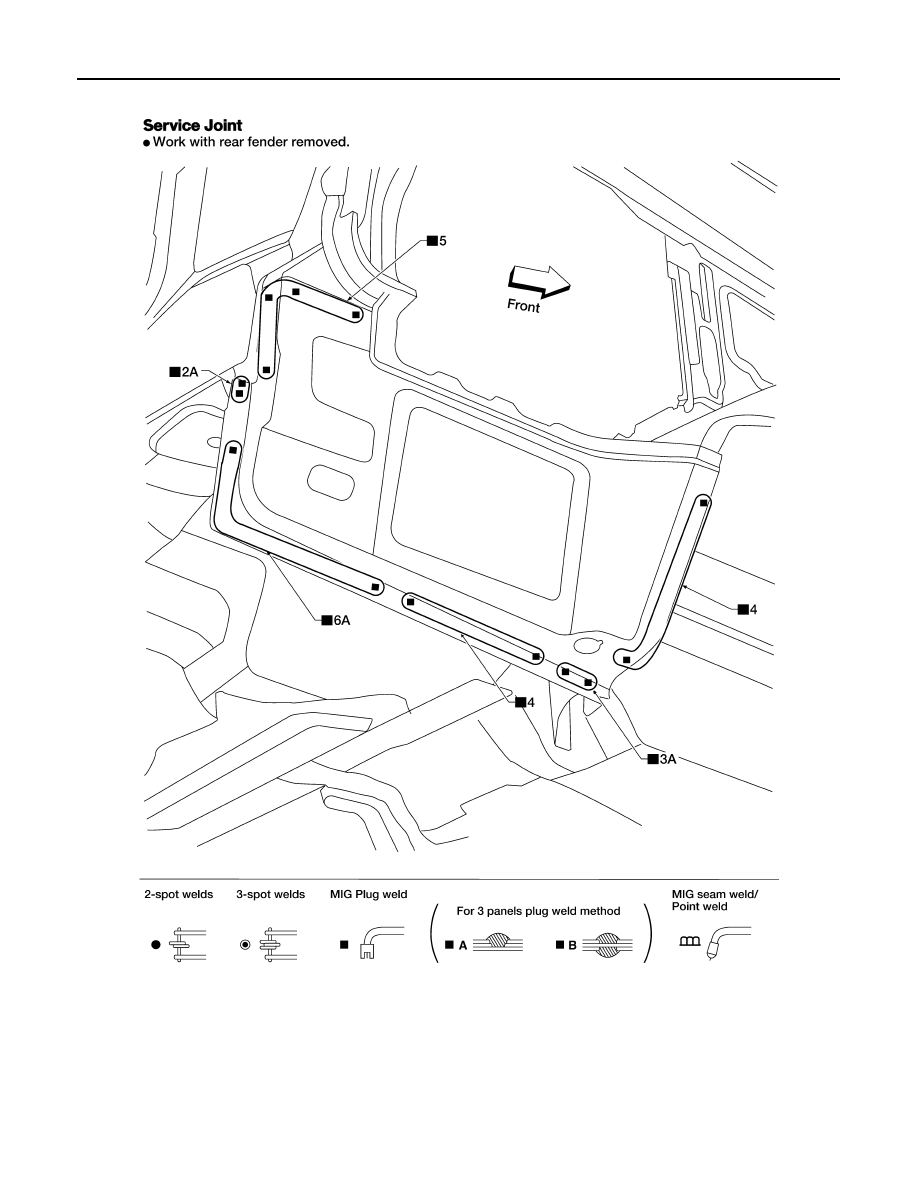

BODY REPAIR

RH

LIIA1819E

2009 Pathfinder

BODY REPAIR

BRM-51

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

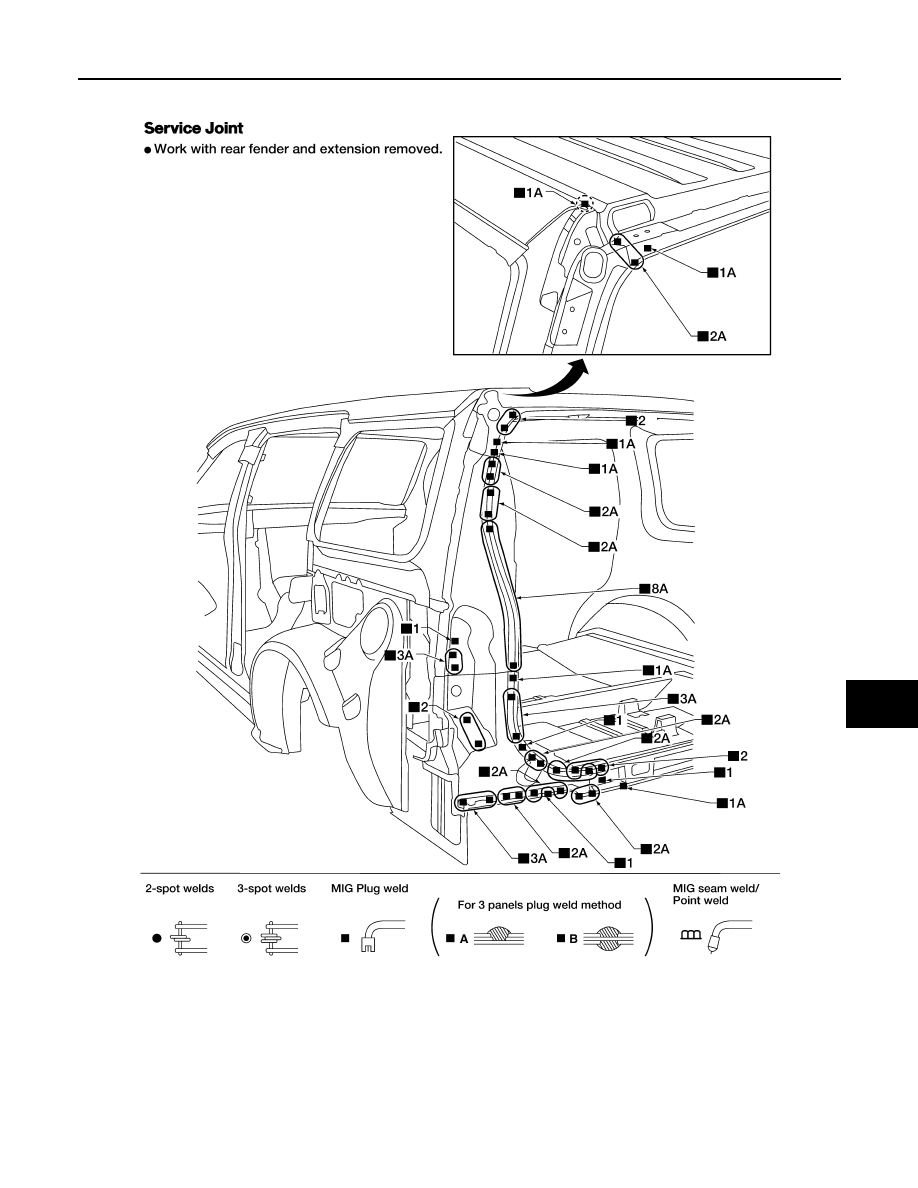

REAR FENDER REINFORCEMENT

LIIA1820E

2009 Pathfinder

BRM-52

< SERVICE INFORMATION >

BODY REPAIR

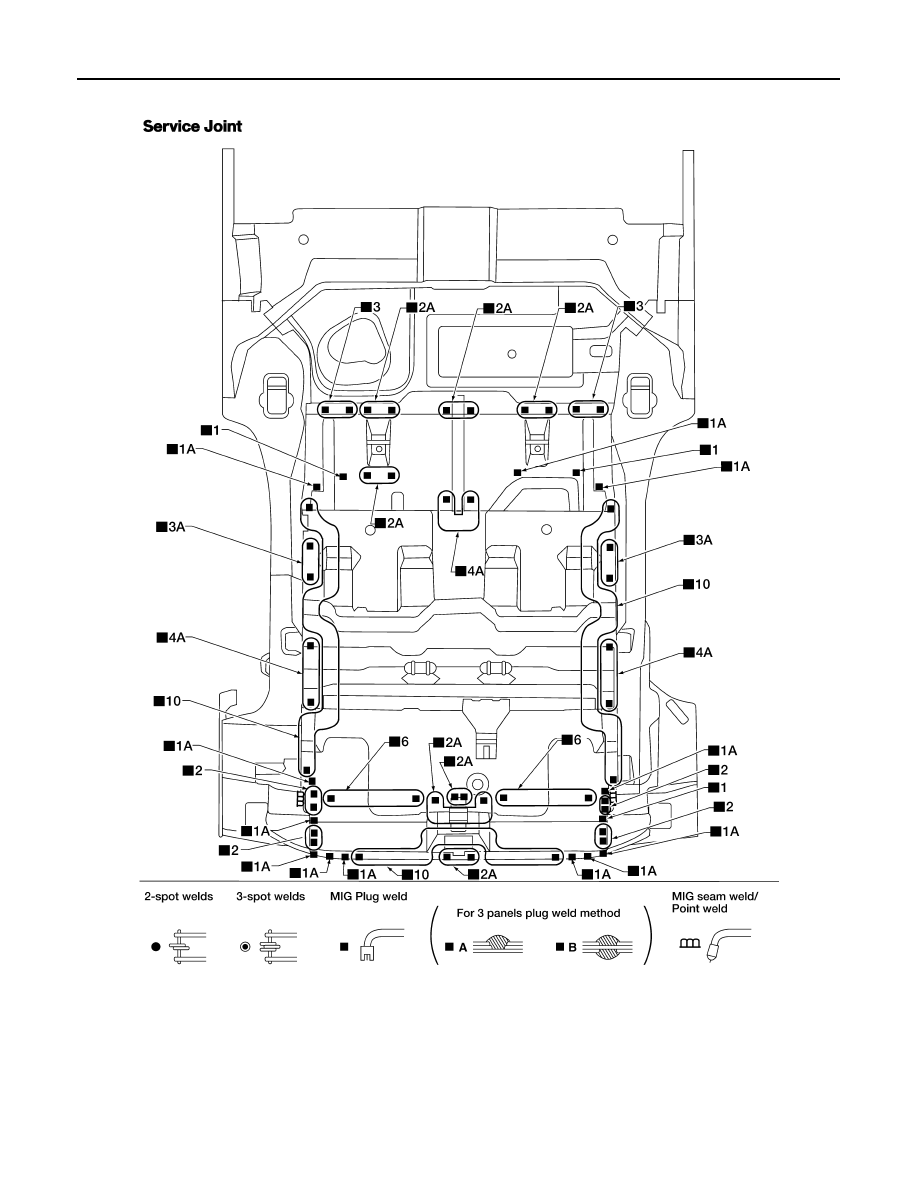

REAR FLOOR REAR

LIIA1815E

2009 Pathfinder

BODY REPAIR

BRM-53

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

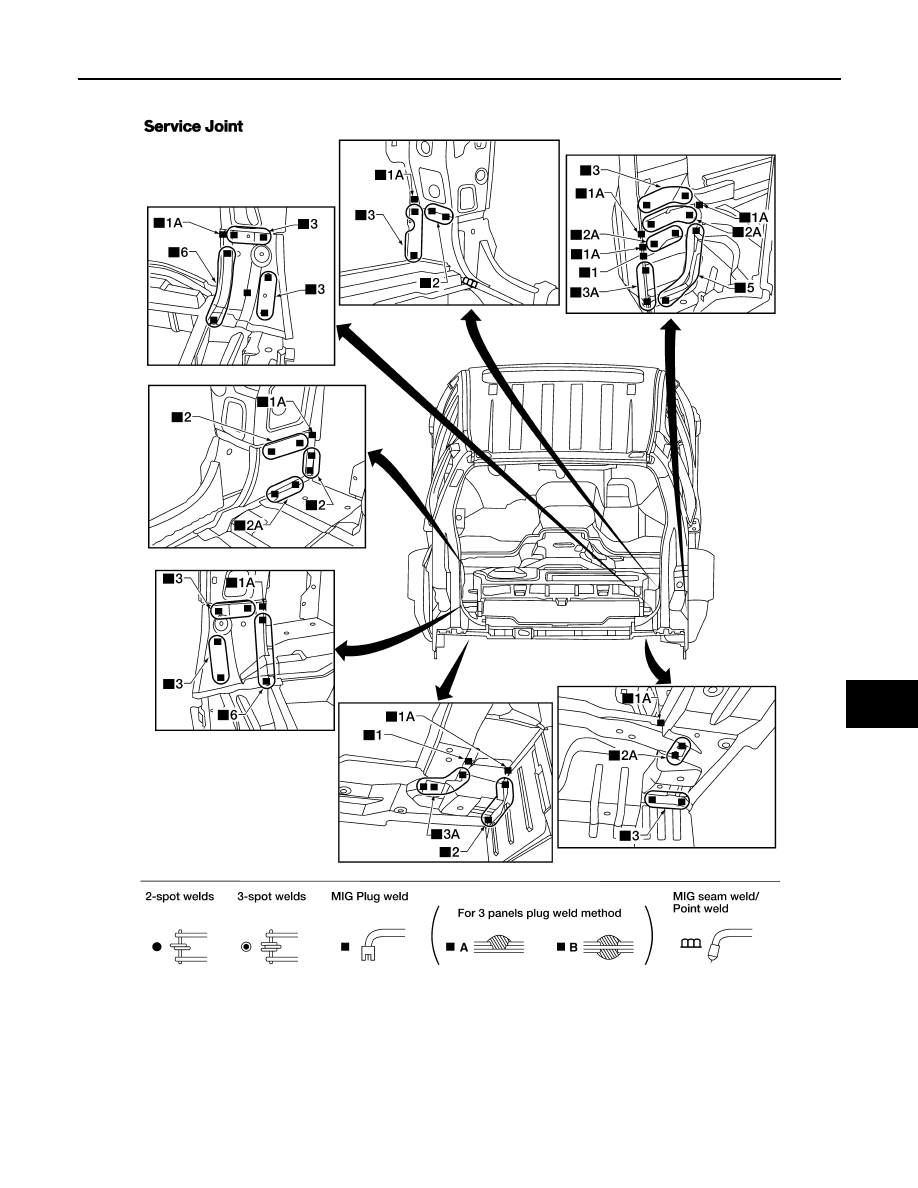

REAR CROSSMEMBER

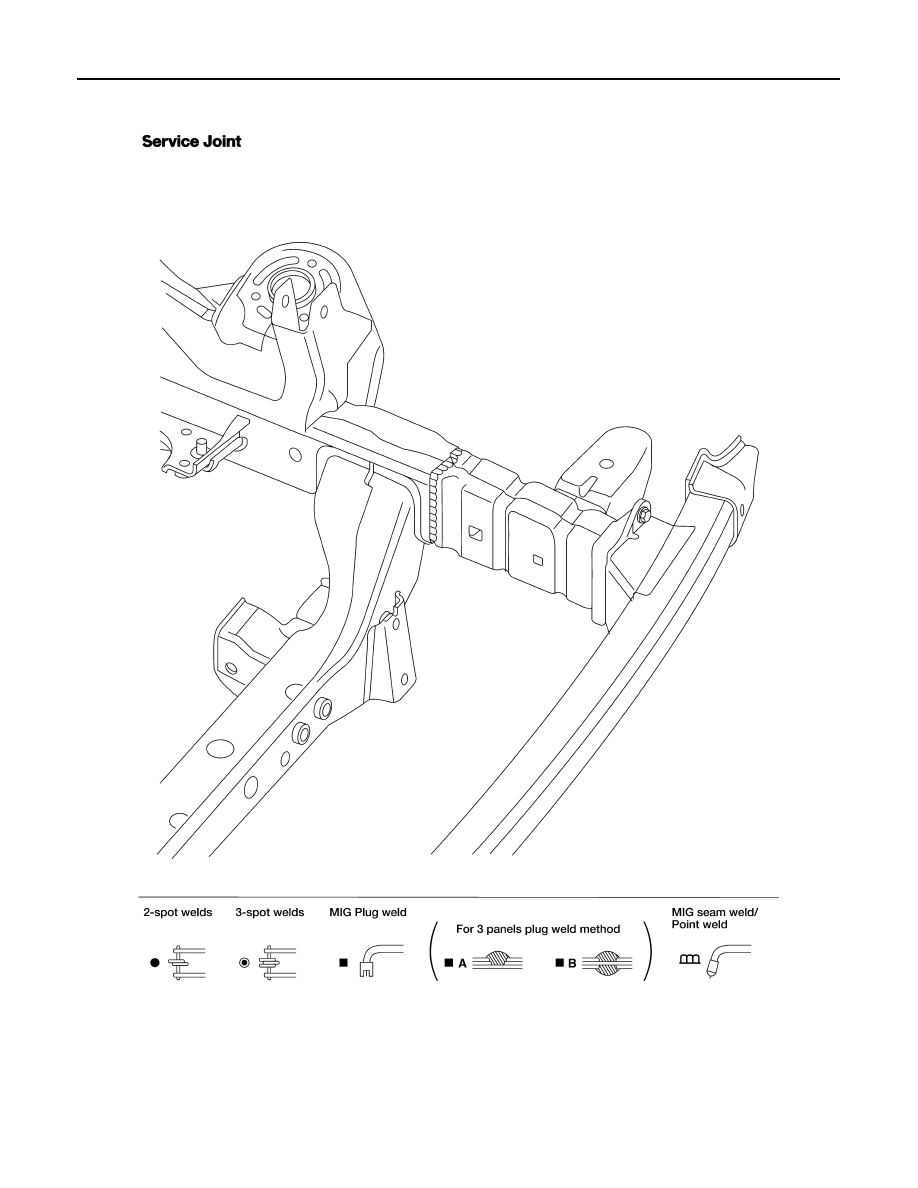

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,
such as cutting and butt-joint welding the crush horn.

LIIA1816E

2009 Pathfinder

BRM-54

< SERVICE INFORMATION >

BODY REPAIR

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body
mounting bracket.

LIIA2148E

2009 Pathfinder

CCS-1

CRUISE CONTROL

C

D

E

F

G

H

I

J

K

L

M

B

CCS

SECTION

CCS

N

P

A

CONTENTS

CRUISE CONTROL SYSTEM

FUNCTION DIAGNOSIS ...............................

2

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ...............................................................

2

Description ................................................................

2

2009 Pathfinder

CCS-2

< FUNCTION DIAGNOSIS >

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

FUNCTION DIAGNOSIS

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Description

INFOID:0000000003938883

VQ40DE

For information regarding the ASCD system, refer to

EC-41, "System Description"

.

VK56DE

For information regarding the ASCD system, refer to

EC-516, "System Description"

.

2009 Pathfinder

CHG

CHG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

CHG

A

O

P

N

CONTENTS

CHARGING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Supplemental Restraint System (SRS) "AIR BAG"
and "SEAT BELT PRE-TENSIONER" .......................

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

Precaution for Power Generation Variable Voltage
Control System ..........................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

BASIC INSPECTION  ....................................

5

DIAGNOSIS AND REPAIR WORKFLOW  ..........

5

Work Flow  .................................................................

5

FUNCTION DIAGNOSIS ...............................

6

CHARGING SYSTEM ..........................................

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Description ............................................

6

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM .................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Description .............................................

7

COMPONENT DIAGNOSIS  ..........................

8

CHARGING SYSTEM PRELIMINARY IN-
SPECTION ...........................................................

8

Inspection Procedure ................................................

8

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM OPERATION IN-
SPECTION .........................................................

9

Inspection Procedure ................................................

9

B TERMINAL CIRCUIT  .....................................

11

Description ...............................................................

11

Diagnosis Procedure  ...............................................

11

L TERMINAL CIRCUIT  .....................................

12

Description ...............................................................

12

Diagnosis Procedure  ...............................................

12

S TERMINAL CIRCUIT  .....................................

13

Description ...............................................................

13

Diagnosis Procedure  ...............................................

13

CHARGING SYSTEM .......................................

14

Wiring Diagram ........................................................

14

SYMPTOM DIAGNOSIS  ..............................

19

CHARGING SYSTEM .......................................

19

Symptom Table  .......................................................

19

ON-VEHICLE REPAIR .................................

20

GENERATOR ....................................................

20

Removal and Installation  .........................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

22

Generator ................................................................

22

2009 Pathfinder
