AUDIO ANTENNA

AUDIO ANTENNA

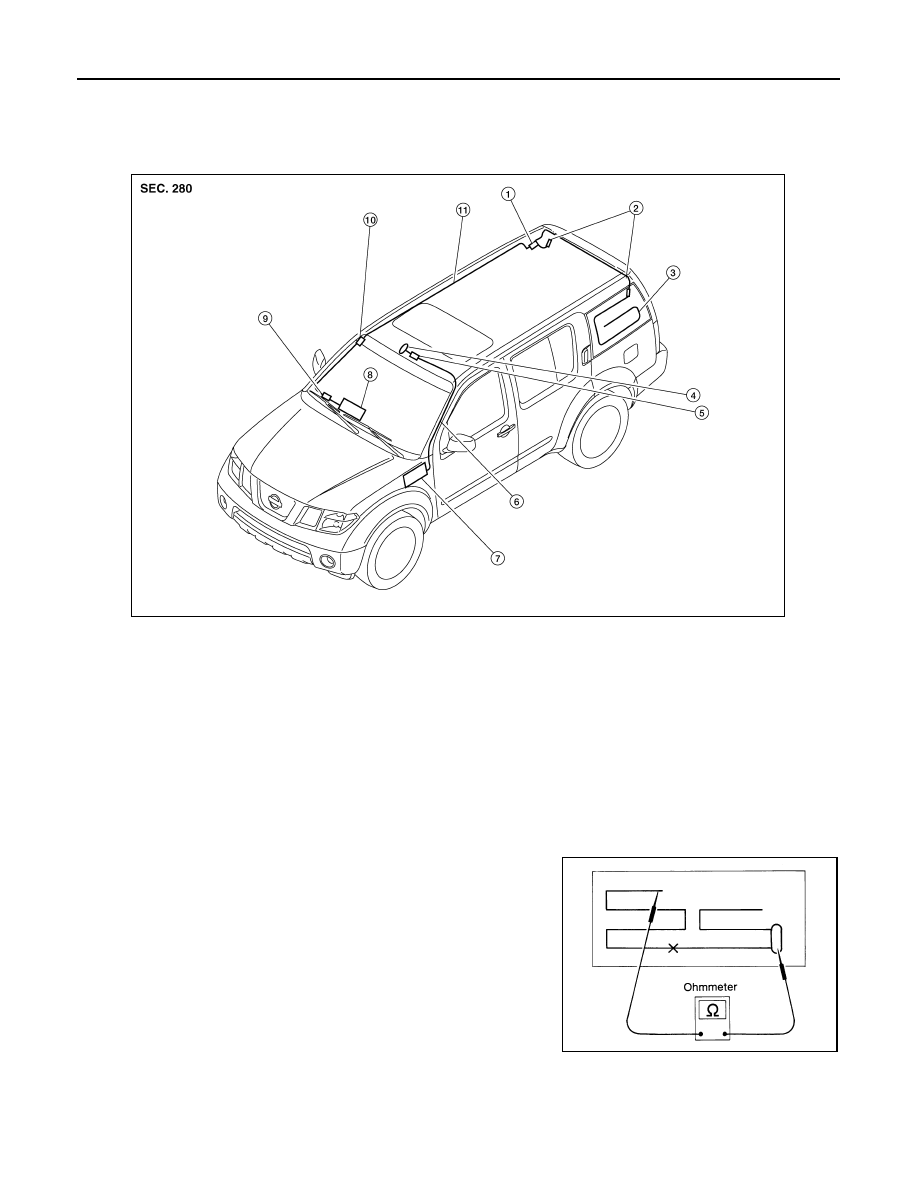

Location of Antenna

INFOID:0000000003939146

Window Antenna Repair

INFOID:0000000003939147

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

Audio unit M44

9.

Harness connector
M48, M501

10. Harness connector

M502, M601

11.

Antenna feeder

WKIA4984E

SEL250I

2009 Pathfinder

AV

AUDIO ANTENNA

AV-301

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

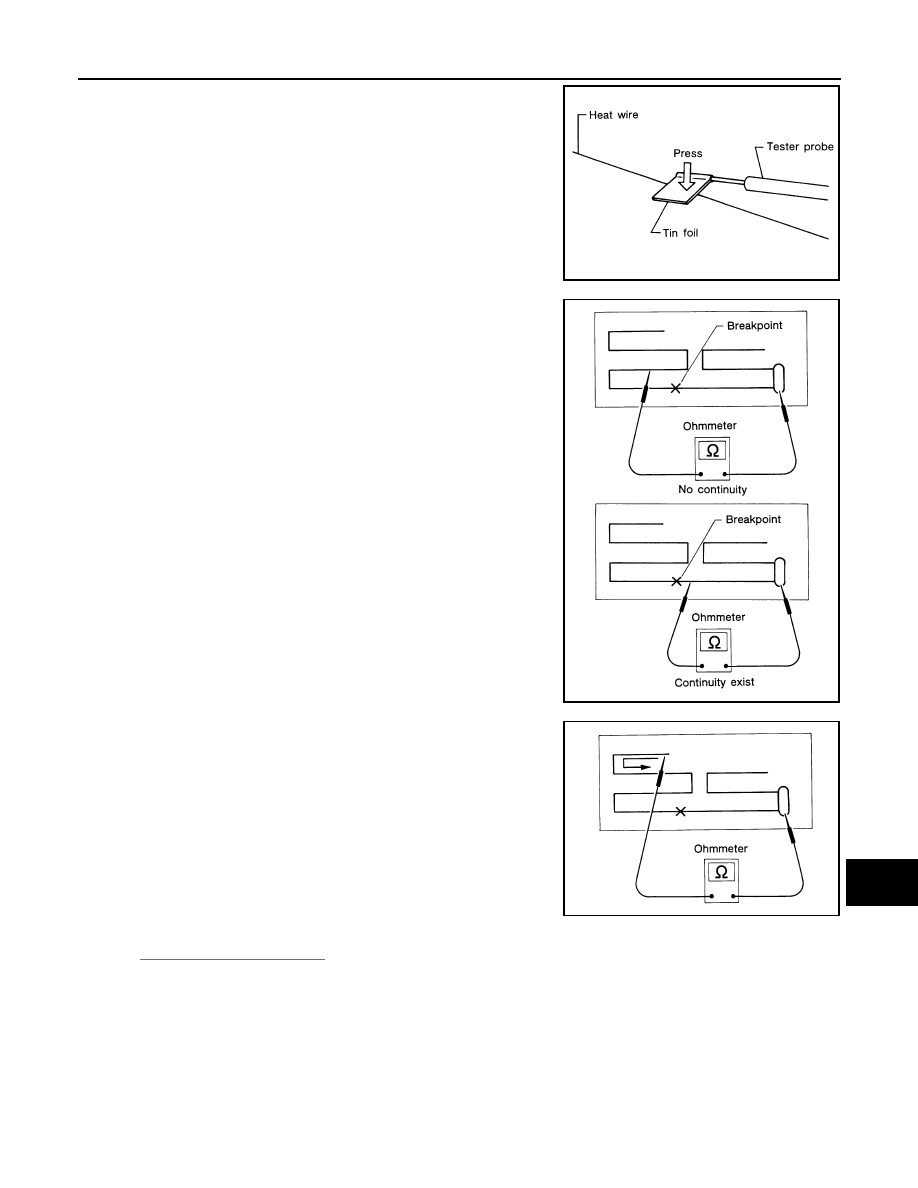

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-
ger.

2.

If an element is broken, no continuity will exist.

3.

To locate a break, move probe along element. Tester indication
will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-42, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

2009 Pathfinder

AV-302

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000003939148

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Disconnect the satellite radio tuner connectors.

3.

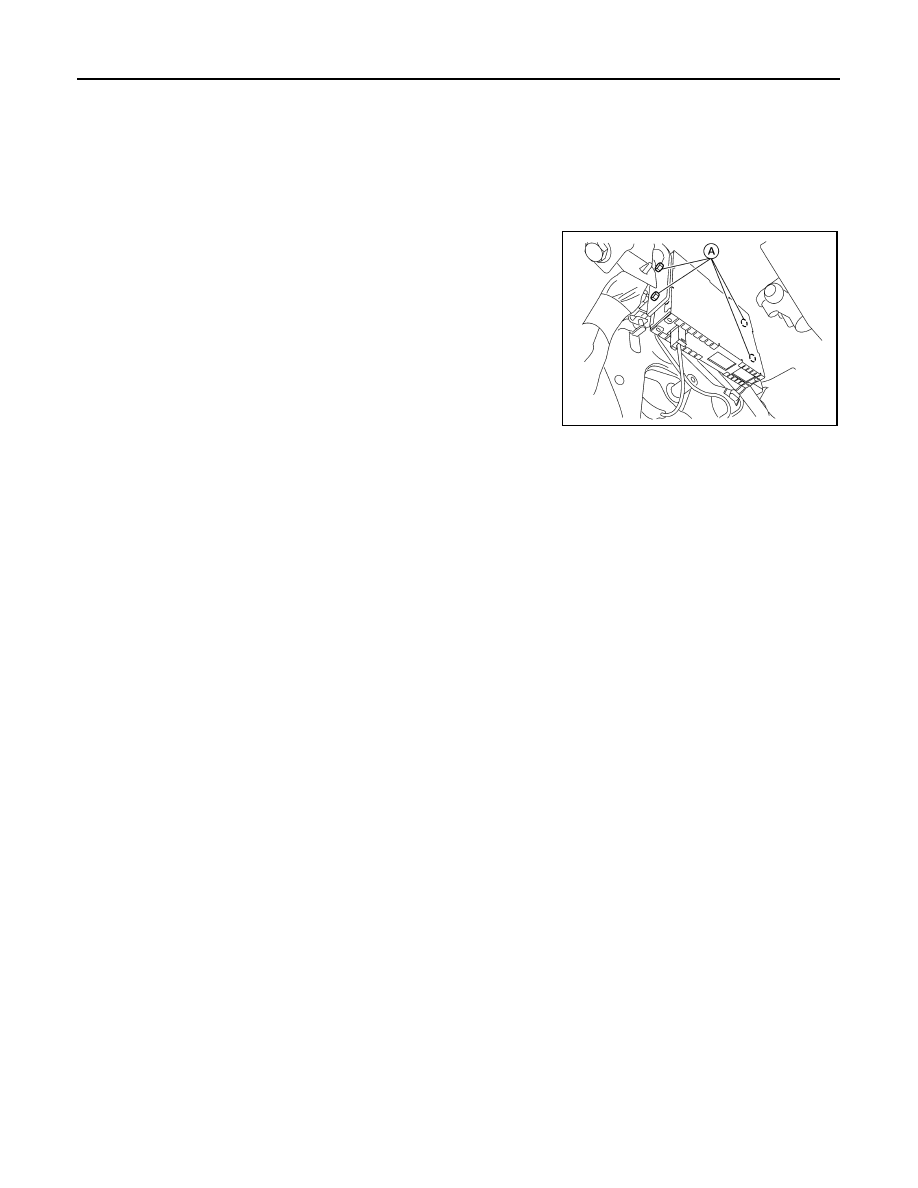

Remove satellite radio tuner screws (A), and remove satellite
radio tuner from above the parking brake pedal.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0684E

2009 Pathfinder

AV

SATELLITE RADIO ANTENNA

AV-303

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000004414823

REMOVAL

1.

Remove the front roof console finisher. Refer to

INT-20, "Removal and Installation"

.

2.

Disconnect the satellite radio antenna connector.

3.

Remove the satellite radio antenna nut.

4.

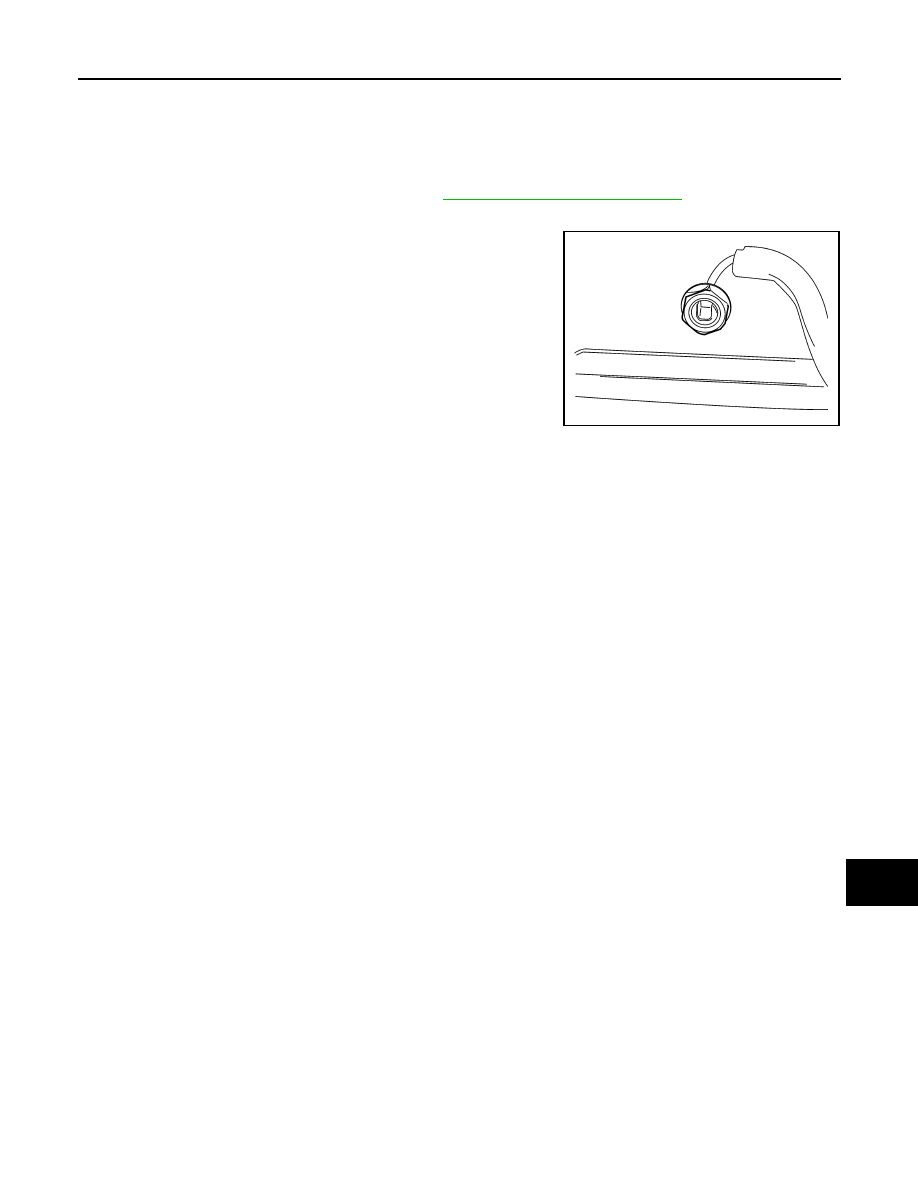

Remove the satellite radio antenna.

Installation is in the reverse order of removal.

LKIA0679E

2009 Pathfinder

AV-304

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000004414824

Rear View Camera

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Remove the back door lower finisher. Refer to

INT-25, "Removal and Installation"

.

3.

Disconnect the rear view camera connector.

4.

Detach the rear view camera harness clip.

5.

Detach the rear view camera to release, then pull out to remove the rear view camera while feeding the
rear view camera harness and connector through the back door.

INSTALLATION

Installation is in the reverse order of removal.

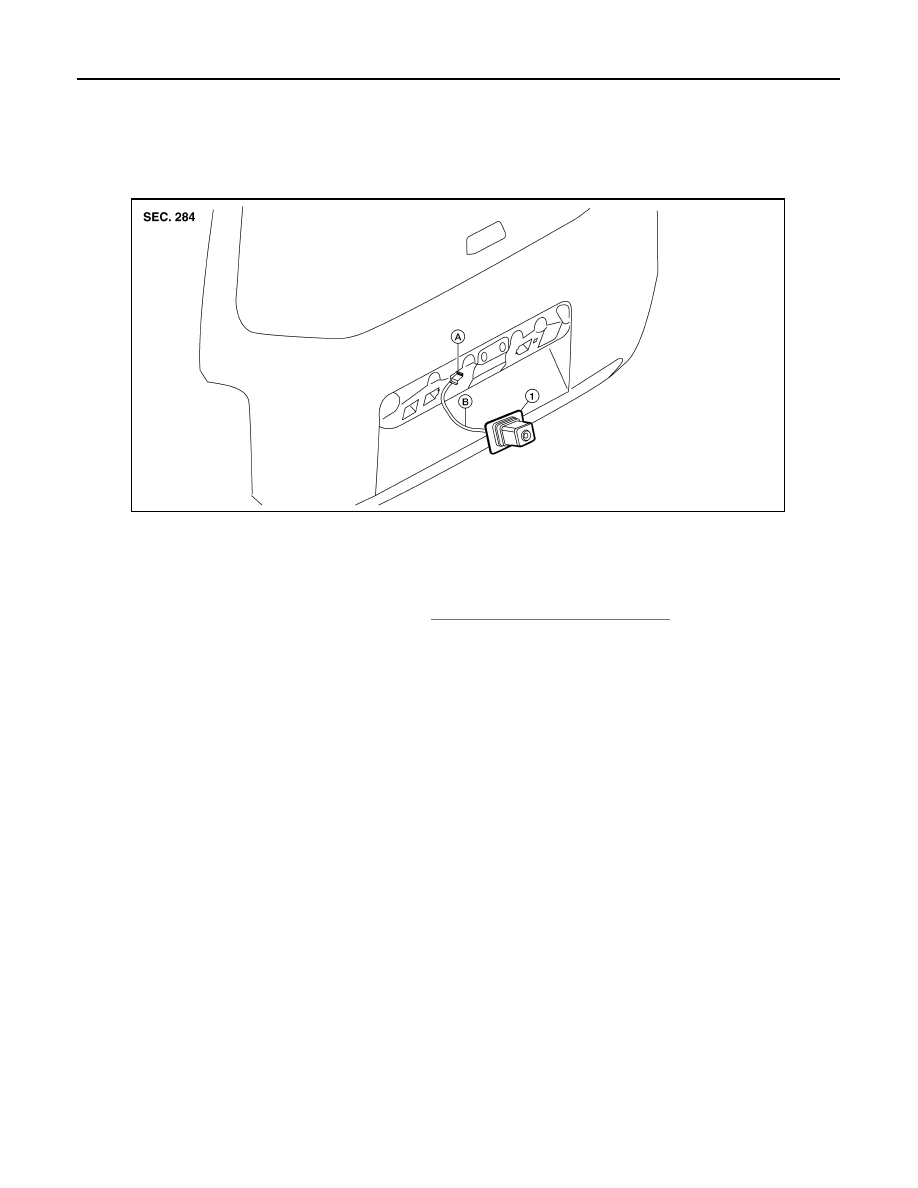

1.

Rear view camera

A.

Rear view camera connector

B.

Rear view camera harness clip

ALNIA1182ZZ

2009 Pathfinder

AV

REAR VIEW CAMERA CONTROL UNIT

AV-305

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000003939151

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Remove the luggage side lower finisher RH. Refer to

INT-23, "Removal and Installation"

.

3.

Remove the rear HVAC duct tube (C103) fastener and remove the HVAC duct tube.

4.

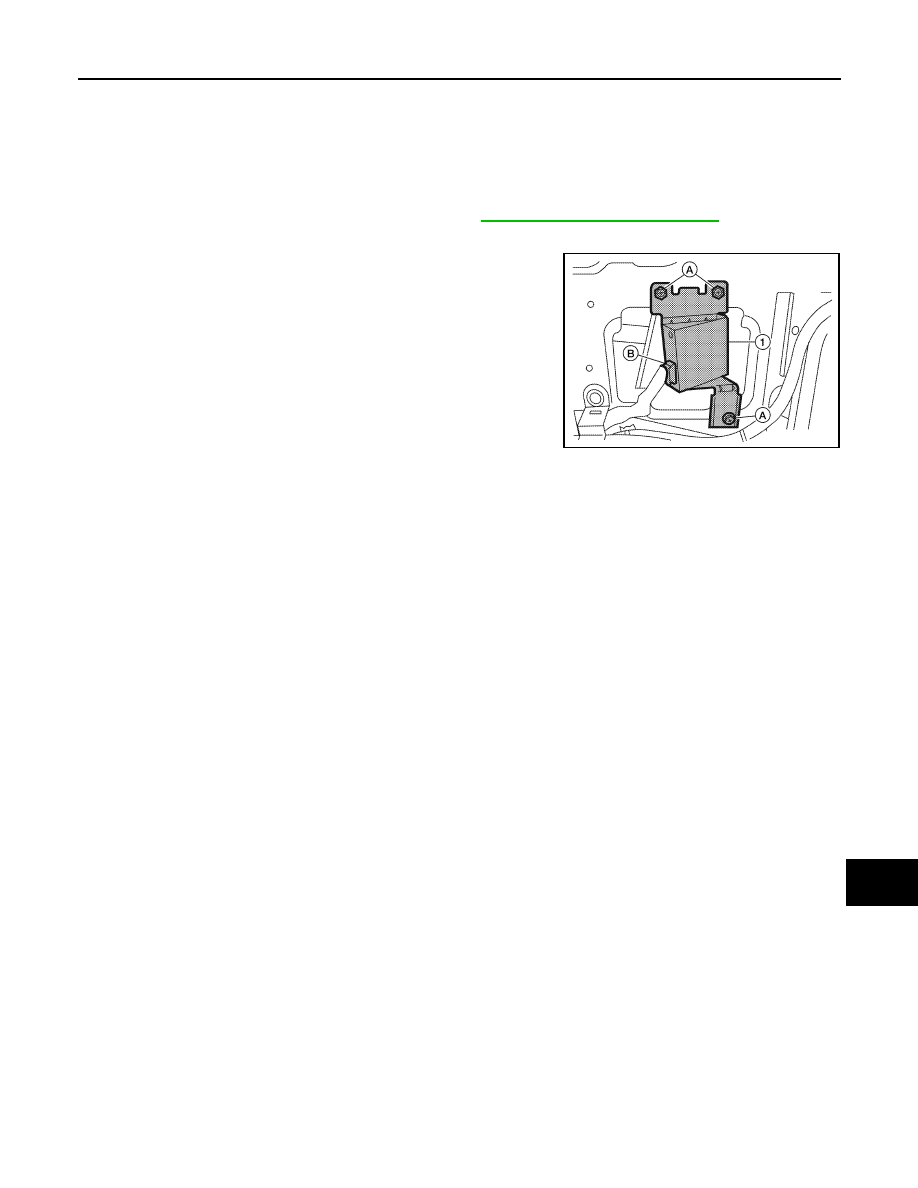

Remove the rear view camera control unit screws (A), discon-
nect the rear view camera control unit connector (B) and remove
the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0377ZZ

2009 Pathfinder

AV-306

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003939152

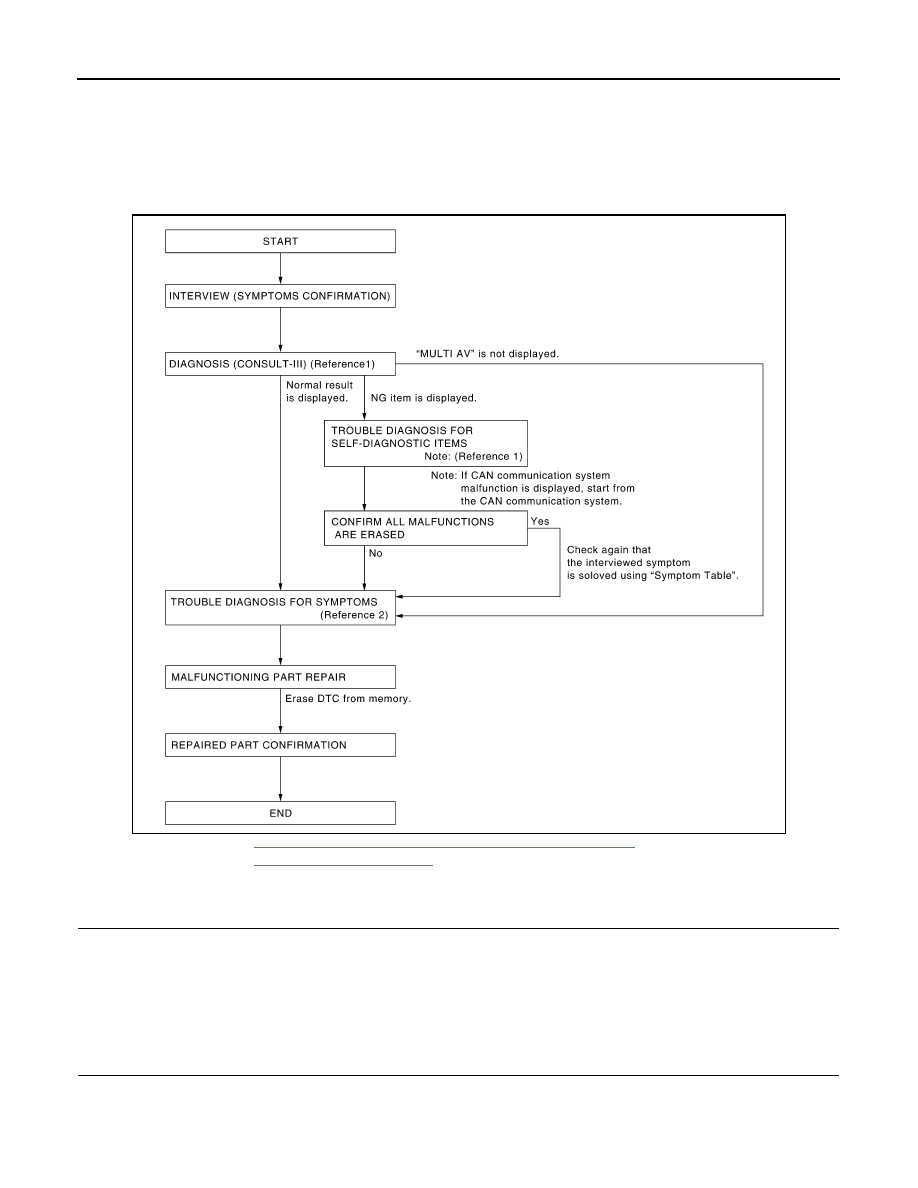

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-337, "AV CONTROL UNIT : CONSULT-III Function"

.

• Reference 2··· Refer to

AV-442, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2

2.

SELF-DIAGNOSIS (CONSULT-III)

1.

Connect CONSULT-III and perform “SELF-DIAGNOSIS” for “MULTI AV”.
NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

AWNIA0030GB

2009 Pathfinder

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-307

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is any DTC displayed?

YES

>> GO TO 3

NO

>> GO TO 4

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT-III)

1.

Check the DTC No. indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC No. list. Refer to

AV-431, "DTC Index"

.

NOTE:
Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] or CONTROL
UNIT (CAN) [U1010]” is displayed.

>> GO TO 5

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-442, "Symptom

Table"

.

>> GO TO 5

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has
been indicated in the self-diagnosis results.

>> GO TO 6

6.

CHECK AFTER REPAIR

1.

Perform self-diagnosis for “MULTI AV” with CONSULT-III after repairing or replacing the malfunctioning
parts.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

Is any DTC displayed?

YES

>> GO TO 3

NO

>> GO TO 7

7.

FINAL CHECK

Perform the operation check to confirm that the malfunction symptom is solved or that any other symptoms
are present.

Are any symptoms present?

YES

>> GO TO 4

NO

>> Inspection End.
