MA-40

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

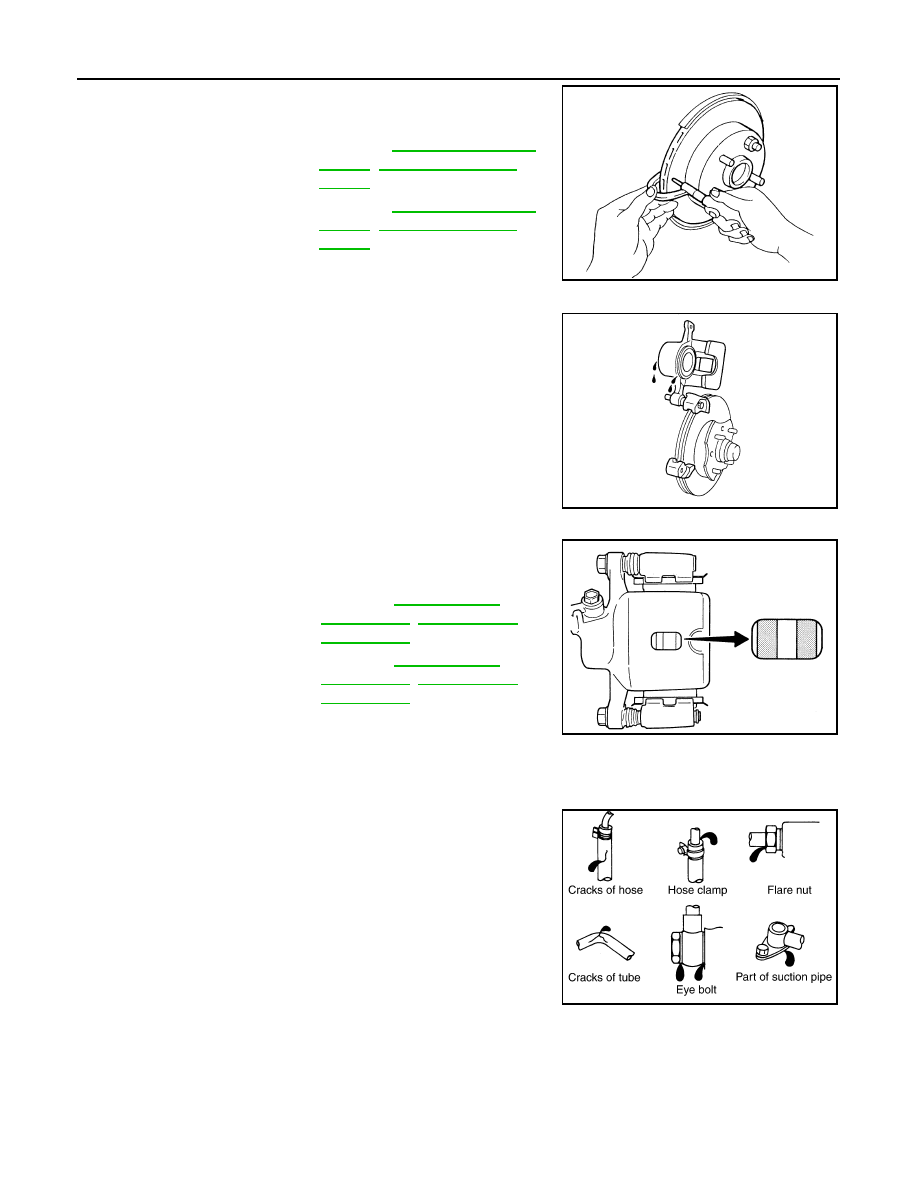

Check the condition of the rotor, and for any wear or damage. Repair
or replace as necessary.

CALIPER

Check for any fluid leakage. Repair as necessary.

PAD

Inspect the thickness of pad through cylinder body inspection hole.
Use a scale for inspection if necessary.

Checking Steering Gear and Linkage

INFOID:0000000001621731

STEERING GEAR

• Check the steering gear housing for looseness, damage and oil

leakage as shown.

• Check the steering column connections for looseness.

STEERING LINKAGE

• Check the ball joint, dust cover and other component parts for looseness, wear, damage and grease leak-

age.

Checking Power Steering Fluid and Line

INFOID:0000000001621732

CHECKING FLUID LEVEL

Standard thickness

: Refer to

BR-41, "Front Disc

Brake"

,

BR-41, "Rear Disc

Brake"

.

Repair limit thickness

: Refer to

BR-41, "Front Disc

Brake"

,

BR-41, "Rear Disc

Brake"

.

SBR020B

SMA922A

Standard thickness

: Refer to

BR-41, "Front

Disc Brake"

,

BR-41, "Rear

Disc Brake"

.

Repair limit thickness

: Refer to

BR-41, "Front

Disc Brake"

,

BR-41, "Rear

Disc Brake"

.

BRA0010D

SGIA0506E

CHASSIS AND BODY MAINTENANCE

MA-41

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

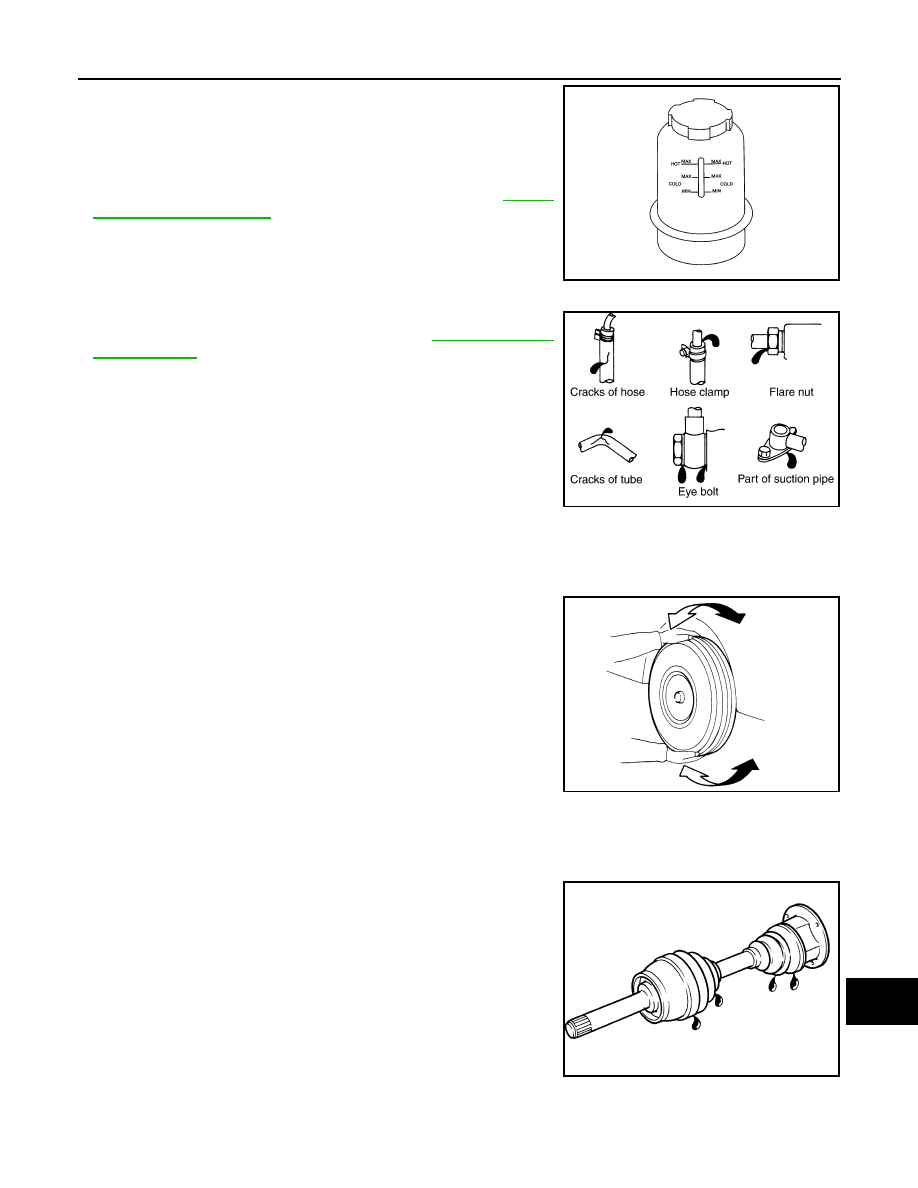

• Check the power steering fluid level with the engine off.
• Check fluid level on reservoir. Use “HOT” range at fluid tempera-

tures of 50

°

 to 80

°

C (122

°

 to 176

°

F). Use “COLD” range at fluid

temperatures of 0

°

 to 30

°

C (32

°

 to 86

°

F).

CAUTION:

• Do not overfill.
• Fill with the recommended fluid or equivalent. Refer to

MA-10,

"Fluids and Lubricants"

.

CHECKING LINES

• Check lines for improper attachment, leaks, cracks, damage, loose

connections, chafing and deterioration. Refer to

ST-10, "Checking

Fluid Leakage"

.

Checking Axle and Suspension Parts

INFOID:0000000001621733

FRONT AND REAR AXLE AND SUSPENSION PARTS

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Rotate each wheel to check for abnormal noise.
• Check axle and suspension nuts and bolts for looseness.

• Check the strut and shock absorber for oil leakage or other damage.
• Check suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.

FRONT AND REAR DRIVE SHAFT

Check the boots and drive shaft for cracks, wear, damage, and
grease leakage.

LGIA0021E

SGIA0506E

SMA525A

SFA901

MA-42

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

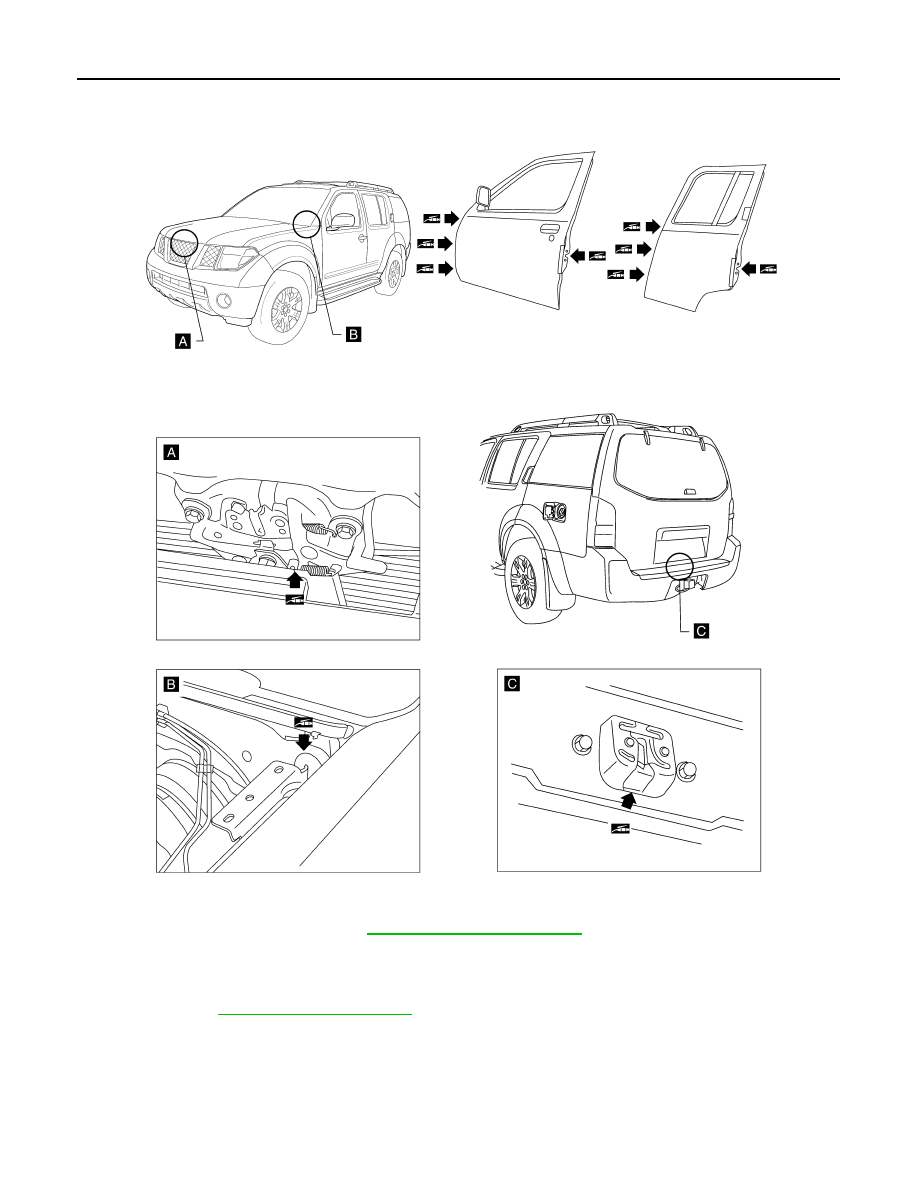

Lubricating Locks, Hinges and Hood Latches

INFOID:0000000001621734

• Lubricate the locations shown. Refer to

MA-10, "Fluids and Lubricants"

.

Checking Seat Belts, Buckles, Retractors, Anchors and Adjusters

INFOID:0000000001621735

Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as
necessary. Refer to

SB-8, "Seat Belt Inspection"

.

• Check the seat belt anchors for loose mounting bolts, damage, or excessive wear.
• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.
• Check the retractor for smooth operation.
• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of

the buckle and press the button on the buckle to check for proper release of the seat belt tongue.

CAUTION:

WLIA0021E

CHASSIS AND BODY MAINTENANCE

MA-43

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-

nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-
ing a collision, unless they are not damaged and are inspected to confirm they are operating
properly after a minor collision.
Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-
nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if
the seat belts are not in use during a frontal collision where the driver and passenger air bags have
been deployed.

• If any component of the seat belt assembly is suspected of being damaged or not operating prop-

erly, do not repair the component. Replace the components as an assembly.

• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.
• Never lubricate the seat belt buckle or tongue.
• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.

MIR-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

MIR

A

B

MIR

N

O

P

CONTENTS

MIRRORS

COMPONENT DIAGNOSIS  ..........................

2

DOOR MIRROR ...................................................

2

Wiring Diagram — Door Mirror (With Heated Mir-
rors) —  ......................................................................

2

Wiring Diagram — Door Mirror (Without Heated
Mirrors) —  .................................................................

5

INSIDE MIRROR  .................................................

8

Wiring Diagram  .........................................................

8

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

10

SERVICE INFORMATION  ...........................

11

PREPARATION .................................................

11

Special Service Tool ................................................

11

Commercial Service Tool  ........................................

11

INSIDE MIRROR  ...............................................

12

Removal and Installation  .........................................

12

DOOR MIRROR  ................................................

13

Door Mirror Assembly ..............................................

13

Door Mirror Glass  ....................................................

13

MIR-2

< COMPONENT DIAGNOSIS >

DOOR MIRROR

COMPONENT DIAGNOSIS

DOOR MIRROR

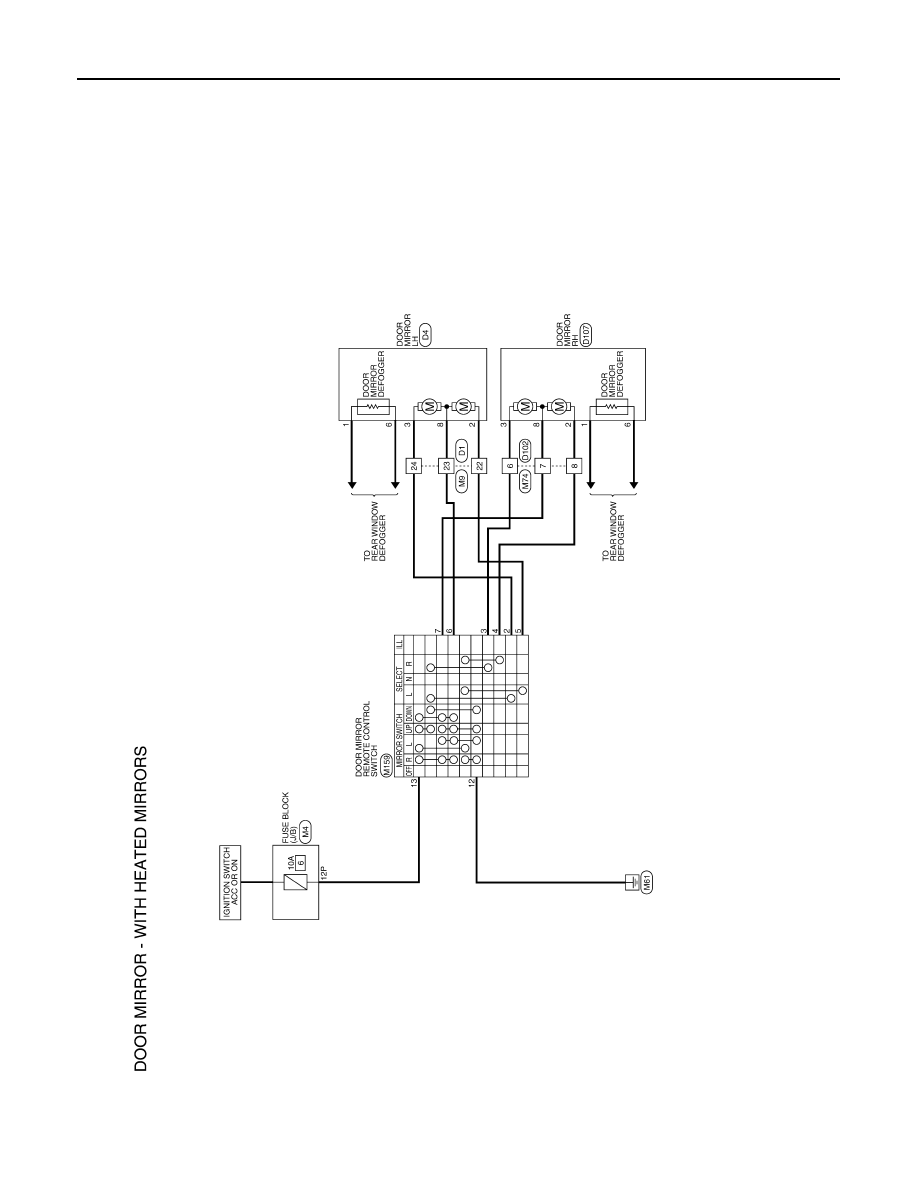

Wiring Diagram — Door Mirror (With Heated Mirrors) —

INFOID:0000000001716868

ALLWA0037GB

DOOR MIRROR

MIR-3

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

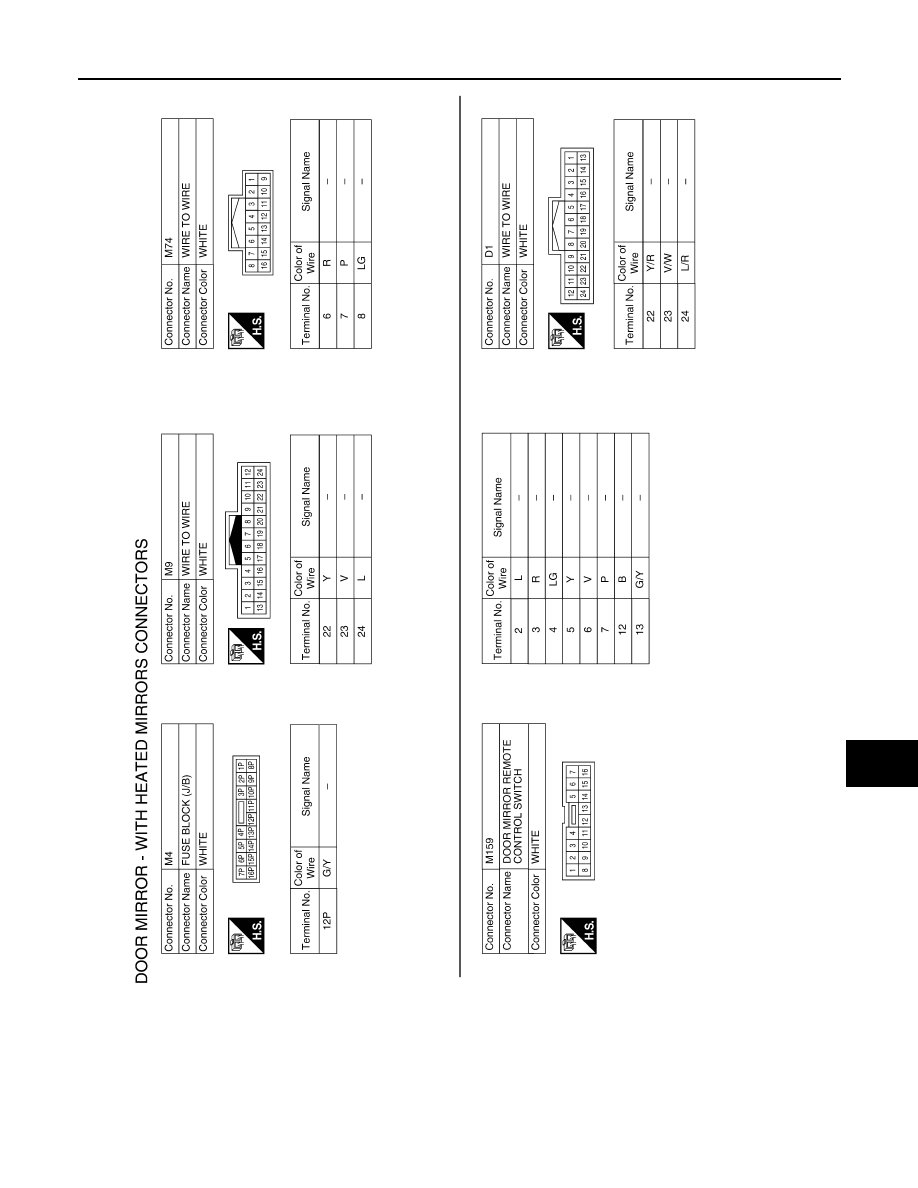

ALLIA0227GB

MIR-4

< COMPONENT DIAGNOSIS >

DOOR MIRROR

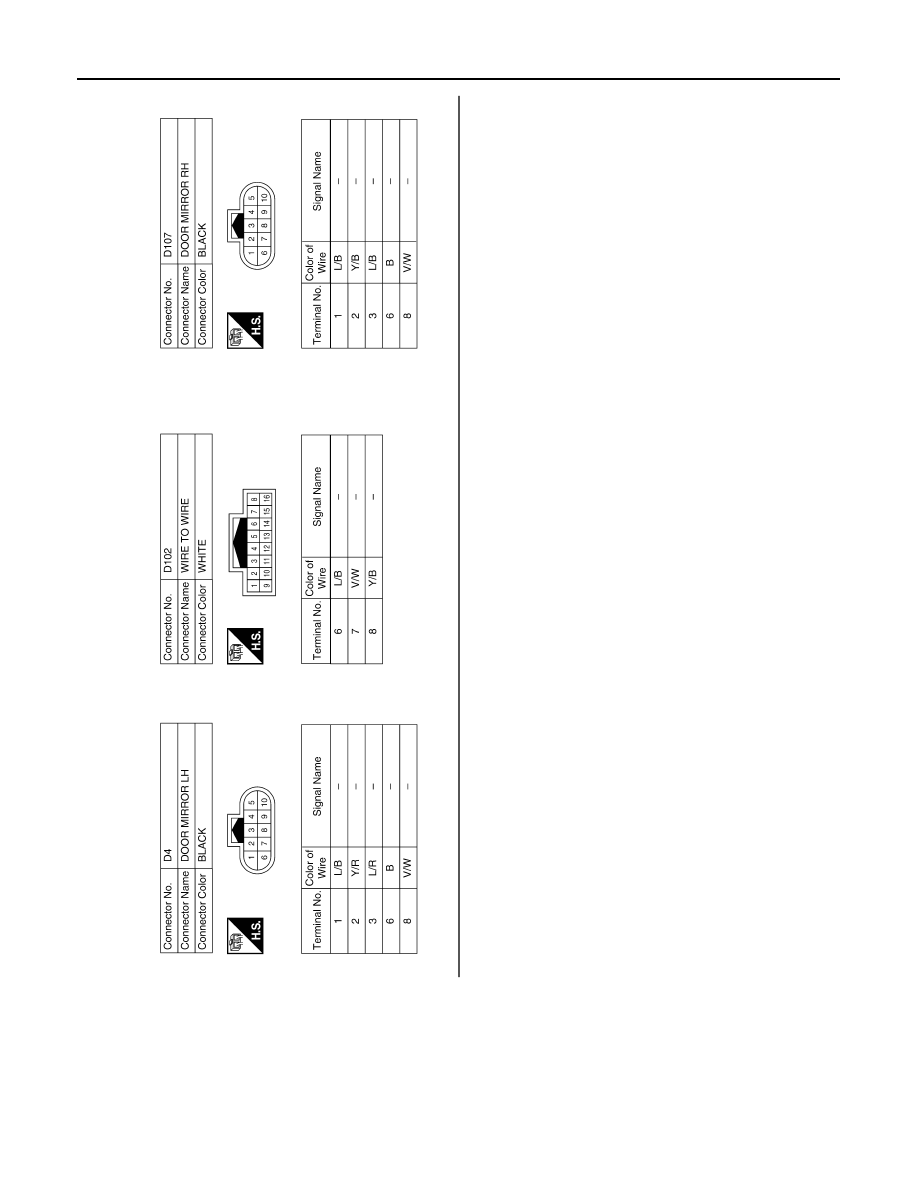

ALLIA0228GB
