Observe the following precautions when disassembling and servicing the wheel hub and drive shafts.
• Perform work in a location which is as dust-free as possible.
• Before disassembling and servicing, clean the outside of parts.
• Prevention of the entry of foreign objects must be taken into account during disassembly of the component

parts.

• Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover

must be placed over parts.

• Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering

to parts.

• Disassembled parts (except for rubber parts) should be cleaned with a suitable solvent which shall be

removed by blowing with air or wiping with paper shop cloths.

PREPARATION

FAX-3

< PREPARATION >

FAX

PREPARATION

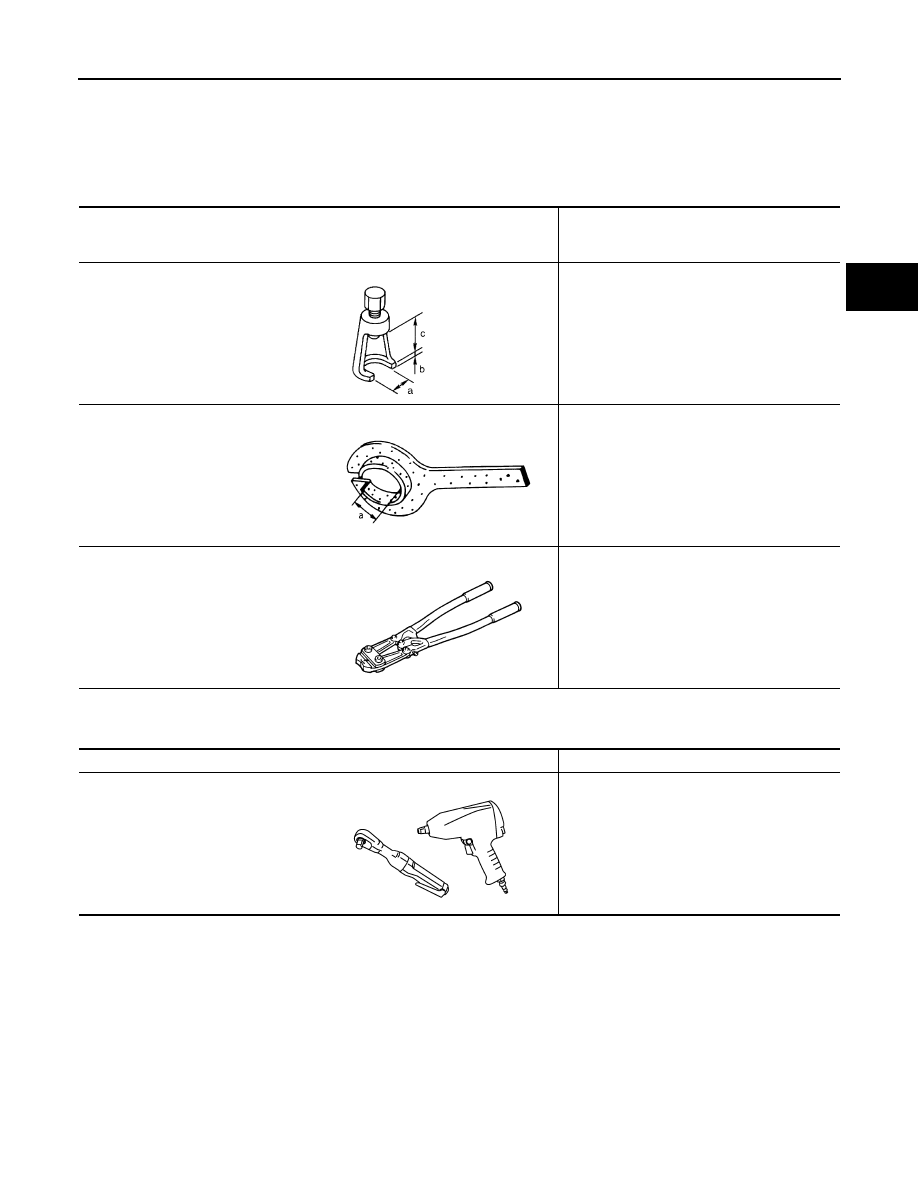

Special Service Tool

INFOID:0000000001283008

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001283009

Tool number
(Kent-Moore No.)
Tool name

Description

ST29020001
(J-24319-01)
Gear arm puller

Removing ball joint for steering knuckle
a: 34 mm (1.34 in)
b: 6.5 mm (0.256 in)
c: 61.5 mm (2.421 in)

KV38105500
(

—

)

Protector

Installing drive shaft
a: 32 mm (1.26 in) dia

KV40107300
(

—

)

Boot band crimping tool

Installing boot bands

NT694

ZZA0835D

ZZA1229D

Tool name

Description

Power tools

Removing bolts and nuts

PBIC0190E

FAX-4

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001283010

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

(2S

30)

(2S

50)

(R18

0A)

Possible cause and SUSPECTED PARTS

e j

t an

t s

lid

g re

lanc

pro

r in

ose

s interference

l be

arin

g da

FRO

T FINAL DRIVE

PENSION

ROAD W

EEL

EERING

Symptom

Noise

Shake

Vibration

Shimmy

Shudder

Poor quality ride or
handling

WHEEL HUB

FAX-5

< ON-VEHICLE MAINTENANCE >

FAX

ON-VEHICLE MAINTENANCE

WHEEL HUB

On-Vehicle Inspection and Service

INFOID:0000000001283011

Make sure the mounting conditions (looseness, backlash) of each component and component status (wear,
damage) are normal.

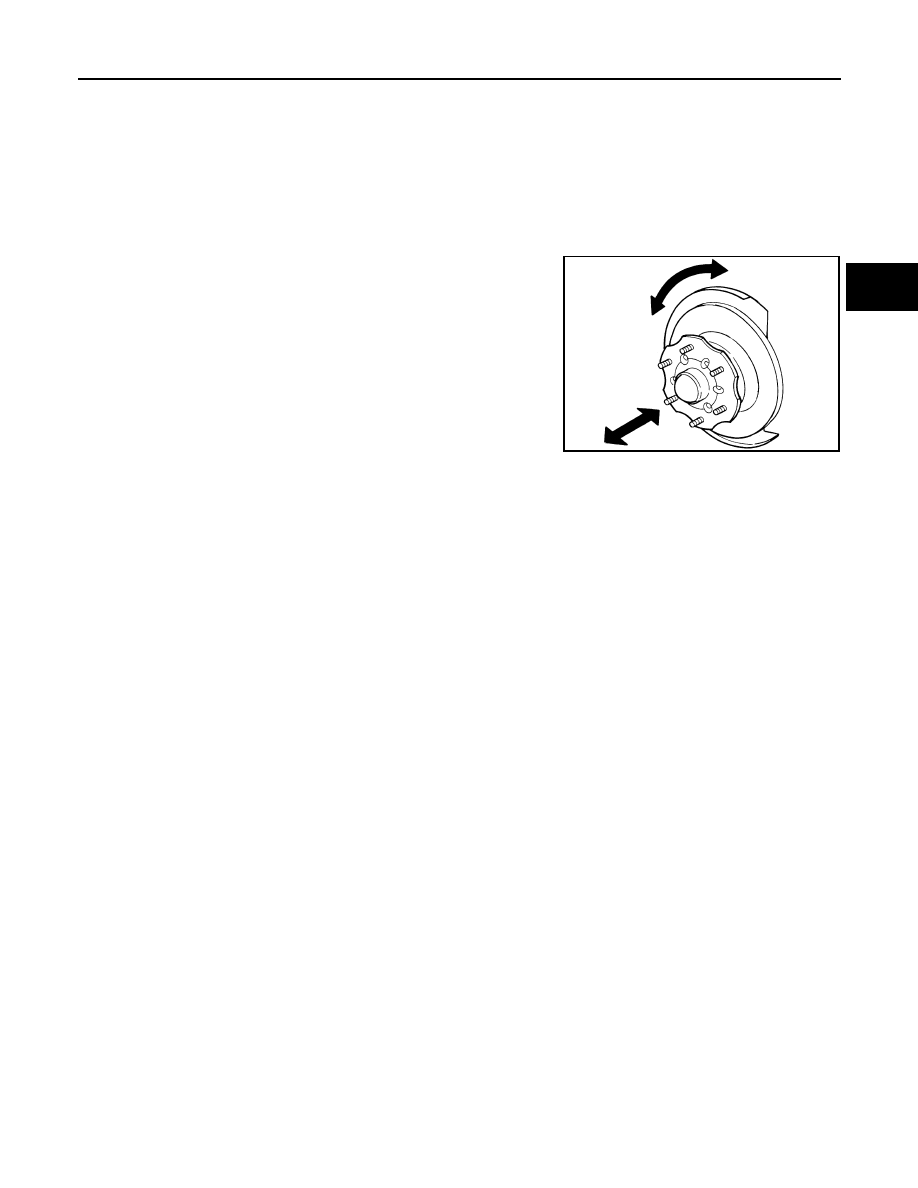

WHEEL BEARING INSPECTION

• Move wheel hub in the axial direction by hand. Make sure there is

no looseness of wheel bearing.

• Rotate wheel hub and make sure there is no unusual noise or

other irregular conditions. If there are any irregular conditions,
replace wheel hub and bearing assembly.

Axial end play limit

: 0.05 mm (0.002 in) or less

SMA571A

FAX-6

< REMOVAL AND INSTALLATION >

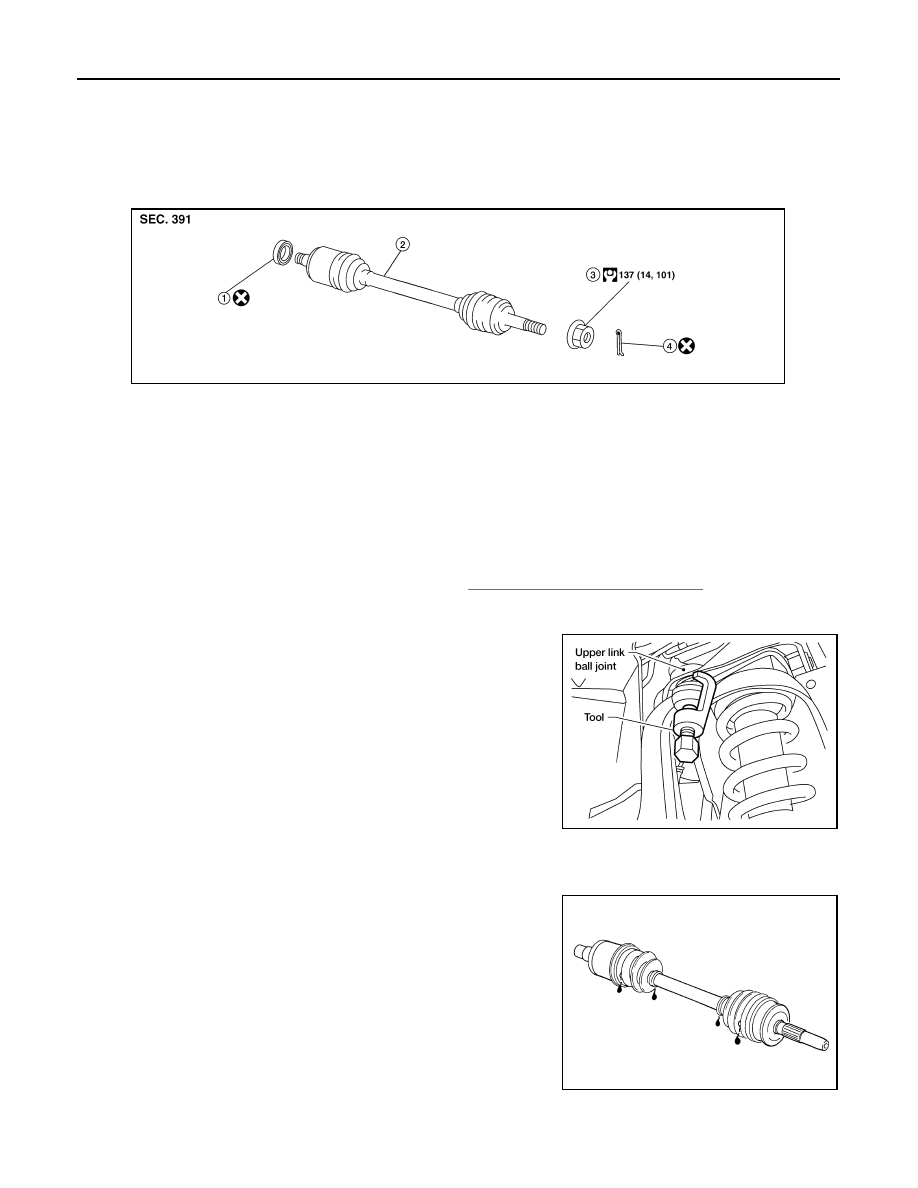

DRIVE SHAFT

REMOVAL AND INSTALLATION

DRIVE SHAFT

Removal and Installation

INFOID:0000000001283013

REMOVAL

Remove wheel and tire using power tool.

Remove rear engine under cover using power tool.

Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

Remove wheel hub and bearing assembly. Refer to

FAX-8, "Removal and Installation"

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.
• Carefully feed wheel sensor harness through hole in splash shield.

Separate upper link ball joint stud from steering knuckle using
Tool.
• Support lower link with jack.

Remove drive shaft assembly.
• Pry drive shaft front final drive using suitable tool.

INSPECTION AFTER REMOVAL

• Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-

ness.

• Check boot for cracks or other damage, and for grease leakage.
• If damaged, disassemble drive shaft to verify damage, and repair

or replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

Differential side oil seal

Drive shaft

Drive shaft lock nut

Cotter pin

WDIA0341E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

SFA108A

DRIVE SHAFT

FAX-7

< REMOVAL AND INSTALLATION >

FAX

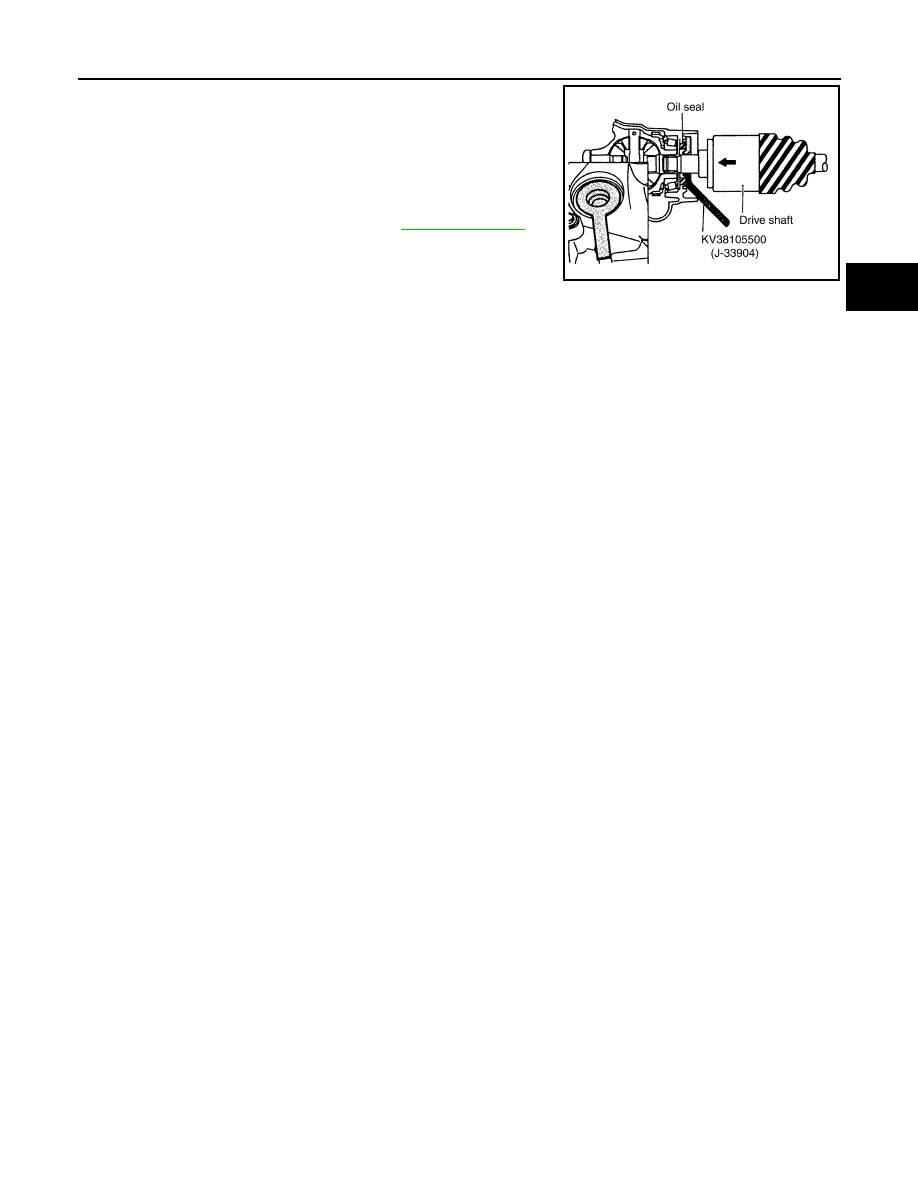

• When installing drive shaft onto front final drive, use Tool to pre-

vent damage to the oil seal while inserting drive shaft. Slide drive
shaft sliding joint and tap with a hammer to install securely.

CAUTION:

Never reuse the differential side oil seal.

• Tighten wheel nuts to specification. Refer to

WT-36, "Rotation"

Tool number

: KV38105500 (J-33904)

SDIA2615E

FAX-8

< REMOVAL AND INSTALLATION >

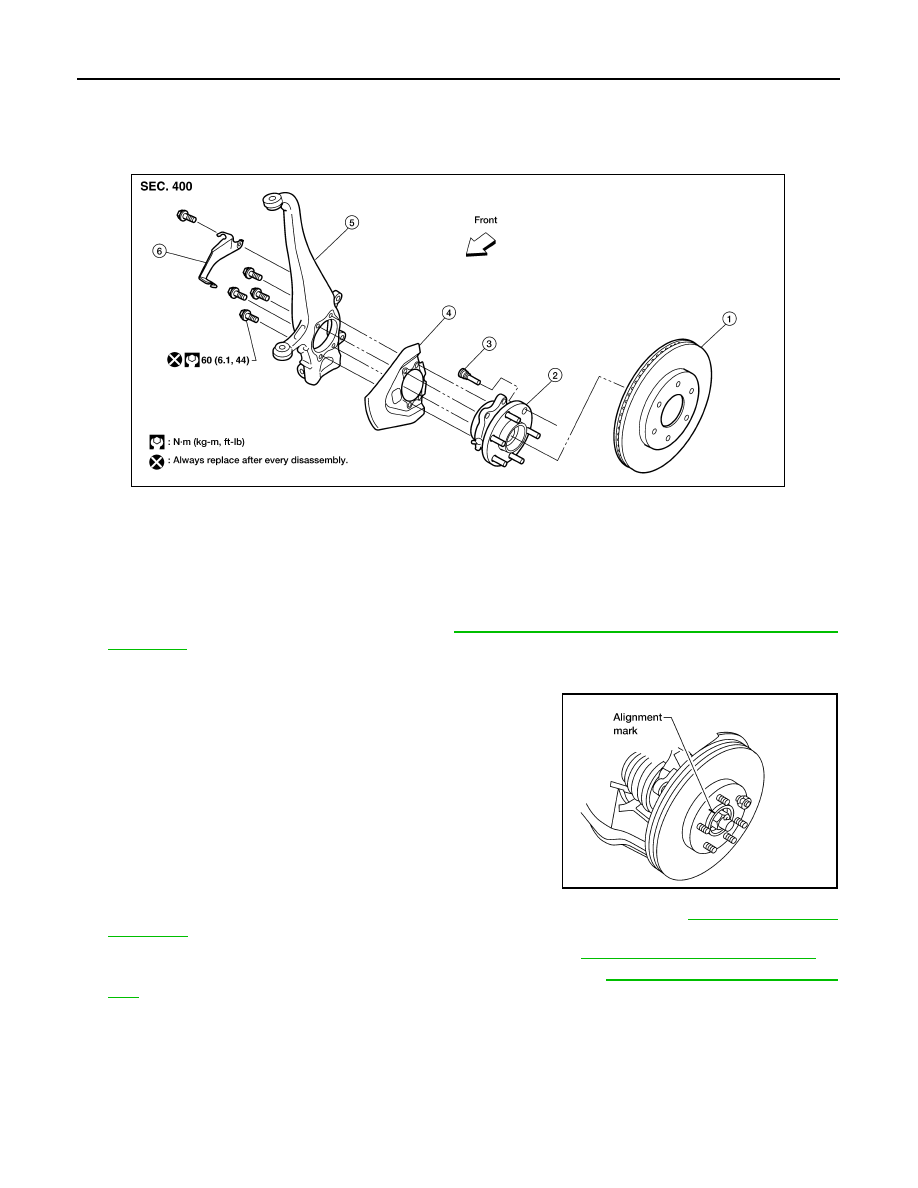

WHEEL HUB

WHEEL HUB

Removal and Installation

INFOID:0000000001283012

REMOVAL

Remove wheel and tire using power tool.

Without disassembling the hydraulic lines, remove caliper torque member bolts using power tool. Then
reposition brake caliper aside with wire. Refer to

BR-26, "Removal and Installation of Brake Caliper and

Disc Rotor"

CAUTION:

Do not press brake pedal while brake caliper is removed.

Put alignment mark on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.

Remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-6, "Removal and

Installation"

Remove drive shaft from wheel hub and bearing assembly. Refer to

FAX-6, "Removal and Installation"

Remove wheel sensor from wheel hub and bearing assembly. Refer to

BRC-237, "Removal and Installa-

tion"

• Inspect the wheel sensor O-ring, replace the wheel sensor assembly if damaged.
• Clean the wheel sensor hole and mounting surface with a suitable brake cleaner and clean lint-free

shop rag. Be careful that dirt and debris do not enter the axle bearing area.

• Apply a coat of suitable grease to the wheel sensor O-ring and mounting hole.

CAUTION:

Do not pull on the wheel sensor harness.

Remove wheel hub and bearing assembly bolts using power tool.

Remove splash guard and wheel hub and bearing assembly from steering knuckle.

Disc rotor

Wheel hub and bearing assembly

Wheel stud

Splash guard

Steering knuckle

Wheel sensor bracket

WDIA0228E

WDIA0044E
