BCM (BODY CONTROL MODULE)

DLK-261

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001563747

VALUES ON THE DIAGNOSIS TOOL

Refer to

BCS-38, "Reference Value"

.

TERMINAL LAYOUT

Refer to

BCS-41, "Terminal Layout"

.

DLK-262

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

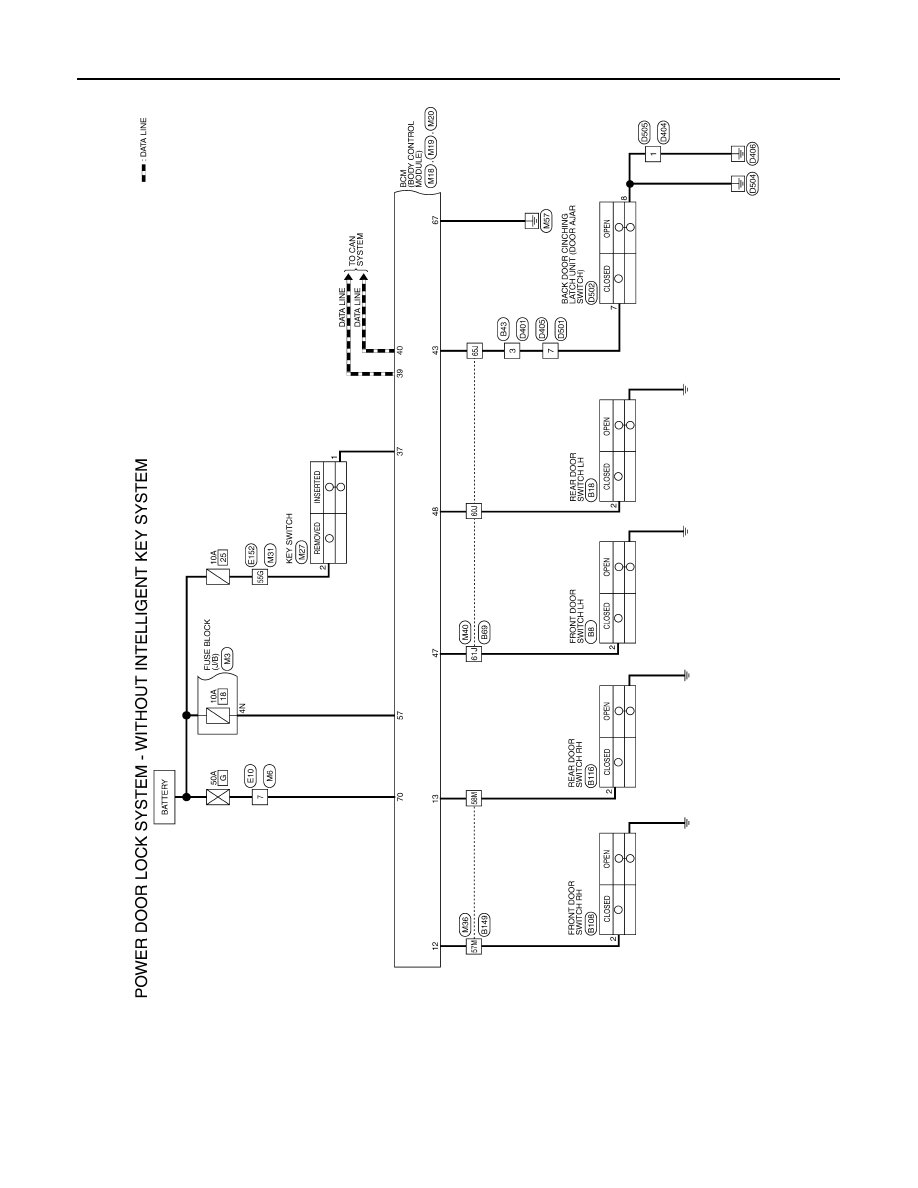

Wiring Diagram — POWER DOOR LOCK SYSTEM —

INFOID:0000000001563748

ALKWA0150GB

BCM (BODY CONTROL MODULE)

DLK-263

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

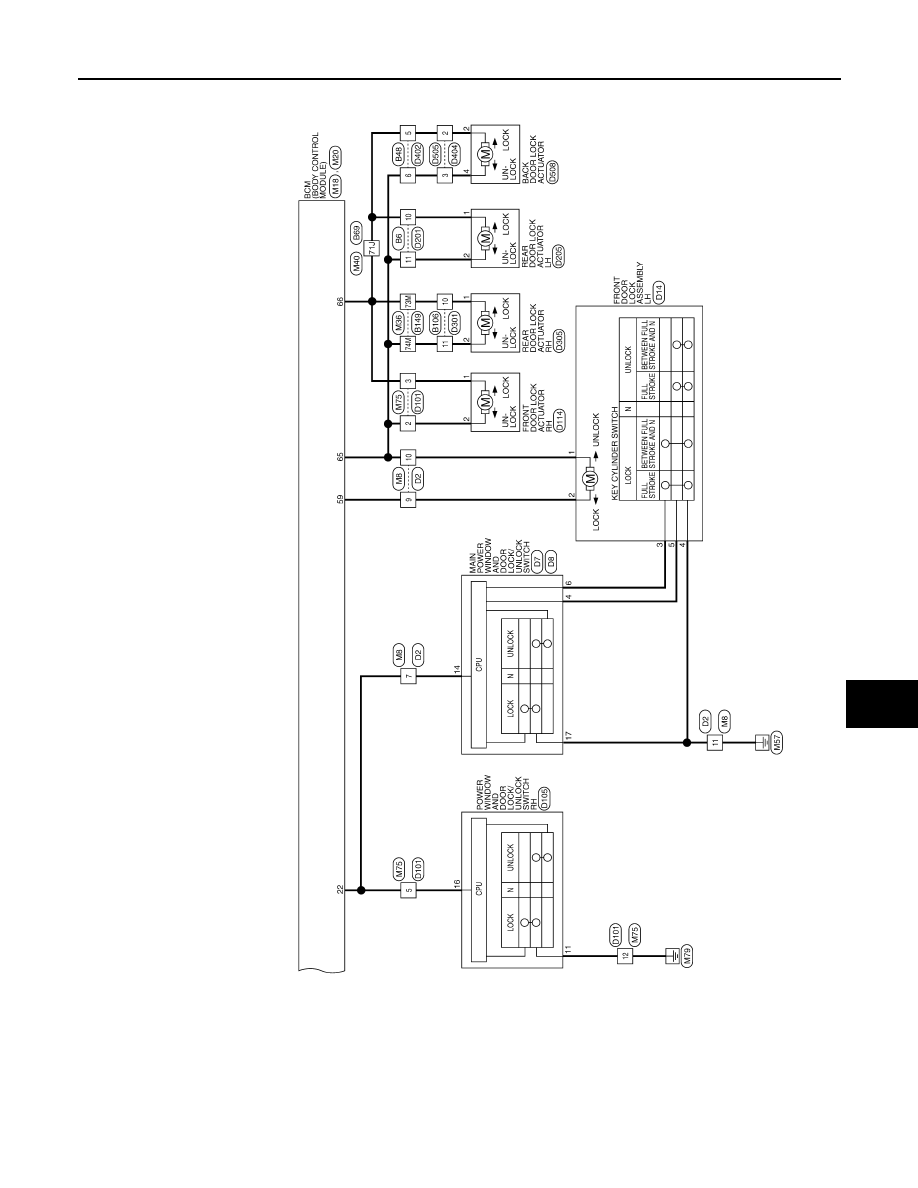

ALKWA0151GB

DLK-264

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

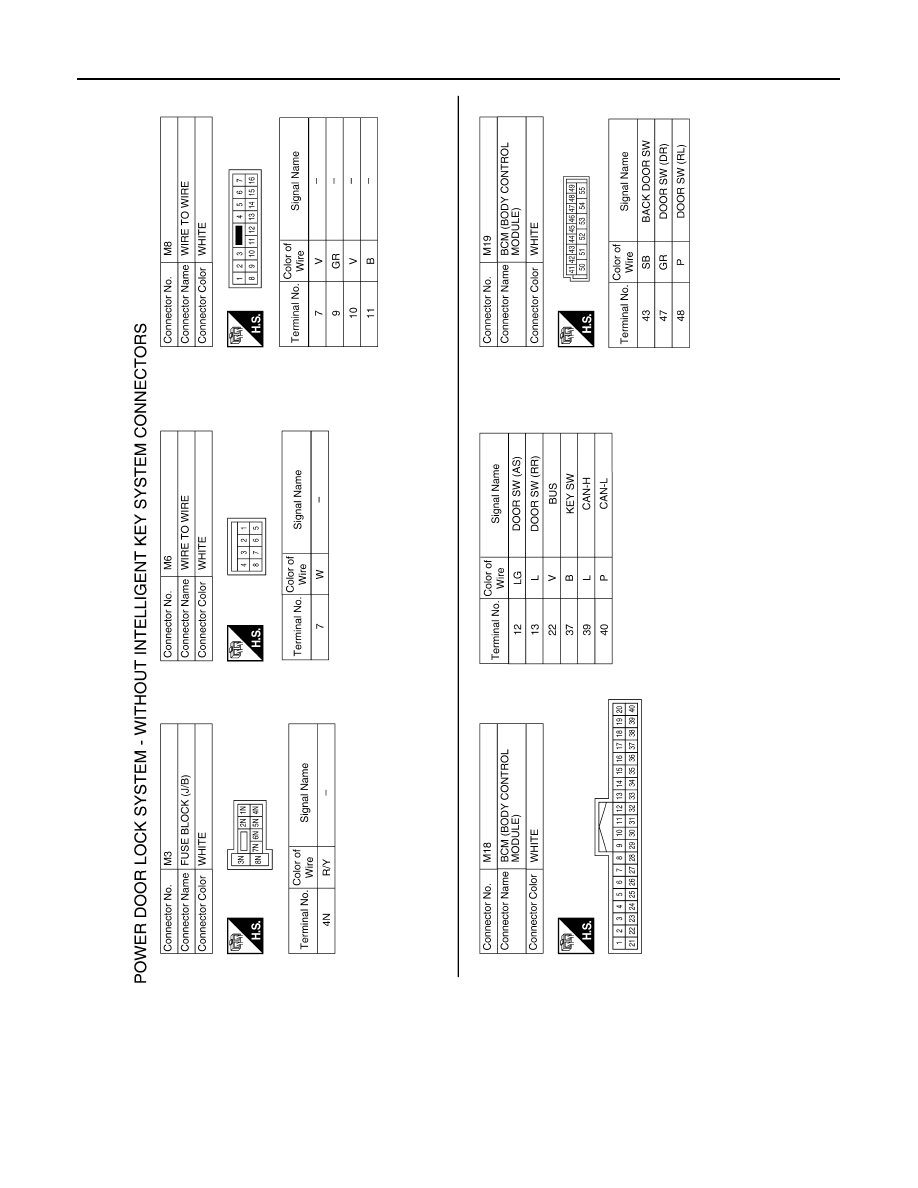

ALKIA0999GB

BCM (BODY CONTROL MODULE)

DLK-265

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

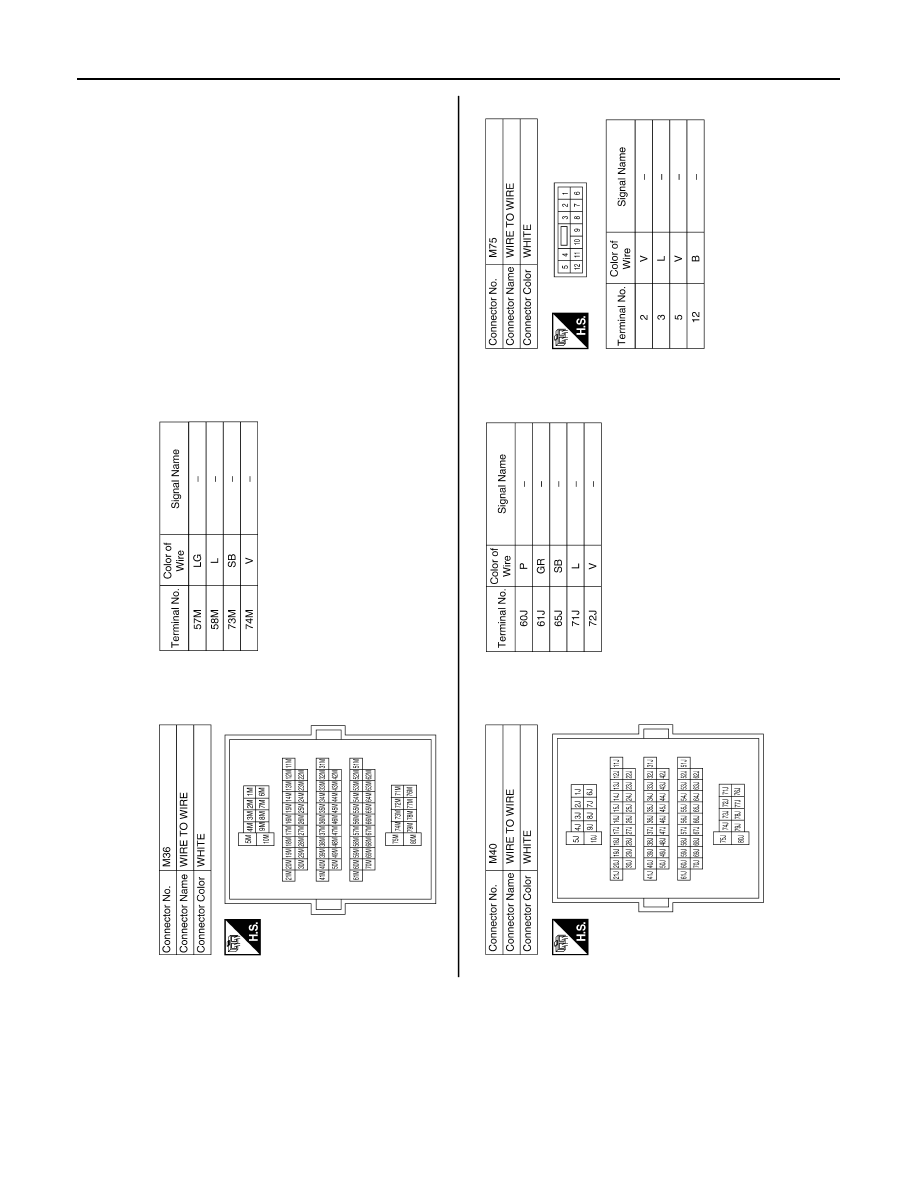

ALKIA1000GB

DLK-266

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

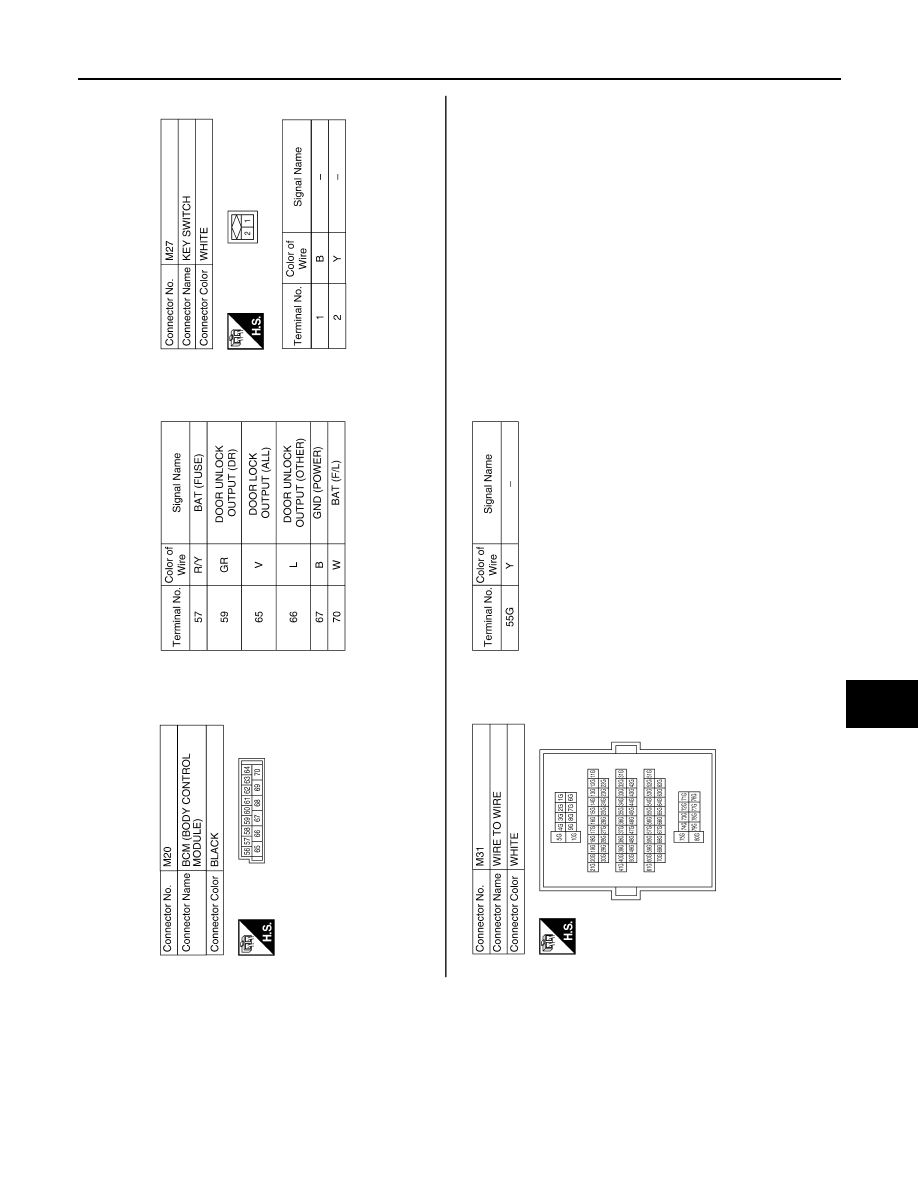

ALKIA1001GB

BCM (BODY CONTROL MODULE)

DLK-267

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

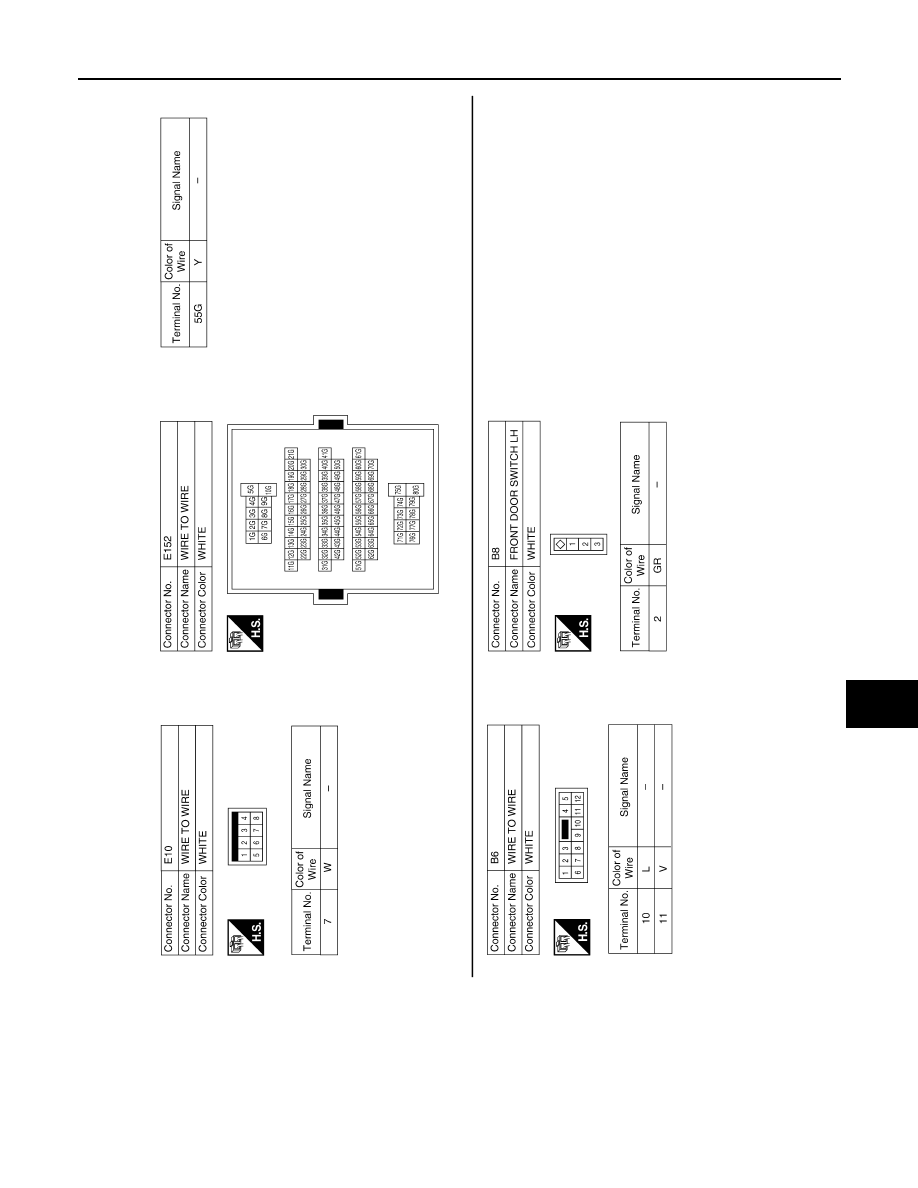

ALKIA1002GB

DLK-268

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

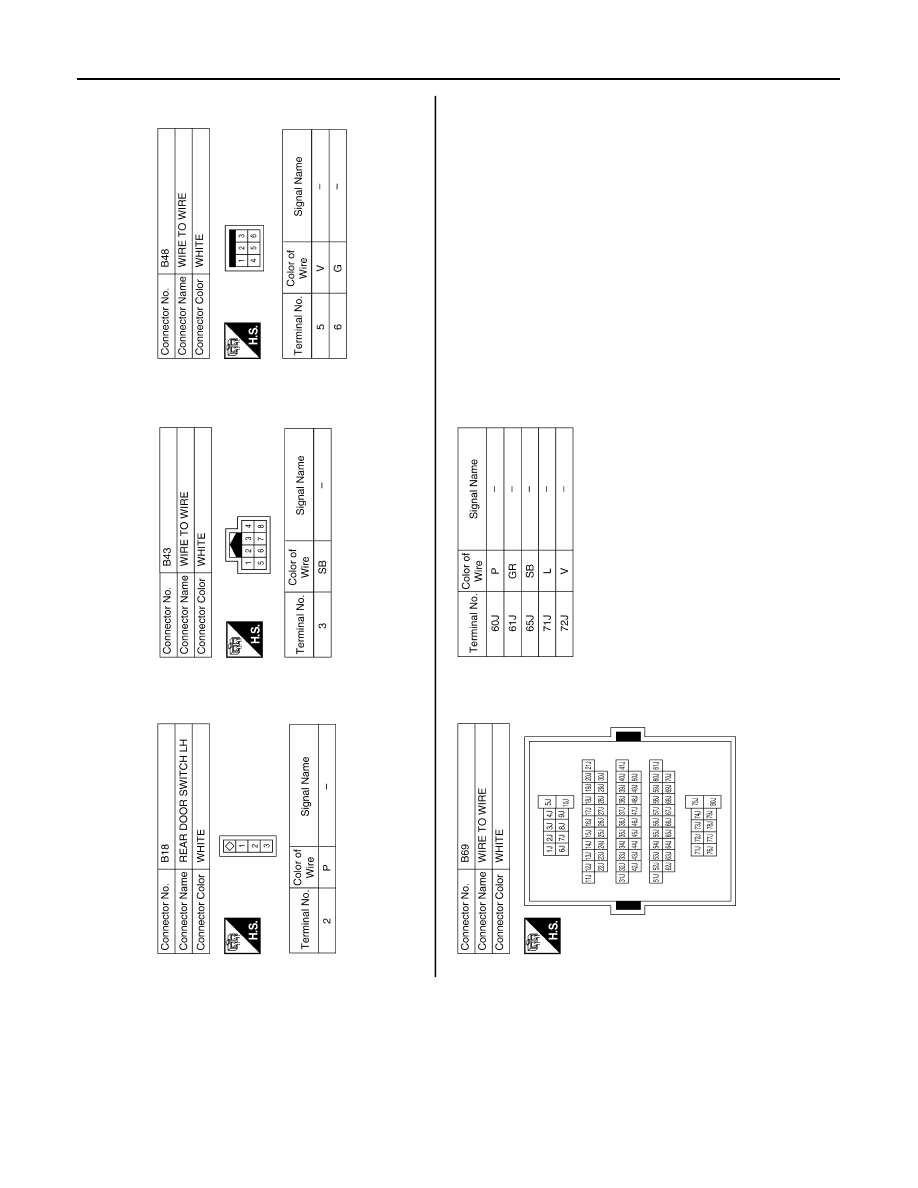

ALKIA1003GB
