BRM-52

< SERVICE INFORMATION >

BODY REPAIR

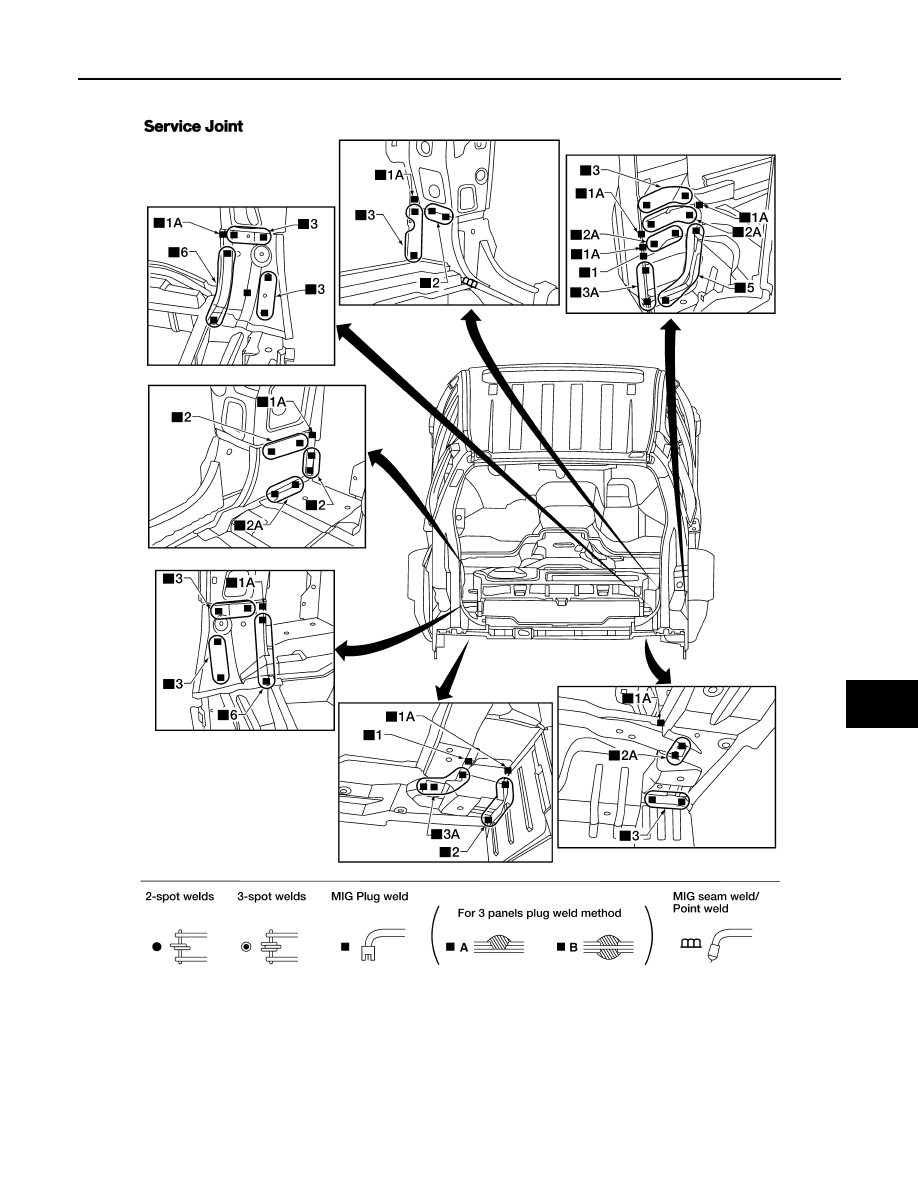

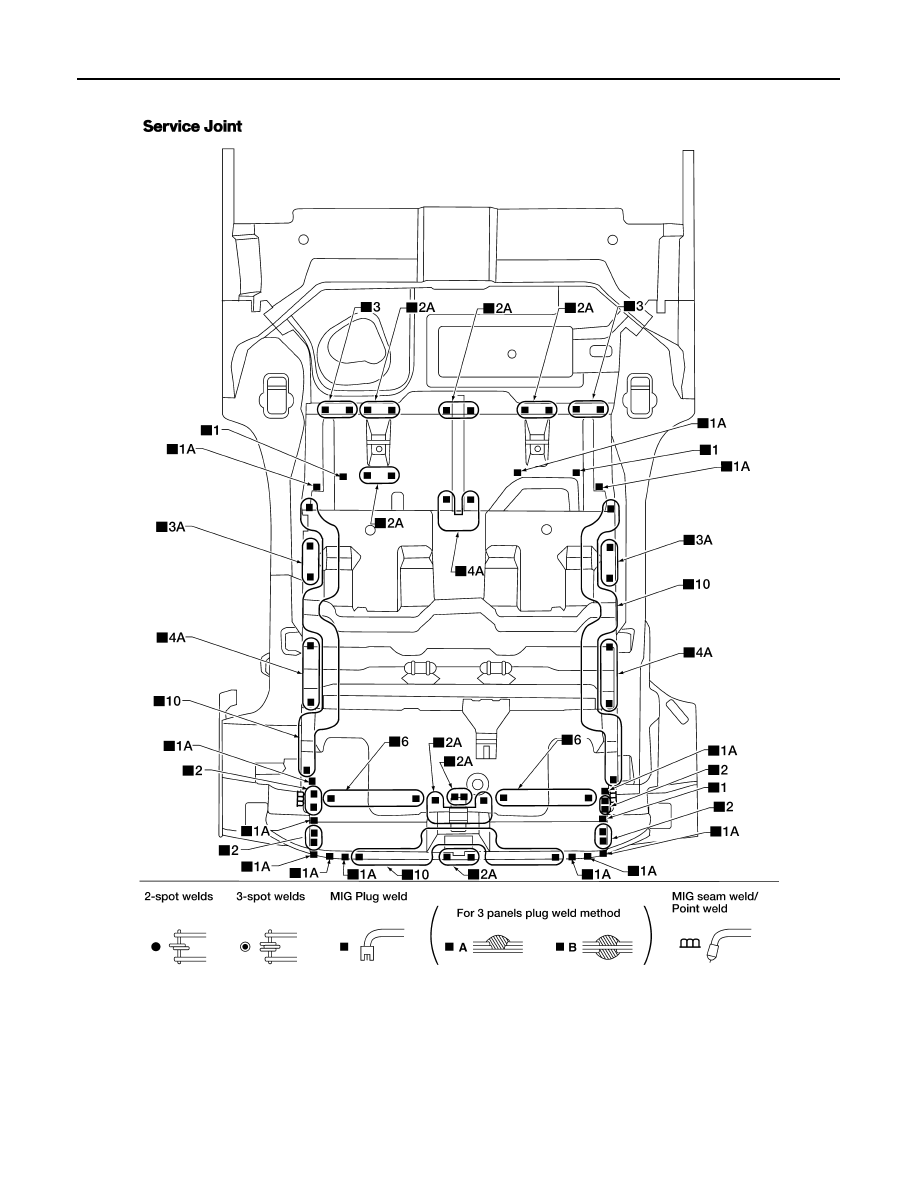

REAR FLOOR REAR

LIIA1815E

BODY REPAIR

BRM-53

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

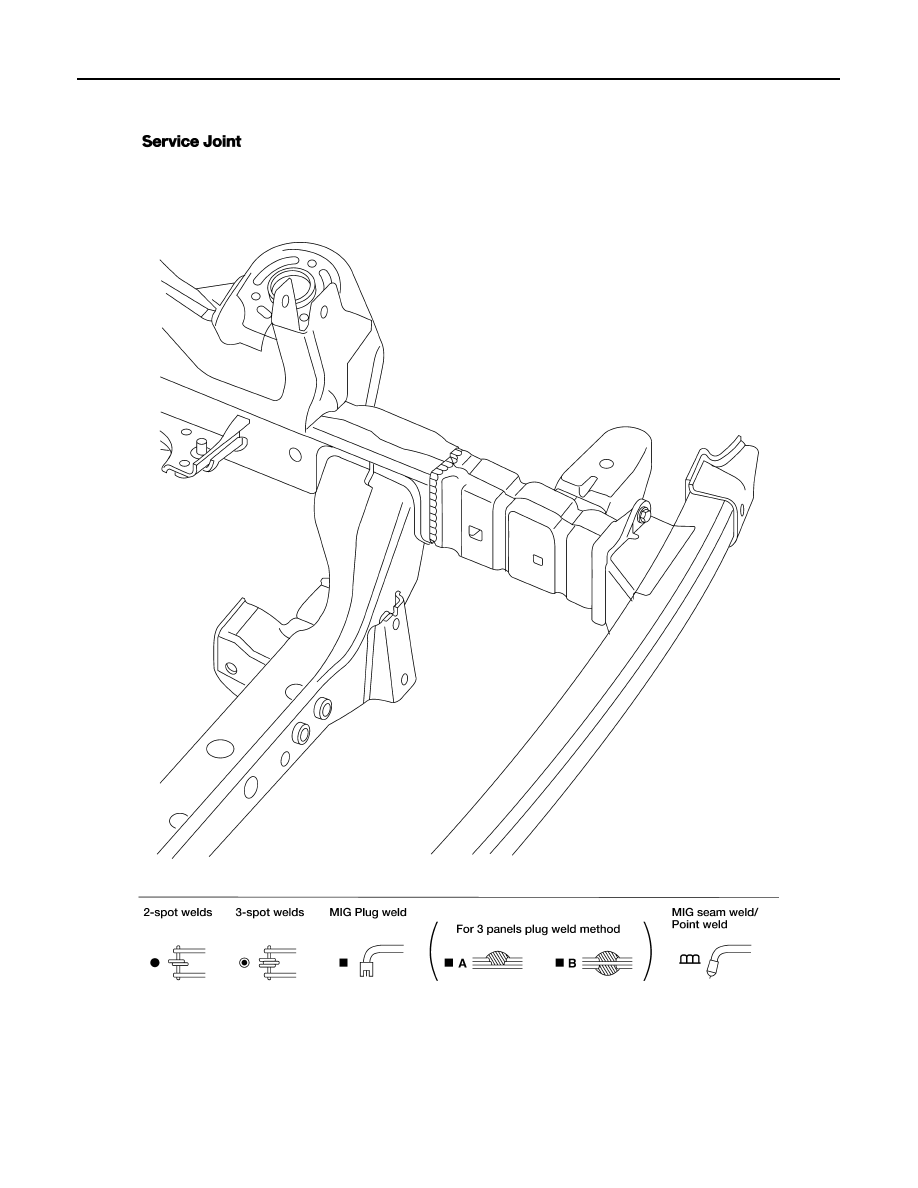

REAR CROSSMEMBER

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,
such as cutting and butt-joint welding the crush horn.

LIIA1816E

BRM-54

< SERVICE INFORMATION >

BODY REPAIR

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body
mounting bracket.

LIIA2148E

CCS-1

CRUISE CONTROL

C

D

E

F

G

H

I

J

K

L

M

B

CCS

SECTION

CCS

N

P

A

CONTENTS

CRUISE CONTROL SYSTEM

FUNCTION DIAGNOSIS ...............................

2

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ...............................................................

2

Description ................................................................

2

CCS-2

< FUNCTION DIAGNOSIS >

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

FUNCTION DIAGNOSIS

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Description

INFOID:0000000001712179

VQ40DE

For information regarding the ASCD system, refer to

EC-42, "System Description"

 .

VK56DE

For information regarding the ASCD system, refer to

EC-513, "System Description"

 .

CHG

CHG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

CHG

A

O

P

N

CONTENTS

CHARGING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Supplemental Restraint System (SRS) "AIR BAG"
and "SEAT BELT PRE-TENSIONER" .......................

2

Precaution for Power Generation Variable Voltage
Control System ..........................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

7

CHARGING SYSTEM ..........................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Description ............................................

7

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM .................................

8

System Diagram ........................................................

8

System Description  ...................................................

8

Component Description .............................................

8

COMPONENT DIAGNOSIS  ..........................

9

CHARGING SYSTEM PRELIMINARY IN-
SPECTION ...........................................................

9

Inspection Procedure  ................................................

9

POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM OPERATION IN-
SPECTION ........................................................

10

Inspection Procedure ...............................................

10

B TERMINAL CIRCUIT  .....................................

12

Description ...............................................................

12

Diagnosis Procedure  ...............................................

12

L TERMINAL CIRCUIT  .....................................

13

Description ...............................................................

13

Diagnosis Procedure  ...............................................

13

S TERMINAL CIRCUIT  .....................................

14

Description ...............................................................

14

Diagnosis Procedure  ...............................................

14

CHARGING SYSTEM  .......................................

15

Wiring Diagram ........................................................

15

SYMPTOM DIAGNOSIS  ..............................

20

CHARGING SYSTEM  .......................................

20

Symptom Table  .......................................................

20

ON-VEHICLE REPAIR .................................

21

GENERATOR ....................................................

21

Removal and Installation  .........................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

23

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

23

Generator ................................................................

23

CHG-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000001281935

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Power Generation Variable Voltage Control System

INFOID:0000000001303478

CAUTION:

For this model, the battery current sensor that is installed to the negative battery cable measures the
charging/discharging current of the battery and performs various engine controls. If an electrical com-
ponent is connected directly to the negative battery terminal, the current flowing through that compo-
nent will not be measured by the battery current sensor. This condition may cause a malfunction of
the engine control system and battery discharge may occur. Do not connect an electrical component
or ground wire directly to the battery terminal.

CHG

PREPARATION

CHG-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

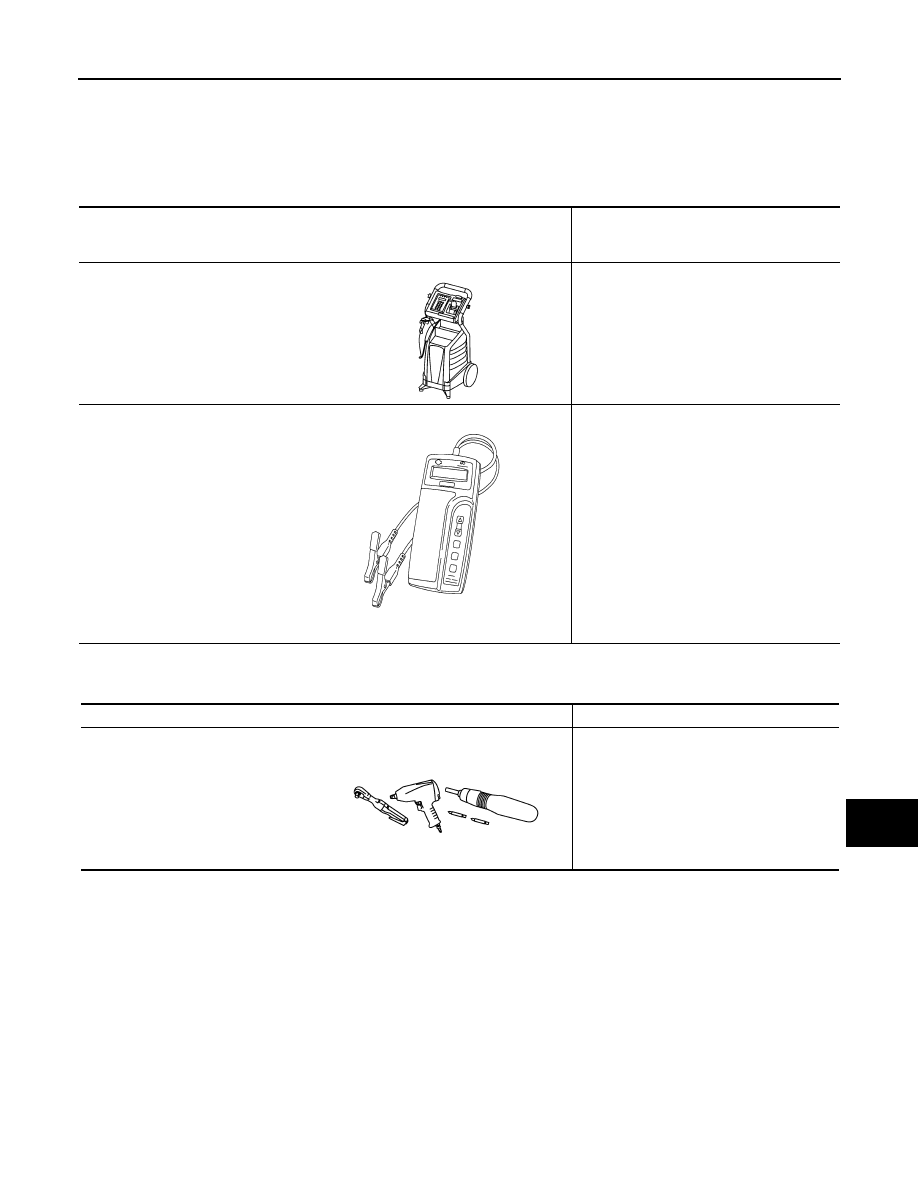

Special Service Tool

INFOID:0000000001281937

Commercial Service Tool

INFOID:0000000001281938

Tool number
(Kent-Moore No.)
Tool name

Description

  —
(J-48087)
Battery Service Center

Tests battery.
For operating instructions, refer to Technical
Service Bulletin and Battery Service Center
User Guide.

—

(J-44373) Model 620
Starting/Charging system tester

Tests starting and charging systems.
For operating instructions, refer to Technical
Service Bulletin.

WKIA5280E

SEL403X

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E
