Nissan Pathfinder (2007 year). Instruction - part 77

NAVIGATION SYSTEM

AV-89

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA5478E

AV-90

NAVIGATION SYSTEM

2007 Pathfinder

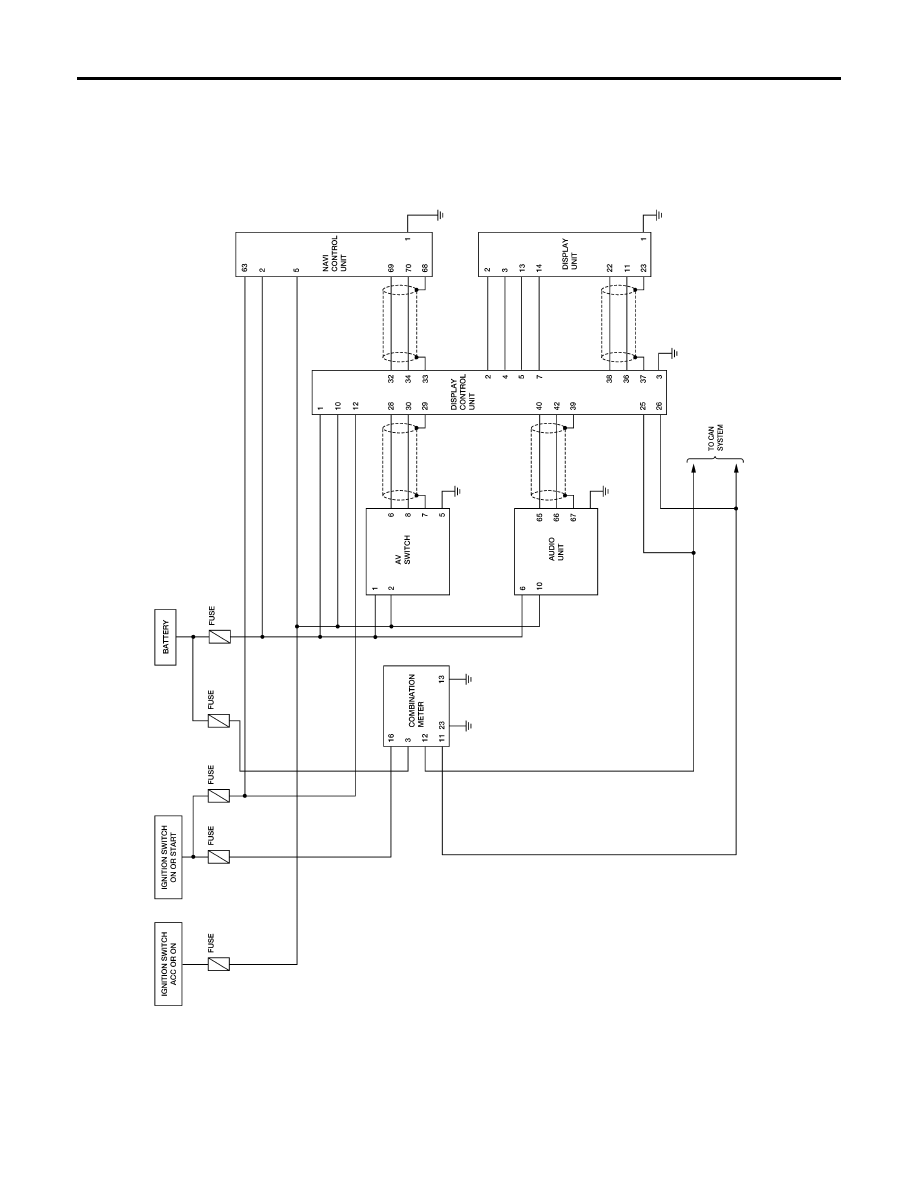

Schematic

EKS00G6I

WKWA4209E

NAVIGATION SYSTEM

AV-91

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

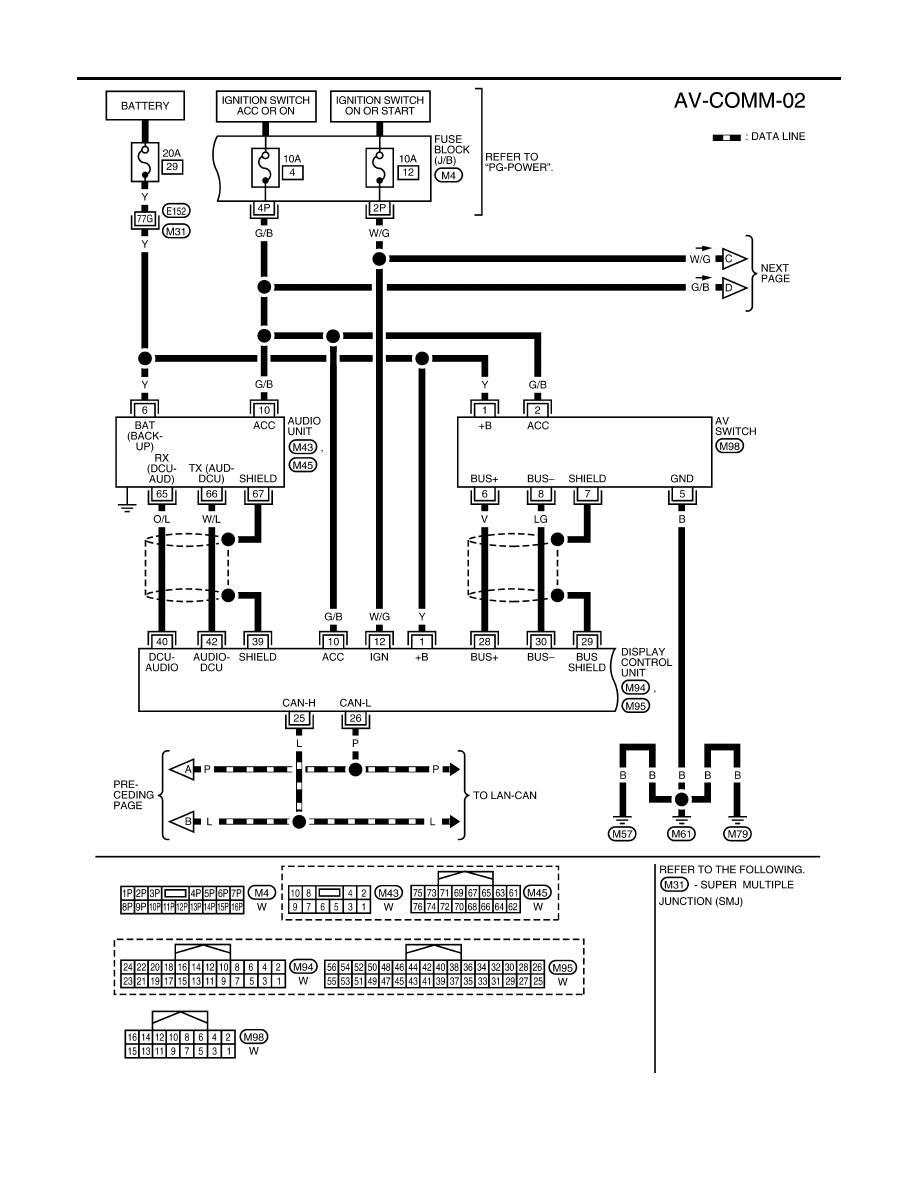

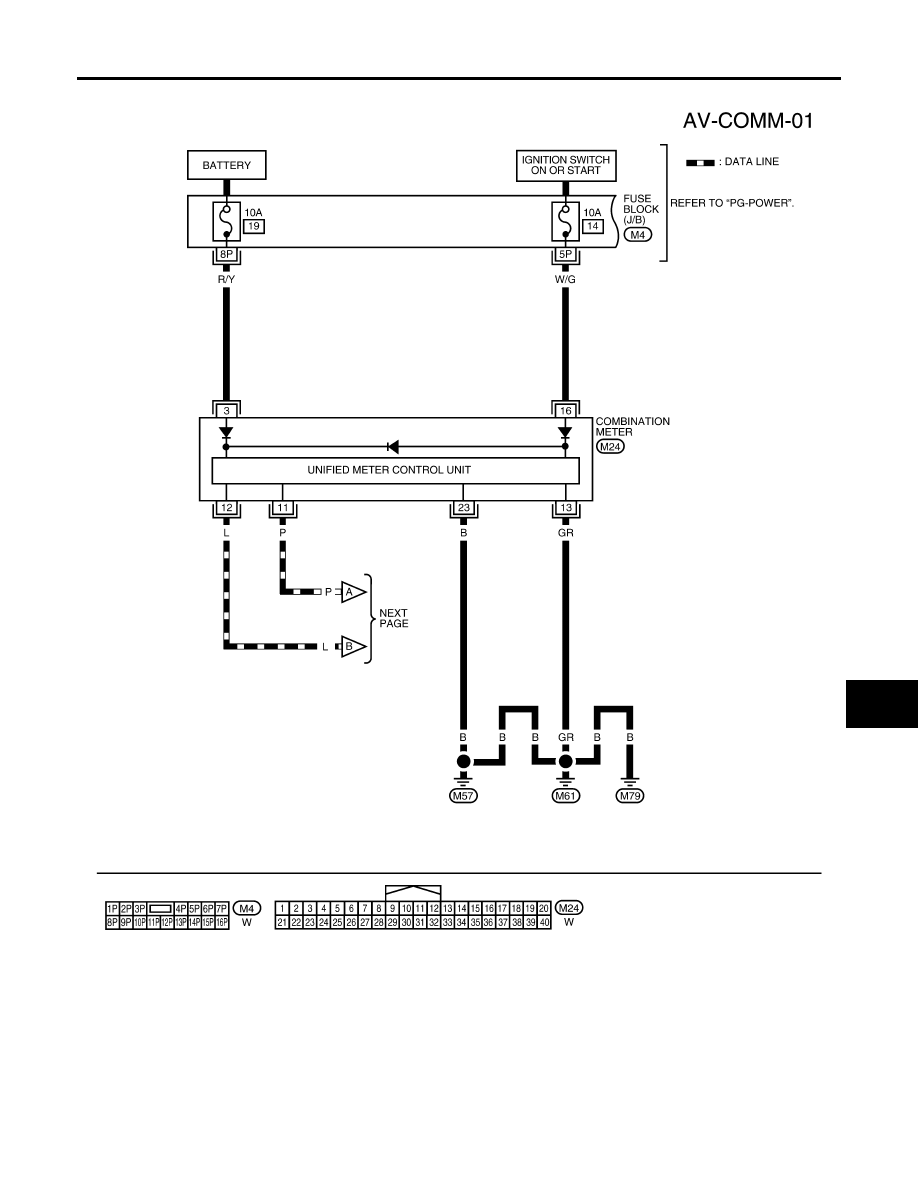

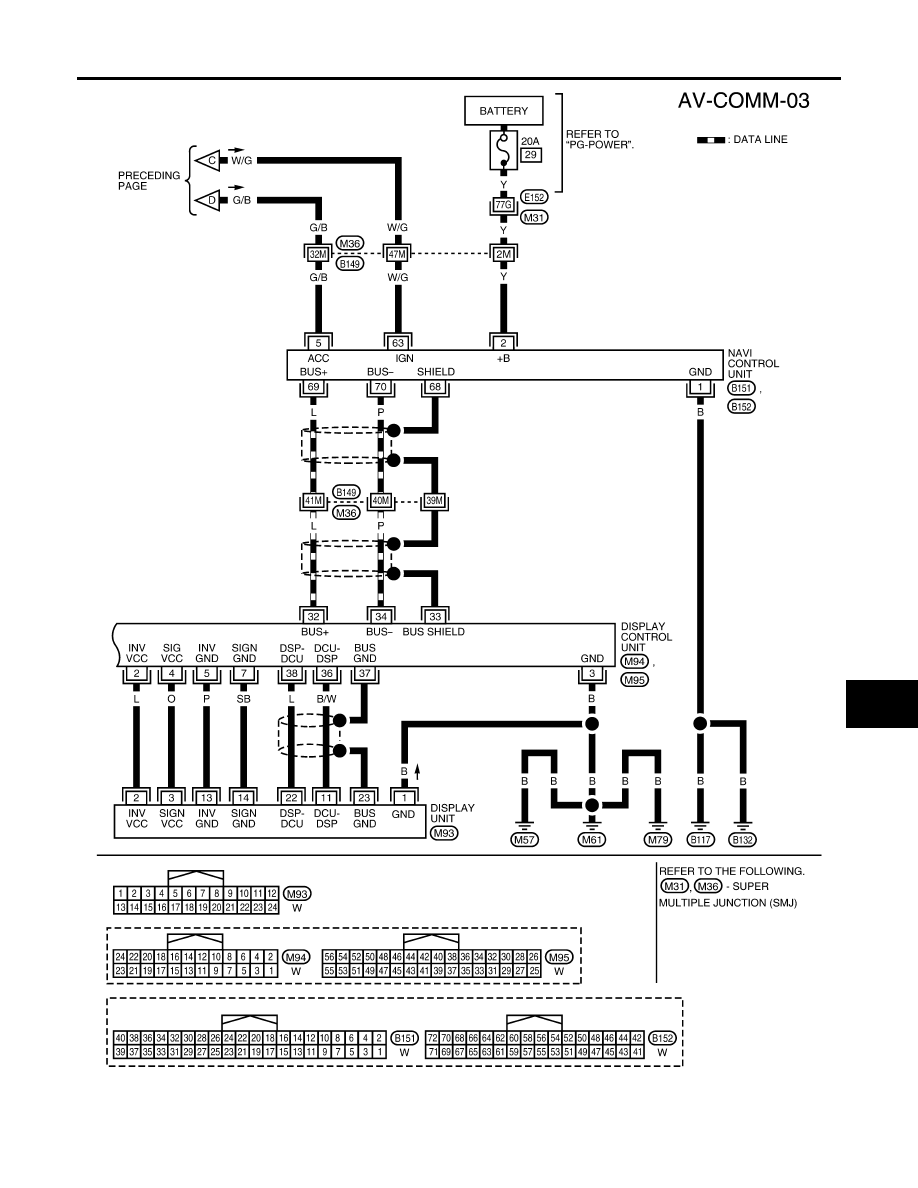

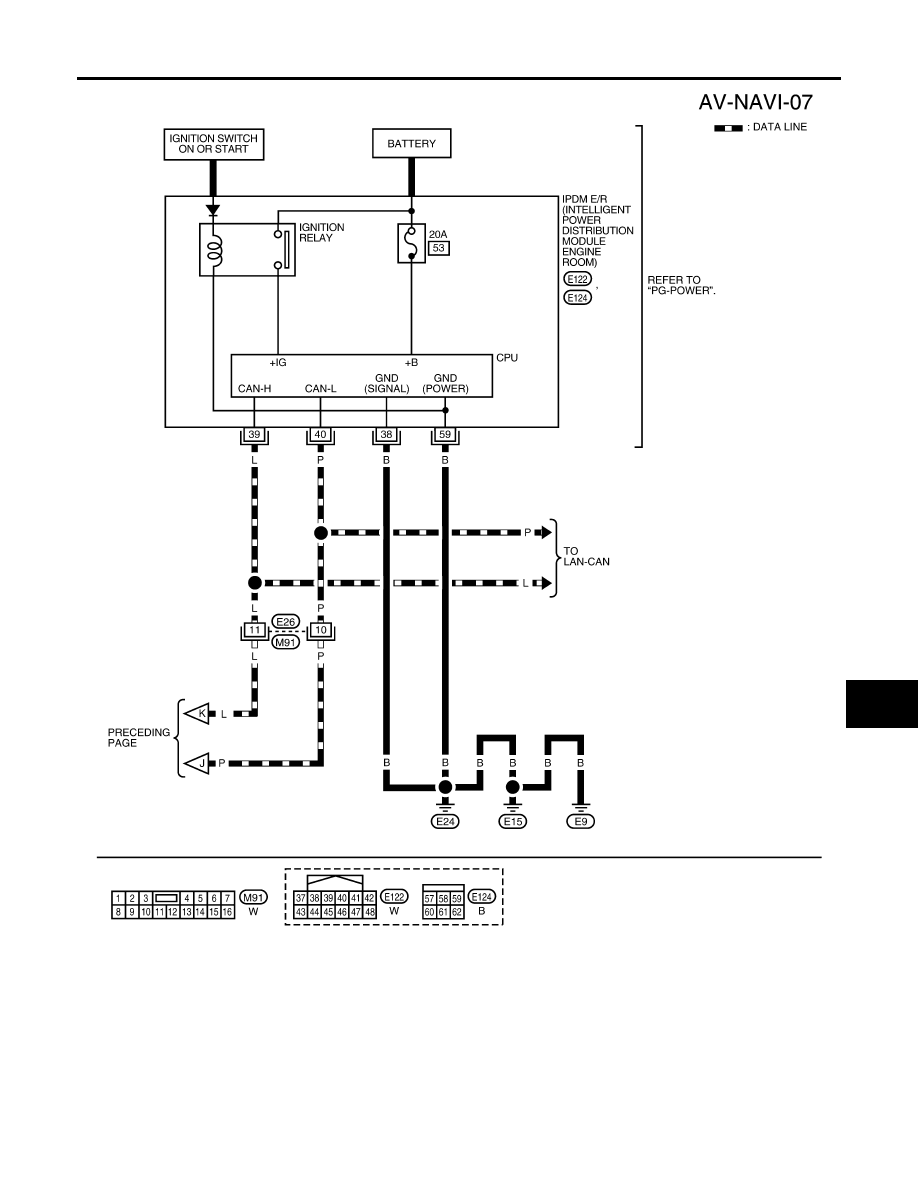

Wiring Diagram — COMM —

EKS00G6J

WKWA4282E

AV-92

NAVIGATION SYSTEM

2007 Pathfinder

WKWA5479E

NAVIGATION SYSTEM

AV-93

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA4196E

AV-94

NAVIGATION SYSTEM

2007 Pathfinder

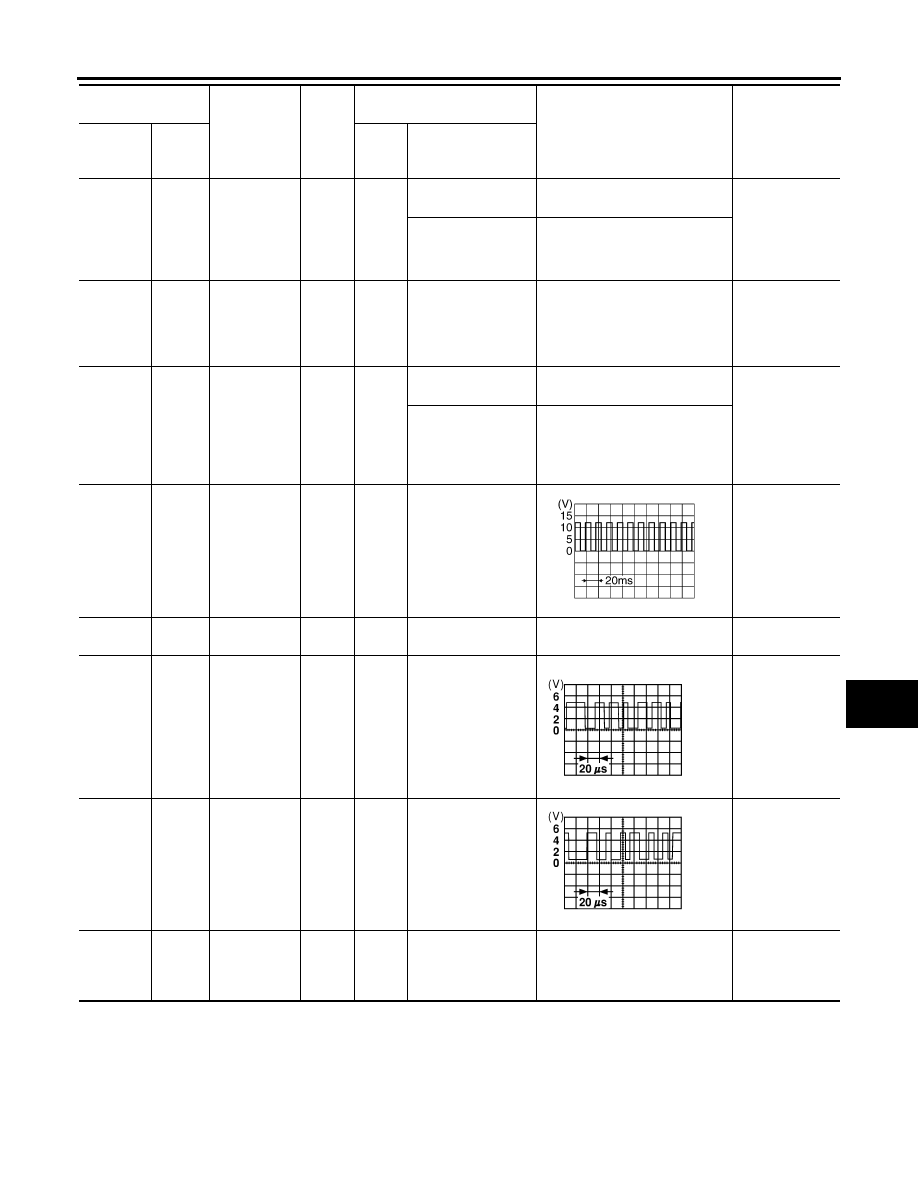

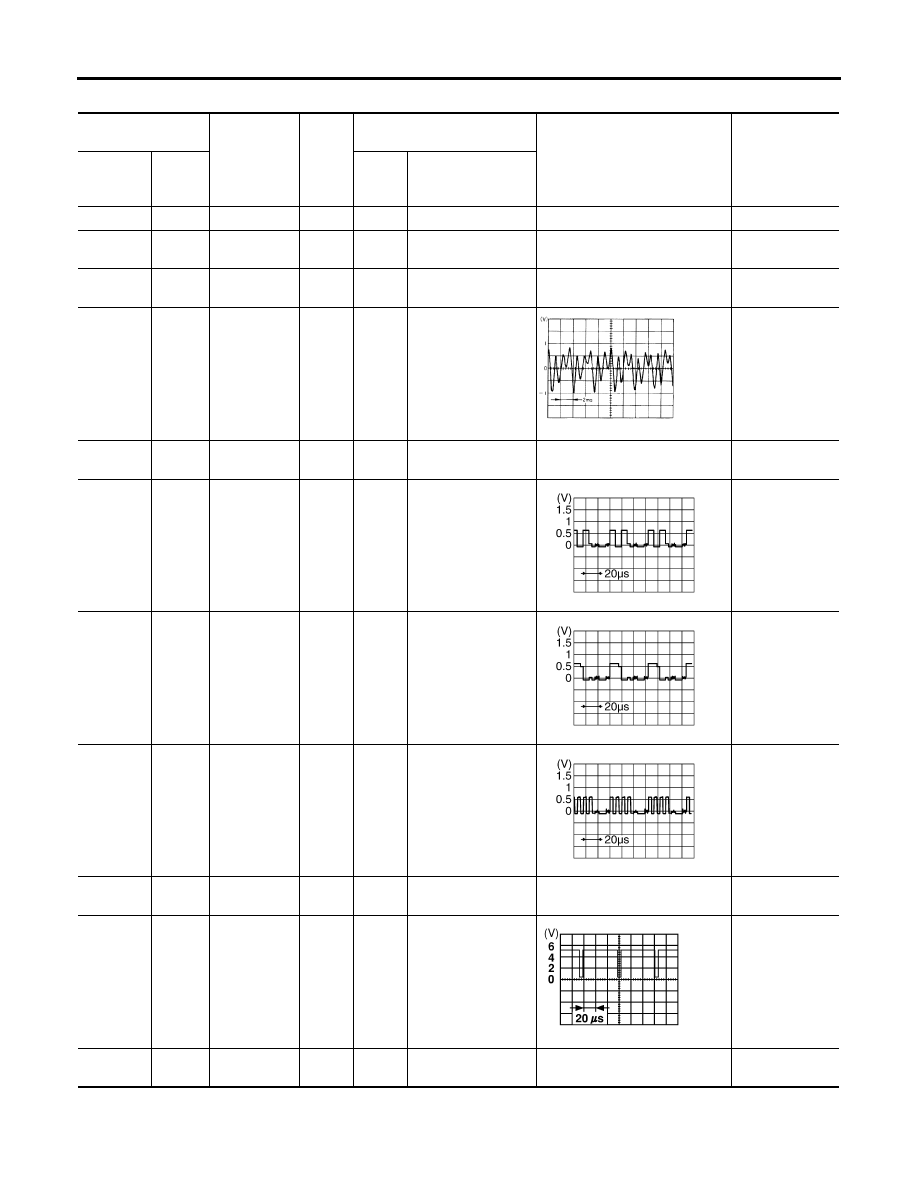

Terminals and Reference Values for NAVI Control Unit

EKS00HKD

Terminal No.

 (Wire color)

Item

Signal

input/

output

Condition

Voltage

(Approx.)

Example of

symptom

+

–

Igni-

tion

switch

Operation

1 (B)

Ground

Ground

–

ON

–

0V

–

2 (Y)

Ground

Battery

power

Input

OFF

–

Battery voltage

System does not
work properly.

5 (G/B)

Ground

ACC signal

Input

ACC

–

Battery voltage

System does not
work properly.

12 (LG)

14 (V)

Voice guide

signal

Output

ON

Press the “GUIDE/

VOICE” button.

Only route guide
and operation
guide are not
heard.

13

–

Shield

ground

–

–

–

–

Audio noise
interference.

44 (R/L)

47

RGB signal

(R: red)

Output

ON

Select “Display

Diagnosis (NAVI)” of

CONFIRMATION/

ADJUSTMENT

function.

NAVI screen
looks bluish.

45 (R/W)

47

RGB signal

(G: green)

Output

ON

Select “Display

Diagnosis (NAVI)” of

CONFIRMATION/

ADJUSTMENT

function.

NAVI screen
looks reddish.

46 (B)

47

RGB signal

(B: blue)

Output

ON

Select “Display

Diagnosis (NAVI)” of

CONFIRMATION/

ADJUSTMENT

function.

NAVI screen
looks yellowish.

47

–

Shield

ground

–

–

–

–

Video display
interference.

48 (W)

49

RGB syn-

chronizing

signal

Output

ON

Press the “MAP”

button.

NAVI screen is
rolling.

49

–

Shield

ground

–

–

–

–

Video display
interference.

SKIA0171J

SKIA4977E

SKIA4978E

SKIA4979E

SKIA0164E

NAVIGATION SYSTEM

AV-95

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

61 (SB)

Ground

Illumination

signal

Input

ON

Lighting switch in

1st position

Battery voltage

Display unit illu-
mination does
not change
when lighting
switch is turned
to 1st position.-

Lighting switch is

OFF

3V or less

63 (W/G)

Ground

Ignition signal

Input

ON

–

Battery voltage

Navigation cur-
rent location
mark does not
indicate the cor-
rect position.

65 (BR)

Ground

Reverse

 signal

Input

ON

A/T selector lever in

R position

Battery voltage

The navigation
current-location
mark moves
strangely when
the vehicle is
moving back-
wards.

A/T selector lever

not in R position

0V

66 (GR)

Ground

Vehicle

speed signal

(8-pulse)

Input

ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

Navigation cur-
rent location
mark does not
indicate the cor-
rect position.

68

–

Shield

ground

–

–

–

–

–

69 (L)

Ground

Communica-

tion signal (+)

Input/

output

ON

–

System does not
work properly.

70 (P)

Ground

Communica-

tion signal (–)

Input/

output

ON

–

System does not
work properly.

73

74

GPS signal

Input

ON

Connector is not

connected.

5V

Navigation sys-
tem GPS correc-
tion is not
possible.

Terminal No.

 (Wire color)

Item

Signal

input/

output

Condition

Voltage

(Approx.)

Example of

symptom

+

–

Igni-

tion

switch

Operation

PKIA1935E

SKIA0175E

SKIA0176E

AV-96

NAVIGATION SYSTEM

2007 Pathfinder

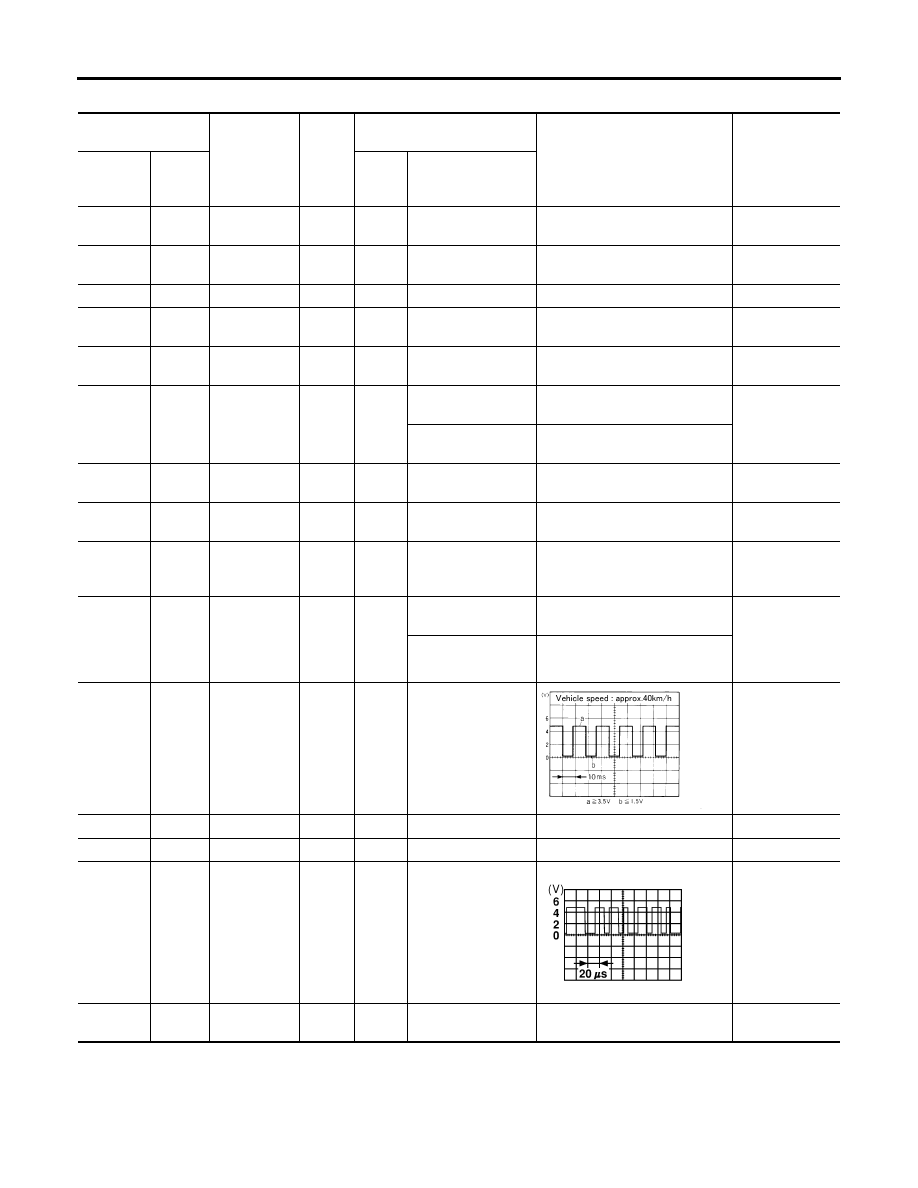

Terminals and Reference Values for Display Control Unit

EKS00G6L

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Voltage

(Approx.)

Example of

symptom

+

–

Igni-

tion

switch

Operation

1 (Y)

Ground

Battery

Power

Input

OFF

–

Battery voltage

System does not
work properly.

2 (L)

Ground

Power Sup-

ply (Inverter)

Output

ON

–

9V

Screen is not
shown.

3 (B)

Ground

Ground

–

ON

–

0V

–

4 (O)

Ground

Power Sup-

ply (Signal)

Output

ON

–

9V

Screen is not
shown.

5 (P)

Ground

(Inverter)

Ground

–

ON

–

0V

–

6 (SB)

Ground

Reverse

signal

Input

ON

Selector lever in R

position

Battery voltage

Impossible to
gain direction of
vehicle.

Selector lever not in

R position

0V

7 (SB)

Ground

(Signal)

Ground

–

ON

–

0V

–

10 (G/B)

Ground

ACC power

Input

ACC

–

Battery voltage

System does not
work properly.

12 (W/G)

Ground

Ignition signal

Input

ON

–

Battery voltage

Vehicle informa-
tion setting is not
possible.

14 (R)

Ground

Illumination

signal

Input

OFF

Lighting switch posi-

tion 1st or 2nd

Battery voltage

Display unit
does not change
when lighting
switch is turned
to 1st position.

Lighting switch posi-

tion OFF

0V

16 (LG)

Ground

Vehicle

speed signal

(8–pulse)

Input

ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

Value of vehicle
speed informa-
tion is not accu-
rately displayed.

25 (L)

–

CAN-H

–

–

–

–

–

26 (P)

–

CAN-L

–

–

–

–

–

28 (V)

Ground

Communica-

tion signal (+)

Input/

Output

ON

–

System does not
work properly.

29

–

Shield

ground

–

–

–

–

–

SKIA0168E

SKIA0175E
