POWER SUPPLY ROUTING CIRCUIT

PG-5

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKWA4402E

PG-6

POWER SUPPLY ROUTING CIRCUIT

2006 Pathfinder

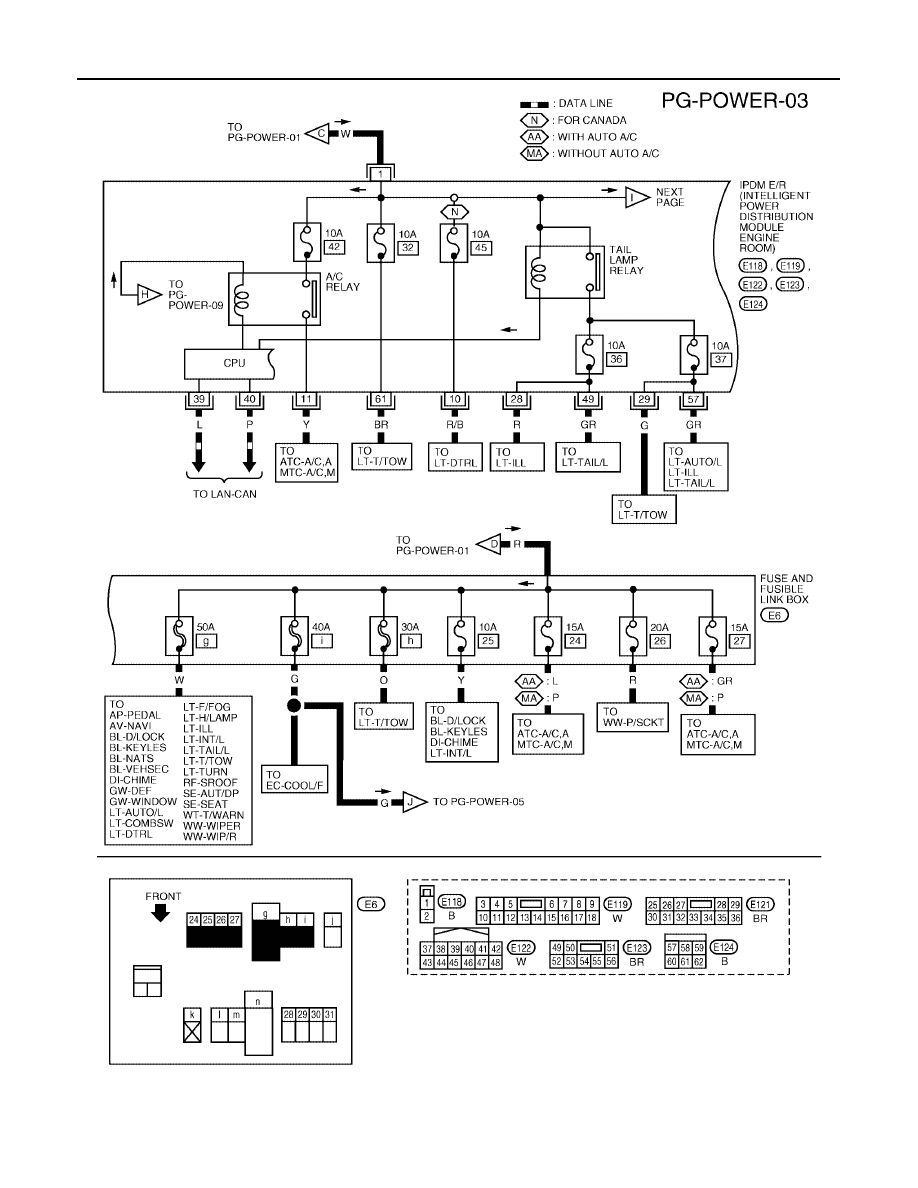

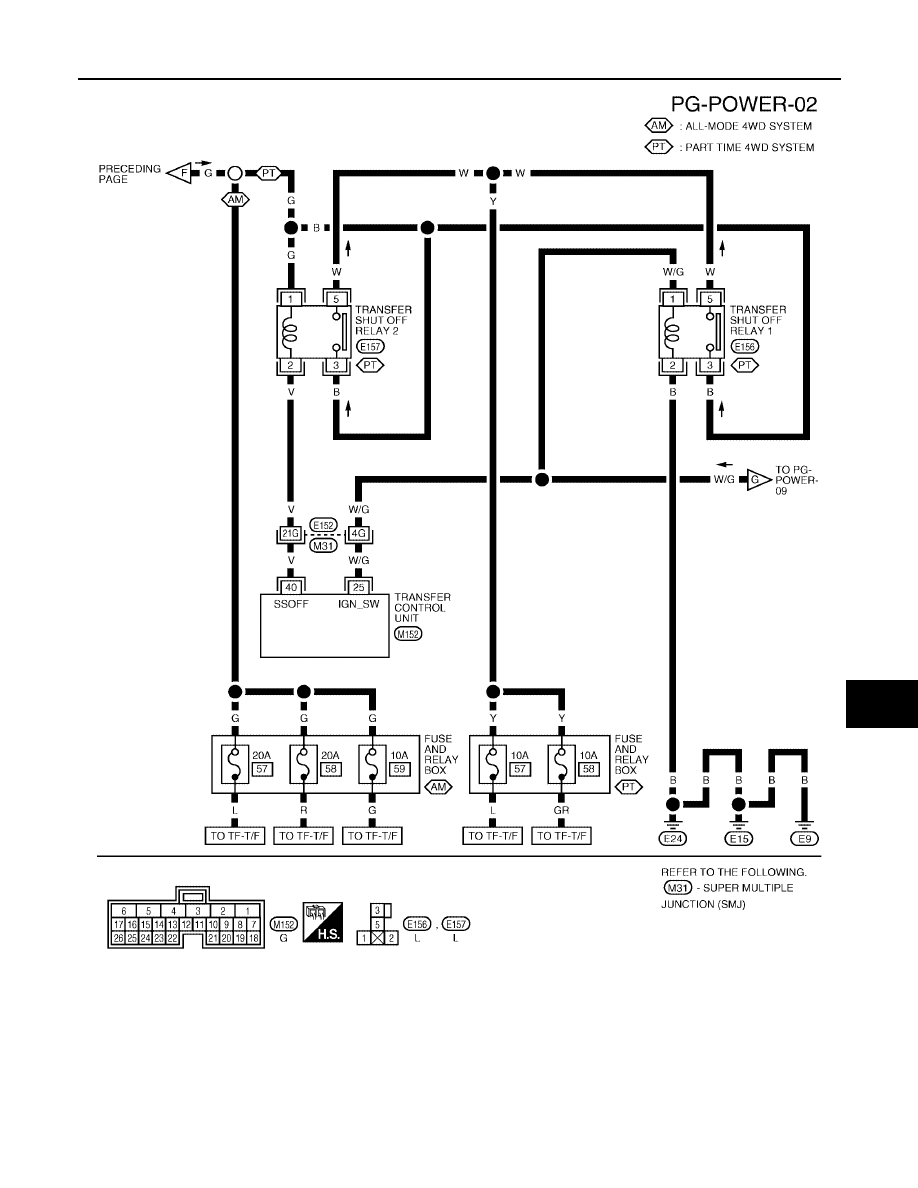

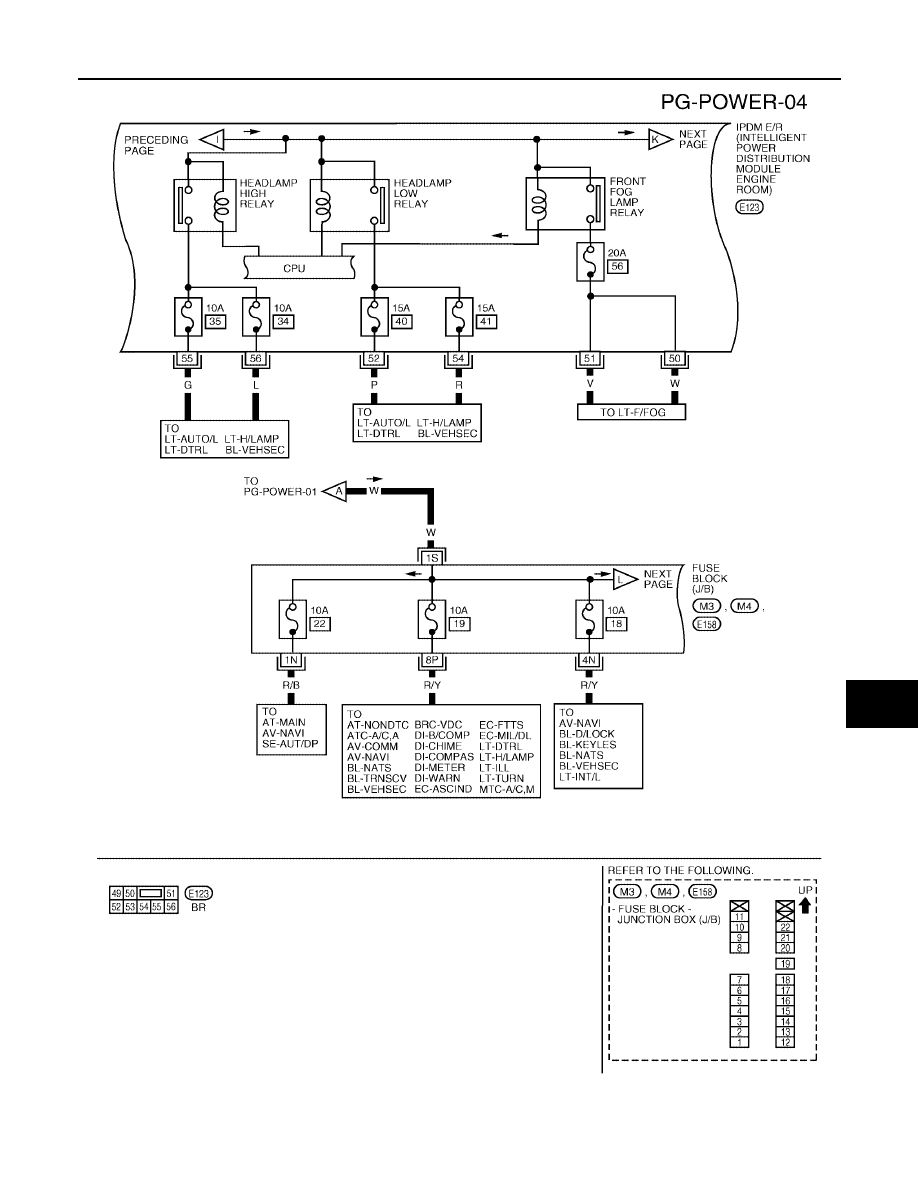

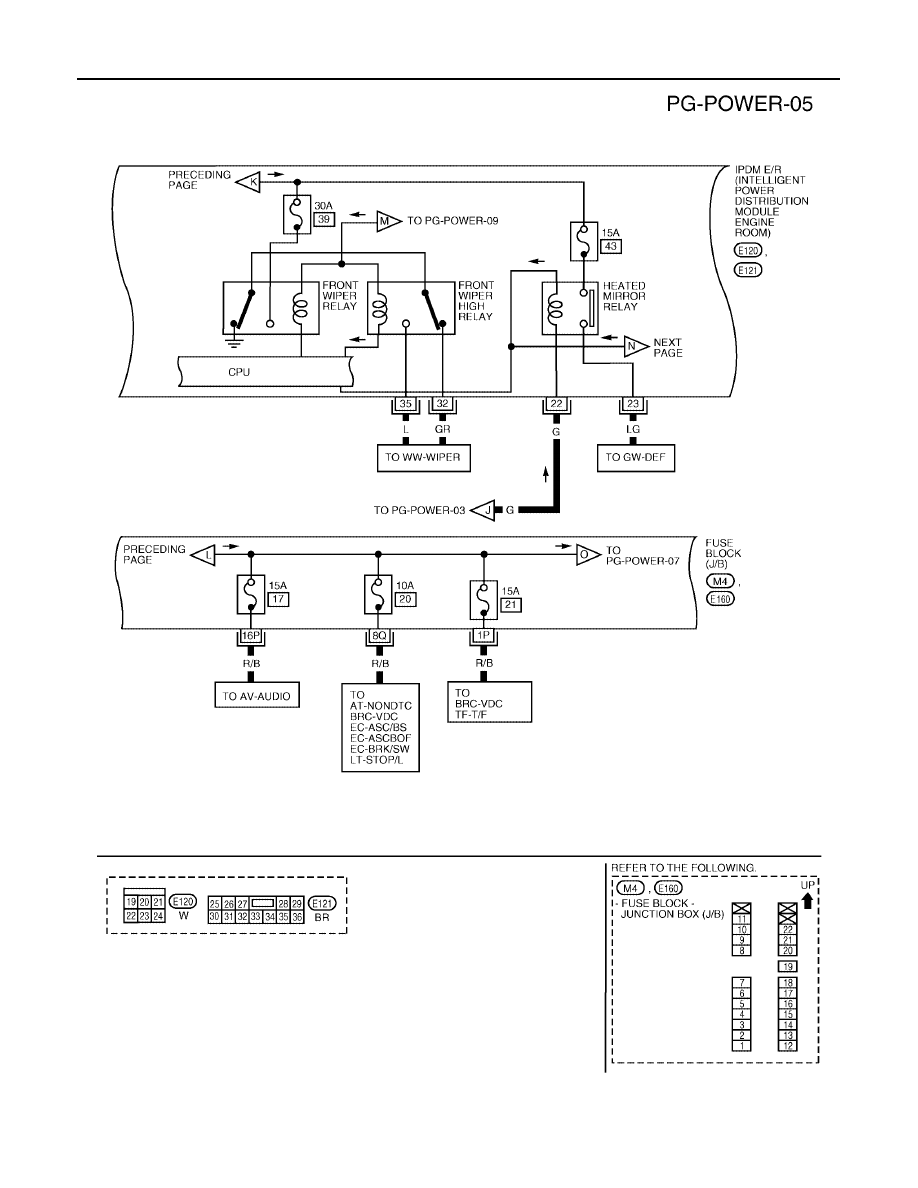

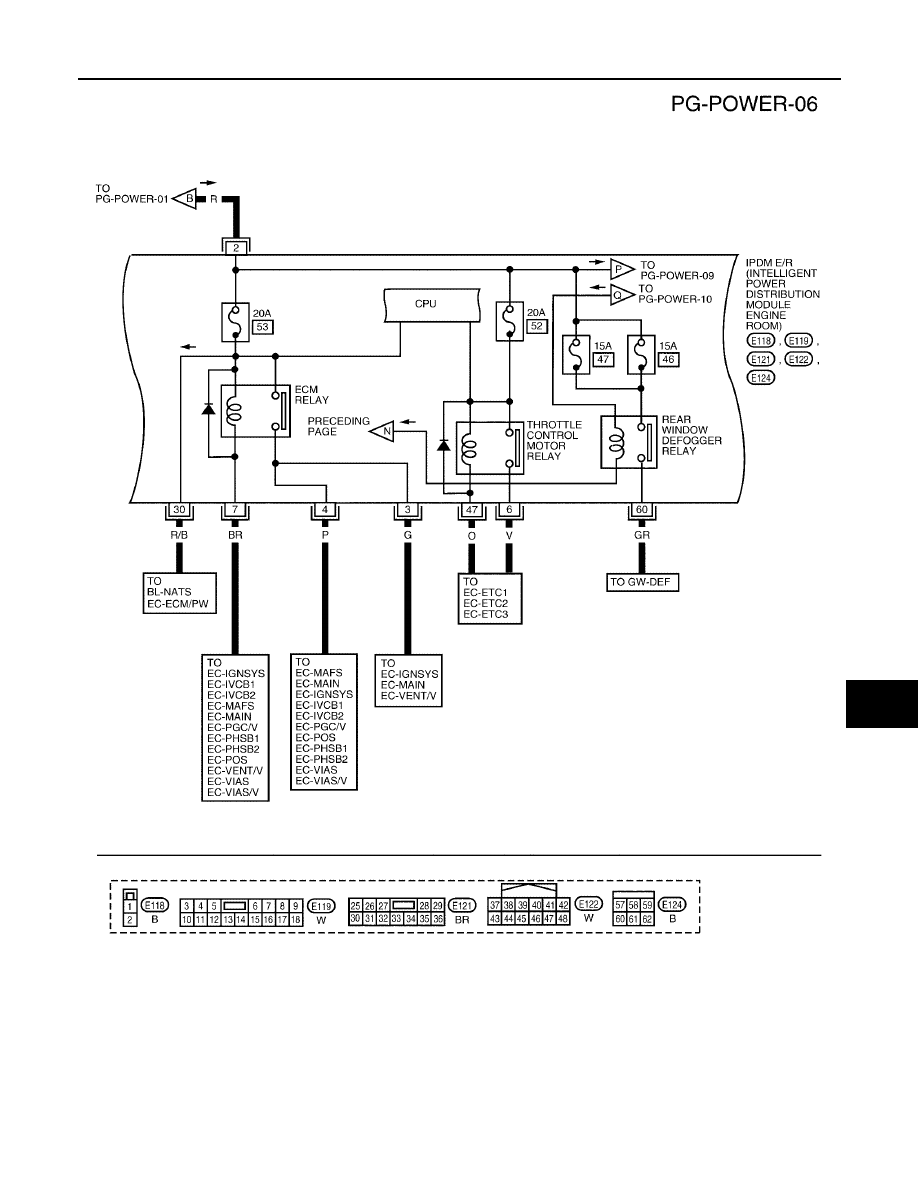

Wiring Diagram — POWER —

EKS00G8D

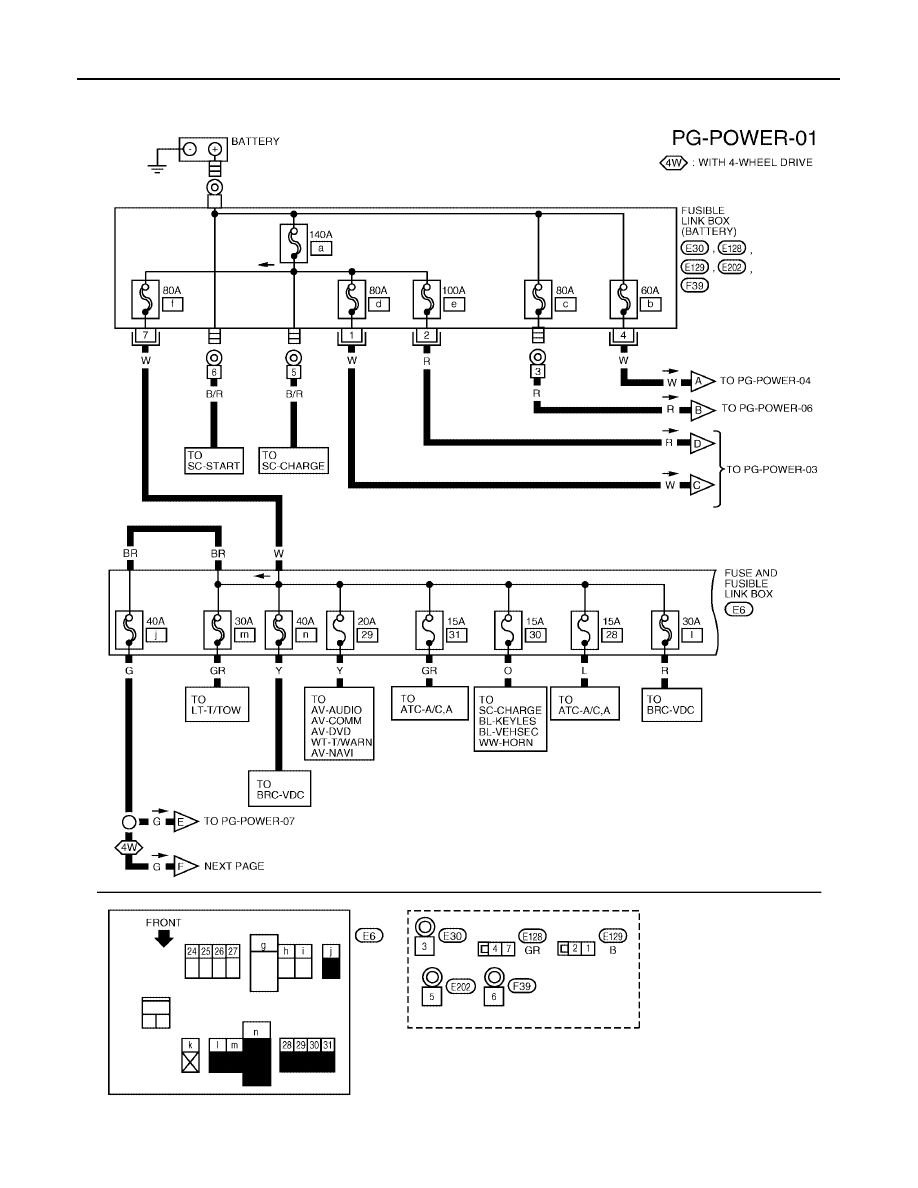

BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION

WKWA4403E

POWER SUPPLY ROUTING CIRCUIT

PG-7

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKWA4404E

PG-8

POWER SUPPLY ROUTING CIRCUIT

2006 Pathfinder

WKWA4405E

POWER SUPPLY ROUTING CIRCUIT

PG-9

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKWA4406E

PG-10

POWER SUPPLY ROUTING CIRCUIT

2006 Pathfinder

WKWA4407E

POWER SUPPLY ROUTING CIRCUIT

PG-11

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKWA4408E

PG-12

POWER SUPPLY ROUTING CIRCUIT

2006 Pathfinder

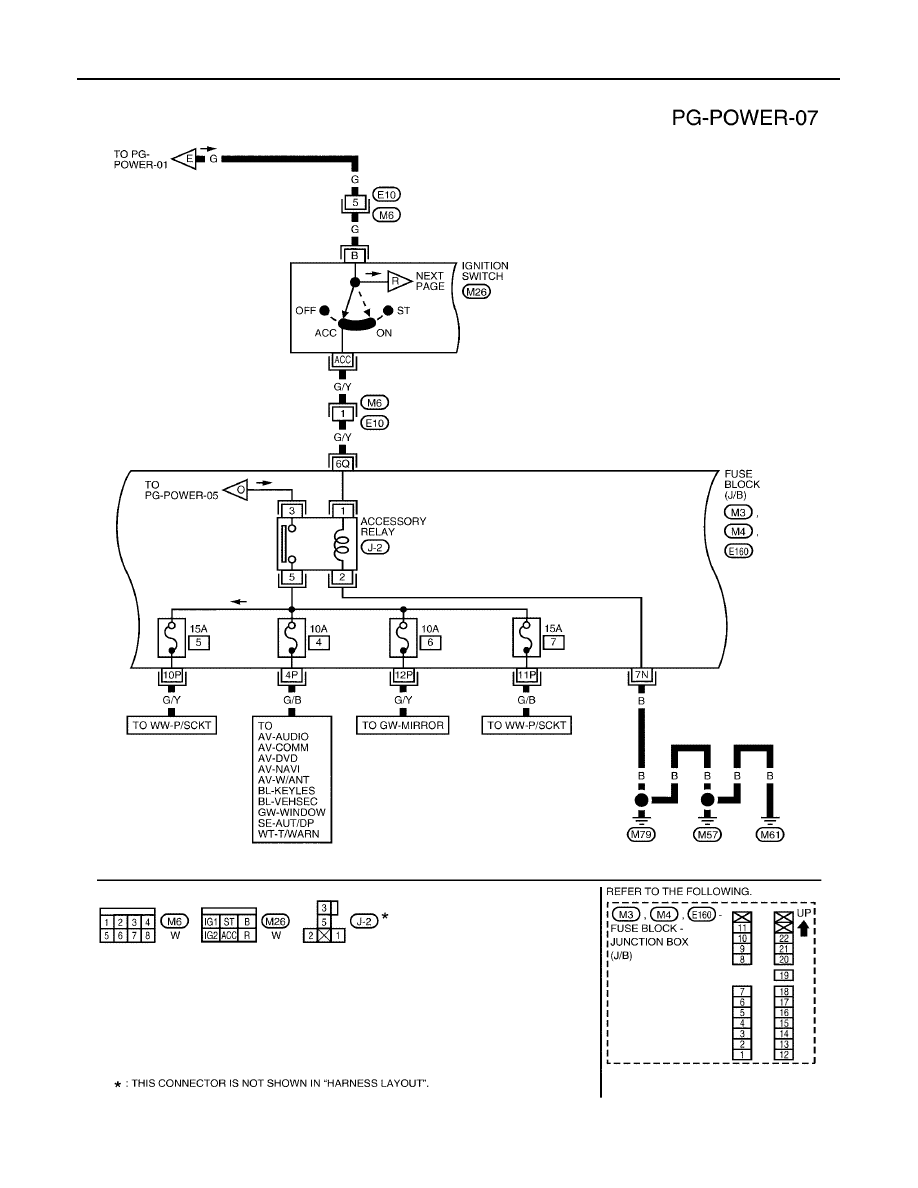

ACCESSORY POWER SUPPLY — IGNITION SW. IN ACC OR ON

WKWA4409E
