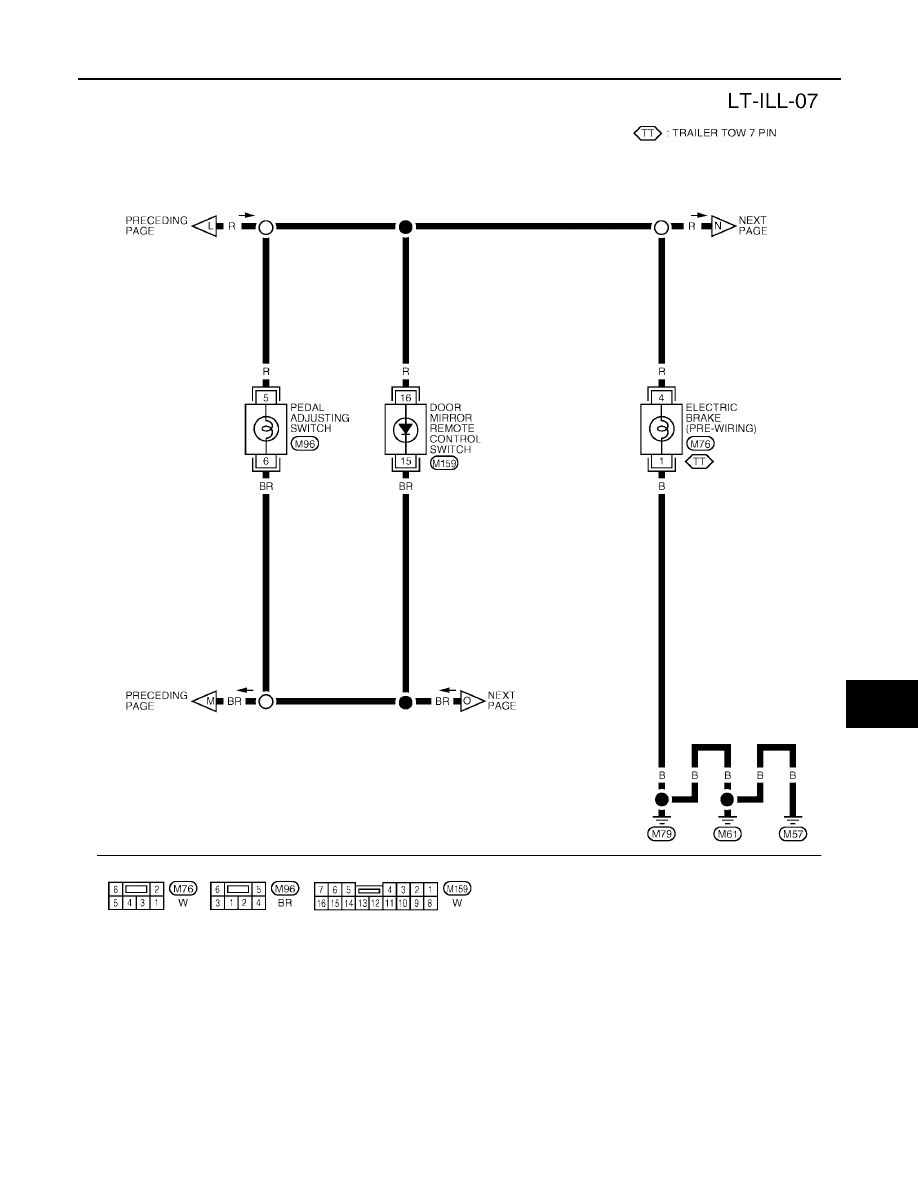

ILLUMINATION

LT-147

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

WKWA4389E

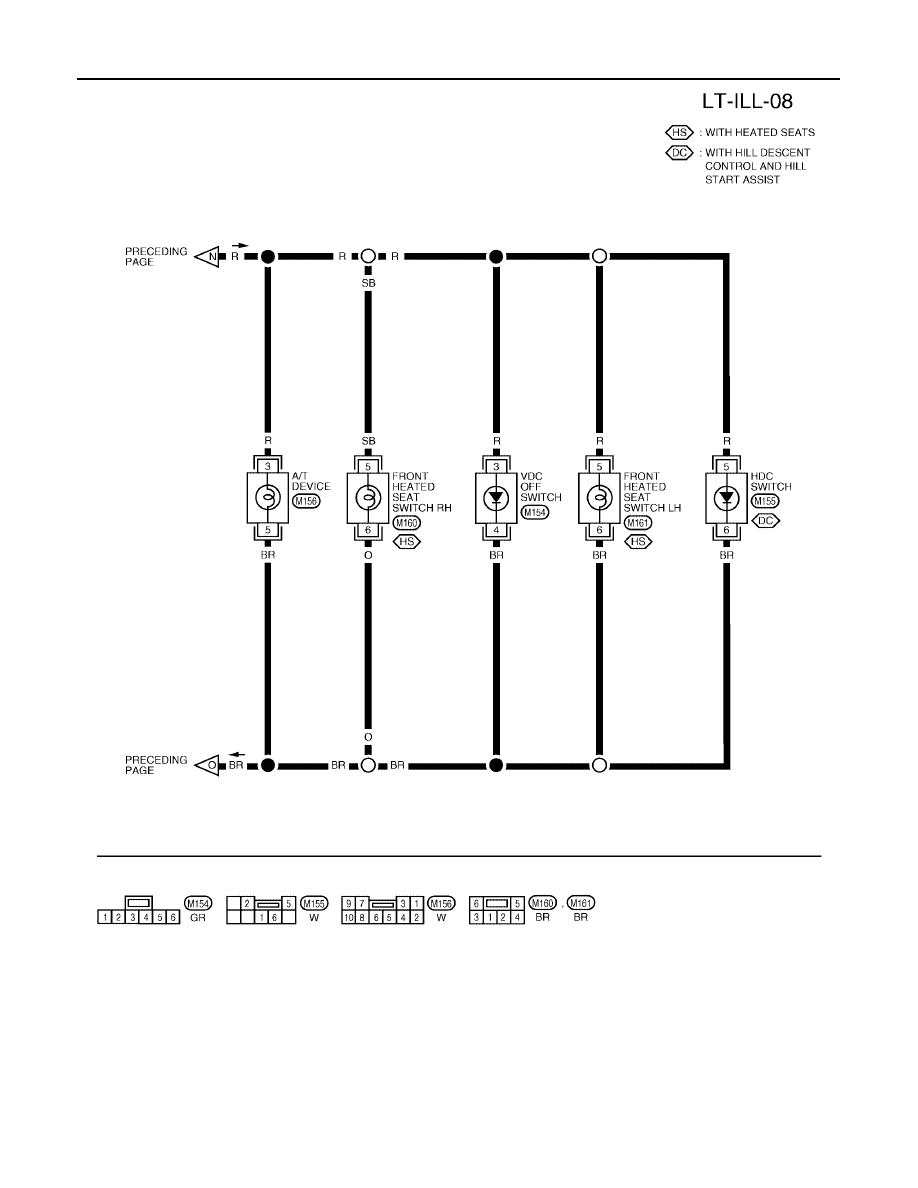

LT-148

ILLUMINATION

2006 Pathfinder

WKWA4245E

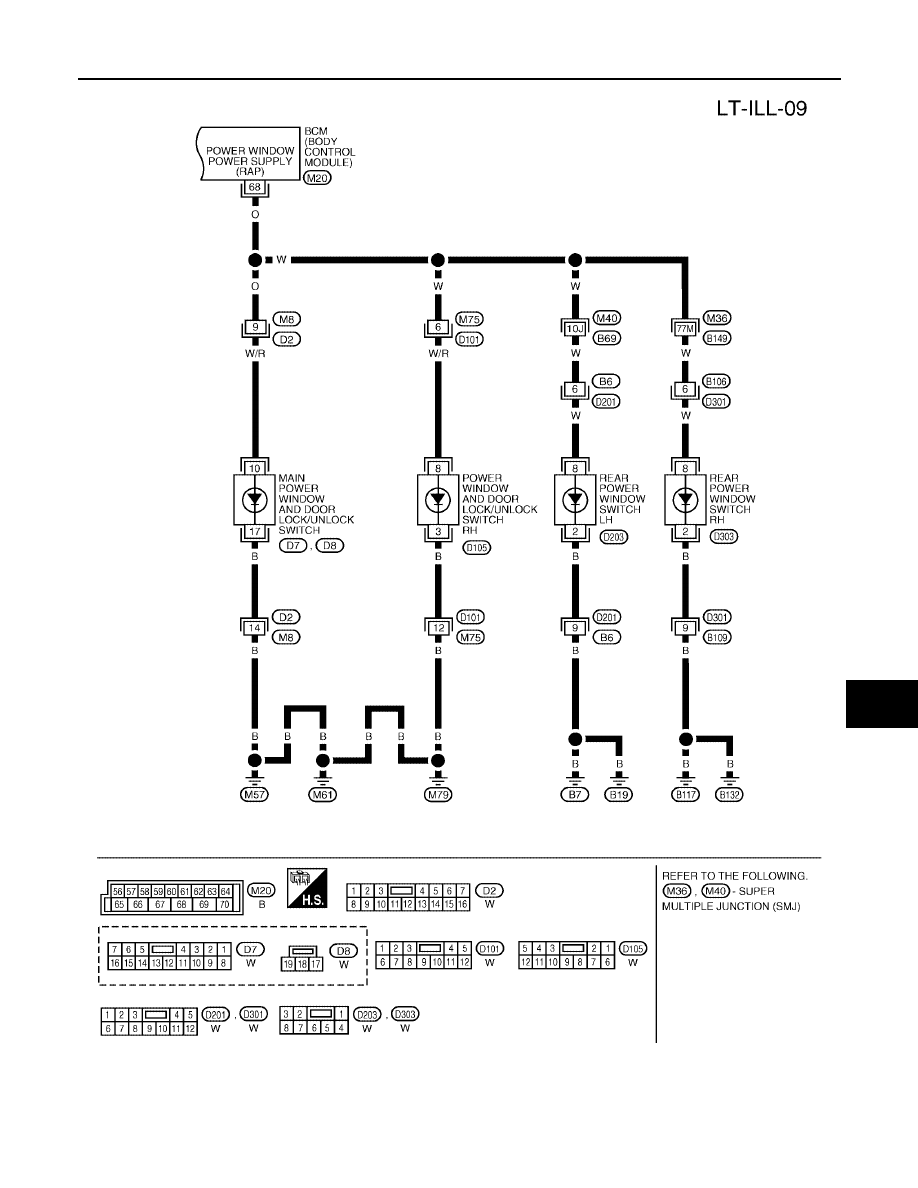

ILLUMINATION

LT-149

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

WKWA4246E

LT-150

ILLUMINATION

2006 Pathfinder

Removal and Installation

EKS00FXP

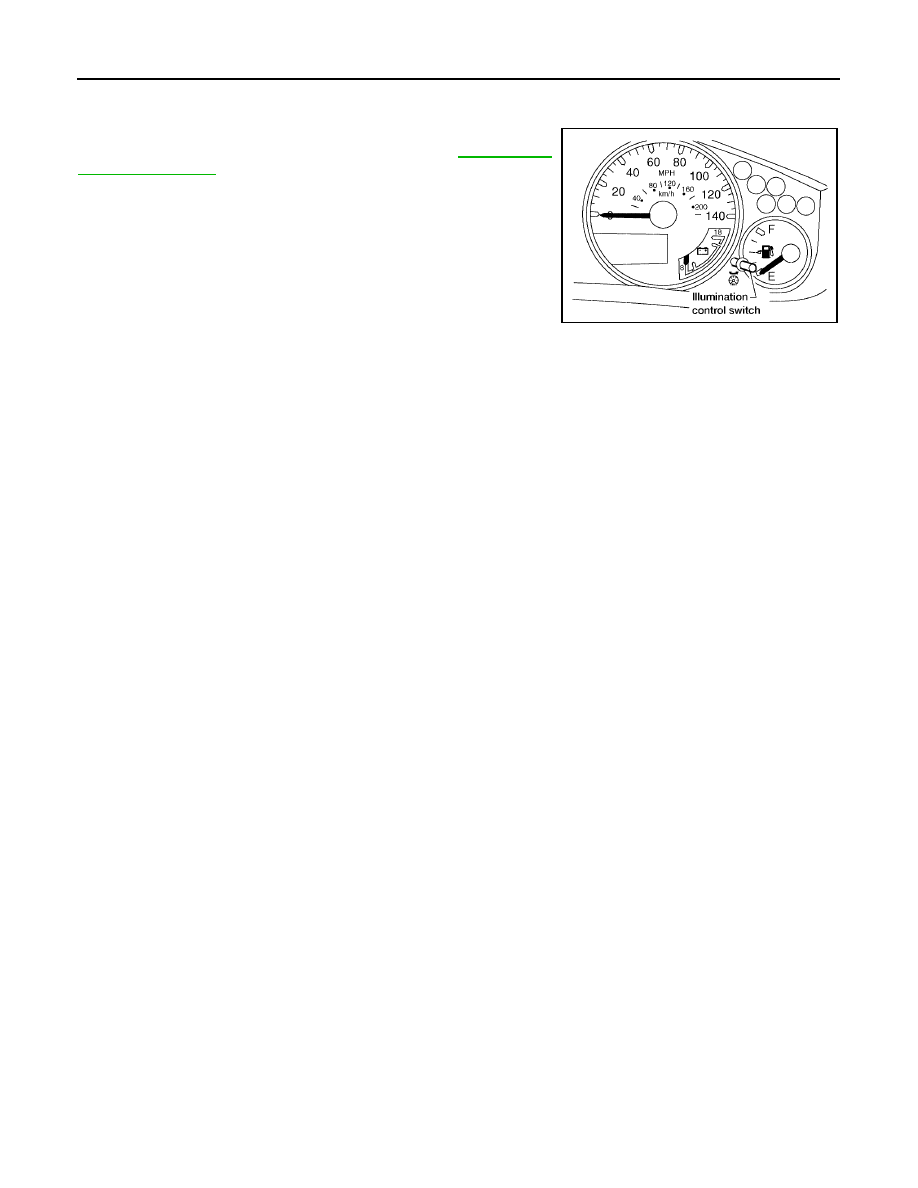

ILLUMINATION CONTROL SWITCH

The illumination control switch is a function of the combination meter,
and not serviced separately. For replacement, refer to

IP-14, "COM-

BINATION METER"

LKIA0579E

BULB SPECIFICATIONS

LT-151

C

D

E

F

G

H

I

J

L

M

A

B

LT

2006 Pathfinder

BULB SPECIFICATIONS

PFP:26297

Headlamp

EKS00FXQ

*: Always check with the Parts Department for the latest parts information.

Exterior Lamp

EKS00FXR

*: Always check with the Parts Department for the latest parts information.

Interior Lamp/Illumination

EKS00FXS

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Low/High

65/55 (HB5)

Item

Wattage (W)*

Front combination lamp

Turn signal lamp/parking lamp

28/8

Side marker

3.8

Rear combination lamp

Stop/Tail lamp

27/8

Turn signal lamp

27

Back-up lamp

18

Front fog lamp

55

License plate lamp

5

High-mounted stop lamp

*

Item

Wattage (W)*

Glove box lamp

3.4

Room/Map lamp

8

A/T device lamp

3

Cargo lamp

8

Vanity lamp

*

Personal lamp

8

LT-152

BULB SPECIFICATIONS

2006 Pathfinder

LU-1

ENGINE LUBRICATION SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

LU

2006 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Liquid Gasket  .................................. 2

LIQUID GASKET APPLICATION PROCEDURE

..... 2

PREPARATION ........................................................... 4

Special Service Tools  ............................................... 4
Commercial Service Tools ........................................ 4

LUBRICATION SYSTEM  ............................................ 5

Lubrication Circuit  .................................................... 5
System Chart  ........................................................... 6

ENGINE OIL  ............................................................... 7

Inspection ................................................................. 7

ENGINE OIL LEVEL  ............................................. 7
ENGINE OIL APPEARANCE  ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK  ...................................... 8

Changing Engine Oil  ................................................ 9

OIL FILTER  ............................................................... 10

Changing Oil Filter  ................................................. 10

OIL COOLER  ............................................................ 11

Removal and Installation  ........................................ 11

REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL  ....................... 12
INSTALLATION ................................................... 12
INSPECTION AFTER INSTALLATION ................ 12

OIL PUMP  ................................................................. 13

Removal and Installation  ........................................ 13

REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ................ 13

Disassembly and Assembly .................................... 13

DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ................ 14
ASSEMBLY ......................................................... 15

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 16

Standard and Limit .................................................. 16

OIL PRESSURE  .................................................. 16
OIL CAPACITY (APPROXIMATE)  ....................... 16
OIL PUMP  ........................................................... 16
REGULATOR VALVE  .......................................... 16

LU-2

PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS00T2H

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Instruction. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Liquid Gasket

EBS00QCE

LIQUID GASKET APPLICATION PROCEDURE

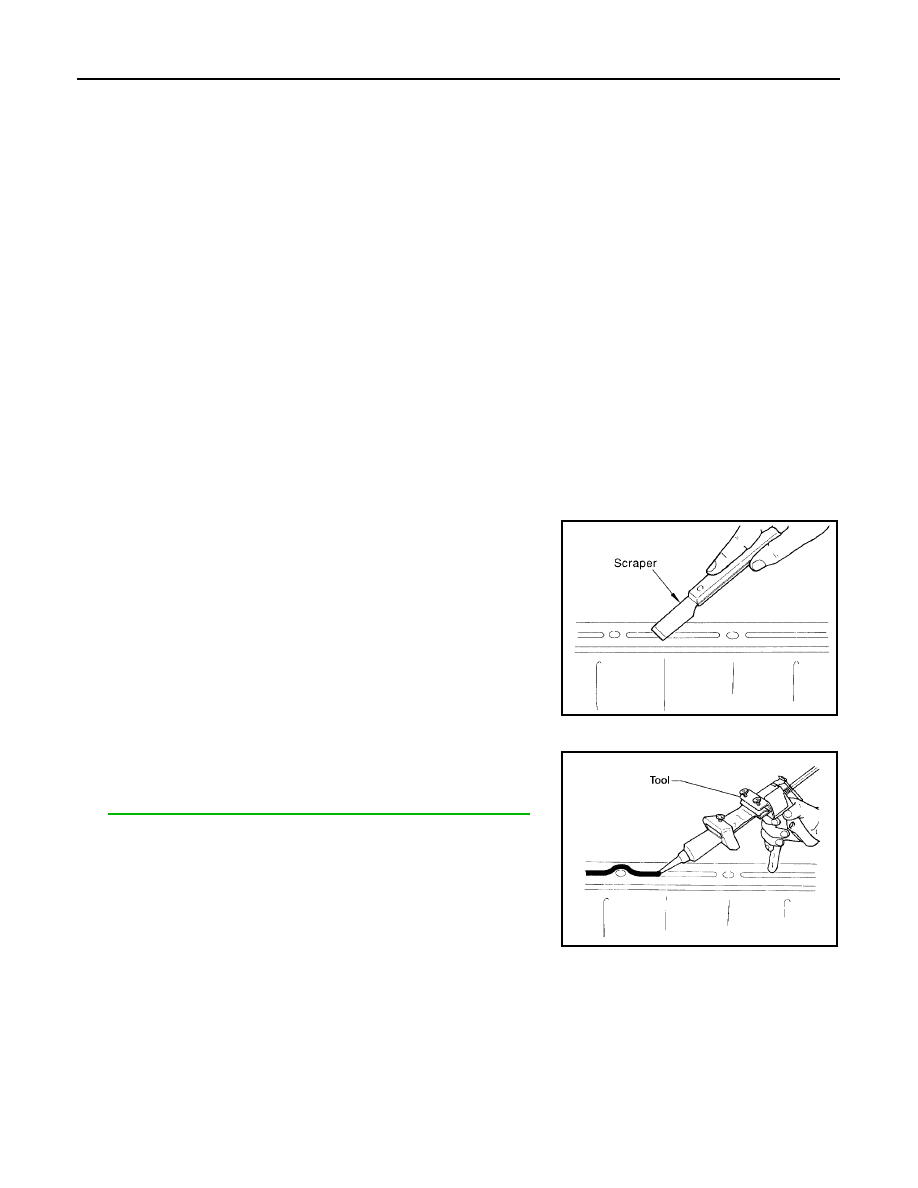

1.

Remove old liquid gasket adhering to the liquid gasket applica-
tion surface and the mating surface, Using scraper.

●

Remove liquid gasket completely from the groove of the liquid
gasket application surface, bolts, and bolt holes.

2.

Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign materials.

3.

Attach liquid gasket tube to Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.

●

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.

PBIC0003E

Tool number

: WS39930000 (

—

)

WBIA0567E
