PREPARATION ........................................................... 2

Special Service Tool  ................................................. 2
Commercial Service Tools ........................................ 2

EXHAUST SYSTEM  ................................................... 3

Checking Exhaust System ........................................ 3
Removal and Installation  .......................................... 3

REMOVAL ............................................................. 4
INSTALLATION ..................................................... 4
INSPECTION AFTER INSTALLATION .................. 4

EX-2

PREPARATION

2006 Pathfinder

PREPARATION

PFP:00002

Special Service Tool

EBS00QUH

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

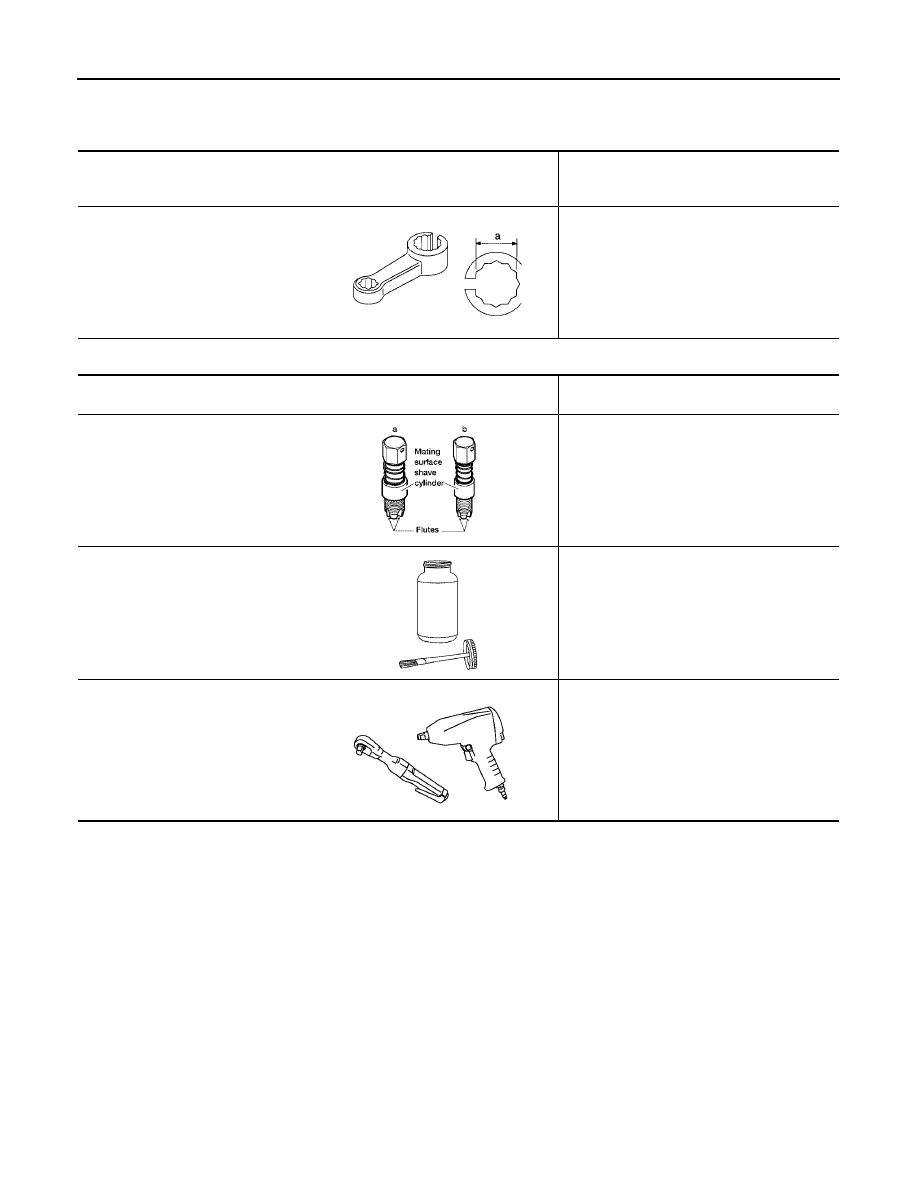

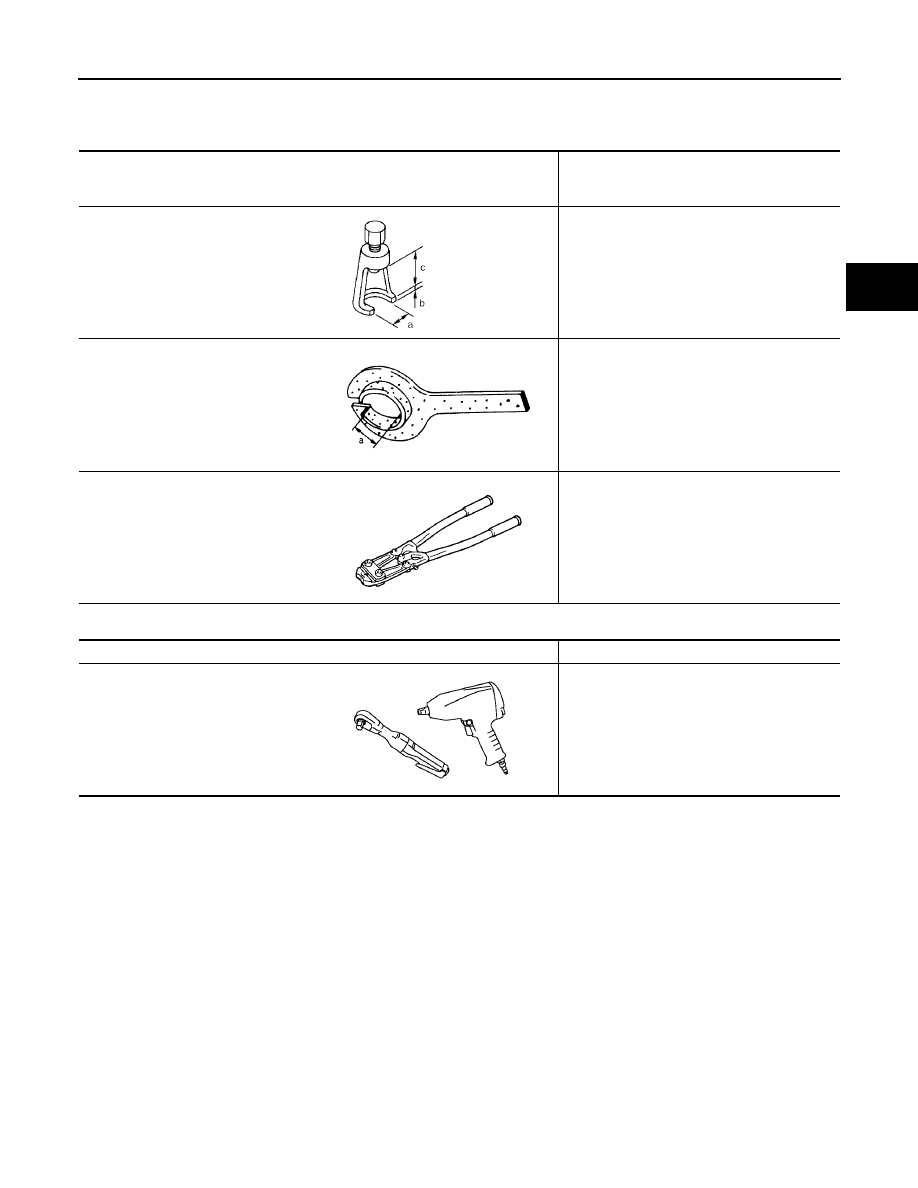

Commercial Service Tools

EBS00QUI

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:
a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

 (J-43897-18)
 (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below):
a: J-43897-18 (18 mm, 0.71 in) dia. for zirco-
nia oxygen sensor
b: J-43897-12 (12 mm, 0.47 in) dia. for tita-
nia oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts and bolts

AEM488

AEM489

PBIC0190E

EXHAUST SYSTEM

EX-3

C

D

E

F

G

H

I

J

K

L

M

A

EX

2006 Pathfinder

EXHAUST SYSTEM

PFP:20100

Checking Exhaust System

EBS00QUJ

Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage or deterioration.

●

If anything is found, repair or replace damaged parts.

Removal and Installation

EBS00QUK

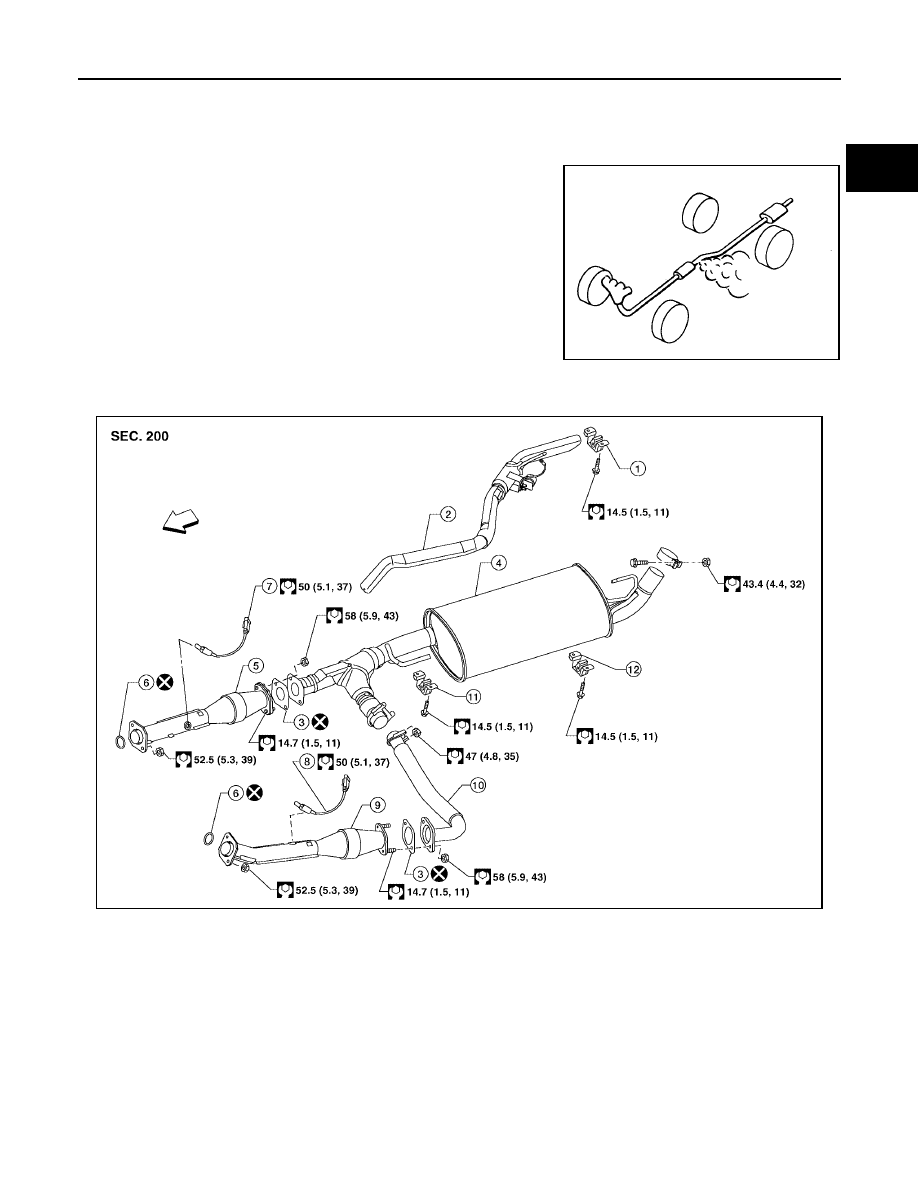

Exhaust System

CAUTION:

●

Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance, and shape.

●

Perform the operation with the exhaust system fully cooled. The system will be hot just after the
engine stops.

●

Be careful not to cut your hand on the heat insulator edge.

SMA211A

WBIA0729E

1.

Tailpipe hanger bracket

2.

Tailpipe

3.

Gasket

4.

Main muffler

5.

Right front exhaust tube

6.

Ring gasket

7.

Heated oxygen sensor 2 (bank 2)

8.

Heated oxygen sensor 2 (bank 1)

9.

Left front exhaust tube

10. Center exhaust tube

11. Muffler hanger bracket front

12. Muffler hanger bracket rear

←

Front

EX-4

EXHAUST SYSTEM

2006 Pathfinder

REMOVAL

Remove exhaust system components using power tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

●

Always replace exhaust gaskets with new ones when reassembling.

●

Before installing a new heated oxygen sensor, clean and lube the exhaust tube threads using tool.

●

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; install a new one.

●

Do not over-torque the heated oxygen sensor. Doing so may damage the heated oxygen sensor,
resulting in the MIL coming on.

●

If any mounting insulator is badly deformed, repair or replace it. If deposits such as mud pile up on
the mounting insulators, clean and inspect them.

●

Temporarily tighten the mounting nuts on the exhaust manifold side and the mounting bolts on the
vehicle side. Check each part for interference with other components, and then tighten the nuts
and bolts to specification.

INSPECTION AFTER INSTALLATION

●

With the engine running, check exhaust tube joints for gas leakage and unusual noises.

●

Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.

Tool number

A

: —

(J-43897-18)

B

: —

(J-43897-12)
