TROUBLE DIAGNOSIS

BRC-21

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

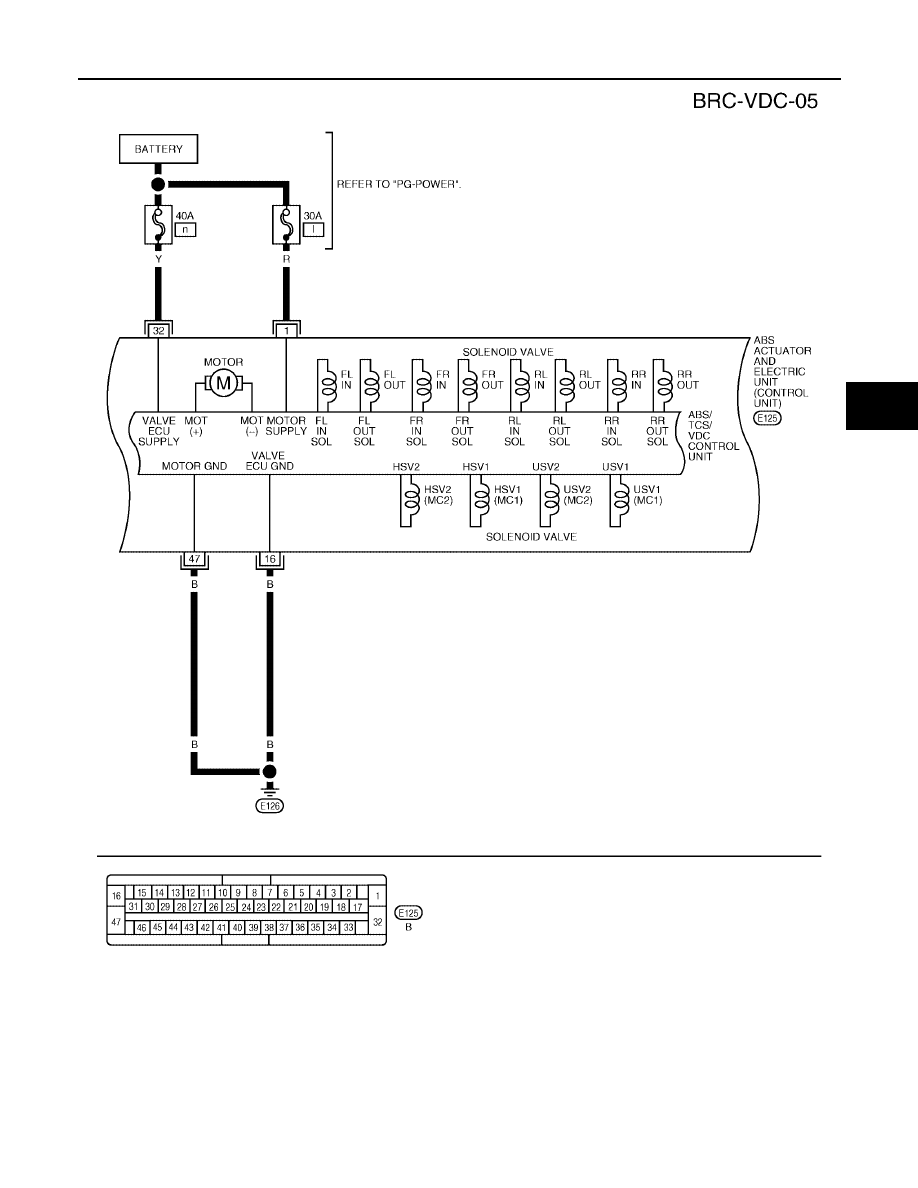

WFWA0366E

BRC-22

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

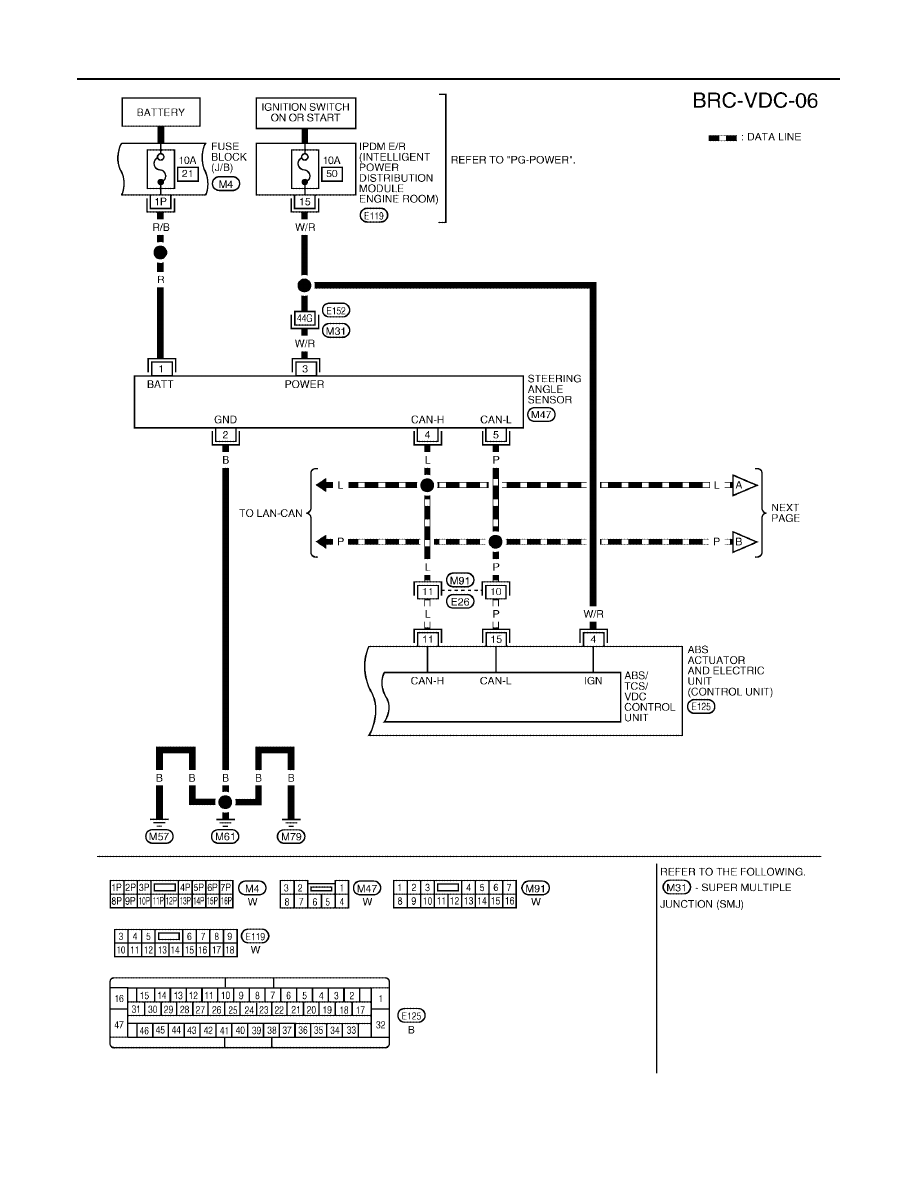

WFWA0367E

TROUBLE DIAGNOSIS

BRC-23

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

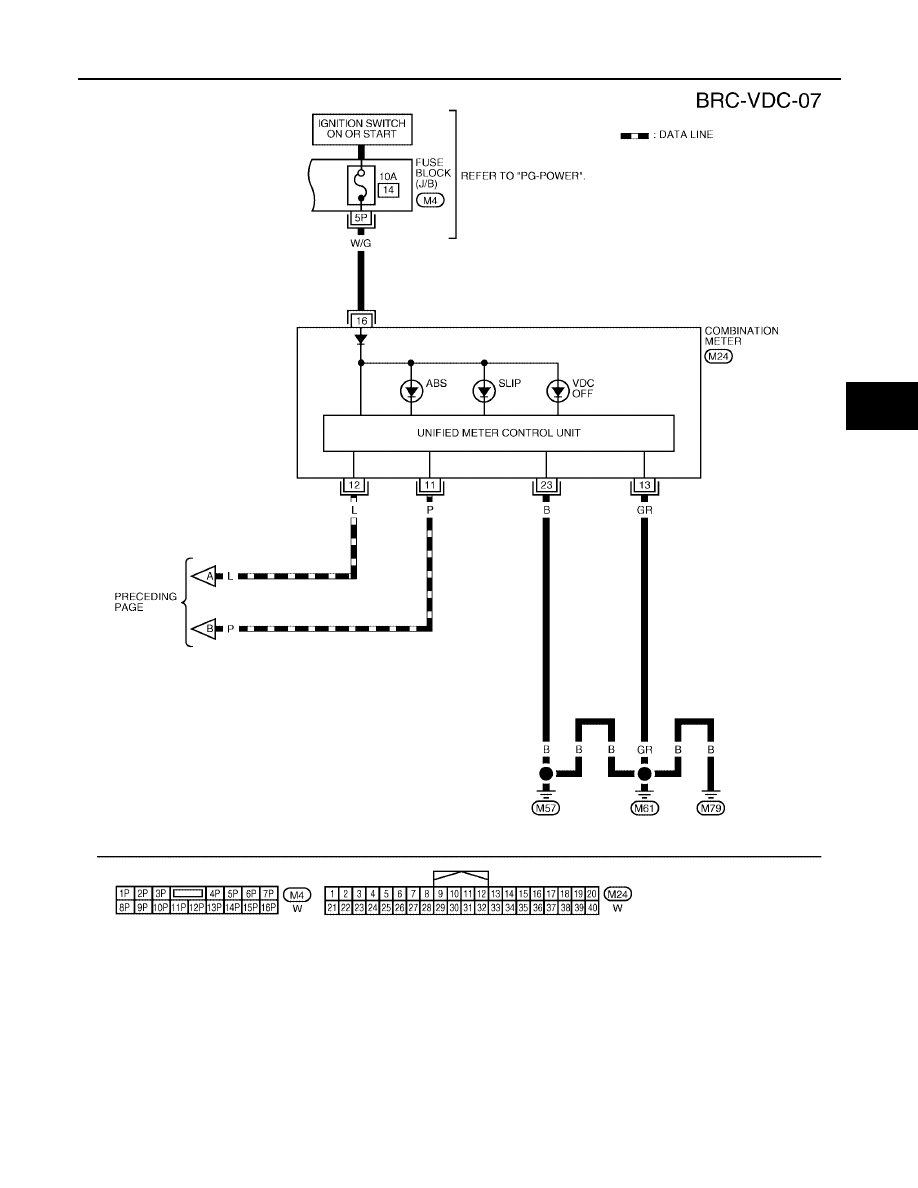

WFWA0368E

BRC-24

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

Basic Inspection

EFS00651

BRAKE FLUID LEVEL, FLUID LEAK, AND BRAKE PAD INSPECTION

1.

Check fluid level in the brake fluid reservoir. If fluid level is low, add fluid.

2.

Check the brake piping and around the ABS actuator and electric unit (control unit) for leaks. If there is
leaking or seeping fluid, check the following items.

●

If ABS actuator and electric unit (control unit) connection is loose, tighten the piping to the specified
torque and recheck for leaks.

●

If there is damage to the connection flare nut or ABS actuator and electric unit (control unit) threads,
replace the damaged part and recheck for leaks.

●

When there is fluid leaking or seeping from a fluid connection, use a clean cloth to wipe off the fluid and
recheck for leaks. If fluid is still seeping out, replace the damaged part. If the fluid is leaking at the ABS
actuator and electric unit (control unit), replace the ABS actuator and electric unit (control unit) assem-
bly.

CAUTION:

The ABS actuator and electric unit (control unit) cannot be disassembled and must be replaced
as an assembly.

3.

Check the brake pads for excessive wear.

POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION

Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.

ABS WARNING LAMP, SLIP INDICATOR LAMP AND VDC OFF INDICATOR LAMP INSPECTION

1.

Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp (when VDC OFF switch
is off), turn on for approximately 2 seconds when the ignition switch is turned ON. If they do not, check the
ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp. Check CAN communications. If
there are no errors with the CAN communication system, check combination meter. Refer to

DI-4, "COM-

BINATION METERS"

 .

2.

Make sure the lamps turn off approximately 2 seconds after the ignition switch is turned ON. If the lamp
does not turn off, conduct self-diagnosis.
NOTE:

●

On 4WD vehicles, when the transfer case is placed in 4LO, the VDC system is disabled and the VDC
OFF indicator will turn on.

●

If the battery has been disconnected, the TCS/VDC system is initialized and the SLIP and VDC OFF
indicator lamps may not turn off after 2 seconds when the ignition switch is turned ON. In this case,
refer to

BRC-30, "SELF-DIAGNOSIS"

 .

3.

With the engine running, make sure the VDC OFF indicator lamp turns on and off when the VDC OFF
switch is turned on and off. If the indicator lamp status does not correspond to switch operation, check the
VDC OFF switch. Refer to

BRC-52, "VDC OFF SWITCH"

 .

4.

Make sure ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp turn off approximately 2
seconds after the ignition switch is turned ON. If ABS warning lamp, SLIP indicator lamp and VDC OFF
indicator lamp have not turned off 2 seconds after the ignition switch is turned ON, conduct self-diagnosis
of the ABS actuator and electric unit (control unit).

5.

After conducting the self-diagnosis, be sure to erase the error memory. Refer to

BRC-29, "CONSULT-II

Function (ABS)"

 .

TROUBLE DIAGNOSIS

BRC-25

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

For Fast and Accurate Diagnosis

EFS00652

PRECAUTIONS FOR DIAGNOSIS

●

Before performing diagnosis, always read precautions. Refer to

BRC-4, "PRECAUTIONS"

 .

●

If ABS actuator and electric unit (control unit), steering angle sensor, steering system parts or suspension
system parts have been replaced, or if alignment has been adjusted, be sure to adjust neutral position of
steering angle sensor before driving. Refer to

BRC-58, "Adjustment of Steering Angle Sensor Neutral

Position"

 .

●

After diagnosis is finished, be sure to erase memory. Refer to

BRC-30, "SELF-DIAGNOSIS"

 .

●

When checking continuity and voltage between units, be sure to check for disconnection, looseness,
bend, or collapse of connector terminals. If any non-standard condition is found, repair or replace connec-
tor terminals.

●

For intermittent symptoms, possible cause is malfunction in harness, harness connector, or terminals.
Move harness, harness connector, and terminals to check for poor connections.

●

If a circuit tester is used for the check, be careful not to forcibly extend any connector terminal.

●

To use CONSULT-II to perform self-diagnosis of ABS actuator and electric unit (control unit), active tests,
or work support, first stop work, then connect CONSULT-II and select “ABS”.

●

CONSULT-II self-diagnosis results are displayed without regard to occurrence timing. In some cases later
ones (timing value is small) appear on the next screen.

●

When self-diagnostic results of CONSULT-II show a malfunction, if CONSULT-II active test is performed,
an engine system error may be indicated. In this case, start engine to resume the normal screen.

●

VDC/TCS/ABS system electronically controls brake operation and engine output. The following symptoms
may be caused by normal operations:

Symptom

Symptom description

Result

Motor operation noise

This is noise of motor inside ABS actuator and electric unit (control unit).
Slight noise may occur during VDC, TCS, and ABS operation.

Normal

When the vehicle speed goes over 20 km/h (12.5 mph), the motor and
valves operating noise may be heard. It happens only once after IGN
(ignition) is ON. This is a normal status of the system operation check.

System operation check
noise

When the engine starts, slight “click” noise may be heard from engine
compartment. This is normal and is part of system operation check.

Normal

VDC/TCS operation
(SLIP indicator lamp blink-
ing)

TCS may activate momentarily if wheel speed changes when driving
over location where friction coefficient varies, when up/downshifting or
when fully depressing accelerator pedal.

Normal
Cancel the VDC/TCS
function for the
inspection on a chas-
sis dynamometer.

For inspection of speedometer or other instruments, press
VDC OFF switch to turn VDC/TCS function off.

When accelerator pedal is depressed on a chassis dynamometer (fixed
front-wheel type), vehicle speed will not increase. This is not normal. It is
result of TCS being activated by stationary front wheels. Warning lamp
may also illuminate to indicate “sensor system error”. This is also nor-
mal, and is the result of the stationary front wheels being detected. To be
certain, restart engine, and drive vehicle at 30 km/h (19 MPH) or more.
Make sure warning lamp does not illuminate.

ABS operation (Longer stop-
ping distance)

On roads with low friction coefficients, such as snowy roads or gravel
roads, vehicles with ABS may require a longer stopping distance. There-
fore, when driving on such roads, avoid overconfidence and keep speed
sufficiently low.

Normal

Insufficient feeling of accel-
eration

Depending on road conditions, driver may feel that feeling of accelera-
tion is insufficient. This is because traction control, which controls the
engine and brakes to achieve optimal traction, has the highest priority
(for safety). As a result, there may be times when acceleration is slightly
less than usual for the same accelerator pedal operation.

Normal

BRC-26

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

Warning Lamp and Indicator Timing

EFS00653

X: ON
—: OFF

Control Unit Input/Output Signal Standard

EFS00654

REFERENCE VALUE FROM CONSULT-II

CAUTION:

The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short circuited.

Condition

ABS

warning

lamp

VDC OFF

indicator

lamp

SLIP

indicator

lamp

Remarks

When the ignition switch is OFF

—

—

—

—

After the ignition switch is turned ON for approx. 2
seconds

×

×

×

—

After the ignition switch has been turned ON for
approx. 2 seconds

—

—

—

—

When the VDC OFF switch is pressed (VDC func-
tion OFF)

—

×

—

—

ABS/TCS/VDC malfunction

×

×

×

—

When the VDC is malfunctioning

—

×

×

—

Monitor item

Display content

Data monitor

Note: Error inspection

checklist

Condition

Reference value in

normal operation

N POSI SIG

PNP switch signal ON/
OFF condition

A/T shift position = N position

ON

BRC-51, "CAN Commu-
nication System Inspec-
tion"

A/T shift position = other than
N positions

OFF

P POSI SIG

PNP switch signal ON/
OFF condition

A/T shift position P position

ON

BRC-51, "CAN Commu-
nication System Inspec-
tion"

A/T shift position = other than
P positions

OFF

GEAR

A/T gear position

1st gear

1

—

2nd gear

2

3rd gear

3

4th gear

4

5th gear

5

FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR

Wheel speed

Vehicle stopped

0 [km/h (MPH)]

BRC-38, "Wheel Sensor
System Inspection"

Vehicle running (Note 1)

Almost in accor-
dance with speed-
ometer display
(within

±

10%)

ACCEL POS SIG

Open/close condition
of throttle valve (linked
with accelerator pedal).

Accelerator pedal not
depressed (ignition switch is
ON)

0%

BRC-51, "CAN Commu-
nication System Inspec-
tion"

Depress accelerator pedal
(ignition switch is ON)

0 to 100%

2WD/4WD

Drive axle

2WD model

2WD

—

4WD model

4WD

ENGINE SPEED

With engine running

With engine stopped

0 RPM

BRC-39, "Engine System
Inspection"

Engine running

Almost in accor-
dance with
tachometer display

TROUBLE DIAGNOSIS

BRC-27

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

STR ANGLE SIG

Steering angle
detected by steering
angle sensor

Straight-ahead

Approx. 0 deg

BRC-40, "Steering Angle
Sensor System"

Steering wheel turned

–756 to 756 deg

YAW RATE SEN

Yaw rate detected by
yaw rate sensor

Vehicle stopped

Approx. 0 d/s

BRC-42, "Yaw Rate/Side/
Decel G Sensor System
Inspection"

Vehicle running

–100 to 100 d/s

SIDE G-SENSOR

Transverse G detected
by side G-sensor

Vehicle stopped

Approx. 0 m/s

2

BRC-42, "Yaw Rate/Side/
Decel G Sensor System
Inspection"

Vehicle running

–16.7 to 16.7 m/s

2

BATTERY VOLT

Battery voltage sup-
plied to ABS actuator
and electric unit (con-
trol unit)

Ignition switch ON

10 to 16V

BRC-47, "ABS/TCS/VDC
Control Unit Power and
Ground Systems Inspec-
tion"

OFF SW

VDC OFF switch
ON/OFF status

VDC OFF switch ON
(When VDC OFF indicator
lamp is ON)

ON

BRC-52, "VDC OFF
SWITCH"

VDC OFF switch OFF
(When VDC OFF indicator
lamp is OFF)

OFF

ABS WARN LAMP

ABS warning lamp ON
condition (Note 2)

ABS warning lamp ON

ON

—

ABS warning lamp OFF

OFF

MOTOR RELAY

Operation status of
motor and motor relay

Ignition switch ON or running
(ABS not activated)

OFF

BRC-45, "Actuator Motor,
Motor Relay, and Circuit
Inspection"

Ignition switch ON or engine
running (ABS activated)

ON

ACTUATOR RLY

Actuator relay opera-
tion status

Vehicle stopped (Ignition
switch ON)

OFF

BRC-45, "Actuator Motor,
Motor Relay, and Circuit
Inspection"

Vehicle stopped (Engine run-
ning)

ON

OFF LAMP

VDC OFF indicator
lamp status (Note 3)

When VDC OFF indicator
lamp is ON

ON

BRC-51, "CAN Commu-
nication System Inspec-
tion"

When VDC OFF indicator
lamp is OFF

OFF

SLIP LAMP

SLIP indicator lamp
status (Note 4)

When SLIP indicator lamp is
ON

ON

BRC-51, "CAN Commu-
nication System Inspec-
tion"

When SLIP indicator lamp is
OFF

OFF

FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL

Solenoid valve opera-
tion

Actuator (solenoid) is active
(“ACTIVE TEST” with CON-
SULT-II) or actuator relay is
inactive (in fail-safe mode).

ON

BRC-44, "Solenoid and
VDC Change-Over Valve
System Inspection"

When actuator (solenoid) is
not active and actuator relay is
active (ignition switch ON).

OFF

CV1
CV2
SV1
SV2

VDC switch-over valve
status

When actuator (switch-over
valve) is active (“ACTIVE
TEST” with CONSULT-II) or
actuator relay is inactive (when
in fail-safe mode).

ON

When actuator (switch-over
valve) is not active and actua-
tor relay is active (ignition
switch ON).

OFF

Monitor item

Display content

Data monitor

Note: Error inspection

checklist

Condition

Reference value in

normal operation

BRC-28

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not
activated.
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is
OFF.
Note 4: SLIP indicator lamp ON/OFF timing
ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is acti-
vated while driving.
OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not
activated.
Flashing: VDC/TCS function is active during driving.

DECEL G-SEN

Longitudinal accelera-
tion detected by Decel
G-Sensor

Vehicle stopped

Approx. 0 G

BRC-42, "Yaw Rate/Side/
Decel G Sensor System
Inspection"

Vehicle running

-1.7 to 1.7 G

PRESS SENSOR

Brake fluid pressure
detected by pressure
sensor

Do not step on the Brake pedal
(When ignition switch is ON)

Approx. 0 bar

—

Step on the Brake pedal
(When ignition switch is ON)

-40 to 300 bar

FLUID LEV SW

ON/OFF status of
brake fluid level switch

When brake fluid level switch
ON

ON

DI-33, "WARNING
LAMPS"

When brake fluid level switch
OFF

OFF

VDC SIGNAL
TCS SIGNAL
ABS SIGNAL
EBD SIGNAL

Signal status

VDC active
TCS active
ABS active
EBD active

ON

VDC system
TCS system
ABS system
EBD system

VDC not active
TCS not active
ABS not active
EBD not active

OFF

VDC FAIL SIG
TCS FAIL SIG
ABS FAIL SIG
EBD FAIL SIG

Fail signal status

VDC fail
TCS fail
ABS fail
EBD fail

ON

VDC system
TCS system
ABS system
EBD system

VDC normal
TCS normal
ABS normal
EBD normal

OFF

Monitor item

Display content

Data monitor

Note: Error inspection

checklist

Condition

Reference value in

normal operation
