BODY REPAIR

BL-141

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

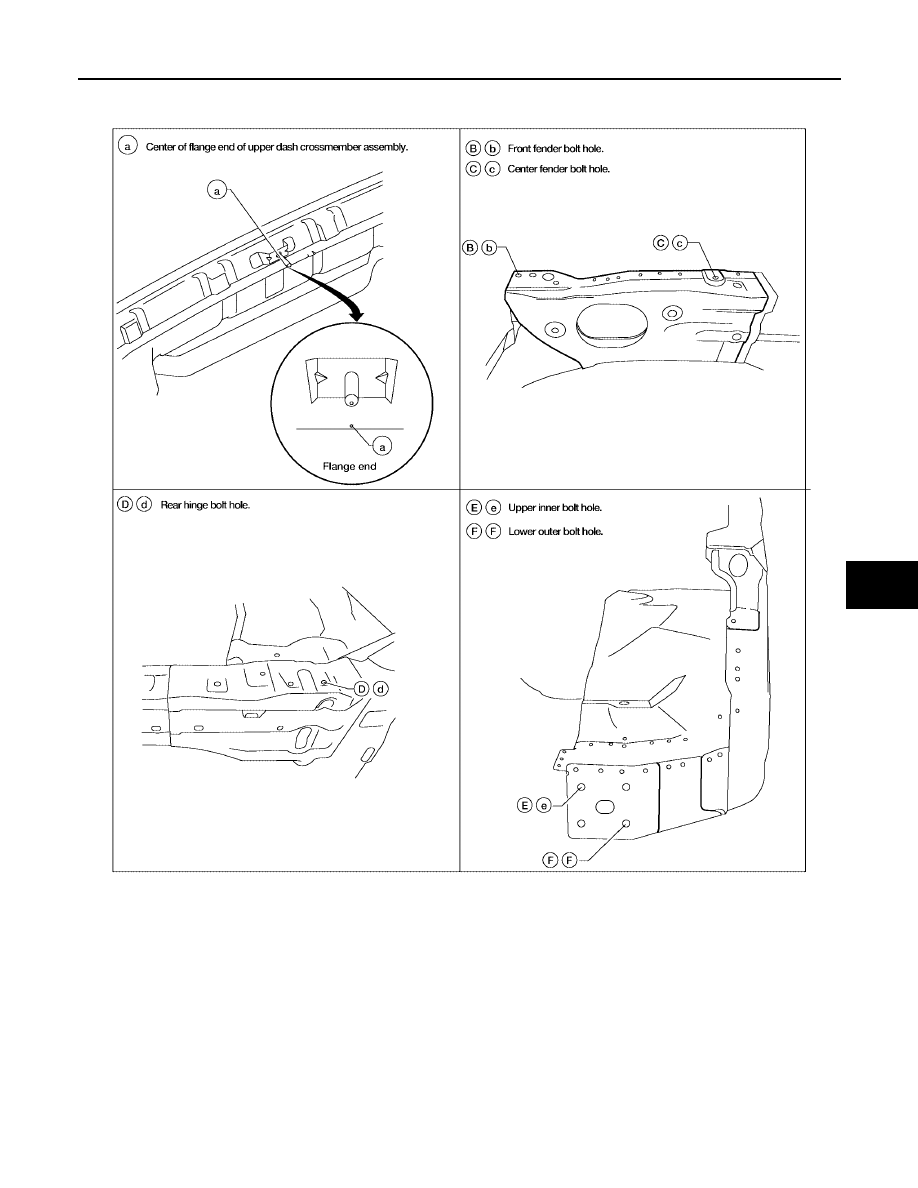

MEASUREMENT POINTS

LIIA1793E

BL-142

BODY REPAIR

2006 Pathfinder

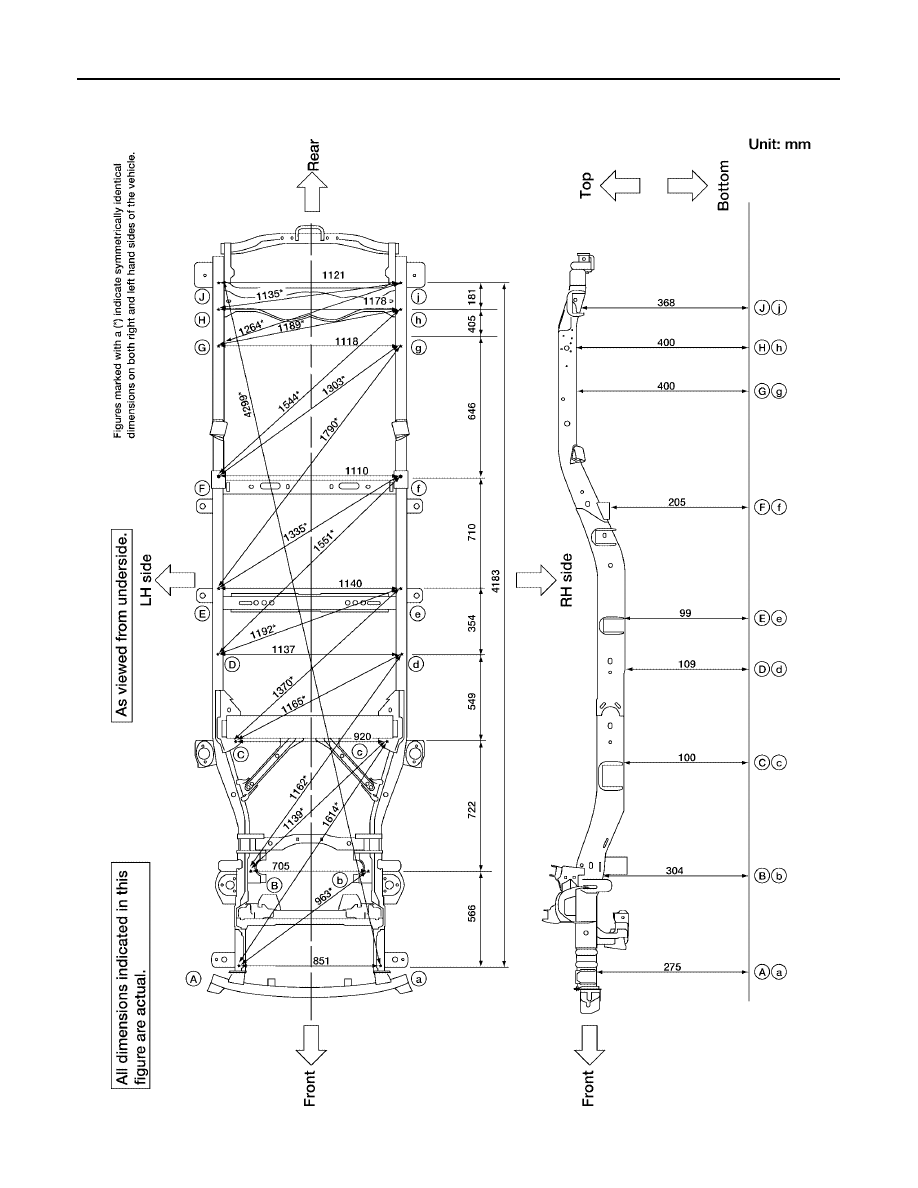

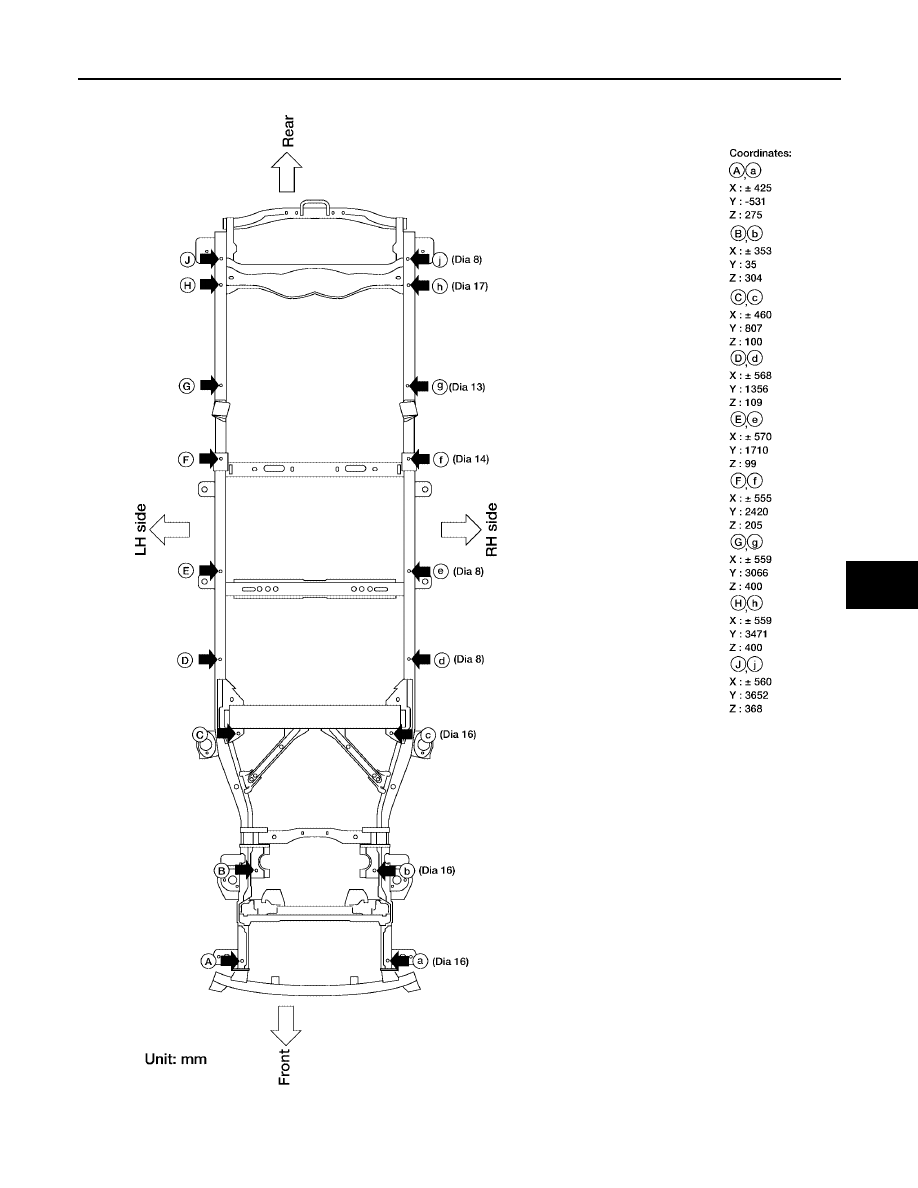

UNDERBODY
MEASUREMENT

LIIA1794E

BODY REPAIR

BL-143

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

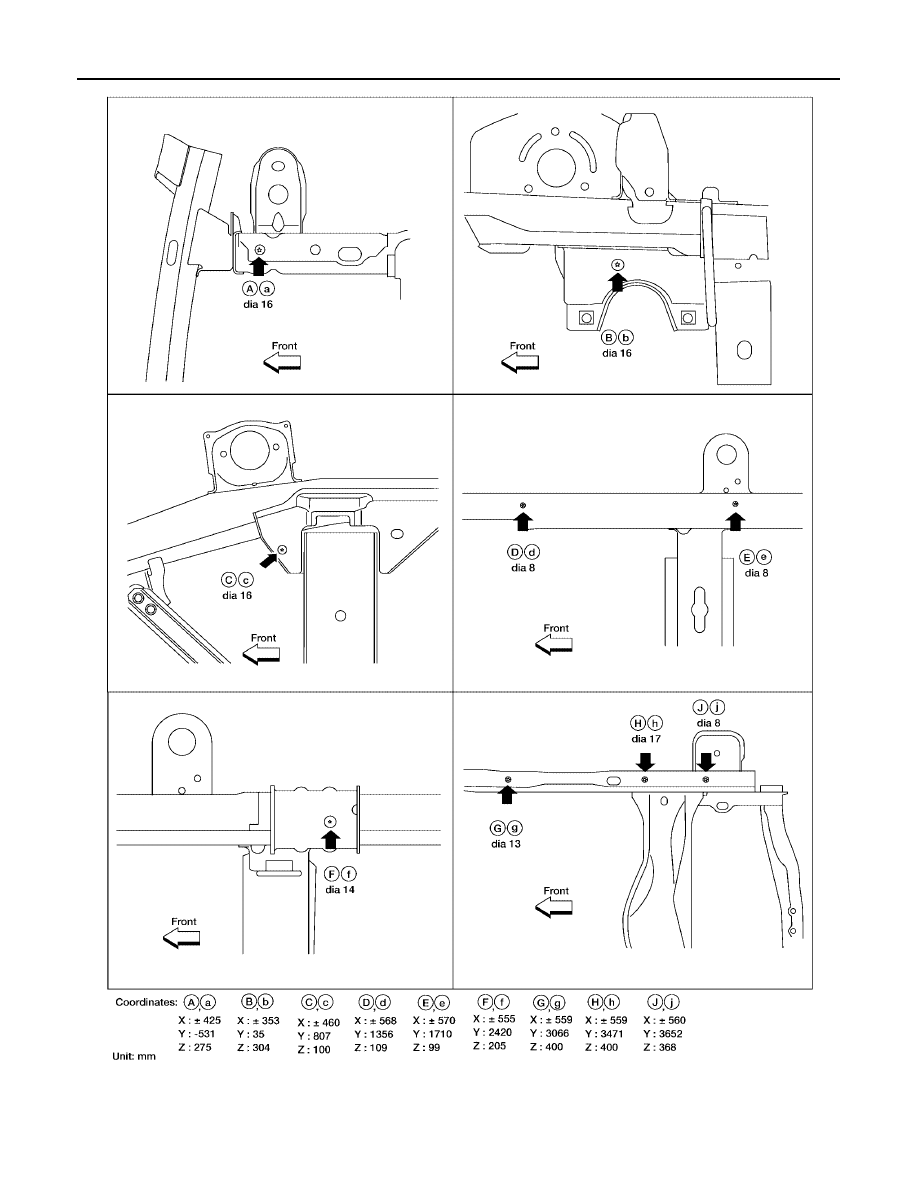

MEASUREMENT POINTS

LIIA1795E

BL-144

BODY REPAIR

2006 Pathfinder

LIIA1796E

BODY REPAIR

BL-145

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

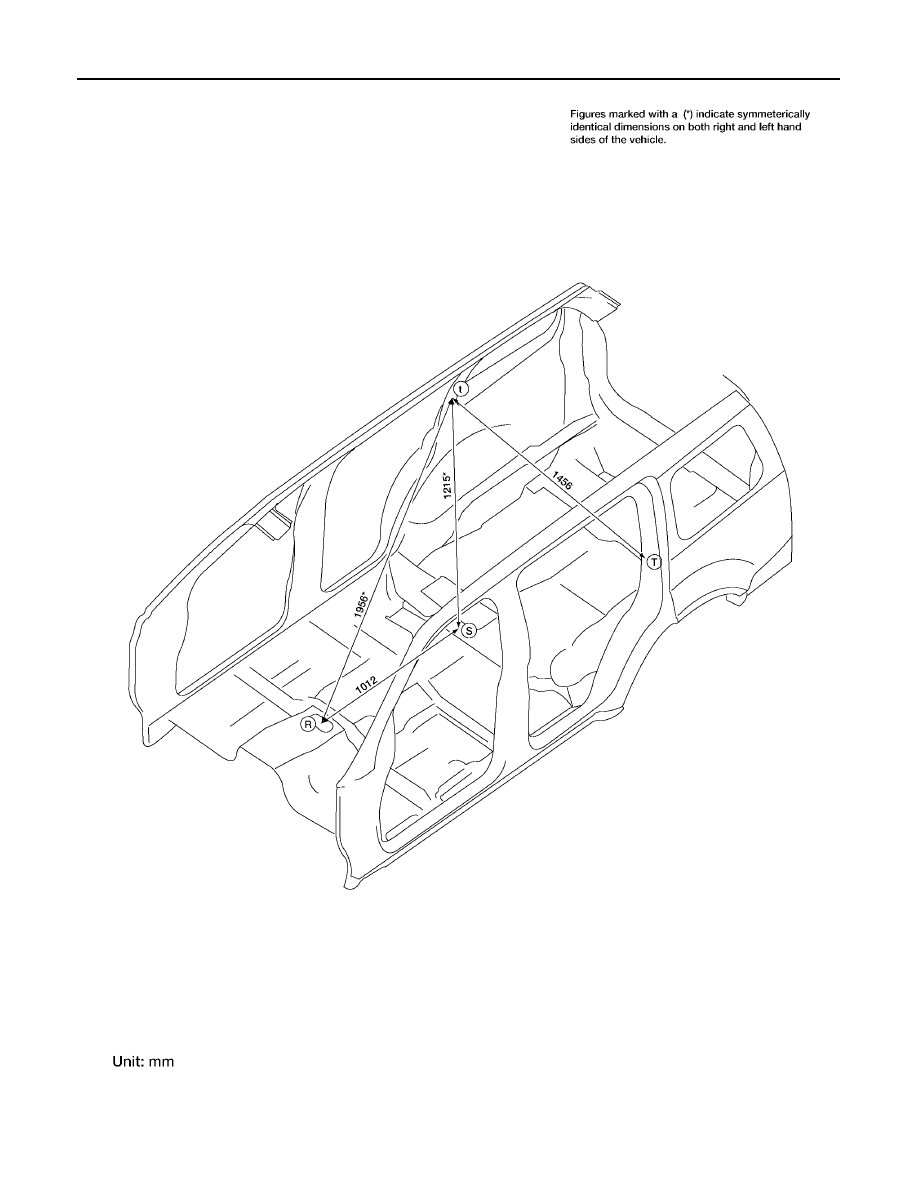

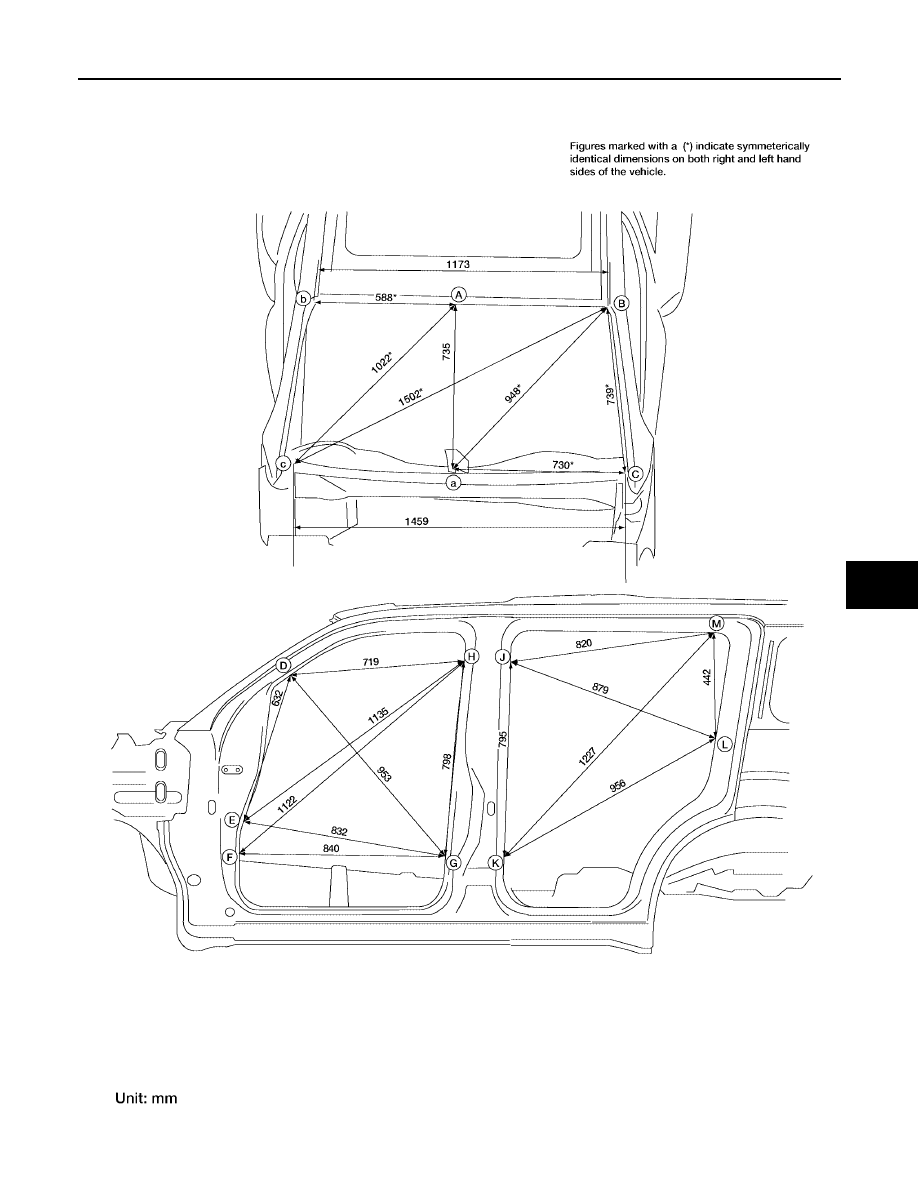

PASSENGER COMPARTMENT
MEASUREMENT

LIIA1798E

BL-146

BODY REPAIR

2006 Pathfinder

LIIA1799E

BODY REPAIR

BL-147

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

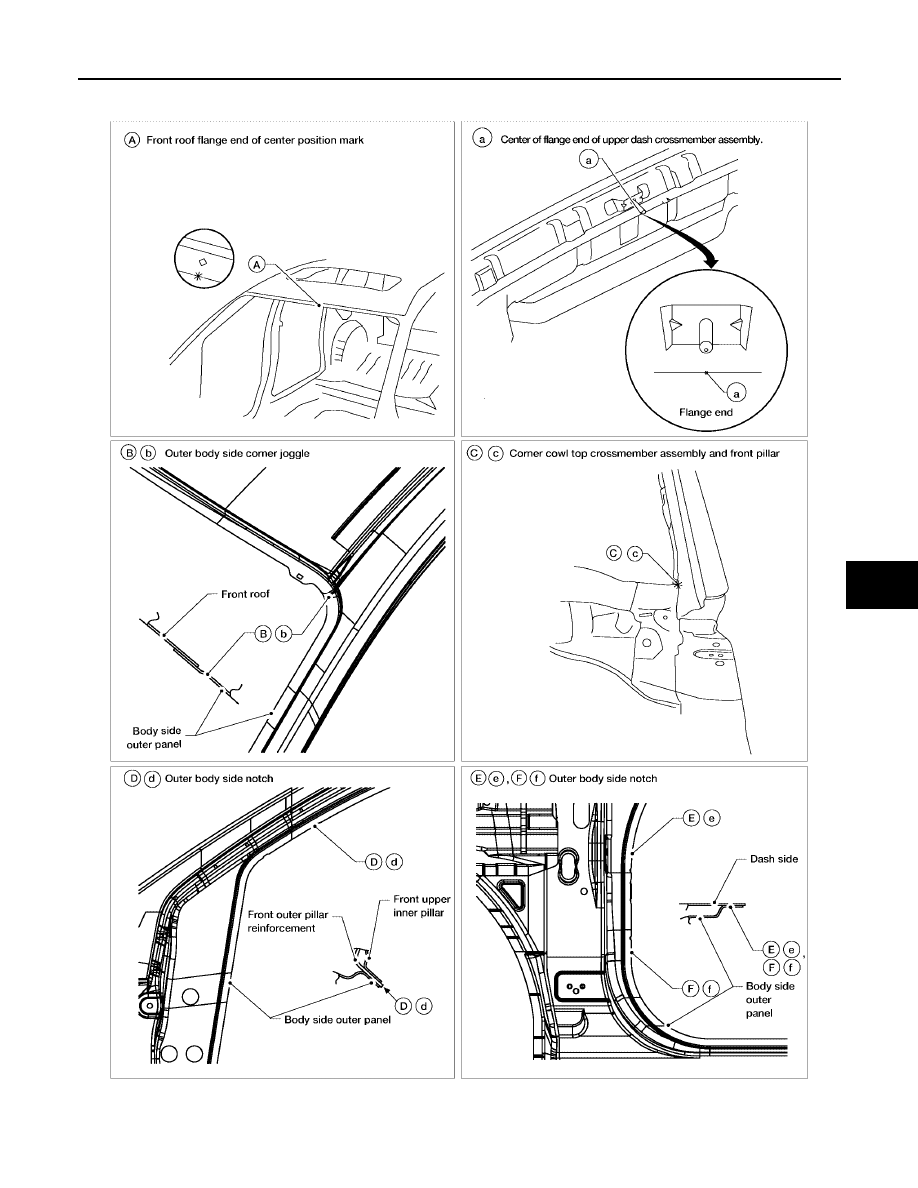

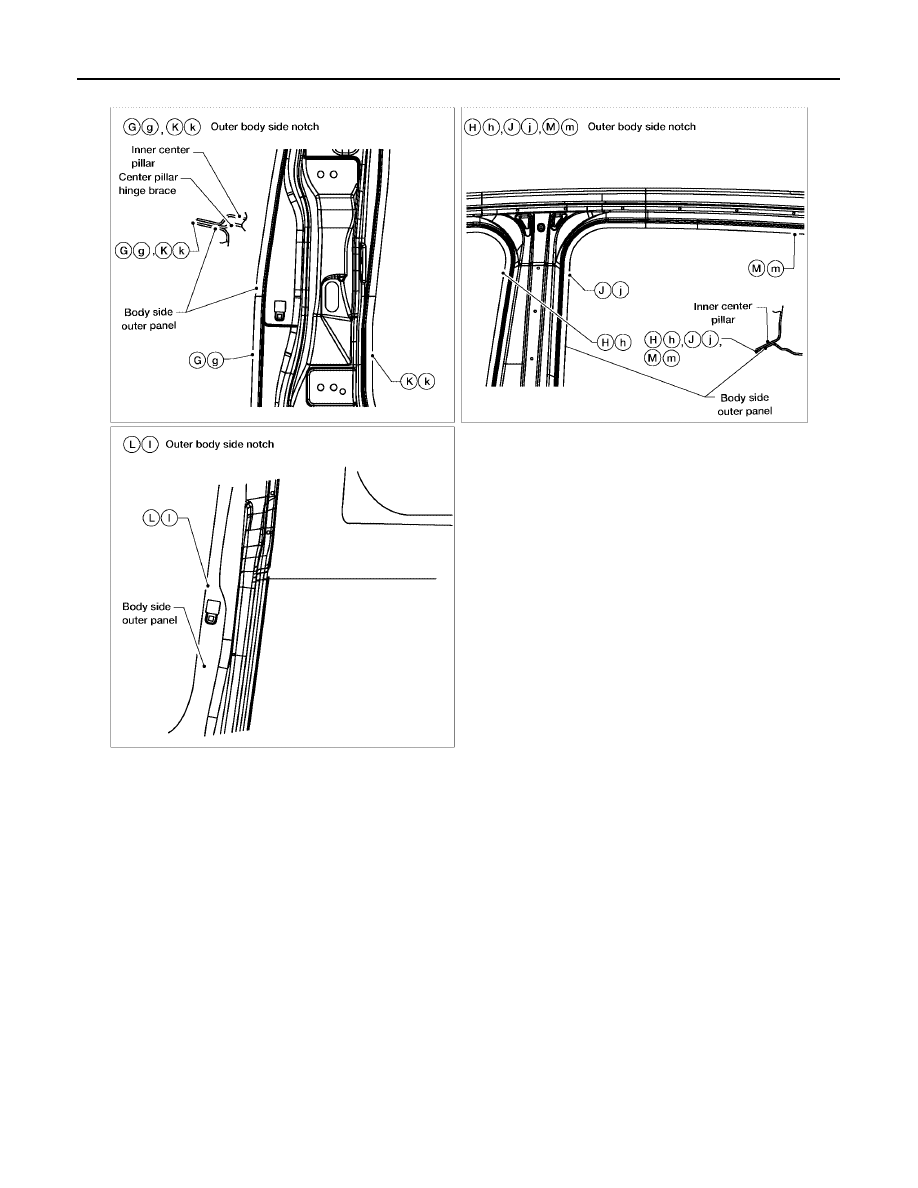

MEASUREMENT POINTS

LIIA1800E

BL-148

BODY REPAIR

2006 Pathfinder

LIIA1801E
