Nissan Pathfinder (2006 year). Instruction - part 47

TROUBLE DIAGNOSIS

ATC-41

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

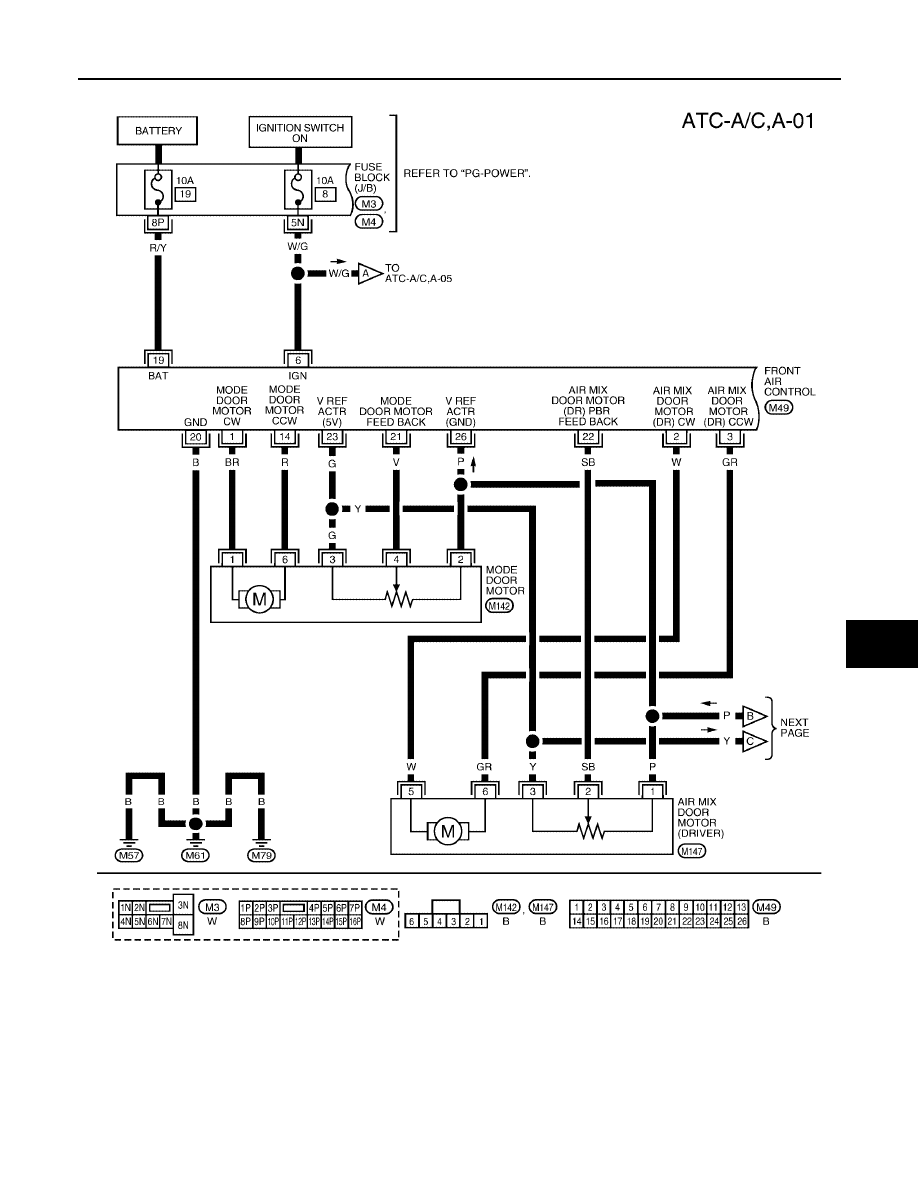

Wiring Diagram —A/C,A—

EJS004OZ

WJWA0390E

ATC-42

TROUBLE DIAGNOSIS

2006 Pathfinder

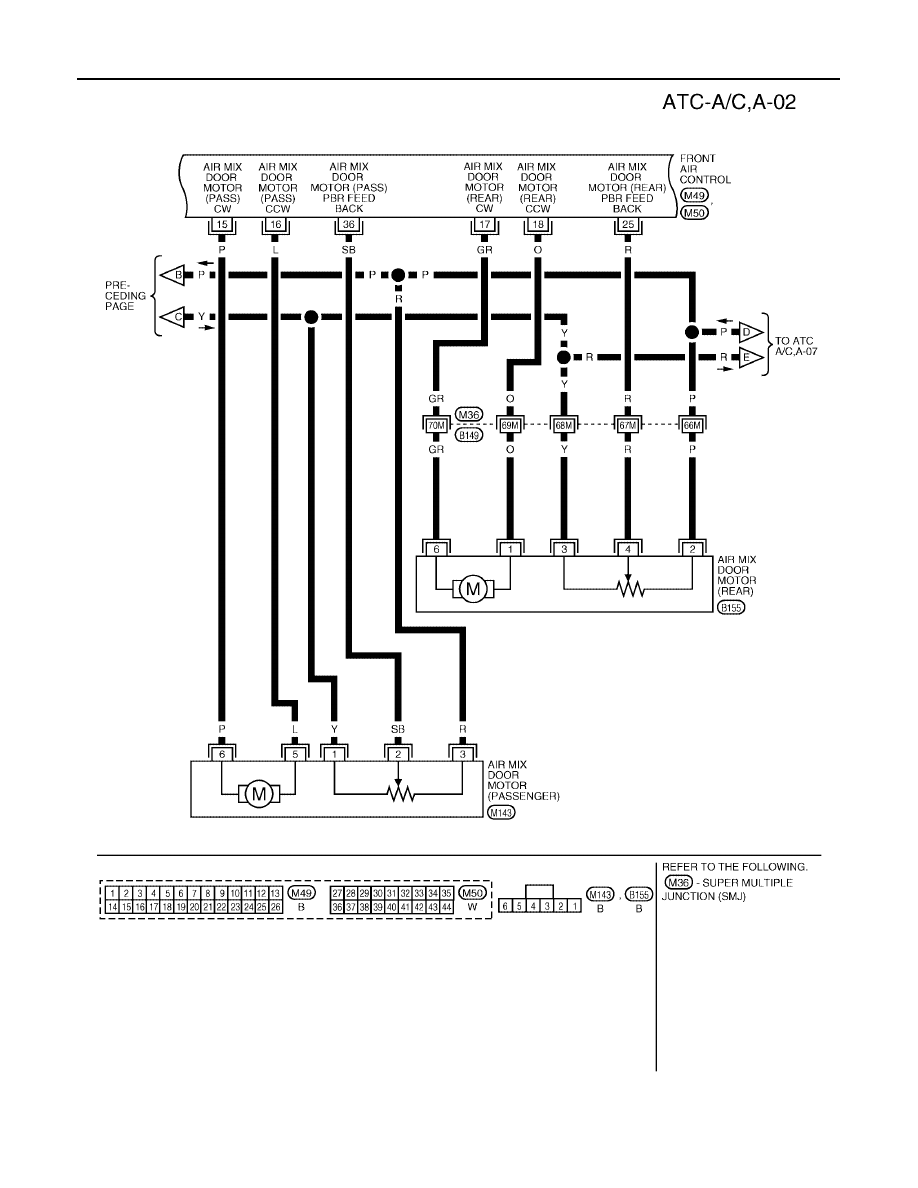

WJWA0277E

TROUBLE DIAGNOSIS

ATC-43

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

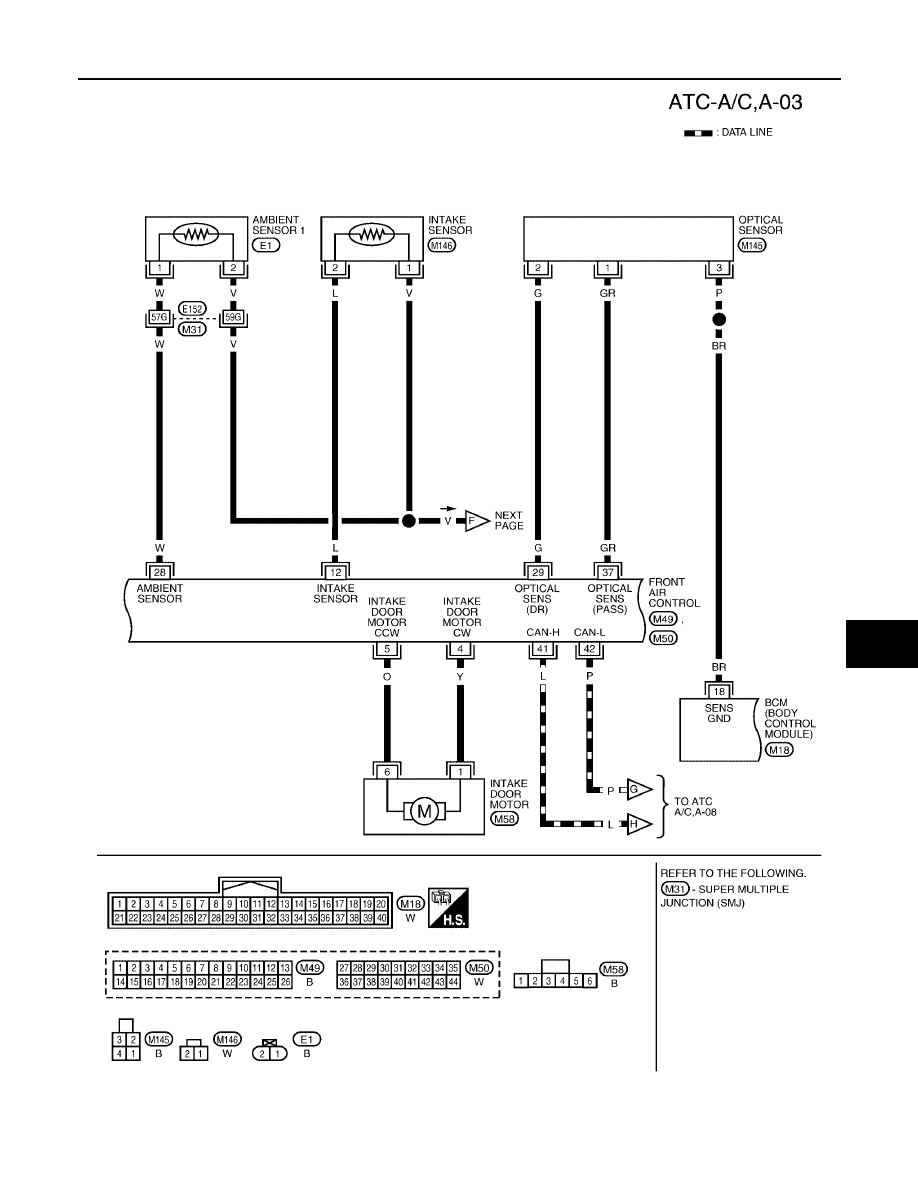

WJWA0391E

ATC-44

TROUBLE DIAGNOSIS

2006 Pathfinder

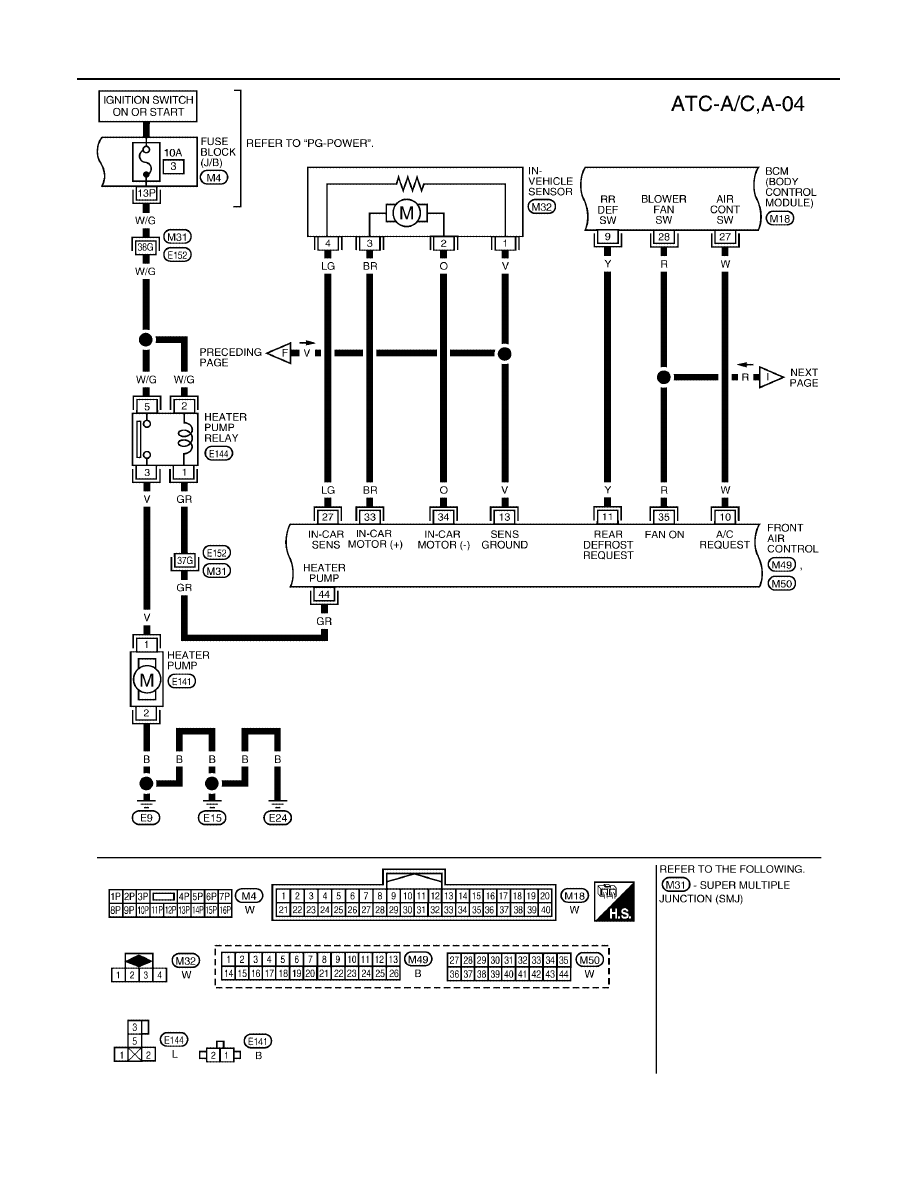

WJWA0392E

TROUBLE DIAGNOSIS

ATC-45

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

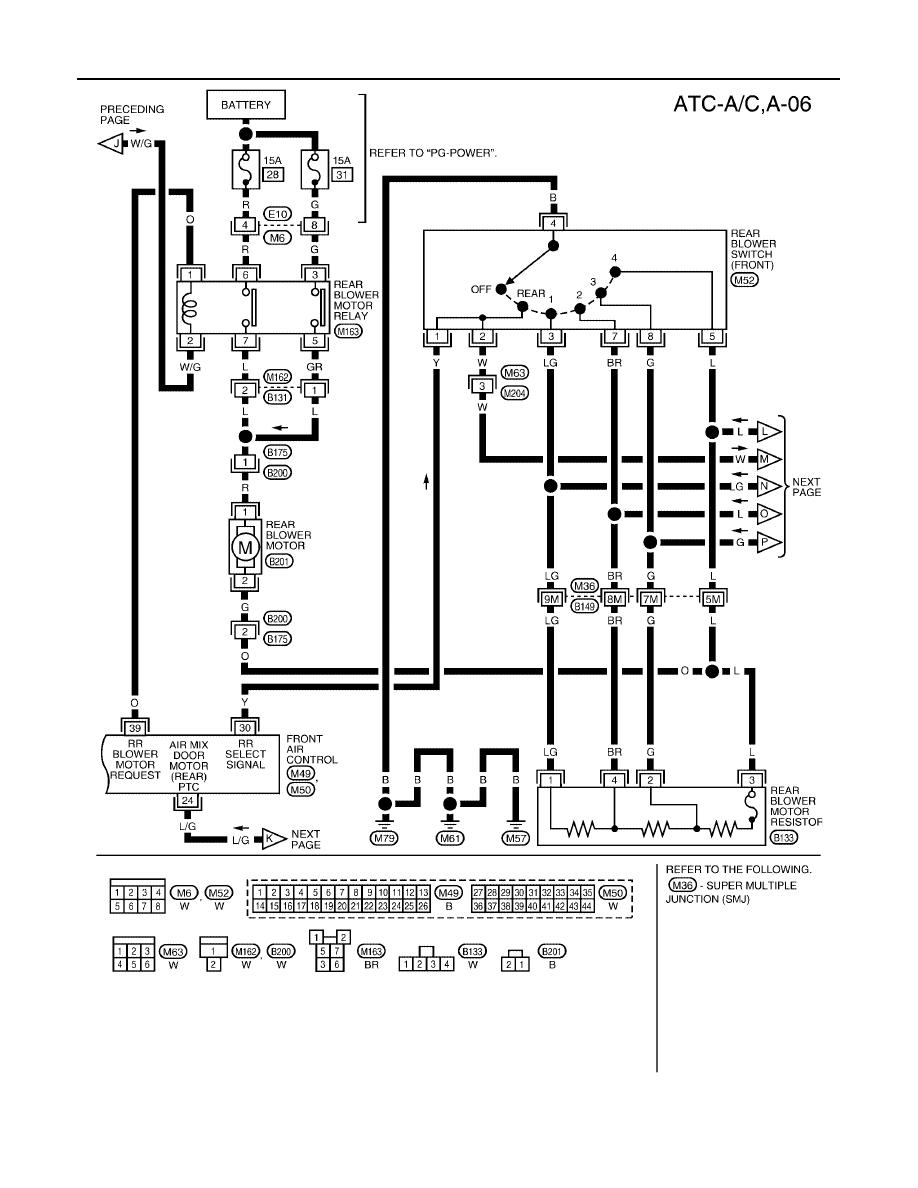

WJWA0393E

ATC-46

TROUBLE DIAGNOSIS

2006 Pathfinder

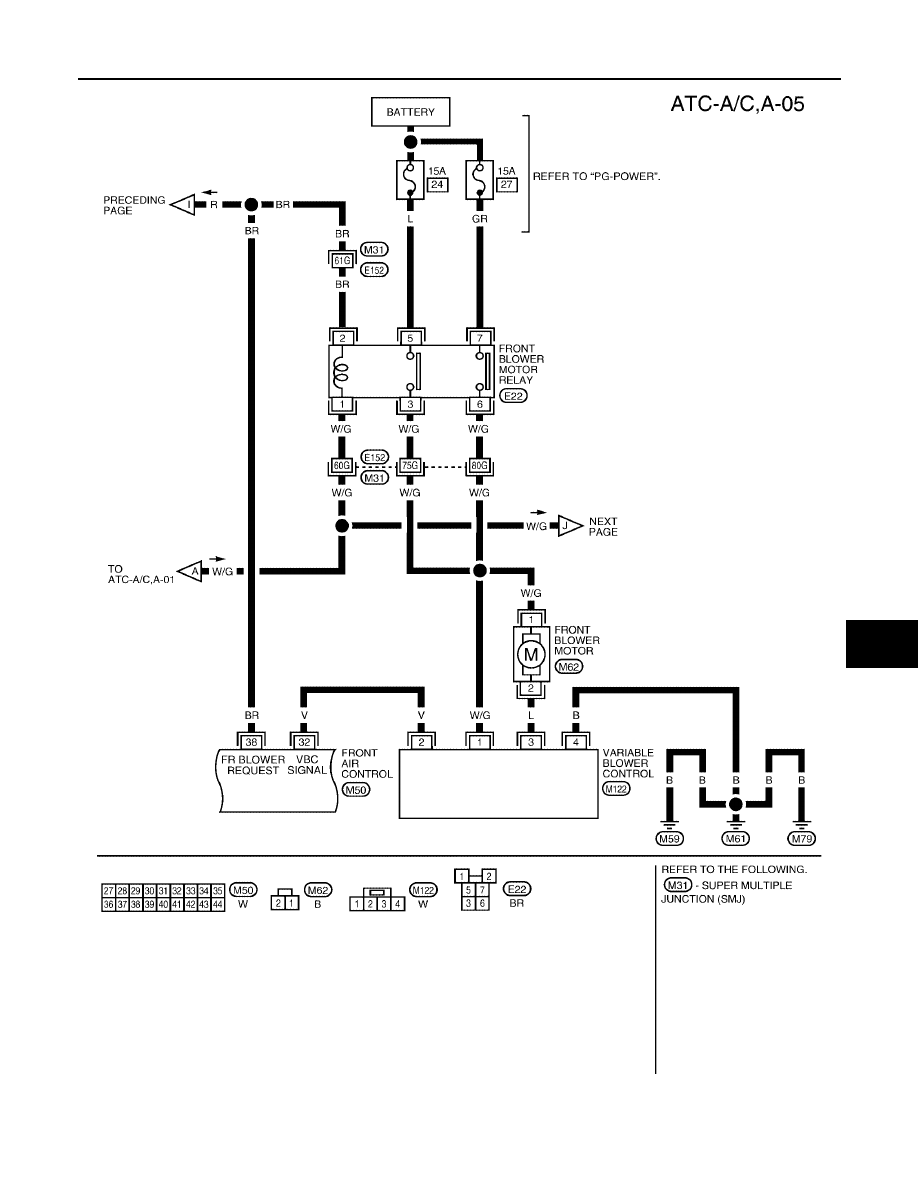

WJWA0394E

TROUBLE DIAGNOSIS

ATC-47

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

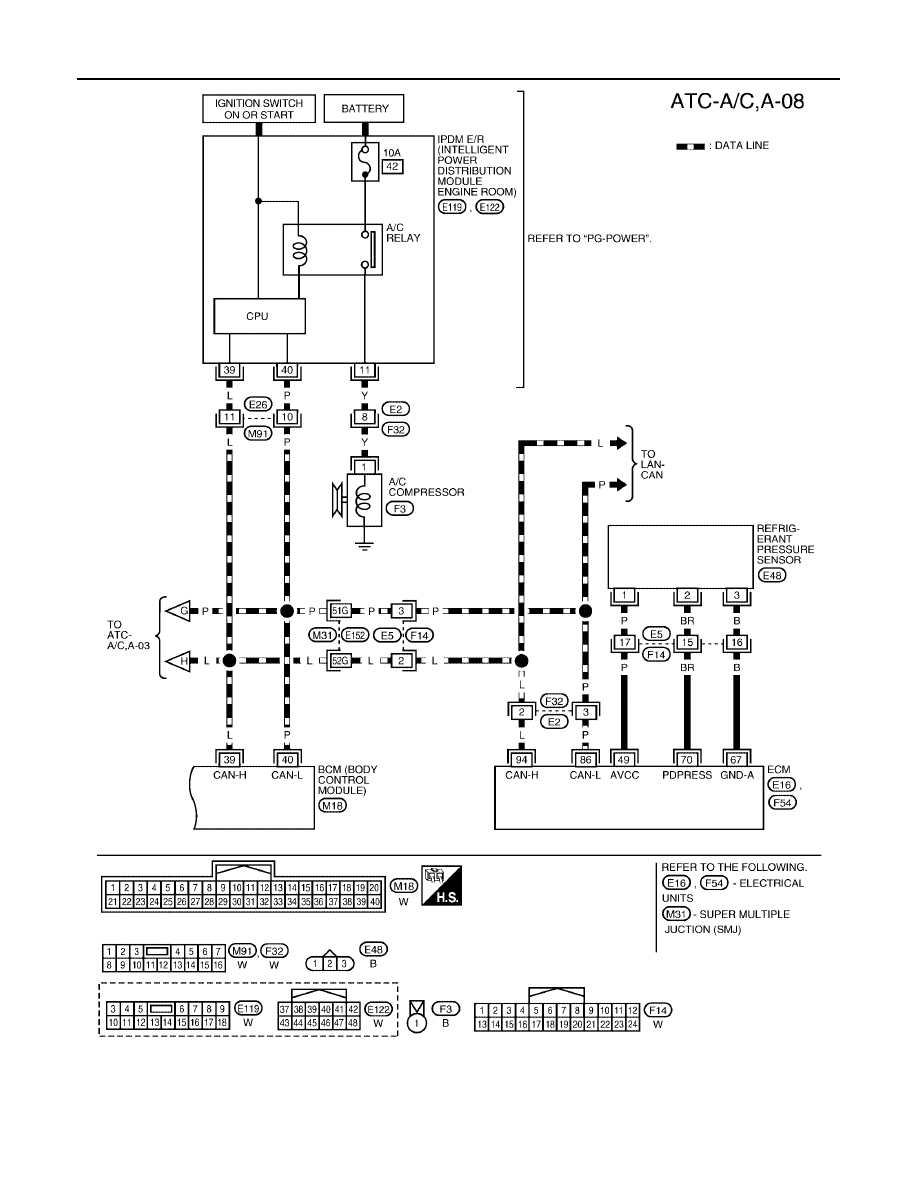

WJWA0194E

ATC-48

TROUBLE DIAGNOSIS

2006 Pathfinder

WJWA0395E
