WARNING FUNCTION

DLK-55

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

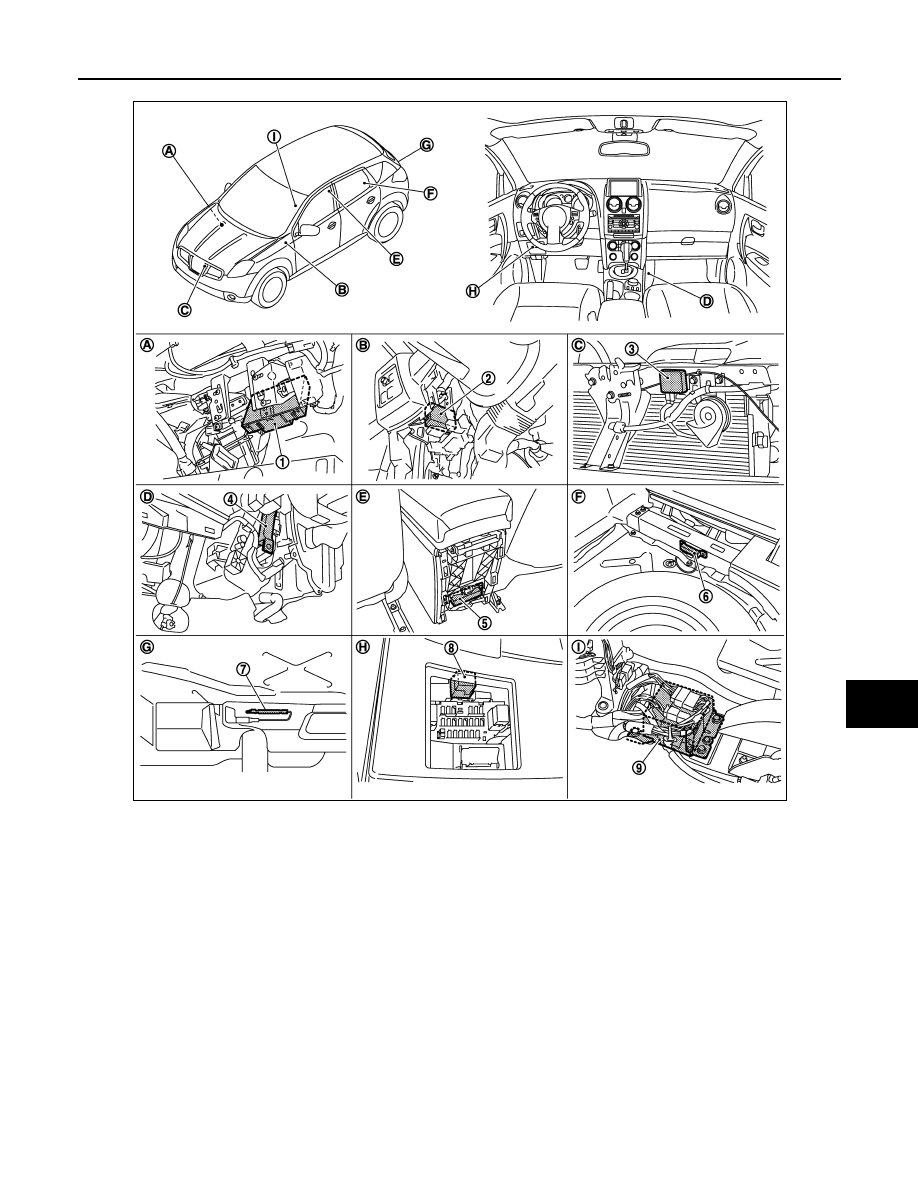

JMKIA0485ZZ

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel
(driver side)

C. View with front bumper removed

D.

View with lower instrument cover
removed

E.

View with center console rear finisher
removed

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed

DLK-56

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

WARNING FUNCTION

Component Description

INFOID:0000000001078632

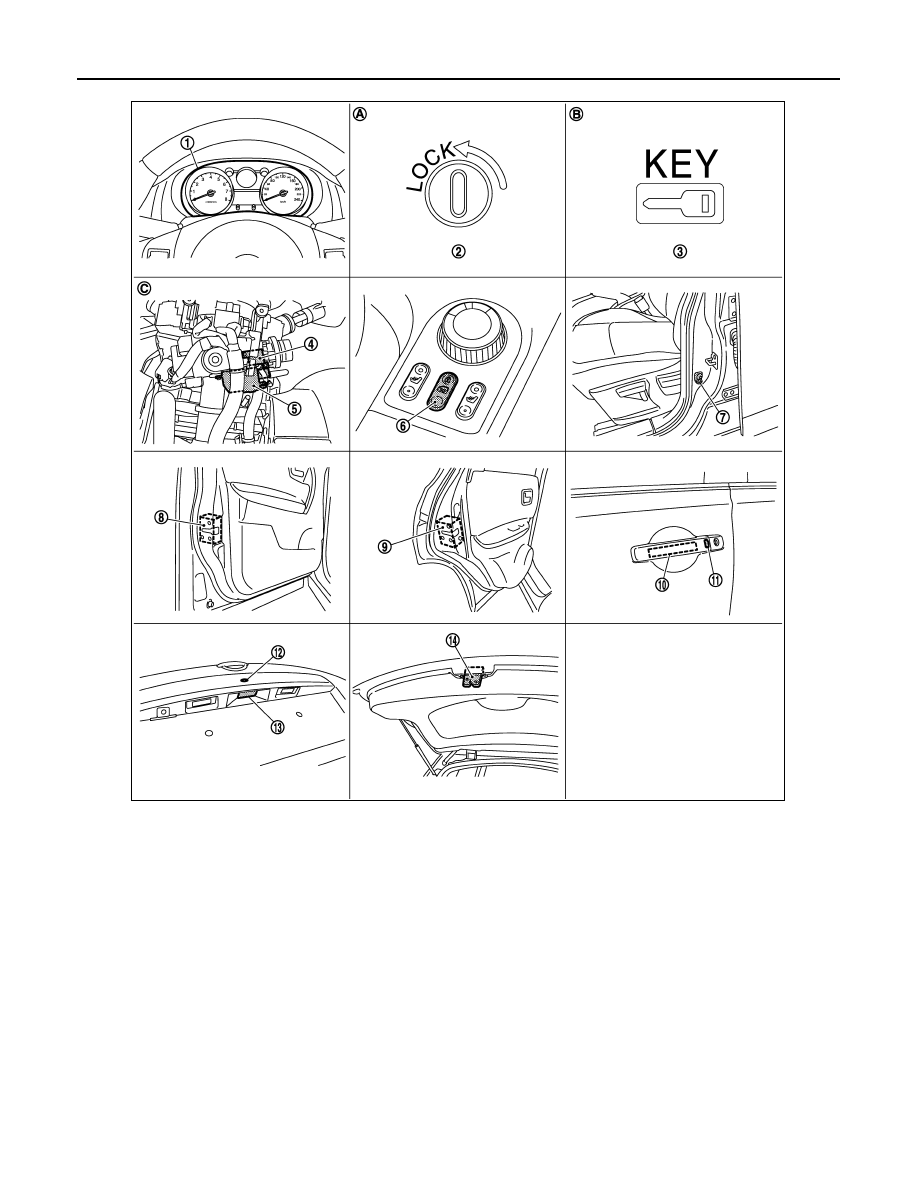

1.

Combination meter
M34

2.

Lock warning lamp
M34

3.

Key warning lamp
M34

4.

Ignition knob switch, key switch and key
lock solenoid (key switch)
M25

5.

Ignition knob switch, key switch and key
lock solenoid (key lock solenoid)
M25

6.

Door lock and unlock switch
M89

7.

Front door switch (driver side)
B34

8.

Front door lock actuator (driver side)
D9

9.

Rear door lock actuator LH
D85

10. Front door request switch (driver side)

D10

11. Outside key antenna (driver side)

D11

12. Back door request switch

D187

13. Back door opener switch

D186

14. Back door lock assembly

D152

A.

Inside the combination meter

B.

Inside the combination meter

C.

View with steering column cover
removed

JMKIA0486ZZ

WARNING FUNCTION

DLK-57

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Item

Function

BCM

Controls the warning function with Intelligent Key unit.

Intelligent Key unit

Controls the warning function with BCM.

Key switch

Detects that mechanical key is inserted into ignition key cylinder.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM.

Intelligent Key unit

Requests to turn ON hazard warning lamp to BCM and turn signal indicator to
combination meter.

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request from Intelligent Key unit.

Back door opener switch

Transmits back door open signal to BCM

DLK-58

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

HAZARD AND BUZZER REMINDER FUNCTION

HAZARD AND BUZZER REMINDER FUNCTION

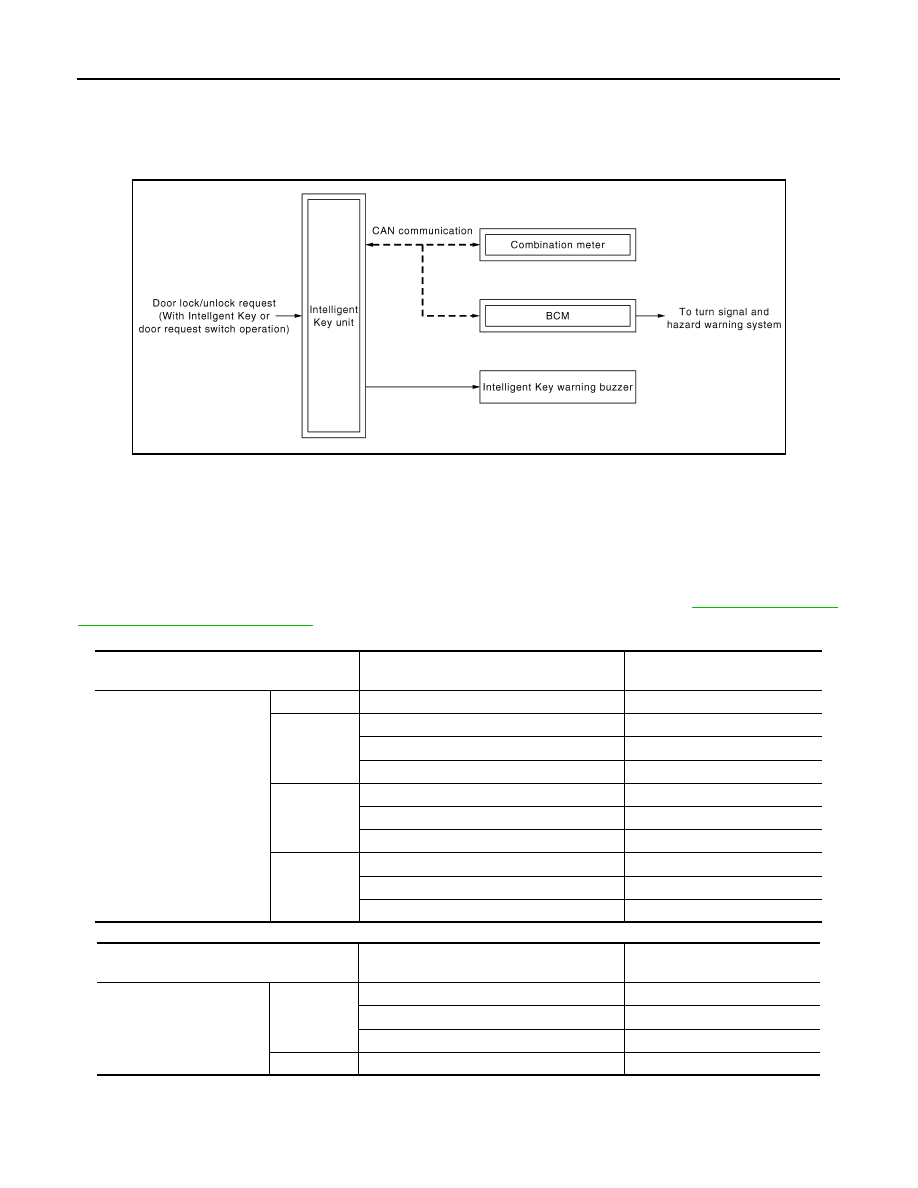

System Diagram

INFOID:0000000001078875

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000001078876

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer
and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps
as a reminder.
NOTE:
Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-65, "CONSULT-

III Function (INTELLIGENT KEY)"

.

Hazard Operation

Buzzer Operation

JMKIA0506GB

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Hazard warning lamp flash

HAZARD ANSWER BACK

OFF

Any

—

LOCK ONLY

Lock

Once

Unlock

—

Unlock (Anti-hijack)

—

UNLK ONLY

Lock

—

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

LOCK/UNLK

Lock

Once

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

Buzzer reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Buzzer warning sounds

ANSWER BACK WITH
I-KEY
LOCK

BUZZER

Lock

Once

Unlock

Depends on other setting

Unlock (Anti-hijack)

Depends on other setting

OFF

Any

—
