COMPRESSOR CONTROL FUNCTION

FUNCTION DIAGNOSIS

COMPRESSOR CONTROL FUNCTION

Description

INFOID:0000000001069928

PRINCIPLE OF OPERATION

Compressor is not activated.

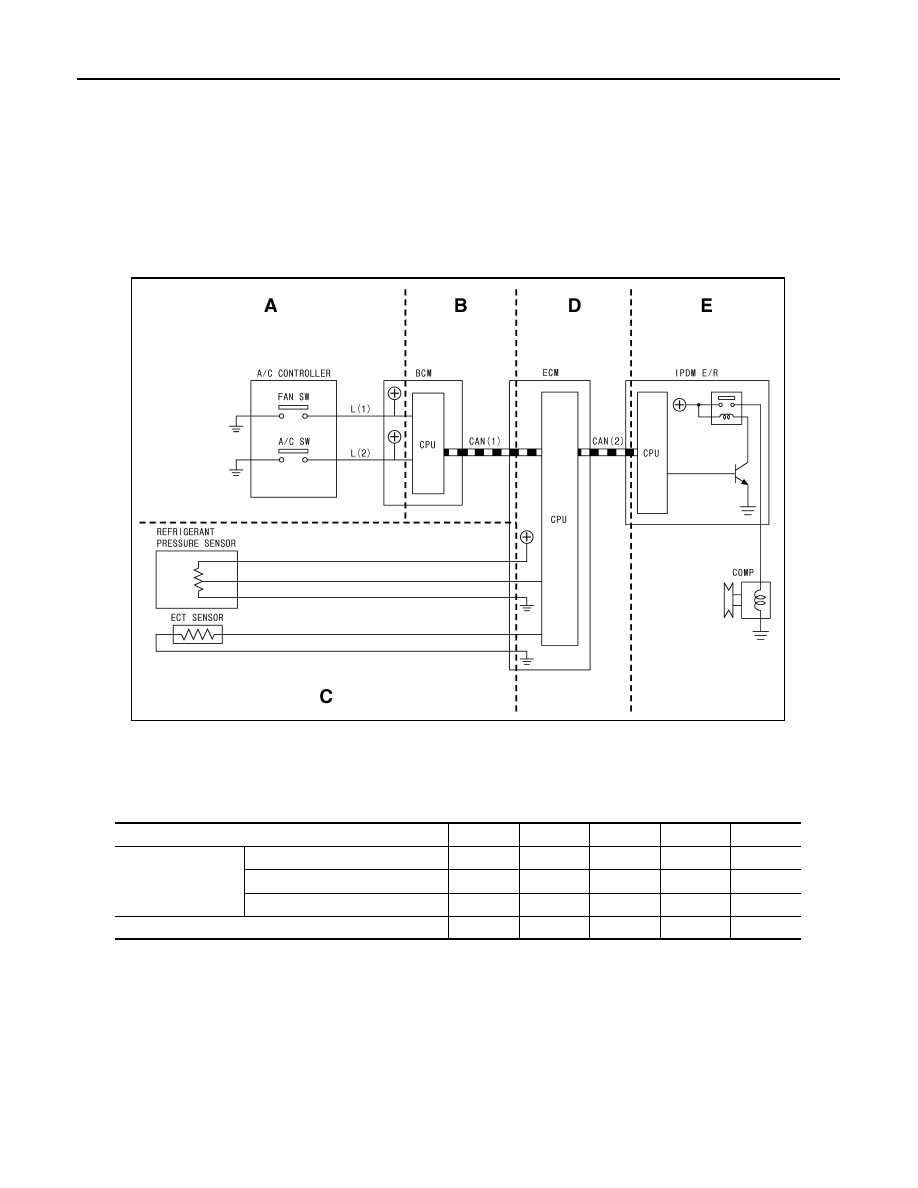

Functional circuit diagram

Functional initial inspection chart

Component Part Location

INFOID:0000000001069930

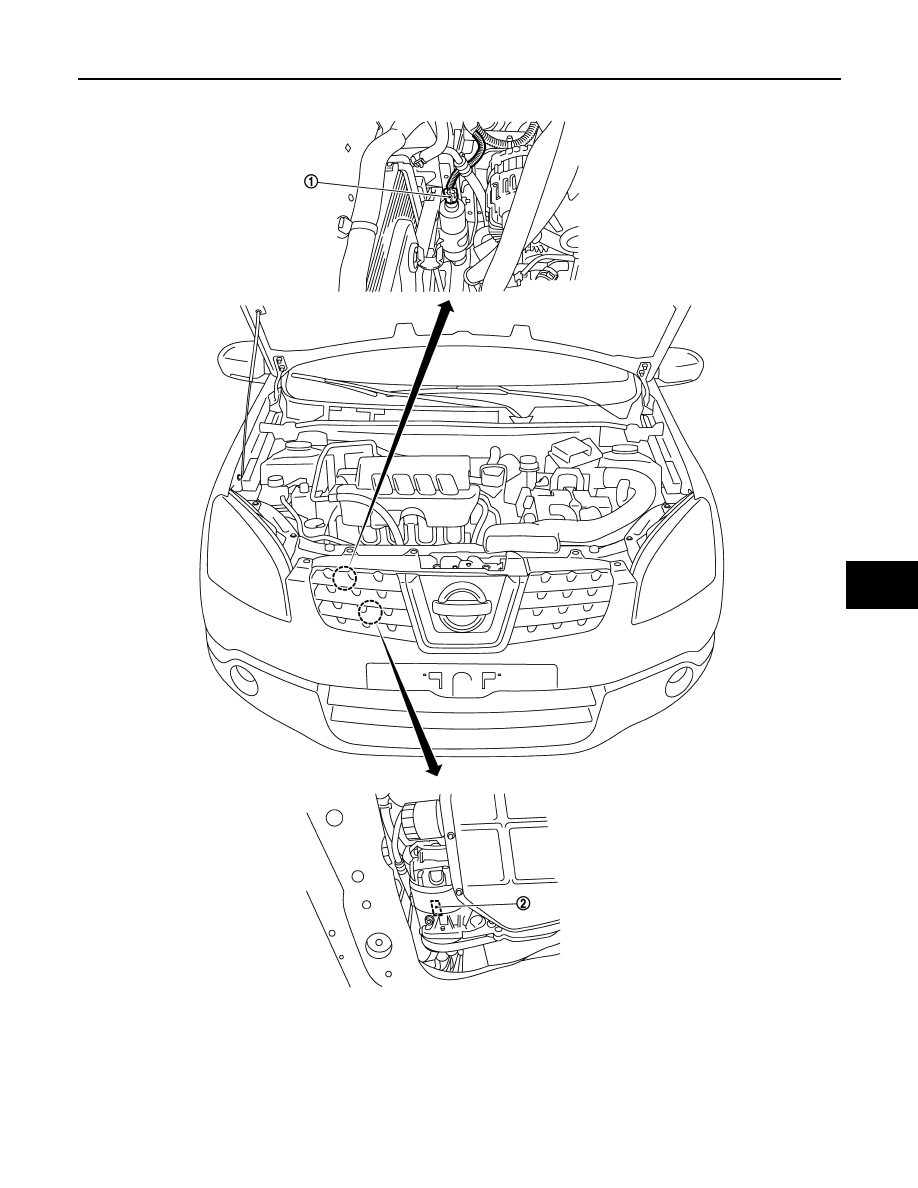

ENGINE COMPARTMENT

L (1)

: FAN ON SIG

CAN (1) : AIR COND SIG

L (2)

: AIR COND SW

CAN (2) : AC COMP REQ

JPIIA0178GB

Location

A

B

C

D

E

CONSULT-III

BCM DATA MONITOR

Yes

ECM DATA MONITOR

Yes

Yes

IPDM E/R DATA MONITOR

Yes

AUTO ACTIVE TEST

Yes

COMPRESSOR CONTROL FUNCTION

HAC-129

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

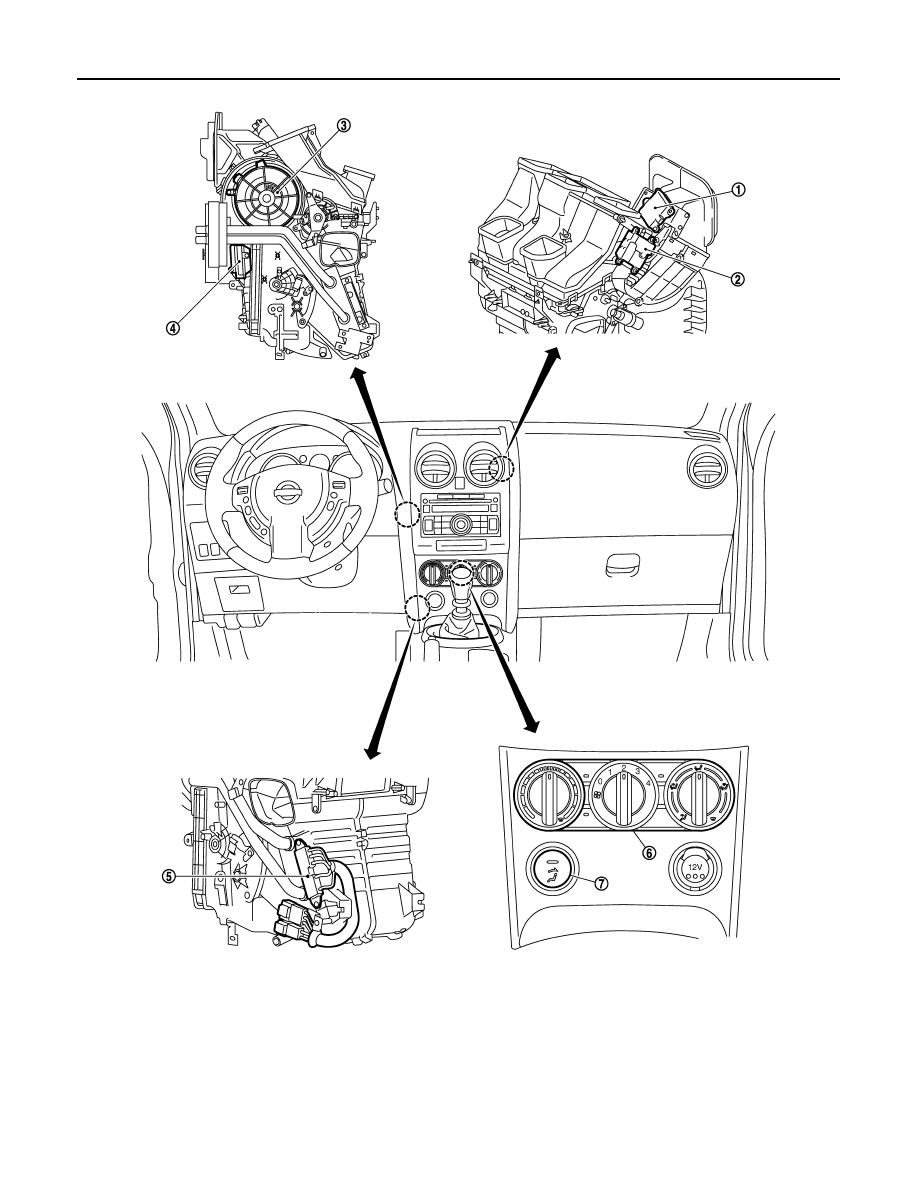

PASSENGER COMPARTMENT

LHD Models

1.

Refrigerant pressure sensor

2.

Compressor

JPIIA0169ZZ

HAC-130

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

COMPRESSOR CONTROL FUNCTION

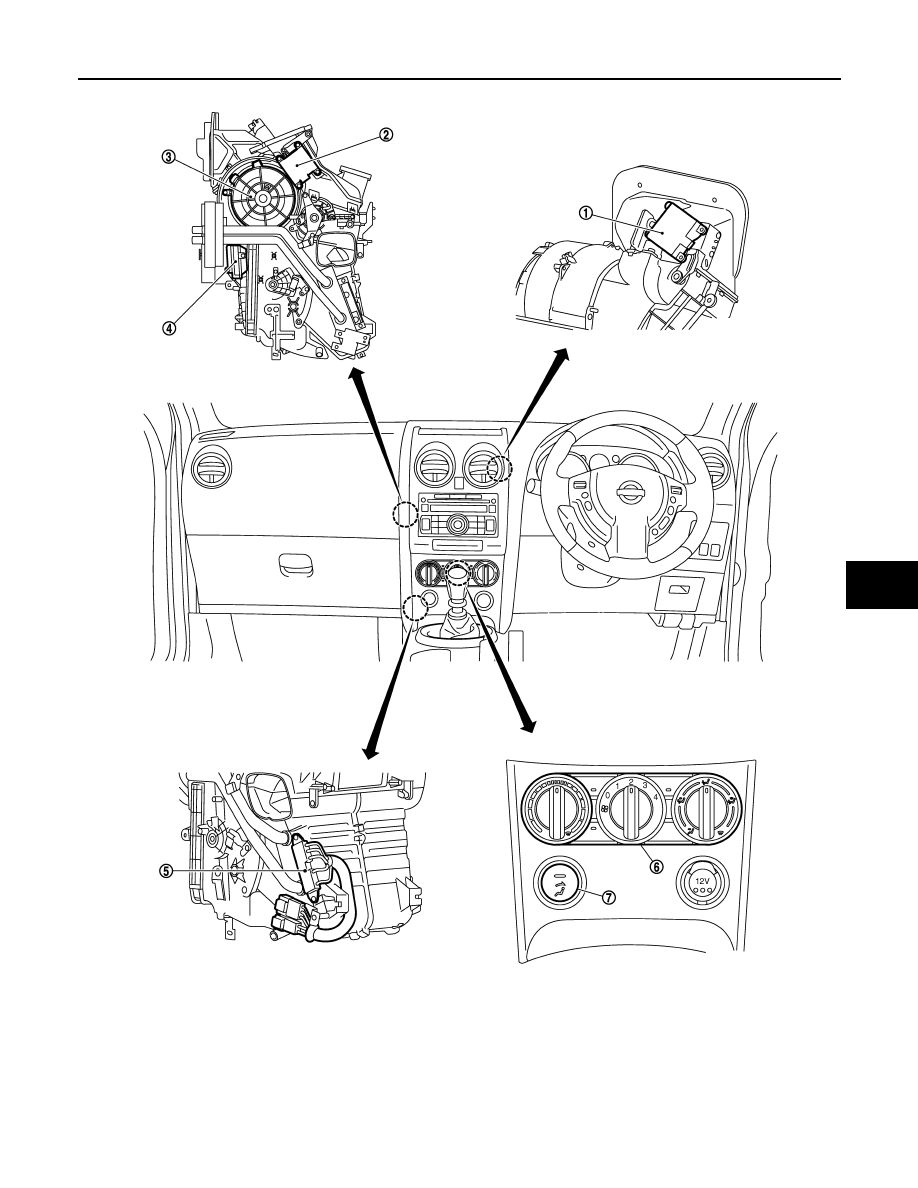

RHD Models

1.

Intake door motor

2.

High-level ventilator door motor

3.

Blower motor

4.

Blower fan resistor

5.

PTC heater

6.

Heater control panel

7.

High-level ventilator switch

JPIIA0171ZZ

COMPRESSOR CONTROL FUNCTION

HAC-131

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component’s role

INFOID:0000000001069931

1.

Intake door motor

2.

High-level ventilator door motor

3.

Blower motor

4.

Blower fan resistor

5.

PTC heater

6.

Heater control panel

7.

High-level ventilator switch

JPIIA0172ZZ
